Fondata nel 1925,
Luxman è uno dei produttori audio giapponesi più rispettati ed era un nome da
non sottovalutare negli anni Settanta e Ottanta grazie a una serie di
amplificatori a valvole molto apprezzati, ancora molto richiesti dal mercato
dell'usato. Nel 1984 l'azienda è stata acquisita da Alps, che ha cercato di
commercializzare i prodotti Luxman con quelli di Alpine, una strategia che fallì
miseramente, provocando la perdita di distribuzione in America e in Europa.
Luxman, tuttavia, ha continuato a sviluppare elettronica innovativa per il
mercato giapponese, e nel 2007 ha acquisito nuovamente la rappresentanza
americana, ora attraverso On a Higher Note (l'importatore originale di Halcro).
 Founded
in 1925, Luxman is one of the most respected of all Japanese audio manufacturers
and was a name to be reckoned with in the seventies and eighties owing to a
series of very highly regarded tube amplifiers, still much in demand on the used
market. In 1984 the company was acquired by Alps, which tried to market Luxman
products with those of Alpine, a strategy that failed dismally, resulting in the
loss of distribution in America and Europe. Luxman, nevertheless, continued to
develop innovative electronics for the Japanese market, and in 2007 acquired
American representation once again, now through On a Higher Note (the original
importer of Halcro).


.gif)

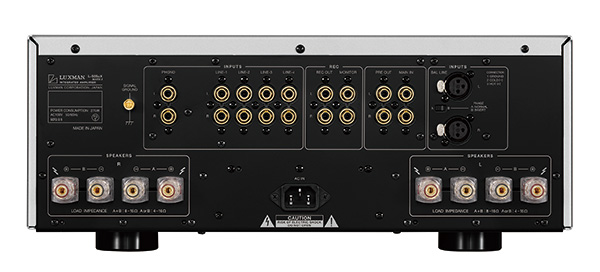

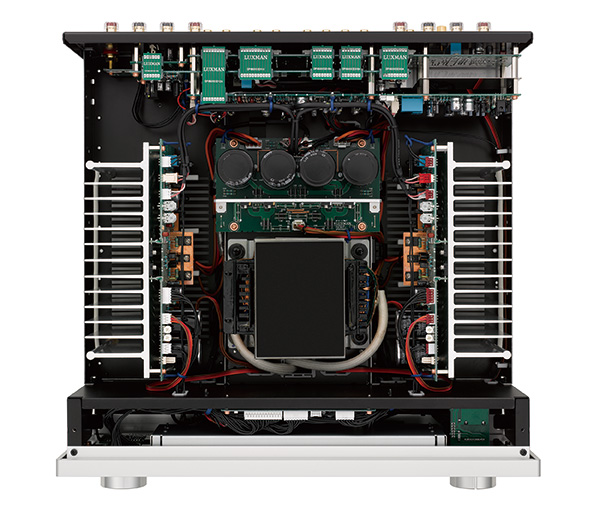

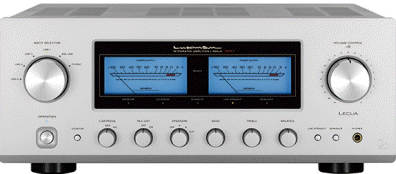

LUXMAN L-505
UXII
Listino ufficiale
€. 5.390,00
Amplificatore integrato stereo Hi-End, potenza
100W x 2 su 8 ohm, circuitazione ODNF 4.0, controllo volume LECUA, 4 ingressi
RCA 1 ingresso bilanciato XLR, 1 ingresso phono MM / MC, ingresso main in,
uscita pre out, rapporto S/R > 104dB, risposta in frequenza 20Hz-100kHz (+0,
-3.0dB), dimensioni (WxHxD) 440x178 x454mm, Peso 22,5 kg. Finitura Silver
INTEGRATED
AMPLIFIERS L-505uXII The attraction of the L-505uXII is its new level of
refinement, approaching perfection as an authentically desirable product The
L-505uXII is the eagerly awaited Mark II version of the popular L-505uX that has
been at the forefront of pre-amplifier design since it's launch in 2011.
Incorporating an abundance of proprietary technologies, such as Luxman's Version
4.0 ODNF (Only Distortion Negative Feedback), as well as LECUA (Luxman
Electronically Controlled Ultimate Attenuator), this product is a truly
multifunctional integrated amplifier. As Luxman's latest high-end model, the
L-505uXII continues the evolution of the L-505 series, which has attracted many
fans of audio quality and earned a great reputation. As an amplifier which
exudes sophistication and authenticity beyond its class, the L-505uXII
represents the latest in a long line of exemplary models. ODNF* Version 4.0 -
Innovative amplification feedback circuit mAn integral part of the design of the
L-505uXII is LUXMAN's original ODNF amplification feedback circuit featuring a
high-speed primary slew rate, an ultra-wide bandwidth and a low level of
distortion that is achieved by feeding back only the distorted components of the
audio from the amplifier's output circuit. The L-505uXII is equipped with the
latest Version 4.0 ODNF circuit, resulting in a dramatically enhanced accuracy
in distortion detection due to the paralleled first stage and Darlington
equipped second stage amplification circuit, as well as a paralleled first stage
error detection circuit. With it's lower impedance and higher S/N ratio, the
L-505uXII realizes accurate reproduction of even the gentlest audio signals and
achieves a full range of dynamic musical expression. The output stage, with it's
parallel push-pull structure, has secured sufficient power at 100W+100W(8Ω) and
150W+150W(4Ω).
.gif)

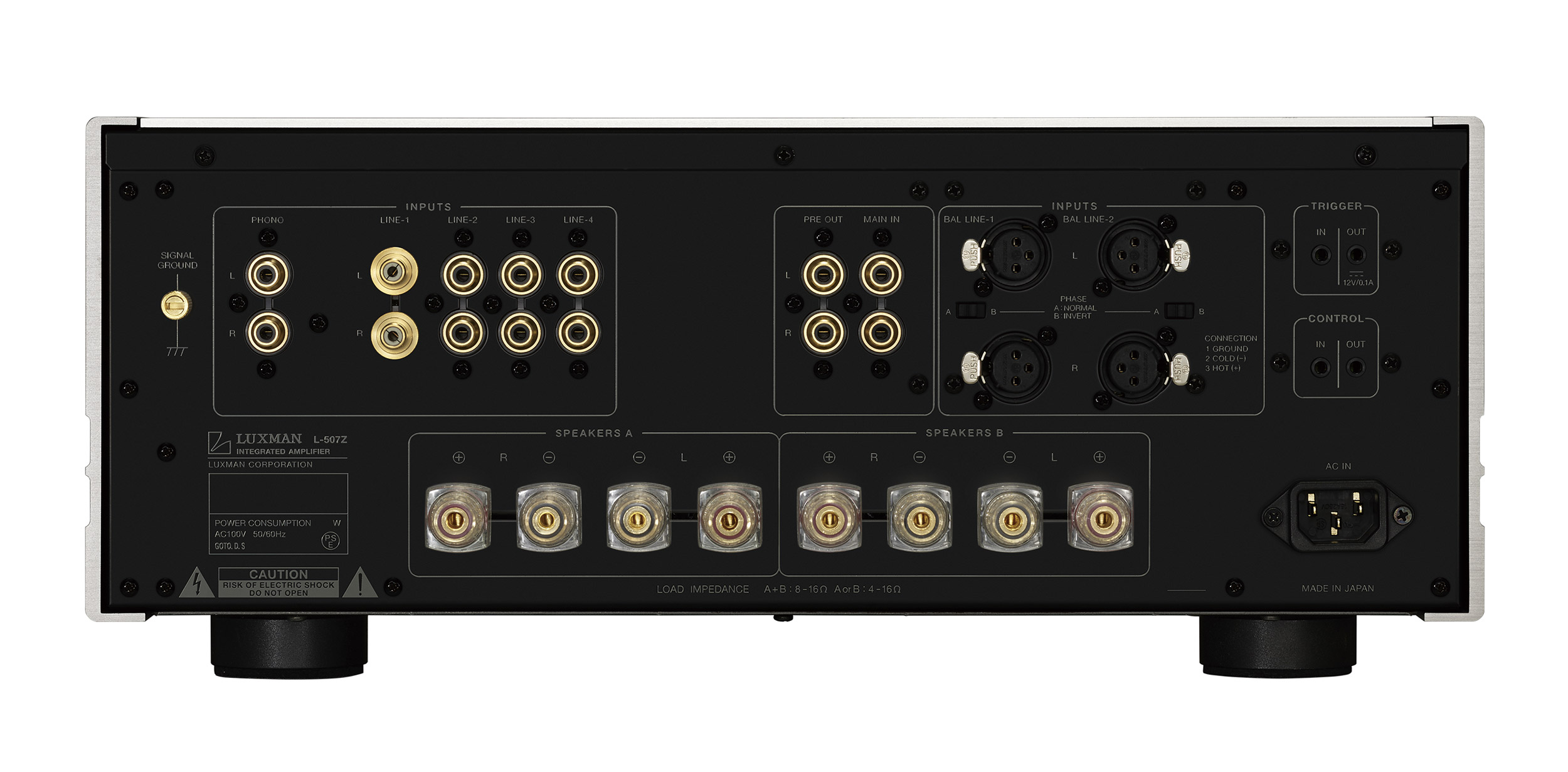

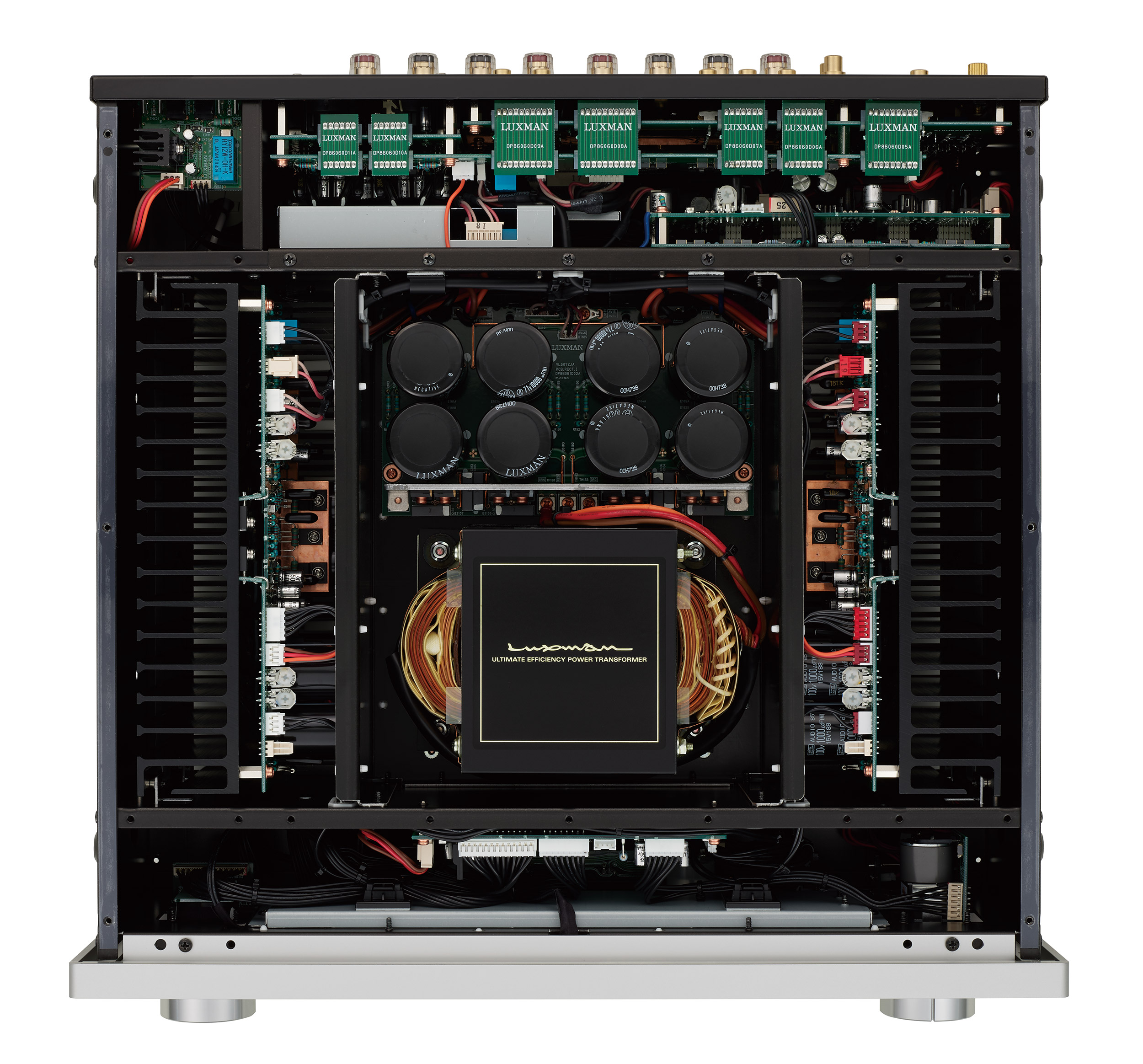

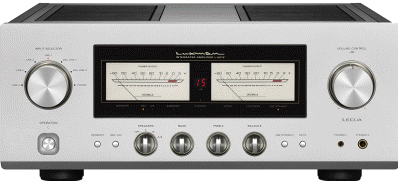

LUXMAN L-507Z
Listino ufficiale
€. 9.690,00
Amplificatore
integrato stereo Hi-End, potenza 110W x 2 su 8 ohm, nuovo circuito LIFES,
controllo volume LECUA 1000, 4 ingressi RCA 2 ingressi bilanciati XLR, 1
ingresso phono MM / MC, ingresso main in, uscita pre out, rapporto S/R > 105dB,
risposta in frequenza 20Hz-100kHz (+0, -3.0dB), dimensioni (WxHxD)
440x178x454mm, Peso 25,4 kg. Finitura Silver
INTEGRATED
AMPLIFIERS L-507Z The integration of sophistication and technical evolution.
Introducing our innovative Z series. Luxman’s new generation Z series integrated
amplifiers. The L-507Z is the debut model heralding our new generation of
amplifier products. Featuring our newly developed LIFES amplification feedback
engine, we look towards the future of Luxman. This amplifier has realized a
dramatic development in musicality that goes far beyond its class. L-507Z
combines advanced technology and sophisticated functionality. Our new,
innovative Z series integrated amplifier generation begins with this superb
model.l. Our latest amplification
feedback engine brings music to life with LIFES Version 1.0
Luxman will celebrate our 100th anniversary in 2025 and we are proud to announce
the successor to our ODNF* feedback circuitry, which has contributed to the
audio quality of our amplifier products since 1999. We have developed a new
amplifier feedback circuit, LIFES*, which has acquired realistic, fresh and rich
musicality and overwhelming audio performance. LIFES is based on the technical
concept of our epoch-making ODNF circuit and realizes excellent, dynamic
characteristics without feeding back any of the original audio input signal to
the main amplifier, achieving a remarkably natural sound quality, almost if it
were a non-feedback equipped circuit. The design has been conceived and expanded
upon from first principles using simulation technology and painstaking research.
By repeatedly auditioning, rigorously scrutinizing and combining specially
selected components, we have achieved supreme performance characteristics and a
level of quality suitable for use in Luxman’s next-generation products. In
producing LIFES Version 1.0, by carefully reimagining the entire circuit, we
succeeded in reducing the number of paralleled elements while improving
performance. The distortion in the amplification stage has been reduced to less
than half of our previous system. The output stage features a 3-stage Darlington
triple-paralleled push-pull configuration and achieves a class AB power output
of 110W+110W (8Ω) and 210W+210W (4Ω). The high output power, comparable to that
of a separate power amplifier, effortlessly realizes a natural soundstage, full
of energy, to confidently drive any compatible speaker system, and bring out the
best of its characteristics.eedle-type analog VU meters are a symbolic design
statement of Luxman’s solid state integrated amplifiers. The L-507Z is equipped
with a large dual meter with bright LED back-lighting and high response
characteristics. We have adopted such a display so the movement of the needles
synchronizes with the dynamics of your music. In addition, newly included
7-segment LEDs display the attenuation level in between the left and right level
meters so that the current attenuation amount can be easily seen from the
listening position. The level meter back-lighting and LED display can be turned
on and off using the remote control.Spec
Rated output 110W+110W（8Ω） 220W+220W（4Ω） Input
sensitivity/ input impedance PHONO（MM）: 2.5mV / 47kΩ PHONO（MC ）： 0.3mV / 100Ω
LINE: 180mV / 47kΩ BAL.LINE: 180mV / 79kΩ MAIN IN: 1.05V / 47kΩ Output voltage
PRE OUT: 1V Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to
100kHz (within -3dB) Total harmonic distortion 0.007% or less (8Ω, 1kHz) 0.03%
or less (8Ω, 20Hz to 20kHz) S/N ratio (IHF-A) PHONO (MM): 91dB or more PHONO (MC):
75dB or more LINE: 105dB or more Volume adjustment New LECUA1000 Amplification
feedback circuit LIFES 1.0 Output configuration Bipolar 3-parallel push-pull
Damping factor 300 Max. amount of tone control BASS: ±8dB at 100Hz TREBLE: ±8dB
at 10kHz Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 350W 886W
(under no signal), 0.4W (at standby) External dimensions 440(W) x 178(H) x
454(D) mm front side knob of 20mm and rear side terminal of 27mm included in

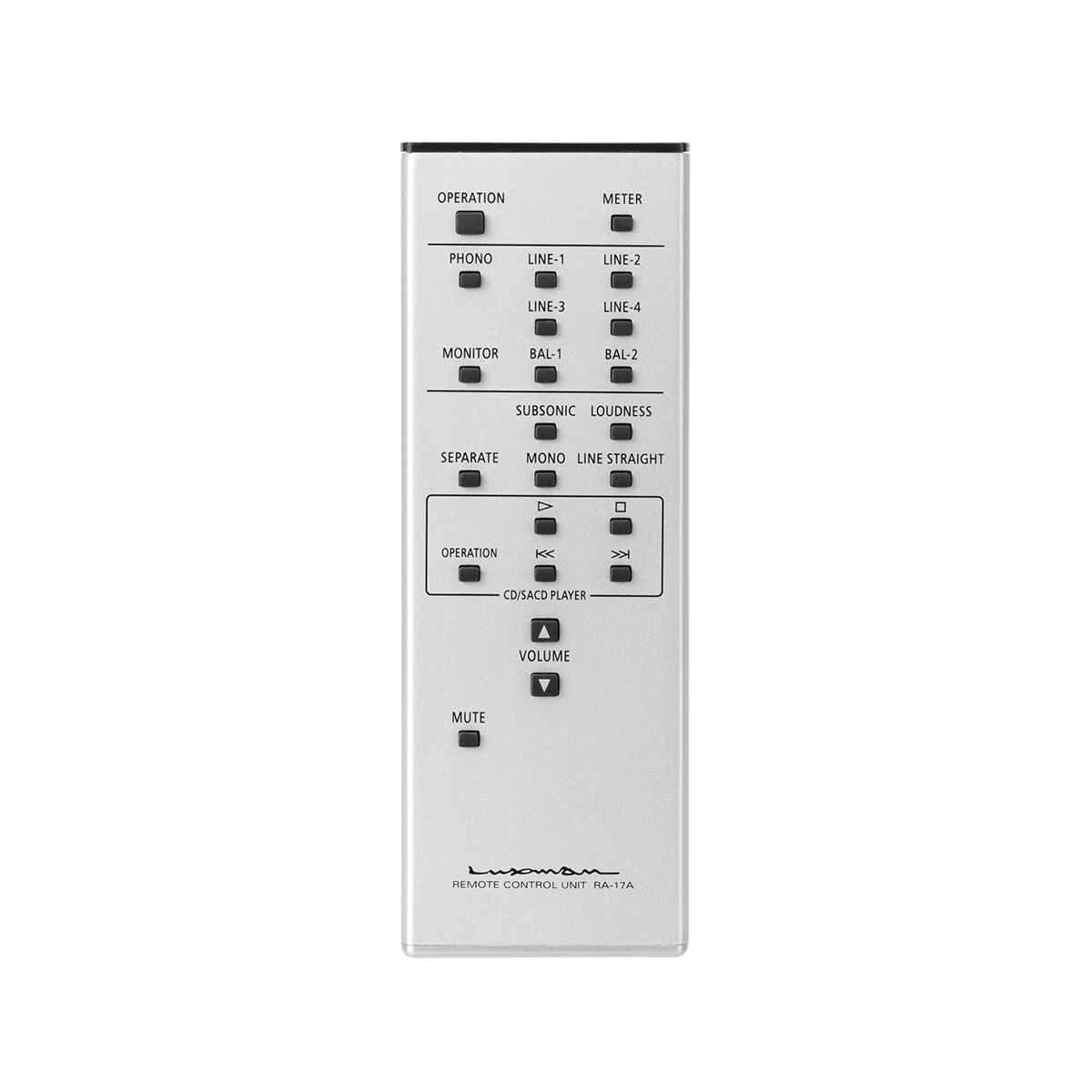

depth Net weight 25.4kg (main unit) Accessories Remote control (RA-17A) Power
cable Speaker terminal Supported Y-lug terminal dimension Width of part a:
15mm or less Width of part b: 8mm or more * Connection may not be performed
depending on the shape of the Y-lug terminal.
.gif)

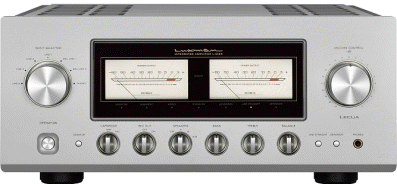

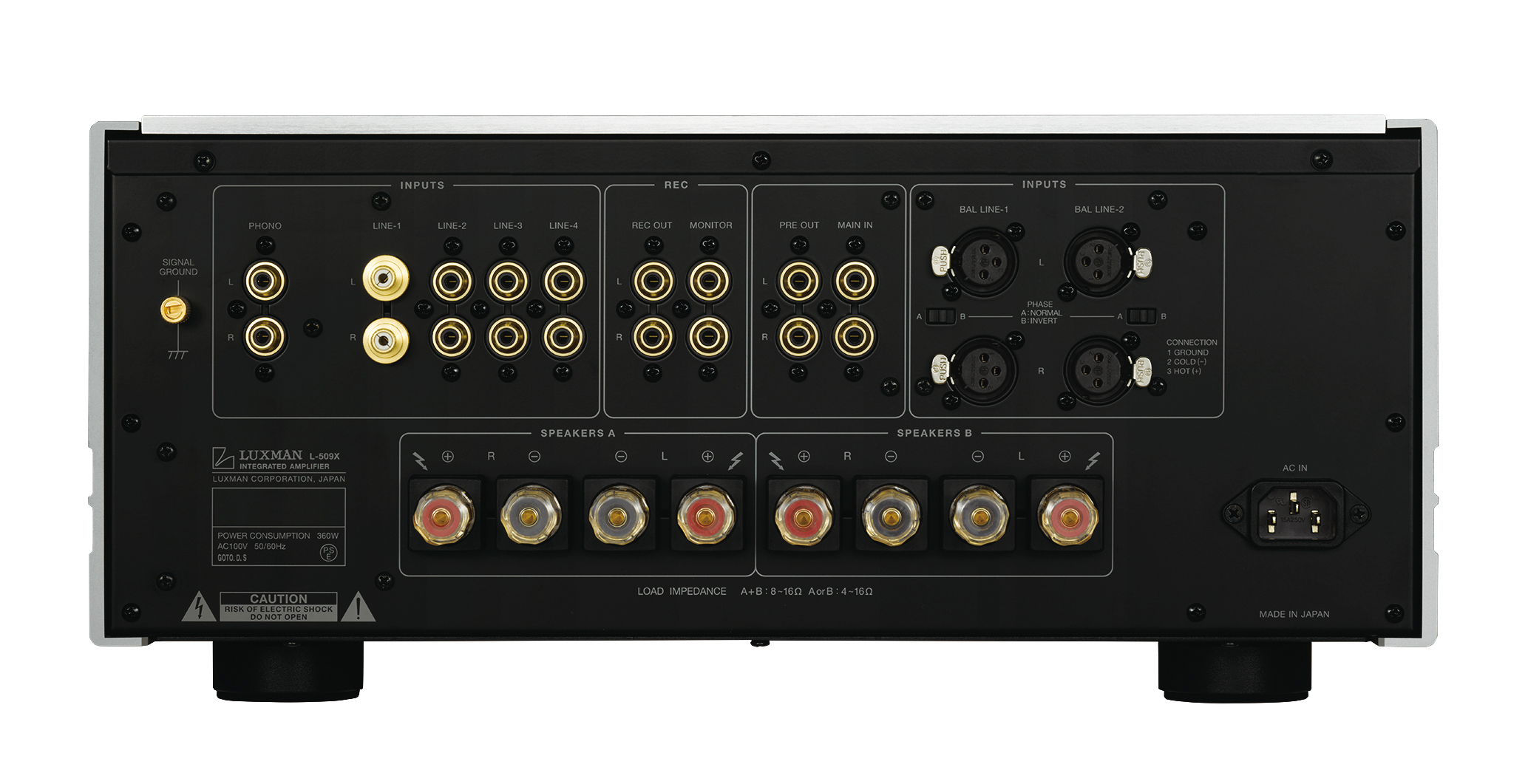

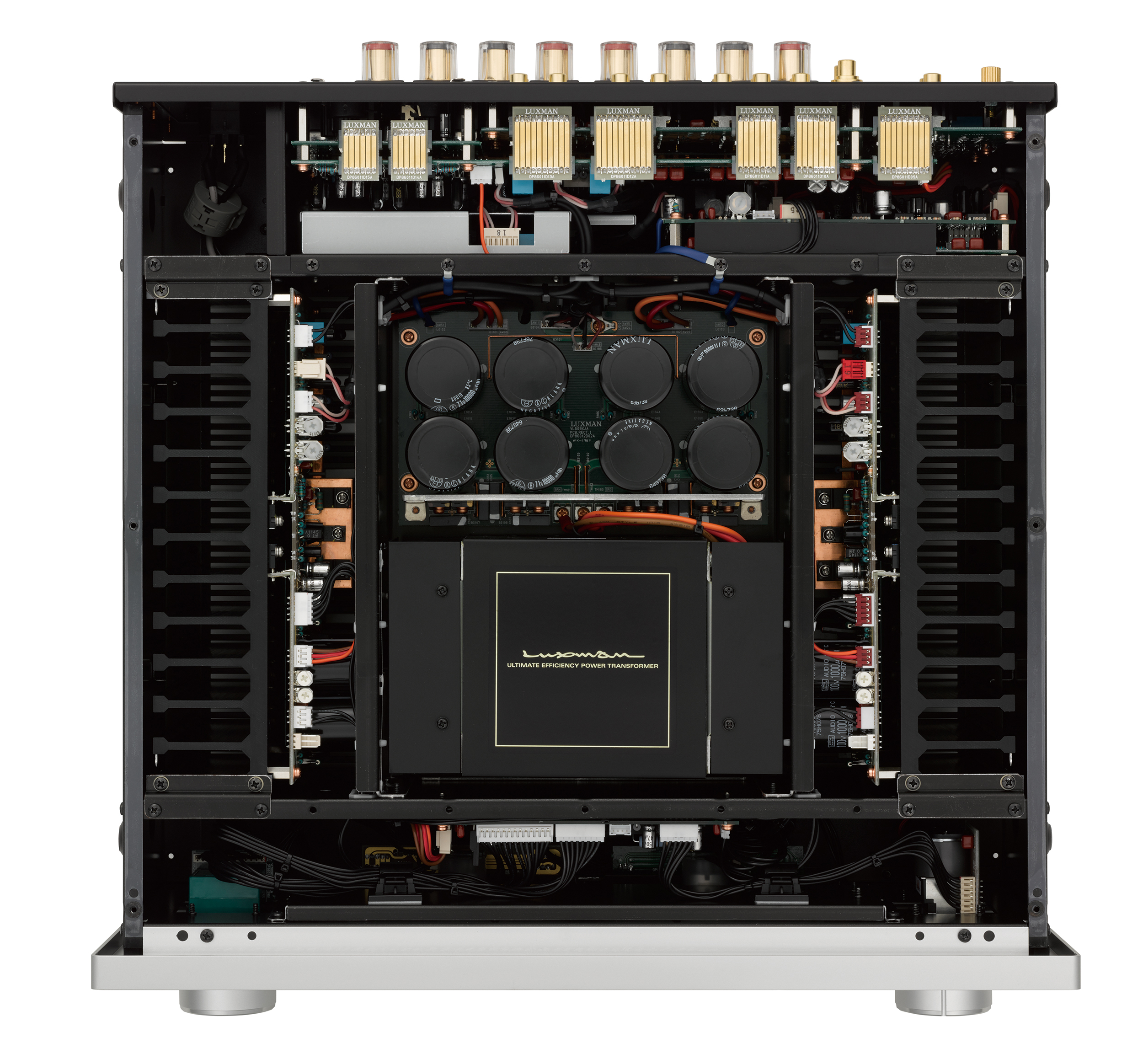

LUXMAN L-509
X
Listino ufficiale
€. 10.990,00
Amplificatore integrato stereo Hi-End, potenza
120W x 2 su 8 ohm, circuitazione ODNF 4.0, controllo volume LECUA 1000, 4
ingressi RCA 2 ingressi bilanciati XLR, 1 ingresso phono MM / MC, ingresso main
in, uscita pre out, rapporto S/R > 105dB, risposta in frequenza 20Hz-100kHz (+0,
-3.0dB), dimensioni (WxHxD) 440x193x463mm, Peso 29,3 kg. Finitura Silver

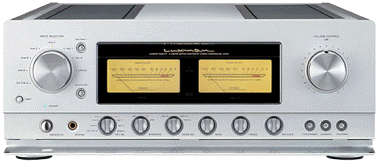

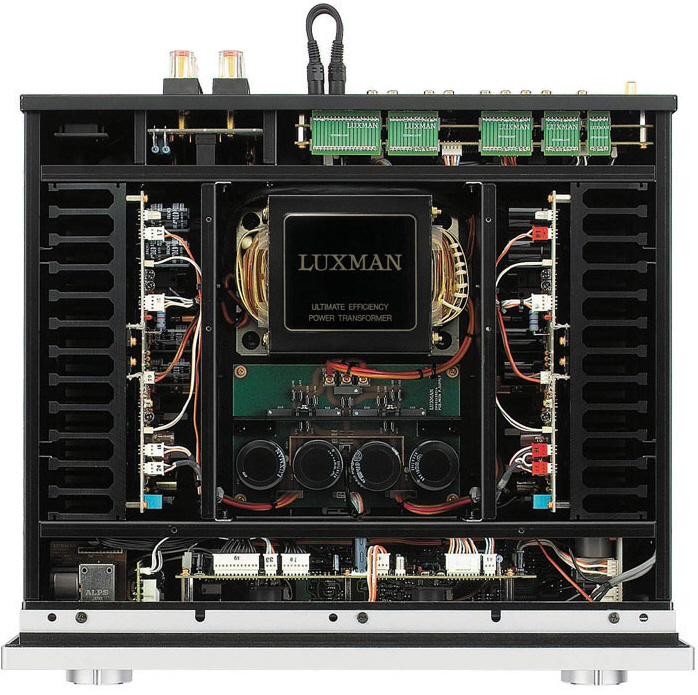

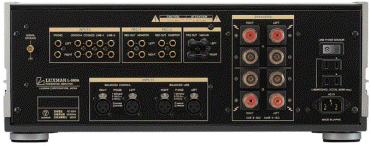

INTEGRATED AMPLIFIERS L-590AXII
Bringing an evolved and expressive Class A sound to the peak of integrated
amplifier LUXMAN has been at the forefront of integrated amplifier design since
releasing the first Japanease integrated amplifier, the SQ5A, in 1961.For over
50 years, LUXMAN has been confronting the challenges of balancing performance,
function and design in an integrated amplifier body. These years of research and
experience have resulted in the L-590AXII, the ultimate complete integrated
amplifier design.With unprecedented spatial expression - and a sense of density
particular to Class A design - outstanding realisation of tonal quality and
penetrating audio ability have been achieved in this Class A integrated
amplifier.The integrated L-590AXII introduces a combination of high grade
technologies found in LUXMAN separate amplifiers, such as the original
amplification feedback circuit ODNF4.0, LR independent block capacitors,
discrete configured buffer circuits and the newly developed LECUA 1000.The
L-590AXII is the peak of integrated amplifier design, amalgamating tried and
tested know how and state of the art technology.The L-590AXII is the debut
flagship model of integrated amplifier from LUXMAN to commemorate the 90th
anniversary of this ground-breaking company. Spec Rated output30W + 30W
(8Ω), 60W + 60W (4Ω) Input sensitivity/input impedance PHONO (MM):
2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN-IN:
550mV/47kΩ Output voltage RECOUT: 180mV, PRE OUT: 1V Frequency
response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (+0, ±3.0dB)
Total harmonic distortion 0.005% or less (8Ω, 1kHz) 0.02% or less (8Ω, 20Hz to
20kHz) S/N ratio (IHF-A) PHONO (MM): 91dB or more,PHONO (MC): 75dB
or more LINE: 107dB or more Volume adjustment New LECUA1000
Amplification circuit ODNF 4.0 Output configuration Bipolar
3-parallel push-pull Damping factor 320 Max. amount of tone
control BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz Power supply
230V~(50Hz) / 115V~(60Hz) Power consumption 330W 260W (under no
signal), 0.5W (at standby) External dimensions 440(W) x 193(H) x
463(D) mm front side knob of 20mm and rear side terminal of 37mm included in
depth Net weight 28.4kg (main unit) Accessories Remote
controller (RA-17A) Power cable Speaker terminal Supported Y-lug terminal
dimension Width of part a: 16mm or less Width of part b: 7mm or more *
Connection may not be performed depending on the shape of the Y-lug
terminal
.gif)

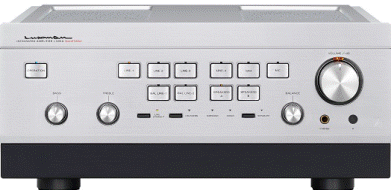

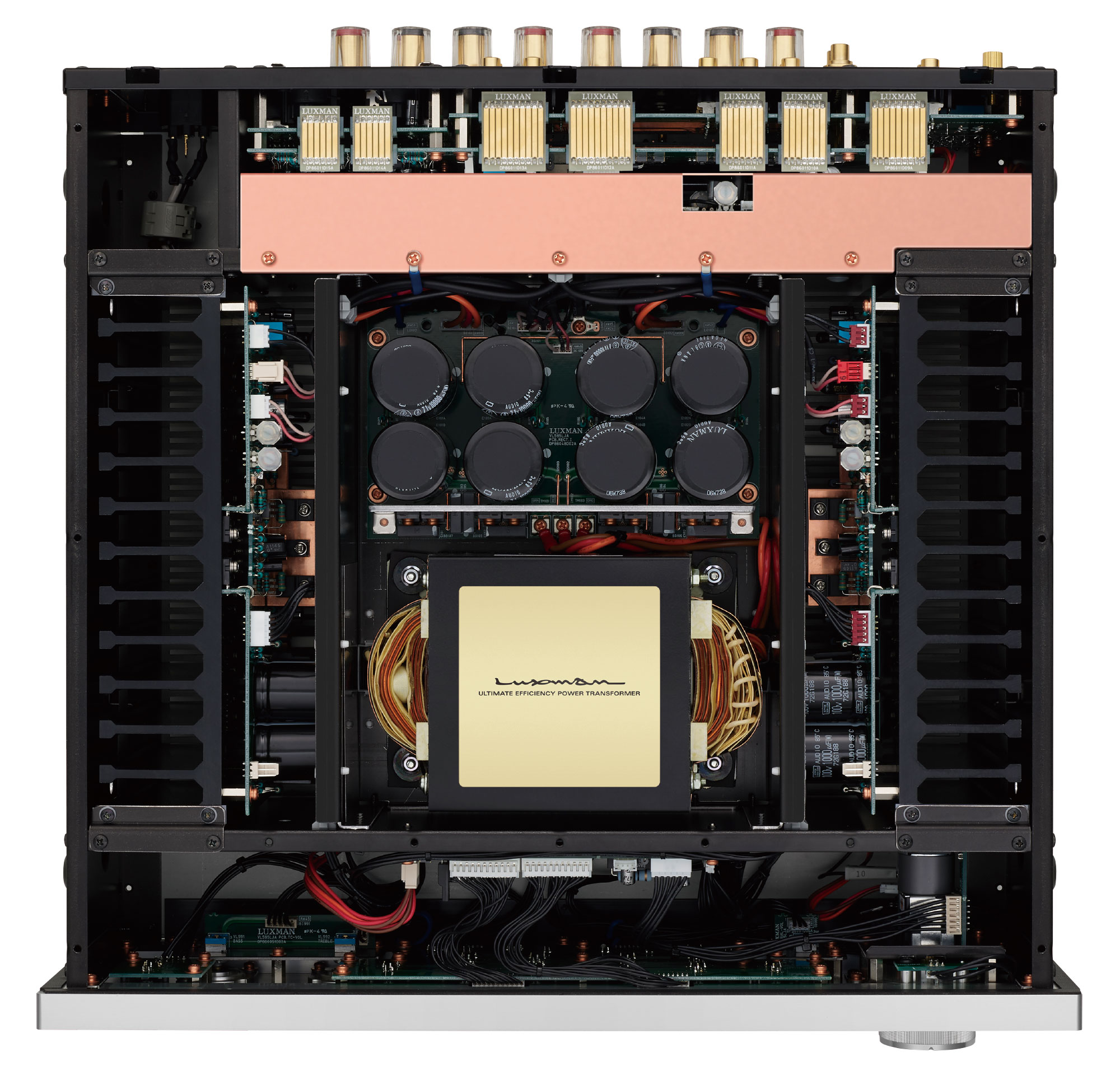

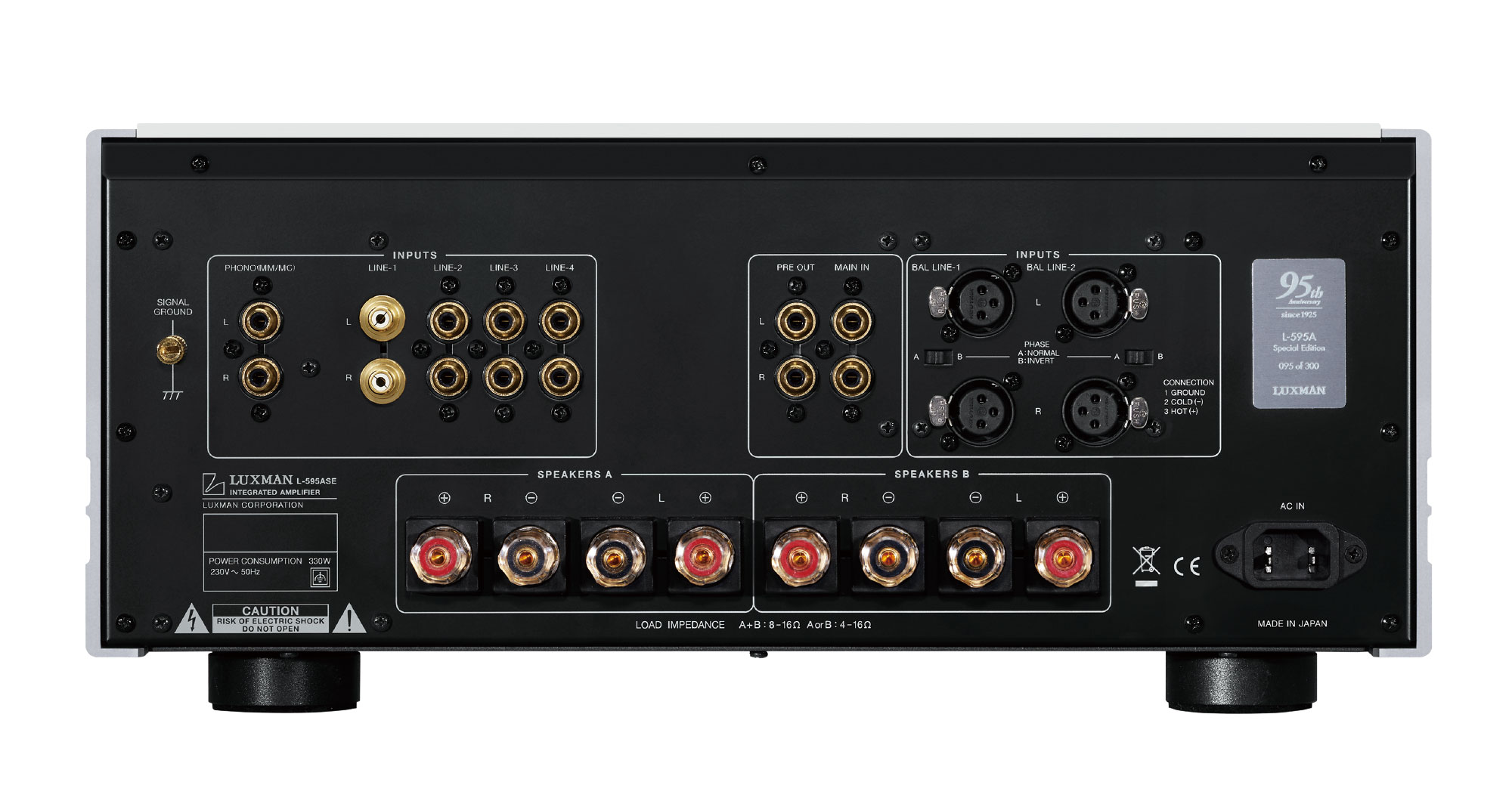

LUXMAN L-595 A
SE
Listino ufficiale
€. 12.990,00
Amplificatore integrato stereo Hi-End Limited
Edition in pura classe A, potenza 30W x 2 su 8 ohm, circuito ODNF 4.0, controllo
volume LECUA 1000, 4 ingressi RCA, 2 ingressi bilanciati XLR, 1 ingresso phono
MM / MC, ingresso main in, uscita pre out, rapporto S/R > 105dB, risposta in
frequenza 20Hz-100kHz (+0, -3.0dB), dimensioni (WxHxD) 440x193x463mm, Peso 29,3
kg. Finitura Silver
INTEGRATED AMPLIFIERS L-595ASE A model
beyond classic A gem of a stereo integrated amplifier for discerning audiophiles
LUXMAN is celebrating its 95th anniversary and among our many components that
have made names for themselves over the course of our history, our L-570 series
pure Class A integrated amplifiers have a reputation that fascinates audio
enthusiasts to this day. Our L-595A SPECIAL EDITION is a limited production
model that faithfully replicates the appearance, sound quality and image after
30 years. It is outstanding among modern audio components, while retaining
simple operability and featuring beautiful exterior details, such as aluminum
direct selection switchgear with indicators, the volume level indicator light
and a bold counterbore around the calibrated volume knob. The front panel has a
delicate hairline finish contrasting with the lower section, crafted in black
Alumite, creates a striking two-tone color scheme, like original L-570 models.
The top plate also has a beautiful hairline finish to match the front panel and
widened venting to improve heat dissipation. The amplifier section is equipped
with ODNF-u, which supports a fresh and dense tonality with an overwhelming
amount of musical detail. With its special exterior finish, industrial design
and the latest circuitry, we hope the 300-unit (worldwide) special
limited-edition L-595ASE will become highly sought after by audio enthusiasts
and music lovers alike.
.gif)
.gif)

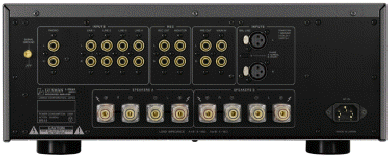

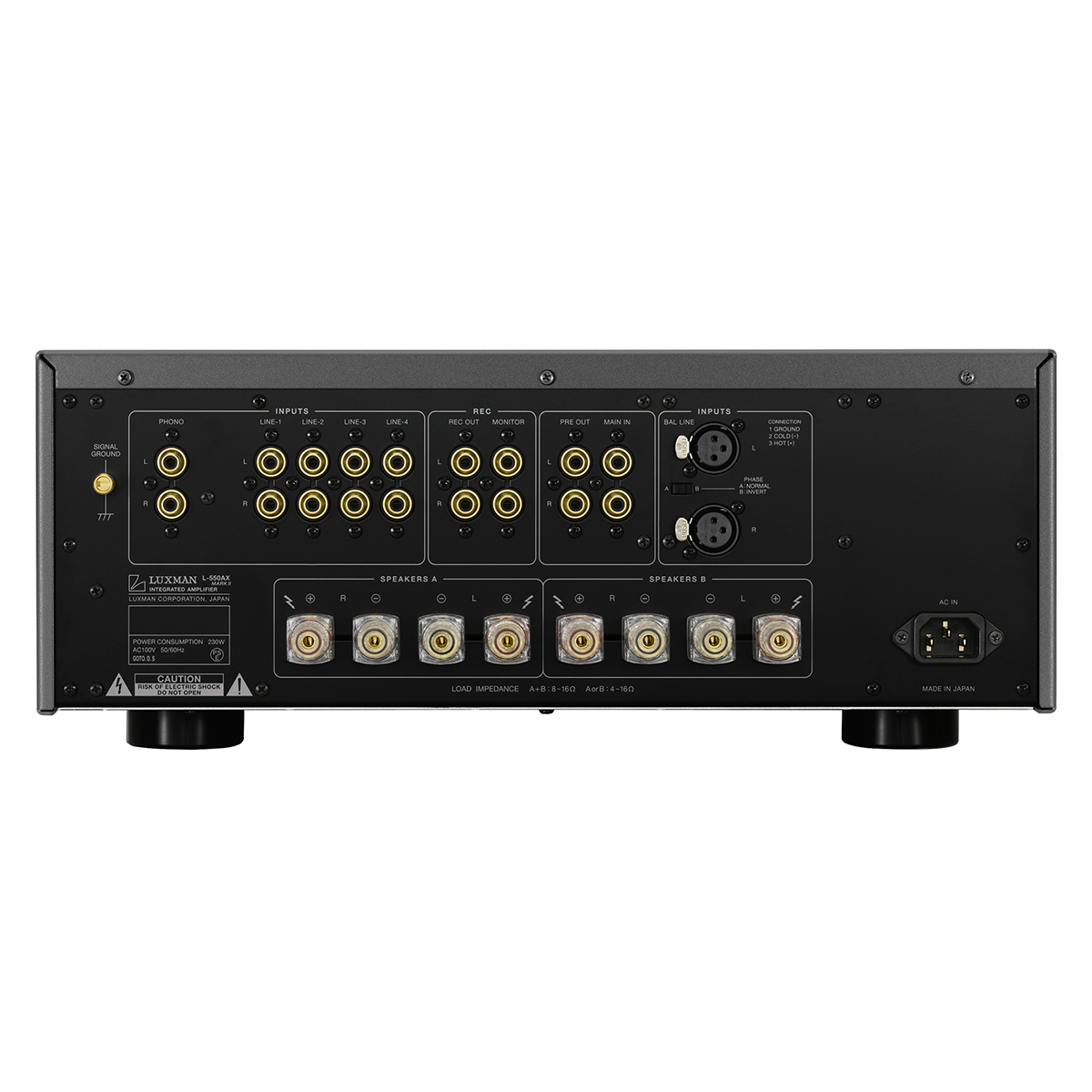

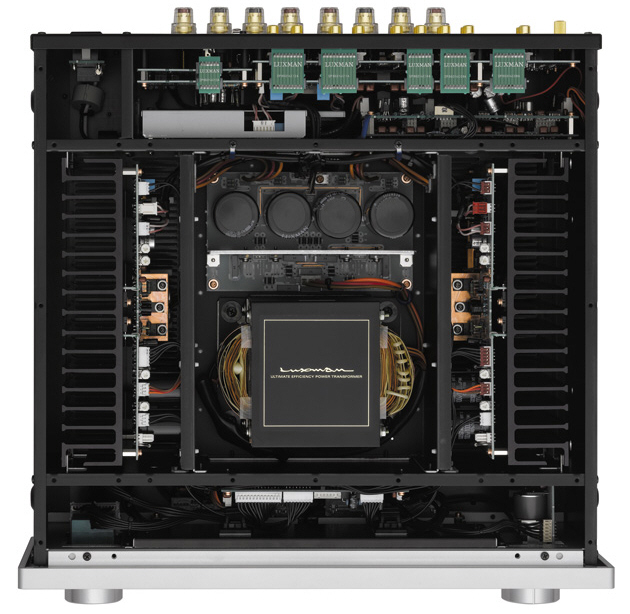

LUXMAN
L-550
AXII
Listino ufficiale
€. 6.890,00
Amplificatore
integrato stereo Hi-End pura classe A, 20W x 2 su 8 ohm, circuitazione ODNF 4.0,
controllo volume New LECUA 1000, 4 ingressi RCA 1 ingresso bilanciato XLR, 1
ingresso phono MM / MC, ingresso main in, uscita pre out, rapporto S/R > 105dB,
risposta in frequenza 20Hz-100kHz (+0, -3.0dB) dimensioni (WxHxD) 440x178x454mm,
Peso 24.5 kg. Finitura Silver

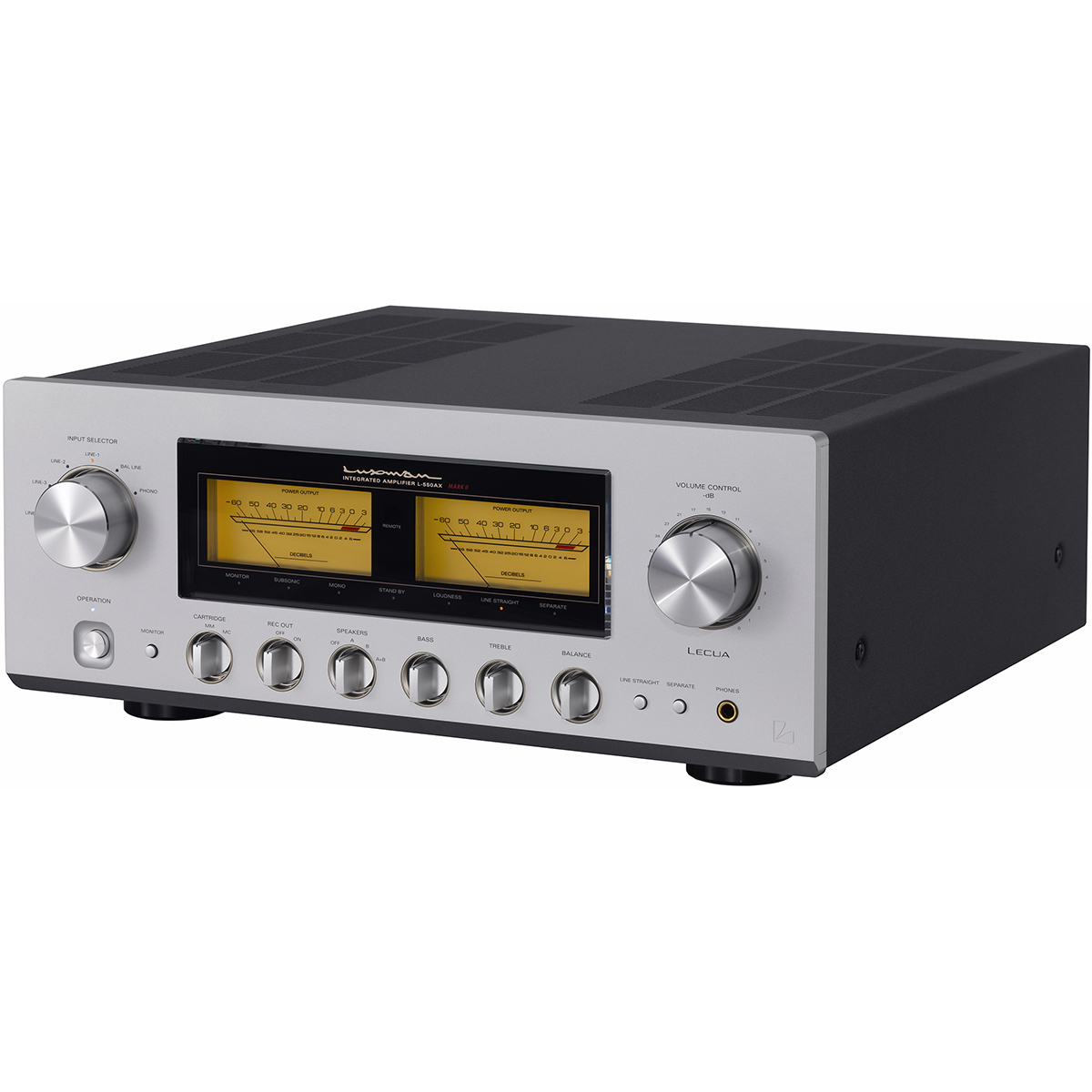

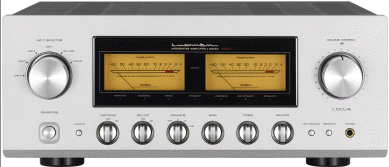

L-550AXII is a Mark 2 model
of L-550AX which launched in 2011. L-550AXII makes its debut featuring a
high-precision electric controlled attenuator LECUA and the latest version of
proprietary high sound quality feedback circuit ODNF4.0, both are used in
LUXMAN’s upper range amplifiers. Keeping the symbolic appearance with
traditional pointer-type meters on the front panel, the essence of the
expressive power that made a huge step forward whilst developing the flagship
integrated amplifier L-590AXII was poured into this model to provide its dense
expression particular to pure A class sound and more detailed reproduction of
the low range.SPECIFICATIONS Item ValueRated output 20W + 20W (8Ω), 40W
+ 40W (4Ω)Input, recording input and output line x 4, phono 1 (MM / MC switching),
balanced line x 1, recording input and output x1, separate input separate input
and output: and output x 1- speaker output A / B 2 system (AB simultaneous can
be output)Amplifier circuit, output configuration ODNF4.0, bipolar parallel
push-pullInput sensitivity / input impedance PHONO (MM): 2.5mV / 47kΩ, PHONO (MC):
0.3mV / 100Ω, LINE: 180mV / 47kΩ Total harmonic distortion less than 0.007%
(1kHz / 8Ω), 0.02% (20Hz ~ 20kHz / 8Ω)S / N ratio, frequency characteristic LINE:
105dB or more, 20Hz ~ 100kHz (+ 0, -3.0dB) Power consumption 230W, 170W (when
there is no signal), 0.4W (standby) Dimensions, (WxHxD) 440 × 178 × 454 mm (front
knob 20, including the rear terminal 27) Weight 24.3kg

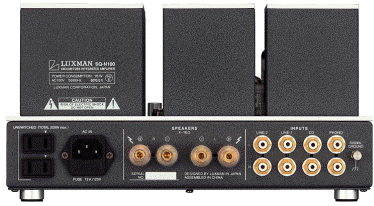

LUXMAN

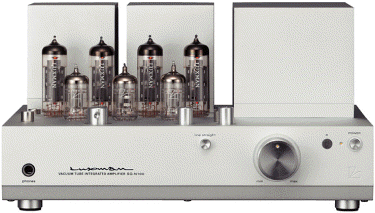

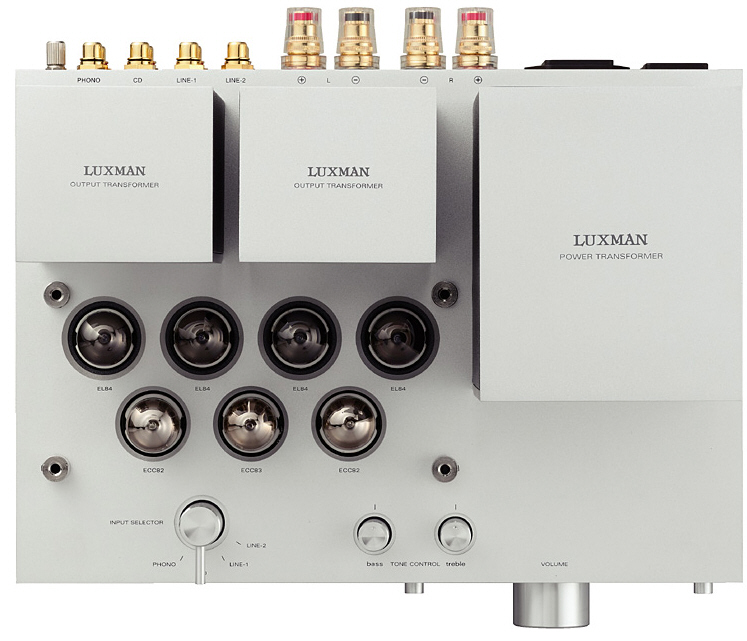

SQ-N150 N
Listino ufficiale
€. 3.990,00
Amplificatore
integrato stereo Hi-End a valvole JJ EL84 x 4, potenza 10W x 2 su 6 ohm,
ingresso Phono MM/MC, 3 ingressi di linea, uscita cuffie, controllo volume
remoto da telecomando lettore DN-150, telecomando opzionale RA-25, controlli
Treble, Bass e Balance dimensioni (WxHxD) 297x188x251mm, peso 12.4 kg. Finitura
Silver
.gif)
.gif)
LUXMAN

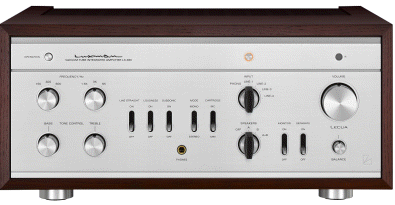

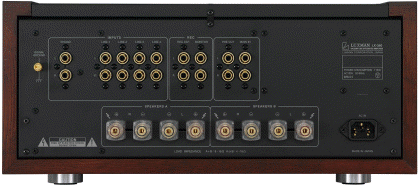

LX380 Listino ufficiale
€. 7.690,00
Amplificatore
integrato stereo Hi-End a valvole 6L6GC x 4, potenza 18W x 2 su 8 ohm,
sensibilità ingresso Phono MM/MC 3mV/0,38mV, Linea 180mV controllo volume LECUA,
uscita pre out, rapporto S/R > 95dB (Linea) risposta in frequenza Linea
20Hz-80kHz (+- 0,5dB)/ Phono 20Hz-80kHz (+0, -3.0dB) dimensioni (WxHxD)
440x197x403mm, peso 17.6 kg. Finitura Silver
.gif)
.gif)

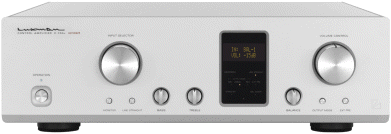

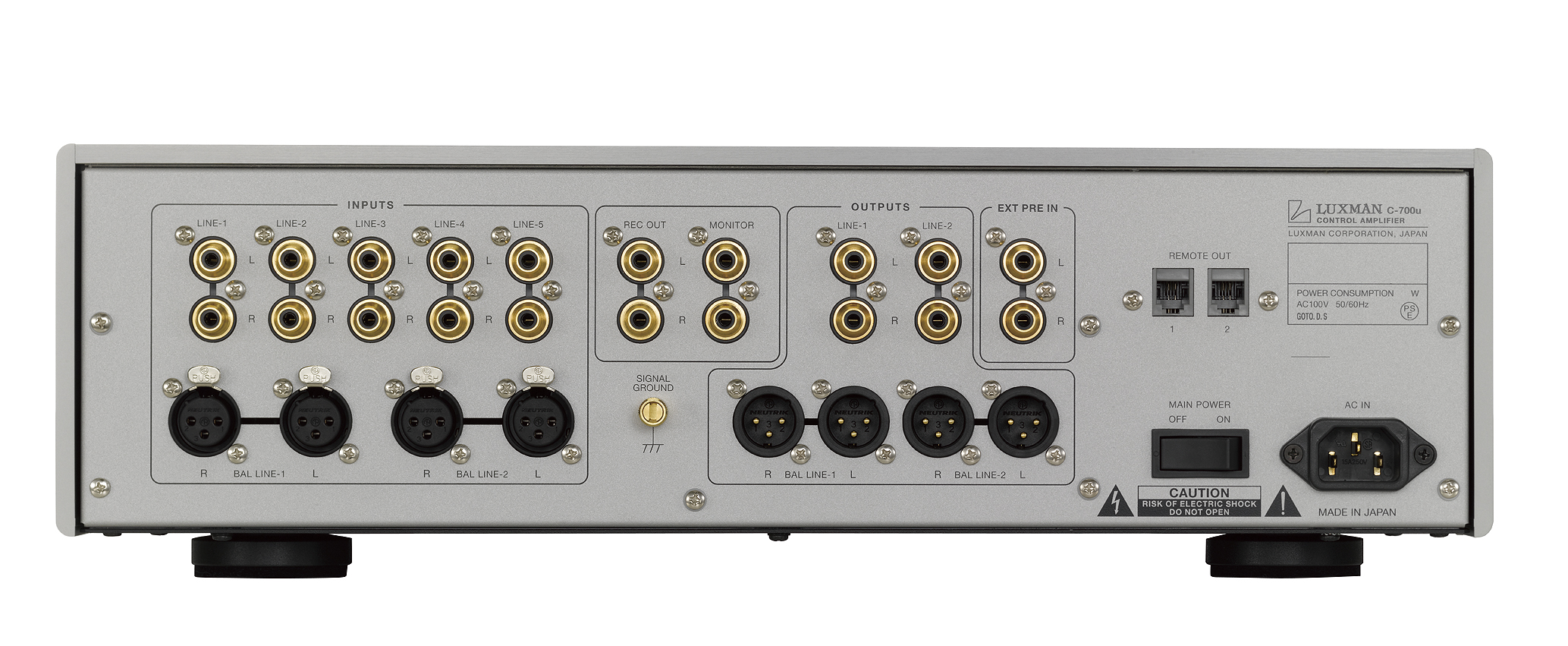

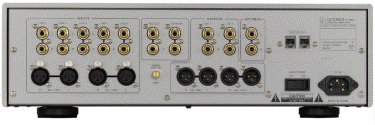

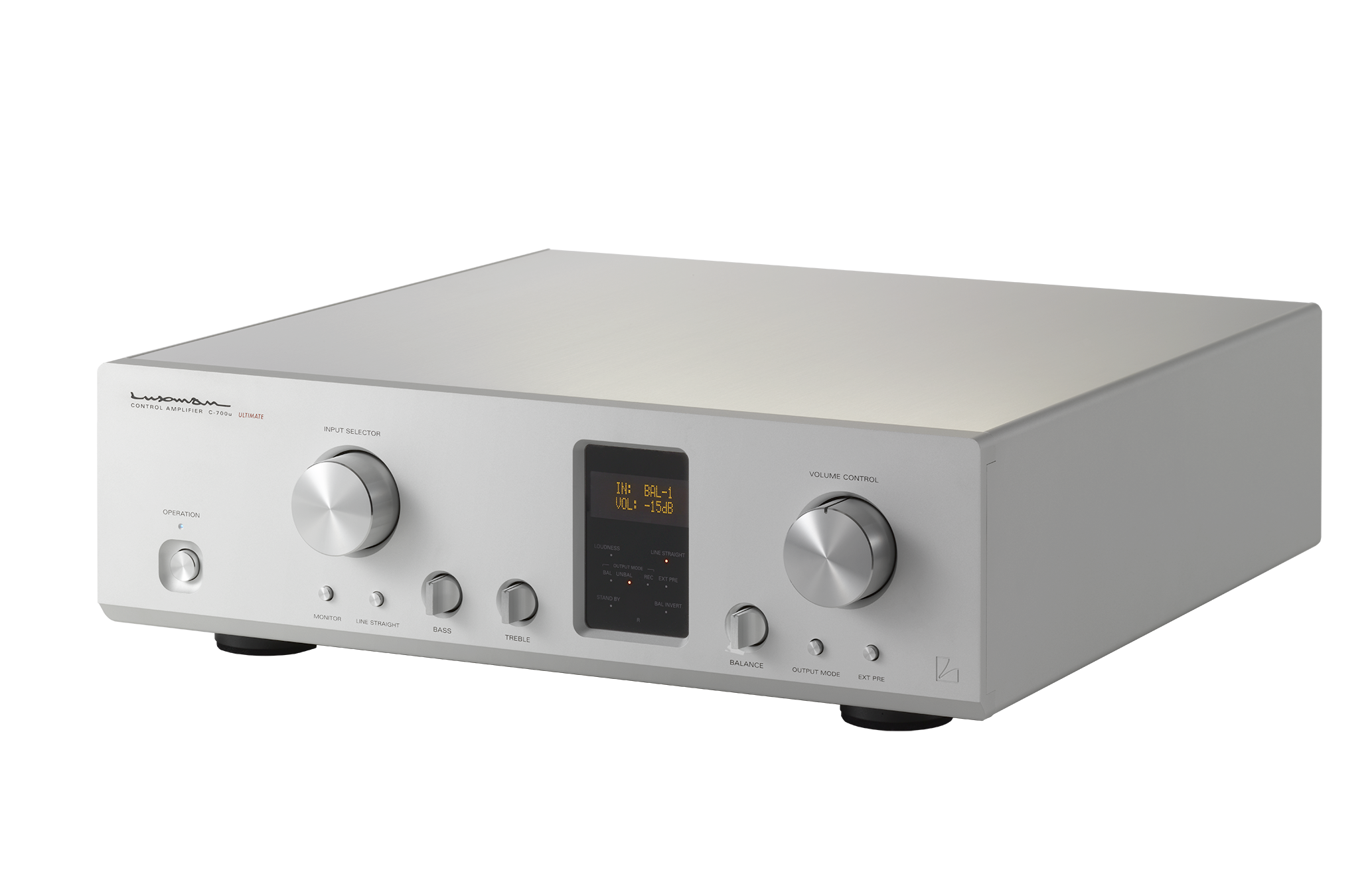

LUXMAN C-700 u
Listino ufficiale
€. 7.990,00
Preamplificatore di linea stereofonico,
attenuatore LECUA 1000, circuitazione ODNF 4.0, 5 ingressi sbilanciati e 2
ingressi bilanciati, ingresso pre ext sbilanciato, 2 uscite sbilanciate e 2
uscite bilanciate, rec out e monitor, controllo toni, telecomando.
C-700U Luxman’s new C-700u preamp
benefits from the same uncompromising construction and attention to detail as
the D-06u. At its heart lies Luxman’s fourth-generation ODNF (Only Distortion
Negative Feedback) amp circuit, which restricts feedback to distortion
components only, thus greatly enhancing signal-to-noise performance. This is
directly coupled to the LECUA 1000 attenuator circuit, trickled down from the
flagship C-900u preamp, allowing an extremely fine degree of volume control and
left/right balance adjustment whilst maintaining sound quality at the highest
level. Exceptional signal purity doesn’t have to mean stripped-to-the-bone
facilities – not when they are implemented with Luxman’s no-compromise approach.
The C-700u includes precision bass and treble tone adjustment (extremely useful
given the variability of today’s music formats), a ‘loudness’ control for
low-level listening, a ‘line straight’ button that bypasses the tone controls,
and phase selection for the balanced inputs. The FL display can even be zoomed
in stages via the remote, ensuring key information remains readable no matter
how far the listener is from the preamp (the D-06u shares this feature).
SPECIFICATIONS Item Value Input Sensitivity LINE 250 mV / 1 V output, 1
kHz, load 50 kΩ
BAL LINE 250 mV / 1 V output, 1 kHz, load 100 kΩ LINE → BAL LINE 250 mV / 1 V
output, 1 kHz, load 100 kΩ BAL LINE → LINE 250 mV / 1 V output, 1 kHz, load 50
kΩ Maximum Output LINE 11 V / distortion 0.1 %, 1 kHz, load 50 kΩ BAL LINE
11.5 V / distortion 0.1 %, 1 kHz, load 100 kΩ LINE → BAL LINE 11.5 V /
distortion 0.1 %, 1 kHz, load 100 kΩBAL LINE → LINE 11 V / distortion 0.1 %, 1
kHz, load 50 kΩ Input impedance LINE 46 kΩ / 1 kHz BAL LINE 67 kΩ / 1
kHzUnselected LINE 33 kΩ / 1 kHz Unselected BAL LINE 67 kΩ / 1 kHz Output
impedance LINE 90 Ω / 1 kHz BAL LINE 600 Ω / 1 kHz Total harmonic
distortion LINE 0.007 % / 1 V output, 20 Hz - 20 kHz, load 50 kΩBAL LINE
0.010 % / 1 V output, 20 Hz - 20 kHz, load 100 kΩLINE → BAL LINE 0.007 % / 1 V
output, 20 Hz - 20 kHz, load 100 kΩ BAL LINE → LINE 0.009 % / 1 V output, 20 Hz
- 20 kHz, load 50 kΩFrequency response LINE +0, −0.1 dB / 1 V output, 20 Hz - 20
kHz, load 50 kΩ +0, −3.0 dB / 1 V output, 5 Hz - 120 kHz, load 50 kΩ BAL LINE
+0, −0.2 dB / 1 V output, 20 Hz - 20 kHz, load 100 kΩ+0, −3.0 dB / 1 V output, 5
Hz - 80 kHz, load 100 kΩLINE → BAL LINE +0, −0.2 dB / 1 V output, 20 Hz - 20
kHz, load 100 kΩ+0, −3.0 dB / 1 V output, 5 Hz - 110 kHz, load 100 kΩ BAL LINE →
LINE +0, −0.2 dB / 1 V output, 20 Hz - 20 kHz, load 50 kΩ +0, −3.0 dB / 1 V
output, 5 Hz - 85 kHz, load 50 kΩS/N ratio LINE 125 dB (IHF-A) / distortion 0.1
%,1kHz, load 50 kΩ BAL LINE 122 dB (IHF-A) / distortion 0.1 %,1kHz, load 100 kΩ
(ATT. −87dB) LINE → BAL LINE 122 dB (IHF-A) / distortion 0.1 %,1kHz, load 100 kΩ
BAL LINE → LINE 125 dB (IHF-A) / distortion 0.1 %,1kHz, load 50 kΩ (ATT.
−87dB)Tone control Bass ±8 dB at 100 Hz Treble ±8 dB at 10 kHzLoudness
Control 100 Hz +7 dB 10 kHz +5 dB Power consumption 28 W / 2 W (at standby)
Power supply 230 V ~ (50 Hz) Max. external dimensions 440 (W) × 130 (H) × 430
(D) mm Weight 14.6 kg (main unit only)
.gif)
LUXMAN
C-900 u
Listino ufficiale
€. 14.990,00
Preamplificatore stereofonico bilanciato allo
stato dell'arte, attenuatore LECUA 1000, circuitazione ODNF 4.0, 3 ingressi
sbilanciati e 3 ingressi bilanciati, ingresso pre ext sbilanciato, 2 uscite
sbilanciate e 2 uscite bilanciate, controllo toni, telecomando.

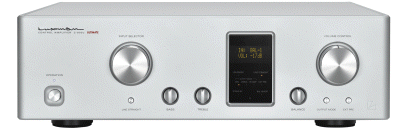

C-900U The new C-900u was created
for the pursuit of uppermost tone quality. The balanced amplification circuit
has a 4-module configuration with independant right/left and hot/cold sound
signals to surpress unneccessary noise generation. A combination of the evolved
traditional ODNF circuit version 4.0 and sturdy power supply unit has achieved a
high signal to noise performance sound quality without distortion. The latest
version of 'Lecua 1000', Luxman's original fixed resistance switching type
attenuator is used for the volume adjustment mechanism that is the major key of
the control amplifier. The number of contacts is set to 88 to allow for more
precise volume adjustment. the C-900u is elegant, userfriendly with premium
operation SPECIFICATIONS Item ValueInputs Unbalanced 3 system, balanced 3
systemOutputs Unbalanced 2 system, balanced 2 system Input Sensitivity/Impedance
unbalanced 255mV / 43kΩ, balanced 255mV / 86kΩ Output Voltage / Impedance
unbalanced rated 1v/90Ω Maximum 11Vbalance rated 1V/180V Maximum 22.5v Harmonic
Distortion 0.009% (20Hz - 20kHz), balanced 0.005% (20Hz-20kHz) Frequency
Response 20Hz - 20kHz (+0, -0.1dB), 5Hz - 120kHz (+0, -3.0dB) Signal-to-noise
ratio Unbalanced 123dB, balanced 126dB Power Consumption 42W, 2.2 (at standby)
Dimensions (W x H x D) 440 x 130 x 430mm Weight 19.7kg

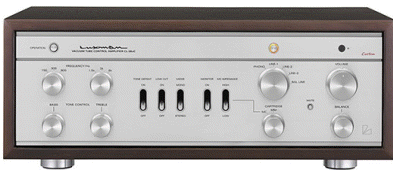

LUXMAN
CL-38uSE
Listino ufficiale
€. 5.290,00
Preamplificatore
stereo Hi-End equipaggiato con valvole Slovakia JJ Electronics ECC803 e ECC802,
4 ingressi di linea, 1 ingresso Phono MM/MC, 2 uscite pre out, 1 uscita Tape,
controllo toni, telecomando, dimensioni (WxHxD) 400x170x307mm, peso 13.6 kg.

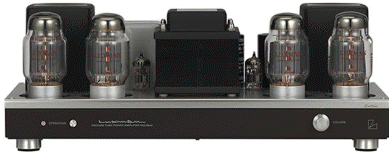

Finitura Silver/Legno Amplificatore di potenza stereo Hi-End a valvole in pura
classe A equipaggiato con valvole Slovakia JJ Electronics : 2 ECC803, 2 ECC802 e
4 KT88. potenza 25W x 2 su 6 ohm, 20W x 2 su 4/8 ohm, rapporto S/R 105dB, 1
ingresso fisso, 1 ingresso variabile dimensioni (WxHxD) 440x185x230mm, peso 15.8
kg. Finitura Silver/Black
LUXMAN
CL-1000
Listino ufficiale
€. 24.990,00
Preamplificatore stereo Hi-End equipaggiato con 6
valvole Slovakia JJ Electronics E88CC Nesclusivo circuito controllo volume
LECUTA, 4 ingressi di linea rca, 1 ingresso bilanciato, N2 uscite rca, 2 uscite
bilanciate, controllo toni, dimensioni (WxHxD) 460x166x454mm,peso 24,4 kg.
Finitura Silver/Legno
.gif)
.gif)
LUXMAN
E-250
Listino ufficiale
€. 2.290,00
Pre Phono Hi-End MM e MC, Impedenza ingresso
MM selezionabile: 34/47/56/100 kohm, ingresso MC 2.5 - 4 ohm, sensibilità
ingresso: MM 3.2mV, ingresso MC 0.12 - 0.37 mV, livello uscita 250 mV, impedenza
uscita 300 ohm dimensioni 364 x 81 x 274mm, peso 4.3 kg. Finitura Silver
NEW The E-250 is the latest generation of phono
equalizer amplifier from LUXMAN, inheriting the best in design from its
predecessor the E-200 that has been the reference model for compact phono
equalizer amplifiers since it was released in 2008. The outstanding
functionality of the E-250 is such that load impedance and load capacity can be
selected according to the cartridge characteristics for the ultimate enjoyment
of the original detail of analog reproduction. The E-250 allows the listener to
adjust the fine settings for every performance, releasing the expression
engraved in the grooves and creating a hitherto unknown musical impression. The
rear panel is equipped with a load impedance selector (34/47/56/100 kΩ) and a
load capacity selector (0/100/220/320 pF) to match the characteristics of the
cartridge and exploiting it to its full potential. The E-250 features a
step up transformer with a 2 stage gain selection function in which a L/R
independent super permalloy core is used, thereby supporting even low impedance
MC cartridges. This creates a rich and expressive musicality that is a unique
characteristic of the transformer. SPECIFICATIONS Item Value Input
Sensitivity MM: 3.2mV, MC High: 0.37mV, MC Low: 0.12mV Inputs Impedance MM:
34kΩ, 47kΩ, 56kΩ,100kΩ (switchable) MC High: 40Ω, MC Low: 2.5Ω Gain (1kHz) MM:
38dB, MC High: 57dB, MC Low: 66dB Output Voltage 250mV (1kHz) Output Impedance
300Ω Power Consumption 4W Dimensions (W x H x D) 364 x 81 x 274(mm) Weight 4.3
kg
.gif)
.gif)
LUXMAN EQ500
Listino ufficiale
€. 6.990,00
Pre Phono Hi-End MM e MC con uscita a valvole,
impedenza ingresso MM variabile: da 30 a 100 kohm, ingresso MC 2.5 - 4
ohm, sensibilità ingresso: MM 4mV, ingresso MC 0.10 - 0.44 mV, livello uscita
250 mV, impedenza uscita 850 ohm dimensioni 440 x 92 x 397mm, peso 12.5 kg.
Finitura Silver
EQ-500
The joy of analog reproduction is the indulgence of the harmonic density and
tonal character of vinyl playback, faithfully reproducing sound vibration and
resonance inscribed on analog records without interruption. The EQ-500
phono equalizer amplifier is a vacuum tube design for all stages to provide the
ultimate experience in the expressive and colourful reproduction of music. Fine
adjustment and switching functions that are easily accessible on the elegant
front panel allow you to enjoy the real pleasure of analog reproduction. The
debut of LUXMAN's masterpiece phono equalizer amplifier, the EQ-500, brings a
new dimension that offers an extensive menu of the finest details of analog
reproduction allowing you to recreate that ideal sound from your memory. The
phone equalizer amplifier plays a unique role as part of an amplification system
with respect to the characteristics and delicacy of signals. Because of this
uniqueness, phone equalizers have been designed using various kinds of circuit
methods and elements and have captivated the interest of enthusiasts for whom
the detail of the sound is paramount. The EQ-500 is equipped with the circuit
technology and musical essence inherent to its predecessor, the E-06 from LUXMAN.
First launched in the 1980's, the E-06 is still a highly respected masterpiece
of the CR type. This renowned circuit technology has been newly improved in the
EQ-500 and uses vacuum tubes for all of the amplifier elements to bring the
spirit of analog sound inscribed on the vinyl discs into life. SPECIFICATIONS
Item Value Circuiting system SRPP, final stage cathode follower Non-feedback CR
type equalizer Vacuum tube used ECC83 x 4 pieces, ECC82 x 2 pieces, and EZ81 x 1
piece Input sensitivity MM: 4mV(1kHz, When the gain is set to 36d8) MC:
high 0.44mV, MC: low 0.1BmV Input impedance MM: 30k0 to 100k0 (variable) MC:
high 400, MC: low 2.50 Rated output/output impedance 250mV/ 850Ω Gain (1kHz,
When the gain is set to 36d8) MM: 36dB MC: high 55dB, MC: low 63dB Maximum
allowable input (1kHz) MM: 300mV, MC: high 34mV, MC: low 13mV RIAA deviation :
MM/MC high/ MC low: 20Hz to 20kHz (±0.3dB) Channel separation (10kHz) 65dB Input
Unbalanced line x 3 Output Unbalanced line x 2, Balanced line x 1 Power supply
230V-(50Hz) / 115V-(60Hz) Power consumption 47W Dimensions 440(W) x 92(H) x
397(D)mm front side knob of 5mm and rear side terminal of 12mm included in depth
Net weight 12.5k
.gif)
LUXMAN
M-10X
Listino ufficiale
€. 14.990,00
Amplificatore di potenza stereo Hi-End, nuovo
circuito LIFES , potenza 150W x 2 su 8 ohm, 300W x 2 su 4ohm, 600W su 8 ohm mono
a ponte, amplificazione in Classe A fino a 12W, ingressi bilanciati (XLR) e RCA,
vu-meter analogici, distorsione armonica minore di 0,003%, rapporto S/R maggiore
di 117dB, fattore di smorzamento 600, risposta in frequenza 1Hz-130kHz (+0,
-3.0dB), dimensioni (WxHxD) 440x224x485mm, peso 48,4 kg. Finitura Silver
LUXMAN
MQ-88uSE
Listino ufficiale
€. 5.690,00
Amplificatore di potenza stereo Hi-End a valvole
in pura classe A equipaggiato con valvole Slovakia JJ Electronics : 2 ECC803, 2
ECC802 e 4 KT88. potenza 25W x 2 su 6 ohm, 20W x 2 su 4/8 ohm, rapporto S/R
105dB, 1 ingresso fisso, 1 ingresso variabile dimensioni (WxHxD) 440x185x230mm,
peso 16,1 kg. Finitura Silver/Blac
.gif)
.gif)
LUXMAN

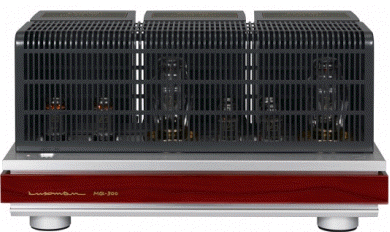

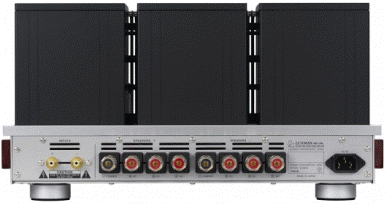

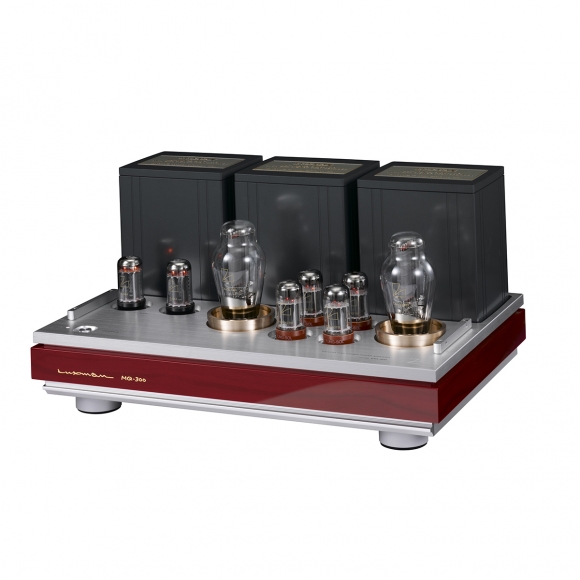

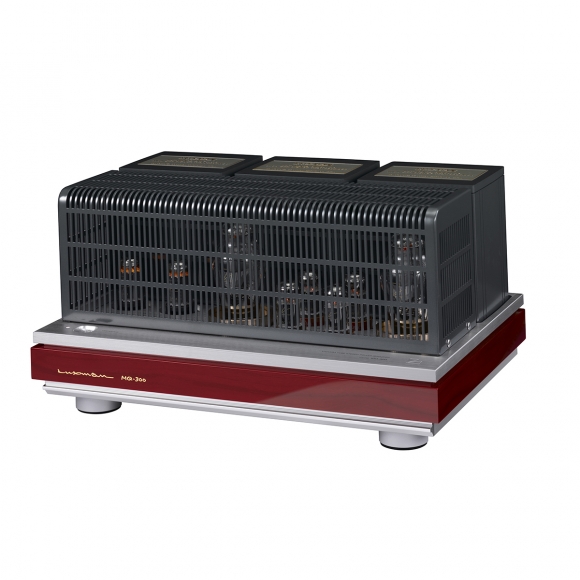

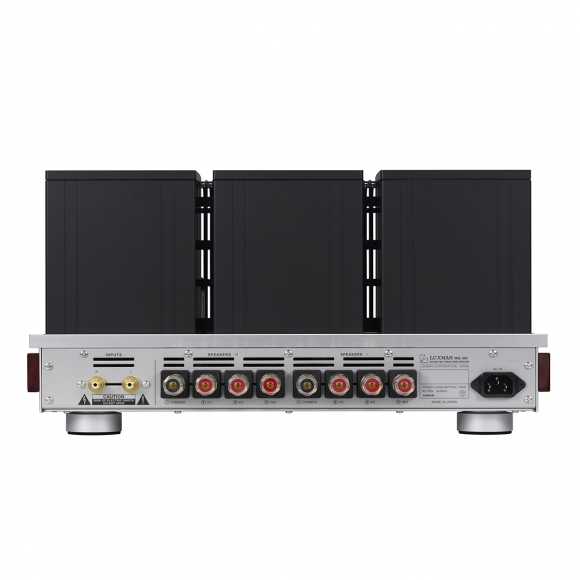

MQ-300
Listino ufficiale
€. 22.990,00
Amplificatore di potenza stereo Hi-End a
triodo TA-300, 8W x 2 su 4/8/16 ohm, sensibilità ingresso 490mV, Rapporto
Segnale/Rumore 105dB 1 ingresso fisso, 1 ingresso variabile, terminali di uscita
altoparlanti separati per diffusori 4/8/16 ohm, dimensioni 440 x 273 x 340mm,
peso 29 kg. Finitura Silver

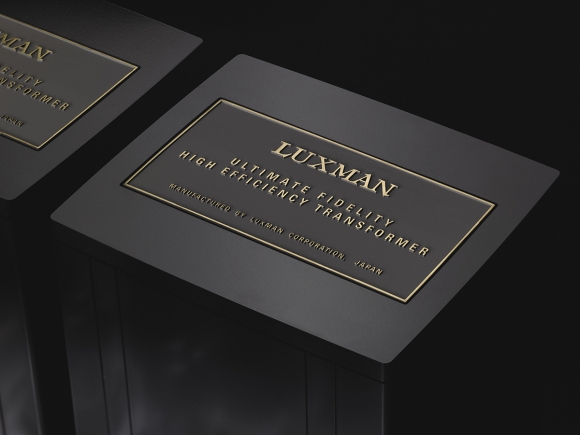

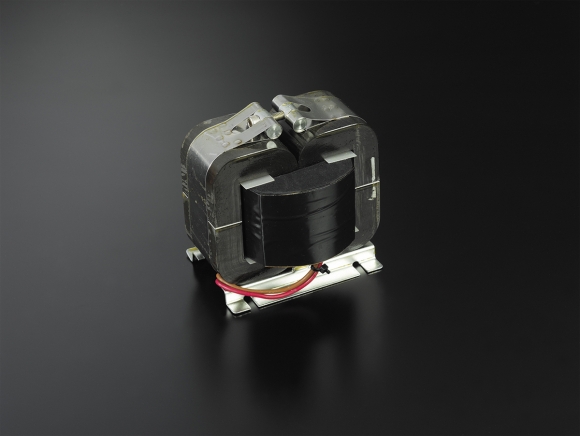

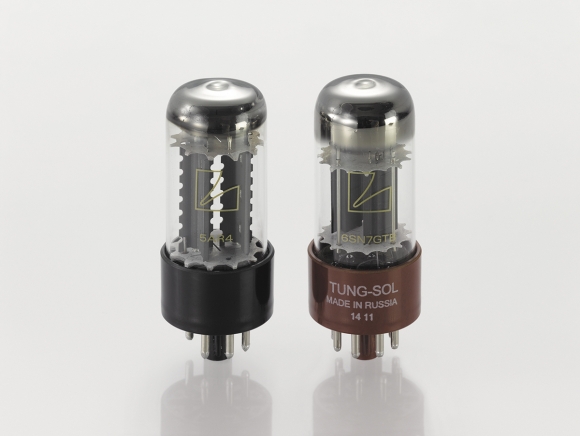

The MQ-300 is a new generation of vacuum tube
stereo amplifier from LUXMAN that uses the most thoroughly selected parts and
circuits to maximise the performance and tonal quality of the latest direct
heated triode – the TA-300B. Following in the design footsteps of the
masterpiece MB-300 released 31 years ago, the MQ-300 combines traditional design
with cutting edge technology. Since the foundation of the company 90 years ago,
and the subsequent release of the MB-300, LUXMAN has pursued certain core
principles for sound generation. These principles are embodied in the MQ-300 as
‘honest and natural sound quality, feeling the sound field without exaggeration’,
‘feeling the unity of sound with sufficient data for the whole audio band’ and
to achieve ‘fatigue free listening enjoyment’. Expressing the original sound
whilst bringing the spirit of each disk to life are qualities intrinsic to the
MQ-300 and those principles.
Design history The design of the MQ-300 is a culmination of high performance
parts, cutting edge technology and vacuum tube amplifier design ‘know how’
accumulated over many years. The MQ-300 is based on the cosmetic design and
circuit configuration of the MB-300, the renowned masterpiece vacuum tube
monaural power amplifier released by LUXMAN in 1984. The elements of traditional
design and elegant tonal quality that is unique to the performance of the
TA-300B, a direct heated triode, have been maximised in the MQ-300.
SPECIFICATIONS Item Value Rated Power Output 8W + 8W (4Ω, 8Ω, 16Ω)Input
Sensitivity 490mV (8W) 240kΩTHD 1% (1kHz / 8Ω / 1W)S/N Ratio (IHF-A) 105dBInput
1 x Direct, 1 x Variable Output Large speaker terminal x 1 set (4,8,16Ω
independent)Power Consumption 160W Dimensions (W x H x D) 460 × 273 × 340 (mm)
Net Weight 29.0kg
LUXMAN
D-N150
Listino ufficiale
€. 3.490,00
Lettore di CD stereo, convertitore D/A TI PCM
5102A 192kHz/32bit uscite analogiche RCA, uscita digitale ottica, ingresso
USB per files files fino a 192kHz/32bit, ingressi digitale ottico e coassiale,
telecomando dimensioni (WxHxD) 297x98x222mm, peso 5 kg. Finitura Silver
.gif)
LUXMAN
D-03x
Listino ufficiale
€. 4.890,00
LLettore di CD a due canali con decofica MQA,
doppi convertitori Burr Brown 1795, nuovameccanica, ingresso USB per files HiRes
PCM fino a 384kHz/32bit e DSD 11.28MHz, uscita analogica XLR e RCA, uscita
digitale ottica e coassiale, ingresso digitale coassiale e digitale ottico,
dimensioni (WxHxD) 440x133x410mm, peso 13.2 kg. Finitura Silver
LUXMAN

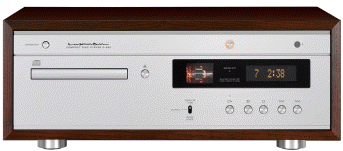

D-380
Listino ufficiale
€. 4.990,00
Lettore di CD stereo con stadio di uscita a
valvola ECC 82 uscita commutabile valvolare/transistor, convertitore D/A TI PCM
5201A 192kHz/32bit uscite analogiche RCA, uscita digitale ottica, uscita
digitale coassiale dimensioni (WxHxD) 440x167x286mm, peso 10.8 kg.
Finitura Silver
LUXMAN
D-07x
Listino ufficiale
€. 11.900,00
Lettore CD e SACD stereo con decodifica MQA,
nuovi convertitori RHOM BD34301EKV, nuova meccanica di lettura LxTDM-i, ingresso
USB per files HiRes PCM fino a 768kHz/32bit, DSD fino a 22.4 MHz, uscita
analogica bilanciata XLR e RCA, 2 ingressi digitale ottici, ingresso digitale
coassiale dimensioni (WxHxD) 440x132x410mm, peso 17,0 kg. Finitura Silver
.gif)
LUXMAN
D-10x
Listino ufficiale
€. 16.990,00
Lettore CD e SACD stereo con decodifica MQA,
nuovi convertitori RHOM BD3430EKV, nuova meccanica di lettura LxTDM-i, nuovo
circuito analogico bilanciato ODNF-u, ingresso USB per files HiRes PCM fino a
768kHz/32bit, DSD fino a 22.1 MHz, uscita analogica bilanciata XLR e RCA, 2
ingressi digitale ottici, ingresso digitale coassiale e digitale ottico,
dimensioni (WxHxD) 440x154x418mm, peso 22,4 kg. Finitura Silver
.gif)
.gif)
LUXMAN
DA-250
Listino ufficiale
€. 2.690,00
Convertitore digitale/analogico Hi-End,
amplificatore cuffie in classe A, ingresso analogico, ingresso USB 2.0 asincrono
per files HiRes PCM fino a 192kHz/32bit e DSD 5.6MHz uscite bilanciate XLR e
RCA, 1 ingresso digitale coassiale e 2 ingressi digitali ottici, dimensioni 364
x 81 x 279mm, peso 5.4kg. Finitura Silver

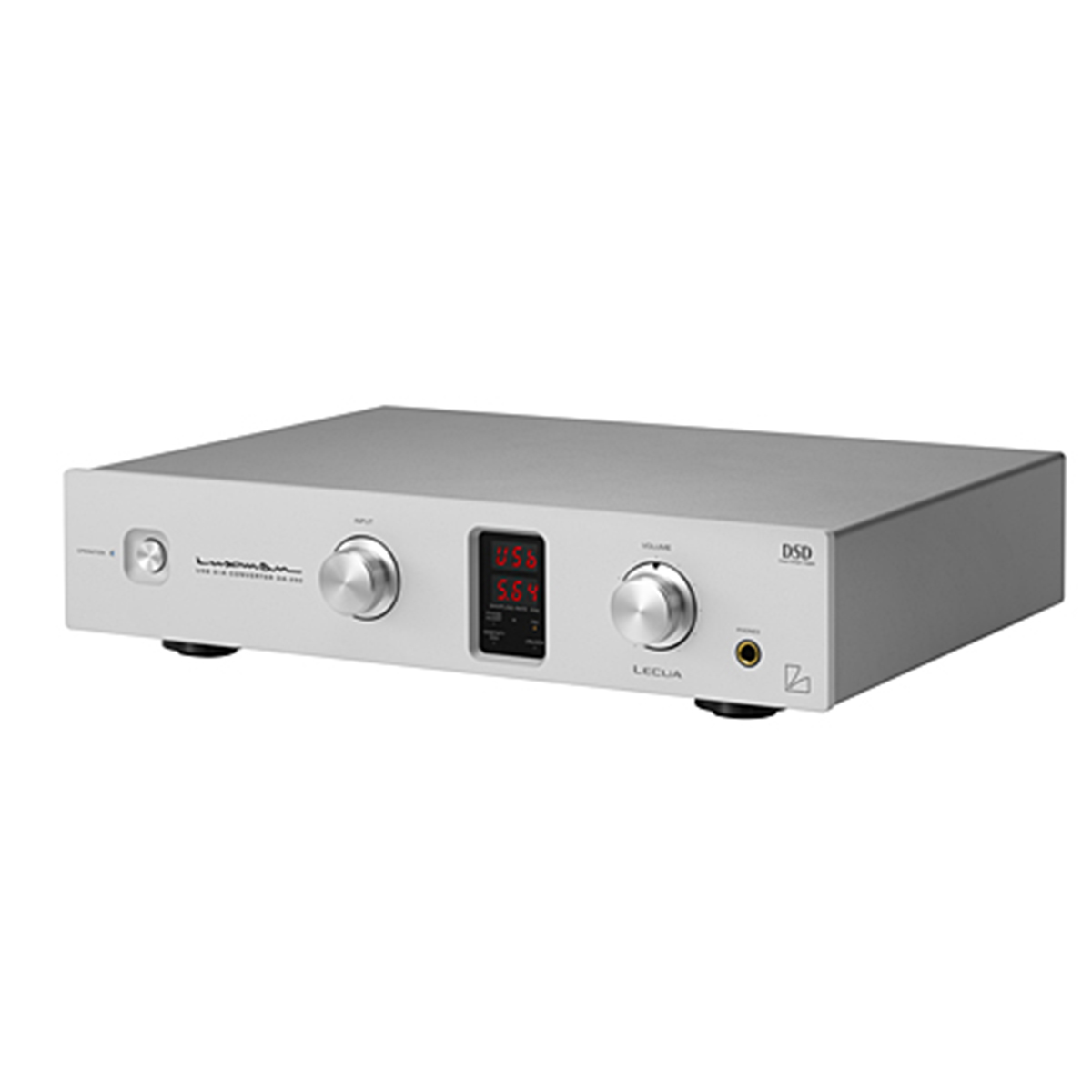

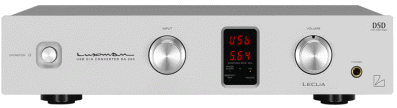

The
DA-250 is a USB capable Digital Audio Converter that is based upon the
successful design of the popular DA-200 (released 2010) with the addition of up
to date functions and technical trends integrated into the compact B4 sized
body. The intuitive functions of this impressive converter achieve the
specifications necessary to build a high grade audio environment. For example,
the DA-250 is compatible up to 192 kHz/32-bit PCM and 5.64 MHz DSD, features a
Class A headphone amplifier section with significantly improved drive force,

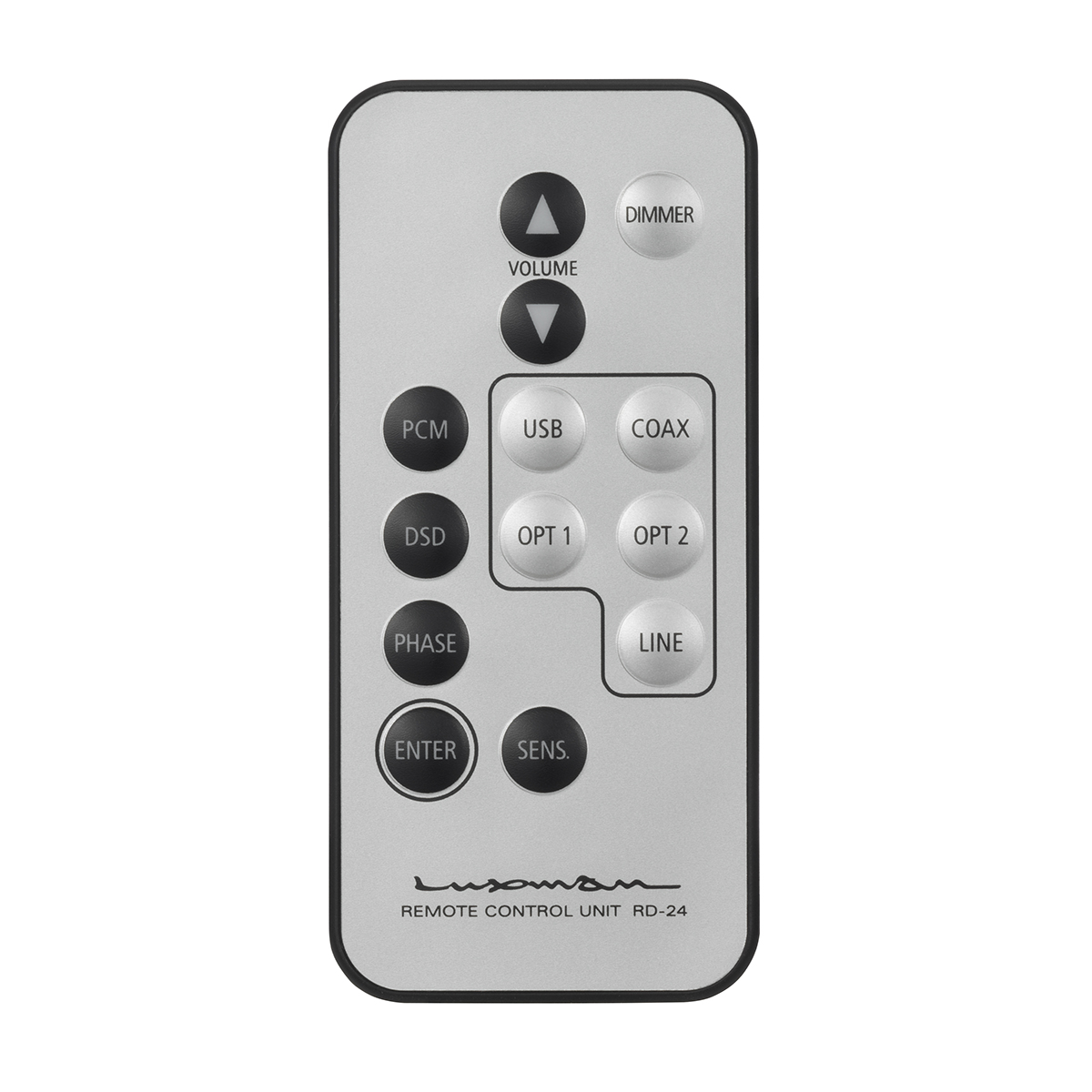

includes the LUXMAN computerized attenuator ‘LECUA’* and has the addition of a
stylish remote control unit. For the DAC chip, a 32-bit compatible PCM1795 (manufactured
by Texas Instruments Incorporated) is specified that is internally
up-convertible to 352.8 k/384 Khz/32-bit. The USB input is compatible up to 192
kHz/32-bit PCM data and DSD data (2.82 M, 5.64 MHz) whilst the S/PDIF input
supports up to 192 kHz/24-bit PCM signals. A variety of digital inputs (a
coaxial input and 2 optical inputs) are provided as well as the USB inputs to
connect to the digital outputs of a CD player and other peripheral AV devices. A
selectable 32-bit digital filter for PCM and a selectable analog FIR filter for
DSD allow the tone to be adjusted to taste. Low phase noise clock modules with
high precision and low jitter are fitted independently on both the 44.1 k and
48Khz channels to reduce noise. A remarkably reduced jitter for the USB input is
achieved by asynchronous communication for the S/PDIF using an embedded DAIR
high precision clock. SPECIFICATIONS Item Value Sampling Frequency USB input
(PCM) : 32k, 44.1k, 48k, 88.2k 96k, 176.4k, 192k(16, 24, 32bits)USB input (DSD):
2.82M, 5.64MHz (1bit)COAX/OPT input: 32k, 44.1k, 48k, 88.2k 96k, 176.4k, 192kHz
(16, 20, 24bits) Digital Input/Output input：USB 1CH、COAX 1CH、OPT 2CH ／ Output：COAX
1CH、OPT 1CH Analog Input/Output Input：Unbalance 1CH ／ Output：Unbalance 1CH、Balance
1CH、Headphone 1CH (Φ6.3 standard)Headphone Output 200mW+200mW ／ 16Ω、400mW+400mW
／ 32Ω、130mW+130mW ／ 600ΩLine output power 2.5 V ／ 300Ω (Unbalance) 、600Ω (Balance)
※FIX/VARIABLE switchableFrequency response 5Hz～50kHz (+0、-3.0dB) T.H.D. ／ S/N (IHF-A)
0.001% ／ 118dB Function Front panel Power switch、Power Indicator、Input selector、audio
volume、7 segment LED display、Headphone out、Phase invert indicator、Fix output
Indicator 、headphone sensitivity indicator、Digital Input unlock indicator Rear
Panel AC Inlet、Input Output connectors 、FIX/VARIABLE switch Remote control
function Volume、Input selector、display dimmer、digital filter (PCM / DSD) 、Phase
invert、Headphone sensitivity Dimensions 364 (W) ×81 (H) ×279 (D) mm (include
knob 14mm、rear terminal 8mm) Weight 5.4kg
LUXMAN
PD151
Listino ufficiale
€. 4.690,00
Giradischi analogico trazione a cinghia piatto in
alluminio massiccio anti-vibrazioni di 4 kg, motore DC senza spazzole con
controllo PID montaggio flottante braccio ad S, velocità 33 1/3, 45 e 78 giri,
shell testina staccabile dimensioni (WxHxD) 465x133x393 mm, peso 15.7 kg.
Finitura Silver/Black opziopnale
copertura PD-151 Dust Cover 690,00 euro
LUXMAN LCM-5
Listino ufficiale
€. 2.390,00
Testina phono MC a bassa uscita – Tensione di
uscita 0,4mV – Peso di lettura 2.1-2.3g - Impedenza 40 ohm – Risposta in
frequenza 10-35.000 Hz – Cedevolezza 8x10 cm/dyne - Cantilever in alluminio con
stilo in diamante taglio Shibata –
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
/L-550AXll%20(2).jpg)
/L-550AXll%20(1).jpg){kind=small}
/L-550AXll%20(3).jpg){kind=small}
/L-550AXll%20(4).jpg){kind=small}
/LUXMAN%20C-700u%20%20(1).jpg)
/LUXMAN%20C-700u%20%20(1).png){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/LUXMAN%20%20 E-250%20(3).jpg)
/LUXMAN%20%20 E-250%20(1).jpg){kind=small}
/LUXMAN%20%20 E-250%20(2).jpg){kind=small}
/LUXMAN%20 EQ-500%20(1).jpg){kind=small}
/LUXMAN%20 EQ-500%20(10).jpg){kind=small}
/LUXMAN%20 EQ-500%20(3).jpg){kind=small}
/LUXMAN%20 EQ-500%20(2).jpg){kind=small}
/LUXMAN%20 EQ-500%20(6).jpg){kind=small}
/LUXMAN%20 EQ-500%20(7).jpg){kind=small}
/LUXMAN%20 EQ-500%20(8).jpg){kind=small}
/LUXMAN%20 EQ-500%20(9).jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/LUXMAN%20%20DA%20250%20(3).jpg){kind=small}
/LUXMAN%20%20DA%20250%20(4).jpg){kind=small}
.jpg){kind=link}
/d%2008%20U(1).jpg){kind=link}
/LUXMAN%20PD%20171A%20%20(3).jpg){kind=link}
