Promozioni prodotti nuovi con
garanzia 2 anni nel caso dei diffusori
i prezzi si intendondo in questo caso la
coppia ,imballati o solo esposti
/ELARA LN-01%20%20(1).jpg)
TRIANGLE ELARA LN-01
Netto coppia €. 430,00
Diffusore da
supporto Dim. (A x L x P): 291 x 165 x 135 mm, Sensibilità: 89dB, Risposta di
frequenza (+/-3dBHz) 56-22 KHz, Potenza max 50W, Impedenza minima 4,5 (Ohms).
Finitura: Nero Laccato, Bianco Laccato
FOCAL
CHORUS
806
Netto coppia
€. 590,00
Chorus 806 V Neutrale e
bilanciato, il modello Chorus 806 V seduce grazie alla ricchezza dei toni medi
più alti e alla velocità dei bassi. Una cassa completamente rifinita, ideale per
le stanze al di sotto dei 20m2. Prestazioni ancora superiori se combinata con il
modello SW 800 V. Tipo: Cassa bass reflex a colonna da ripiano 2 vie. 806 V diffusore da
scaffale, 2 vie, bass reflex, 80 W
 Neutral
and balanced, the Chorus 806 V seduces by the richness of its upper midrangeand
the speed of its bass. An entirely refi ned speaker, ideal to play in rooms
under 20 m2 without any limits. And easily larger spaces if it is combined with
SW 800 VType 2-way bass-reflex bookshelf loudspeaker, wall mounting Drivers
61/2" (165mm) Polyglass mid-bass 1" (25mm) TNV Al/Mg inverted dome tweeter
Frequency response (+/- 3dB) 55Hz- 28kHz Low frequency point (- 6dB) 47Hz
Sensitivity (2.83V/1m) 90dB Nom. impedance 8 ohms Minimum impedance (@25°C) 3.6
ohms @ 226Hz Max. power handling. 120W Power RMS 80W Crossover frequency 3kHz
Dimensions (HxWxD) 153/8"x83/4"x119/16" (390x222x293mm) Net weight 18lbs (8.2kg)

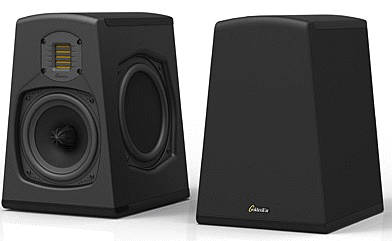

GOLDENEAR AEON3
Netto coppia
€. 990,00
The
Aon 2 and 3 are exceptionally compact, ultra-high-performance bookshelf speakers
that were originally developed for use as nearfield monitors in professional
mixing applications. The design goal was to produce modestly-sized shelf or
stand-mountable speakers that would achieve accurate high-definition sonic
reproduction, with superb three-dimensional imaging, comparable to that achieved
by GoldenEar’s award-winning Triton Two Towers. Although they don’t have quite
the awe-inspiring bass of the floor-standing Tritons, great care has been taken,
and extensive technology has been incorporated, to ensure that the Aons can
deliver a remarkably satisfying listening experience without the need for a
separate subwoofer. Both Aon models incorporate GoldenEar-designed cast-basket
bass/midrange drivers with technology derived from the midrange units developed
for the Tritons. In addition, they both use the same extraordinary and costly
High Velocity Folded Ribbon (HVFR™) high frequency radiator used in the Tritons.
Lastly, each Aon model utilizes two side-mounted planar low-frequency radiators
in a dynamically balanced configuration in order to properly load the bass/midrange
drivers for an open, box-less midrange, while also contributing to the Aons’
remarkably extended bass for such small enclosures. The Aons are of a truncated
pyramidal construction, which results in significant performance advantages due
to the non-parallel cabinet walls and the reduced baffle area around the tweeter.
Aesthetically, the sleek, attractive pyramid-inspired shape combined with
appealing design details including piano-gloss black end-caps, results in
beautiful speakers that are both elegant and distinctive Aon 3 The compact, 14"
Tall Aon 3 Bookshelf Monitor (on left in photo to right, with grille sock
removed) incorporates a 7", High-Definition, Multi-Vaned Phase Plug (MVPP™),
cast-basket Mid-Bass Driver, coupled to two 8" Inertially-balanced side-mounted
Low Frequency Radiators and the GoldenEar High-Velocity Folded Ribbon Tweeter (HVFR™)
SPECIFICATIONS Dimensions: 9" W x 11" D x 14" H. Frequency Response: 38 Hz –
35 kHz. Sensitivity: 90 dB. Nominal Impedance: Compatible with 8 ohms. Driver
Complement: One 7" cast-basket bass/midrange driver, One High-Velocity Folded
Ribbon (HVFR™) high-frequency radiator, Two 8" side-mounted planar low-frequency
radiators. Rec. Amp: 10 – 250 Watt/channel .Price
for one speaker .

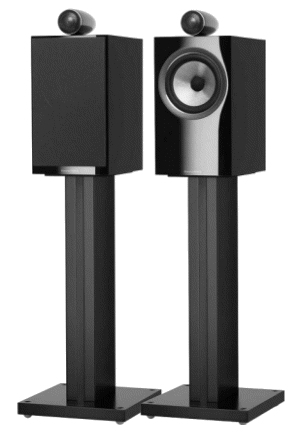

B&W
705
S2
Netto coppia €. 1.870,00
Il tweeter a cupola
in carbonio del 705 S2 è alloggiato in un contenitore Solid Body Tweeter-on-Top
evoluto dall'ultima generazione della Serie 800 Diamond. Questo si unisce a un
nuovo baffle sottilmente curvo, dotato di un nuovissimo alloggiamento "a
capsula" per il woofer/midrange a cono Continuum.La Serie 700 adotta l'ultima
generazione del Tweeter-on-Top Solid Body. La forma più allungata incorpora un
nuovo sistema di caricamento del tweeter che produrre un suono ancora più libero
e aperto alle alte frequenze. L'alloggiamento, accuratamente disaccoppiato, è
fresato da un unico blocco solido di alluminio per resistere meglio alle
risonanze.I tweeter a cupola in carbonio sono stati realizzati appositamente per
la Serie 700. Offrono un netto miglioramento rispetto a quelli a doppia cupola
in alluminio, innalzando il break-up a 47 kHz, per un'immagine precisa e
dettagliata.Grazie alla sua struttura composita, il cono Continuum™ evita le
brusche transizioni di comportamento che possono compromettere le prestazioni di
un altoparlante convenzionale. Il risultato è un suono più aperto e neutro, che
restituisce voci e strumenti con precisione e trasparenza.Diffusore bookshelf a 2 vie, bass reflex
posteriore con tecnologia “Flow Port System”. Tweeter disaccoppiato e montato
esternamente on-top da 25mm con cupola in carbonio e alloggiamento allungato in
alluminio pieno. Midrange FST disaccoppiato da 165mm con membrana in Continuum e
sospensione biometrica. 30-120W. 8 ohm. 88dB. Cabinet frontale curvato per
migliorare la diffrazione. Finiture: Laccato nero con griglia nera, bianco
satinato con griglia grigia o mocha con griglia nera. Cad
This
uncompromising two-way speaker reveals subtle nuances in music others miss. Its
high performance features include a solid body tweeter-on-top design borrowed
from the 800 Series Diamond. Solid Body tweeter
Milled from a solid block of aluminium, the solid body tweeter housing design
creates an acoustically optimised housing for the tweeter – one that’s
exceptionally inert and resistant to resonances.
Carbon Dome™ tweeters are a brand new technology purpose-built for the 700
Series. Delivering a dramatic improvement on the aluminium double-dome tweeter,
they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and
detail.
Continuum™ cone
First introduced with the 800 Series Diamond, the Continuum™ cone represents the
biggest step-change in midrange performance since Kevlar®. Its woven, coated
material provides highly controlled break-up, resulting in a more open, neutral
midrange Technical features Decoupled Carbon Dome
tweeter
Solid Body Tweeter on top
Continuum cone bass / midrange
Flowport™Description 2-way vented-box system
Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrangeFrequency range -6dB at 45Hz and 33kHz
Frequency response 50Hz - 28kHz ±3dB
Sensitivity 88dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)<1% 100Hz - 22kHz<0.5% 150Hz - 20kHz
Nominal impedance 8Ω (minimum 3.7Ω)
Recommended amplifier power 30W - 120W into 8Ω on unclipped programmeDimensions Height: 340mm (13.4 in) cabinet only
407mm (16 in) including tweeter
Width: 200mm (7.8 in)Depth: 285mm (11.2 in) cabinet only
301mm (11.9 in) including grille and terminalsNet weight 9.3kg (20.5 lb)
Finishes Cabinet: Rosenut
Gloss Black
Satin WhiteGrille: Black
Grey (Satin White only)
.gif)

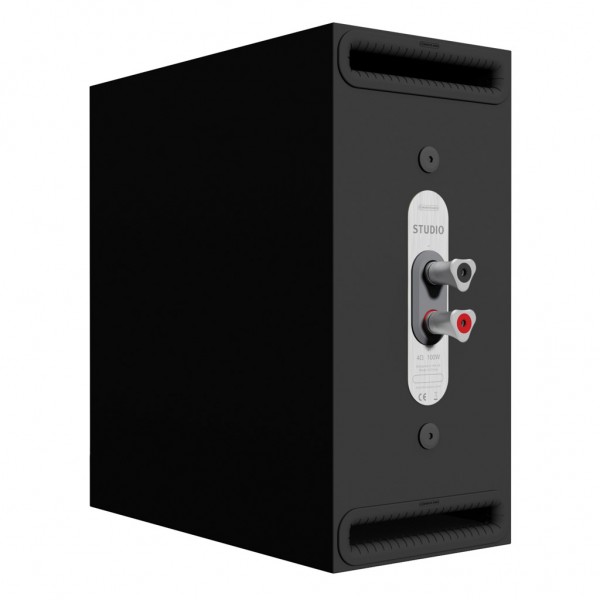

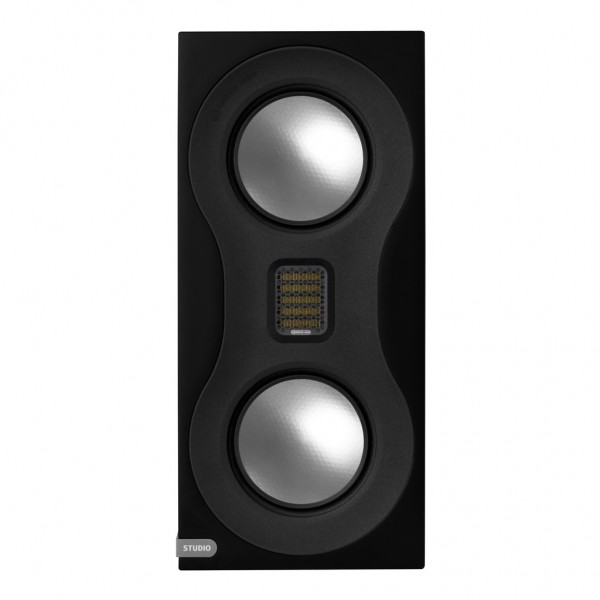

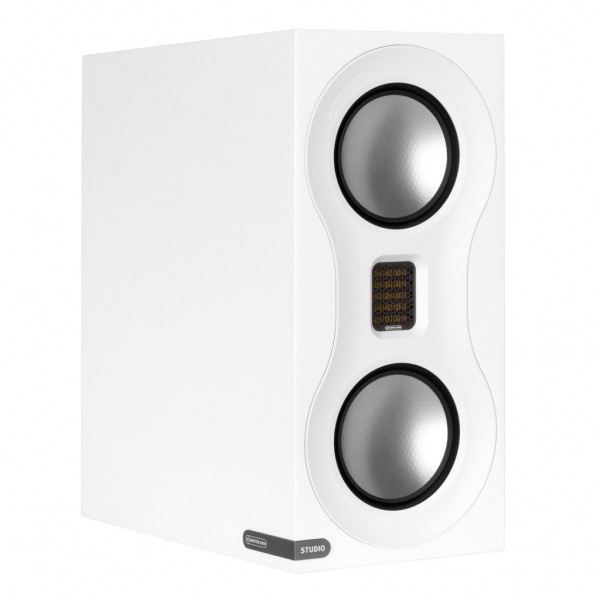

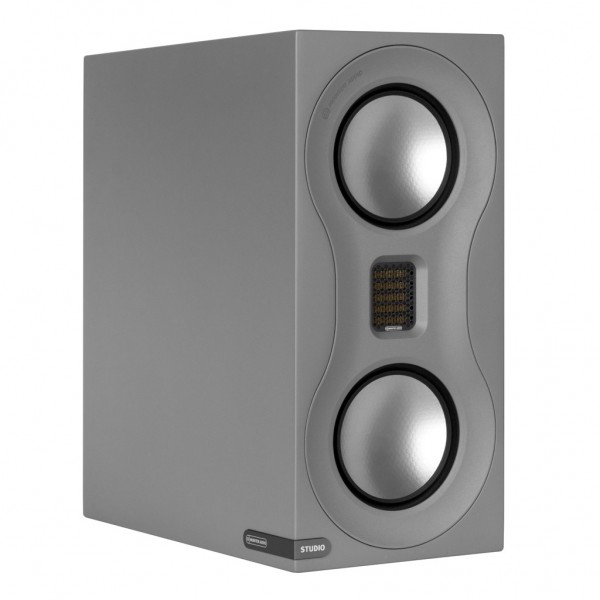

MONITOR
AUDIO STUDIO
SATIN
Netto coppia €. 1.450,00
DIFFUSORE
DA SUPPORTO A 2 VIE CON TECNOLOGIE DESUNTE DALLA SERIE TOP DI GAMMA PLATINUM II
- IMPEDENZA NOMINALE 4 OHM - SENSIBILITA` 86 DB - RISPOSTA IN FREQUENZA 48 HZ -
100 KHZ - POTENZA APPLICABILE RACCOMANDATA 40 - 100 WATT - 2 WOOFER DA 4 POLLICI
RDT®II (RIGID DIAPHRAGM TECHNOLOGY 2ND GENERATION) IN SANDWICH DI MATERIALE
C-CAM® (CERAMIC-COATED ALUMINIUM/MAGNESIUM), NOMEX E FIBRA DI CARBONIO - 1
TWEETER A NASTRO MPD (MICRO PLEATED DIAPHRAGM) - DOPPIA PORTA REFLEX A FERITOIA
HIVE®II SUL PANNELLO POSTERIORE - ALTOPARLANTI DISPOSTI SU UNA CORNICE DI
ALLUMINIO PRESSOFUSO MONTATA SUL PANNELLO FRONTALE, ANCORATI AL CABINET MEDIANTE
LUNGHI BULLONI PASSANTI FISSATI SUL PANNELLO POSTERIORE - CROSSOVER CON
COMPONENTI AUDIOPHILE GRADE SELEZIONATI E SENZA COMPROMESSI - CONNETTORI IN
PURISSIMO RAME TORNITO DAL PIENO PLACCATI IN RODIO - COSTRUZIONE ARTIGIANALE
FATTA A MANO - FINITURA
SATIN BLACK (NERO SATINATO)FINITURA SATIN GREY (GRIGIO SATINATO) -
FINITURA SATIN WHITE (BIANCO SATINATO)DIMENSIONI (L X A X P) 156 X 340 X 361 MM
OPTIONAL - STANDDEDICATO (ACQUISTABILE
SEPARATAMENTE 350,00euro
.gif)

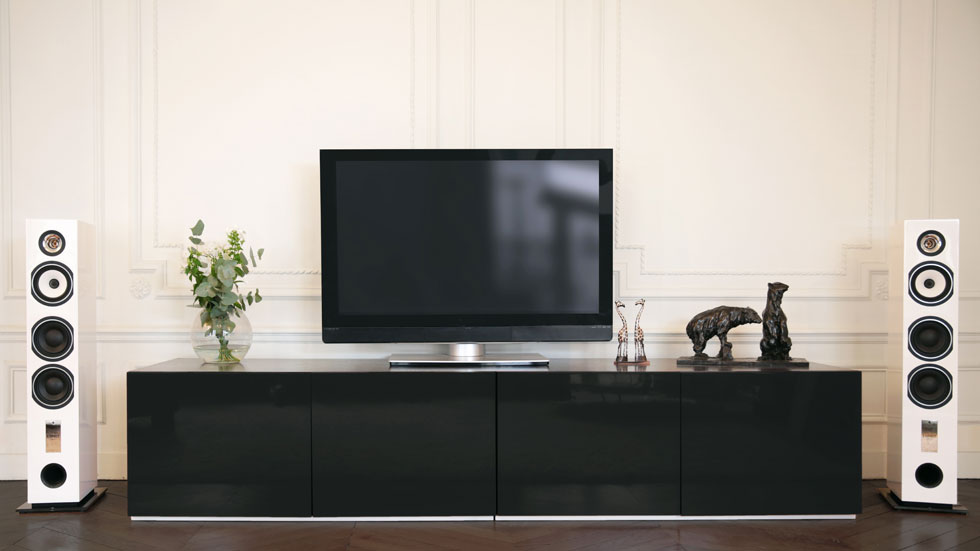

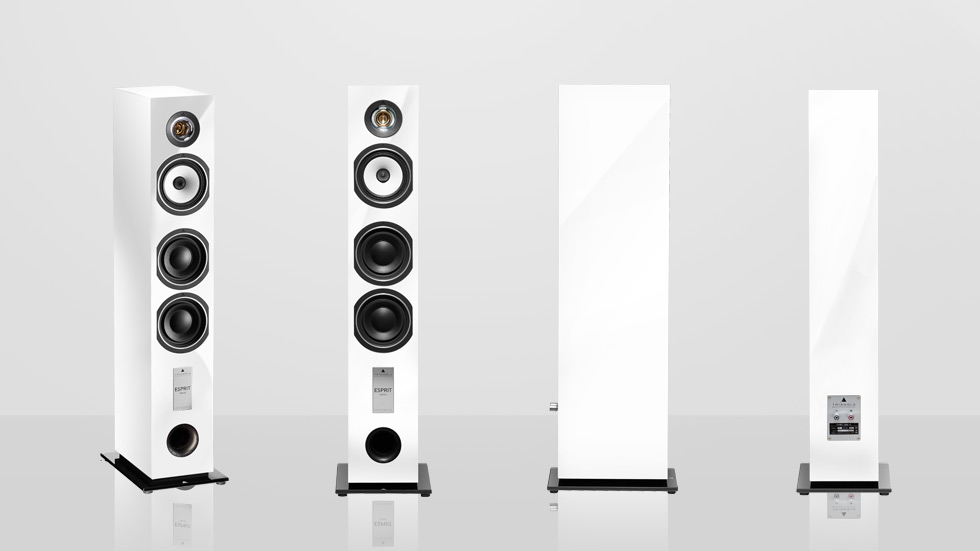

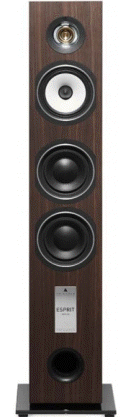

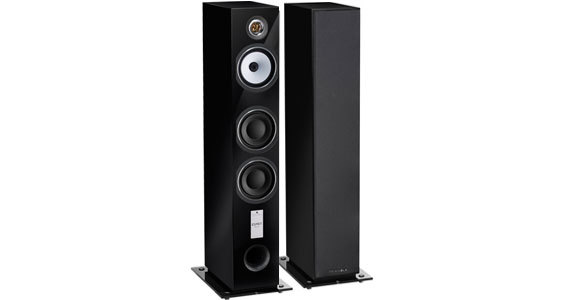

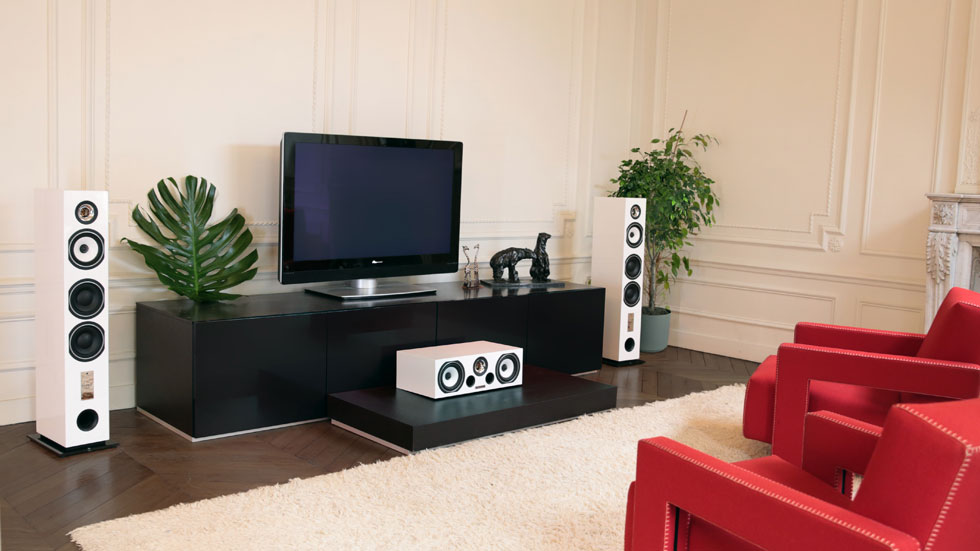

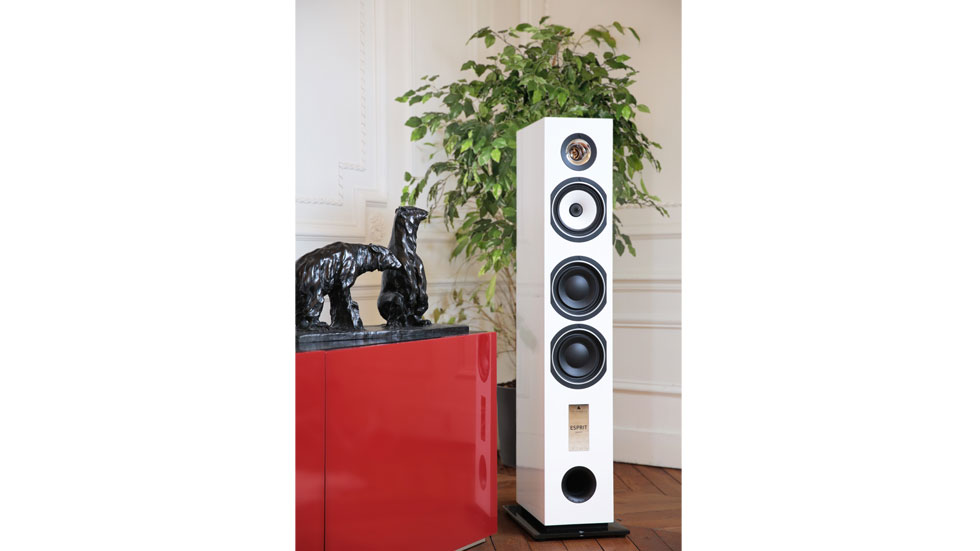

TRIANGLE EXPRIT
GAYA EZ
Listino ufficiale
€. 1.300,00
Tre vie da
pavimento. Reflex anteriore, LF: 2x133mm/2x5,25" MF: 1x133mm/1x5,25" HF: cono
Titanium 1x25mm/1x1", Peso: 18,1 Kg ciascuno, Dim 962 x 168 x 276 mm, Dim con
piedistallo (A x L x P): 980 x 230 x 315 mm, Sensibilità: 89,5dB, Risposta di
frequenza: (+/-3dB) 47 Hz - 22 KHz, Potenza di picco: 180W, Impedenza nominale:
8 Ohms Impedenza minima: 3,3 Ohms Finitura: Noce

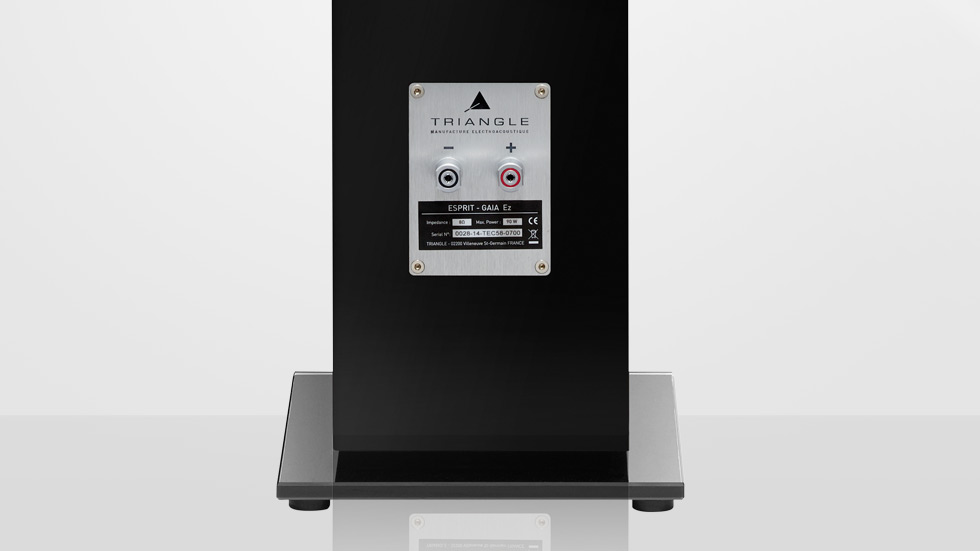

The Gaia Ez is a 3-way compact floorstander
with three 5’’ drivers. It’s compact design (96cm x 17cm) makes it a perfect fit
for all rooms. Being discrete & elegant, combined with powerful musical
qualities makes the Gaia Ez the automatic choice for many of our music lovers. ,Tweeter

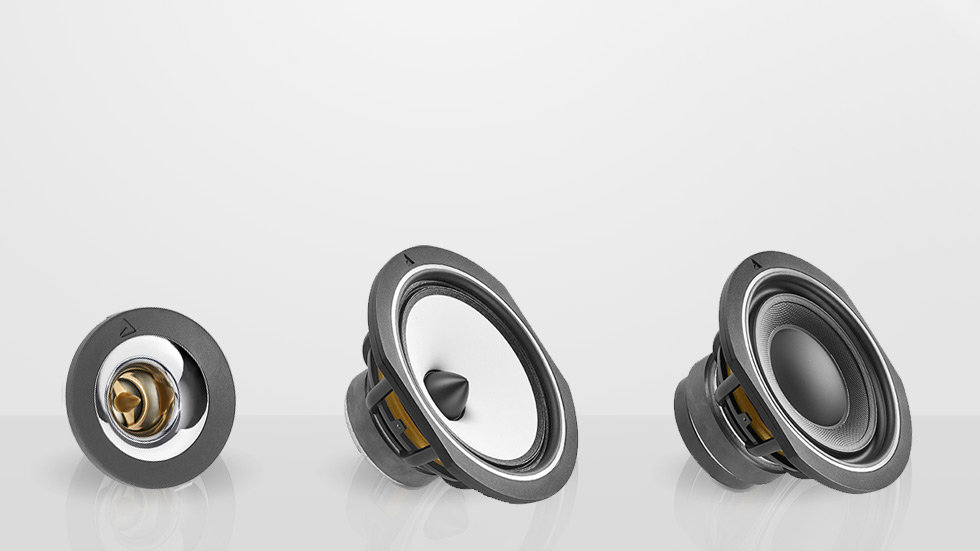

TZ2500B with titanium dome ,Midrange driver membrane made of natural cellulose
,Woofers with fibreglass membranes ,Glass pedestal mounted with spikes or rubber
pad ,Brushed Aluminium Terminal The MAGELLAN program showed the importance of
how the bass driver influences the behaviour of the medium driver. We control
the cone so it efficiently muffles any resonance in the «upper bass» area.
Fiberglass was selected for its excellent affect on the lower midrange / higher
bass. An ESPRIT Ez innovation is the overlay of textile material and fiberglass,
which improves the rigidity of the membrane. The speaker is equipped with a new
chassis, which quickly dissolves the heat generated by the coil, and with a
double ferrite to improve sensitivity A real TRIANGLE trademark of technology
and performance, the TZ2510, is the latest incarnation of a titanium dome in
combination with a compression chamber. This technology provides high efficiency
with low distortion and excellent directivity. Studies from the signature
project helped to develop a new profile of the horn and also improved the phase
plug. It reduces the directivity and provides almost the same sound level
throughout the room. We have developed a compact engine with high magnetic
power, by using a neodymium ring combined with an absorption chamber. The latter
has been designed in view of stopping the propagation of the back sound wave and
of reducing distortions. As a result, the high-pitched frequencies offer a more
natural listening experience
.gif)

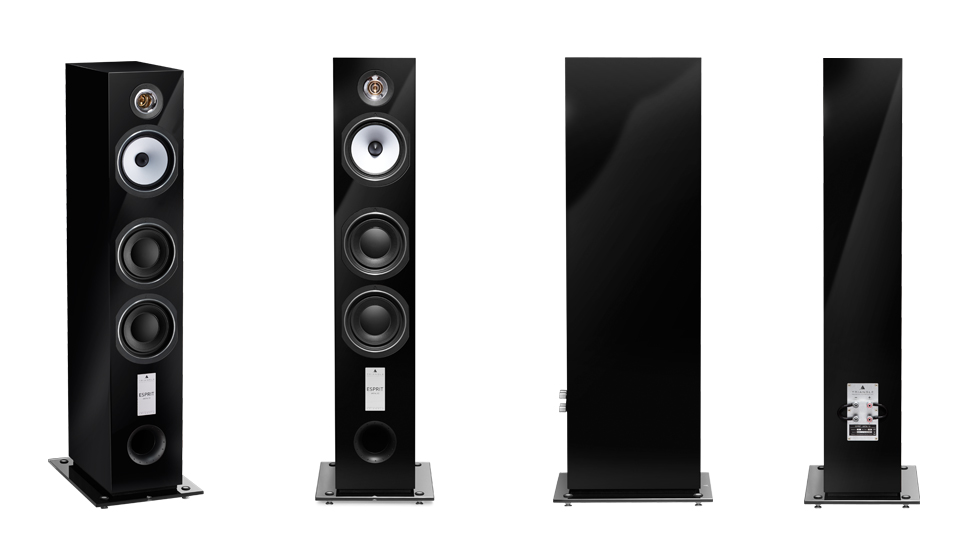

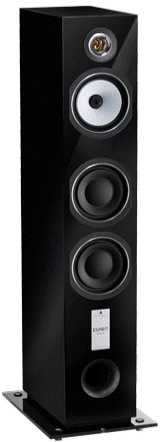

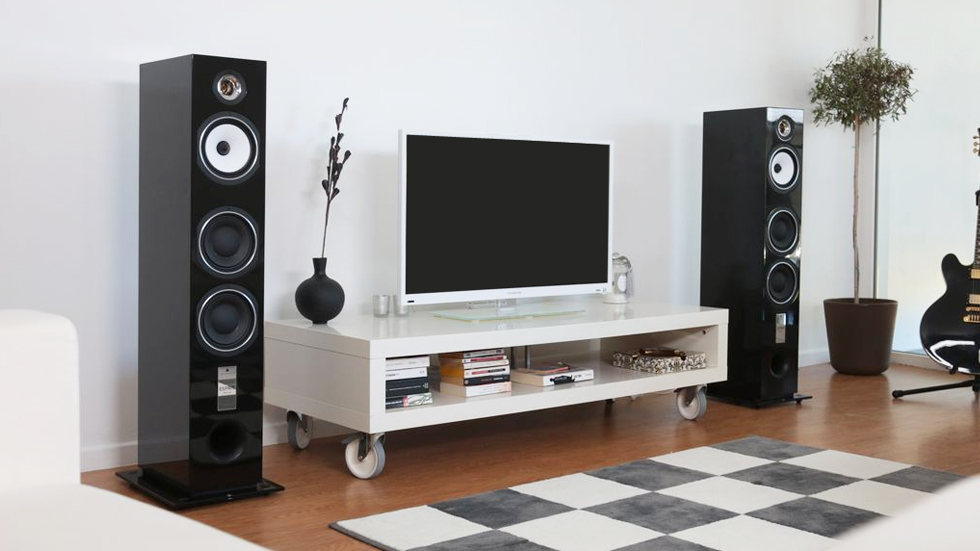

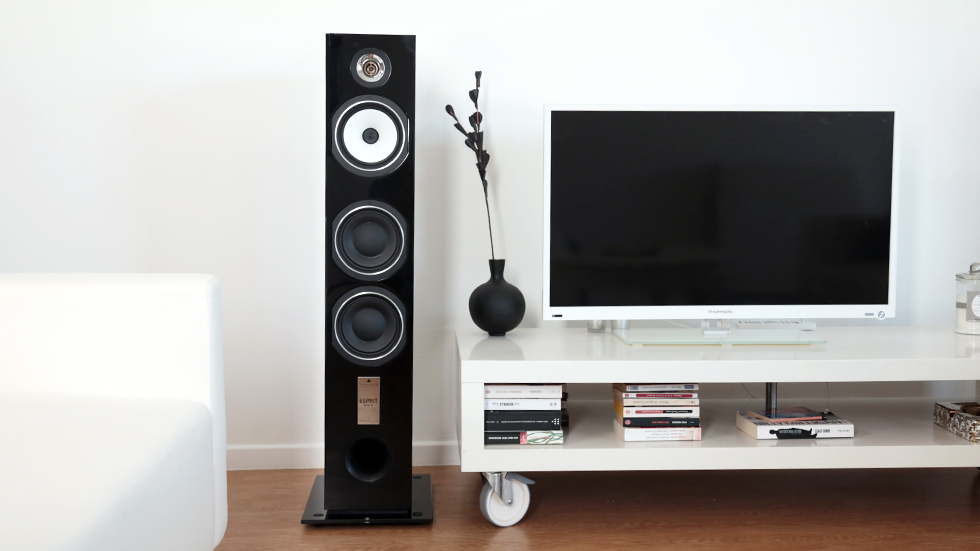

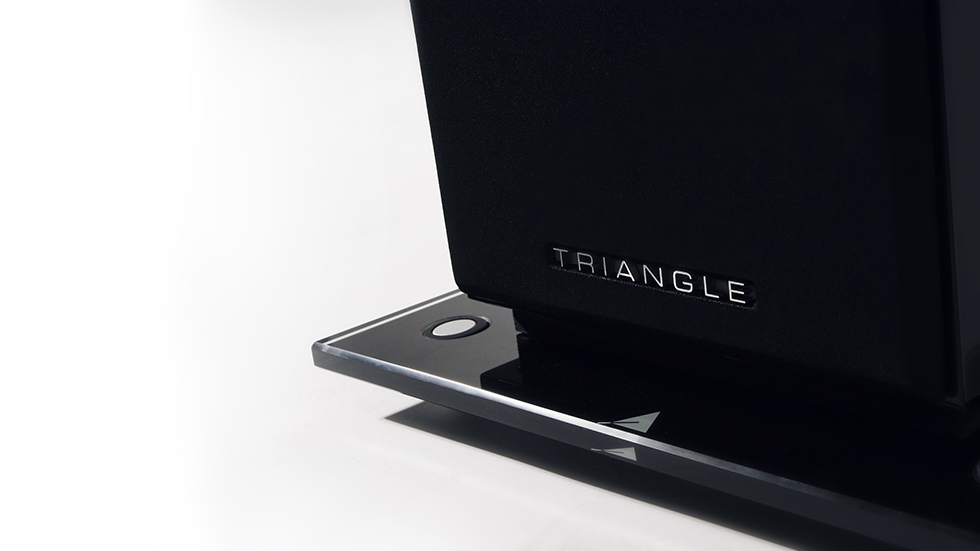

TRIANGLE EXPRIT
ANTAL EZ
netto coppia
€. 1.380,00
Tre vie da
pavimento. Reflex anteriore, LF: 2x165mm/2x6,5" MF: 1x165mm/1x6,5" HF: cono
Titanium 1x25mm/1x1", Peso: 27 Kg ciascuno, Dim (A x L x P) 1090 x 200 x 345 mm,
Dim con piedistallo (A x L x P): 1115 x 300 x 400 mm, Sensibilità: 92dB,
Risposta di frequenza: (+/-3dB) 40 Hz - 22 KHz, Potenza di picco: 240W,
Impedenza nominale: 8 Ohms Impedenza minima: 3 Ohms Finitura: Noce
This
3-way floorstander introduces the latest triangle innovations. It is fitted with
a horn-loaded tweeter, a mid range of natural cellulose and two glass fiber
woofers.Made out of 100% natural cellulose paper, white membrane is used to
avoid any coloration. It is combined with a small pleat peripheral suspension to
increase the emissive surface area.Special attention has been paid to a number
of details in the development of the midrange: the profile of the membrane, the
shape of the suspension, and the new dust cap, are directly inspired from the
MAGELLAN project. With the new ANTAL Ez, the mid-range driver increases to 165
mm to provide an even more open sound.The MAGELLAN program showed the importance
of how the bass driver influences the behaviour of the medium driver. We control
the cone so it efficiently muffles any resonance in the «upper bass» area.
Fiberglass was selected for its excellent affect on the lower midrange / higher
bass. An ESPRIT Ez innovation is the overlay of textile material and fiberglass,
which improves the rigidity of the membrane. The speaker is equipped with a new
chassis, which quickly dissolves the heat generated by the coil, and with a
double ferrite to improve sensitivityA real TRIANGLE trademark of technology and
performance, the TZ2510, is the latest incarnation of a titanium dome in
combination with a compression chamber. This technology provides high efficiency
with low distortion and excellent directivity. Studies from the signature
project helped to develop a new profile of the horn and also improved the phase
plug. It reduces the directivity and provides almost the same sound level
throughout the room. We have developed a compact engine with high magnetic
power, by using a neodymium ring combined with an absorption chamber. The latter
has been designed in view of stopping the propagation of the back sound wave and
of reducing distortions. As a result, the high-pitched frequencies offer a more
natural listening experience.

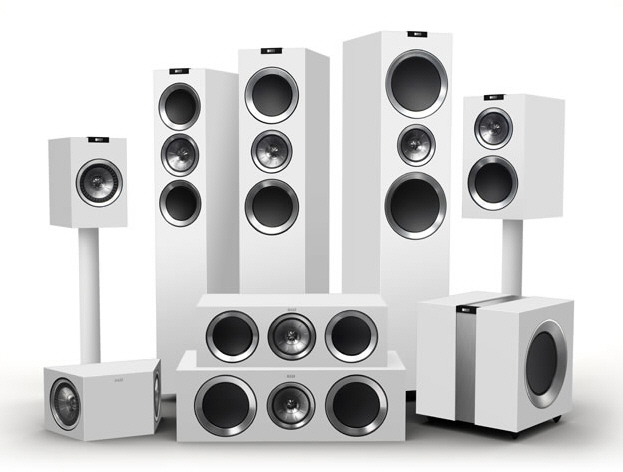

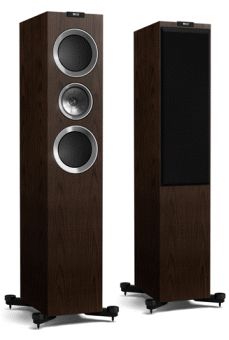

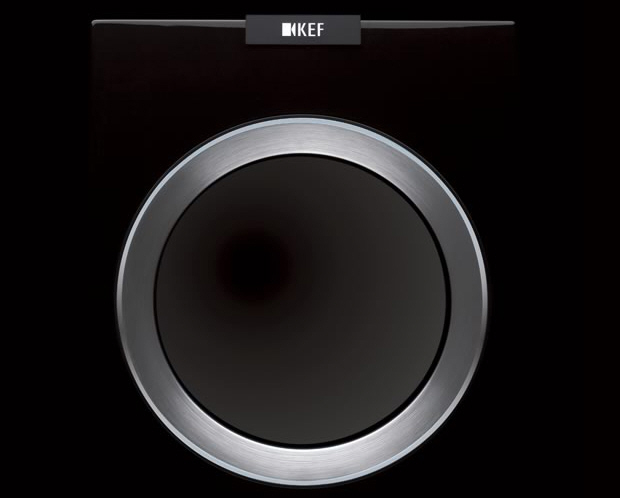

KEF
R700
netto coppia
€. 2.450,00
DIFFUSORE ACUSTICO 3 VIE DA PAVIMENTO BASS REFLEX. SISTEMA UNIQ. 2
WOOFER DA 16CM. POTENZA 25- 200W. 89DB EFFICIENZA.
KEF R700 Floorstanding The KEF R700 exudes sophistication, not only
in its contemporary design and use of high quality real wood and piano
high gloss finishes, but in its class-leading sonic reproduction. The
three-way design makes music or movie sound tracks controlled, detailed
and dynamic, whilst twin 6.5-inch aluminium bass drivers deliver a fast,
controlled and authoritative low end. Model R700 Design Three-way bass

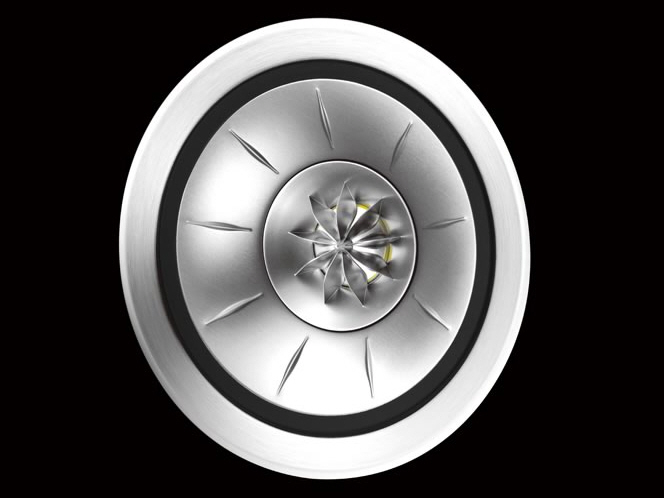

reflex Drive units Uni-Q driver array: HF: 25mm (1in.) vented aluminium
dome MF: 125mm (5in.) aluminium Bass units: LF: 2 x 165mm (6.5in.)
aluminium Frequency range (-6dB) 37Hz - 45kHz Frequency response (±3dB)
42Hz - 28kHz Crossover frequency 500Hz, 2.9kHz Amplifier requirements 25
- 200 W Sensitivity (2.83V/1m) 89dB Harmonic distortion 2nd & 3rd
harmonics (90dB, 1m) <0.4% 100Hz-20kHz Maximum output 113dB
Nominal impedance 8Ω (min. 3.2Ω) Weight 25.9kg (57lbs.) Dimension (H x W
x D) (with grille and terminal) 1070 x 210 x 345 mm (42.1 x 8.3 x 13.6
in.) Dimension (H x W x D) (with grille, terminal & plinth) 1121 x 329 x
368 mm (44.1 x 13.0 x 14.5 in.)

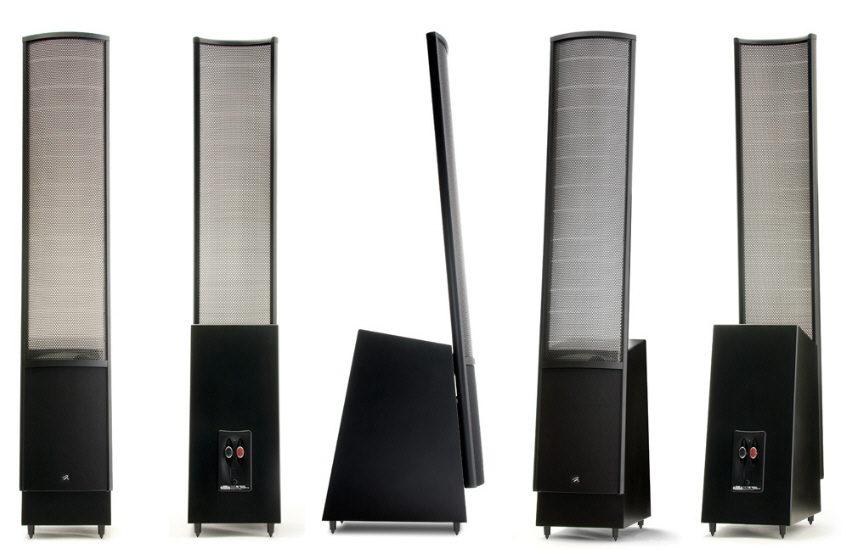

MARTIN LOGAN
ELETTROMOTION
ESL Netto coppia €. 2.700,00
Ibridi Serie

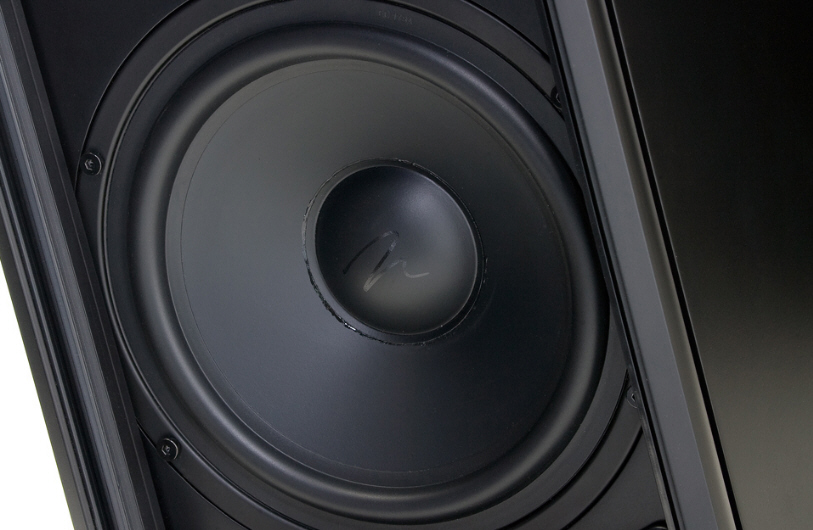

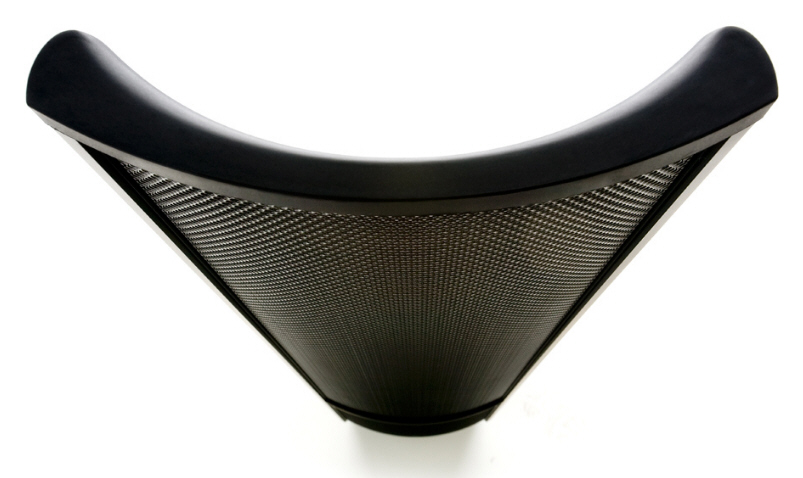

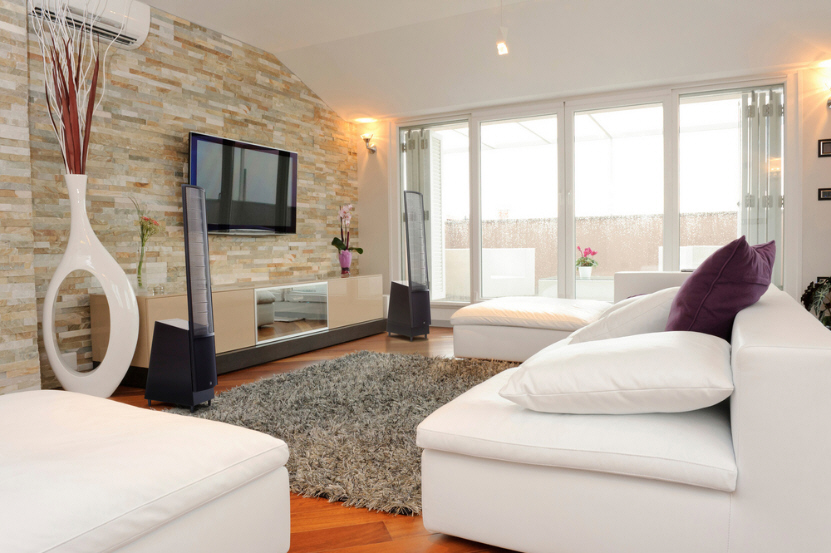

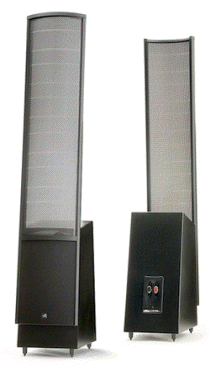

ElectroMotion Diffusore elettrostatico/ibrido da pavimento a 3 vie, bass
reflex a pavimento, woofer con cono in carta/fibra trattata da 203mm, midrange/tweeter
a nastro elettrostatico curvilineo a dispersione controllata CLS XStat™ da
860x220mm. Potenza 20-300W. Efficienza 91dB. Impedenza 6 ohm. Crossover cablato
in aria Vojtko™. Punte di disaccoppiamento ETCTM in dotazione. Finitura Matt
Black sia del cabinet sezione bassi che del pannello elettrostatico.

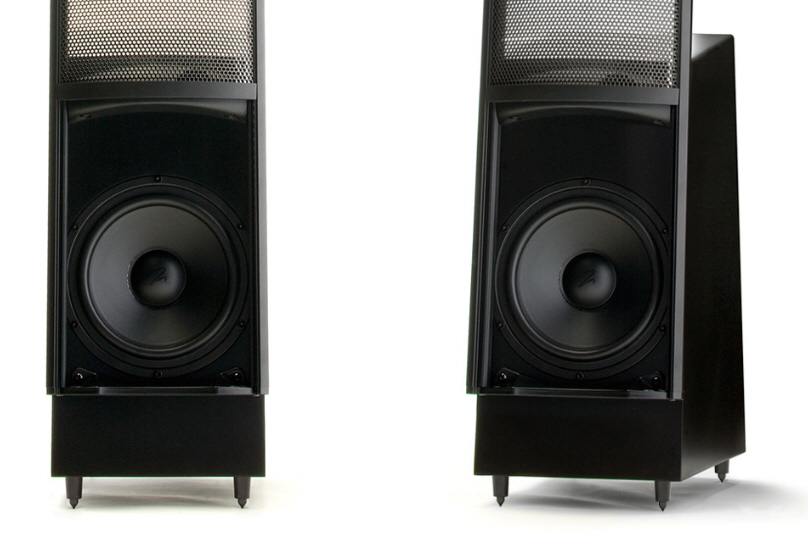

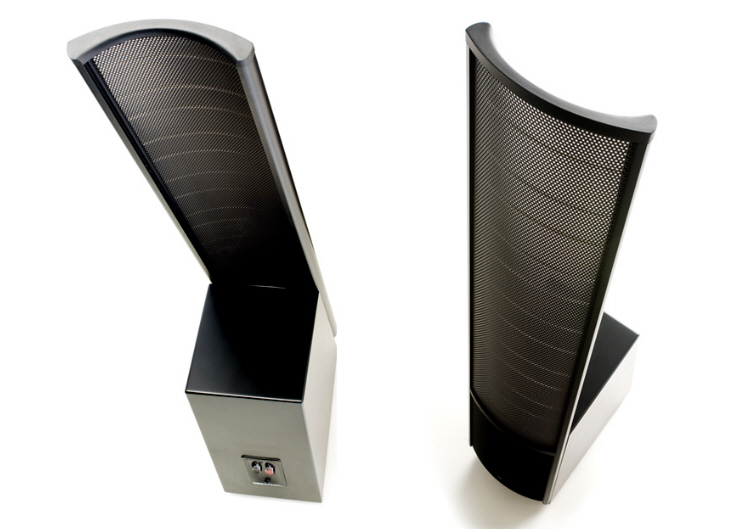

The ElectroMotion ESL (EM-ESL) represents a brave new direction for
electrostatic loudspeaker design. Featuring a full-sized 34-inch tall
curvilinear XStat™ electrostatic transducer the new ESL performs more like a
mini-flagship than an entry level audiophile speaker. Long time MartinLogan
enthusiasts are sure to describe ElectroMotion ESL as the second-coming of the
legendary Aerius electrostatic speaker which debuted in 1992 and went on to sell
in record numbers. The new ESL, however, boasts 40 percent more radiating
surface, a superbly integrated and authoritative bass performance, and a
sensitivity rated at 91dB. In addition, the ESL is capable of being effortlessly
powered by both receivers and high-end amplifiers alike. ElectroMotion ESL's
XStat electrostatic MicroPerf panel is housed within a radical aluminum and
composite AirFrame™ similar to those found on MartinLogan's flagship products.
AirFrame technology rigidifies the electrostatic panel without obstructing
playable surface area or interfering with ambience enriching dipole sound
radiation. At the same time, an AirFrame provides electrical and acoustical
isolation, minimizing intermodulated distortion caused by vibration and
resonance while enhancing imaging, low-level sonic detail, accuracy, and
efficiency. MicroPerf design optimizes the individual holes of The EM-ESL's
electrostatic panel. MicroPerf design substantially increases diaphragm
radiating area, compared to early generations—without compromising structural
integrity. The resulting increase in output capability and efficiency allows The
EM-ESL's panel to enjoy a substantial leap in bandwidth and dynamics without
growing larger. For example
.gif)

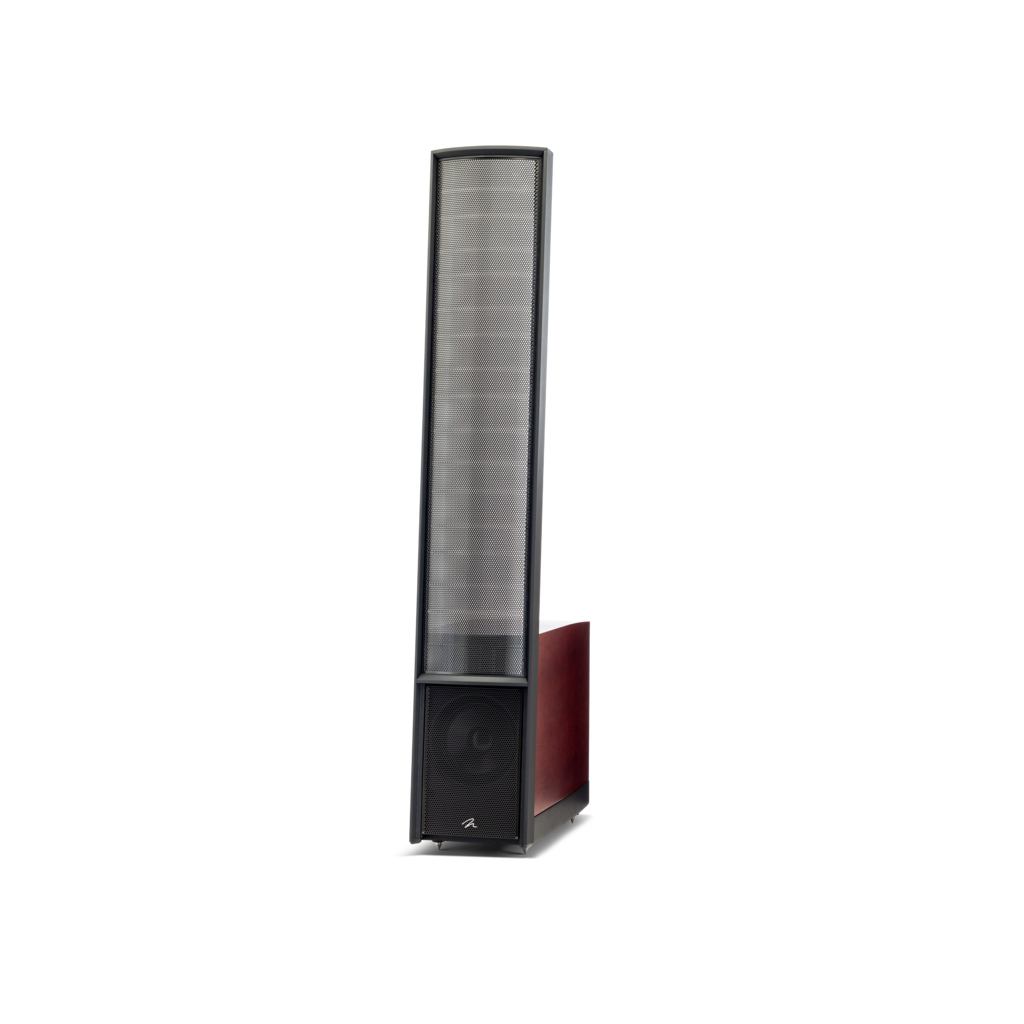

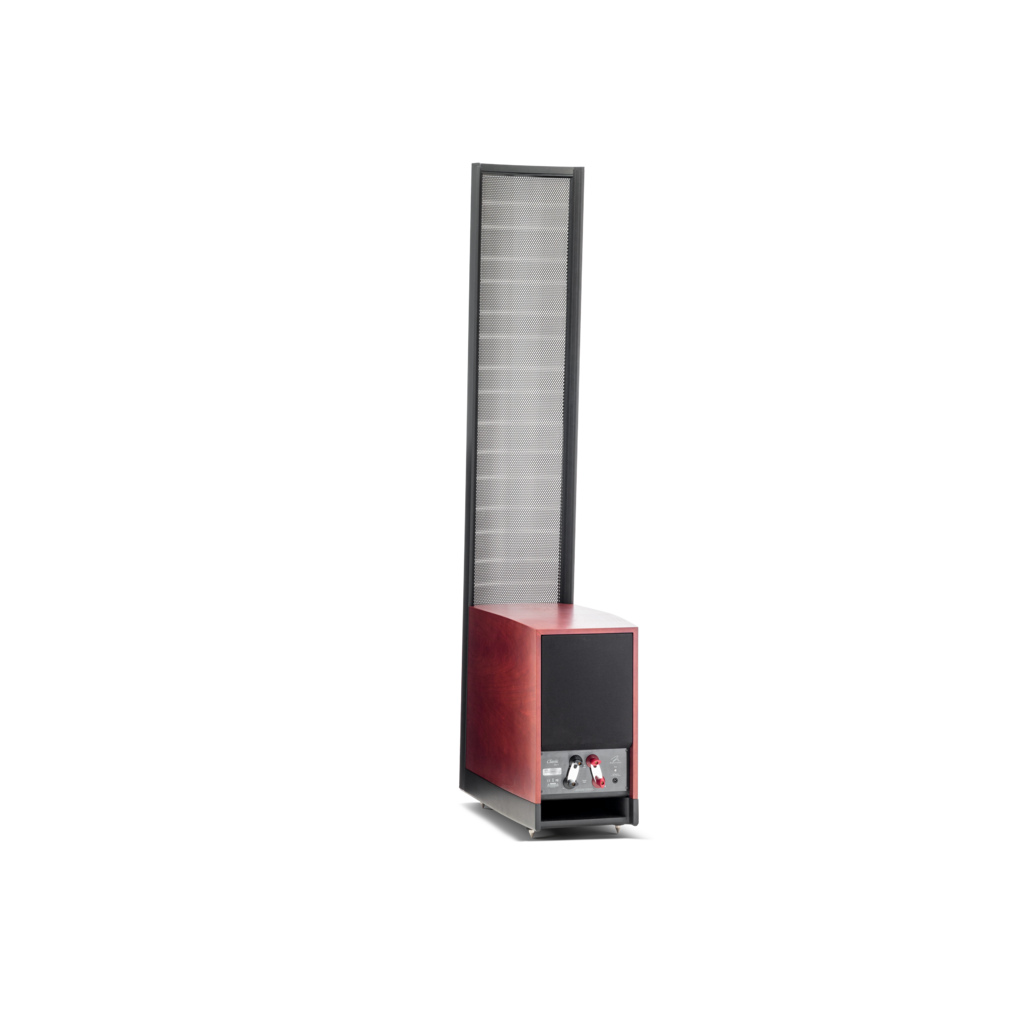

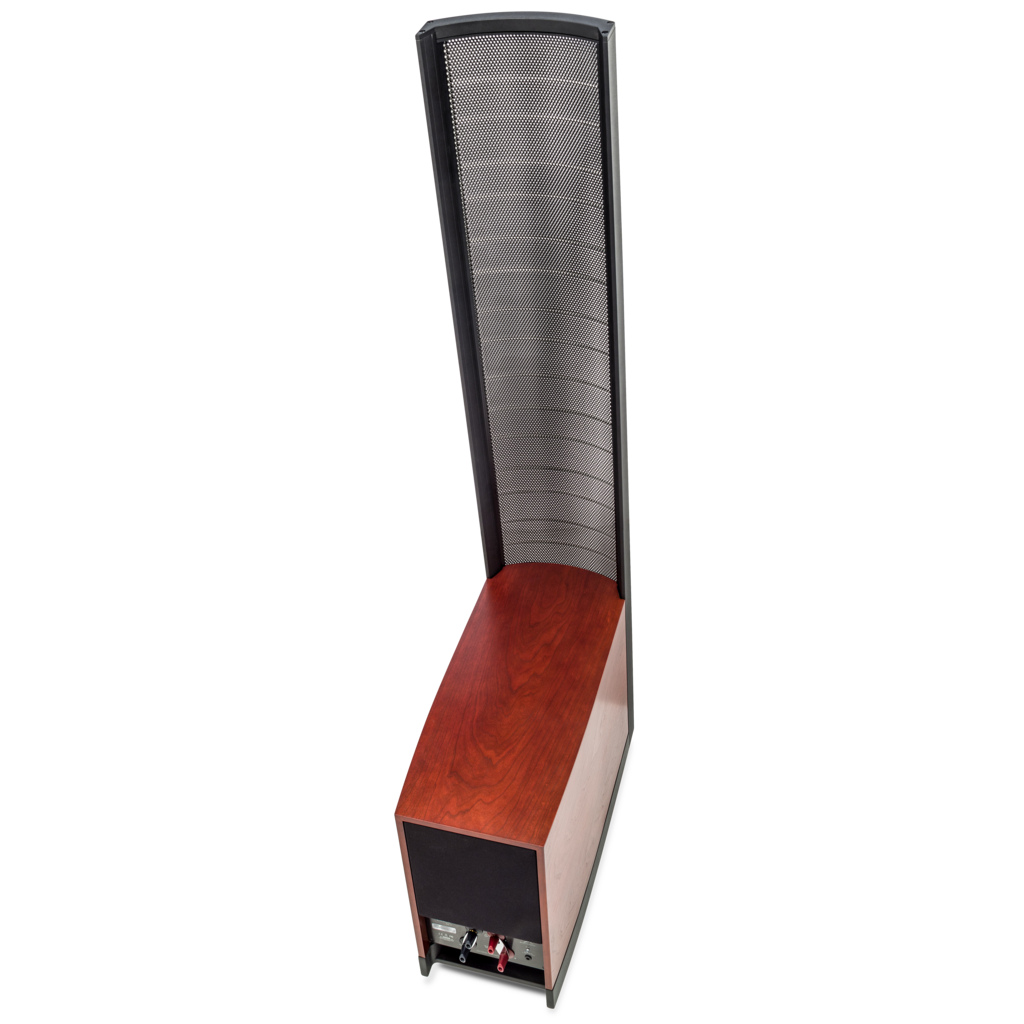

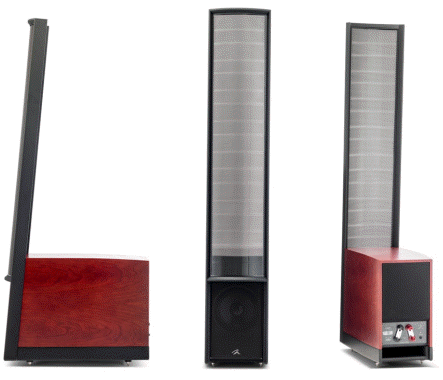

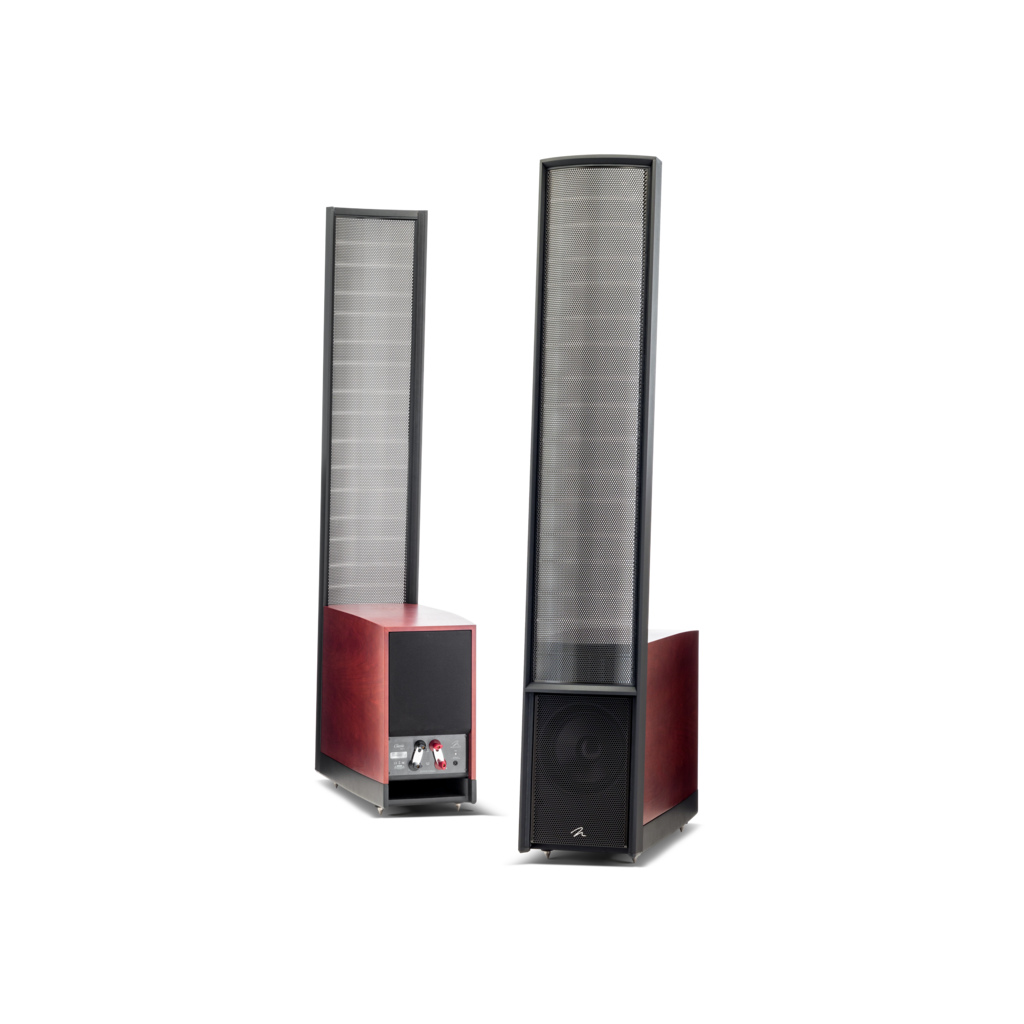

MARTIN LOGAN
CLASSIC
ESL9A
Netto coppia
€. 7.500,00

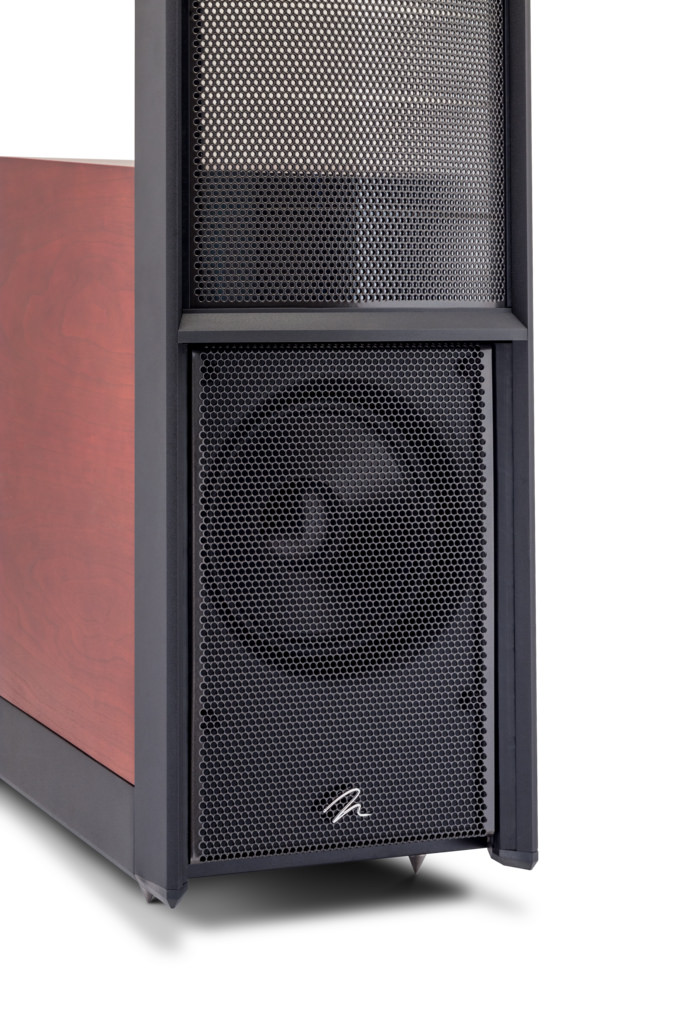

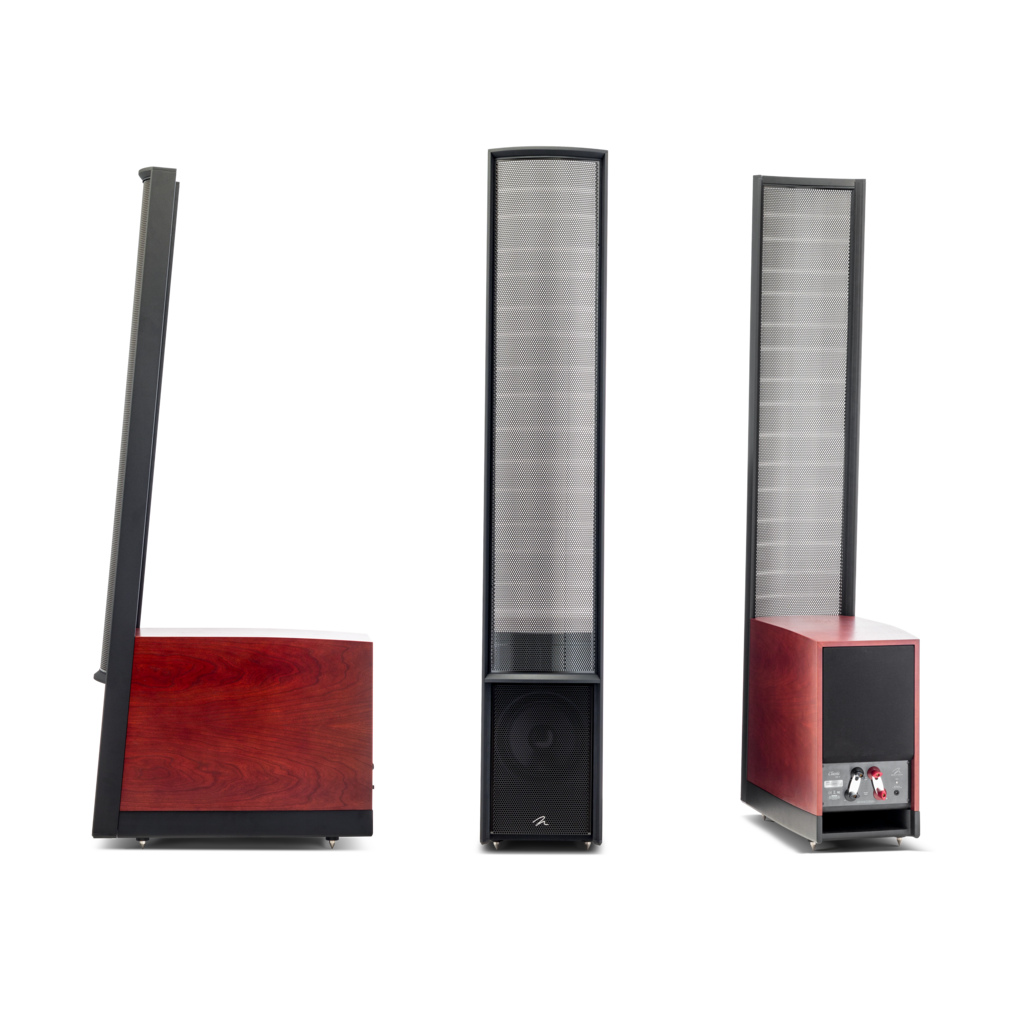

Diffusore
elettrostatico/ibrido da pavimento a 3 vie, bass reflex posteriore, doppio
woofer con cono in alluminio da 203mm, midrange/tweeter a nastro elettrostatico
curvilineo a dispersione controllata CLS XStat™ da 1120x234mm. Unione del
pannello elettrostatico al modulo dei bassi con tecnologia AirFrame Blade Design
ultra rigida. Potenza 50-400W. Efficienza 90dB. Impedenza 4 ohm. Crossover
cablato in aria Vojtko™. Connettori bi-wiring. Punte di disaccoppiamento ETCTM
in dotazione.Pannello elettrostatico sempre Matt Black. COLORI : Gloss Black
Dark Cherry Walnut
A
masterpiece doesn’t just inspire emotions. It changes the way you feel, and it
sticks with you long after you’ve left the art gallery or the concert hall. It’s
considered a masterpiece precisely because of its ability to alter something
inside you. Once you experience it, you’ll never be the same. Enjoying a
masterpiece in your own home is something to aspire to. Consider the Classic ESL
9 your ticket to a life-changing experience with a masterpiece of audio

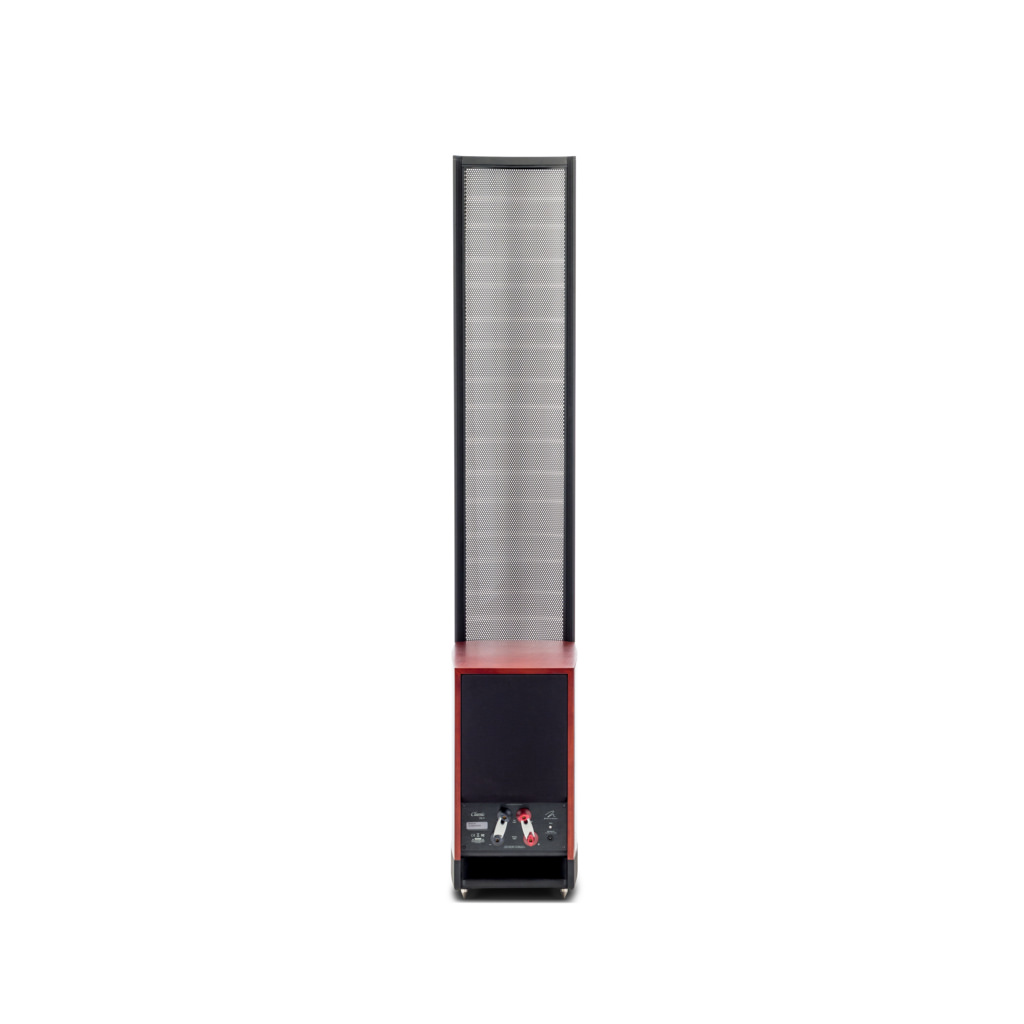

performance. You will never be the same.A Classic Masterpiece of Sound

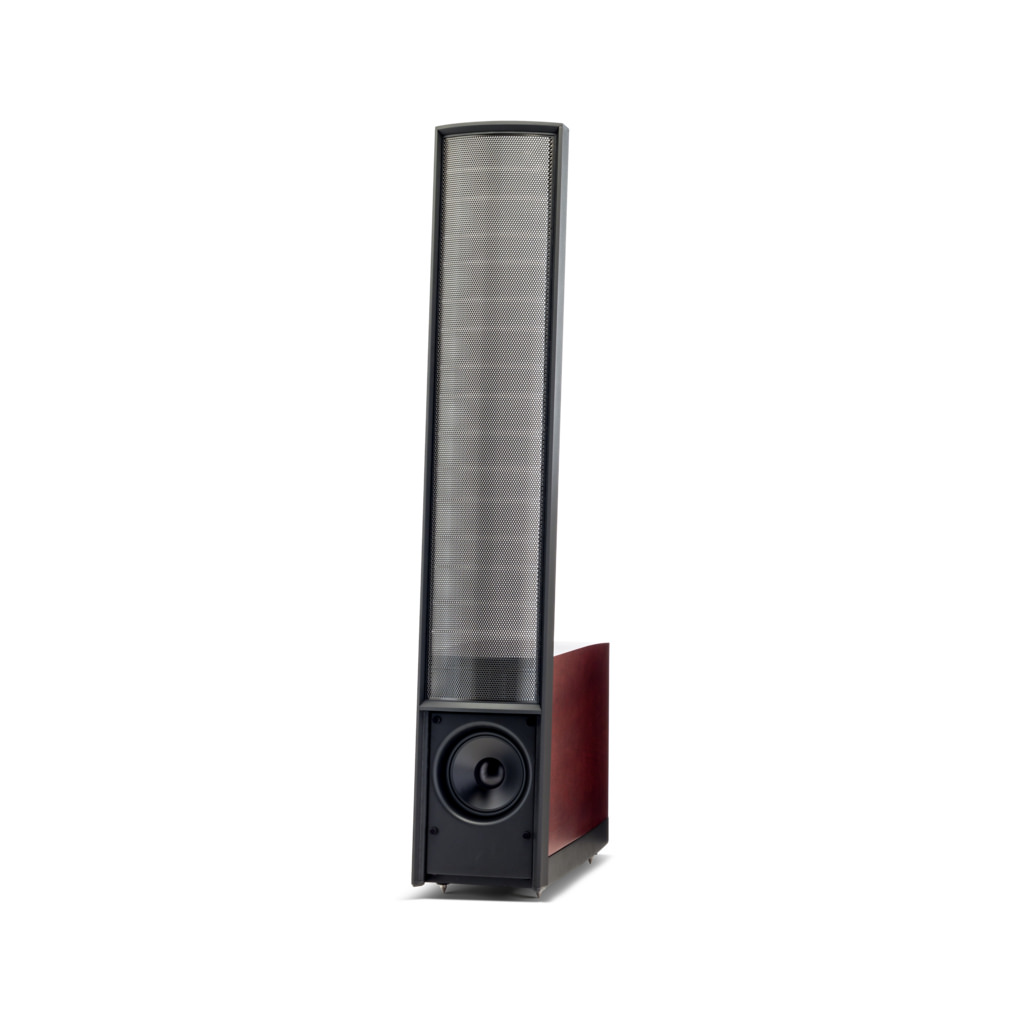

Reproduction MartinLogan unveils the Classic ESL 9, its newest modern
Masterpiece. All the familiar elements of MartinLogan’s flagship ESL series are
here, with some revolutionary refinements. The heart of this exceptional
loudspeaker is its 9.2-inch-wide Curvilinear Line Source (CLS) XStat
vacuum-bonded electrostatic transducer. Advanced MicroPerf stator technology
reveals more of the diaphragm surface area than any other electrostatic panel in
this size class, efficiently increasing the narrow panel’s output. Ultra-rigid
AirFrame Blade construction reduces performance-robbing vibrations, its shape
creating an expressive alignment with the woofer cabinet. Deep bass is rendered
with unflinching accuracy and authority by dual 8-inch low-distortion,
high-excursion aluminum cone woofers in a beautifully sculpted enclosure.
Classic Elements, Experienced In a New Way: Advanced MicroPerf stator technology,
which allows for almost twice the exposed electrostatic diaphragm surface as a
traditional electrostatic panel of the same size. A reinforced electrostatic
panel with rigid ClearSpar™ spacers, keeping an exact level of tension on the
vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add
to these the slender, pointed-arrow design of the new AirFrame™ Blade
construction and the result is a powerfully evocative composition creating a
harmonious connection between the panel and its woofer cabinet. Now notice some
refinements: We have reinvented the Classic ESL 9 woofer section. We use two
8-inch laser-engineered low-distortion aluminum cone woofers, balanced in an
opposing array, one forward- and one rear-firing. This design greatly reduces
cabinet vibrations inherent in same-direction woofer positioning, specifically
in the 34Hz to 100Hz range for uniform frequency response resulting in realistic

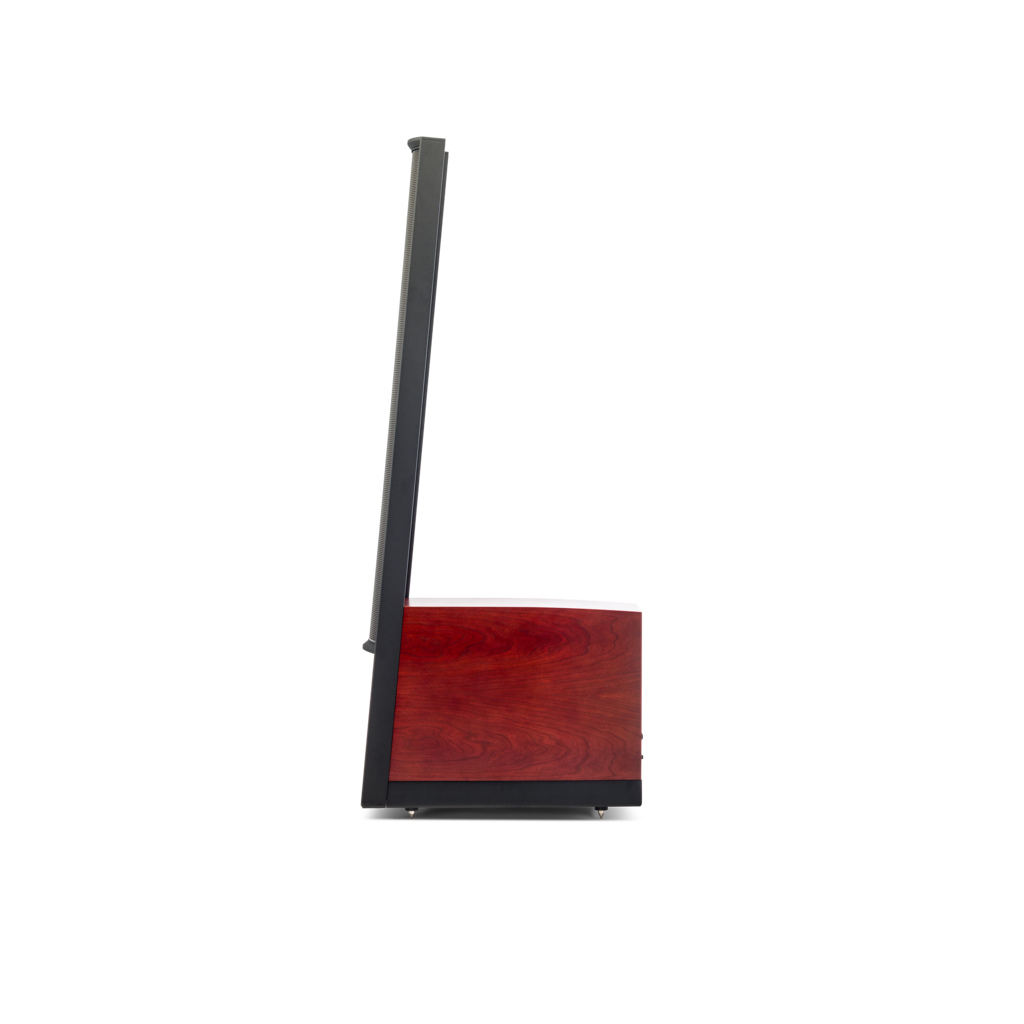

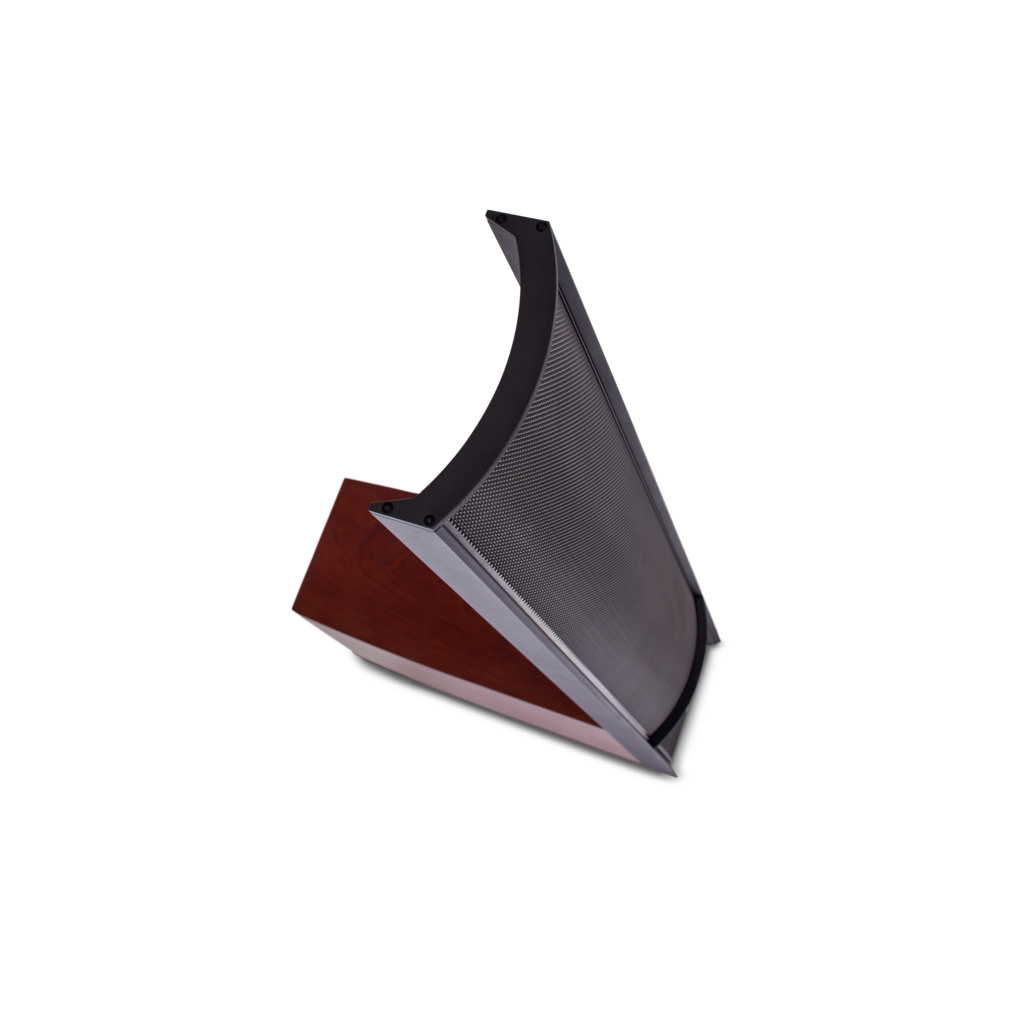

bass effects you can feel. New Ultra-Rigid AirFrame Blade Design Classic ESL 9
XStat panels are joined to their speaker cabinets using MartinLogan’s redesigned
AirFrame Blade construction, precision manufactured from an aerospace-grade
extruded aluminum alloy. This material, and this exclusive manufacturing process,
makes the panels extremely rigid. The bold, forward-moving styling of this
AirFrame Blade rail system, narrow and strong in front, broad and forceful from
the side, is a modern design statement. It never obstructs playable surface area
or interferes with the panel’s dipole sound radiation pattern. It also provides
electrical and acoustical isolation, minimizing intermodulation distortion
caused by vibration and resonance. The flowing lines emphasize the
groundbreaking integration of the panel itself with the compact woofer and
amplifier section. The breathtaking AirFrame Blade design enhances imaging,
low-level sonic detail, accuracy, and speaker efficiency.Curvilinear Line Source

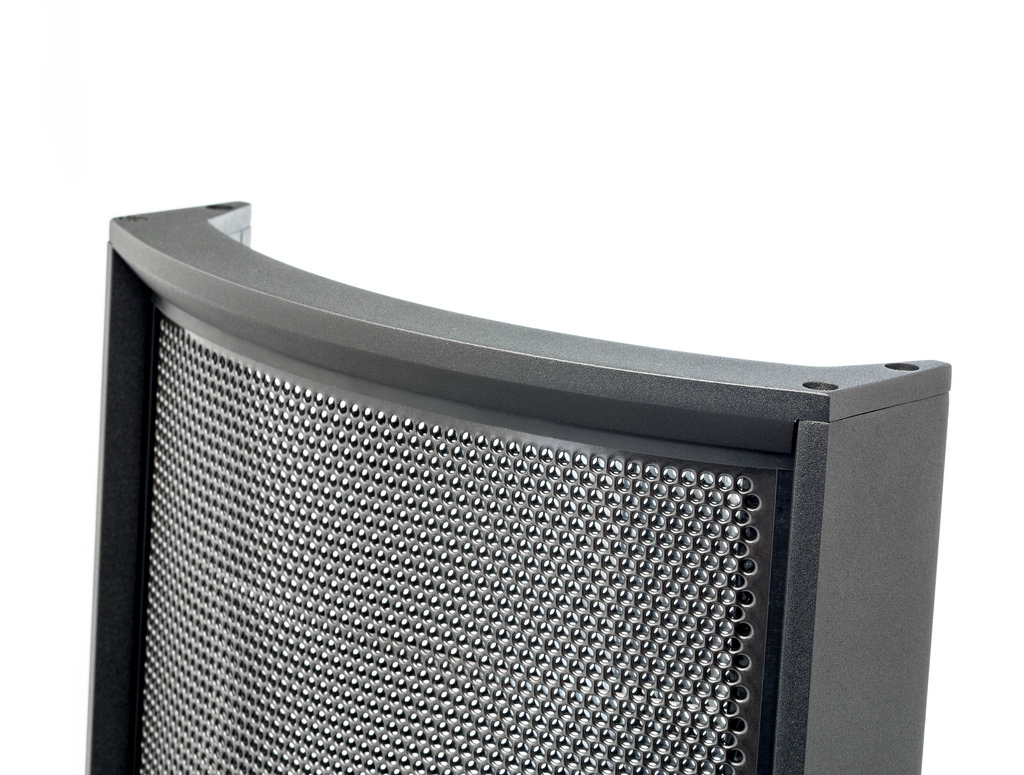

(CLS) Electrostatic Panel CLS technology is an essential ingredient of every
electrostatic loudspeaker we produce. Through our proprietary manufacturing
method, we have built-in the panel’s gentle horizontal curvature. This unique
design enhances the high frequency detail produced by the large radiating
surface, without compromising overall sound quality. Notice how the gentle
modern curve and perforation pattern gives way to the flat grille of the woofer
section. Controlled Dispersion Sound Radiation The sound we hear from a
loudspeaker is a combination of direct radiation from it to our ears, and
reflections off of room surfaces—walls, floor, and ceiling. How our brains
integrate this information is far from simple. Depending on the angle of
incidence to the ears and the arrival-time difference between direct and
reflected sound, reflections can either blur detail and stereo imaging, or
enhance the natural impression of depth and openness. Electrostatic panels,
which are true dipole speakers, produce a nearly-ideal controlled dispersion
radiation pattern. They send very little sound to the sides, thereby minimizing
side-wall reflections, whose short arrival times tend to interfere with the
perception of the direct sound. Their strong rear radiation, however, produces a
generous amount of natural, ambience-enriching later-arriving mid- and upper

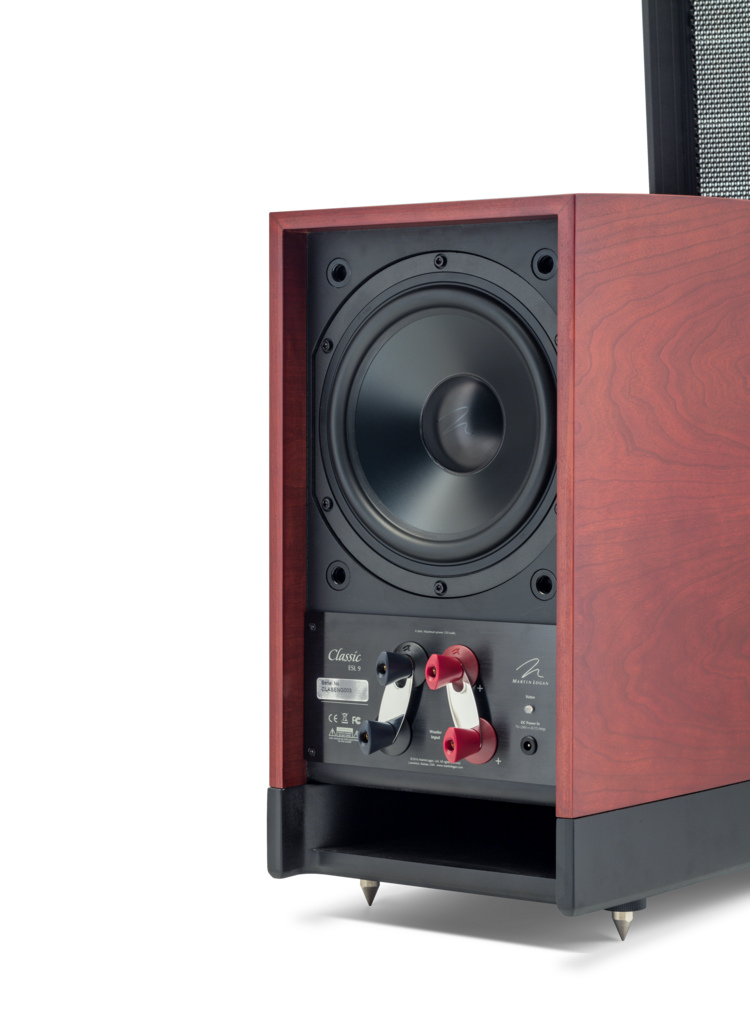

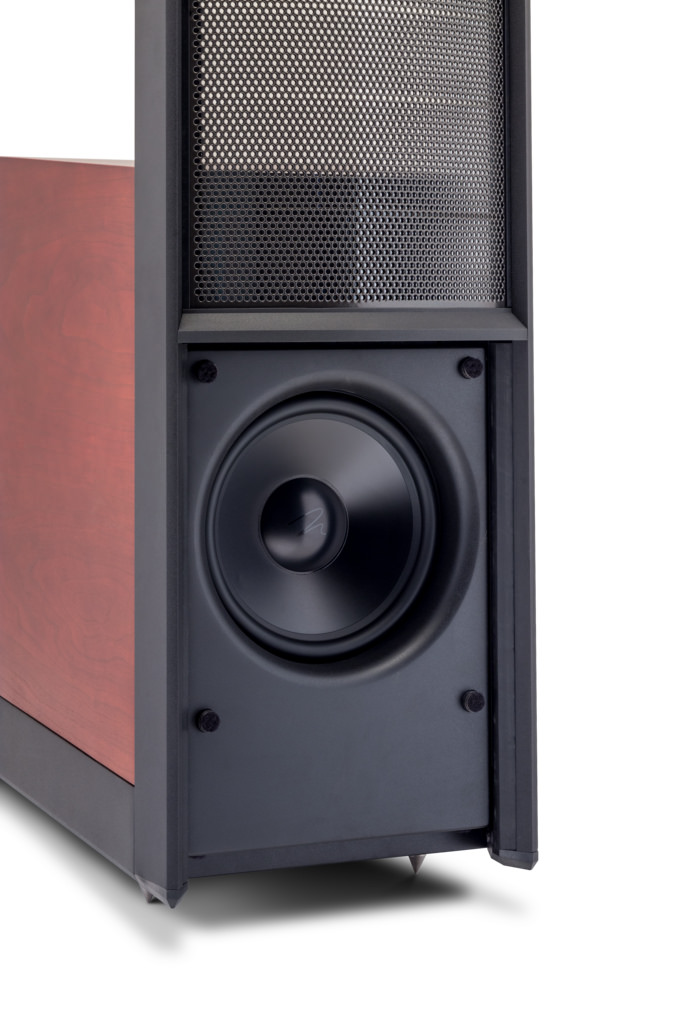

register information. Big, Well-Blended Bass Performance Rounding out the
dynamic performance of this Masterpiece is a passive pair of high-excursion
8-inch laser-engineered aluminum cone woofers custom designed by MartinLogan’s
in-house engineering team. This efficient, cast basket woofer design improves
cone suspension and the magnetic flux field, maximizing response time, to
produce truly profound bass output (down to 34Hz) with vanishingly low
distortion. The woofers are balanced in an opposing array, one forward- and one
rear-firing. This design greatly reduces cabinet vibrations inherent in
same-direction woofer positioning, specifically in the 34Hz to 100Hz range.
Roll-off characteristics for this opposing woofer array are further optimized
for a realistically coherent bass wave form. In addition, we’ve tuned the
rear-firing woofer to minimize near-wall interactions, perfectly complementing
the dipole nature of the electrostatic panel. Bass performance from this
configuration is accurate, musical and utterly lifelike. A flared, ultra-low
turbulence rear-firing slotted bass port is integral to the design of the
enclosure, providing an extra layer of rigid internal bracing and increasing

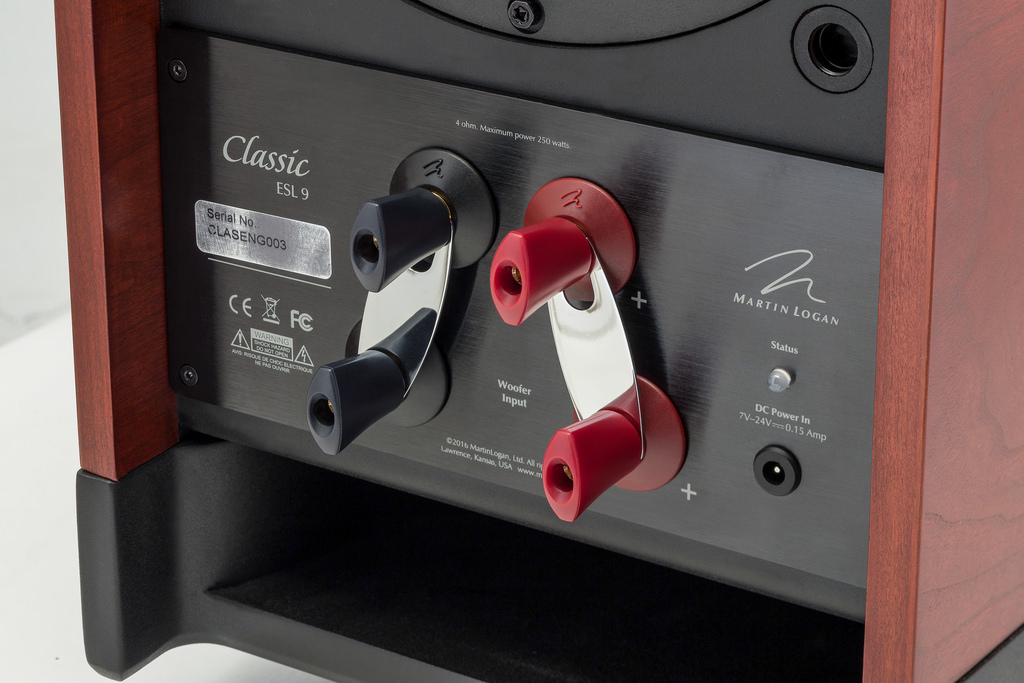

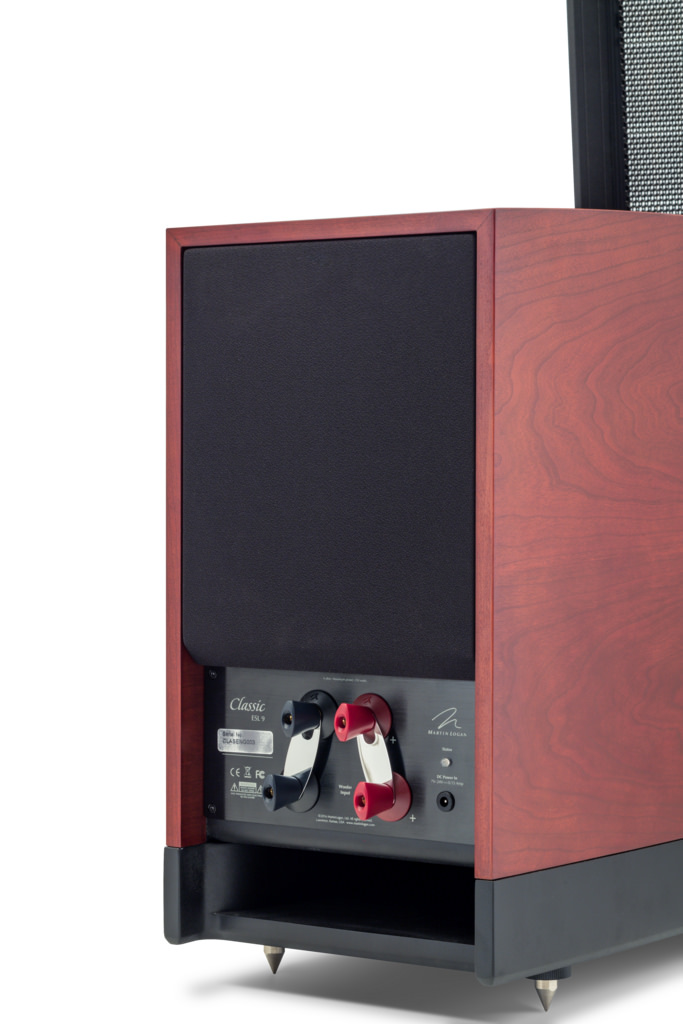

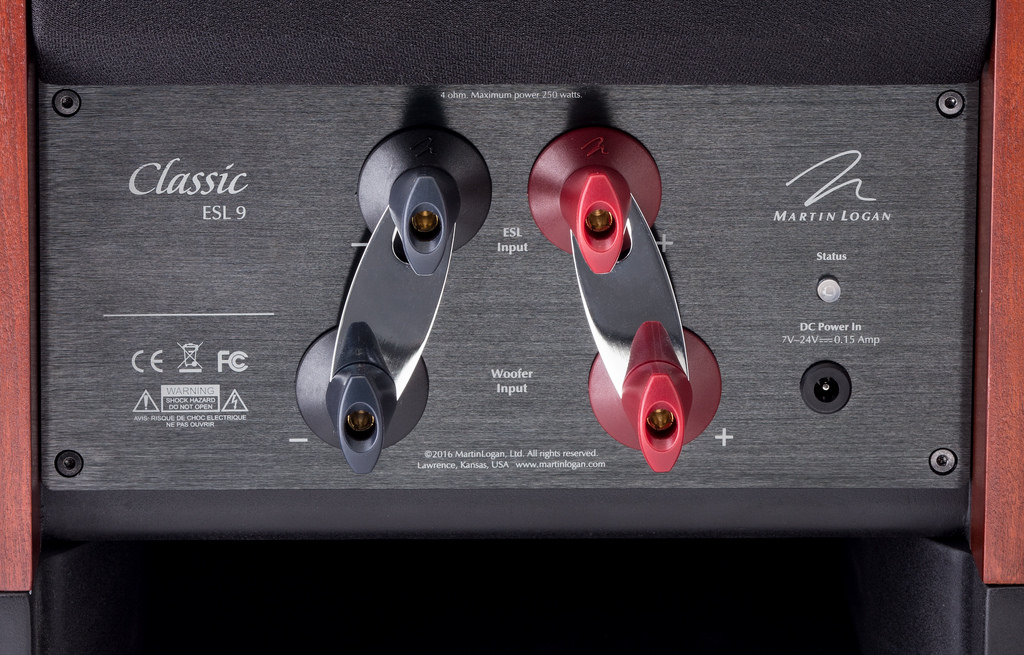

deep bass output with no added port noise. Bi-wirable Tool-less Binding Posts
and Low-Voltage Power Supply MartinLogan's proprietary tool-less binding posts
simplify cable connection and management. Two sets are supplied—one connected to
the electrostatic panel and the other feeding the woofer. Listeners can choose
to vertically/horizontally bi-amp the Classic ESL 9, or use jumper clips between
the binding post sets for a single wire-connection. Classic ESL 9 features
bi-wirable binding posts and provide the ultimate level of flexibility for
connection and setup. To further simplify setup and cable management, Classic
ESL 9 features a low-voltage DC power supply eliminates the need for a
traditional, heavy IEC power cord. Precision-Built Advanced-Topology Vojtko
Crossover Control is key in the production of a Masterpiece. (Just ask
Michelangelo.) Control in the Classic ESL 9 is provided by the advanced
Vojtko-voiced crossover. Carefully hand-built using only the finest metallized
film capacitors, air-core coils, and low DCR steel laminate coils, the crossover
employs MartinLogan’s proprietary Vojtko topology for vanishingly low distortion
and seamless driver/ESL integration. This precision-tuned network excels at
preserving and reproducing even the most microscopic sonic nuances, while ably
handling the full dynamics of any source. The Classic ESL 9 is engineered to
work well with practically any type of electronics. MartinLogan’s
state-of-the-art electrical interface engineering ensures an absolutely
transparent link from your amplifier to the electrostatic panel and woofer array.
This produces sound of unparalleled purity, precision, clarity, and openness.
Like all of the loudspeakers in the Masterpiece Series, and like any true
masterpiece, when you experience the realistically transparent performance of
the Classic ESL 9, you will be changed by it.

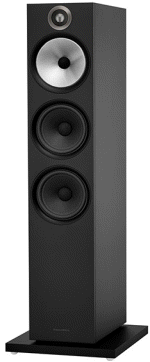

B&W
603
s2 ANNIVERSARY *
Netto coppia
€. 1.550,00
Diffusore da
pavimento a 3 vie. Edizione speciale che celebra i 25 anni della serie 600. Bass
reflex posteriore Flowport, 2 woofer con cono in carta/kevlar da 165mm, midrange
FST in Continuum da 150mm, tweeter a doppia cupola in alluminio disaccoppiato da
25mm con caricamento a condotto Nautilus e con l'incisione dell'anniversario sul
bordo della griglia. Filtro crossover riprogettato con componenti di pregio come
i condensatori Mundorf. Potenza 30-200W. Predisposta per bi-wiring. Finiture:
Nero opaco (Matt Black) con griglia nera, Bianco opaco (Matt White) con griglia
grigia o Quercia (Oak) con griglia grigia . Cad.
.gif)

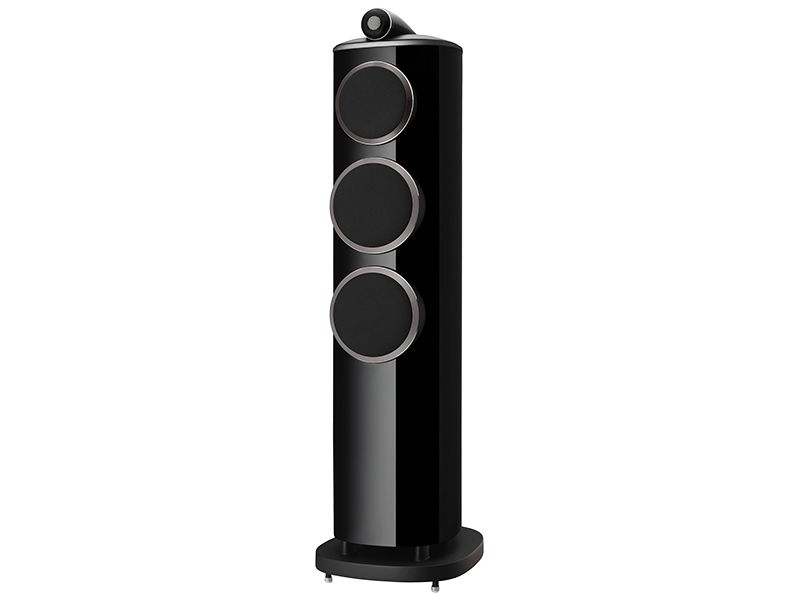

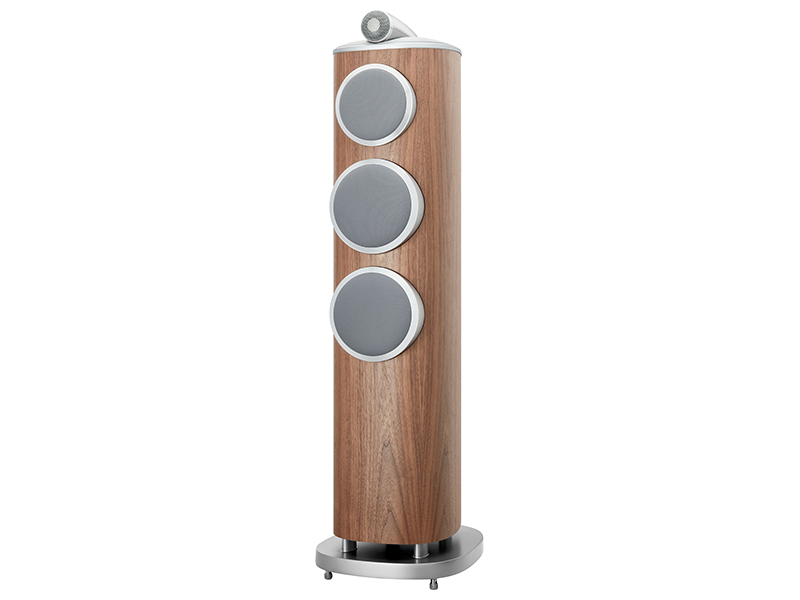

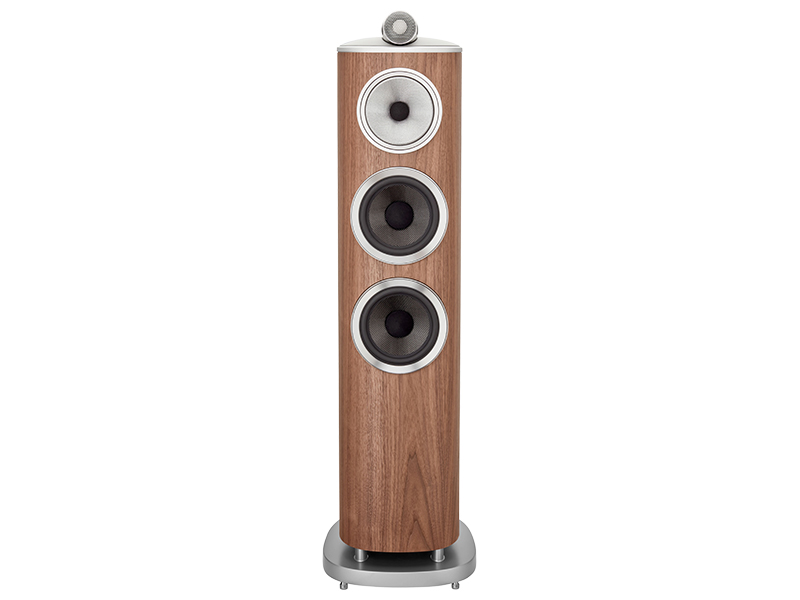

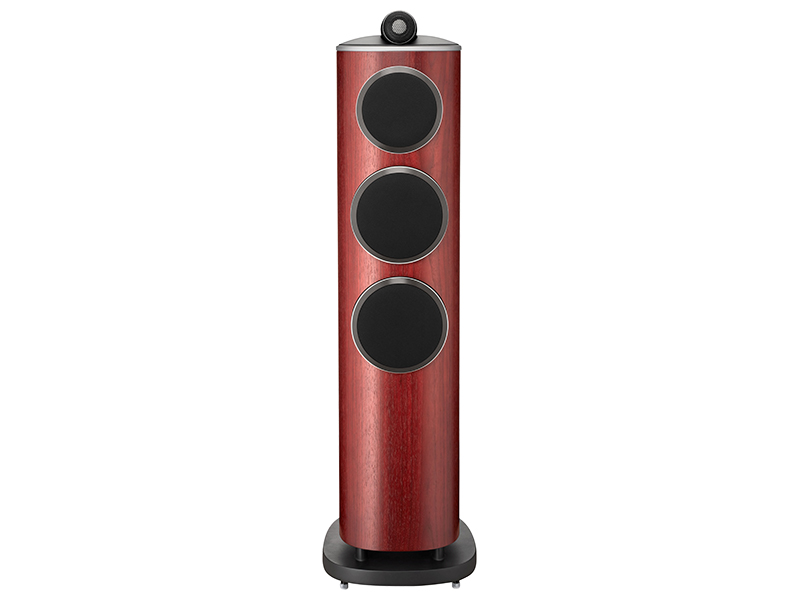

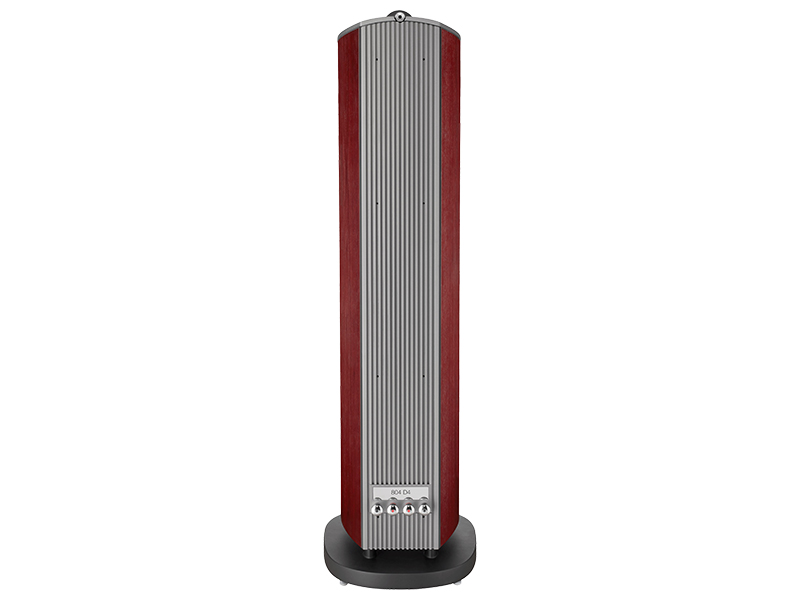

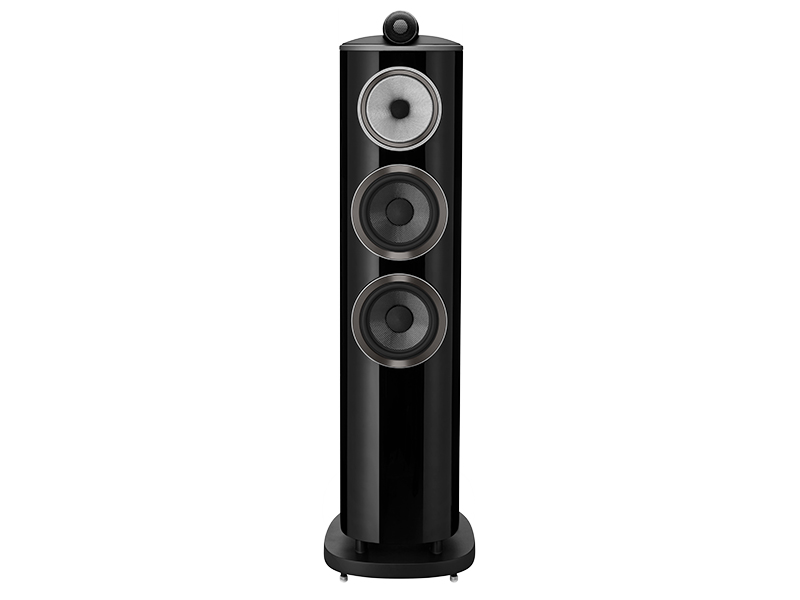

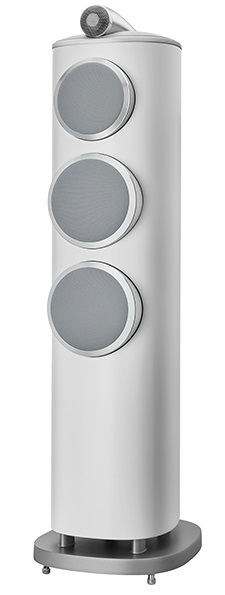

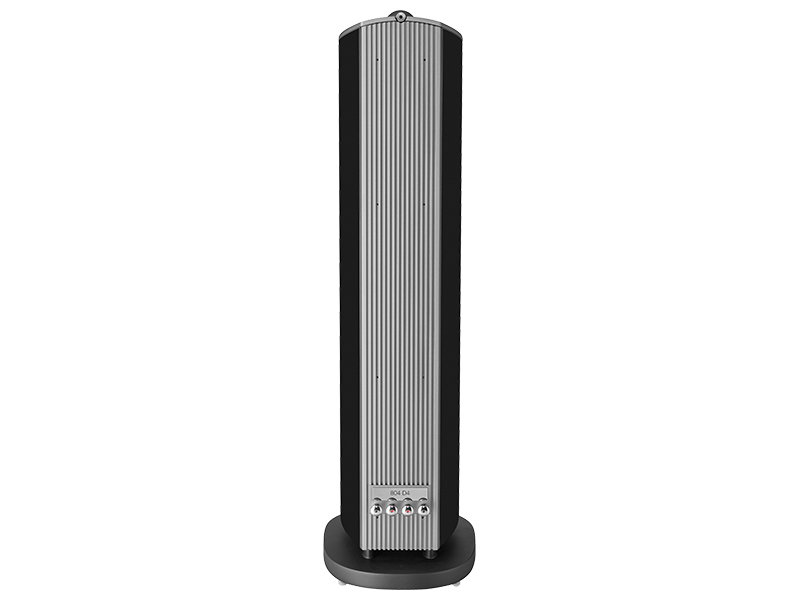

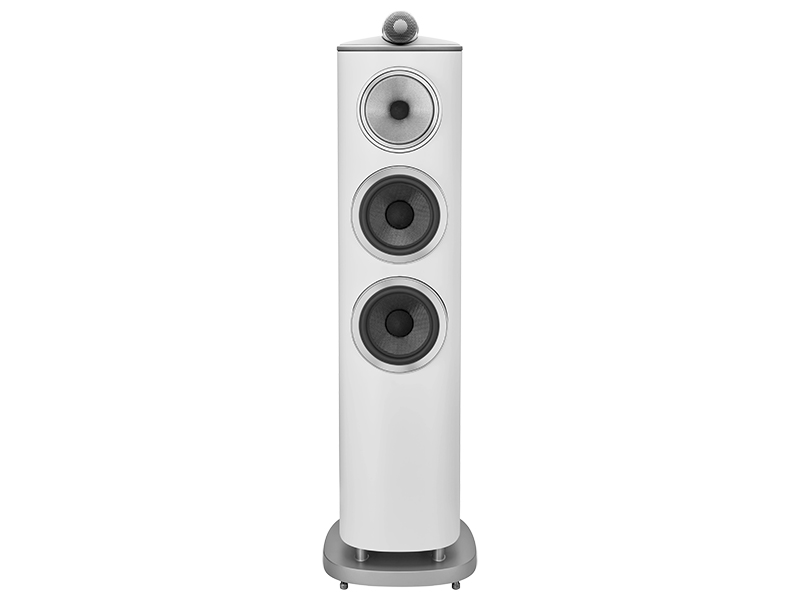

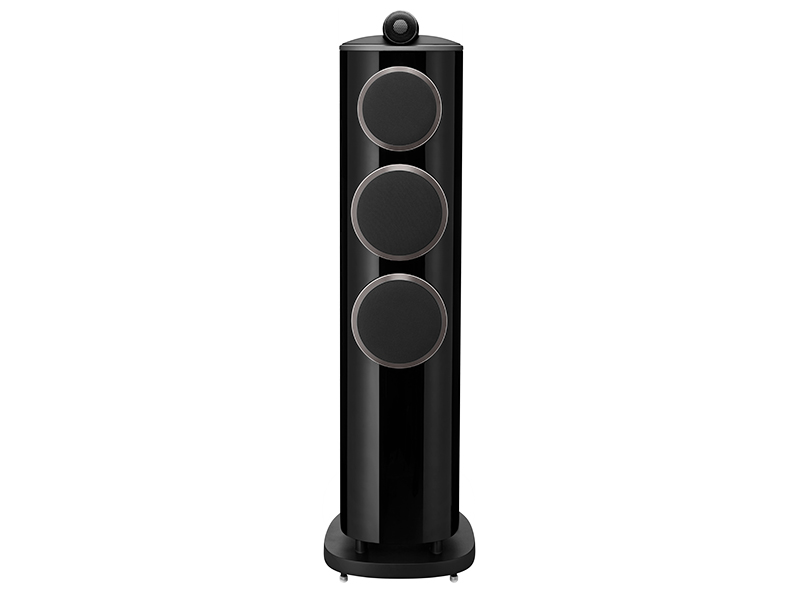

B&W

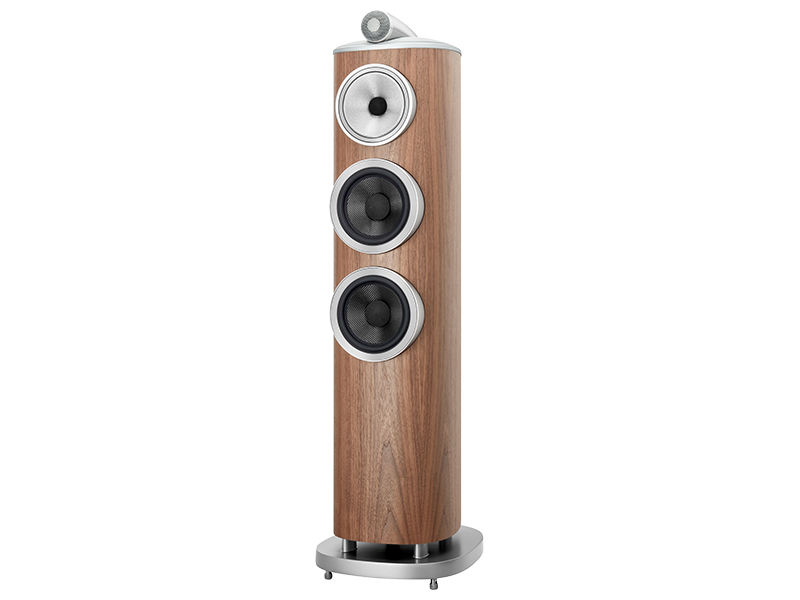

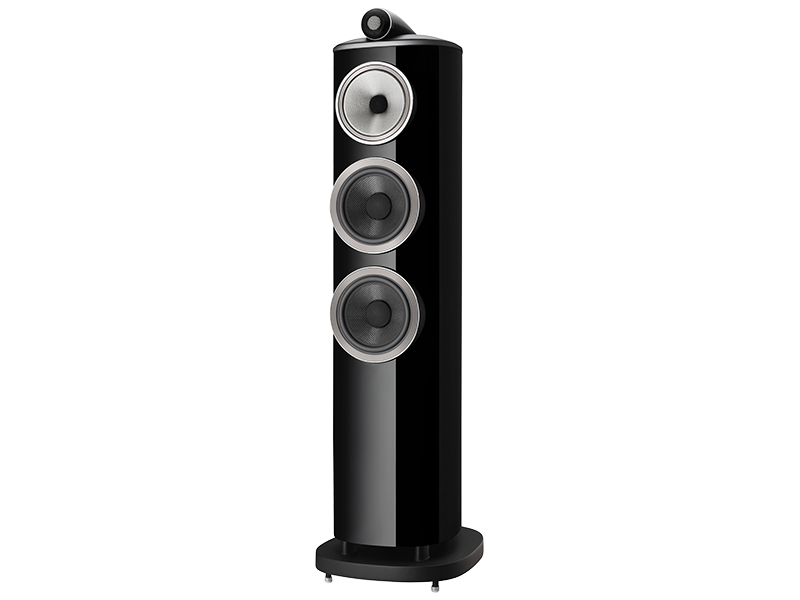

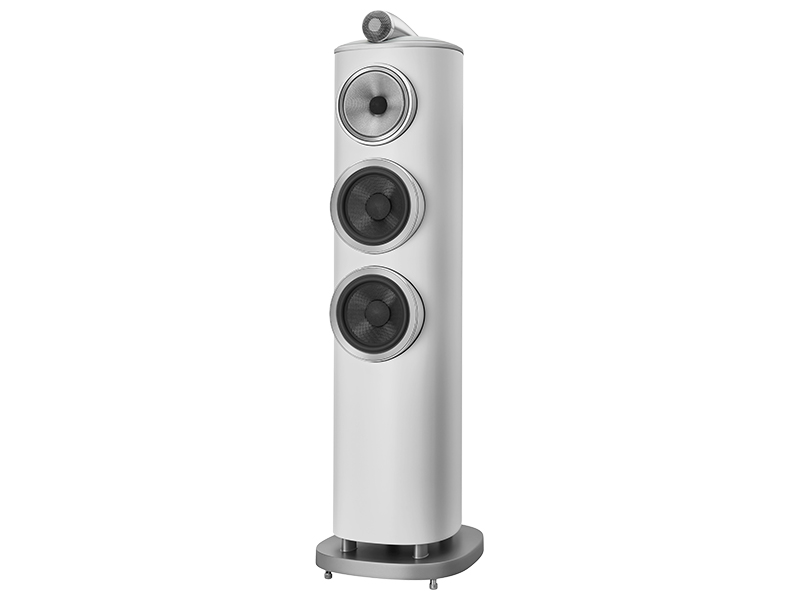

804 D4
Netto coppia
€. 11.900,00
Un progetto
completamente nuovo per prestazioni assolute con una estetica mozzafiato. Tutto
sembrava detto con la Serie D3, ma la Bowers & Wilkins, negli oltre suoi 50 anni
di esperienza, a partire dalle prime realizzazioni di John Bowers, ha sempre
stupito, anche quando qualsiasi miglioramento sembrava impossibile. La nuova
Serie 800 D4, 4a generazione della gamma di diffusori di punta dell’azienda
inglese, è riuscita a fare un ulteriore, significativo, passo in avanti rispetto
alla D3 che manda in pensione, migliorando ancora quello che appariva come
impossibile da migliorare. Non solo un'altra gamma di diffusori, quindi, ma un
nuovo punto di riferimento, come, del resto, è sempre successo nella storia
della Serie 800. Le innovazioni sono talmente tante in questa nuova D4 da non
poter parlare di restyling, ma di un progetto completamente nuovo, con
sostanziali migliorie che stravolgono, letteralmente, le già eccellenti
prestazioni della passata D3. Colpisce, immediatamente, il design, che seppure
simile nei tratti stilistici al precedente, tradisce senza alcun dubbio le

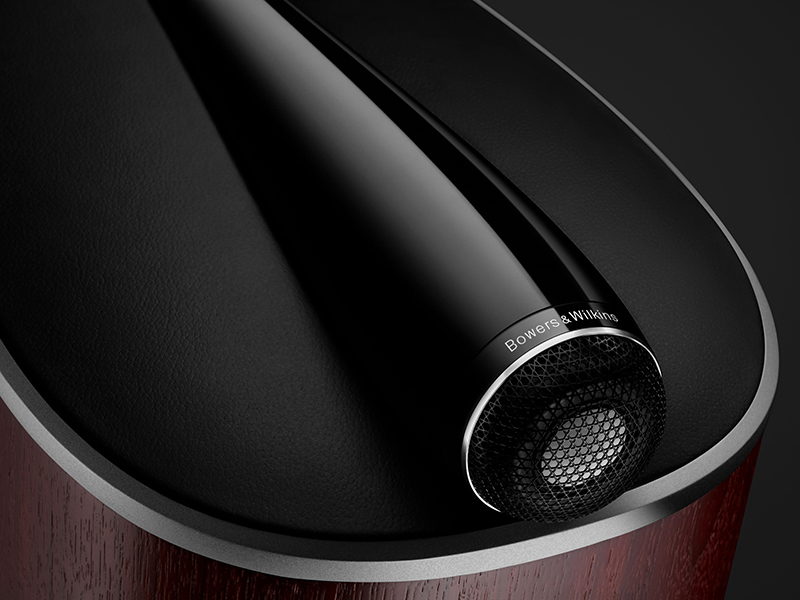

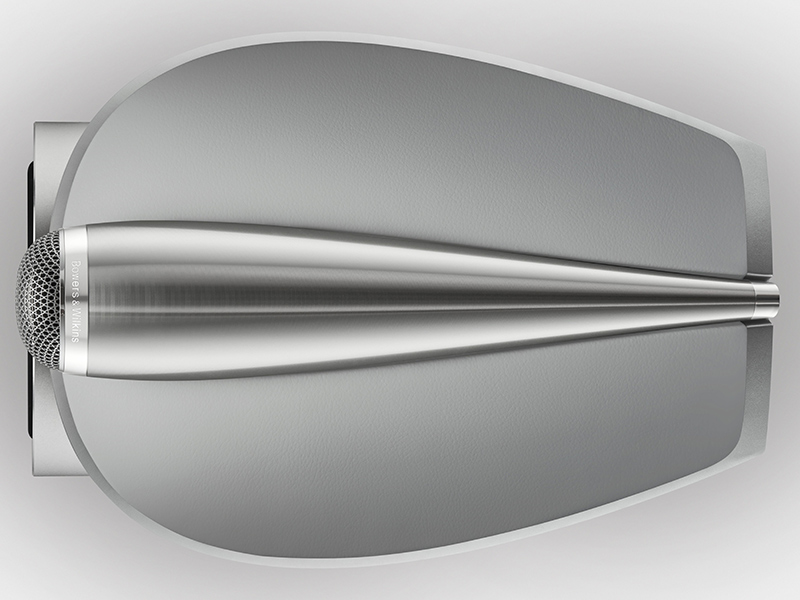

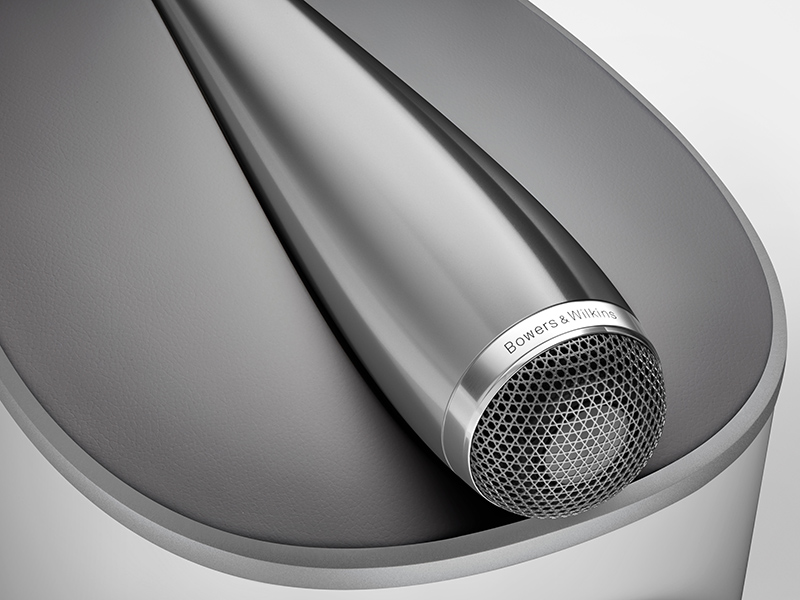

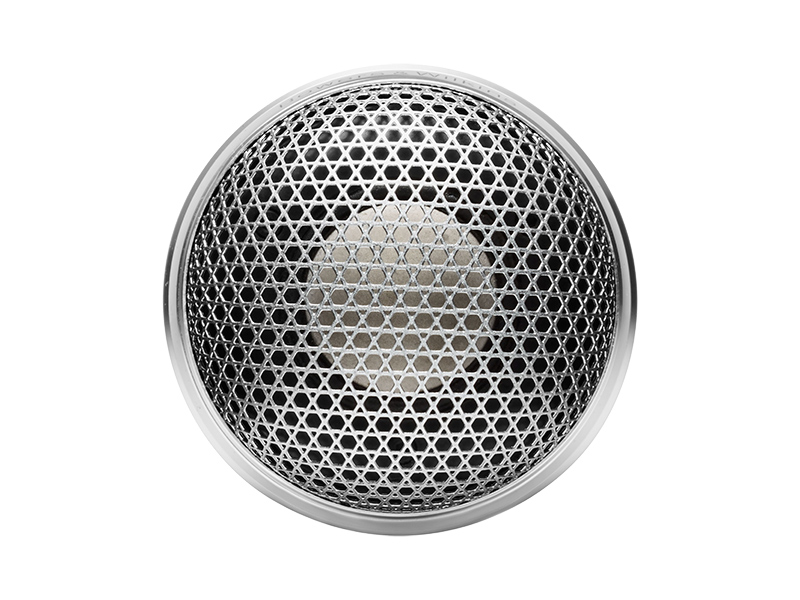

novità tecniche, a partire dal corpo del tweeter Solid Body comune a tutti i
diffusori, adesso molto più allungato, e poi la parte superiore dei cabinet con
una linea distintiva in alluminio, che nasconde un nuovo rinforzo del mobile in
tecnologia Reverse Wrap adesso adottato anche dai modelli di ingresso 804 D4 e
805 D4 e che fa da appoggio alla nuova finitura in pelle Connoly.•Sistema: 3 vie 4
altoparlanti •Driver: 1 tw da 2,5 cm, 1 mid-range da 13cm, 2 woofer da 16,5cm
•Gamma di frequenza: 20 Hz-35 kHz •Risposta in frequenza (+/- 3 dB): 24Hz-28 kHz
•Sensibilità: 89 dB •Distorsione armonica (89dB, 1mt in asse): <0,3% •Impedenza:
8 ohm •Potenza raccomandata: 50W-200W •Dimensioni: 1071x306x391mm •Peso: 36,8 kg
.gif)

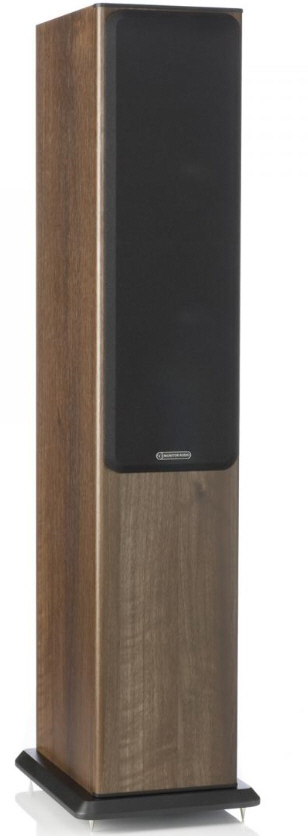

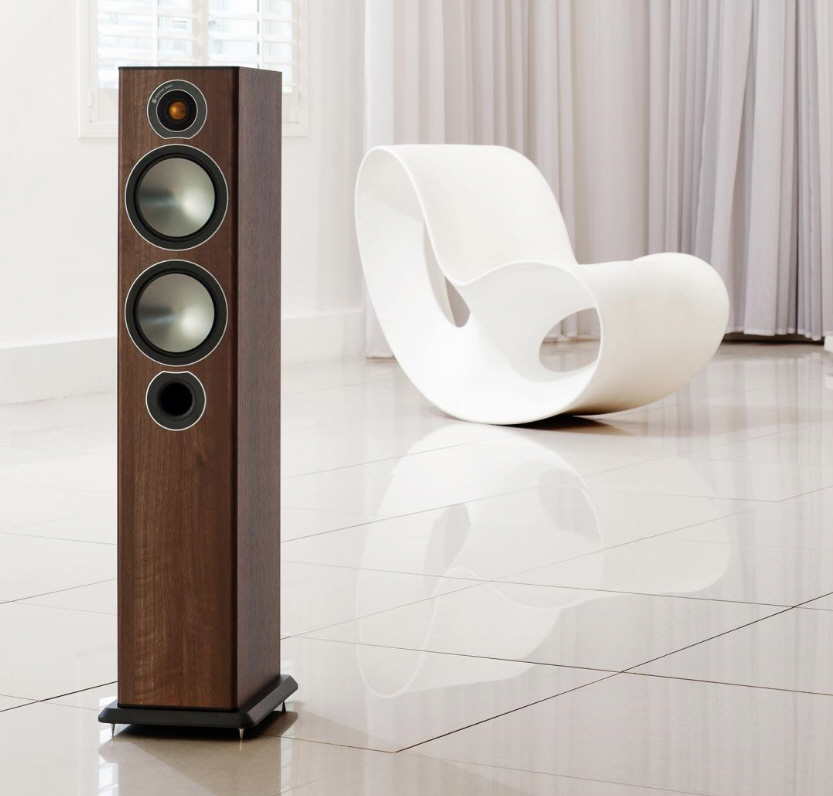

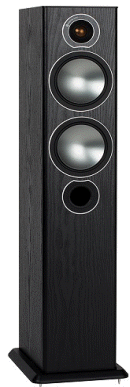

MONITOR
AUDIO BRONZE 5
Netto coppia
€. 699,00

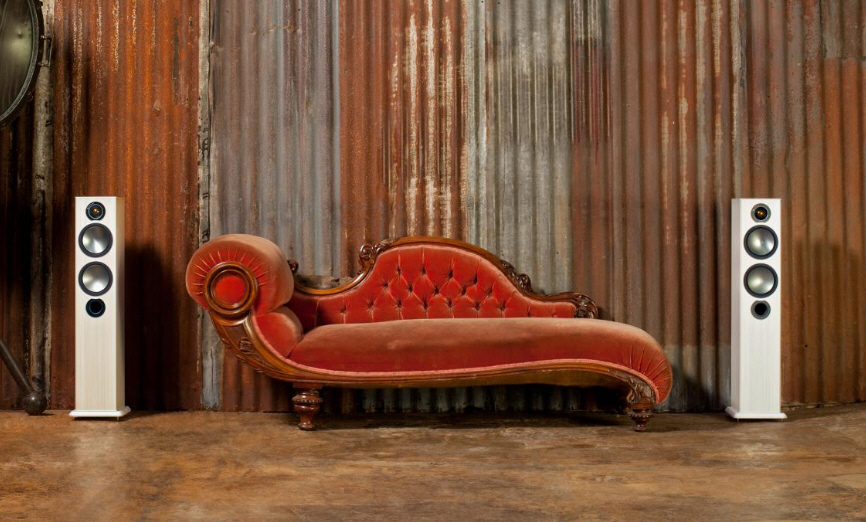

Diffusore da pavimento
a 2 vie e 1/2 - sistema reflex a doppia camera interna con due porte, una
posteriore e una anteriore, con tecnologia hive ii - 1 woofer c-cam® da 14 cm -
1 mid-range c-cam® da 14 cm - 1 tweeter gold dome c-cam® da 25 mm - crossover
con componenti audiophile grade selezionati - cabinet rinforzato con sistema di
fissaggio altoparlanti a vite passante - risposta in frequenza 37 hz-30 khz -
efficienza 90 db/w/m - impedenza nominale 8 ohm - potenza consigliata compresa
tra 30-120 watt rms - griglia magnetica con attacchi invisibili - doppia coppia
di terminali per bi-amping o bi-wiring - dimensioni (base, punte, griglie e
connettori compresi) 898 x 215 x 282 mm (axlxp) - peso 11 kg.*
The
new Bronze 5 has put some distance between it and the BX5 with a stunning
first-test result in Hi-Fi Choice mag. Following the excellent five-star review
for the Bronze 2 in What Hi-Fi? Sound & Vision, David Vivian’s experience
clearly reveals the audiophile nature and astonishing value offered by the new
Bronze series. Awarding a Hi-Fi Choice recommended badge and a maximum five
stars for sound quality, value, ease of drive and overall, he says “…Bronze 5
doesn’t come across like an incremental evolution of the BX5. Instead, it looks
and sounds as if it should cost at least £1,000…straight away I’m hooked by the
bijou tower’s powers of resolution and capacity to dig deep into a recording.
The inner detail it captures can sometimes seem mesmerising…That such compelling
clarity, grip, dynamics and enormous musical insight can be experienced from a
slim box at a beer budget price is a powerful statement.”Its 51/2" C-CAM bass
driver and 51/2" C-CAM bass/mid driver are arranged in a two and half way system
configuration, operating in separate acoustic chambers with front and rear
firing HiVe II ports to provide differential tuning for higher efficiency and
greater low frequency extension. The Bronze 5's low-distortion architecture
expertly combines clean, expressive mid and high frequencies with punchy
room-filling bass lines delivering a naturally rhythmic and addictive blend of
large-scale dynamics and detail from a surprisingly unobtrusive tower.Technology
C-CAM Gold Dome tweeter Twin 51/2" C-CAM bass and mid-range drivers Single
bolt-through driver systems for increased overall bracing, rigidity and driver/baffle
de-coupling HiVe II port technology High quality crossovers with premium grade
Polypropylene film capacitors used throughout Rigid 18 mm MDF construction
throughout, employing radial and cross-bracing techniques for high rigidity
resulting in low cabinet coloration Floor-level terminal panel for easy
termination and neat cable access. Bi-wire/ Bi-amp terminal configuration
Premium quality vinyl veneer finishes System Format 2-1/2 Way Frequency
Response 37 Hz — 30 kHz Sensitivity (1W@1M) 90 dB
Nominal Impedance 8 ohms Maximum SPL 113.8 dBA (pair) Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 — 120 W Cabinet Design Dual chamber bass
reflex – Ported front and rear HiVe II Port technology Crossover Frequency LF:
-6 dB @ 600 Hz MF/HF: 2.8 kHz Drive Unit Complement 1 x 51/2" C-CAM bass 1 x
51/2" C-CAM bass mid-range driver 1 x 25 mm C-CAM Gold Dome tweeter Cabinet
Dimensions (H x W x D) 850 x 165 x 248 mm (337/16 x 61/2 x 93/4") Dimensions (Including
Grille, Terminals, Plinths and Spikes (H x W x D)) 898 x 215 x 282 mm (355/8 x
87/16 x 111/8") Weight (each) 11 kg (24 lb 6 oz)

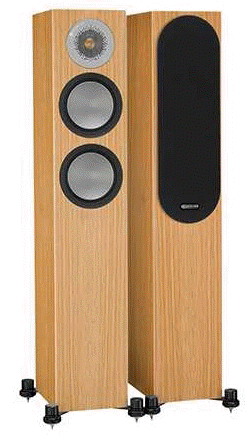

MONITOR
AUDIO SILVER
200 Netto coppia
€. 1.390,00
DIFFUSORE DA PAVIMENTO A 2 VIE E MEZZO - REFLEX
POSTERIORE CON TECNOLOGIA HIVE II - 1X MIDWOOFER E 1X WOOFER C-CAM® CON PROFILO
RST DA 135 MM - 1X TWEETER A CUPOLA GOLD DOME C-CAM® DA 25 MM - CROSSOVER CON
COMPONENTI AUDIOPHILE GRADE SELEZIONATI - CABINET RINFORZATO CON SISTEMA DI
FISSAGGIO ALTOPARLANTI A VITE PASSANTE, DOTATO DI CAMERE INDIVIDUALI PER
MIDWOOFER E WOOFER IN FUSIONE DI POLIMERI - RISPOSTA IN FREQUENZA 38 HZ - 35 KHZ
- EFFICIENZA 89 DB/W/M - IMPEDENZA NOMINALE 8 OHM - POTENZA CONSIGLIATA
AMPLIFICATORE COMPRESA TRA 60 E 150 WATT RMS - GRIGLIA MAGNETICA CON ATTACCHI
INVISIBILI - DOPPIA COPPIA DI TERMINALI PER BI-AMPING O BI-WIRING - BASE A
BILANCIERE CON PUNTE E SOTTOPUNTE - DIMENSIONI (GRIGLIA E CONNETTORI COMPRESI)
165 X 885 X 269 MM (L X A X P) - PESO 14,6 KG -
A pair of Monitor
Audio’s unique 5¼-inch C-CAM RST bass drivers share the duties of delivering
bass and mid/bass. Configured as a two-and-a-half way system both electrically
and acoustically, you will be amazed at the magical sound quality that this
slimline can produce in your home. The two bass drivers operate in separate
acoustic chambers within the enclosure to provide differential tuning and are
divided optimally with crossovers to ensure both bass drivers contribute to the
lower frequencies. This ensures only the mid-range crosses over with the tweeter
and results in a consistent and precise image, on and off axis. This
configuration delivers performance approaching a three-way design whilst
ensuring higher efficiency and extended low frequency, yet in a smaller
cabinet.The drive units are constructed with massive magnetic systems capable of
deep bass extension. The low-frequency response has been engineered to provide
smooth roll-off without exhibiting any of the usual ‘overhang’, meaning that the
Silver 200 can be sited close to a wall and provide the ideal blend of
domesticity and blazing performance. Diminutive for a floorstander, this model
is no slouch. The Silver 200 is a serious audiophile speaker with amazing drive
and incredible musicality. The engineering challenge was to create a smaller box
with bigger sound; with the Silver 200, Monitor Audio achieves that goal so that
you can enjoy your music and films with convincing realism. This product is now
available to use with home theatre design software, The Cinema Designer. Read
more. TechnologyTwo-and-a-half-way, three-driver configuration
Differentially-tuned acoustic system means high efficiency with powerful
low-frequency extension New 25 mm C-CAM, (Ceramic-Coated Aluminium/Magnesium)
tweeter featuring vented Neo magnet system optimised for lower distortion and
cleaner sounding highs New 5¼-inch bass and 5¼-inch bass/mid drivers with
‘dished’ C-CAM cone profile for better damping and improved mid-range clarity
RST Cone profile for improved diaphragm rigidity and lower distortion
Unique-build ring/voice coil-cone coupling mechanism (DCF) optimised to reduce
high-frequency cone break-up and increasing the critical voice coil
circumferential rigidity
MONITOR
AUDIO SILVER
6
Netto coppia
€. 1.250,00
DIFFUSORE DA PAVIMENTO A DUE VIE E MEZZO -
SISTEMA A DOPPIA CAMERA CON DOPPIO REFLEX ANTERIORE E POSTERIORE CON TECNOLOGIA
HIVEII - 1 WOOFER DA 16 CM IN RTS - 1 MIDWOOFER DA 16 CM IN RTS 1 TWEETER DA 25
MM GOLD DOME C-CAM - RISPOSTA IN FREQUENZA 35-35.000 HZ - SENSIBILITA` 90 DB/W/M
- IMPEDENZA NOMINALE 8 OHMS - POTENZA APPLICABILE CONSIGLIATA COMPRESA TRA
60-150 W RMS - CABLAGGIO IN RAME ARGENTATO OFC E CROSSOVER CON COMPONENTISTICA
AUDIOPHILE GRADE - FINITURA IN VERO LEGNO DI NOCE - DIMENSIONI 936 X 245 X 300 -
PESO KG. 16

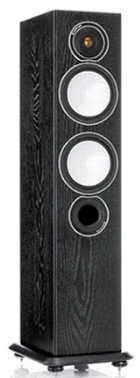

The Silver 6 incorporates a 6” C-CAM® RST® bass
driver and 6” C-CAM RST bass/mid driver in a 2.5 way system configuration. The
drivers are housed in separate acoustic chambers within the enclosure design to
provide differential tuning for higher efficiency and enhanced low frequency
extension. Excellent dynamics combined with a naturally rhythmic sonic character
and tight, controlled bass make the Silver 6 an outstanding communicator of
music and film audio in medium to large rooms - System Format 2 1/2-Way
Frequency Response 35Hz - 35kHz Sensitivity (1W@1M)
90dB Nominal Impedance 8 Ohms Maximum SPL (dBA) 115.5 (pair) Power
Handling (RMS) 150W Recommended Amplifier Requirements (RMS) 60-150W Bass
Alignment Dual Chamber, Bass reflex with differential tuning. Twin HiVe®II port
System Crossover Frequency LF: 700Hz MF/HF: 2.7kHz Drive Unit Complement 1
x 6" RST® Bass driver. 1 x 6" RST Bass/Mid driver. 1 x 1" (25mm) C-CAM® gold
dome tweeter Cabinet Dimensions excluding Grille, Terminals and Plinth: (H x W x
D) 885 x 185 x 240 mm (34 13/16 x 7 5/16 x 9 7/16 inch) External Dimensions
including Terminals: (HxWxD) 885 x 185 x 263 mm (34 13/16 x 7 5/16 x 10 3/8 inch)
External Dimensions including Grille & Terminals: (HxWxD) 885 x 185 x 275 mm
(3413/16 x 75/16 x 1013/16 inch) External Dimensions including Plinth & Feet: (HxWxD)
936 x 245 x 300 mm (367/8 x 95/8 x 1113/16 inch) Individual Weight 16.5 Kg (40
lb 8 oz)

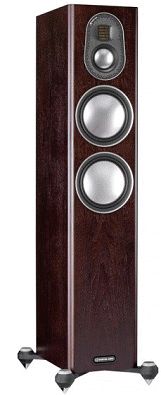

MONITOR
AUDIO GOLD
200 Netto coppia €. 3.800,00
DIFFUSORE DA PAVIMENTO BASS REFLEX A 3 VIE
CON TECNOLOGIE DESUNTE DALLA SERIE TOP DI GAMMA PLATINUM II - IMPEDENZA NOMINALE
4 OHM - SENSIBILITA` 88 DB - RISPOSTA IN FREQUENZA 35 HZ - 50 KHZ (-6 DB) -
POTENZA APPLICABILE RACCOMANDATA 80 - 200 WATT - 2X WOOFER DA 6,5 POLLICI RDT®II
(RIGID DIAPHRAGM TECHNOLOGY 2ND GENERATION) IN SANDWICH DI MATERIALE C-CAM® (CERAMIC-COATED
ALUMINIUM/MAGNESIUM), NOMEX E FIBRA DI CARBONIO, DOTATI DI MECCANISMO
PROPRIETARIO DCF (DYNAMIC COUPLING FILTER) - MID-RANGE C-CAM® DA 2,5 POLLICI -
TWEETER A NASTRO MPD (MICRO PLEATED DIAPHRAGM) - DOPPIA PORTA REFLEX HIVE®II SUL
PANNELLO POSTERIORE - CABINET ACCURATAMENTE RINFORZATO E SMORZATO INTERNAMENTE -
ALTOPARLANTI DISACCOPPIATI DAL PANNELLO FRONTALE E ANCORATI AL CABINET MEDIANTE
UN LUNGO BULLONE PASSANTE FISSATO SUL PANNELLO POSTERIORE - CROSSOVER CON
COMPONENTI AUDIOPHILE GRADE SELEZIONATI - CABLAGGIO PUREFLOW IN RAME OFC
PLACCATO ARGENTO - CONNETTORI PROPRIETARI PREDISPOSTI PER BI-AMPING E BI-WIRING
- GRIGLIA MAGNETICA - BASE IN METALLO CON PIEDINI IN GOMMA REGOLABILI E PUNTE
CONICHE RIMOVIBILI PER ADATTARSI A DIFFERENTI TIPOLOGIE DI PAVIMENTO - FINITURA
PIANO GLOSS BLACK (NERO LACCATO) CON TOP RIVESTITO IN LUSSUOSO MATERIALE SOFT
TOUCH NERO - DIMENSIONI BASE INCLUSA (L X A X P) 283 X 997 X 388 MM - PESO 21,9
KG

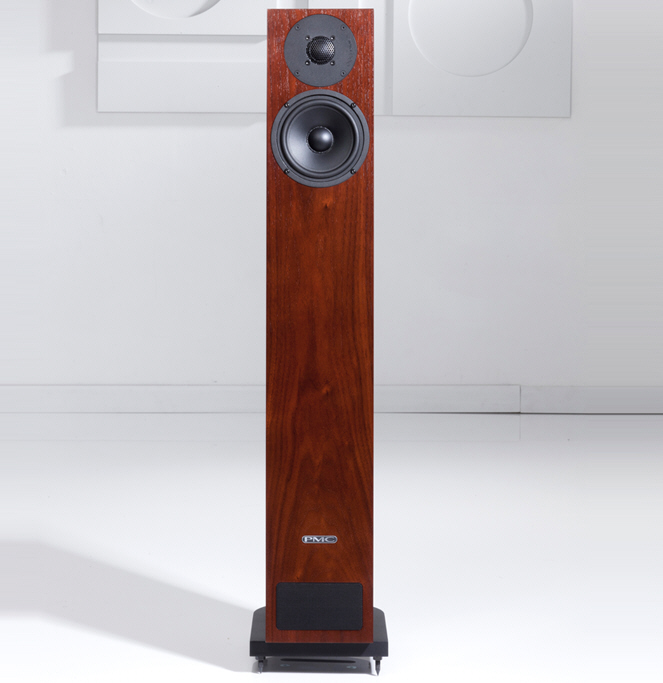

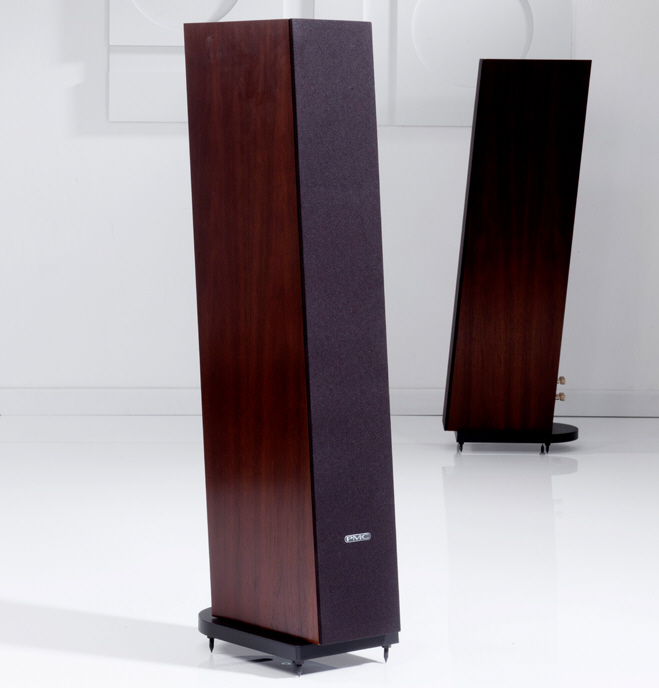

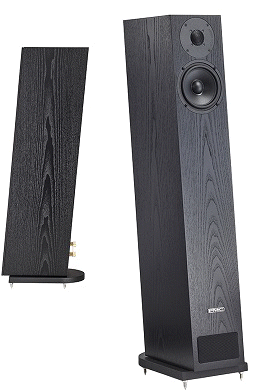

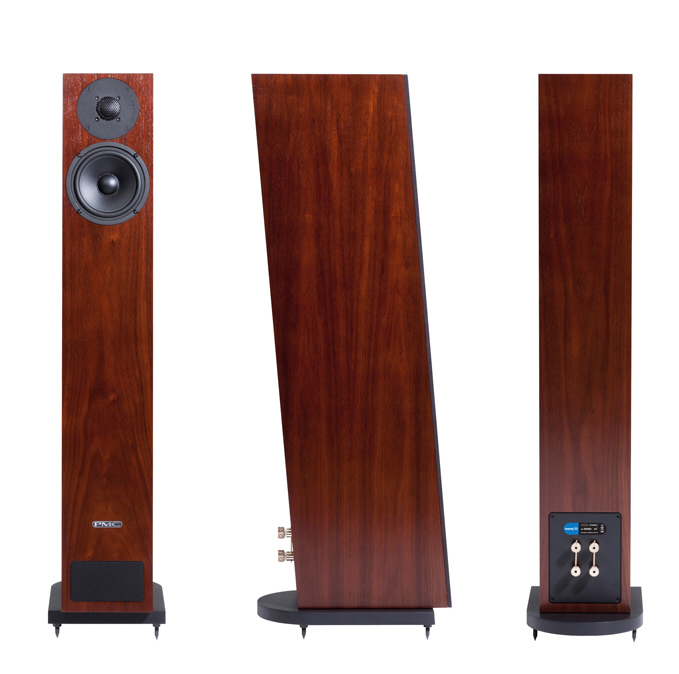

PMC
twenty
2.23
Netto coppia €. 2.200,00
Sicuramente la prima e travolgente impressione
dei ventitré 23 anni è un altoparlante aperto, coinvolgente e comunicativo. Le
sue dimensioni sfidano sia la profondità dei bassi che la scala di presentazione
prendendo qualsiasi materiale musicale o cinematografico nel suo passo. Il suono
è vivido e dinamico e fornito con bassi autorevoli. Chiudi gli occhi e la loro
posizione si dissolve. Twenty.23 è il più compatto della gamma da pavimento
della serie Twenty. Il Twenty.23 offre un suono sorprendente che riempie la
stanza con immagini accurate. A soli 923 mm di altezza, il venti.23 si integra
facilmente in ambienti compatti Gamma di potenza 60-250w. Driver 27 mm SONOLEX
HF, PMC M13 140mm (5/1/4 ") LF opaco leggero drogato. Peso 13,2 Kg. H923mm x
L152mm x P330mm. Finitura disponibile: Amarone
Certainly the first and overwhelming impression of the twenty•23 is an open,
engaging and communicative loudspeaker. Its size defies both the depth of bass
and scale of presentation by taking any music or film material in its stride.
The sound is vivid and dynamic and delivered with authoritative bass. Close your
eyes and their location dissolves.Twenty.23 is the most compact of the twenty
series floor standing range. The twenty.23 offers astounding room filling sound
with accurate imaging. At only 923mm hight the twenty.23 blends effortlesly into
compact environments Power range
60-250w. Drivers 27 mm SONOLEX HF, PMC M13 140mm (5/1/4")LF matt lightweight.
doped. Weight 13.2 Kgs. H923mm x W152mm x D330mm. Available finish: Amarone
VIENNA ACOUSTIC

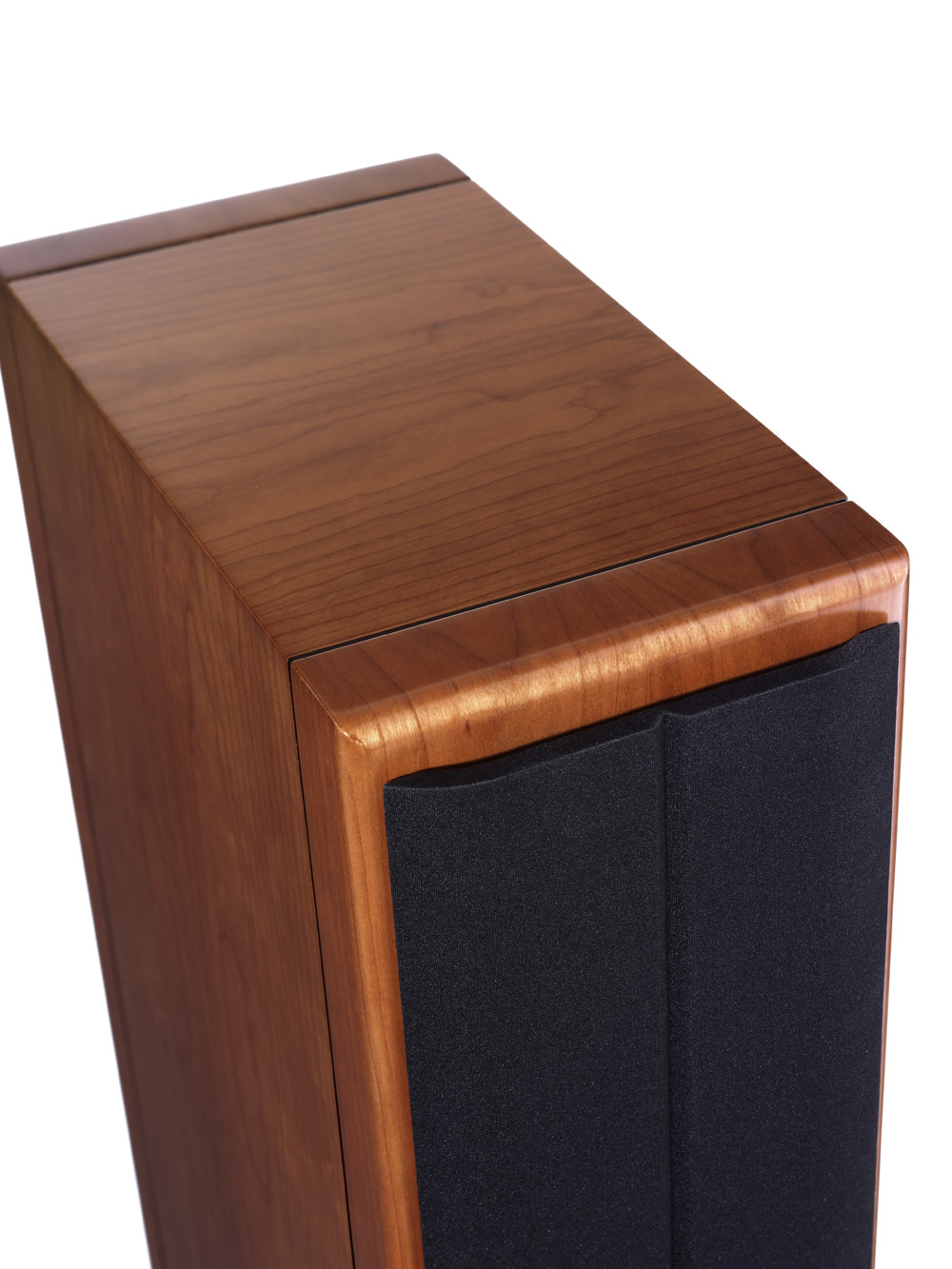

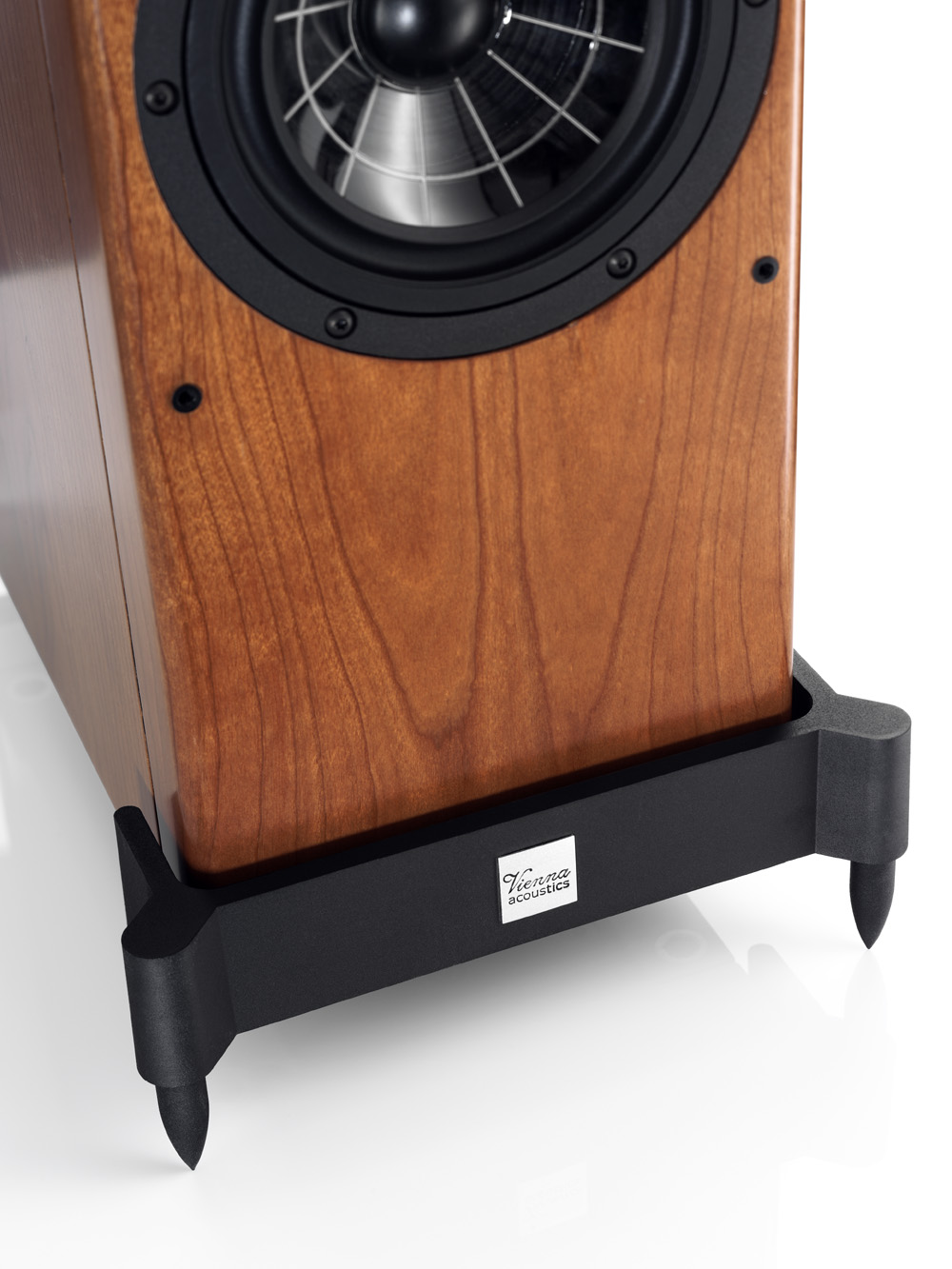

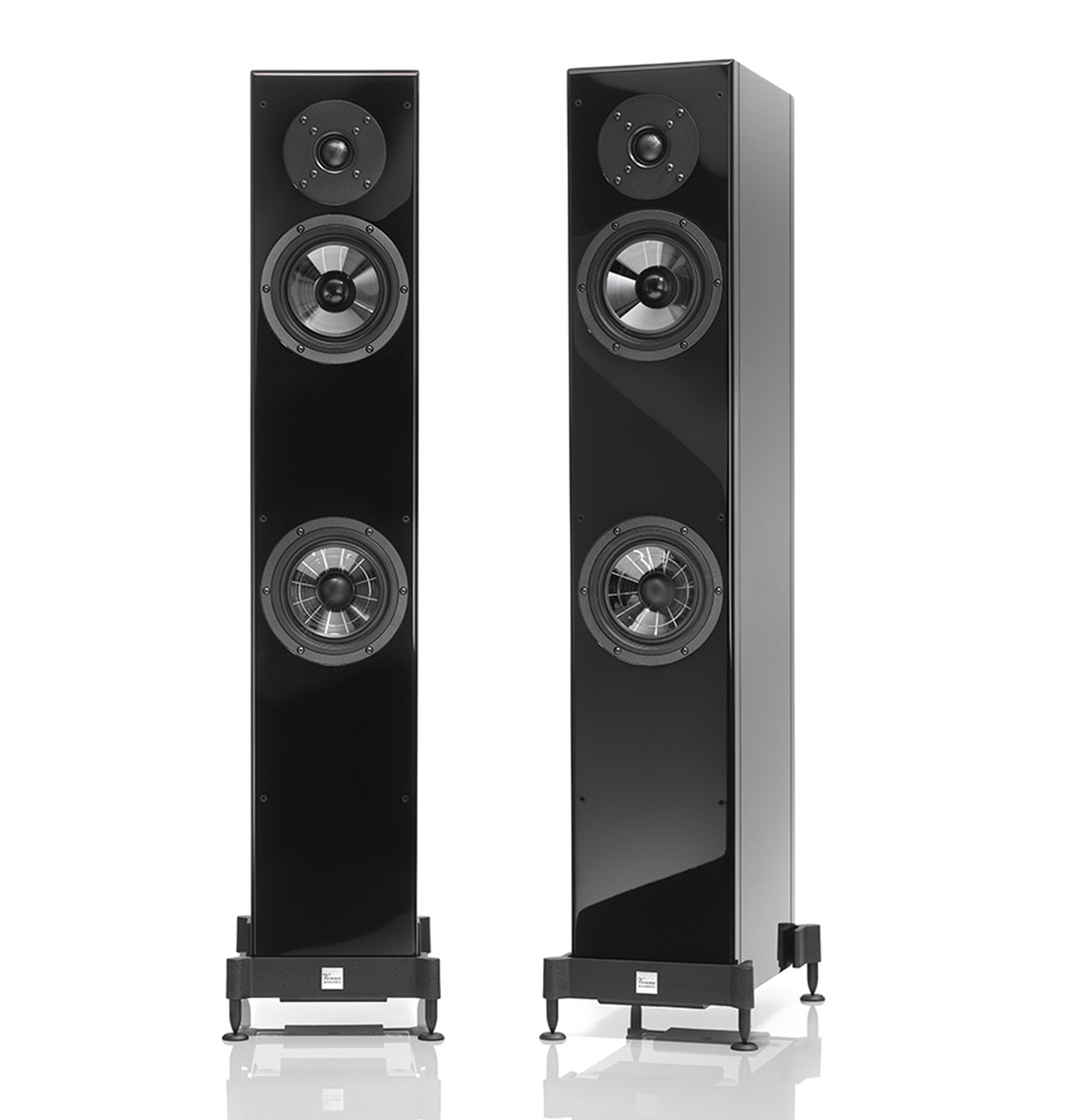

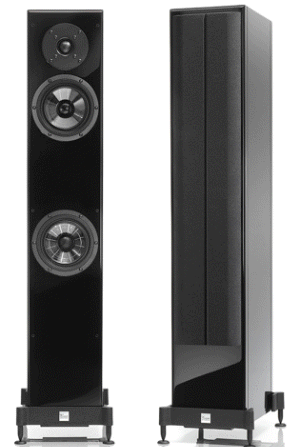

MOZART REFERENCE Netto coppia €. 3.200,00

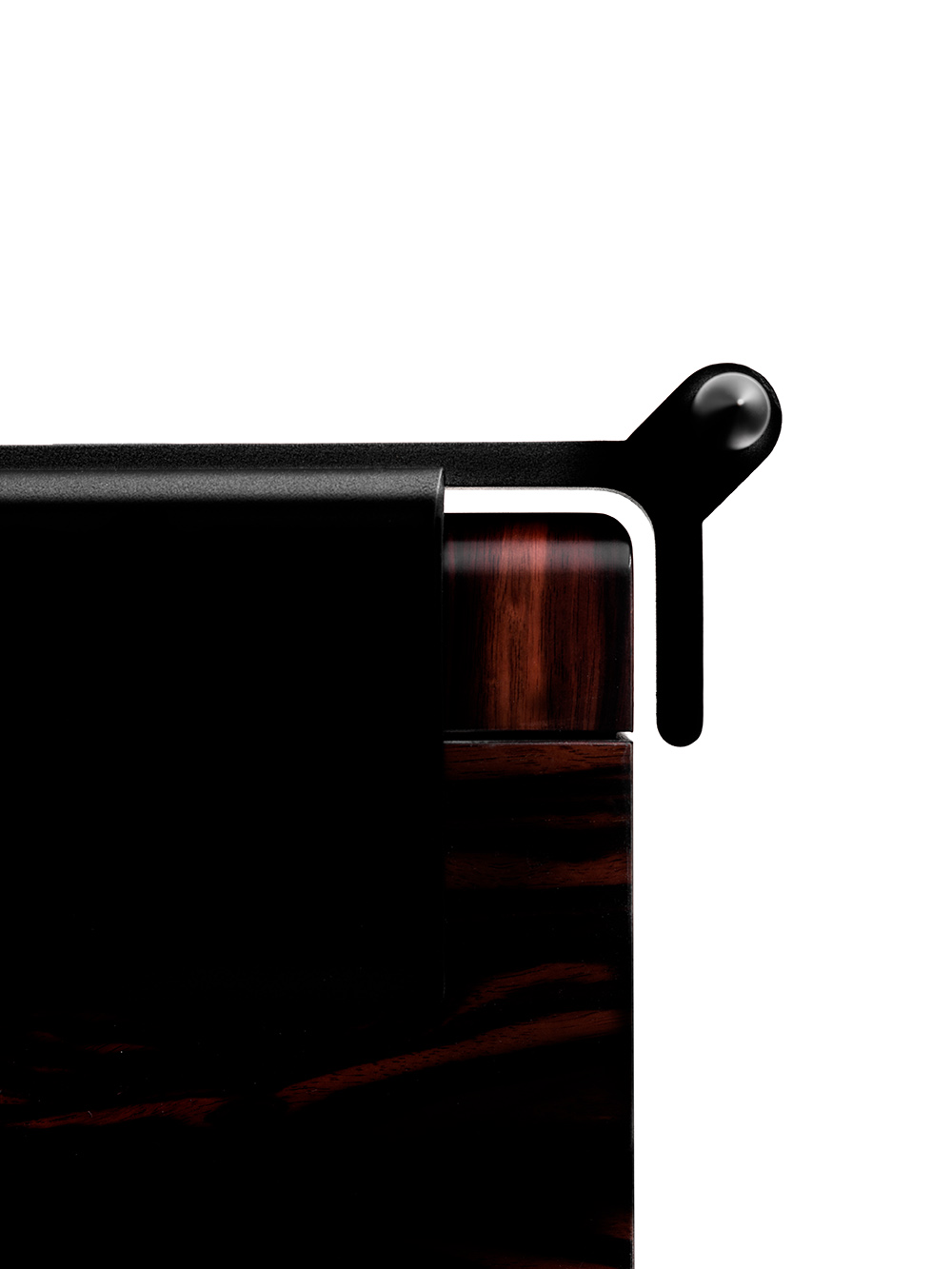

Mozart Grand Symphony Edition It is
nearly impossible to fully express the impact Wolfgang Amadeus Mozart has had on
the identity of our home, Vienna. This importance is the same with us at Vienna
Acoustics and the model loudspeaker, now in its third generation, which we have
chosen to name for this most famous musical innovator. Taking into full account
the importance Mozart represents, we have recreated the Mozart Grand with
refinements effecting virtually all critical components. One area we will not
change is how and where we build each piece. For more than twenty years each
loudspeaker we create is hand crafted in Vienna, Austria with only the finest
components and expertly crafted, custom cabinetry. Beginning with our
longstanding belief that the foundation of a proper loudspeaker design lies
within the quality of its drivers, we have worked extensively on building
tighter and tighter tolerance drive units. It is with this constant improvement
in our driver production and testing that we found the first ways of making
improvements to this model. In addition to these difficult improvements in

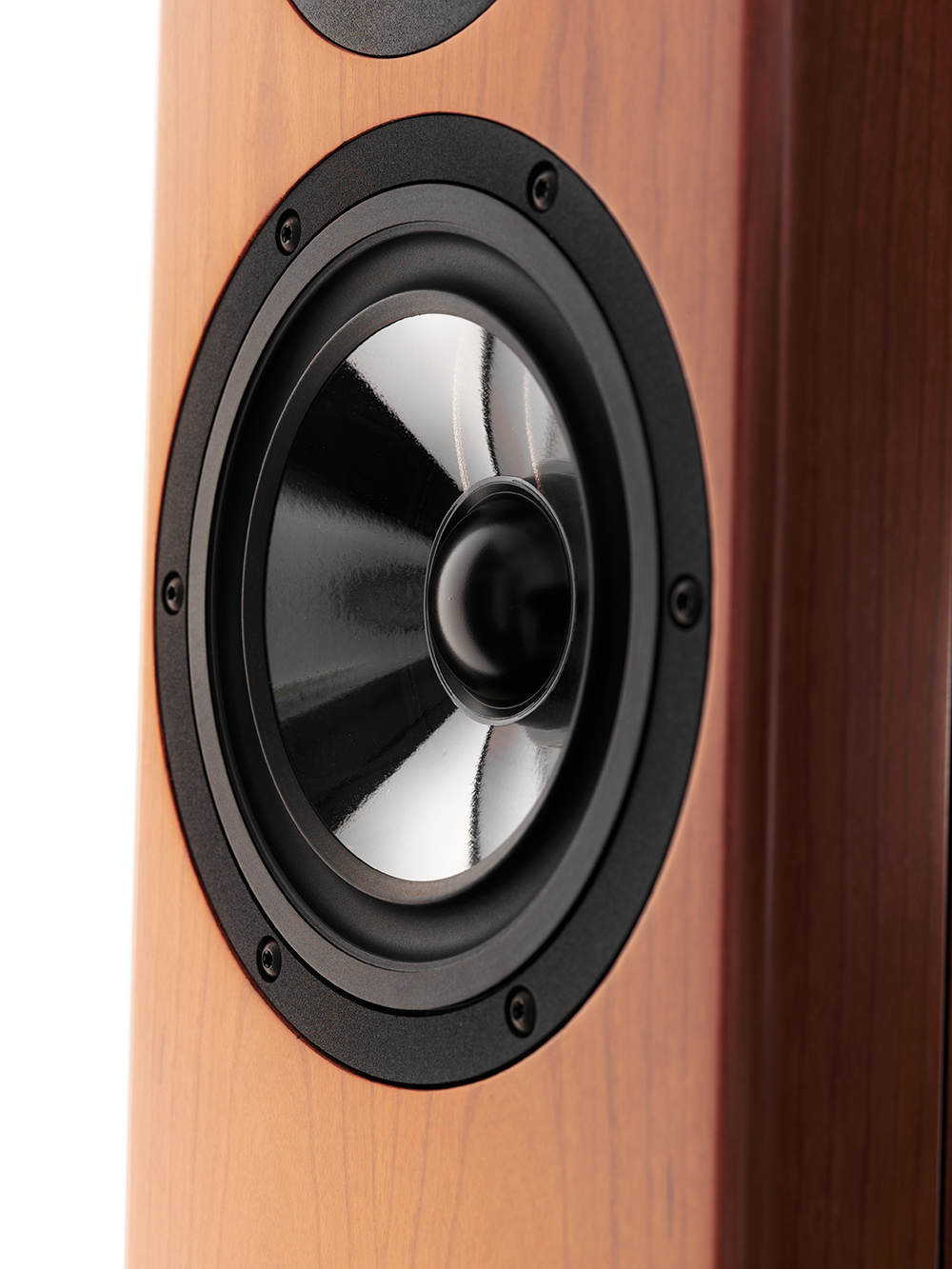

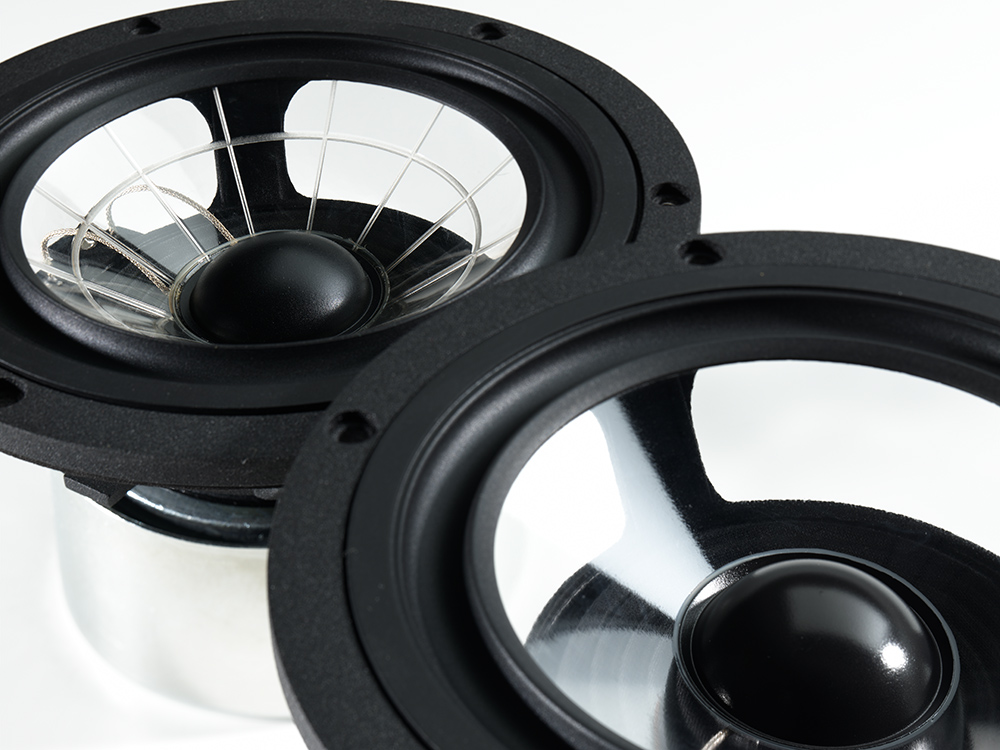

driver production, we have replaced the second woofer with our patented
Spider-Cone™ woofer. As with all our models, we decided to continue researching
ways of improving the crossover as well. The final sonic improvements as a
result of these collective changes are greater clarity, speed as well as greater
bass extension without giving up any of the famed musical quality and rhythm
inherent in all our designs. The final reward for this painstaking effort is
presented here in our Mozart Grand Symphony Edition, beautifully finished with
selected real wood veneers, as well as with true piano lacquer.
Impedance 4 Ohms Frequency response 30Hz – 22kHzSensitivity 90 dBRecommended
Amplifier 30 – 200 WattsTweeter 1.1” Hand Coated VA Silk DomeMid-Woofers (1) 6”
X3P, (2) 6” Spider-Cone™ X3PBass FunctionImpulse Optimizing QB 3 (Quasi-Butterworth)

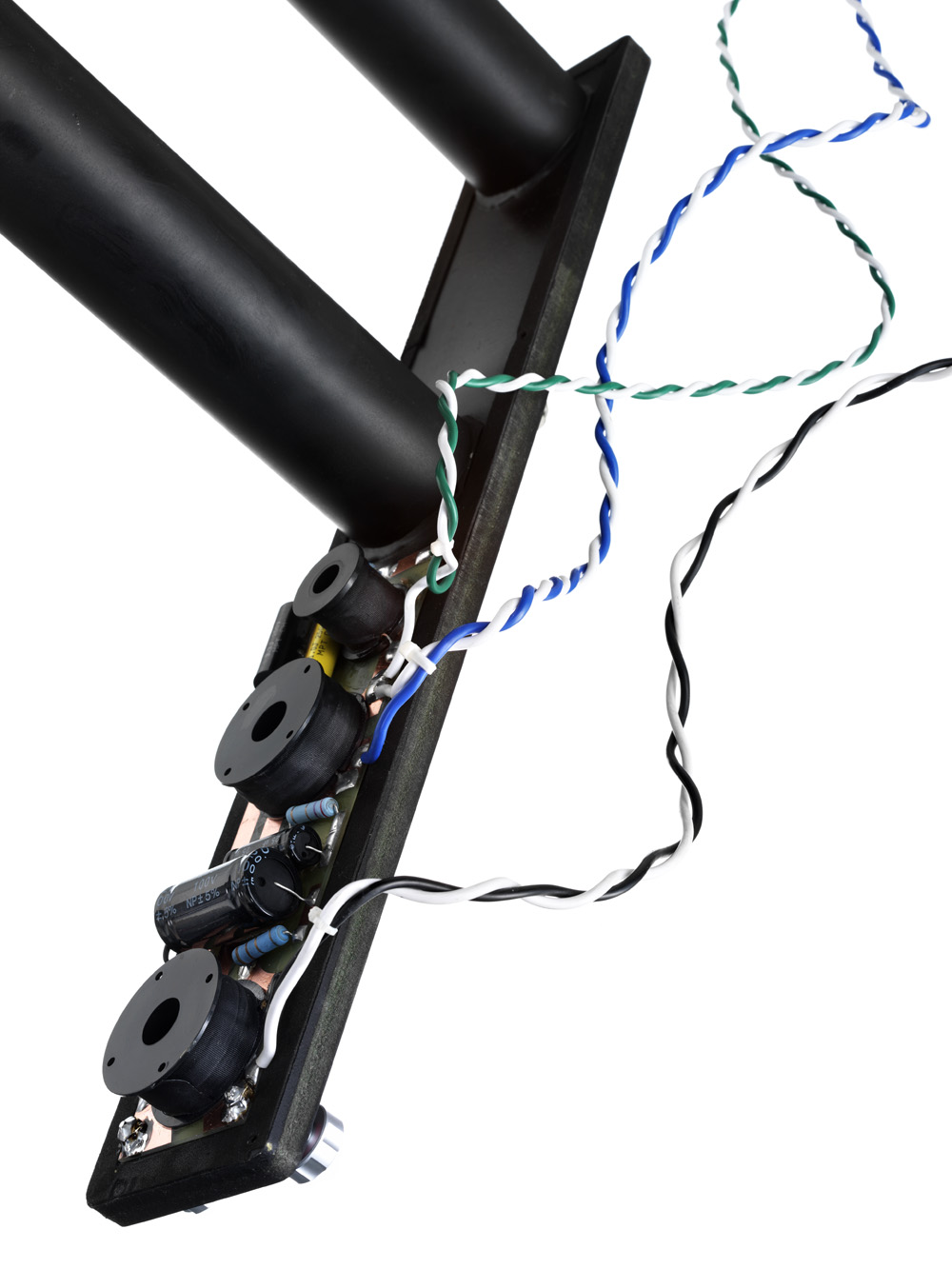

Bass System Bass Reflex Crossover System Two and a Half Way Crossover Components
MKP Capacitor 1% Tolerance Coils 0.7% tol., Air Coils Metal Film Resistors 1%
Inductance Free Weight per Pair 116lbs/52.6kg Dimensions (W x H x D) inches 8.5”
x 38.25” 13.5” mm 216mm x 972mm x 343mm Finishes Cherry, Premium Rosewood, Piano
Black and Piano White .Price
for one speaker .
Proac
STUDIO
SM115
Netto coppia €. 2.200,00
Il progettista Stewart Tyler
rinnova la gamma dei diffusori della serie Studio dando vita al diffusore ProAc
Studio 115, il successore di Studio 110, uno dei diffusori ProAc di maggior
successo.Seguendo le orme del predecessore, il nuovo diffusore Studio 115 si
presenta come un diffusore compatto dalle prestazioni elevatissime, con un
rapporto qualità prezzo che lo pone seriamente in rilievo sull'offerta di
mercato, e dotato del caratteristico suono ProAc presente in ogni diffusore
creato dalla mente del progettista inglese.Studio 115 rivede completamente la
componentistica; il nuovo mid-woofer è il medesimo altoparlante da 165mm
utilizzato nei diffusori da pavimento ProAc Studio 140 MkII, il tweeter è un
nuovissimo progetto ProAc a cupola morbida da 20mm. Il mobile del diffusore è
stato snellito e acquisisce ulteriore rigidità per ridurre le riflessioni del
frontale, e presenta il condotto del tubo d'accordo posizionato centralmente per
ottimizzare l'emissione delle basse frequenze. Il crossover è un progetto ex
novo che impiega esclusivamente componenti di prim'ordine. I morsetti sui
terminali sono ora i medesimi impiegati sulla serie superiore Response.

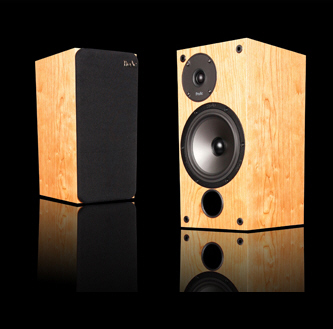

Studio 115
Diffusore bass reflex da scaffale/stand a 2 vie, 15-150 watt, 8 ohm, 30hz-30khz,
88,5dB, bi-wired, magneti schermati. Dimensioni (LxAxP): 190x380x240 mm. cadauna Peso:
8,9 kg. colore nero
ProAc proudly announce the launch of the Studio 115 all new compact monitor. The
cabinet, drive units, crossover and terminals have all been upgraded from the
previous model, the Studio 110 and a narrower cabinet front baffle has been
utilised to aid dispersion and produce a bigger soundstage. The cabinet features
bitumous damping and the port tube for bass loading is now centrally located on
the front baffle with the new bass driver. The new bass driver is manufactured
from carbon filled polyproalene; A material which gives all the inherent
advantages of cone stiffness such as a lucid bass quality and natural, detailed
presentation. It is also an ideal material with which to minimise distortion
characteristics and has contributed significantly to the success of the Studio
140 Mk 2. The bass driver crosses over to a brand new tweeter developed by ProAc
which has a special dome with air-cooling. The crossover network components have
been upgraded to seamlessly integrate the new drivers.The Studio 115 is designed
to work with all levels of quality equipment, from a modest set-up to a true
high-end system, producing highly musical results in the true ProAc compact
monitor tradition.
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.png){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/t23%20(2).jpg){kind=small}
/t23%20(3).jpg){kind=small}
/t23%20(4).jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
