Our home audio
products embody the company’s philosophy, combining technological innovation,
daring design, and superb sound for an engaging, life-like music performance you
will never forget.
MOREL
SOLAN 5B
€. 370,00
La nuova serie Solan offre la
possibilità di godere del suono Morel a prezzi accessibili per chiunque.
Diffusore bookshelf 2 vie. Disponibile nei colori nero o bianco.
PHILOSOPHY At the heart of the Solan bookshelf is a 1-inch (25mm) soft dome
tweeter fitted with a neodymium magnet system with the Lotus grille to protect
the tweeter. This driver’s smooth frequency response and lack of high "Q" (sharp)
out of band resonances provides a very natural response to the high end. The
bass/mid driver consists of a 5-inch (130mm) driver equipped with a large
ferrite magnet driving a lightweight composite paper cone. The Solan Bookshelf
inherits elements of the reference fat lady crossover technologies represented
by how all the drive units maintain a positive phase, which makes the filter
network more difficult to design, but provides a highly unified sound while
using multiple drivers.Optimizing the phase performance through the crossover
regions also helps to preserve the sound stage even when sitting off-axis.
Lastly,eliminating resistors in the signal path allows for the highest
resolution so all the important dynamics and drama of the original sound play
through. Construction MDF Vinyl cabinet, coated paint glossy piano finish
front baffle Acoustical Loading Single port bass reflex Drive Units Bass
midrange: 5¼" (130mm) rear vented ferrite motor. Comprised of a lightweight
paper cone doped with a polymer composite. The diaphragm is fitted with a 75mm
domed dust cap and surround. Tweeter: High frequency unit, low resonance coated
soft dome, ferrite magnet motor. 1" (25mm) voice coil Frequency Response 50 -
20,000 Hz Nominal Impedance 4 ohm Nominal Power Handling 100W RMS Sensitivity
2.83 V/ 1 M 88 dB Crossover 2200 Hz / 12 dB octave Dimension (WxHxD) 7" x 12" x
10" (178mm x 300mm x 250 mm) Finish White Pine, Black Ash, Dark wood NET Weight
4.7 Kg
MOREL
OCTAVE 6LE
€. 1.659,00
Diffusore
Audiophile evoluzione della serie Octave Signature. Le nuovissime Octave 6
offrono prestazioni di altissimo livello. Nuovi driver Morel e innovativa
griglia Lotus. Disponibile nei colori nero o bianco lucido
OPTIONAL Stand in alluminio
spazzolato per diffusori Morel ST-6 278,00 EURO CADAUNO
The Octave 6 series can integrate
easily in practically any living space while enabling listeners outside the
centre “sweet spot” to enjoy optimal sound. The new series is designed to be
“amplifier friendly,” able to work with tube and solid-state amps. The special
transducers engineered for the Octave 6 LE Bookshelves are the heart and soul of
the series that make all the difference. Based on Morel’s most advanced
technology, the Octave 6 LE bookshelf utilizes a 6” mid-bass unit with an
oversized 3” under-hung aluminum voice coil, a powerful Hybrid motor and an
ultra efficient one-piece carbon fibre/Rohacell composite sandwich cone. This
lightweight and highly stiff material allows for better natural and uncoloured
sound reproduction with increased articulation and improved transient response.
Morel’s renowned 1.1” (28 mm) Acuflex™ soft dome tweeter provides the company's
signature sweet sound. The high quality components preserve the dynamics of the
original sound as in a live performance Type 2-way freestanding high-end
loudspeaker Construction MDF polymer coated cabinet gloss piano finish
Acoustical Loading Bass reflex with port located in line No internal damping.
Drive Units Woofer: 6" (130mm) rear-vented system. Uniflow™ Aluminum die -cast
chassis. Ferrite magnet system. 3" Large Hexatech™ aluminum voice coil. Titanium
coil bobbin (former), One piece integrated dome and surround cone, made of
damped polymer composite (DPC). Tweeter: 1⅛" (28mm) Acuflex™ soft dome. Powerful
Neodymium magnet system. Both drive units are shielded with low magnetic stray
field Frequency Response 30-22,000Hz (40-18,000Hz ± 1.5 dB) Crossover 2200 Hz /
12 dB octave Nominal Impedance 4 ohm Nominal Power Handling 140W RMS Peak Power
Handling 1,000W 10m/sec Dispersion Within 1.5 dB -18,000 HzHorizontal: over 60°
/ Vertical: over 20° Sensitivity 1V / 1M 88 dB Dimension (WxHxD) 7.3” X 11.69” X
13.38” (14.44” with terminals) (187mm X 297mm X 340mm (367 with terminals)
Weight 7.3 KG Finish Black or white gloss piano finish
MOREL

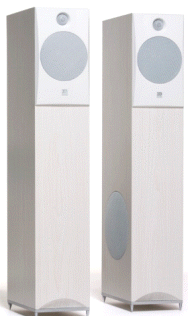

SOLAN 5F
€. 824,00
La nuova serie
Solan ofre la possibilità di godere del suono Morel a prezzi accessibili per
chiunque. Difusore Floorstanding 3 vie. Disponibile nei colori nero o bianco.
PHILOSOPHY Cabinet: The Solan floor-standing uses (as in all Solan series
speakers) an un-damped vented cabinet that is allowed to vibrate in a highly
controlled manner so that it is in sync with the output of the drive units. This
energy is used as part of the reproduced sound. The total output is taken into
consideration in the crossover design, with the result of the speaker sounding
completely transparent. A vertical baffle is located in the middle of the
cabinet with an acoustical aperture designed to break up standing waves—a
crucial element in achieving natural sound. The rear facing bass reflex port was
designed to be directly in-line with the rear of the bass/mid unit to reproduce
tighter, more articulate bass, but also provide a more realistic sound and
presence to the midrange. Drive units: The Solan floor-standing features: · A
1-inch (25mm) soft dome tweeter fitted with a neodymium magnet system. This
driver’s smooth frequency response and lack of high "Q" (sharp) out of band
resonances provides a very natural response to the high end. Protected by
Morel’s Lotus grille. · The midrange unit is a 5-inch (130mm) driver equipped
with a large ferrite magnet driving a lightweight composite paper cone. · The
bass is handled by a 6-inch (150mm) driver that utilizes a large ferrite magnet
and a composite paper cone. This driver is optimized for low frequency
reproduction with exceptional response range considering its size. · The
crossover technologies are borrowed from the reference speaker – fat lady –
represented by having all the drive units maintain a positive phase, providing a
unified sound while using multiple drivers, as well as preserving sound stage
even when sitting off-axis. Finally, eliminating resistors in the signal path
allows for the highest resolution so all the important dynamics and drama of the
original sound play through
MOREL

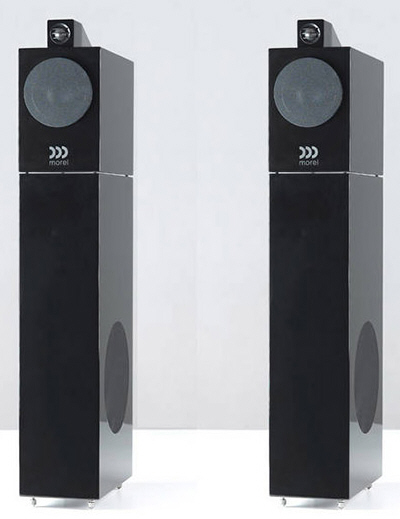

OCTAVE 6LE
€. 2.720,00
Diffusore
Audiophile evoluzione della serie Octave Signature. Le nuovissime Octave 6
offrono prestazioni di altissimo livello. Nuovi driver Morel e innovativa
griglia Lotus. Disponibile nei colori nero o bianco lucido.
Reproducing the excitement of live music whilst preserving tonal accuracy
and dynamics. The Octave 6 series can integrate easily in practically any living
space while enabling listeners outside the centre “sweet spot” to enjoy optimal
sound. The new series is designed to be “amplifier friendly,” able to work with
tube and solid-state amps. The floor-standing Octave 6 LE version replaces the
Octave 6 counterpart and is boosted by a new powerful 9” subwoofer with a
gigantic 5.1”(130mm) Hexatech™ aluminum voice coil. It’s made to deliver richer
and accurate bass performance with lower harmonic distortion than ever. The
breadth of soundstage and clarity of minute details will be apparent to casual
listeners and audiophiles alike. Morel’s renowned 1.1” (28 mm) Acuflex™ soft
dome tweeter provides the company's signature warm and sweet sound. High quality
components preserve the dynamics of the original sound as in a live performance.
It will bring the music to life right where you liveSPECIFICATIONS Type 3-way
3- unit floor-standing high-end loudspeaker Construction MDF polymer coated
cabinet gloss piano finish Acoustical Loading Separate internal chambers for the
midrange and both bass drivers Bass: Port-loaded reflex system Midrange: Bass
reflex with port located in line with centre of woofer magnet No internal
damping. Cabinet output is used as part of the reproduced sound Drive Units
Bass: One 9″ (222mm) flat-profile rear –vented woofer. 3″ (75 mm) Hexatech™
aluminium voice coils. Hybrid (neodymium and ferrite) double magnet motor
systems. One piece integrated dome and surround cone, made of damped polymer
composite. Midrange: 6″ (160mm) rear-vented system. Uniflow™ aluminum die-cast
chassis. Ferrite magnet system. 3″ (75mm) Large Hexatech™ aluminum voice coil.
Titanium coil bobbin (former) One piece integrated dome and surround cone, made
of damped polymer composite (DPC). Tweeter: 1⅛” (28mm) Acuflex™ soft dome.
Powerful Neodymium magnet system.All units are shielded with low magnetic stray
field Frequency Response 25-22,000Hz (40-18,000Hz ± 1.5 dB) Nominal Impedance 4
ohm Nominal Power Handling 200W RMS Peak Power Handling 1,000W 10m/sec
Sensitivity 1 W/1 M 89 dB Crossover 250Hz/2200 Hz / 12 dB octave Dispersion
Within 1.5 dB – 18,000 Hz Horizontal: over 60° Vertical: over 20° Dimension (WxHxD)
7.3” x 37.75” X 13.38” (14.44” with terminals)(187mm X 959mm X 340mm (367mm with
terminals)) Weight 22.5 KG Finish Black or white gloss piano finish
MOREL

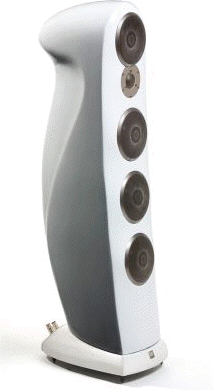

SOVRAN
€. 9.200,00
Sistema High End Audiophile a 3 vie in carbonio
composito. “La minore” del diffusore di riferimento, leSopran contengono tutte
le innovazionitecnologiche delle Fat Lady in un formato eprezzo più
contenuto.Vincitore come miglior prodotto innovativo al CES 2013. Disponibile in
carbonio laccato bianco o nero lucido
Winner of the 2013 CES Design and Engineering Innovations award, the Sopran
fully embodies the idea that “form follows function”. The cabinet eschews
conventional boxy design in favor of curved lines, not merely for the sake of
aesthetics, but for improved speaker performance. The Sopran 3-way (which
includes five drive units) is a combination of creative vision and acoustic
physics. The curved carbon fibre composite cabinet eliminates internal standing
waves even with no internal absorption material. The result is a speaker so
transparent and natural that it sounds as if there was no cabinet at all. For
tight and controlled bass reproduction a new in-line port technology was
developed, molding the speaker’s back “spine” appearance for a significantly
improved soundstage and realism. Add to that the latest in transducer technology
from Morel: The new 6-inch drivers utilize a titanium support mechanism that
transfers the motor force to the membrane with minimal energy lose to preserve
the drama and dynamics of the original sound, creating a tactile musical
experience.
MOREL

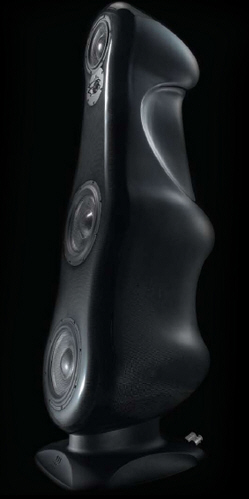

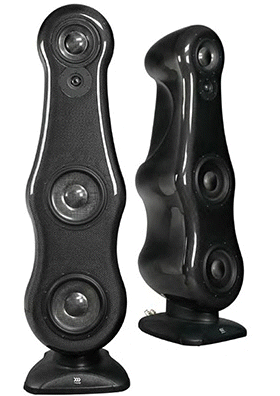

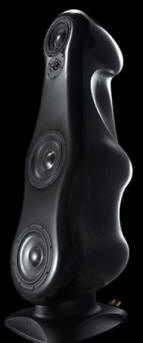

FAT LADY
Sistema High End Audiophile a 3 vie in carbonio
composito. Difusore di riferimento Morel vincitore come miglior prodotto
innovativo al CES2010, in Italia premiato come miglior difusore da pavimento
2011 da FDS.

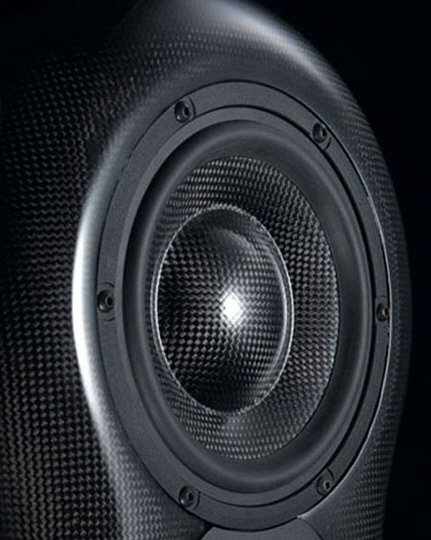

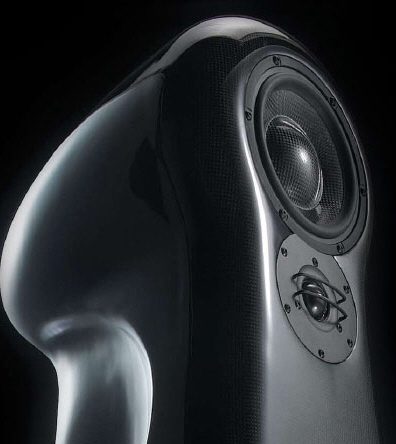

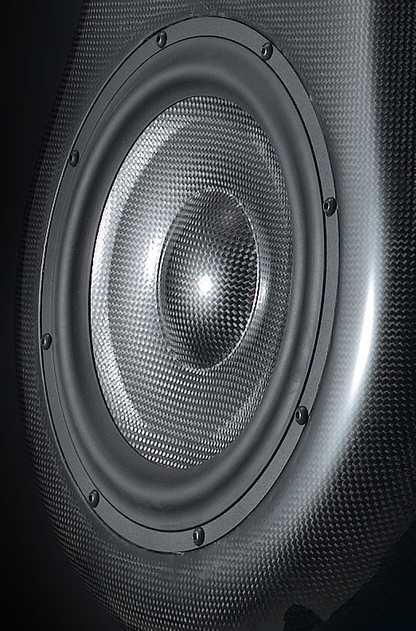

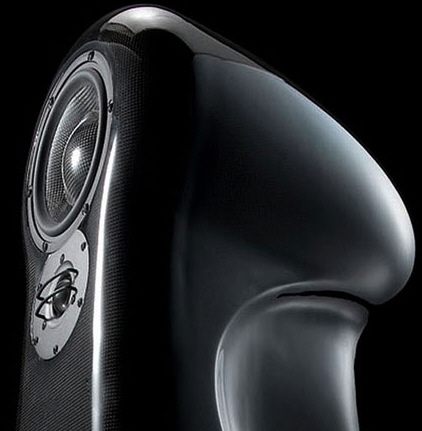

The ideal cabinet for the fat-lady needs to be strong and light
in weight. Light and strong are expressions associated with the design of high
performance racing cars and aircrafts, so where better to look for materials to
construct the cabinet. For the composition of the fat lady enclosure, an outer
layer of lacquered carbon fiber is optimally mixed with fiber glass and epoxy
resin. Utilizing the very latest in manufacturing techniques, Morel have
produced a mold that affords the R&D team total freedom to create a design that
is both acoustically and visually sublime. The curved shape with no straight
lines is similar to a musical instrument. Unlike conventional loudspeakers it
has absolutely no internal damping: the inside of the cabinet is empty. The
cabinet is allowed to vibrate in a controlled manner along with the drive units
and uses this energy as part of the reproduced sound. The clever part is that
the cabinet ‘sings’ with the drive unit but stops immediately when the drive
unit stops so there are no delayed resonances. The result is a speaker that
sounds as if it has no cabinet at all.The heart and soul of a loudspeaker are
the components within it. These produce the sound, which is why it pays to
select the finest available. Most speaker companies purchase drive units from
specialist manufacturers for their designs, and this often produces excellent
results. Morel, however, designed, developed and fine tuned the drive units
specifically for the fat lady. The difference in approach can be likened to
buying a first class suit from a menswear store or having a bespoke suit
made-to-measure in London’s Saville Row. SOUND It can be said the total is
greater than the sum of its parts. The fat lady really is a technical tour de
force. The true test of a loudspeaker is to listen to it. Be prepared for an
emotional onslaught as soon as the music starts: expect to be captivated and
drawn into the performance. Auditioning the fat lady promises to be a very
tactile and exciting experience
MOREL

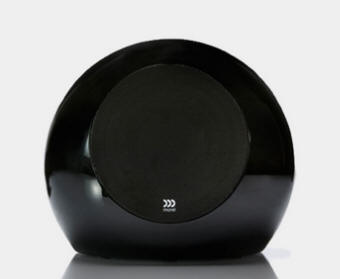

SOUNDSUB PSW-8EW
€. 1.113,00
Subwoofer 8” 150W (wireless opzionale) White or
Black gloss finish
MOREL

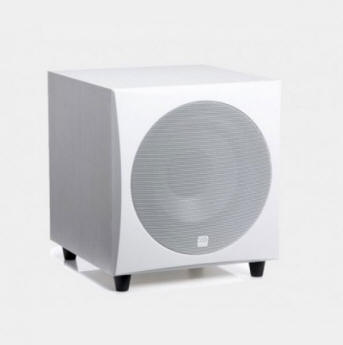

SOLAN PMS10
€. 921,00
La nuova serie Solan offre la possibilità di
godere del suono Morel a prezzi accessibili per chiunque. Subwoofer attivo da
8”. Disponibile nei colori nero o bianco.
The Solan active subwoofer has the same design attributes as all Solan series,
with a glossy piano finish front baffle, and like all Solan products, it uses an
un-damped vented cabinet that is allowed to vibrate in a highly controlled
manner so that it is in sync with the output of the drive unit. Fitted with a
10” bass unit driven by a 100W high power amplifier to enrich the bass tones it
offers seamless acoustic integration for the Solan series.SPECIFICATIONS
Construction MDF Vinyl cabinet, coated paint glossy piano finish front baffle
Dimensions (W x H x D) 14 ½" x 14” x 13¼" (366mm x 360mm X 330mm) Drive Units
One 10" (254mm) woofer Frequency Response 35-160Hz Amplifier 100W, continuous
power, all formats compatible with automatic on/off switch, level, crossover,
and phase controls. Inputs Line-level RCA phono jacks high-level bindingpost
terminals Voltage 115-230 VAC 50/60Hz with main supply voltage selector Finish
White Pine, Black Ash, Dark wood Net Weight 13.5KG
MOREL

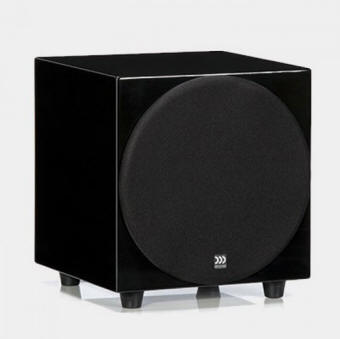

SUB 8
€. 556,00
Subwoofer attivo
da 8”, 250 Rms, tecnologia a risparmio energetico, regolazione fase, volume e
frequenza. Cabinet in vetroresina. Disponibile nei colori nero o bianco
Subwoofer 8” 80W Forward-firing white gloss finish.
Hi-Low Level input
MOREL
MT -3 ULTRA
€. 3.875,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-3, 1pz
Subwoofer PSW-8EW (wireless opzionale) White or Black finish
MOREL
MT -3 X
€. 3.318,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-3,1pz
Subwoofer SUB-8X White or Black finish
SOUNDSPOT™ MT-3 New
design goals and the quest for an even higher performance level make this new
sub/sat system the closest ever to a high fidelity floor-standing 5.1 system.

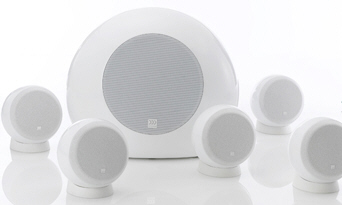

MOREL

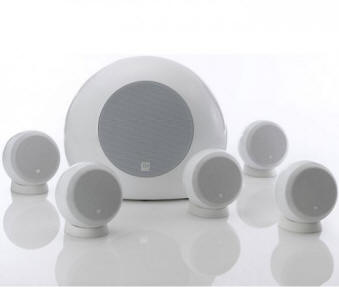

MT -2 ULTRA
€. 2.654,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-2,1pz
Subwoofer PSW-150EW (wireless opzionale)White or Black finish
MOREL
MT -2X
€. 2.205,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-2,1pz
Subwoofer SUB-8X White or Black finish

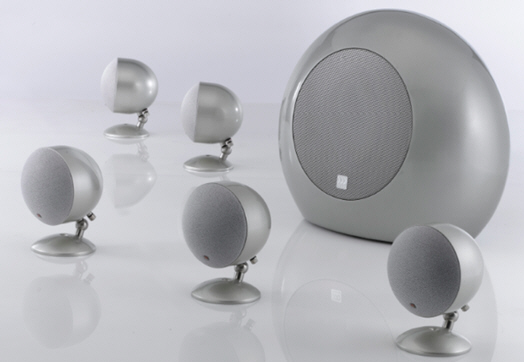

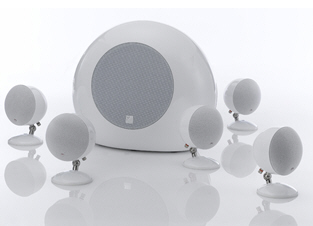

MOREL

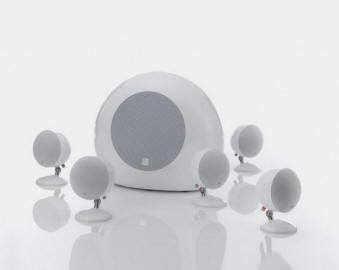

MT -1 ULTRA
€. 1.392,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-1,1pz
Subwoofer PSW-150EW (wireless opzionale) White or Black finish

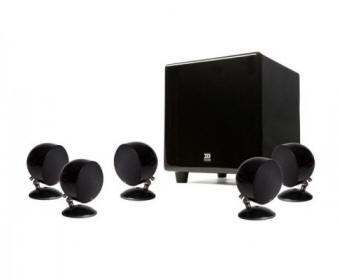

MOREL
BEAT X
€. 1.049,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-1,1pz
Subwoofer SUB-8X White or Black finish
MOREL

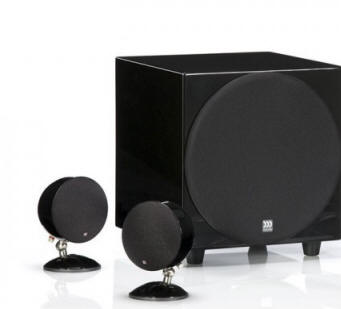

PRIMO
€. 1.049,00
Sistema Home Theatre 5.1, 5pz. satelliti SP-1,1pz
Subwoofer SUB-8White or Black finish
MOREL

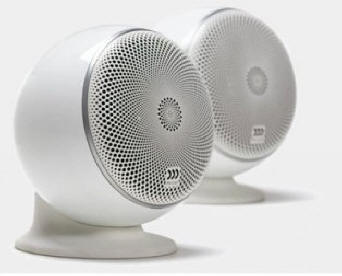

SP3
€. 1.113,86
Diffusori satellite 5.5” coassiale Reflex White
or Black finish
MOREL

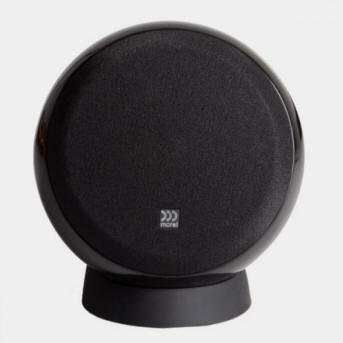

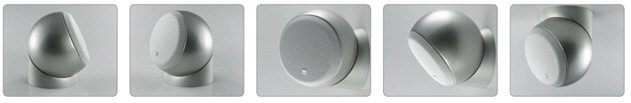

SP2
€. 599,00
Diffusori satellite 4” coassiale
White or Black finish
MOREL

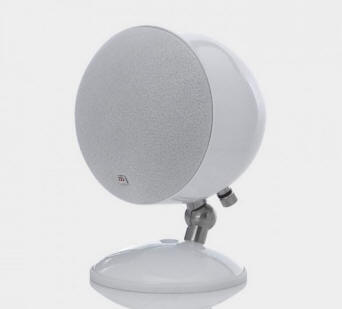

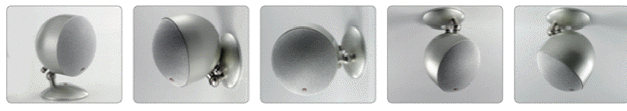

SP1
€. 492,00
Set diffusori satellite 3.5” coassiale
White or Black finish
MOREL XBW600
€.
192,76
Diffusore da incasso frameless 2 vie 6”woofer/25mm
tweeter
MOREL XBW600H
€.
235,46
Diffusore da incasso frameless Alta Sensibilità 2 vie 6”woofer/25mm
tweeter
XBC600 Diffusore da incasso frameless 6” Coassiale
170,80
XBC600ST Diffusore da incasso frameless 6”
Coassiale Stereo 192,76
XBW525LCR Diffusore da incasso frameless LCR 5"
406,26
XBC400 Diffusore da incasso frameless 4” Coassiale
170,80
MHC600 Diffusore ad alte prestazioni da incasso
frameless 6” Coassiale 363,56
MHW600
Diffusore ad alte prestazioni da incasso frameless 2 vie 6” woofer/28mm tweeter,
larga dispersione 728,34
MHW525LCR Diffusore ad alte prestazioni da incasso frameless LCR 5” 984,54
MHC400 Diffusore ad alte prestazioni da incasso frameless 4” Coassiale. 320,86
CW600
Diffusore Audiophile da incasso frameless 2 vie 6” woofer/28mm
tweeter, larga dispersione 1.306,62
CW525LCR
Diffusore Audiophile da incasso frameless LCR 2x5” woofer/1x28mm
tweeter, larga dispersione 1.648,22
PMW600
Diffusore Ultrasottile da incasso frameless 2 vie 6” woofer/28mm
tweeter, larga dispersione. 492,88
PMC600 Diffusore Ultrasottile da incasso
frameless 6” Coassiale 450,18
SH17C (SEMI-HIDDEN) Diffusore da incasso frameless ultra piatto 578,28
H17C (HIDDEN) Diffusore verniciabile a scomparsa ultra piatto da incasso
599,02
LCR 4 SW
Soundbar LCR 4" passiva da incasso, coassiali Integra e woofers
Colore e lunghezza modificabili
2.719,38
LCR 4
Soundbar LCR 4” passiva da incasso, 40W 60Hz
Colore e lunghezza modificabili
1.477,42
LCR 4 X
Soundbar LCR 4” passiva da incasso, 30W 80Hz
Colore e lunghezza modificabili 663,68
GRAND HARMONY
GH-22Q4” SP-2 da incasso orientabile con flangia quadra
White
406,26
GRAND HARMONY
GH-22D
4” SP-2 da incasso orientabile con flangia tonda
White 406,26
HARMONY 10" Subwoofer 10” passivo da incasso N 667,00 813,74
AMP80 Amplificatore separato per HARMONY 10
406,26
BREEZ 4.5"
Diffusori ad alta efficenza da installazione anche in esterno, resistenti
agli agenti atmosferici 2 vie 4” woofer/tweeter a tromba
White 535,58
BREEZ 6.5"
Diffusori ad alta efficenza da installazione anche in esterno, resistenti
agli agenti atmosferici 2 vie 6” woofer/tweeter a tromba.
White 771,04
BREEZ CX600
Diffusori da installazione anche in esterno, resistenti ad ogni condizione
climatica 6” coassiale/20mm tweeter, 70V/100V/8ohm,
palo da interrare/staffa muro
Black 813,74
CLSP2 Sospensore da soffitto per satellite
SP-2. 170,80
CLSP3 Sospensore da soffitto per satellite
SP-3 170,80
ST-80 Stand in alluminio per satelliti SP-2 e
SP-3 235,46
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
