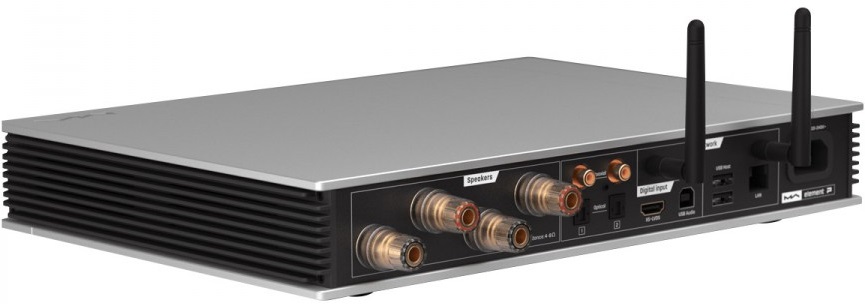

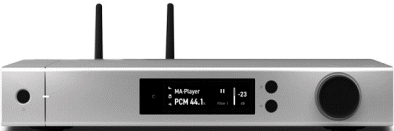

MATRIX
ELEMENT P
OFFERTA
€. 2.790,00
NETWORK (lan/wifi)/DAC/Ampli
CUFFIA.TIDAL, MQA, DSD IOS App.– Android App.
 brand-new
element series has a simplified visual design removing unnecessary elements. It
features simple visual lines with a precision CNC anodizing aluminum case. We
spent more than a year incorporating a quad-core ARM processor (Freescale i.MX6)
into Matrix products. Then we developed a high-quality audio system based on
Linux. The element series is our first product that transforms into a
full-featured audio source with built-in music playback for streaming media over
your network or files from a local disk.The element P runs a powerful audio
playback system that supports all the popular formats. Simply connect a USB
drive or configure a NAS storage device to browse your music library and enjoy
up to 768kHz PCM and 22.4MHz DSD. Click HERE to learn more about MA player.MA
Remote app is available for iPhone, iPad and Android phones now. Browse and play
your own high-quality digital audio, or enjoy hi-res streaming audio, whatever
you want. MA Remote is now integrated with TIDAL and Qobuz streaming service. In
addition, it’s also ROON Ready. Find Matrix device and control through ROON
Remote, making playback faster. Listening to network streaming media has become
a normal part of life today. The element series also enables you to play music
from your smartphone or other mobile devices via AirPlay & DLNA for convenient
wireless streaming.MQA (Master Quality Authenticated) is an award-winning
British technology that delivers the sound of the original master recording. The
master MQA file is fully authenticated and is small enough to stream or
download. The element series include MQA technology, which enables you to play
back MQA audio files and streams, delivering the sound of the original master
recording Everything you need in one unit, an excellent quality audio source,
DAC, and speaker amplifier all-in-one. The high-quality integrated power
amplifier was developed for traditional passive speaker users. Just add a pair
of passive speakers to the element P and you have a complete stereo Hi-Fi
system. In the brand-new element P, we still accept the industry leading ESS
Company's solution, high performance ES9028PRO D/A chip and ultra-low phase
noise femtosecond clock CCHD-950 from Crystek as a basic guarantee for
high-quality sound, we adopt MUSES72320, a resistor divider's control mode for
volume control of analog section , which retained the original sound quality to
the maximum exten With the rapid development and release of high-quality music
formats, the processing requirements are also higher than ever before. The
element P is equipped with the brand-new XU216 XMOS processor which can easily
handle decoding and unfolding of the highest bit rate MQA format. We choose the

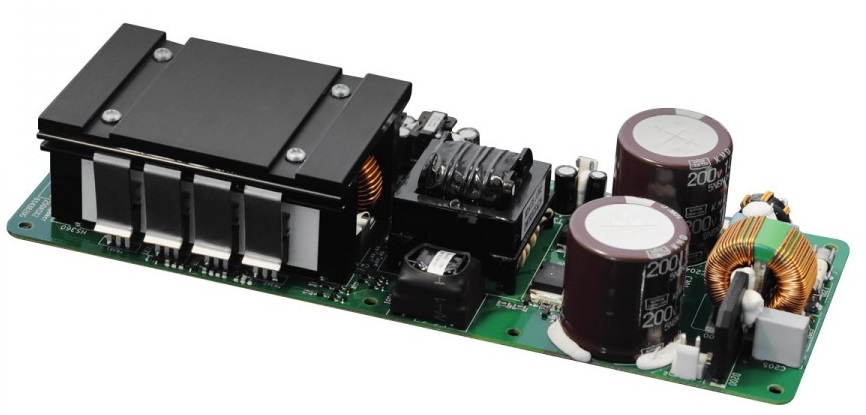

ICEpower 250ASX2 class D amplifier module from Denmark as the core power
amplifier in the element P. The rated power output is 230 Watts per channel at 4
Ohms, which can easily drive any speakers from small bookshelf models to small
or medium sized floor-standing modelsWe used a linear power supply on the
front-end instead of the ICEpower module’s provided front-end output circuit.
This prevents superimposed noise from the module’s power supply from entering
the pre-amp section. The linear power supply consists of a customized Noratel
toroidal transformer along with Nichicon audio grade capacitors and incorporates
a multi-channel linear LDO supplying power to the digital and analog circuitry
in the front-end of the element P.Different materials have their own resonant
frequency. The element P is designed as double-shell structure. The inner shell
uses stamp galvanized steel with multi-strip reinforcing ribs to ensure
excellent strength and the external shell is made of 4mm aluminum. The
combination of the two metals eliminates the fixed resonant frequency of each
material and greatly reduces the negative impact that case resonance can have on
the sound quality. Technical Digital InputCOAXIAL & OPTICAL PCM 16-24Bit
/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP)IIS LVDS PCM
16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz,
705.6kHz, 768kHzDSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)DSD 2.8MHz, 5.6 MHz, 11.2 MHz,
22.4MHz, 45MHz (Native) USB Audio PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz
(DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) Speaker Output SNR: >-121dB
THD+N: <0.008%@1W (8Ω, 1k) Frequency Response: 20Hz-20kHz ±0.25
-3dB@85kHz Output Impedance: <25mΩ Output Power:
230W@4Ω, 110W@8Ω (1%THD+N) Gain: +40dB Network LAN 10BASE-T/100BASE-TX WLAN
2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard MA player Format Supported MP3 ,
WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF PCM
Sampling Rate PCM 16/24/32Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,
352.8kHz, 384kHz, 705.6kHz, 768kHz DSD Sampling Rate DSD 2.8MHz, 5.6MHz,
11.2MHz, 22.4MHz USB Storage Device element p can use the devices which conform
to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file
formats, but is not guaranteed to be compatible with all storage devices or
memory cards.
MATRIX
M-STAGE
HPA-3U
OFFERTA
€. 499,00

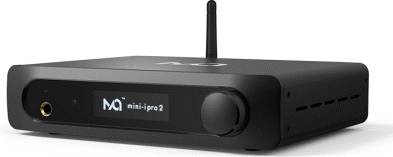

MATRIX
MINI I PRO
2S
OFFERTA
€. 699,00
MINI I PRO 2s -
DSD DAC (ES9026 PRO Sabre - BluTooth Port))
Inherited
Classic Nearly a year of waiting, ESS SABRE PRO series chips mass product now,
we have launched the “S” which is a new member of Mini-i series DAC at the first
time, although it have the same look as Mini-i Pro 2, but it owns a more
powerful heart——ES9026PRO. It's a further extension of the powerful features on
Mini-i Pro 2 and excellent quality on Mini-i series DACs.ESS SABRE PRO The brand
new 8-channel D/A chip ES9026PRO fully optimized the internal DSP unit, compare
to the last generation ES9016S, not only have the powerful performance, but also
has a better user experienceFull Port DSD* From now on DSD audio stream is not
limited to playback through the USB port, Mini-i Pro 2S support DoP through
optical, coaxial and AES/EBU input, convenient to connect digital music player
which with the DoP output function. AES PCM 16-24Bit /44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP) COAXIAL PCM 16-24Bit /44.1kHz,
48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP) OPTICAL PCM 16-24Bit
/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP) USB PCM
16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz DSD
DSD64/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native) Bluetooth PCM 16Bit/48kHz
aptX/AAC/SBC Bluetooth VersionBluetooth V4.0 Frequency Band 2.402GHz -
2.480GHzPower Level Class II Operating Distance 10-15m Delay ＜20ms System
Support Windows7/8/8.1/10 systems need to install the supplied drivers. Mac OS
X10.6.4 and above version without installing drivers. Most Android devices can
be used via OTG cable. The iOS devices can be used via the Apple Camera
Connection Kit. Analog Output XLR SNR ＞ -123dB 20Hz-20kHz A-Weighting THD+N＜0.0003%
at 1kHz A-Weighting Frequency Response 20Hz-20kHz (+0.01dB/-0.02dB) Crosstalk
＞-130dB @1kHz XLR Output 4Vrms Fixed at 0 dBFS DAC MODE 0-4Vrms Adjustable at 0
dBFS PRE MODERCA SNR ＞ -120dB 20Hz-20kHz A-Weighting THD+N ＜0.0005% at 1kHz
A-Weighting Frequency Response20Hz-20kHz (+0.01dB/-0.02dB) Crosstalk >-126dB
@1kHzRCA Output 2Vrms Fixed at 0 dBFS DAC MODE 0-2Vrms Adjustable at 0 dBFS PRE
MODEHeadphone OutputSNR>-116dB 20Hz-20kHz A-WeightingTHD+N<0.0007% at 1kHz
A-Weighting at 300ohms 25mW Frequency Response20Hz-20kHz (+0dB/-0.1dB) Crosstalk
>-126dB @1kHz Headphone Output Impedance 10ohms Headphone Output Power 820mW at
33ohms at THD+N=0.1% 210mW at 300ohms at THD+N=0.1% 110mW at 600ohms at THD+N=0.1%
Power Power Voltage 230V position is fit for AC220V-240V 50/60Hz 115V position
is fit for AC100V-120V 50/60Hz Power Consumption <10W Others Dimension
168×205×47mm（L×W×H, including the protruding part） Weight 1.3KG

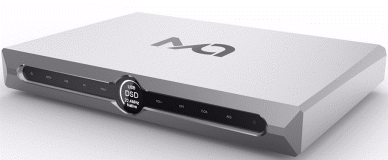

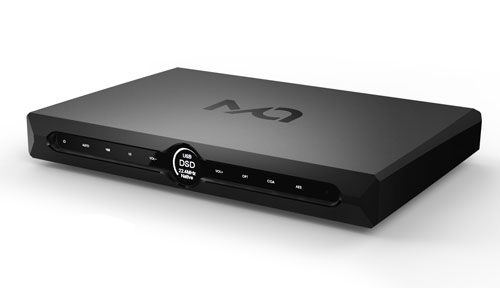

MATRIX
XSABRE
PRO MQA
OFFERTA
€. 2.299,00
XSABRE - DSD DAC
(ES9038S Sabre)

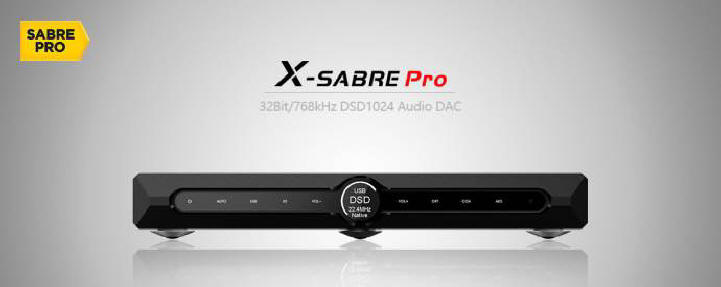

The pure DAC X-SABRE finally
ushered in her comprehensive upgrade. X-SABRE Pro dress up a new generation of
the world's top D/A chip, not only inherited the fine lineage of previous
generation, but also added a number of convenience features, all above to make
it transformed into a new generation flagship DAC of Matrix.ESS SABRE PRO
X-SABRE Pro is a DAC equipped with ES9038PRO D/A chip, that has been first put
into mass production in China or even around the world. Matrix fully explored
this advanced 8-channel D/A chip's potential, compared to the previous
generation ES9018S, ES9038PRO fully optimizes the internal DSP units, further
improve the performance and customer use experience. We selected the excellent
audio components and well-designed circuit layout to making X-SABRE Pro's SNR
reached an incredible -134dB.Full Port DSD From now on, DSD audio stream is not
limited to playback through the USB port, X-SABRE Pro support DoP or dCS from
optical, coaxial and AES/EBU input, convenient to connect digital music player

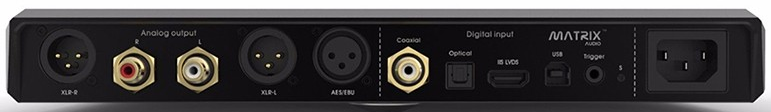

which with the DoP/dCS output function IIS Port X-SABRE Pro is equipped with the
most complete input ports of this series, in addition to optical, coaxial, AES/EBU,
USB ports, we even added a IIS·LVDS input via a HDMI connector to differential
transmit IIS signal, maximize the transmission performance of the IIS port, to
make the data from the short-distance transmission between the chips into
high-speed interconnection between the devices, get rid of the USB transmission
or S/PDIF transmission re-encoding, and let the original digital audio stream
directly into the D/A chip.DSD1024 PCM768 As a new generation of Matrix flagship
DAC, X-SABRE Pro not only supports 32Bit/768kHz PCM audio stream playback, but
also supports DSD64, DSD128, DSD256, DSD512, and even supports DSD1024 with the
sample rate of 45.158MHz via I²S input port.Asynchronous or synchronous X-SABRE
Pro has the clock configuration circuit unit, can choose to use ES9038PRO
synchronous clock source or external ultra-Low phase noise clock source,
cooperate with software control to free convert ES9038PRO work mode between
synchronous or asynchronous, and greatly improved the playability.Ultra-Low
Phase Noise Oscillator Digital audio is the art of time, high-precision clock is
to ensure the basis of digital audio playback, X-SABRE Pro build-in three hi-res
audio dedicated Crystek ultra-low phase noise oscillators, the phase noise as
low as -169 dBc/Hz. Two for sample rate of 44.1kHz, 48kHz, and their multiples,
and one for ES9038PRO reference clock, you can hear the accurate sound!AES
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP/dCS)
COAXIAL PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64
(DoP/dCS) OPTICAL PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSD DSD64 (DoP/dCS) IIS（PS AUDIO Standard） PCM 16-32Bit /44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD
DSD64/128/256 (DoP/dCS) DSD64/128/256/512/1024(Native DSD) PS: The IIS LVDS port
is not a commonly used interface, currently, it has no uniformed interface
standard."In line with PS AUDIO standard" refers to the signal definition of
HDMI connector is defined exactly the same with PS AUDIO device, but it is not
guaranteed that the X-SABRE Pro is compatible with all the devices conformed to
this definition. USB PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,
192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD DSD64/128/256 (DoP/dCS)
DSD64/128/256/512 (ASIO Native) System Support Windows7/8/8.1/10 systems need to
install the supplied drivers. Mac OS X10.6.4 and above version without
installing drivers. Most Android devices can be connected via OTG cable. The iOS
devices can be used via the Apple Camera Connection Kit. Analog Output XLR SNR >
-134dB 20Hz-20kHz A-Weighting THD+N <0.00012% at 1kHz A-Weighting <0.00015% at
20Hz-20kHz A-Weighting Frequency Response 20Hz-20kHz (+0.01dB/-0.02dB) Crosstalk
> -151dB @1kHz XLR Output 4.5Vrms Fixed at 0 dBFS DAC MODE 0-4.5Vrms Adjustable
at 0 dBFS PRE MODE RCA SNR >-129dB 20Hz-20kHz A-Weighting THD+N <0.00018% at
1kHz A-Weighting <0.00030% at 20Hz-20kHz A-Weighting Frequency Response
20Hz-20kHz (+0.01dB/-0.02dB) Crosstalk >-143dB @1kHz RCA Output 2.25Vrms Fixed
at 0 dBFS DAC MODE 0-2.25Vrms Adjustable at 0 dBFS PRE MODE Power Voltage
230V position is fit for AC220V-240V 50/60Hz 115V position is fit for
AC100V-120V 50/60Hz Power Consumption <10W Others Dimension 300×218×45mm（L×W×H,
including the protruding part） Weight 3.7KG
MATRIX

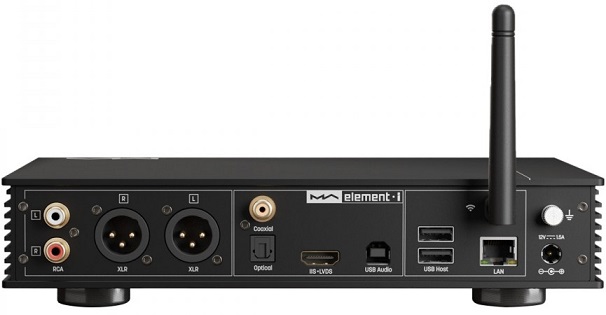

ELEMENT i
OFFERTA
€. 1.190,00
NETWORK (lan/wifi)/DAC/Ampli
CUFFIA.TIDAL, MQA, DSD IOS App.– Android App.
With the help of MA
player, no matter at the desk, beside your TV, in the bedroom or dining room,
element i is always waiting for your playback commands. Get rid of computers, as
long as you are on the same Wi-Fi or wired network, use Airplay, DLNA or
playback your collected digital audio. MA Remote app is available for iPhone,
iPad and Android phones now. Browse and play your own high-quality digital
audio, or enjoy hi-res streaming audio, whatever you want. MA Remote is now
integrated with TIDAL service, Qobuz is also coming. In addition, it’s also ROON
Ready. Find element audio device and control from ROON Remote, making playback
faste ,element i has a discrete component headphone amp with up to 1300mw of
power, it can easily drive various high-resistance full-sized headphones and
high-sensitive IEMs. The excellent dynamic performance and inaudible background
noise, make you concentrate to the music. The device can be controlled by IR
remote and MA Remote app, you can easily control the volume and input channels
even if connecting to active speakers or power amplifiers.element i aim to
cost-effective, but the hardware is still powerful enough: the Freescale i.MX6
series dual-core ARM processor is used as the master core of the MA player, the
D/A converting module is using the ES9028PRO 8-channel D/A chip from ESS and
XU208 audio interface from XMOS. As an entry model, we keep the IIS LVDS port,
which allow element i to connect to USB interface with femtosecond
clocks.Element i is powered by an external power supply. Audiophiles can upgrade
their external linear power supply according to their requirements and explore
the potential of element i. Even so, the power conditioning section in element i
is never compromised. Each circuit unit still uses multi-channel low-ripple LDO
independently, as the basis of good sound performance.Technical
MDigital Input MCOAXIAL & OPTICAL MPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz DSD 2.8MHz (DoP) IIS LVDS MPCM 16-32Bit /44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz,
5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz, 45MHz (Native) USB
Audio PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,
384kHz DSD 2.8MHz, 5.6MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz (Native) MLine
Output XLR MSNR: >-127dB THD+N: <0.00025%@1k，<0.00027%@20Hz-20kHz
Frequency Response: 20Hz-20kHz ±0.05
-3dB@150kHz Channel Crosstalk: >-143dB
Amplitude:
4.0VRMS@0dB RCA SNR: >-120dB THD+N:
<0.00040%@1k，<0.00045%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.05
-3dB@100kHz Channel Crosstalk: >-114dB
Amplitude:
2.0VRMS@0dB Headphone Output Single Ended SNR:
>-111dB@2VRMS THD+N: <0.0006%@1VRMS Frequency
Response: 20Hz-20kHz ±0.1
-3dB@47kHz MOutput Impedance: <0.6Ω MOutput Power:
1320mW@33Ω，248mW@300Ω，124mW@600Ω，1%THD Gain:
+12dB Network MLAN M10BASE-T/100BASE-TX MWLAN M2.4GHz, IEEE 802.11 a/b/g/n
standard MA player Format Supported MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC,
OGG, APE, ALAC, M4A, DSF, DFF PCM Sampling Rate PCM 16/24/32Bit 44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz DSD Sampling Rate DSD 2.8MHz,
5.6MHz, 11.2MHz USB Storage Device element i can use the
devices which conform to the USB mass storage standard and supports FAT, FAT32,
exFAT, and NTFS file formats, but is not guaranteed to be compatible with all
storage devices or memory cards.
.gif)
MATRIX

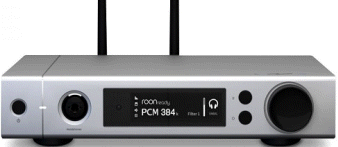

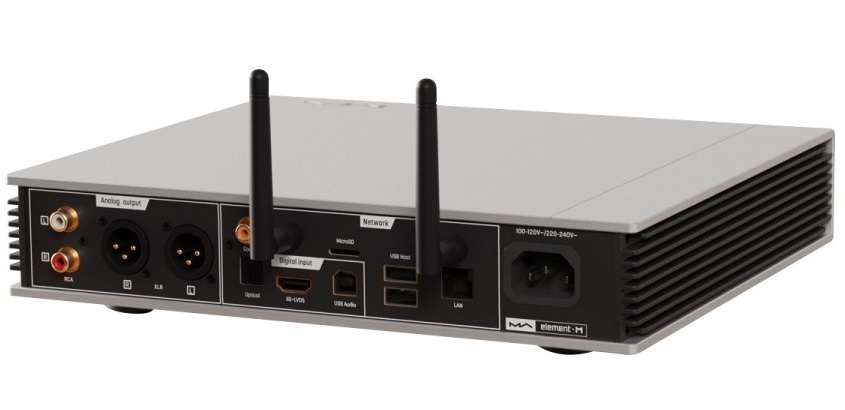

ELEMENT M
OFFERTA
€. 2.150,00
NETWORK (lan/wifi)/DAC/Ampli
CUFFIA.TIDAL, MQA, DSD IOS App.– Android App.
Element M is a new member of element family, it
continues the design language of concise and steady. We look for a balance
between performance, functionality and price on element M, hoping to provide a
desktop two-channel stereo simplification solution for mid-range active speaker
and headphone user.MA Remote app is available for iPhone, iPad and Android
phones now. Browse and play your own high-quality digital audio, or enjoy hi-res
streaming audio, whatever you want. MA Remote is now integrated with TIDAL and
Qobuz streaming service. In addition, it’s also ROON Ready. Find Matrix device
and control through ROON Remote, making playback faster.Listening to network
streaming media has become a normal part of life today. The element series also
enables you to play music from your smartphone or other mobile devices via
AirPlay & DLNA for convenient wireless streaming.MQA (Master Quality
Authenticated) is an award-winning British technology that delivers the sound of
the original master recording. The master MQA file is fully authenticated and is
small enough to stream or download. The element series include MQA technology,
which enables you to play back MQA audio files and streams, delivering the sound
of the original master recording.Element M is positioned as the mid-range of the
entire series and is also the most cost-effective product. We use ES9028PRO
advanced D/A solution and SiTime low phase noise clock, combine with our
development experience with ESS chips, to maximize its potential performance.We
developed a new low-impedance headphone amplifier consisting of discrete
components for element M. This headphone amp has a bipolar input stage that
effectively rejects common-mode distortion. The output stage is set in a high
quiescent current state, giving you an intriguing mellow sound performance.The
RM3 infrared remote control is standard for element series products, we provide
5 different kinds of address code to avoid interference with other audio devices.
On the other hand, MA Remote has 'Virtual Remote Control' feature, you can
proceed all the setting operations of the unit through the app.Different
materials have their own resonant frequency. The element X is designed as
double-shell structure. The inner shell uses stamp galvanized steel with
multi-strip reinforcing ribs to ensure excellent strength and the external shell
is made of 4mm aluminum. The combination of the two metals eliminates the fixed
resonant frequency of each material and greatly reduces the negative impact that
case resonance can have on the sound quality.Technical Digital Input
COAXIAL & OPTICAL PCM 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz DSD
2.8MHz (DoP) IIS LVDS PCM 16-32Bit
/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD
2.8MHz、5.6MHz、11.2MHz (DoP) DSD 2.8MHz、5.6MHz、11.2MHz、22.4MHz、45MHz (Native) USB
Audio PCM 16-24Bit
/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHzDSD
2.8MHz、5.6MHz、11.2MHz (DoP)DSD 2.8MHz、5.6MHz、11.2MHz、22.4MHz (Native) Line
OutputXLRSNR: >-128dBTHD+N: <0.00022%@1k，<0.00025%@20Hz-20kHzFrequency Response:
20Hz-20kHz ±0.05 -3dB@150kHzChannel Crosstalk: >-145dB Amplitude:
4.0VRMS@0dB RCASNR: >-125dBTHD+N:
<0.00028%@1k，<0.00045%@20Hz-20kHzFrequency Response: 20Hz-20kHz ±0.05
-3dB@120kHz Channel Crosstalk:
>-128dBAmplitude: 2.0VRMS@0dB Headphone Output
Single EndedSNR: >-111dB@2VRMS
THD+N: <0.0006%@1VRMS Frequency Response: 20Hz-20kHz ±0.1
-3dB@47kHz Output Impedance: <0.6Ω Output Power:
1320mW@33Ω，248mW@300Ω，124mW@600Ω，1%THD Gain: +12dB Network LAN
10BASE-T/100BASE-TX WLAN 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard MA player
Format Supported MP3 、WMA 、WAV 、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF
PCM Sampling Rate PCM 16/24/32Bit
44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD
Sampling Rate DSD 2.8MHz、5.6MHz、11.2MHz、22.4MHz USB Storage Device element M can
use the devices which conform to the USB mass storage standard and supports FAT,
FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with
all storage devices or memory cards.
MATRIX

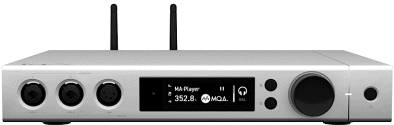

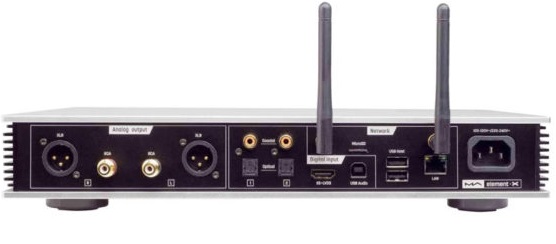

ELEMENT X
OFFERTA
€. 3.350,00
NETWORK (lan/wifi)/DAC/Ampli
CUFFIA.TIDAL, MQA, DSD IOS App.– Android App.
Our
brand-new element series has a simplified visual design removing unnecessary
elements. It features simple visual lines with a precision CNC anodizing
aluminum case We spent more than a year incorporating a quad-core ARM processor
(Freescale i.MX6) into Matrix products. Then we developed a high-quality audio
system based on Linux. The element series is our first product that transforms
into a full-featured audio source with built-in music playback for streaming
media over your network or files from a local disk. The element X runs a
powerful audio playback system that supports all the popular formats. Simply
connect a USB drive or configure a NAS storage device to browse your music
library and enjoy up to 768kHz PCM and 22.4MHz DSD. MA Remote app is available
for iPhone, iPad and Android phones now. Browse and play your own high-quality
digital audio, or enjoy hi-res streaming audio, whatever you want. MA Remote is
now integrated with TIDAL and Qobuz streaming service. In addition, it’s also
ROON Ready. Find Matrix device and control through ROON Remote, making playback
faster.Listening to network streaming media has become a normal part of life
today. The element series also enables you to play music from your smartphone or
other mobile devices via AirPlay & DLNA for convenient wireless stream.
MQA (Master Quality Authenticated) is an
award-winning British technology that delivers the sound of the original master
recording. The master MQA file is fully authenticated and is small enough to
stream or download. The element series include MQA technology, which enables you
to play back MQA audio files and streams, delivering the sound of the original

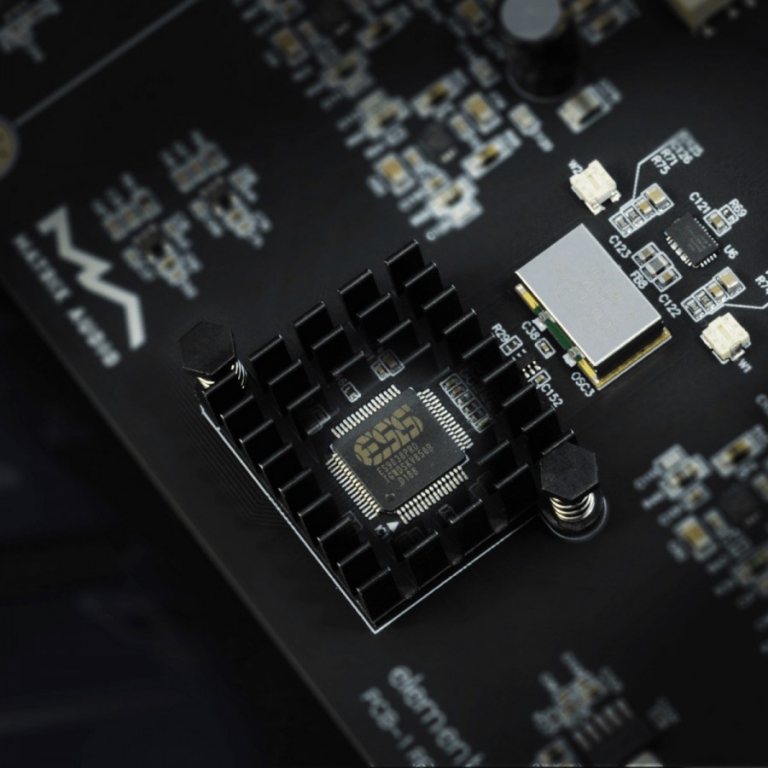

master recording.The element X is the series flagship model using the industry
leading ESS ES9038PRO D/A converter along with the professional grade ultra-low
noise LDO ES9311 and the Crystek CCHD-950 femtosecond clock. By combining our
years of development and tuning experience with ESS best chip to date we have
achieved the full potential of this hardware. With the rapid development and
release of high-quality music formats, the processing requirements are also
higher than ever before. The element X is equipped with the brand-new XU216 XMOS
processor which can easily handle decoding and unfolding of the highest bit rate
MQA format.We wanted to eliminate the weaknesses of traditional analog
potentiometer based volume controls and digital based volume controls. So we
designed a hybrid digital volume control for the element X which uses an array
of relays along with the built in DAC chips internal digital volume unit. This
enabled us to combine the audio quality advantages of an analog volume control
along with the precision of a digital volume control. When using active speakers,
there is no need to add a pre-amplifier since the element X has a built-in very
high-quality analog pre-amplifier section that is configurable with up to +10 dB
of analog gain.he element X is also a dual-mode headphone amplifier based on the
LME49600 and consisting of four independent amplifier units. In balanced mode it
can drive a pair of balanced headphones or in single-ended mode, it can drive
two single-ended pairs of headphones each having its own independent stereo

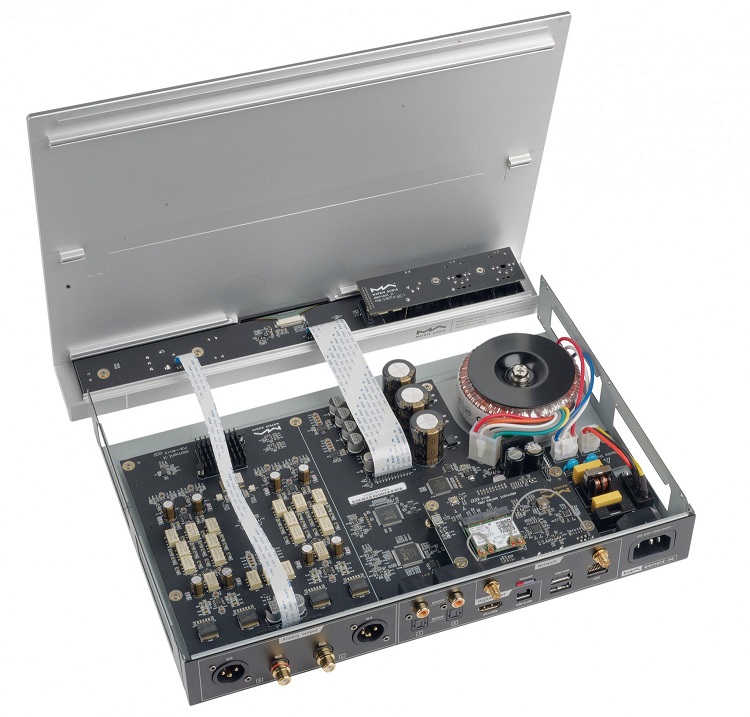

amplifier. Our linear power supply is the foundation of our excellent
sound quality. We use a customized Noratel toroidal transformer along with
Nichicon audio grade capacitors. The element X also has multiple levels of
isolation LDO, with a well-designed four-layer PCB to help reproduce the
original sound as accurately as possible by removing interference of the
separate internal systems.Different materials have their own resonant frequency.
The element X is designed as double-shell structure. The inner shell uses stamp
galvanized steel with multi-strip reinforcing ribs to ensure excellent strength
and the external shell is made of 4mm aluminum. The combination of the two
metals eliminates the fixed resonant frequency of each material and greatly
reduces the negative impact that case resonance can have on the sound quality.Technical
Digital Input COAXIAL & OPTICALPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHzDSD 2.8MHz (DoP)IIS LVDS PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz,
96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz,
11.2MHz (DoP) DSD 2.8MHz, 5.6 MHz, 11.2 MHz, 22.4MHz, 45MHz (Native) USB
AudioPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,
384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz,
11.2MHz, 22.4MHz (Native) Line Output XLR SNR: > -131dB THD+N: <0.00012%@1k,
<0.00025%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.05
-3dB@120kHz Crosstalk : >-145dB Output Level:
4.5VRMS@0dB ,15.8VRMS@+10dB RCA SNR: > -124dB THD+N: <0.00012%@1k,
<0.00025%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.05 -3dB@105kHzChannel
Crosstalk : >-137db Output Level: 2.3VRMS@0dB , 8VRMS@+10dB Headphone Output
XLR4 and Dual XLR3SNR: >-117dB THD+N: <0.00055%@20Hz-20kHz 1VRMS Frequency
Response: 20Hz-20kHz ±0.05 -3dB@50kHz Output
Impedance: <1.5Ω Output Power: 1700mw@33Ω, 1180mw@300Ω, 650mw@600Ω, 1%THD Gain:
+18dB@Low Gain, +28dB@High Gain TRS 6.35mm SNR: >-112dB THD+N:
<0.00055%@20Hz-20kHz 1VRMS Frequency Response: 20Hz-20kHz ±0.1
-3dB@50kHz Output Impedance: <1.5Ω Output Power:
1150mW@33Ω, 308mW@300Ω, 152mW@600Ω, 1%THD Network LAN: 10BASE-T/100BASE-TX WLAN:
2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard MA player Format Supported MP3 ,
WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF PCM
Sampling rate PCM 16/24/32Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,
352.8kHz, 384kHz, 705.6kHz, 768kHz DSD Sampling rate DSD 2.8MHz, 5.6MHz,
11.2MHz, 22.4MHz USB Storage Device element X can use the devices which conform
to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file
formats, but is not guaranteed to be compatible with all storage devices or
memory cards.
.gif)

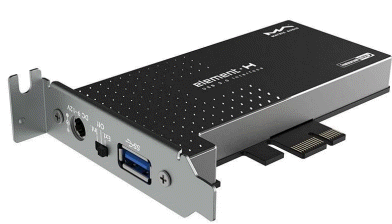

MATRIX
ELEMENT H
OFFERTA
€. 2 90,00
NETWORK (lan/wifi)/DAC/Ampli
CUFFIA.TIDAL, MQA, DSD IOS App.– Android App.

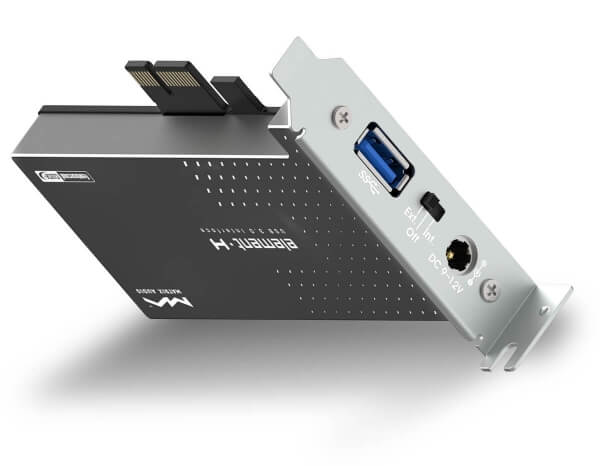

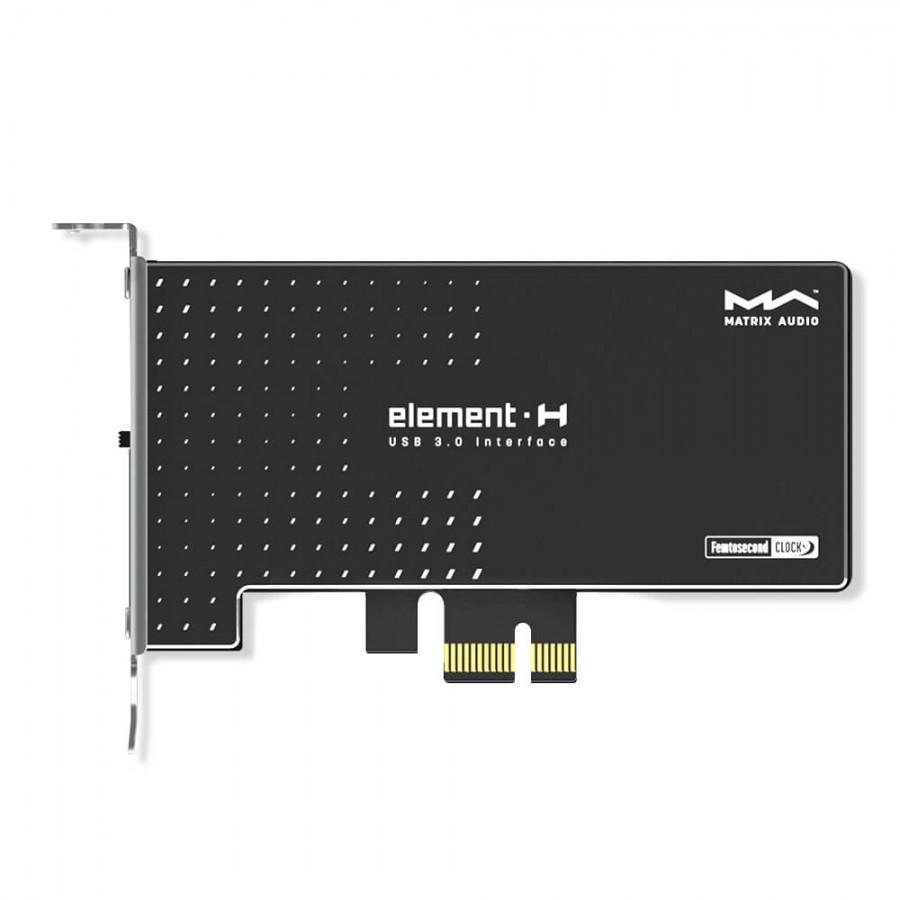

Element
H USB 3.0 interface is designed for increasing the USB audio quality of
computer. It increased the data transport quality and reduced the power supply
noise, which make changes to your PC Hi-Fi system from the source . Element H
uses Crystek CCHD-575 super-low noise femtosecond clock coordinate with USB 3.0
bridge chip from Texas Instruments, open up independent data channel for USB
audio stream. It helps signal bypass the USB controller integrated in the
motherboard, avoid sharing data channels with other USB devices.Element H
integrated multiple filter units for USB power supply, uses solid capacitors and
low noise high current LDO chips. Even if use the USB internal power supply, it
also can effectively eliminate the high frequency noise caused by the PC
switching power. The USB port can supply a maximum current at 5V/1.5A for all
audio devices supplied by the USB port. and can prevent devices from over
current or short circuit. With four-layer PCB of high speed circuit design
standard, strictly in according with high-speed circuit design specifications.
The circuit meet the differential pair impedance standard and the equal line
length demand. The CNC aluminum chassis prevent the radiated interference
effectively, giving consideration to the heat dissipation requirements of the
power supply chip on board. Technical USB Port Specs: USB 3.0-Compliant xHCI
Host Controller PCIe x1 Gen2 Interface One downstream port Drivers Installation
Drivers will installed automatically on Windows 8/8.1/10 system, or you can
download it from the product page manually. It's no need to install drivers on
the mainstream version of OS based on Linux.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
