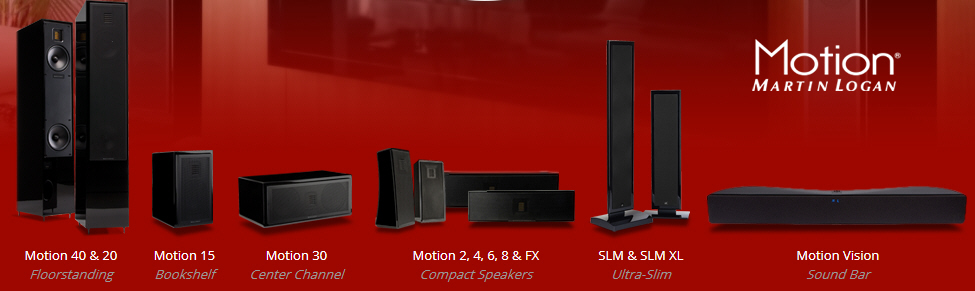

Una linea completa di sistemi di
altoparlanti dedicata prevalentemente all’ascolto in multicanale, ma le cui
prestazioni sono tali da rendere appagante anche il “classico” ascolto in
stereofonia: questa serie è composta da diffusori per i canali frontali da
pavimento (Motion 10 e Motion 12), da diffusori frontali e surround compatti (Motion
2, Motion 4 e Motion FX) e da canali centrali (Motion 6, Motion 8 e Motion C)
componibili in svariate combinazioni e naturalmente completati dai nuovi

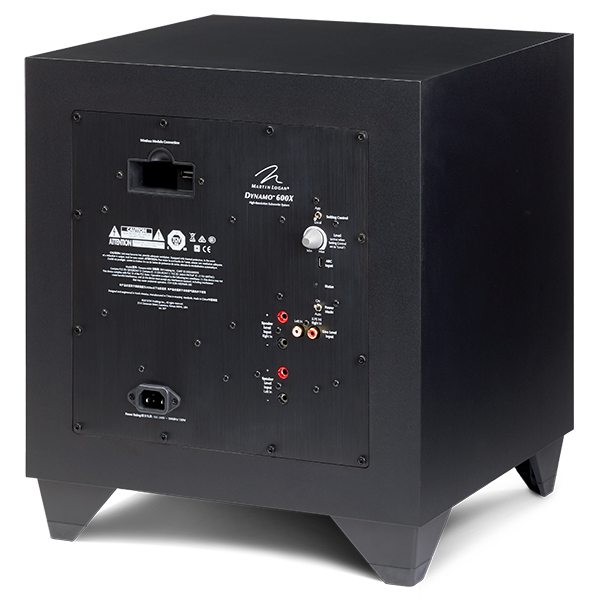

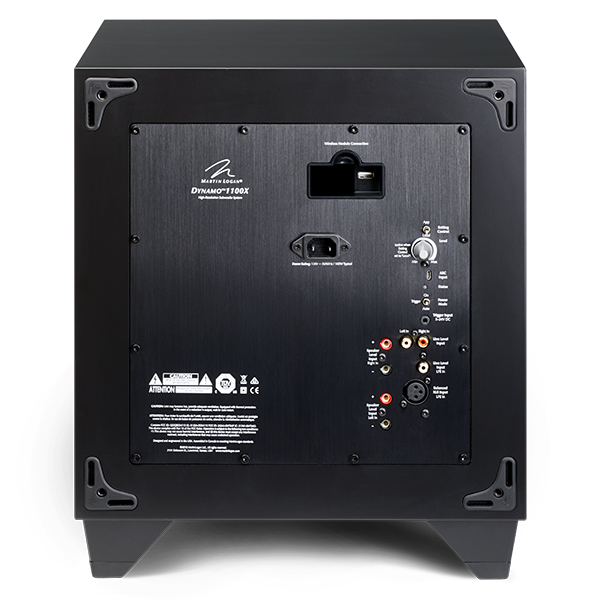

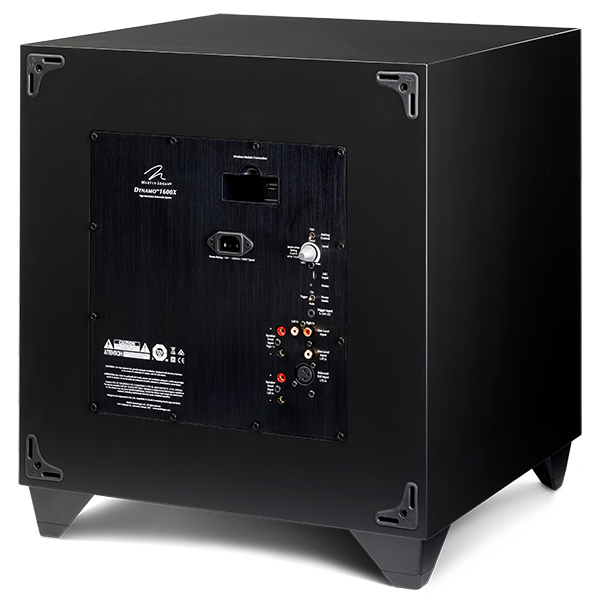

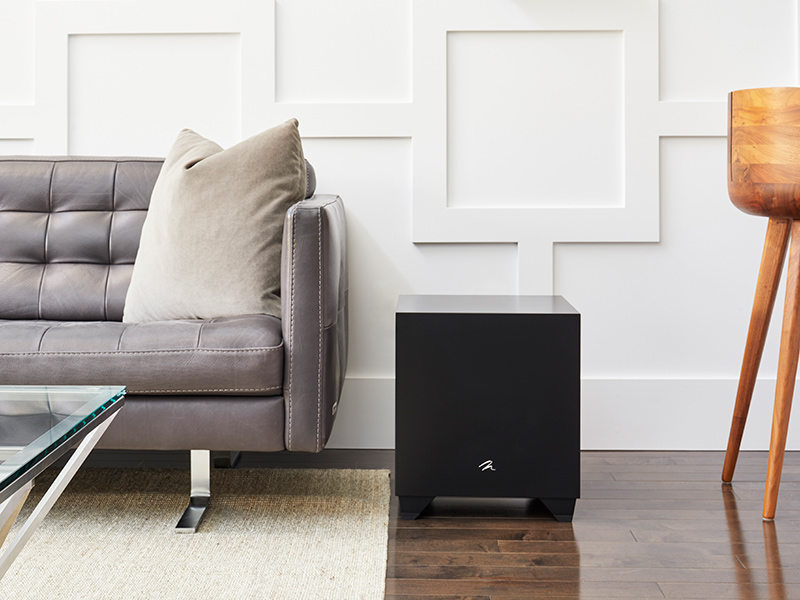

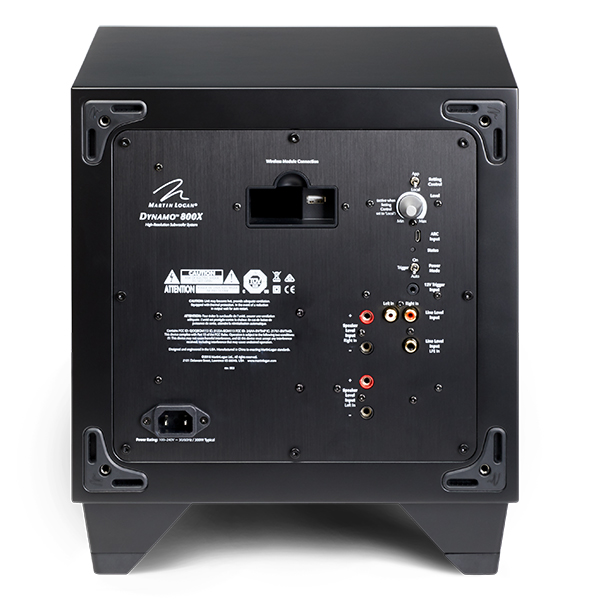

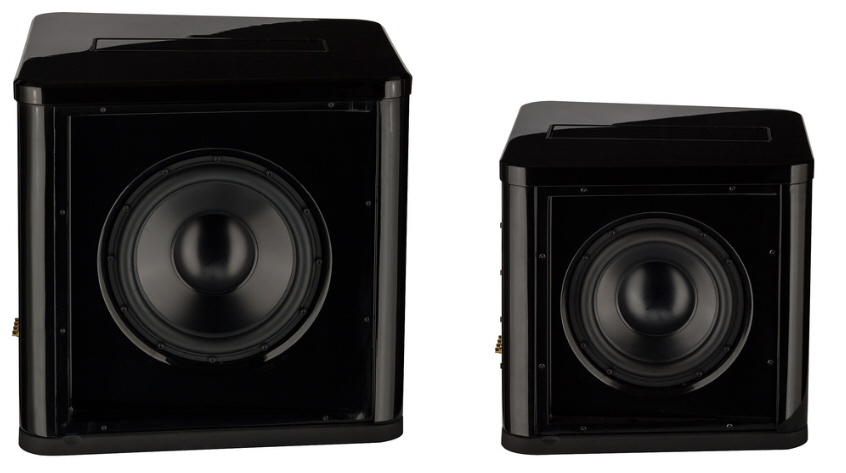

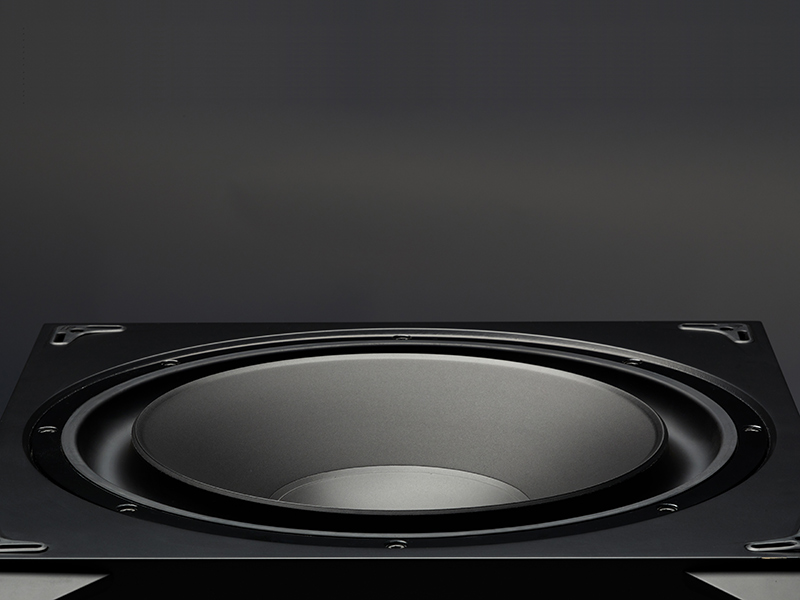

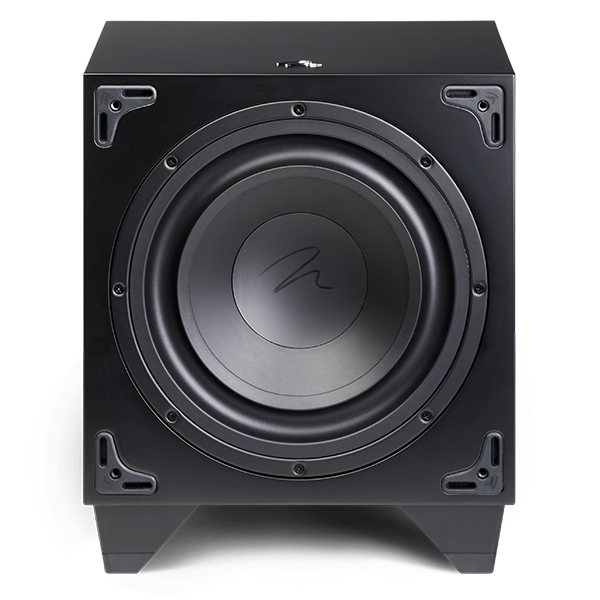

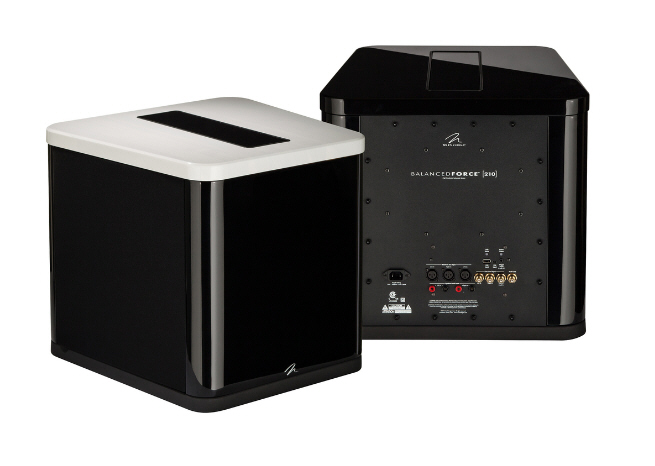

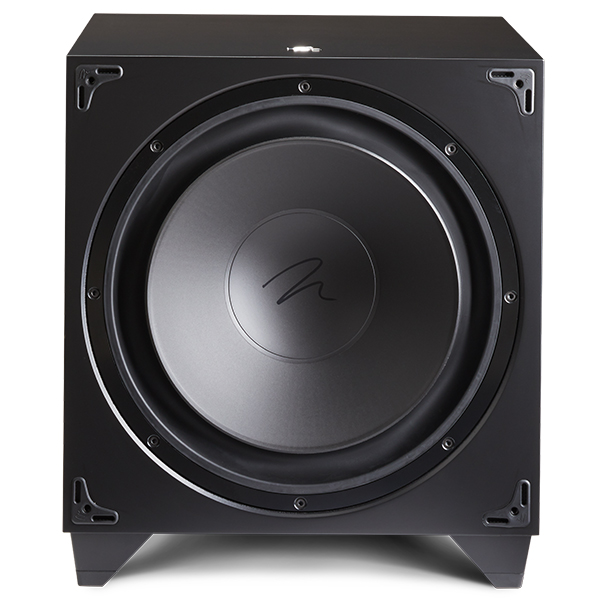

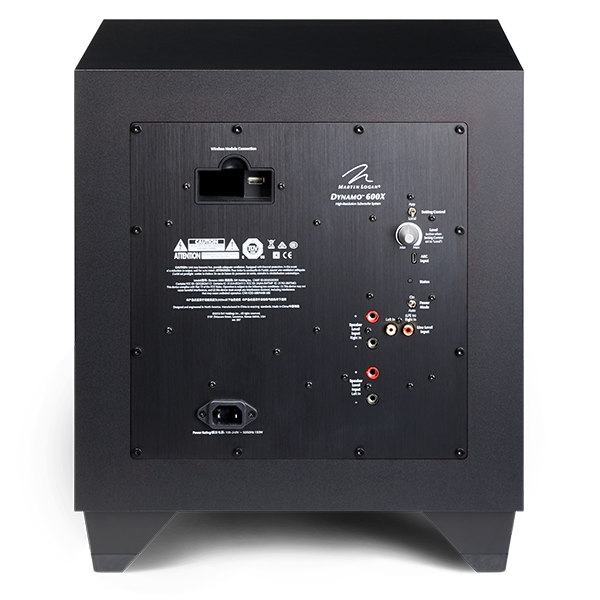

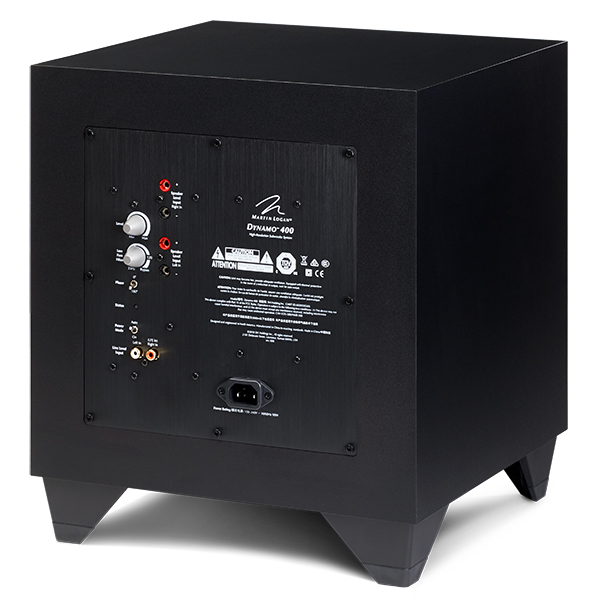

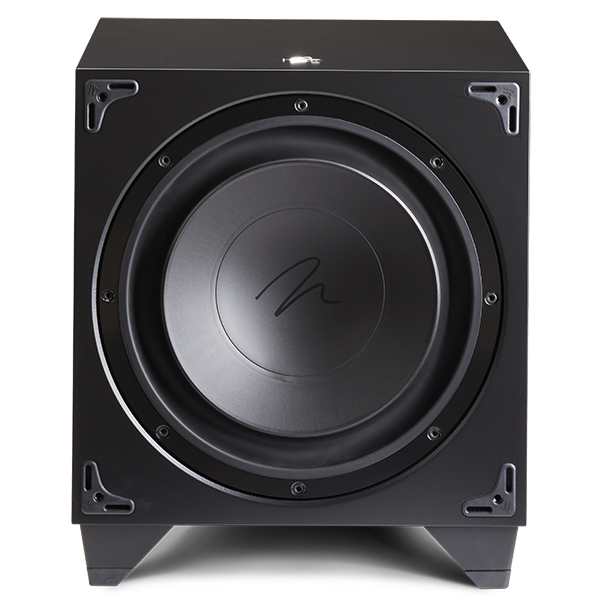

subwoofer della serie Dynamo. Ma cos’è che rende le prestazioni di questi
sistemi così apprezzabili?!? Beh, la risposta è alquanto semplice trattandosi di
Martin Logan: una tecnologia innovativa ed avanzatissima (rammentiamo qui
brevemente il tweeter con sistema a nastro “Folded Motion” ed il caricamento del
basso con sistema ripiegato “Cascading Bass Port”) che si coniuga con
presentazioni estetiche altrettanto raffinate, per ottenere così un risultato di
ascolto assolutamente affascinante ed in grado di rivaleggiare con sistemi
completi dal costo ben superiore, mantenendo la possibilità di inserimento in
ambiente realizzata con cura ed eleganza.
.gif)
MARTIN LOGAN
MOTION
2i
Listino ufficiale
€. 199,00
Diffusori Main -
Frontali Serie Compact Motion mDiffusore compatto a forma curva, posizionamento
in appoggio o a parete. 2 vie, bass reflex, woofer/midrange con cono in
polipropilene da 89mm, tweeter a nastro Folded Motion™ da 24x25mm. Potenza
20-100W. Efficienza 86dB. Impedenza 6 ohm. Crossover con protezione
termica/corrente per tweeter. Posizionamento in verticale, sia dritto che
capovolto, con staffa in dotazione che permette l'inclinazione verso
l'ascoltatore. Elegante finitura con griglia in alluminio.
 Inspired
by MartinLogan's ultra-high-end electrostatic loudspeakers, the Motion® Series
was created to provide stunning sound for your ultimate-performance home theater
or stereo. MartinLogan's dedicated in-house engineers carefully crafted the
Motion Series to create an extremely affordable and compact product line that
seamlessly blends our exquisite Folded Motion® transducers with powerful,
compact bass technology. The result is a smooth, refined sound with stunning
dynamic range and jaw-dropping clarity.What makes the Motion Series sound so
amazing? MartinLogan's dedicated in-house engineering team started by utilizing
and refining the most advanced, compact technologies and combining them with
innovative engineering. The result is an emotionally engaging sound that rivals
(and most times trounces) traditional loudspeakers of similar size and
price.Flexible installation options allow table top or on-wall installation of
all four speakers. The Motion 2i and 4i bookshelf speakers can also mount upside
down to facilitate placement high on a wall. The Motion 6i and 8i mount
horizontally or vertically around a wall-mounted flat screen
television.Specifications are subject to change without notice Frequency
Response 110–23,000 Hz ±3dB Horizontal Dispersion 80° Vertical Dispersion 80°
High Frequency Transducer 0.94" × 1" (2.4cm × 2.5cm) Folded Motion Transducer
with 2.8" × 1.25" (13.3cm × 4.4cm) diaphragm Low Frequency Transducer 3.5"
(8.9cm) poly cone with stamped steel basket. Non-resonant asymmetrical chamber
format. Rigid structured dust cap to reduce cone break-up modes. Sealed.
Sensitivity 86 dB/2.83 volts/ meter Impedance 6 Ohms Compatible with 4, 6, or 8
Ohm rated amplifiers. Recommended Amplifier Power 20—100 watts per channel
Crossover Frequency 3,800 Hz Components Custom air core coil and low DCR
steel laminate inductors. Polyester film capacitors in series and low DF
electrolytic capacitors in parallel. Overall system thermal/current protection.
Inputs Push style with banana jacks Weight 3.4 lbs. (1.54 kg) Dimensions
10" x 4.7" x 4.6 " (25.5cm x 11.8cm x 11.7cm)
.gif)
MARTIN LOGAN
MOTION
4i
Listino ufficiale
€. 275,00
Diffusori Main -
Frontali Serie Compact MotionDiffusore compatto a forma curva, posizionamento in
appoggio o a parete. 2 vie, bass reflex, woofer/midrange con cono in
polipropilene da 102mm, tweeter a nastro Folded Motion™ da 26x36mm. Potenza
20-150W. Efficienza 90dB. Impedenza 4 ohm. Crossover con protezione
termica/corrente per tweeter. Posizionamento in verticale, sia dritto che
capovolto, con staffa in dotazione che permette l'inclinazione verso
l'ascoltatore. Elegante finitura con griglia in alluminio
MARTIN LOGAN
MOTION
6i
Listino ufficiale
€. 299,00
Diffusore compatto
a forma curva, posizionamento in appoggio o a parete. 2 vie, bass reflex, 2
woofer/midrange con cono in polipropilene da 89mm, tweeter a nastro Folded
MotionTM da 24x25mm. Potenza 20-130W. Efficienza 89dB. Impedenza 6 ohm.
Crossover con protezione termica/corrente per tweeter. Posizionamento sia
verticale che orizzontale, con staffa in dotazione che permette l'inclinazione
verso l'ascoltatore. Elegante finitura in laccata Nera con griglia in alluminio.
Cad
MARTIN LOGAN
MOTION
8i
Listino ufficiale
€. 425,00
Diffusore compatto
a forma curva, posizionamento in appoggio o a parete. 2 vie, bass reflex,2
woofer/midrange con cono in polipropilene da 102mm, tweeter a nastro Folded
MotionTM da 25x36mm. Potenza 20-180W. Efficienza 89dB. Impedenza 4 ohm.
Crossover con protezione termica/corrente per tweeter. Posizionamento sia
verticale che orizzontale, con staffa in dotazione che permette l'inclinazione
verso l'ascoltatore. Elegante finitura in l accata Nera con griglia in
alluminio. Cad.
.gif)
MARTIN LOGAN
MOTION
15/i

Listino ufficiale
€. 500,00

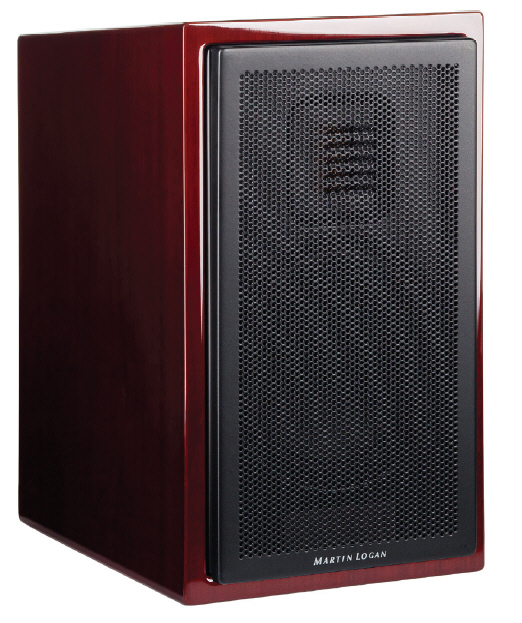

Diffusore bookshelf
a 2 vie, bass reflex posteriore, woofer/midrange con cono in alluminio da 133mm,
tweeter a nastro Folded Motion™ da 26x36mm. Potenza 20-200W. Efficienza 92dB.
Impedenza 5 ohm. Crossover con protezione termica/corrente per tweeter.
Disponibile in tre finiture, tutte con griglia nera metallica ad attacco
magnetico

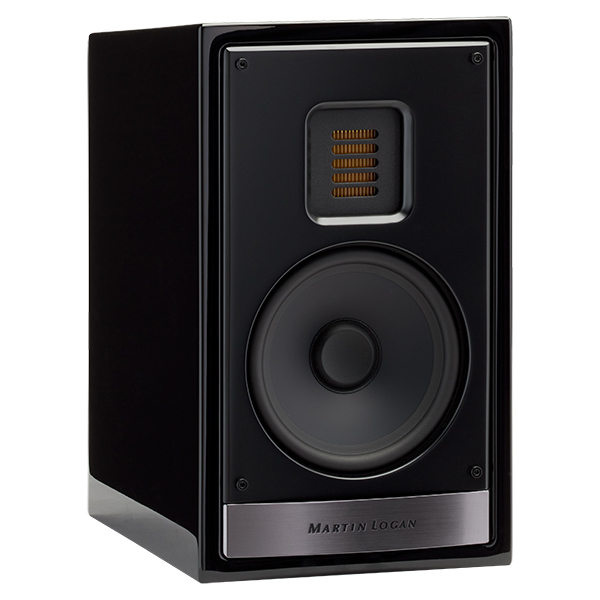

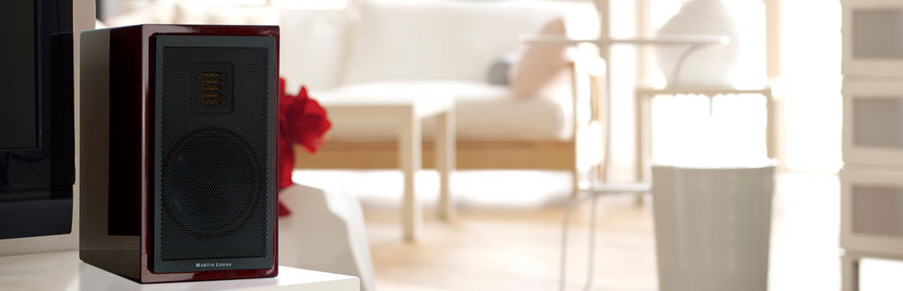

MOTION 15i Diffusore bookshelf a 2 vie, bass
reflex posteriore, woofer/midrange con cono in alluminio a cupola invertita da
133mm, tweeter a nastro Folded MotionTM da 26x36mm. Potenza 20-200W. Efficienza
92dB. Impedenza 5 ohm. Crossover con componenti selezionati protezione
termica/corrente per tweeter. Disponibile in tre finiture: Lacca Nera, Bianca
Matte o Palissandro naturale a poro aperto, tutte con griglia nera in tela ad
attacco magnetico Risposta in frequenza: 60–25.000 Hz ± 3dB Potenza
amplificatore consigliata: 20-200 watt per canale Dispersione orizzontale: 80 °
Dispersione verticale: 80 ° Sensibilità: 92 dB / 2,83 volt / metro Impedenza: 5
Ohm Compatibile con amplificatori da 4, 6 o 8 Ohm. Frequenza di crossover: 2.700
Hz Trasduttore ad alta frequenza: Trasduttore di movimento piegato 2,6×3,6 cm
con diaframma da 13,3×4,4 cm Trasduttore a bassa frequenza: Cono in alluminio da
13,3 cm con cestino in fusione. Formato camera asimmetrica non risonante.
Coperchio antipolvere strutturato rigido per ridurre le modalità di rottura del
cono. Componenti: Bobina con nucleo ad aria personalizzata e induttori laminati
in acciaio DCR basso. Condensatori a film di polipropilene in serie e
condensatori elettrolitici a basso DF in parallelo. Protezione termica /
corrente globale del sistema. Ingressi: Pali di rilegatura personalizzati senza
strumenti a 5 vie Peso: 5,4 kg Dimensioni: 29x17,3x24 cm

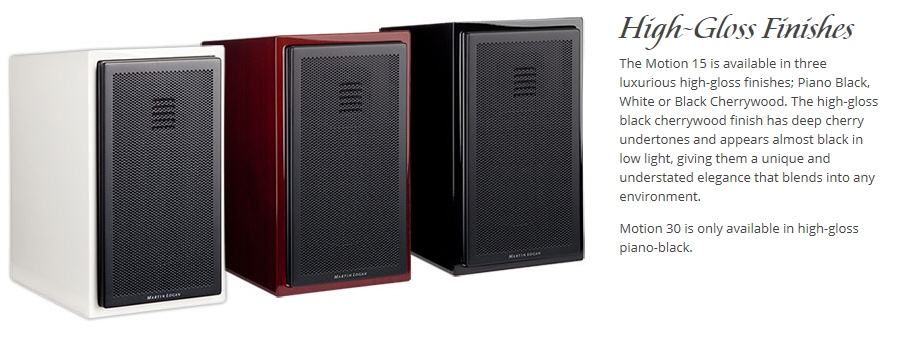

Motion 15 extends
the award-winning Motion® Series sound to a more traditional bookshelf package,
with luxurious high-gloss wood finishes and matching aesthetics to the rest of
the Motion floorstanding lineup.S P E C I F I C A T I O N S Frequency
Response 60–25,000 Hz ± 3 dB Dispersion 80° x 80° High Frequency Driver 1” x
1.4” (2.6cm x 3.6cm) Folded Motion Transducer with 5.25” x 1.75” (13.3cm x
4.4cm) diaphragm.Low Frequency Transducer5.25” (13.3cm) aluminum cone with cast
basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to
reduce cone break-up modes. Sensitivity 92 dB @ 2.83 volts/meter Impedance 5
Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers. Recommended Amplifier
Power 20–200 watts Crossover Frequency 2,700 Hz Cabinet Ported Components
Custom air core coil and low DCR steel laminate inductors. Polypropylene film
capacitors in series and low DF electrolytic capacitors in parallel. Overall
system thermal/current protection. Inputs Custom 5-way binding posts Weight 12
lbs. (5.4 kg) Dimensions 11.4” x 6.8” x 9.5” (29cm x 17.3cm x 24.2cm)

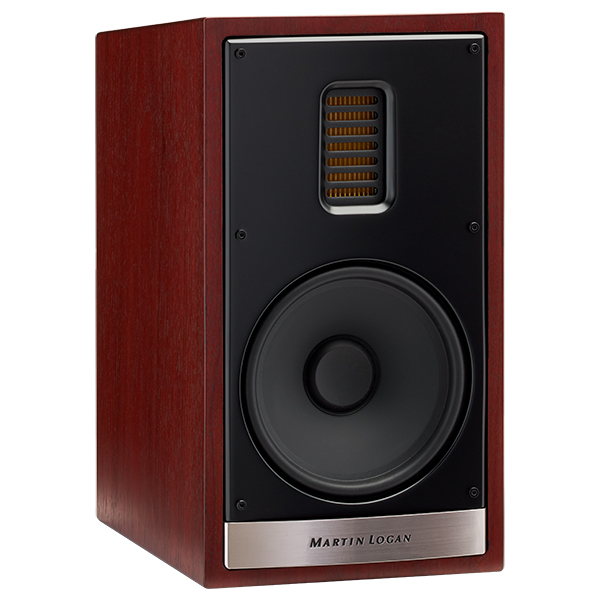

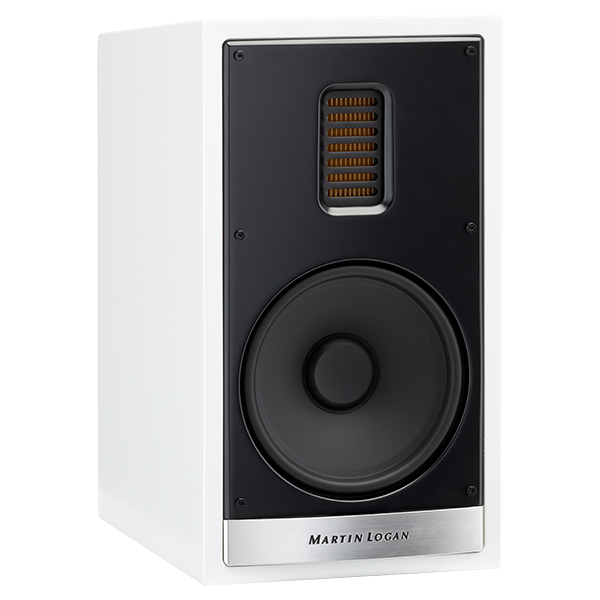

MARTIN LOGAN
MOTION
35 XTi
Listino ufficiale
€. 800,00
MDiffusore
bookshelf a 2 vie, bass reflex posteriore, woofer/midrange con cono in alluminio
a cupola invertita da 165mm, tweeter a nastro Folded MotionTM da 32x61mm.
Potenza 20-250W. Efficienza 92dB. Impedenza 4 ohm. Crossover con componenti
selezionati protezione mtermica/corrente per tweeter. Predisposizione bi-wiring.
Disponibile in tre finiture: Lacca Nera, Bianca Matte o Palissandro naturale a
poro aperto, tutte con griglia nera in tela ad attacco magnetico Risposta in
frequenza: 50–25.000 Hz ± 3dB Potenza amplificatore consigliata: 20—250 watt per
canale Dispersione orizzontale: 80 ° Dispersione verticale: 30 ° Sensibilità: 92
dB / 2,83 volt / metro Impedenza: 4 Ohm Compatibile con amplificatori da 4, 6 o
8 Ohm Frequenza di crossover: 2.200 Hz Trasduttore ad alta frequenza:
Trasduttore XT da 3,2x6,1 cm con movimento piegato XT con diaframma da 11,4×7 cm
Trasduttore a bassa frequenza: Cono in alluminio da 16,5 cm con cestello in
polimero fuso. Formato camera asimmetrica non risonante. Coperchio antipolvere
strutturato rigido per ridurre le modalità di rottura del cono. Componenti:
Bobina con nucleo ad aria personalizzata e induttori laminati in acciaio DCR
basso. Condensatori a film di polipropilene in serie e condensatori
elettrolitici a basso DF in parallelo. Protezione termicacorrente del tweeter
Ingressi: Pali di rilegatura personalizzati senza strumenti a 5 vie Peso: 8,4 kg
Dimensioni: 34,3x19,2x30 cm
The Motion 15 &

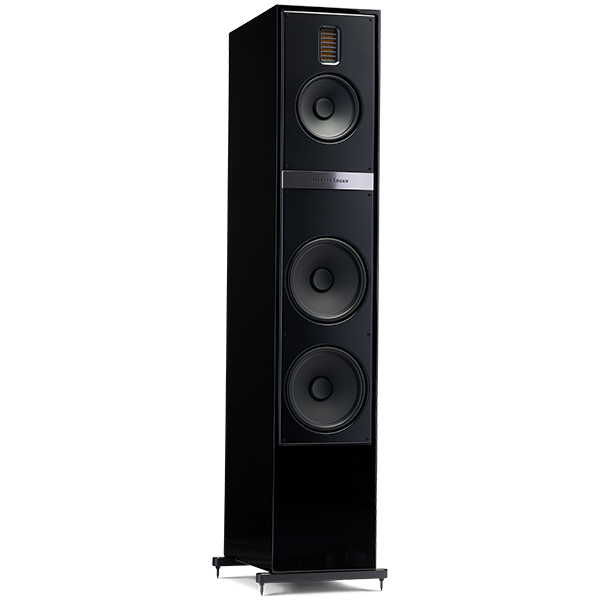

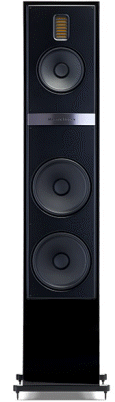

35XT speakers are designed to match the elegant aesthetic of the Motion 20, 40 &

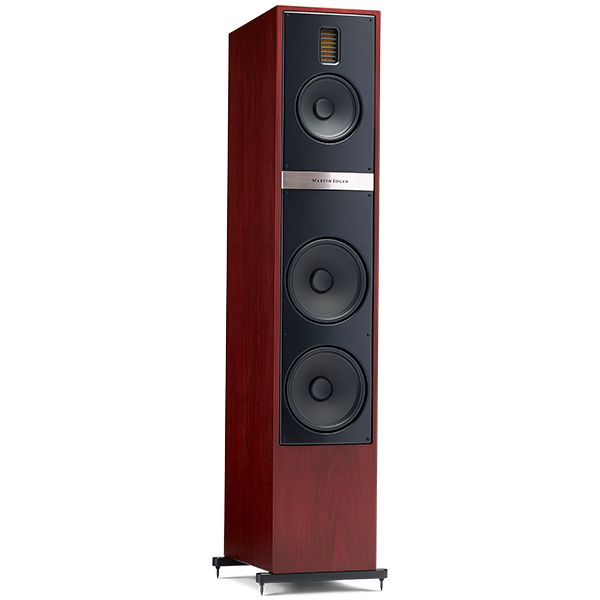

60XT floorstanding speakers and are voice-matched with the entire Motion Series
to allow listeners to build a two-channel or home theater system piece-by-piece.
These new speakers feature rounded edges, a gently tapered top, and luscious
high-gloss finishes. Minimalistic Design Featuring Luxurious Real-Wood Inspired
by MartinLogan's ultra-high-end electrostatic loudspeakers, the Motion® Series
was created to provide stunning sound for your ultimate-performance home theater
or stereo. MartinLogan's dedicated in-house engineers carefully crafted the
Motion Series to create an extremely affordable and compact product line that
seamlessly blends our exquisite Folded Motion™ transducers with powerful,
compact bass technology. The result is a smooth, refined sound with stunning
dynamic range and jaw-dropping clarity. S P E C I F I C A T I O N S Frequency
Response 50–25,000 Hz ± 3 dB Dispersion 80° x 30° High Frequency Driver 1.25” x
2.4” (3.2cm x 6.1cm) Folded Motion XT Transducer with 4.5” x 2.75” (11.4cm x
7cm) diaphragm. Low Frequency Transducer 6.5” (16.5cm) aluminum cone with cast
polymer basket. Non-resonant asymmetrical chamber format. Rigid structured dust
cap to reduce cone break-up modes. Sensitivity 92 dB @ 2.83 volts/meter
Impedance 4 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers. Recommended
Amplifier Power 20–250 watts Crossover Frequency 2,200 Hz Cabinet Ported
Components Custom air core coil and low DCR steel laminate inductors.
Polypropylene film capacitors in series and low DF electrolytic capacitors in
parallel. Tweeterthermal/current protection. Inputs Custom 5-way bi-wire
tool-less binding posts Weight 18.5 lbs. (8.4 kg) Dimensions 13.5” x 7.6” x
11.8” (34.3cm x 19.2cm x 30cm)

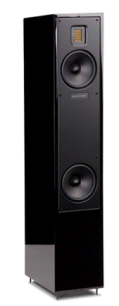

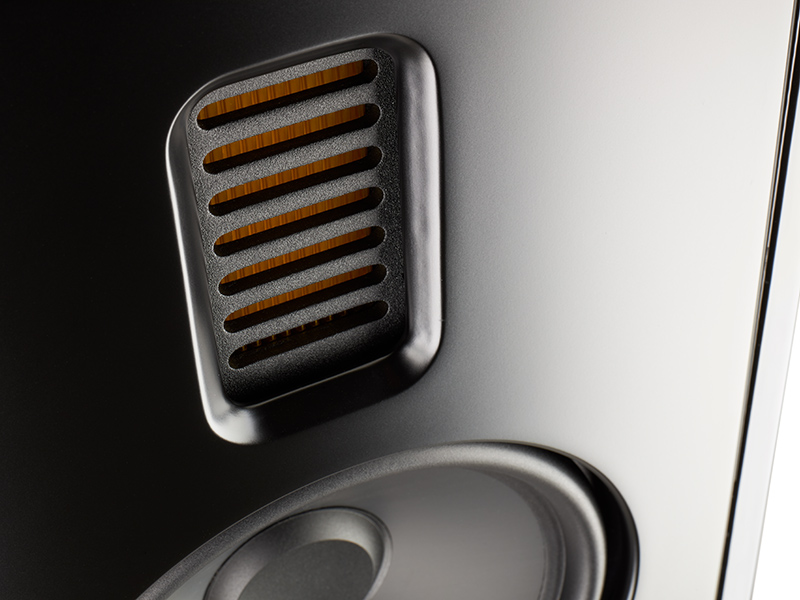

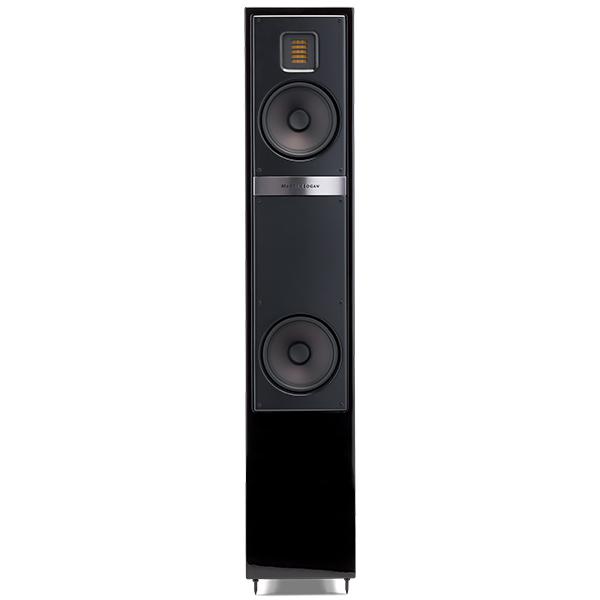

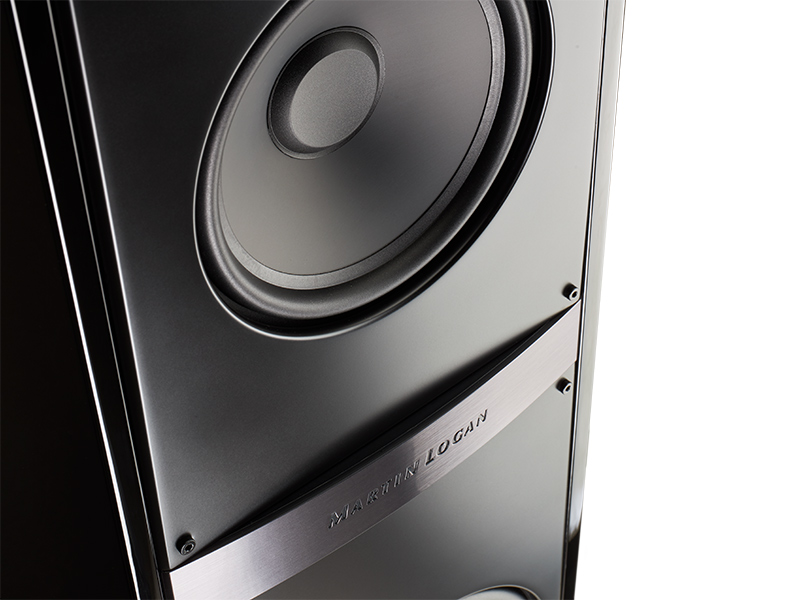

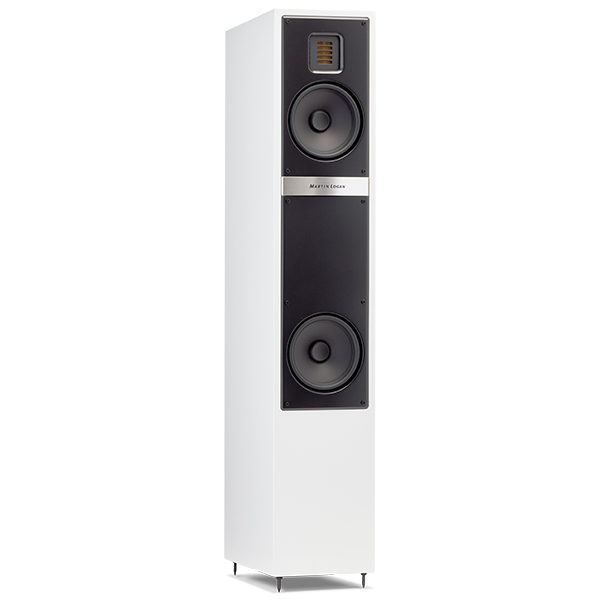

MARTIN LOGAN
MOTION
20/i
Listino ufficiale
€. 1.100,00

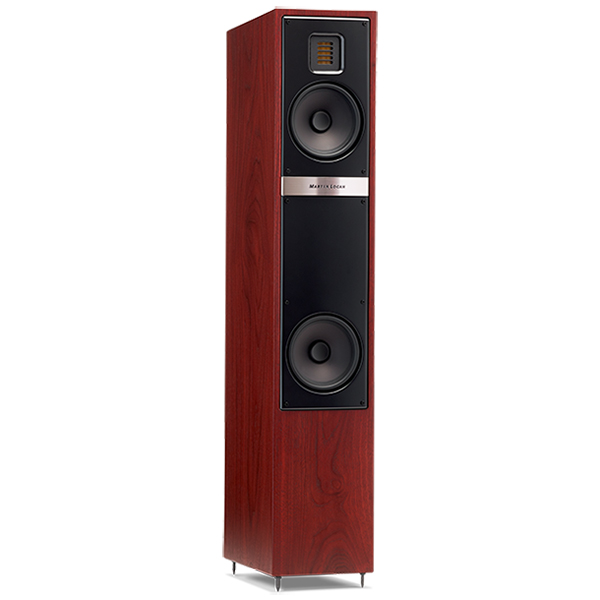

MartinLogan |
Motion 20 Diffusori Main - Frontali Serie Motion Diffusore da pavimento a 2 vie,
bass reflex posteriore, 2 woofer/midrange con cono in alluminio da 133mm,
tweeter a nastro Folded Motion™ da 26x36mm. Potenza 20-200W. Efficienza 90dB.
Impedenza 4 ohm. Crossover con protezione termica/corrente per tweeter.

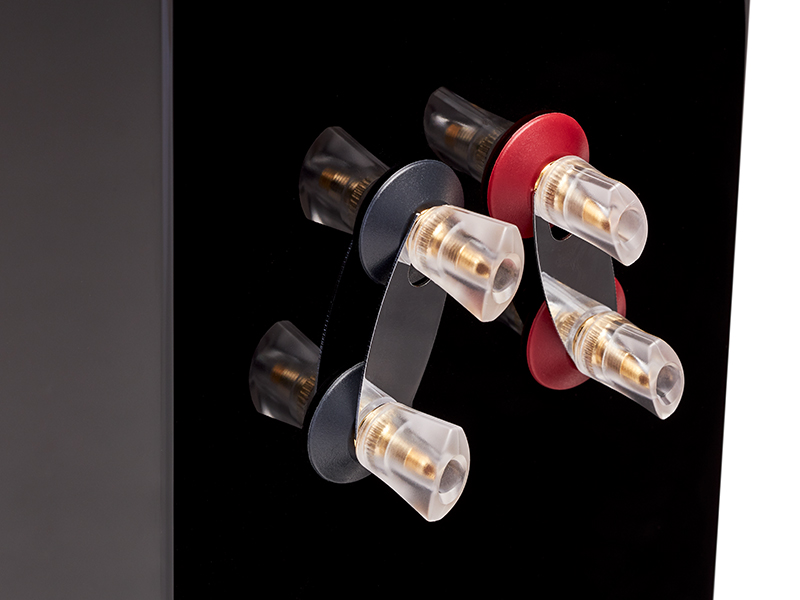

Predisposizione bi-wiring. Disponibile in tre finiture, tutte con griglia nera
metallica ad attacco magnetico
MOTION 20i
Diffusore da pavimento a 2 vie, bass reflex posteriore, 2 woofer/midrange con
cono in alluminio a cupola invertita da 133mm, tweeter a nastro Folded MotionTM
da 26x36mm. Potenza 20- 200W. Efficienza 90dB. Impedenza 4 ohm. Crossover con
componenti selezionati e protezione termica/corrente per tweeter.
Predisposizione bi- wiring. Disponibile in tre finiture: Lacca Nera, Bianca
Matte o Palissandro naturale a poro aperto, tutte con griglia nera in tela ad
attacco magnetico Risposta in frequenza: 46–25.000 Hz ± 3dB Potenza
amplificatore consigliata: 20-200 watt per canaleDispersione orizzontale: 80
°Dispersione verticale: 80 °Sensibilità: 90 db / 2,83 volt / metro Impedenza: 4
Ohm Compatibile con amplificatori da 4, 6 o 8 Ohm.Frequenza di crossover: 500 e
2.600 HzTrasduttore ad alta frequenza: Trasduttore di movimento piegato 2,6×3,6
cm con diaframma da 13,3×4,4 cm Trasduttore a bassa frequenza: Due woofer a cono
in alluminio da 14 cm in un formato a camera asimmetrica non risonante. Cestino
in polimero fuso. Cappucci rigidi strutturati perridurre la rottura del cono.
Componenti: Vojtko ™ di precisione con bobina ad aria personalizzata e induttori
laminati in acciaio a basso contenuto di DCR. Condensatori a film di poliestere
in serie e condensatori elettrolitici a basso DF in parallelo Ingressi: Pali di
rilegatura personalizzati a 5 vie senza attrezzi Peso: 16,8 kg Dimensioni:
92,9x17,3x29,7 cm
Motion® 20 Floorstanding Speakers The elegant Motion 20 tower
speakers are the newest additions to MartinLogan's award-winning Motion® Series.
Voice-matched with the entire Motion Series products, the new Motion 20 & 40
speakers feature our advanced resolution Folded Motion™ tweeter and have been
designed with a luscious high-gloss piano black finish, subtle angled-top
cabinet with soft radius corners and signature MartinLogan perforated grille. A
Versatile Performer Each model feature dual sets of custom 5-way binding posts
for bi-wire/bi-amp capabilities and powerful rear-firing bass port. Stability is
enhanced to create tighter coupling between speaker and floor with the included
spikes.Motion 20 The Motion 20 is a breathtaking visual statement
regardless of its compact dimensions. Dual 5-1/2" aluminum cone woofers are
paired with a rear-firing bass port for extra punch in the low frequencies. With
the addition of our Folded Motion tweeter it's a design that delivers solid
low-frequency reinforcement, superb sound dispersion and precise, highly dynamic
high frequencies.S P E C I F I C A T I O N S
Frequency Response 46–25,000 Hz ± 3
dB Dispersion 80° x 80° High Frequency Driver 1” x 1.4” (2.6cm x
3.6cm) Folded Motion Transducer with 5.25” x 1.75” (13.3cm x 4.4cm) diaphragm.
Low Frequency Transducer Two 5-1/2” (14cm) aluminum cone woofers in a
non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured
dust caps reducecone break-up Sensitivity 90 dB @ 2.83 volts/meter Impedance 4
Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers. Recommended Amplifier
Power20 – 200 watts Crossover Frequency 500 & 2,600 Hz Cabinet Ported
Components Precision Vojtko™ with custom air core coil andlow DCR steel laminate
inductors. Polyester filmcapacitors in series and low DF electrolytic capacitors
in parallel Inputs Custom 5-way bi-wire tool-less binding posts Weight 37 lbs.
(16.8 kg) Dimensions 36.6” x 6.8” x 11.7” (92.9cm x 17.3cm x 29.7cm)
MARTIN LOGAN
MOTION
40i
Listino ufficiale
€. 1.450,00

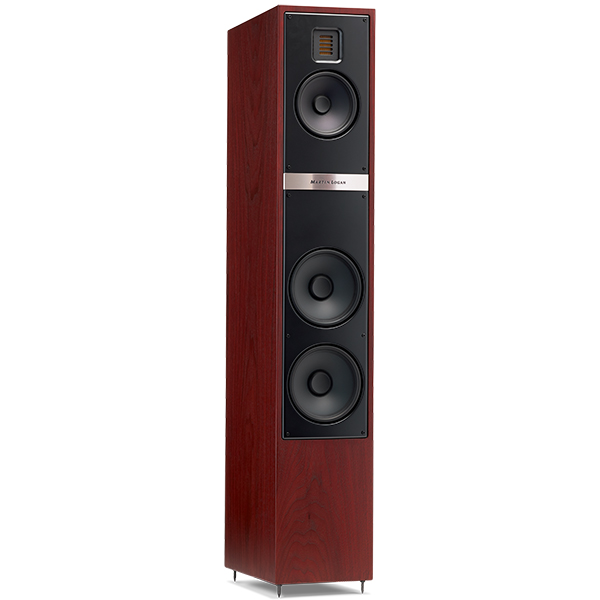

MOTION 40i mDiffusore da pavimento a 3 vie, bass
reflex posteriore, 2 woofer con cono in malluminio a cupola invertita da 165mm,
midrange con cono in alluminio a mcupola invertita da 133mm, tweeter a nastro
Folded MotionTM da 26x36mm. Potenza 20-300W. Efficienza 92dB. Impedenza 4 ohm.
Crossover con mcomponenti selezionati con protezione termica/corrente per
tweeter. Predisposizione biwiring. mDisponibile in tre finiture: Lacca Nera,
Bianca mMatte o Palissandro naturale a poro aperto, tutte con griglia nera in
tela ad attacco magneticoRisposta
in frequenza: 40–25.000 Hz ± 3dB Potenza amplificatore consigliata: 20—300
watt per canale Dispersione orizzontale: 80 ° Dispersione verticale: 80 °
Sensibilità: 92 dB / 2,83 volt / metro Impedenza: 4 Ohm Compatibile con
amplificatori da 4, 6 o 8 Ohm Frequenza di crossover: 500 e 2.600 Hz Trasduttore
ad alta frequenza: Trasduttore di movimento piegato 2,6×3,6 cm con diaframma da
13,3×4,4 cm Trasduttore di media frequenza: Cono in alluminio da 14 cm in un
formato a camera asimmetrica non risonante. Cestino in polimero fuso. Il
cappuccio antipolvere strutturato rigido riduce la rottura del cono Trasduttore
a bassa frequenza: Due woofer a cono in alluminio da 16,5 cm in un formato a
camera asimmetrica non risonante. Cestino in polimero fuso. I tappi rigidi
strutturati per la polvere riducono la rottura del cono Componenti: Vojtko™ di
precisione con bobina ad aria personalizzata e induttori laminati in acciaio a
basso contenuto di DCR. Condensatori a film di poliestere in serie e
condensatori elettrolitici a basso DF in parallelo Ingressi: Pali di rilegatura
personalizzati a 5 vie senza attrezzi Peso: 22,2 kg Dimensioni: 107,9x19,2x32,6
cm

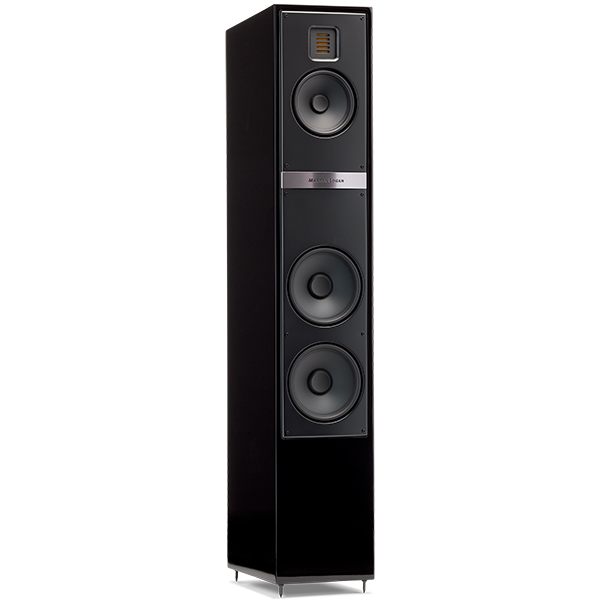

Motion® 40 Floorstanding Speakers The elegant Motion 40 tower
speakers are the newest additions to MartinLogan's award-winning Motion® Series.
Voice-matched with the entire Motion Series products, the new Motion 20 & 40
speakers feature our advanced resolution Folded Motion™ tweeter and have been
designed with a luscious high-gloss piano black finish, subtle angled-top
cabinet with soft radius corners and signature MartinLogan perforated grille. A
Versatile Performer Each model feature dual sets of custom 5-way binding posts
for bi-wire/bi-amp capabilities and powerful rear-firing bass port. Stability is
enhanced to create tighter coupling between speaker and floor with the included
spikes. Motion 40 The elegant Motion 40 features an advanced resolution Folded
Motion™ tweeter, a 5-1/2" aluminum cone midrange driver and dual 6-1/2" aluminum
cone woofers. Part of the secret to the Motion 40's outstanding performance lies
in the dual oversized black-aluminum cone woofers paired with a rear-firing bass
port. The oversized woofer design creates increased cone area delivering higher
output and audibly richer, deeper bass performance than it's slightly smaller
sibling, the Motion 20. The addition of a dedicated mid-woofer also promotes an
even more open, revealing and authentic sound in the critical midrange. Pairing
this powerful trio with our Folded Motion tweeter creates audible acoustic
alchemy across the frequency spectrum.S P E C I F I C A T I O N S Frequency
Response 40–25,000 Hz ± 3 dB Dispersion 80° x 80° High Frequency Driver 1” x
1.4” (2.6cm x 3.6cm) Folded Motion Transducer with 5.25” x 1.75” (13.3cm x
4.4cm) diaphragm. Mid Frequency Transducer 5-1/2” (14cm) aluminum cone woofer in
a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid
structured dust cap reduces cone break-up Low Frequency Transducer Two 6-1/2”
(16.5cm) aluminum cone woofers in a non-resonant asymmetrical chamber format.
Cast polymer basket. Rigid structured dust caps reduce cone break-up
Sensitivity 92 dB @ 2.83 volts/meter Impedance 4 Ohms. Compatible with 4,
6, or 8 Ohm rated amplifiers.Recommended Amplifier Power 20 – 300 wattsCrossover
Frequency 500 & 2,600 HzCabinet Ported Components Precision Vojtko™ with custom
air core coil and low DCR steel laminate inductors. Polyester film capacitors in
series and low DF electrolytic capacitors in parallel Inputs Custom 5-way
bi-wire tool-less binding posts Weight 49 lbs. (22.2 kg) Dimensions 42.5” x 7.6”
x 12.8” (107.9cm x 19.2cm x 32.6cm)
MARTIN LOGAN
MOTION
60XTi
Listino ufficiale
€. 2.100,00
Diffusore da pavimento a 3
vie, doppio bass reflex posteriore, 2 woofer con cono in alluminio a cupola
invertita da 203mm, midrange con cono in alluminio a cupola invertita da 165mm,
tweeter a nastro Folded MotionTM da 32x61mm. Potenza 20- 400W. Efficienza 94dB.
Impedenza 4 ohm. Crossover con componenti selezionati e protezione
termica/corrente per tweeter. Predisposizione bi-wiring. Disponibile in tre
finiture: Lacca Nera, Bianca Matte o Palissandro naturale a poro aperto, tutte
con griglia nera in tela ad attacco magnetico

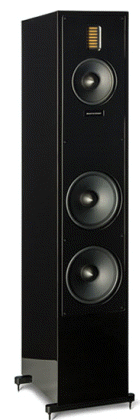

Motion 60XT XT stands for extreme, and for good reason. Motion 60XT speakers
play louder, lower, and with unflinching accuracy. Dual 8" woofers and
rear-firing bass ports create astonishing deep, precise bass, while a dedicated
mid woofer promotes an open, revealing and authentic midrange. Paring this
powerful trio with our most accurate Folded Motion XT tweeter creates audible
acoustic alchemy that delivers an engaging and encompassing experience, cutting
straight to the emotion locked inside your favorite recordings. S P E C I F I
C A T I O N S Frequency Response 35–25,000 Hz ± 3 dB Dispersion 80° x 30° High
Frequency Driver 1.25” x 2.4” (3.2cm x 6.1cm) Folded Motion XT Transducer with
4.5” x 2.75” (11.4cm x 7cm) diaphragm. Mid Frequency Transducer 6-1/2” (16.5cm)
aluminum cone with cast polymer basket. Sealed chamber format. Rigid structured
dust cap to reduce cone break-up modes. Low Frequency Transducer Two 8” (20.3cm)
aluminum cone with cast aluminum basket. Non-resonant asymmetrical chamber
format. Rigid structured dust cap to reduce cone break-up modes. Sensitivity 94
dB @ 2.83 volts/meter Impedance 4 Ohms. Compatible with 4, 6,or 8 Ohm rated
amplifiers. Recommended Amplifier Power 20 – 400 watts Crossover Frequency 400 &
2,200 Hz Cabinet Ported Components Custom air core coil and low DCR steel
laminate inductors. Polypropylene film capacitors in series and low DF
electrolytic capacitors in parallel. Tweeter thermal/current protection. Inputs
Custom 5-way bi-wire tool-less binding posts Weight 66 lbs. (30 kg) Dimensions
48” x 11.4” x 14.4” (121.8cm x 29cm x 36.6cm)
.gif)
MARTIN LOGAN
MOTION
AFX
Listino ufficiale
€. 600,00
Diffusori Surround
FX Serie MotionDiffusore effetti Dolby Atmos a 2 vie, sospensione pneumatica,
woofer/midrange con cono in polipropilene da 133mm, tweeter a cupola in
alluminio da 19mm. Potenza 20-200W. Efficienza 87dB. Impedenza 4 ohm.
Posizionamento appoggiato sopra i diffusori già esistenti, senza complicazioni
in altezza. Necessita di posizionamento a coppie, 2, 4 o 6 in base alla
configurazione Dolby Atmos adottata. Con griglia nera

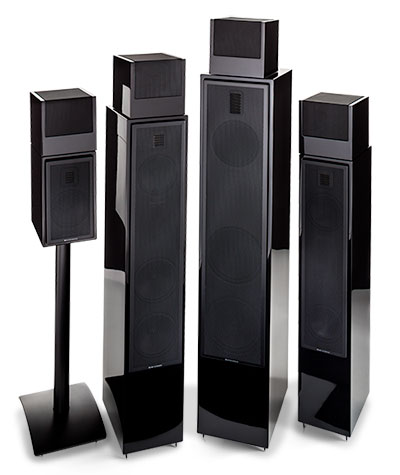

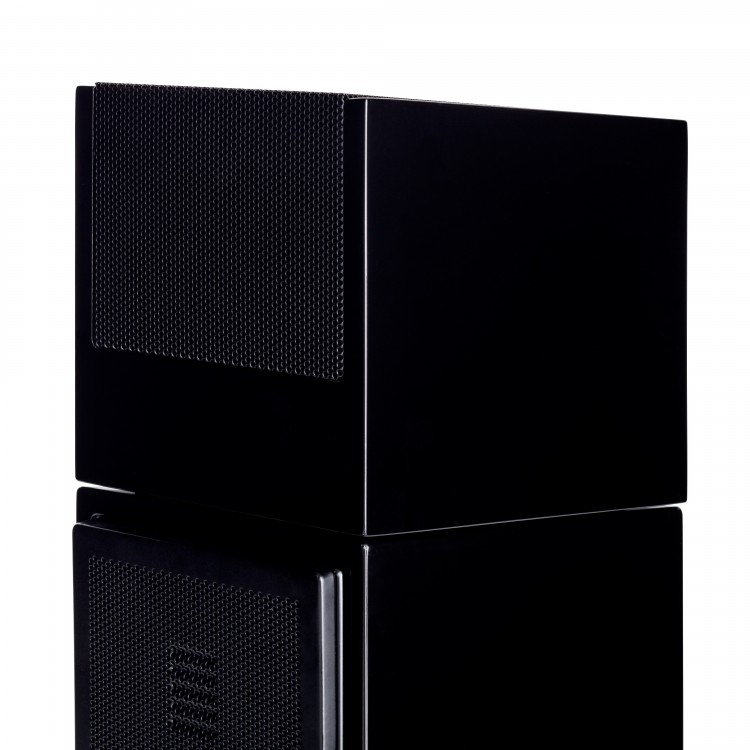

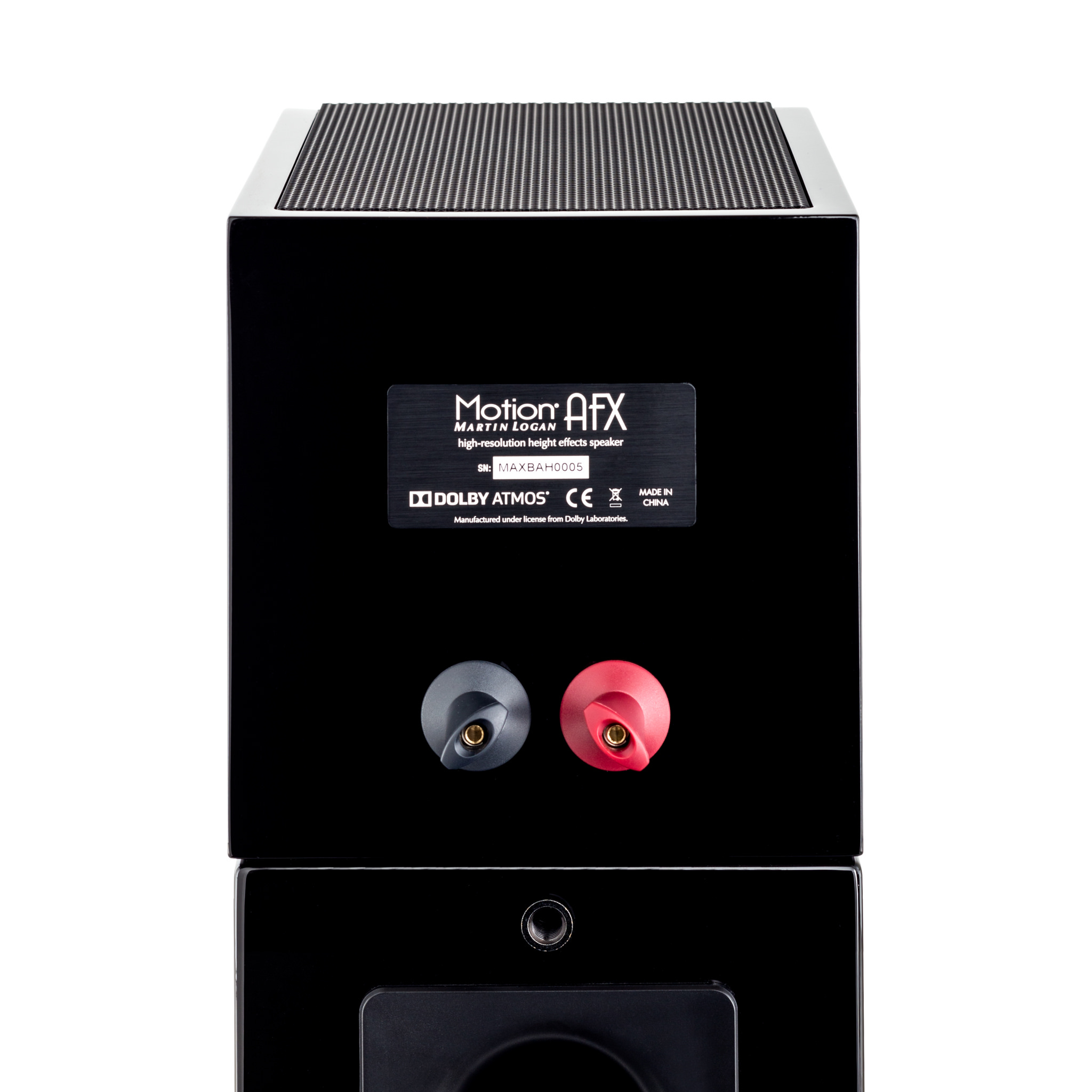

Motion AFX Dolby Atmos® Enabled Speakers MartinLogan Motion AFX Dolby Atmos
enabled speakers are designed to create a height layer of sound above the
listener that better connects viewers with the richness, detail and clarity of
the on screen experience. The Motion AFX is designed to sit on top of
floorstanding and bookshelf speakers in MartinLogan’s Motion series. These
models include the Motion 15, 20, 35XT, 40 and 60XT. Designed to reflect sound
off of the ceiling in a Dolby Atmos entertainment system, The AFX will also work
with other brands of speakers with a flat top. For systems where a speaker-top
mounting is not possible, other installation options are available.
Immersive Dolby Atmos Experience Dolby Atmos delivers captivating sound that
places and moves audio anywhere in the room, including overhead, to bring
entertainment alive all around the audience. Whether you are listening to music,
movies, television shows, or playing your favorite video games, Dolby Atmos
delivers the full impact of the entertainment experience. Each Motion AFX
speaker features a 0.75-inch aluminum dome tweeter and 5.25” polypropylene cone
bass/midrange driver with stamped steel basket, all incorporated into a
beautiful High Gloss Black cabinet. The shape of the Motion AFX cabinet is
specifically designed to angle the drivers towards the ceiling in order to
accurately deliver a Dolby Atmos sound experience above the listeners S
P E C I F I CAT I O N S* Frequency Response 90–20,000 Hz ± 3 dB Sensitivity 87
dB @ 2.83 volts/ meter Impedance 4 Ohms. Compatible with 4, 6 or 8 Ohm rated
amplifiers. Crossover Frequency 2,000 Hz High Frequency Driver 0.75” (1.9cm)
aluminum dome Low Frequency Drivers 5.25” (13.4cm) polypropylene cone with
stamped steel basket. Cabinet Sealed Components & Decoding Custom air core and
low dcr steel laminate inductors. Polyester film capacitors in series and low DF
electrolytic caps in parallel. Recommended Amplifier Power 20–200 watts Binding
Post Inputs Custom 5-way tool-less binding posts Weight 8 lbs. (3.6 kg)
Dimensions (H x W x D) 7.7” x 6.8” x 10” (19.5cm x 17.3cm x 25.4cm)
MARTIN LOGAN
ELETTROMOTION
ESL Listino ufficiale
€.
1.850,00
Ibridi Serie
ElectroMotion Diffusore elettrostatico/ibrido da pavimento a 3 vie, bass
reflex a pavimento, woofer con cono in carta/fibra trattata da 203mm, midrange/tweeter
a nastro elettrostatico curvilineo a dispersione controllata CLS XStat™ da
860x220mm. Potenza 20-300W. Efficienza 91dB. Impedenza 6 ohm. Crossover cablato
in aria Vojtko™. Punte di disaccoppiamento ETCTM in dotazione. Finitura Matt
Black sia del cabinet sezione bassi che del pannello elettrostatico.
Versione Finitura Gloss Black del cabinet sezione
bassi e Matt Black del pannello elettrostatico. 2.200,00 Euro
The ElectroMotion ESL (EM-ESL) represents a brave new direction for
electrostatic loudspeaker design. Featuring a full-sized 34-inch tall
curvilinear XStat™ electrostatic transducer the new ESL performs more like a
mini-flagship than an entry level audiophile speaker. Long time MartinLogan
enthusiasts are sure to describe ElectroMotion ESL as the second-coming of the
legendary Aerius electrostatic speaker which debuted in 1992 and went on to sell
in record numbers. The new ESL, however, boasts 40 percent more radiating
surface, a superbly integrated and authoritative bass performance, and a
sensitivity rated at 91dB. In addition, the ESL is capable of being effortlessly
powered by both receivers and high-end amplifiers alike. ElectroMotion ESL's
XStat electrostatic MicroPerf panel is housed within a radical aluminum and
composite AirFrame™ similar to those found on MartinLogan's flagship products.
AirFrame technology rigidifies the electrostatic panel without obstructing
playable surface area or interfering with ambience enriching dipole sound
radiation. At the same time, an AirFrame provides electrical and acoustical
isolation, minimizing intermodulated distortion caused by vibration and
resonance while enhancing imaging, low-level sonic detail, accuracy, and
efficiency. MicroPerf design optimizes the individual holes of The EM-ESL's
electrostatic panel. MicroPerf design substantially increases diaphragm
radiating area, compared to early generations—without compromising structural
integrity. The resulting increase in output capability and efficiency allows The
EM-ESL's panel to enjoy a substantial leap in bandwidth and dynamics without
growing larger. For example

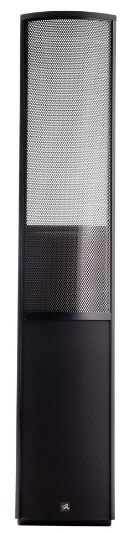

MARTIN LOGAN
EFX
Listino ufficiale
€.
2.600,00
Diffusori Surround Elettrostatici - Ibridi Serie
ElectroMotion Diffusore Surround slim-line elettrostatico/ibrido, posizionamento
sia a pavimento che a parete con staffe orientabili in dotazione, 3 vie, bass
reflex, woofer con cono in carta/fibra trattata da 165mm, midrange/tweeter a
nastro elettrostatico curvilineo a dispersione controllata CLS XStat™ da
710x220mm. Potenza 20-300W. Efficienza 90dB. Impedenza 6 ohm. Crossover cablato
in aria Vojtko™.
Surround Yourself

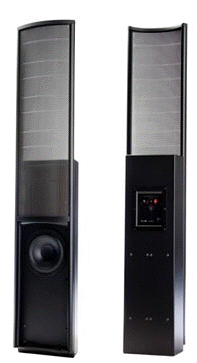

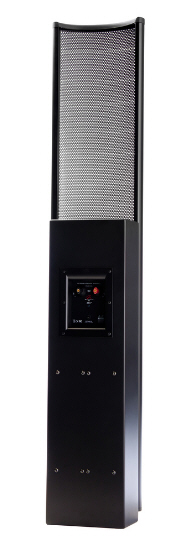

with EFX MartinLogan is proud to introduce the slim, on-wall EFX™ hybrid
electrostatic loudspeaker, featuring XStat™ technology, dramatically reducing
cabinet size, yet establishing new standards for efficiency, dynamics and
precision. CLS™ XStat™ Transducer Housed within a radical, ultra-ridged extruded
aluminum AirFrame™, the EFX's new CLS XStat transducer builds upon the legacy of
MartinLogan's electrostatic heritage with the incorporation of advanced vacuum
bonding and MicroPerf stat panels, providing even greater efficiency and

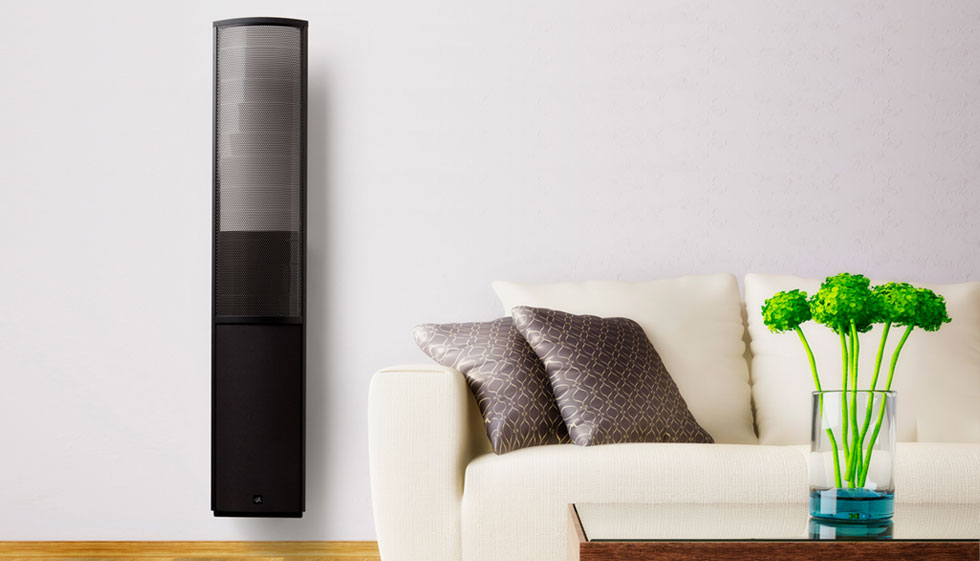

precision. Slim On-Wall Profile If you won't settle for anything but
electrostats next to your new flatscreen TV, the EFX is the perfect solution at
just 6.5-inches deep. Free up precious floorspace by mounting EFX to your wall
with the included wall brackets. The EFX is also the ultimate high-performance
home theater surround speaker and complements MartinLogan's entire line of

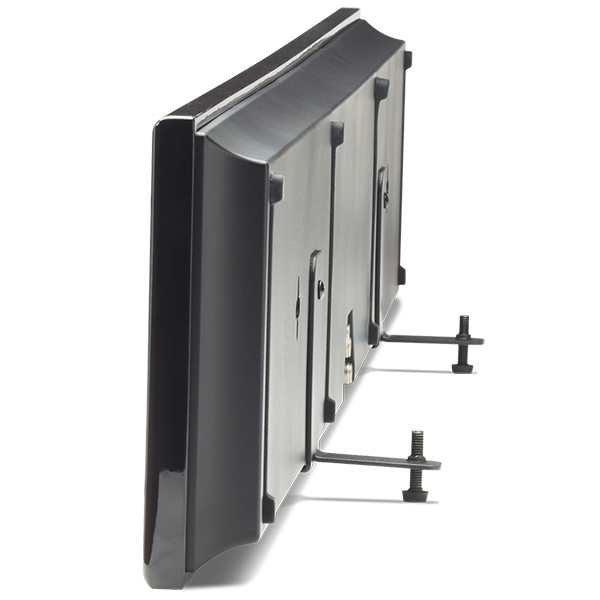

electrostatic loudspeakers. EFX rotates with the pivoting wall bracket to easily
focus your surround sound experience. Advanced Vojtko Filtering Proprietary
Vojtko filtering technology is utilized for EFX's electrostatic transducer. This
audiophile quality network, derived from the CLX, is carefully hand-built using
precision point-to-point wiring, polypropylene capacitors, massive air-core
coils, and a custom wound E-I core transformer—flawlessly preserving
micro-acoustic subtleties while effortlessly handling the broadest range of
dynamics contained within even the most demanding sonic source. Custom 5-Way

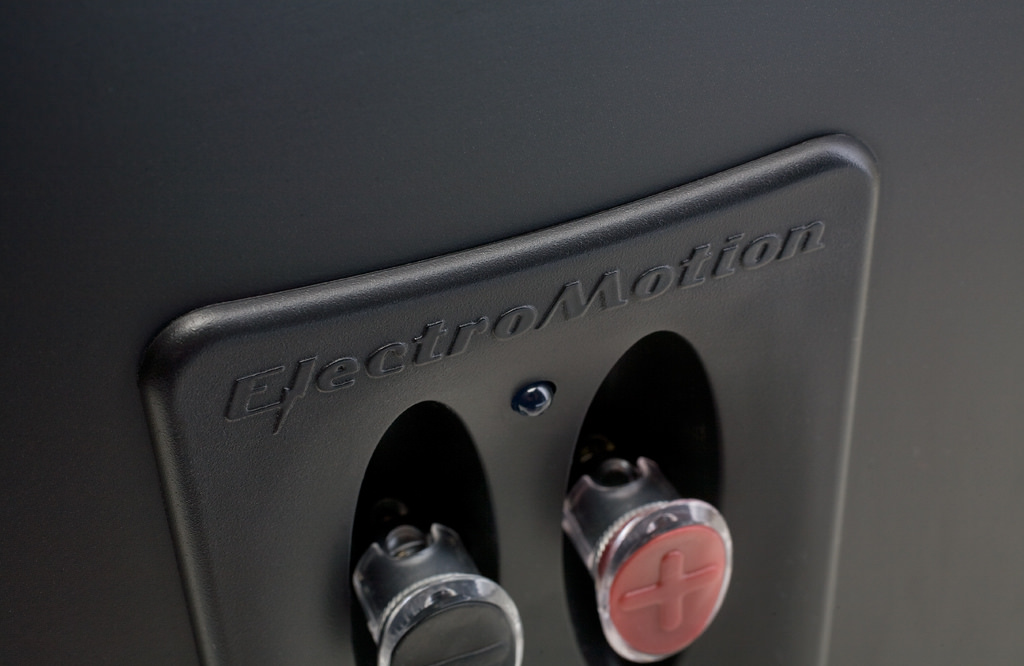

Binding Posts and Low-Voltage Power Supply MartinLogan's proprietary tool-less
binding posts simplify cable connection and management. EFX features custom
5-way binding posts and provide the ultimate level of flexibility for connection
and setup. To further simplify setup and cable management, the EFX features a
low-voltage DC power supply eliminates the need for a traditional, heavy IEC
power cord. EFX Specifications
Frequency Response 68–22,000 Hz ±3dB Horizontal Dispersion 30° Vertical
Dispersion 28" (71cm) line source High Frequency Transducer XStat™ CLS™
electrostaic transducer » Panel Dimensions 28" × 8.6" (71.1 × 21.8cm) »
Radiating Area 241 in2 (1,550 cm2) Low Frequency Transducer 6.5" (16.5cm) high
excursion, fiber cone with extended throw drive assembly; bass reflex
Sensitivity 90 dB/2.83 volts/meter Impedance 6 Ohms, 1.3 @ 20kHz. Compatible
with 4, 6, or 8 Ohm rated amplifiers. Recommended Amplifier Power 20‒300 watts
per channel Crossover Frequency 530Hz Components Custom-wound E-I core
transformer, air core coils, metal film capacitors Inputs Custom 5-way binding
posts Power Draw Max: 2W each Standby: <1W each Weight 24.5 lbs. (11.1 kg)
Dimensions 48.8" × 9.4" × 6.5" (123.9cm × 23.8cm × 16.5cm)
MARTIN LOGAN
ELETTROMOTION
ESL
X
Listino ufficiale
€.
2.950,00
Ibridi Serie
ElectroMotion Diffusore elettrostatico/ibrido da pavimento a 3 vie, bass reflex
a pavimento, doppio woofer con cono in carta/fibra trattata da 203mm, midrange/tweeter
a nastro elettrostatico curvilineo a dispersione controllata CLS XStat™ da
1016x220mm. Potenza 20-400W. Efficienza 91dB. Impedenza 6 ohm. Crossover cablato
in aria Vojtko™. Connettori bi-wiring. Punte di disaccoppiamento ETCTM in
dotazione.Finitura Matt Black sia del cabinet sezione bassi che del pannello
elettrostatico. Versione Finitura Gloss
Black del cabinet sezione bassi e Matt Black del pannello elettrostatico.
3.300,00 Euro

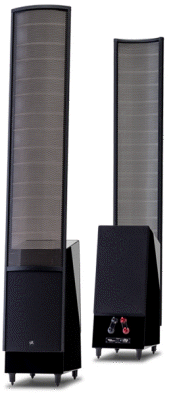

The ElectroMotion ESL X (EM-ESL X) X features a larger electrostatic transducer
and dual woofers, with increased power-handling capabilities. As the flagship
model of the ElectroMotion Series, the X establishes a new benchmark for price
versus performance. The ElectroMotion ESL X features a new larger XStat™
electrostatic transducer, with a radiating area over 50in2 larger than the
EM-ESL model. Twin 8-inch high-excursion woofers are housed in a non-resonant
asymmetrical bass reflex (ported) chamber, in a surprisingly compact enclosure.
Woofers have custom engineered high-rigidity paper cones, with extended-throw
driver assemblies. Component elements within the EM-ESL X replicate the design
and performance of components used on many of MartinLogan’s more expensive
loudspeakers, such as custom-wound transformers, air-core coils, large steel
laminate inductors, polyester and low DF electrolytic capacitors. Custom 5-way
bi-wire binding posts allow for secure wire connections. System Frequency
Response is 41–22,000 Hz ±3db. Recommended amplifier power is 20–400 watts per
channel. Impedance is rated at 6 ohms (1.6 ohms at 20 kHz); the EM-ESL X is
compatible with 4, 6, or 8 ohm rated amplifiers. A unique XStat™
transducer was developed for the ElectroMotion Series to reduce the gauge
thickness of the electrostatic panel's steel stators. The reduced gauge does not
alter the performance characteristics of the panel. However, as a natural
byproduct of tighter build tolerances, it does increase the visual transparency
of the panel. The EM-ESL X's XStat panel is so visually transparent it nearly
vanishes when you're sitting and listening. One of MartinLogan's original

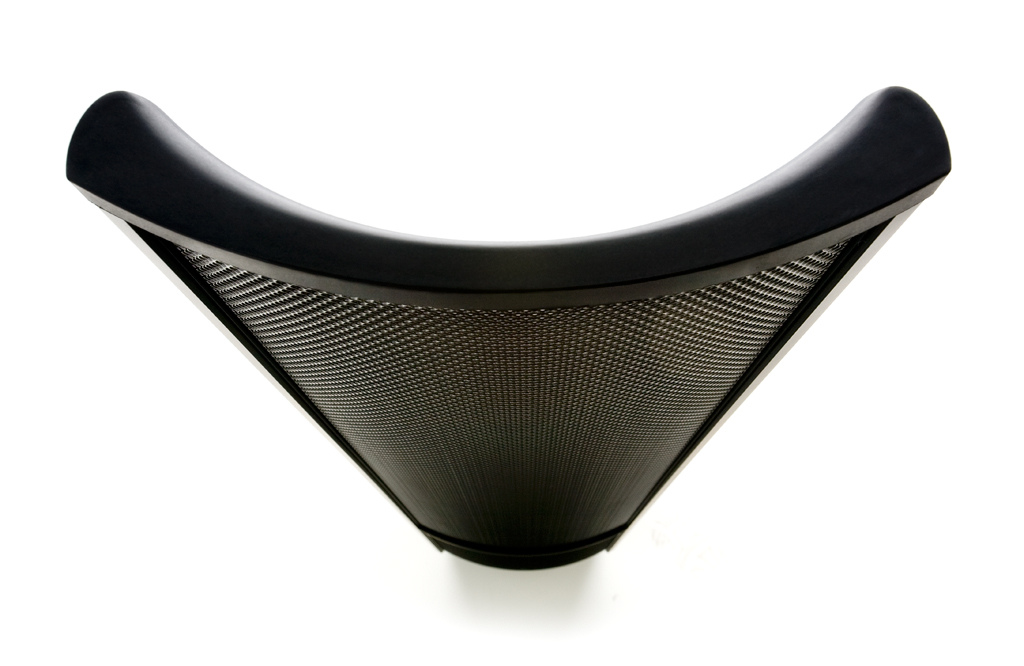

breakthroughs, CLS™ (Curvilinear Line Source) technology, has been an essential
ingredient of every electrostatic loudspeaker we've produced—and the
ElectroMotion ESL X is no exception. Proprietary manufacturing methods enable
construction of electrostatic panels as cylindrical sections. Their gentle
horizontal curvature solves the problem of obtaining good high-frequency
dispersion from a large radiating surface without compromising overall sound
quality or reliability. To seamlessly blend audio output from the
high- and mid-frequency electrostatic panel to the low-frequency dual woofer
system, the ElectroMotion ESL X features a proprietary Vojtko™ topology filter
utilizing custom air core coil and low DCR steel laminate inductors, polyester
film capacitors in series, and low DF electrolytic capacitors in parallel. The
EM-ESL X features dual 8-inch audiophile-grade, doped-fiber cone woofers custom
designed by MartinLogan's in-house design and engineering team. This efficient
woofer design optimizes cone suspension and the magnetic flux field to produce
big bass output with vanishingly low distortion. Rigid and lightweight, the
custom woofer's diaphragm eliminates cone flexure, and maximizes response time,
to achieve levels of performance approaching that of MartinLogan's larger, more
expensive electrostatic loudspeaker models Custom 5-way bi-wire binding posts

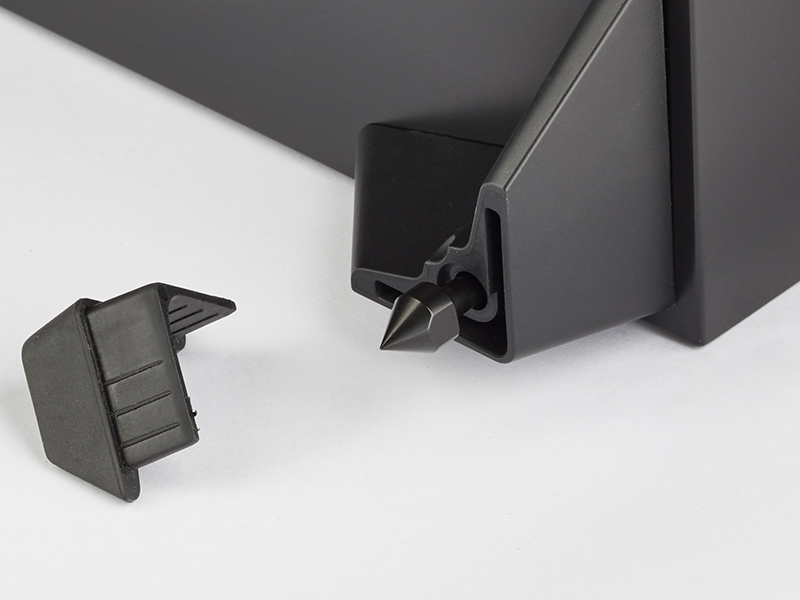

allow for secure wire connections. The EM-ESL X is supplied with sturdy, 3/8-16
ETC™ spikes, which can be used to fine tune vertical wave launch, enhance
stability on thick carpets, and create tighter coupling between speaker and
floor to provide a tighter and detailed bass performance. Each spike is
conveniently covered by removable rubber end caps if you prefer not to use
spikes
.gif)
MARTIN LOGAN
CLASSIC
ESL9A
Listino ufficiale
€.
5.250,00
Diffusore
elettrostatico/ibrido da pavimento a 3 vie, bass reflex posteriore, doppio
woofer con cono in alluminio da 203mm, midrange/tweeter a nastro elettrostatico
curvilineo a dispersione controllata CLS XStat™ da 1120x234mm. Unione del
pannello elettrostatico al modulo dei bassi con tecnologia AirFrame Blade Design
ultra rigida. Potenza 50-400W. Efficienza 90dB. Impedenza 4 ohm. Crossover
cablato in aria Vojtko™. Connettori bi-wiring. Punte di disaccoppiamento ETCTM
in dotazione.Pannello elettrostatico sempre Matt Black. COLORI : Gloss Black
Dark Cherry Walnut
A
masterpiece doesn’t just inspire emotions. It changes the way you feel, and it
sticks with you long after you’ve left the art gallery or the concert hall. It’s
considered a masterpiece precisely because of its ability to alter something
inside you. Once you experience it, you’ll never be the same. Enjoying a
masterpiece in your own home is something to aspire to. Consider the Classic ESL
9 your ticket to a life-changing experience with a masterpiece of audio
performance. You will never be the same.A Classic Masterpiece of Sound
Reproduction MartinLogan unveils the Classic ESL 9, its newest modern
Masterpiece. All the familiar elements of MartinLogan’s flagship ESL series are
here, with some revolutionary refinements. The heart of this exceptional
loudspeaker is its 9.2-inch-wide Curvilinear Line Source (CLS) XStat

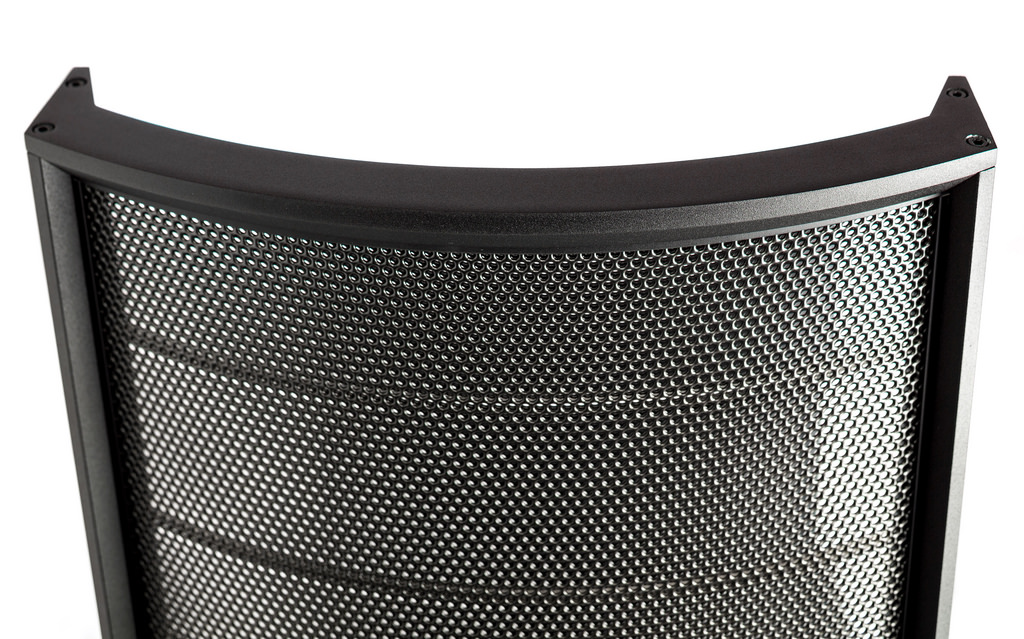

vacuum-bonded electrostatic transducer. Advanced MicroPerf stator technology
reveals more of the diaphragm surface area than any other electrostatic panel in
this size class, efficiently increasing the narrow panel’s output. Ultra-rigid
AirFrame Blade construction reduces performance-robbing vibrations, its shape
creating an expressive alignment with the woofer cabinet. Deep bass is rendered
with unflinching accuracy and authority by dual 8-inch low-distortion,
high-excursion aluminum cone woofers in a beautifully sculpted enclosure.
Classic Elements, Experienced In a New Way: Advanced MicroPerf stator technology,
which allows for almost twice the exposed electrostatic diaphragm surface as a
traditional electrostatic panel of the same size. A reinforced electrostatic
panel with rigid ClearSpar™ spacers, keeping an exact level of tension on the
vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add
to these the slender, pointed-arrow design of the new AirFrame™ Blade
construction and the result is a powerfully evocative composition creating a
harmonious connection between the panel and its woofer cabinet. Now notice some
refinements: We have reinvented the Classic ESL 9 woofer section. We use two
8-inch laser-engineered low-distortion aluminum cone woofers, balanced in an
opposing array, one forward- and one rear-firing. This design greatly reduces
cabinet vibrations inherent in same-direction woofer positioning, specifically
in the 34Hz to 100Hz range for uniform frequency response resulting in realistic
bass effects you can feel. New Ultra-Rigid AirFrame Blade Design Classic ESL 9
XStat panels are joined to their speaker cabinets using MartinLogan’s redesigned
AirFrame Blade construction, precision manufactured from an aerospace-grade
extruded aluminum alloy. This material, and this exclusive manufacturing process,
makes the panels extremely rigid. The bold, forward-moving styling of this
AirFrame Blade rail system, narrow and strong in front, broad and forceful from
the side, is a modern design statement. It never obstructs playable surface area
or interferes with the panel’s dipole sound radiation pattern. It also provides
electrical and acoustical isolation, minimizing intermodulation distortion
caused by vibration and resonance. The flowing lines emphasize the
groundbreaking integration of the panel itself with the compact woofer and
amplifier section. The breathtaking AirFrame Blade design enhances imaging,
low-level sonic detail, accuracy, and speaker efficiency.Curvilinear Line Source

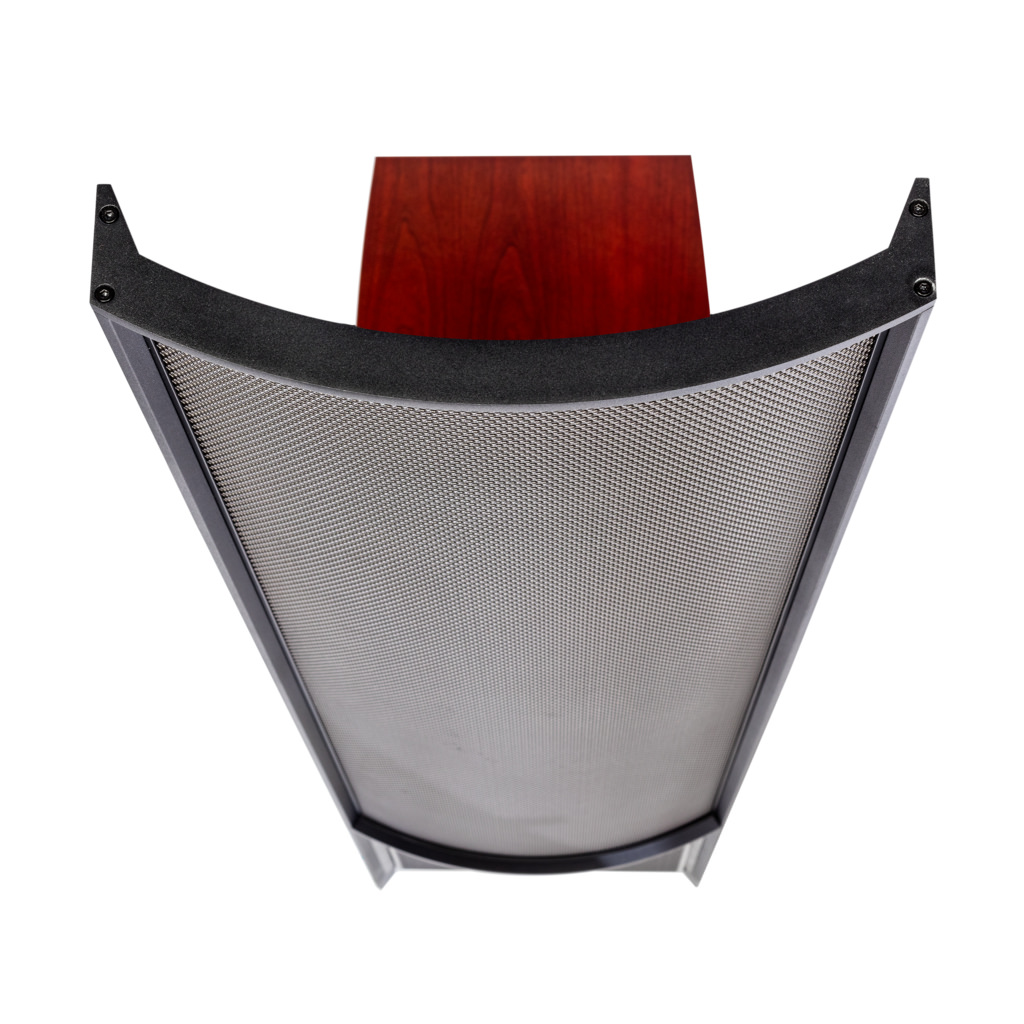

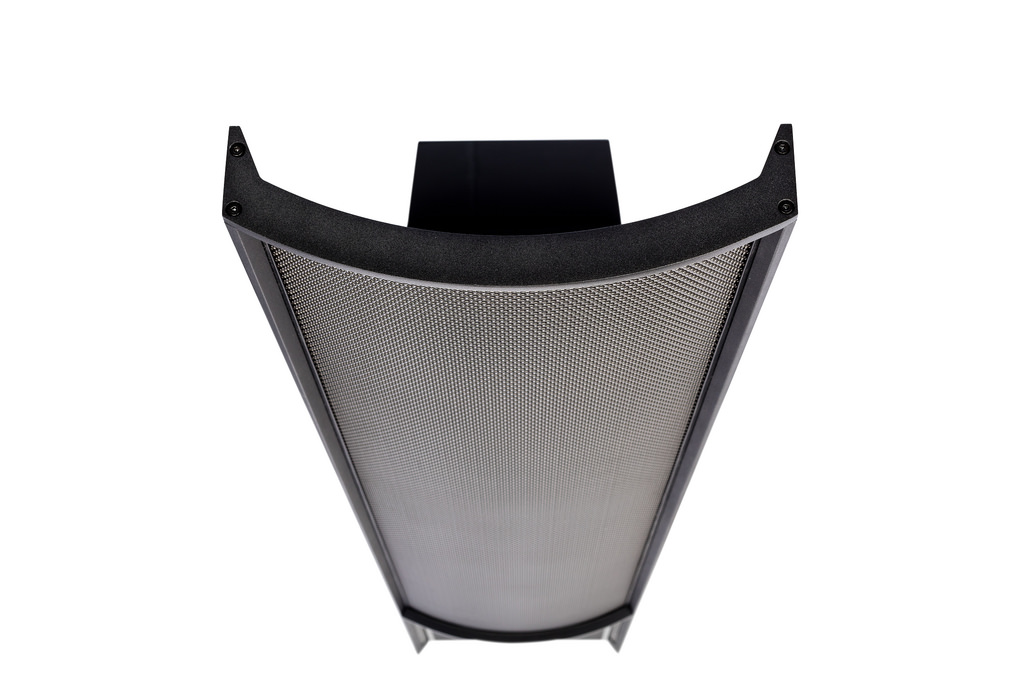

(CLS) Electrostatic Panel CLS technology is an essential ingredient of every
electrostatic loudspeaker we produce. Through our proprietary manufacturing
method, we have built-in the panel’s gentle horizontal curvature. This unique
design enhances the high frequency detail produced by the large radiating
surface, without compromising overall sound quality. Notice how the gentle
modern curve and perforation pattern gives way to the flat grille of the woofer
section. Controlled Dispersion Sound Radiation The sound we hear from a
loudspeaker is a combination of direct radiation from it to our ears, and
reflections off of room surfaces—walls, floor, and ceiling. How our brains
integrate this information is far from simple. Depending on the angle of
incidence to the ears and the arrival-time difference between direct and
reflected sound, reflections can either blur detail and stereo imaging, or
enhance the natural impression of depth and openness. Electrostatic panels,
which are true dipole speakers, produce a nearly-ideal controlled dispersion
radiation pattern. They send very little sound to the sides, thereby minimizing
side-wall reflections, whose short arrival times tend to interfere with the
perception of the direct sound. Their strong rear radiation, however, produces a
generous amount of natural, ambience-enriching later-arriving mid- and upper
register information. Big, Well-Blended Bass Performance Rounding out the
dynamic performance of this Masterpiece is a passive pair of high-excursion
8-inch laser-engineered aluminum cone woofers custom designed by MartinLogan’s
in-house engineering team. This efficient, cast basket woofer design improves
cone suspension and the magnetic flux field, maximizing response time, to
produce truly profound bass output (down to 34Hz) with vanishingly low
distortion. The woofers are balanced in an opposing array, one forward- and one
rear-firing. This design greatly reduces cabinet vibrations inherent in
same-direction woofer positioning, specifically in the 34Hz to 100Hz range.
Roll-off characteristics for this opposing woofer array are further optimized
for a realistically coherent bass wave form. In addition, we’ve tuned the
rear-firing woofer to minimize near-wall interactions, perfectly complementing
the dipole nature of the electrostatic panel. Bass performance from this
configuration is accurate, musical and utterly lifelike. A flared, ultra-low
turbulence rear-firing slotted bass port is integral to the design of the
enclosure, providing an extra layer of rigid internal bracing and increasing
deep bass output with no added port noise. Bi-wirable Tool-less Binding Posts
and Low-Voltage Power Supply MartinLogan's proprietary tool-less binding posts
simplify cable connection and management. Two sets are supplied—one connected to
the electrostatic panel and the other feeding the woofer. Listeners can choose
to vertically/horizontally bi-amp the Classic ESL 9, or use jumper clips between
the binding post sets for a single wire-connection. Classic ESL 9 features
bi-wirable binding posts and provide the ultimate level of flexibility for
connection and setup. To further simplify setup and cable management, Classic
ESL 9 features a low-voltage DC power supply eliminates the need for a
traditional, heavy IEC power cord. Precision-Built Advanced-Topology Vojtko
Crossover Control is key in the production of a Masterpiece. (Just ask
Michelangelo.) Control in the Classic ESL 9 is provided by the advanced
Vojtko-voiced crossover. Carefully hand-built using only the finest metallized
film capacitors, air-core coils, and low DCR steel laminate coils, the crossover
employs MartinLogan’s proprietary Vojtko topology for vanishingly low distortion
and seamless driver/ESL integration. This precision-tuned network excels at
preserving and reproducing even the most microscopic sonic nuances, while ably
handling the full dynamics of any source. The Classic ESL 9 is engineered to
work well with practically any type of electronics. MartinLogan’s
state-of-the-art electrical interface engineering ensures an absolutely
transparent link from your amplifier to the electrostatic panel and woofer array.
This produces sound of unparalleled purity, precision, clarity, and openness.
Like all of the loudspeakers in the Masterpiece Series, and like any true
masterpiece, when you experience the realistically transparent performance of
the Classic ESL 9, you will be changed by it.
.gif)
MARTIN LOGAN
ESL11A
Listino ufficiale
€.
8.250,00
Diffusori
Elettrostatici - Ibridi Serie Masterpiece Diffusore elettrostatico/ibrido da
pavimento a 3 vie con sezione bassi amplificata e ARC™ ready. Doppio woofer con
cono in alluminio da 203mm in sospensione pneumatica, pilotati da un doppio
amplificatore da 275W in classe D con possibilità di calibrazione Anthem Room
Correction (opzionale). Midrange/tweeter a nastro elettrostatico curvilineo a
dispersione controllata CLS XStat™ da 1120x280mm. Unione del pannello
elettrostatico al modulo dei bassi con tecnologia AirFrame Blade Design ultra
rigida. Potenza 50-550W. Efficienza 91dB. Impedenza 4 ohm. Crossover 24bit
Vojtko™. Regolazione dei bassi e dei medio/alti. Connettori WBT. Punte di
disaccoppiamento ETC™ in dotazione. Pannello elettrostatico sempre Matt Black.COLORI
: Gloss Black ,wHITE Dark Cherry Walnut

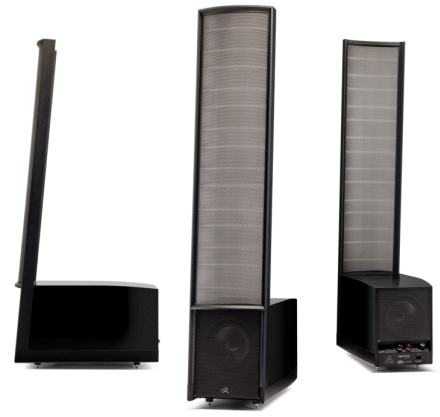

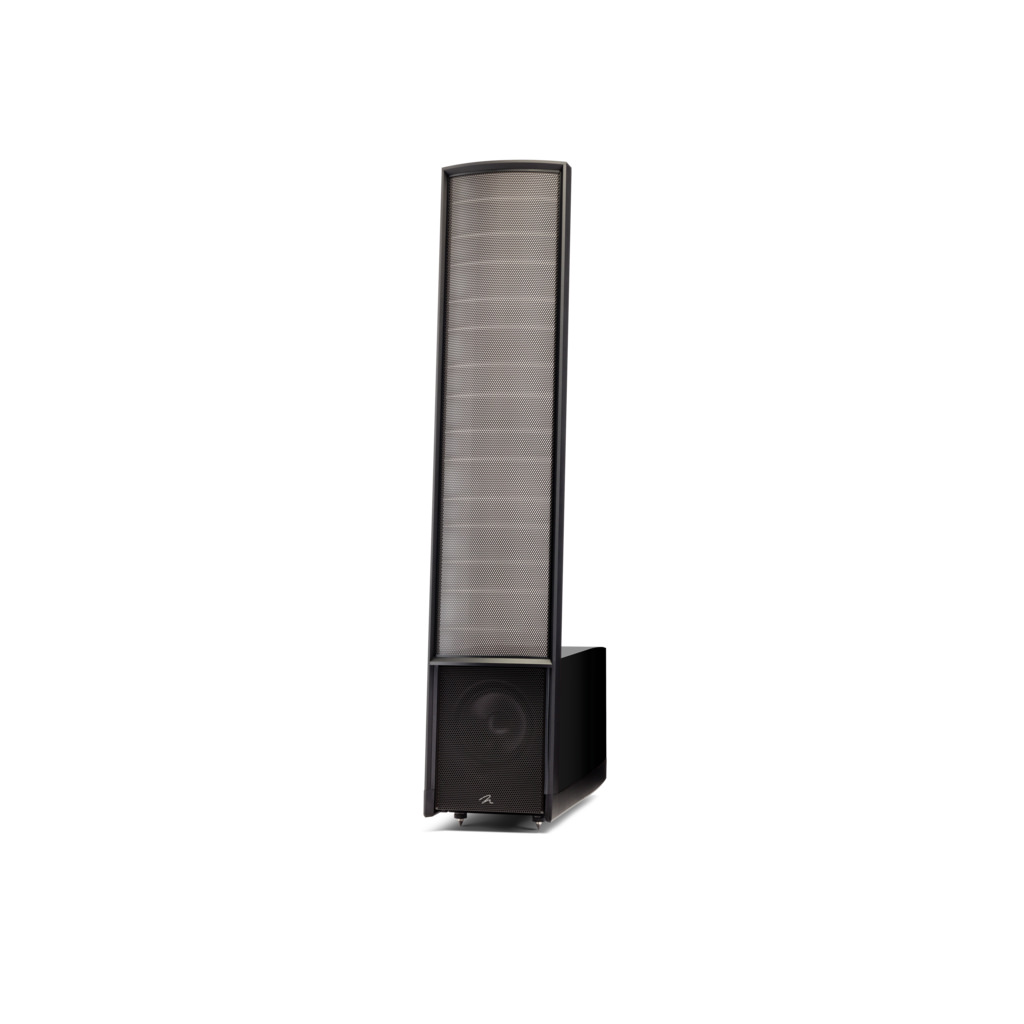

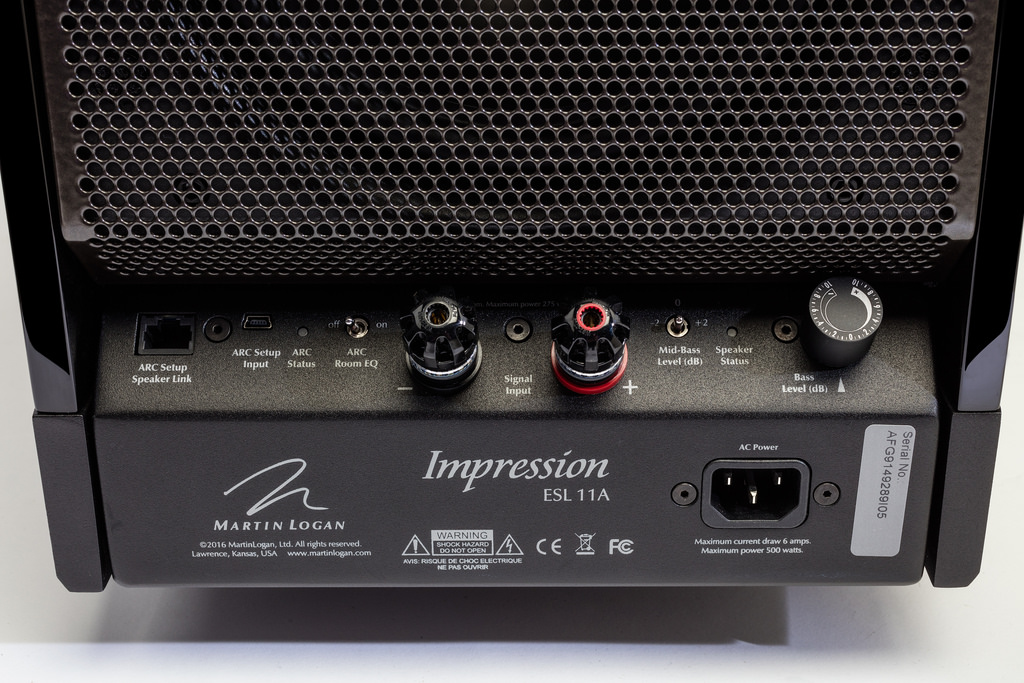

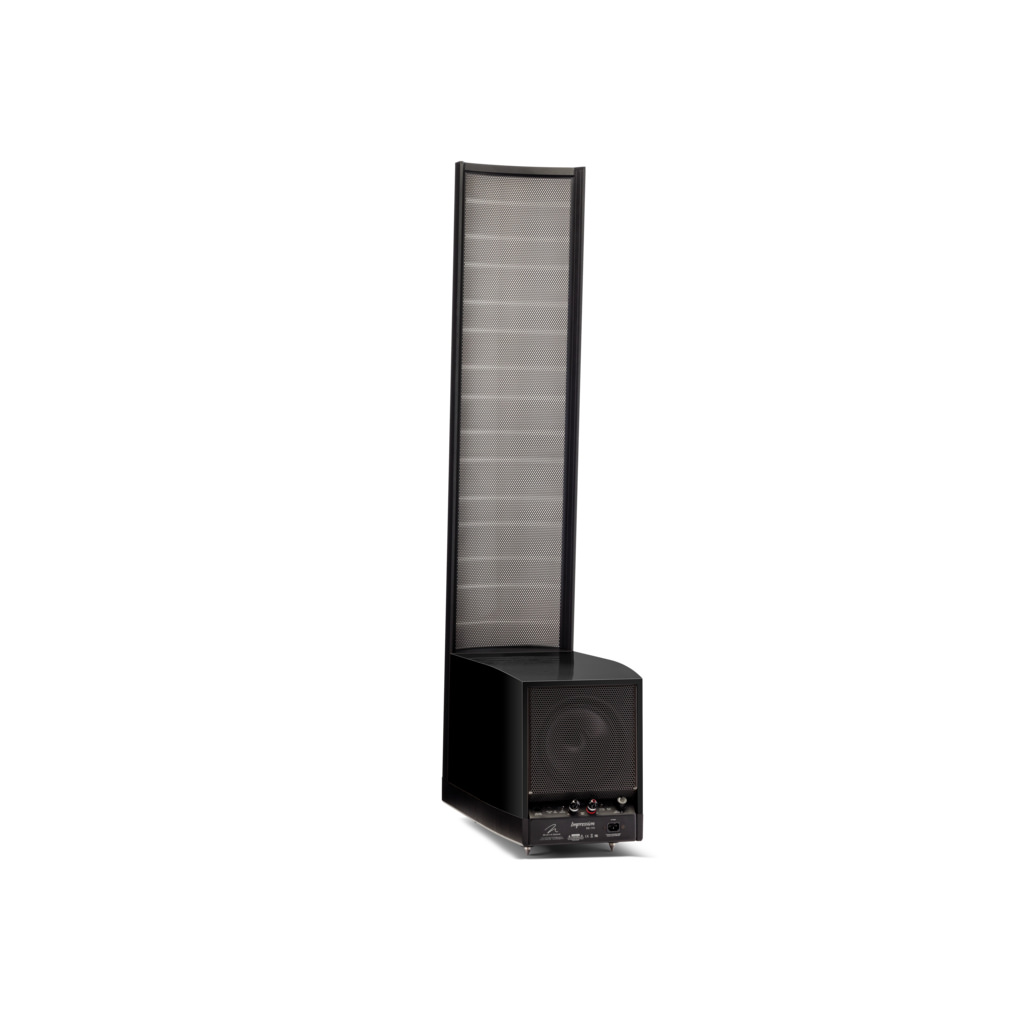

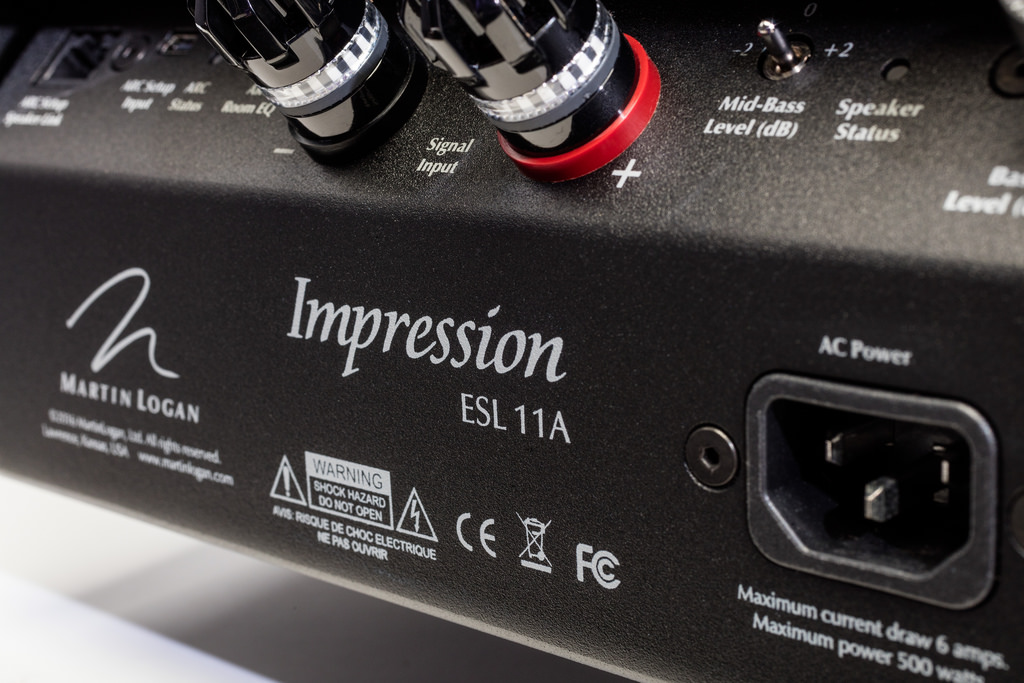

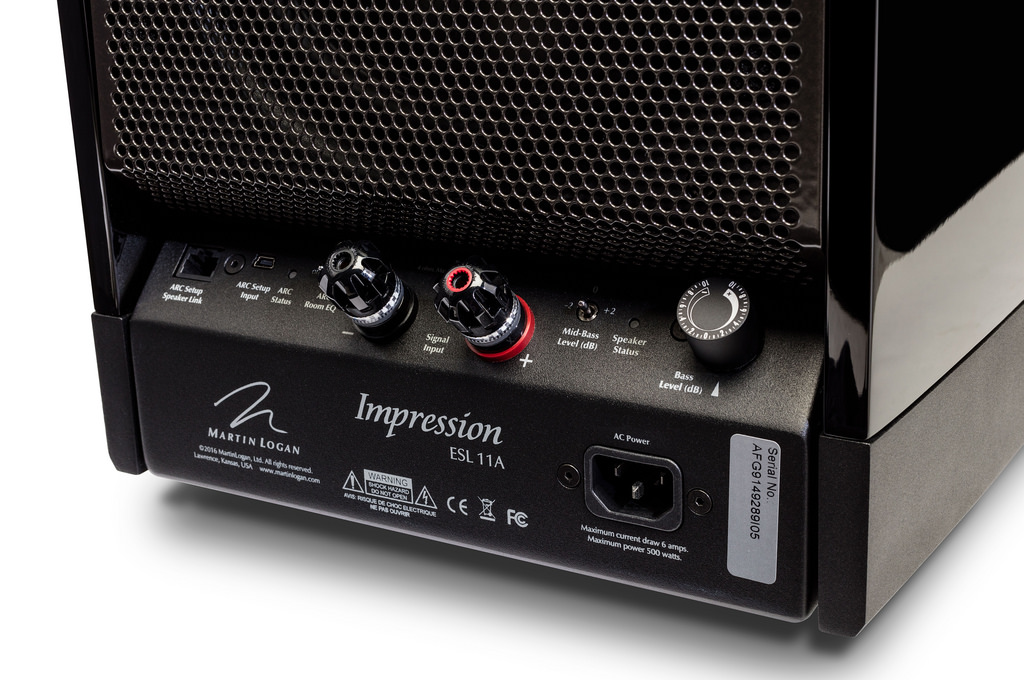

Impression ESL 11A The goal of the loudspeaker is to disappear into its audio
performance. Remove the loudspeaker’s effect and you reveal the pure emotional
impact of the performance, with nothing between your audio and your ears. The
Impressionist masterpieces removed the barrier between art and emotion,
enhancing the potent feelings their art inspired placing emphasis on immediacy
and movement. The Impression ESL 11A achieves this effect with an unprecedented
level of audio transparency and realism. The Immediacy of Exceptional Audio The

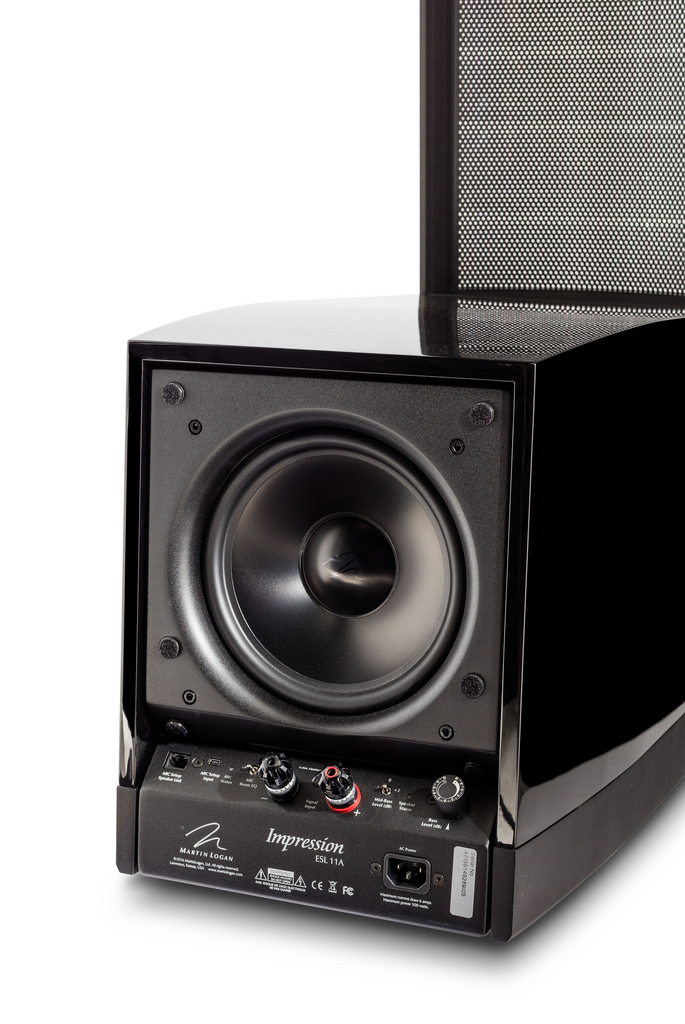

Impression ESL 11A is part of the Masterpiece Series. It features a dual 8-inch
woofer system, with ARC-honed performance, for a perfectly blended low-frequency
response. The groundbreaking integration of this woofer array and MartinLogan’s
signature 11-inch wide XStat CLS transducer, coupled with a powerful dual
amplifier section, delivers an expressive and dynamic audio experience. It's an
experience of pure audio pleasure. Look at the familiar elements of the classic
MartinLogan electrostatic loudspeaker: Advanced MicroPerf stator technology,
which allows for almost twice the exposed electrostatic diaphragm surface as a
traditional electrostatic panel of the same size. A reinforced electrostatic
panel with rigid ClearSpar™ spacers, keeping an exact level of tension on the
vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add
to these the slender, pointed-arrow design of the new AirFrame™ Blade
construction and the result is a powerfully evocative composition creating a
harmonious connection between the panel and its woofer cabinet. Now notice some

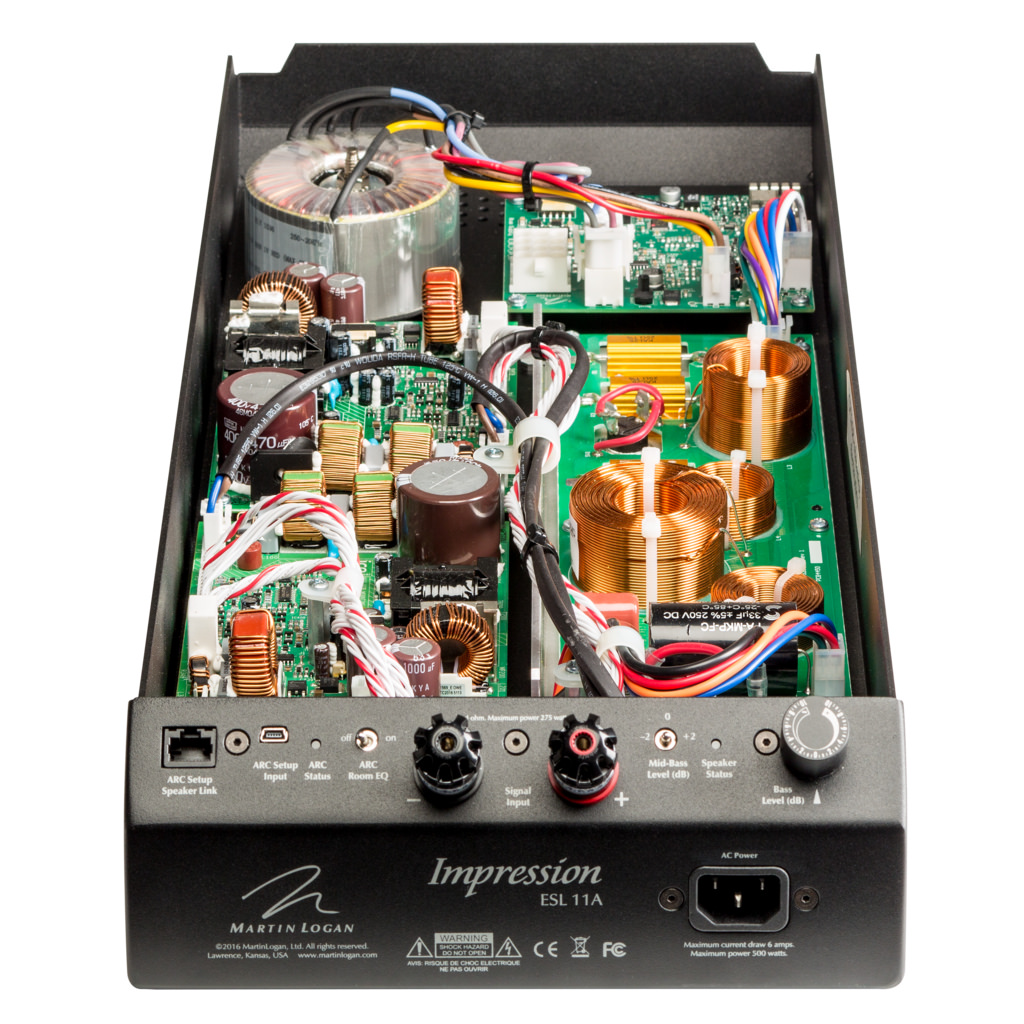

radical refinements: Inspired by our own breakthrough design, we have reinvented

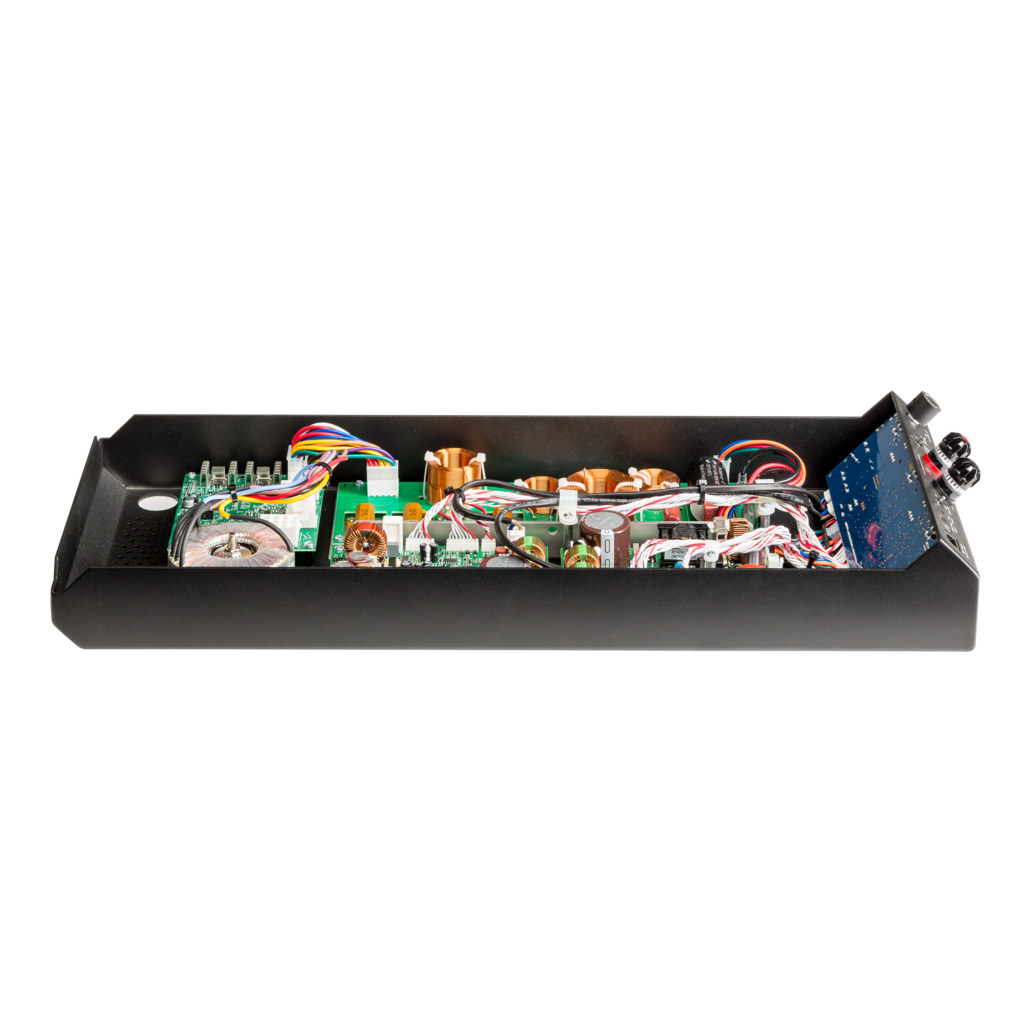

the Impression ESL 11A woofer section, powered by new dual 275-watt Class-D
amplifiers, and controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room

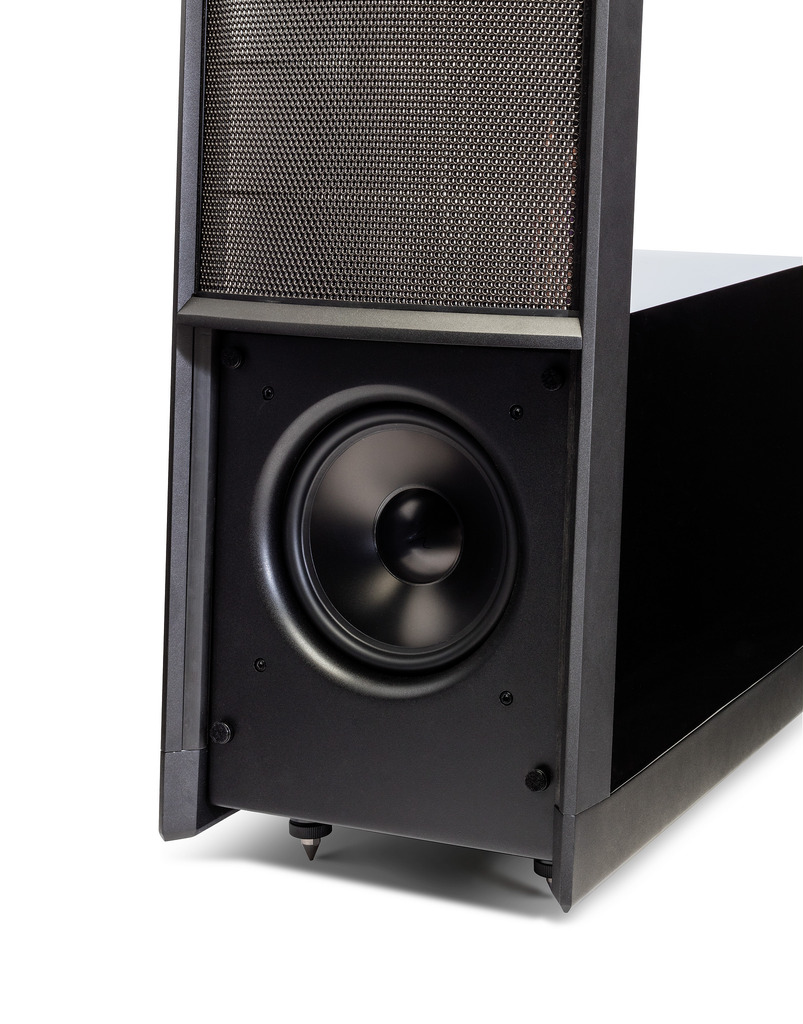

Correction). Using two 8-inch laser-engineered low-distortion aluminum cone
woofers in independently enclosed compact chambers, exclusive PoweredForce
Forward™ bass alignment technology controls the interaction between the
rear-firing woofer and the wall behind that woofer. With a smart phase-shifting
design, we minimize the effect that wall has on bass information that might
bounce back into the listening room. This uniform frequency response results in
realistic bass effects you can feel. It’s one more way MartinLogan innovation
improves your listening experience in any room. Achieving the Laboratory
Standard in Your Own Room In the lab, MartinLogan engineers strive for
transparency. Outside the lab, there’s one wildcard our engineers can never
account for: Your listening room. The unique size and shape of your listening
space (and the size and shape of its contents) can make bass waves do
unpredictable things, greatly affecting a speaker’s overall performance. For the
first time in electrostatic speakers we are introducing the integration of
exclusive Anthem Room Correction (ARC) technology. By engaging ARC to control
the low-frequency curve in relation to the output of the ESL panel (as seen in
this graph), you will experience performance on par with MartinLogan’s audio
test lab. ARC measures low-frequency sound output in your room and compares it
to optimal response curves that account for spatial anomalies. The advanced
algorithms of ARC then effectively remove the anomalies, leaving only the ideal
standard: realistically blended, natural-sounding bass performance in your
listening space. By minimizing room interactions with PoweredForce Forward bass
technology and the advanced room correction capabilities of ARC, along with its
unique synthesis of the ESL and bass sections, the Impression ESL 11A produces
perfectly-etched imaging and focus; optimum natural reproduction of sound at
lifelike listening levels; and agile, full-range operation in open air. Clearly,
it is this level of ultimate performance that separates the merely excellent
from a true masterpiece. New Ultra-Rigid AirFrame Blade Design Impression ESL
11A XStat panels are joined to their speaker cabinets using MartinLogan’s
redesigned AirFrame Blade construction, precision manufactured from an
aerospace-grade extruded aluminum alloy. This material, and this exclusive
manufacturing process, makes the panels extremely rigid. The bold,
forward-moving styling of this AirFrame Blade rail system, narrow and strong in
front, broad and forceful from the side, is a modern design statement. It never
obstructs playable surface area or interferes with the panel’s dipole sound
radiation pattern. It also provides electrical and acoustical isolation,
minimizing intermodulation distortion caused by vibration and resonance. The
flowing lines emphasize the groundbreaking integration of the panel itself with
the compact woofer and amplifier section. The breathtaking AirFrame Blade design
enhances imaging, low-level sonic detail, accuracy, and speaker efficiency.
Curvilinear Line Source (CLS) Electrostatic Panel CLS technology is an essential
ingredient of every electrostatic loudspeaker we produce. Through our
proprietary manufacturing method, we have built-in the panel’s gentle horizontal
curvature. This unique design enhances the high frequency detail produced by the
large radiating surface, without compromising overall sound quality. Notice how
the gentle modern curve and perforation pattern gives way to the flat grille of
the woofer section. Controlled Dispersion Sound Radiation The sound we hear from
a loudspeaker is a combination of direct radiation from it to our ears, and
reflections off of room surfaces—walls, floor, and ceiling. How our brains
integrate this information is far from simple. Depending on the angle of
incidence to the ears and the arrival-time difference between direct and
reflected sound, reflections can either blur detail and stereo imaging, or
enhance the natural impression of depth and openness. Electrostatic panels,
which are true dipole speakers, produce a nearly-ideal controlled dispersion
radiation pattern. They send very little sound to the sides, thereby minimizing
side-wall reflections, whose short arrival times tend to interfere with the
perception of the direct sound. Their strong rear radiation, however, produces a
generous amount of natural, ambience-enriching later-arriving mid- and upper
register information. New PoweredForce Forward™ Bass Technology PoweredForce
Forward bass technology combines two MartinLogan audio innovations: PoweredForce,
which allows small enclosures to accurately produce massive amounts of bass, and
ForceForward, which significantly reduces performance-robbing front-wall bass
reflections. PoweredForce Forward bass technology uses an advanced crossover
topology with phase-timed woofers to minimize destructive reflected energy. By
virtually eliminating front-wall bass reflections and working in tandem with the
panel, PoweredForce Forward Bass Technology gives you more placement flexibility,
and enhances the true audio realism of your sound source. New More performance,
versatility, and safety, with WBT Binding Posts Connect your electronics safely
and securely using 5-Way audiophile WBT Binding Posts. Their pure copper
connection plate is highly conductive and free from eddy current effects. These
posts are insulated for shock protection, and fully damped against vibrations.
They give you plenty of room for large-gauge professional speaker connections.
New Powerful Dual 275-Watt Class-D Amplification with 24-Bit Vojtko™ DSP Engine
The performance of Impression ESL 11A has been reconsidered from the ground up.
Taking full advantage of innovations like PoweredForce Forward and ARC
Technology, and the integration of the electrostatic panel with the woofer array,
required daring thinking about power and efficiency. Our new dual 275-watt
amplifiers produce clean power, in a small space, more efficiently than ever
before. They enable the effortless delivery of exhilarating dynamic impact, with
plenty of overhead. Superior, reliable Class-D technology means there’s
virtually no energy lost between the amplifiers and the woofers. MartinLogan’s
dedicated in-house design and engineering team created an extremely precise
24-bit Vojtko Digital Signal Processing (DSP) engine to work in conjunction with
these powerful new amplifiers. It gives these speakers the ability to deliver
detailed low-frequency performance reaching down to 24Hz. Advanced DSP allows
complete control and performance optimization over the low pass filters, woofer
equalization and limiting functions, all of which are mapped mathematically in
the digital domain. Complete control of the signal, along with instant response,
huge amounts of clean power, and efficient, integrated performance, paints an
original picture of lifelike audio performance. Precision-Built
Advanced-Topology Vojtko Crossover Vojtko voiced, the advanced crossover and
electronics in Impression ESL 11A add enhanced mid-range clarity to this artful
composition. Carefully hand-built using only the finest polypropylene capacitors
and air-core coils, the crossover employs MartinLogan’s proprietary Vojtko
topology for vanishingly low distortion and seamless driver/ESL integration.
This precision-tuned network preserves even the most microscopic sonic nuances
while handling the full dynamics of any source. We’ve also considered the signal
you will feed your loudspeakers and have engineered Impression ESL 11A to work
well with practically any type of electronics. MartinLogan’s state-of-the-art
toroidal transformer and electrical interface engineering ensure an absolutely
transparent link from amplifier to electrostatic panel and woofer array. This
produces sound of unparalleled purity, precision, clarity, and openness — the
next best thing to no speaker at all.
.gif)
MARTIN LOGAN
ESL13A
Listino ufficiale
€. 11.500,00
Diffusori
Elettrostatici - Ibridi Serie Masterpiece Diffusore elettrostatico/ibrido da
pavimento a 3 vie con sezione bassi amplificata e ARC™ ready. Doppio woofer con
cono in alluminio da 254mm in sospensione pneumatica, pilotati da un doppio
amplificatore da 300W in classe D con possibilità di calibrazione Anthem Room
Correction (opzionale). Midrange/tweeter a nastro elettrostatico curvilineo a
dispersione controllata CLS XStat™ da 1120x330mm. Unione del pannello
elettrostatico al modulo dei bassi con tecnologia AirFrame Blade Design ultra
rigida. Potenza 50-600W. Efficienza 91dB. Impedenza 4 ohm. Crossover 24bit
Vojtko™. Regolazione dei bassi e dei medio/alti. Connettori WBT. Punte di
disaccoppiamento ETC™ in dotazione. Pannello elettrostatico Matt Black.COLORI :
Gloss Black ,White Dark Cherry Walnut
Expression ESL 13A Audio is both real, and imagined. There is the fact of the
sound. And there is the feeling that the sound arouses within us. This feeling
is the inspiration behind the new Expression ESL 13A. Like the Expressionist
masterpieces, this artful presentation of audio is focused solely on
intensifying your emotional experience. It’s a virtually transparent audio
performance that transports you to a new landscape of the senses. The Art of
Emotion in Audio The Expression ESL 13A is part of the Masterpiece Series.
It features a dual 10-inch woofer system with ARC-honed performance, for
perfectly blended low-frequency response. The groundbreaking integration of this
woofer array with MartinLogan’s signature 13-inch wide XStat CLS Transducer,
coupled with a powerful dual amplifier section, delivers an expressive and
dynamic audio experience, with less coloration. It reveals the pure emotional
impact of your audio. Look at the familiar elements of the classic MartinLogan
electrostatic loudspeaker: Advanced MicroPerf stator technology, which allows
for almost twice the exposed electrostatic diaphragm surface as a traditional
electrostatic panel of the same size. The panel is reinforced with rigid
ClearSpar™ spacers, keeping an exact level of tension on the vacuum-bonded
diaphragm without obscuring the beautiful see-through design. Add the slender,
pointed-arrow design of the new AirFrame™ Blade construction; a powerfully
evocative composition creating a harmonious connection between the panel and its
woofer cabinet. Now notice some radical refinements: Inspired by our own
breakthrough design, we have reinvented the Expression ESL 13A woofer section,
powered by new dual 300-watt Class-D amplifiers, and controlled by a 24-Bit
Vojtko™ DSP Engine and ARC™ (Anthem Room Correction). Using two 10-inch
laser-engineered low-distortion aluminum cone woofers in independently enclosed
compact chambers, exclusive PoweredForce Forward™ bass alignment technology
controls the interaction between the rear-firing woofer and the wall behind that
woofer. With smart phase-shifting logic, we minimize the effect that wall has on
bass information that might bounce back into the listening room. This uniform
frequency response results in realistic bass effects you can feel. It’s one more
way MartinLogan innovation improves your listening experience in any room.
Achieving the Laboratory Standard in Your Own Room In the lab, MartinLogan
engineers strive for transparency. Outside the lab, there’s one wildcard our
engineers can never account for: Your listening room. The unique size and shape
of your listening space (and the size and shape of its contents) can make bass
waves do unpredictable things, greatly affecting a speaker’s overall
performance. The Expression ESL 13A integrates exclusive Anthem Room Correction
(ARC) technology. By engaging ARC to control the low-frequency curve in relation
to the output of the ESL panel (as seen in this graph), you will experience
performance on par with MartinLogan’s audio test lab. ARC measures low-frequency
sound output in your room and compares it to optimal response curves that
account for spatial anomalies. The advanced algorithms of ARC then effectively
remove the anomalies, leaving only the ideal standard: realistically blended,
natural-sounding bass performance in your listening space. By minimizing room
interactions with PoweredForce Forward bass technology and the advanced room
correction capabilities of ARC, along with its unique synthesis of the ESL and
bass sections, the Expression ESL 13A produces perfectly-etched imaging and
focus; optimum natural reproduction of sound at lifelike listening levels; and
agile, full-range operation in open air. Clearly, it is this level of ultimate
performance that separates the merely excellent from a true masterpiece. New
Ultra-Rigid AirFrame Blade Design Expression ESL 13A XStat panels are joined to
their speaker cabinets using MartinLogan’s redesigned AirFrame Blade
construction, precision manufactured from an aerospace-grade extruded aluminum
alloy. This material, and this exclusive manufacturing process, makes the panels
extremely rigid. The bold, forward-moving styling of this AirFrame Blade rail
system, narrow and strong in front, broad and forceful from the side, is a
modern design statement. It never obstructs playable surface area or interferes
with the panel’s dipole sound radiation pattern. It also provides electrical and
acoustical isolation, minimizing intermodulation distortion caused by vibration
and resonance. The flowing lines emphasize the groundbreaking integration of the
panel itself with the compact woofer and amplifier section. The breathtaking
AirFrame Blade design enhances imaging, low-level sonic detail, accuracy, and
speaker efficiency. Curvilinear Line Source (CLS) Electrostatic Panel CLS
technology is an essential ingredient of every electrostatic loudspeaker we
produce. Through our proprietary manufacturing method, we have built-in the
panel’s gentle horizontal curvature. This unique design enhances the high
frequency detail produced by the large radiating surface, without compromising
overall sound quality. Notice how the gentle modern curve and perforation
pattern gives way to the flat grille of the woofer section. Controlled
Dispersion Sound Radiation The sound we hear from a loudspeaker is a combination
of direct radiation from it to our ears, and reflections off of room surfaces—walls,
floor, and ceiling. How our brains integrate this information is far from simple.
Depending on the angle of incidence to the ears and the arrival-time difference
between direct and reflected sound, reflections can either blur detail and
stereo imaging, or enhance the natural impression of depth and openness.
Electrostatic panels, which are true dipole speakers, produce a nearly-ideal
controlled dispersion radiation pattern. They send very little sound to the
sides, thereby minimizing side-wall reflections, whose short arrival times tend
to interfere with the perception of the direct sound. Their strong rear
radiation, however, produces a generous amount of natural, ambience-enriching
later-arriving mid- and upper register information. New PoweredForce Forward™
Bass Technology PoweredForce Forward bass technology combines two MartinLogan
audio innovations: PoweredForce, which allows small enclosures to accurately
produce massive amounts of bass, and ForceForward, which significantly reduces
performance-robbing front-wall bass reflections. PoweredForce Forward bass
technology uses an advanced crossover topology with phase-timed woofers to
minimize destructive reflected energy. By virtually eliminating front-wall bass
reflections and working in tandem with the panel, PoweredForce Forward Bass
Technology gives you more placement flexibility, and enhances the true audio
realism of your sound source. New More performance, versatility, and safety,
with WBT Binding Posts Connect your electronics safely and securely using 5-Way
audiophile WBT Binding Posts. Their pure copper connection plate is highly
conductive and free from “eddy current” effects. These posts are insulated for
shock protection, and fully damped against vibrations. They give you plenty of
room for large-gauge professional speaker connections. New Powerful Dual
300-Watt Class-D Amplification with 24-Bit Vojtko™ DSP Engine The performance of
Expression ESL 13A has been reconsidered from the ground up. Taking full
advantage of innovations like PoweredForce Forward and ARC Technology, and the
integration of the electrostatic panel with the woofer array, required daring
thinking about power and efficiency. Our new dual 300-watt amplifiers produce
clean power, in a small space, more efficiently than ever before. They enable
the effortless delivery of exhilarating dynamic impact, with plenty of overhead.
Superior, reliable Class-D technology means there’s virtually no energy lost
between the amplifiers and the woofers. MartinLogan’s dedicated in-house design
and engineering team created an extremely precise 24-bit Vojtko Digital Signal
Processing (DSP) engine to work in conjunction with these powerful new
amplifiers. It gives these speakers the ability to deliver detailed
low-frequency performance reaching down to 24Hz. Advanced DSP allows complete
control and performance optimization over the low pass filters, woofer
equalization and limiting functions, all of which are mapped mathematically in
the digital domain. Complete control of the signal, along with instant response,
huge amounts of clean power, and efficient, integrated performance, paints an
original picture of lifelike audio performance. Precision-Built
Advanced-Topology Vojtko Crossover Vojtko Voiced, the advanced crossover and
electronics in Expression ESL 13A add enhanced mid-range clarity to this artful
composition. Carefully hand-built using only the finest polypropylene capacitors
and air-core coils, the crossover employs MartinLogan’s proprietary Vojtko
topology for vanishingly low distortion and seamless driver/ESL integration.
This precision-tuned network preserves even the most microscopic sonic nuances
while handling the full dynamics of any source. We’ve also considered the signal
you will feed your loudspeakers, and have engineered Expression ESL 13A to work
well with practically any type of electronics. MartinLogan’s state-of-the-art
toroidal transformer and electrical interface engineering ensure an absolutely
transparent link from amplifier to electrostatic panel and woofer array. This
produces sound of unparalleled purity, precision, clarity, and openness — the
next best thing to no speaker at all.
MARTIN LOGAN
ESL15
Listino ufficiale
€.
17.500,00
Diffusori
Elettrostatici - Ibridi Serie Masterpiece Diffusore elettrostatico/ibrido da
pavimento a 3 vie con sezione bassi amplificata e ARC™ ready. Doppio woofer con
cono in alluminio da 305mm in sospensione pneumatica, pilotati da un doppio
amplificatore da 500W in classe D con possibilità di calibrazione Anthem Room
Correction (opzionale). Midrange/tweeter a nastro elettrostatico curvilineo a
dispersione controllata CLS XStat™ da 1169x381mm. Unione del pannello
elettrostatico al modulo dei bassi con tecnologia AirFrame Blade Design ultra
rigida. Potenza 50-700W. Efficienza 92dB. Impedenza 4 ohm. Crossover 24bit
Vojtko™. Regolazione dei bassi e dei medio/alti. Connettori WBT. Punte di
disaccoppiamento ETC™ in dotazione. Pannello elettrostatico Matt BlackCOLORI :
Gloss Black ,White Dark Cherry Walnut
Renaissance
ESL 15A What makes a masterpiece? Is the “Mona Lisa” just a picture of a woman
smiling, or is there more to it? We consider something a masterpiece when
uncommon skill and artistry shapes familiar elements in an unexpected way,
revealing an essential truth. For MartinLogan, the essential truth revealed by
our skill and artistry is audio realism. Fittingly, our next generation of
electrostatic loudspeakers debuts with the new Renaissance ESL 15A. Three
decades of audio design and engineering innovation, distilled into a startling
fresh loudspeaker ideal.Look at the familiar elements of the classic MartinLogan
electrostatic loudspeaker: Advanced MicroPerf stator technology, which allows
for almost twice the exposed electrostatic diaphragm surface as a traditional
electrostatic panel of the same size. The panel is reinforced with rigid
ClearSpar™ spacers, keeping an exact level of tension on the vacuum-bonded
diaphragm without obscuring the beautiful see-through design. Add the slender,
pointed-arrow design of the new AirFrame™ Blade construction; a powerfully
evocative composition creating a harmonious connection between the panel and its
woofer cabinet. Now notice some radical refinements: Inspired by our own
breakthrough design, we have reinvented the Renaissance ESL 15A woofer section,
powered by new dual 500-watt Class-D amplifiers, and controlled by a 24-Bit
Vojtko™ DSP Engine and ARC™ (Anthem Room Correction). Using two 12-inch
laser-engineered low-distortion aluminum cone woofers in independently enclosed
compact chambers, exclusive PoweredForce Forward™ bass alignment technology
controls the interaction between the rear-firing woofer and the wall behind that
woofer. With smart phase-shifting logic, we minimize the effect that wall has on
bass information that might bounce back into the listening room. This uniform
frequency response results in realistic bass effects you can feel. It’s one more
way MartinLogan innovation improves your listening experience in any room.
MARTIN LOGAN
CLX ART
Listino ufficiale
a Richiesta
Martin Logan CLX Art La Martin Logan è
orgogliosa di presentare un modello destinato a suscitare gli interessi sia dei
musicofili che dei collezionisti degli “oggetti d’arte”: perchè di vero
capolavoro si tratta... E’ passato oramai un quarto di secolo dalla
presentazione del primo CLS, un diffusore elettrostatico a banda intera ancor
oggi in grado di stupire il neofita ed ammaliare l’utente più smaliziato grazie
alle sue doti oramai leggendarie di trasparenza e di musicalità. E sulla base
del progetto primitivo, man mano aggiornato con l’introduzione delle tecnologie
sempre più innovative e sofisticate, nasce l’odierno CLX, un sistema
completamente planare che sfrutta tutta l’esperienza Martin Logan in questo
difficile settore: un trasduttore elettrostatico a diaframma doppio, utilizzante
uno statore triplo è deputato alla riproduzione delle frequenze più gravi; il
crossover Vojtko (un’altra delle innumerevoli innovazioni introdotte da Martin
Logan nei suoi sistemi ibridi) taglia il segnale musicale a 360 Hz inviando così
la porzione più alta dello spettro sonoro ad una cella elettrostatica CLS,
anch’essa alta ben 145 cm. La parte strutturale di questi diffusori è costituita
da un nuovo materiale composito denominato EcoSound costituito da una fibra di
bambù ad alta rigenerazione e da carta riciclata, confermando così l’attenzione
del tutto particolare che la Martin Logan riserva anche agli aspetti più nobili
che l’utilizzo di tanta tecnologia non fa però dimenticare. A corredo di ogni
diffusore, disponibile anche in versione Anniversary distribuita in coppie
numerate attraverso una selezionatissima rete di vendita, è presente una coppia
di speciali cavi di alimentazione in grado di eliminare le inevitabili
irregolarità dell’alimentazione elettrica, e le oramai famose punte regolabili
ETC. Il risultato di tanta e tale tecnologia in sala di ascolto è semplicemente
stupefacente: quanto di meglio si era ascoltato sino ad oggi dai mitici
trasduttori elettrostatici curvilinei CLS è ora reso ancora più... trasparente
grazie all’adozione di una tecnologia similare a completamento di una gamma
bassa come mai si era potuto ascoltare da un sistema di altoparlanti planare: la
presenza del pannello a diaframma doppio DualForce delle CLX, oltre a donare
alla riproduzione musicale una imponenza del tutto realistica, “libera” il
pannello CLS dal compito della riproduzione della gamma più grave, concedendo
lui di esprimersi al massimo delle possibilità nelle frequenze superiori a 360
Hz, per il raggiungimento di sensazioni sonore che solamente un ascolto accurato
presso uno dei Rivenditori Martin Logan potrà esprimere compiutamente.Specifiche
tecniche Risposta in Frequenza: 56-23,000 Hz ± 3dB Dispersione Orizzontale: 30
gradi Dispersione Verticale: 57” (145cm) line source Sensibilità: 90 dB/2.83
volts/metro Impedenza: 6 ohms, 0.7 ohm a 20kHz Frequenza di Crossover: 360 Hz
Componenti: Pannello elettrostatico a diaframma doppio, utilizzante uno statore
triplo, resistenze sovradimensionate con substrato in alluminio, trasformatore
audio avvolgimento personalizzato, condensatori in polipropilene, bobine in aria
Controlli: Acceso/Spento luce di stand-by Potenza Consigliata: 225 watts/canale
Peso: 69 kg cadauna Dimensioni: (178 x 65,4 x 35 AxLxP cm)
CLX art MartinLogan is proud to announce a new
edition of the world's finest full-range electrostatic line source loudspeaker.
The CLX art incorporates our most popular upgrades including Art Frame styling (with
an additional piece of hardwood), stainless steel binding posts, and premium
power cords. The standard Linear Frame version of the CLX will remain available
through special order. Visit a MartinLogan Reserve Dealer and build yours today.
Experience Truth in Sound Reproduction CLX represents the culmination of
everything we have learned about electrostatic technology since we brought our
first product to market in 1983. Purity of sound permeates your entire room and
satisfies even the most critical ear. The industry benchmark for resolving
detail, CLX utilizes dual electrostatic transducers to render the most complex
musical passages as faithfully as a crystal prism disperses the full color
spectrum. This is the limitless spectrum of the CLX - the absolute truth in
musical reproduction. 57-Inch CLS™ XStat™ Electrostatic Transducer MartinLogan's
award winning Curvilinear Line Source (CLS) XStat electrostatic (ESL) technology
allows smooth unencumbered dispersion of sound throughout the listening area.
The result? Perfectly etched imaging and focus achieved through minimal room
interaction; optimum natural reproduction of sound with full level response from
ultra-linear transducers; reliable operation in open air; compatibility with all
electronics; and seamless dispersion of precise sound throughout your listening
environment. Advanced MicroPerf stator technology gives MartinLogan's
latest-generation CLS electrostatic transducer almost twice as much exposed
diaphragm surface as a traditional electrostatic panel of the same size. This
dramatic increase in effective radiating area translates to higher efficiency
and an even more effortless, unlimited dynamic presentation. The XStat pulls no
punches! But there's more to it than just putting more holes in the stators.
ClearSpar™ spacers stiffen the assembly further across its width. ClearSpars
enable precise, consistent tensioning of the Vacuum Bonded diaphragm without
obstructing the floating, see-through look that is the visual hallmark of
MartinLogan electrostats. In the end, a speaker cannot outperform the signal
feeding it. MartinLogan's state-of-the-art toroidal transformer and electrical
interface engineering ensure an absolutely transparent link from amplifier to
electrostatic panel. The result is sound of unparalleled purity, precision,
clarity, and openness — the next best thing to no speaker at all.
MARTIN LOGAN
NEOLITH
Listino ufficiale
a Richiesta
Diffusore elettrostatico/ibrido da pavimento a 3
vie con struttura in polimero di resina fenolica. Doppi woofers con cono in
alluminio da 381mm posteriore in bass reflex e 305mm frontale in sospensione
pneumatica. Midrange/tweeter a nastro elettrostatico curvilineo a dispersione
controllata CLS XStat™ da 1220x560mm. Unione del pannello elettrostatico al
modulo dei bassi con tecnologia AirFrame Blade Design ultra rigida. Potenza
50-1300W. Efficienza 90dB. Impedenza 4 ohm. Crossover Vojtko™ con
componentistica ultra selezionata, resistenze 1% e condensatori in
polipropilene. Controllo dei bassi 0,-4 e -8dB. Connettori bi-wiring WBT. Punte
di disaccoppiamento ETC™ in dotazione.
MartinLogan's groundbreaking Curvilinear Line Source (CLS) electrostatic panel
design is an elegant solution to the impression of sound "beaming" from an
electrostatic panel. MartinLogan CLS electrostatic panels feature a gentle
horizontal curve. This ingeniously simple innovation radically changes the
speaker's dispersion pattern, radiating a wide, enveloping soundstage, packed
with detail; truly unlike any other loudspeaker experience. Another key
attribute of an electrostatic speaker is its dipolar radiation pattern. A true
dipole transducer radiates with equal intensity from the front and back of its
diaphragm, with the outputs in opposite phase. As a result, sound waves rippling
out toward the sides meet at the speaker's edge and cancel, minimizing side-wall
reflections with short relative arrival times. This reduction in side-output
minimizes interfering side-wall reflections, which can muddy the image. It frees
the dipole radiation pattern to produce a generous amount of ambience-enriching
late-arriving reflections off the wall behind your loudspeakers. At the same
time, electrostatic panels maintain relatively limited vertical dispersion,
which minimizes undesirable floor and ceiling reflections.Neolith is the apogee
of electrostatic performance, combining these innovations in a new design. By
delivering an undiluted soundstage with excellent separation, Neolith brings
your music and movie soundtracks to startlingly accurate, 3-dimensional life.
Neolith Specifications are subject to change without noticeFrequency
Response 23–22,000 Hz ±3dB Horizontal Dispersion 30° Vertical Dispersion 48"
(122 cm) line source High Frequency Transducer XStat™ CLS™ electrostatic
transducer » Panel Dimensions 48" x 22" (122 x 56cm) » Radiating Area 1056 in²
(6,832 cm² ) Low Frequency Transducer Rear: 15” (38.1cm) cast basket, high
excursion, rigid aluminum cone with extended throw drive assembly. Extensively
vented triple shorting ring motor and 4-layer coil to eliminate compression and
distortion. Front: 12” (30.5cm) round cast aluminum alloy frame, high
excursion, rigid carbon fiber sandwich cone with long throw design, 3-inch
(7.5cm) diameter copper-clad aluminum flat wire voice coil, and vented pole
piece and under-spider opening to reduce power compression. Sensitivity 90 dB/2.83
volts/meter Impedance Nominal: 4 ohms, 0.43 ohms @ 20 kHz. Compatible with 4, 6,
or 8 Ohm rated amplifiers. Recommended Amplifier Power 20—1300 watts per channel
Crossover Frequency 60, 250–400 Hz Components High-Pass Crossover: 1% resistors
mounted to heat sinks, polypropylene capacitors, air core inductors, dual
toroidal audio transformers to drive electrostatic element Low-Pass Crossover:
1% resistors mounted to heat sinks, toroidal inductors, supports user options to
modify sound output via jumpers Audio Controls Bass Control: 0dB, -4dB,
-8dB Distance Control: 3 meters (or less), 4 meters, 5 meters (or greater)
Lighting LED intensity control: On, Dim, Off Cabinet Phenolic Resin Polymer:
Dense substrate with superb mechanical strength to minimize cabinet vibrations
caused by woofer cone motion counter forces to provide an ideal baffle for the
electrostatic panel and woofers. Inputs WBT-0705Ag nextgen™ 5-way bi-wire
binding posts feature a filigree signal conductor made from fine silver for high
conductivity. Fully insulated for CE and IEC conformity providing shock hazard
protection. Free from eddy current effects. Max constant current 30 A,
admissible peak current 200 A. Outer metal cap with palladium plated finish.
Power Draw Standby: 1W each Max: 15W each Weight 385 lbs. (175 kg) Dimensions
74.8" x 30.3" x 34.2 " (189.9cm x 76.9cm x 87cm)
MARTIN LOGAN
BRAVADO
Listino ufficiale
€. 799,00
Diffusori Wireless Serie Wireless Diffusore wireless in sospensione pneumatica.
Airplay e DTS Play-Fi per compatibilità con Amazon Alexa. Wireless 2.4/5.0 GHz,
802.11 a/b/g/n. 1 woofer/midrange da 127mm con cono in alluminio e 2 tweeter a
nastro Folded Motion™ da 24x25mm. Amplificatore in classe D da 200W. Sistema ARC
(Anthem Room Correction), per la calibrazione del suono tramite DSP interno, con
microfono in dotazione. Selettore di corretto posizionamento Left/Right/Center.
Ingresso analogici 3,5mm mini-jack, connettore Ethernet. Uscita subwoofer.
Disponibile in elegante finitura Nera con top noce o Bianca con top bianco.
MARTIN LOGAN
CRESCENDO X
Listino ufficiale
€. 1.399,00
Diffusori Wireless Serie Wireless Diffusore
wireless dal design ricercato in bass reflex. Bluetooth e Airplay. DTS Play-Fi
per compatibilità con Amazon Alexa. Wireless 2.4/5.0 GHz, 802.11 a/b/g/n. 1
woofer/midrange ellittico da 127x178mm con cono in fibra trattata e 2 tweeter a
nastro Folded Motion™ da 24x25mm. Amplificatore in classe D da100W. DSP interno
24bit/48KHz. Ingresso digitale/analogico su jack da 3,5mm. USB. Connettore
Ethernet. Uscita subwoofer. Chassis in MDF per la massima qualità sonoro.
Telecomando. Design e finitura di lusso disponibile in due versioni: laccata
nera con base in alluminio cromato o legno di noce con base in alluminio
anodizzato nero.
Crescendo Overview Introducing Crescendo, a
powerful and precise premium wireless speaker system, featuring dual audiophile
quality Folded Motion™ tweeters and a 5x7-inch mid/bass woofer for a deep,
extended bass response. The Crescendo is capable of reproducing sound with
unflinching accuracy, resolution, and detail—the inspiration behind every
MartinLogan design. Our dedicated in-house design and engineering team created
the ultimate table-top speaker system in a sleek, compact design without
compromising sound quality. Taking a "no-compromise" approach, the Crescendo
features premium construction and design elements not typically found in similar
speakers. Inspiring Design MartinLogan has always blended Science with Art, and
the Crescendo is no exception. Designed to fit a modern decor, MartinLogan
utilizes high-quality materials and finishes to give Crescendo a furniture and
artwork like appearance. The result is striking.The dense cabinet enclosure,
wrapped in either high-gloss piano black paint or real-wood walnut veneer,
floats atop a sturdy aluminum stand and looks comfortably at home in any decor
where aesthetics are as important as sound quality. A cleanly integrated, front
mounted control panel allows quick access to power, input and volume controls.
For across the room control, Crescendo includes a custom remote control built
from black anodized extruded aluminum. Unmatched Performance At the core of the
Crescendo is an advanced 24-bit 48kHz DSP (digital signal processing) based
preamplifier in conjunction with a powerful class-D closed-loop 100-watt
(140-watt peak) amplifier. Crescendo's amplifier creates powerfully detailed
sound from a custom designed front-firing 5x7-inch matte black polypropylene
cone woofer with extended throw drive assembly in a non-resonant asymmetrical
chamber format. Low frequencies are seamlessly blended with two of MartinLogan's
high-performance Folded Motion™ tweeters for an astonishing, room filling
experience. The signature Folded Motion tweeters utilize extremely low mass
diaphragms that "squeeze" air, and require significantly less excursion than the
typical 1-inch dome tweeter, which drastically minimizes distortion while
providing a lightning fast response time. The increased surface area also
provides a wide, yet controlled sound dispersion to create a realistic and
carefully etched sound stage. Crescendo is crafted with a solid MDF enclosure
that strengthens and intensifies low-frequency bass performance while minimizing
vibrations. To further enhance bass performance, Crescendo features an optional
subwoofer output via an analog RCA connection. This option, not typical of
tabletop speaker systems, customizes the crossover between the Crescendo and
subwoofer to give true audiophiles the ability to supplement the low-frequency
performance of their system. Advanced Connectivity Six input methods allow for
connection of virtually any device: 1.Wi-Fi – connect AirPlay capable devices
wirelessly (iPhone, iPad, iPod, or a computer with iTunes) to stream audio.
2.Bluetooth – connect Bluetooth capable devices wirelessly to stream audio.
Bluetooth V4.0 supports SBC, MP3, AAC, and apt-X®. 3.Wired Ethernet – audio
information can be sent over a LAN to the Crescendo using various protocols (such
as AirPlay or DLNA) 4.USB – connect compatible Apple devices and use the
Crescendo as an audio dock and charger. The USB connection was designed to
rapidly charge a variety of devices. 5.Analog – any device that has an analog
audio output can connect to the auxiliary analog input via a 3.5mm headphone
style jack. 6.Optical digital – any device that has a digital optical output can
connect to the auxiliary digital input with the included mini-Toslink optical
adapter (analog and digital connections share the same input Crescendo
Specifications Frequency Response 50–23kHz ±3dB High Frequency Transducer Two
0.94” x 1” (2.4cm x 2.5cm) Folded Motion Transducers with 2.8” x 1.25” (7.1cm x
3.2cm) diaphragm. Low Frequency Transducer 5” x 7” (12.7cm x 17.8cm) fiber cone
with extended throw drive assembly. Non-resonant asymmetrical chamber format.
Amplifier 1 x 50 Watts (woofer). 2 x 25 Watts (tweeters) 100 Watts (140 Watts
peak) combined total output. Crossover Frequency 3,600 Hz Components 24-bit
48kHz DSP based preamplifier Class-D amplifier Inputs 802.11b/g/n (2.4GHz)
Bluetooth v4.0 (supports AAC, aptX®, MP3, SBC), USB (iPhone, iPad, iPod digital
connection) Auxiliary analog/optical digital (3.5mm mini jack) RJ45 Ethernet
Power Draw Max: 70 Watts, Idle: 6.5 Watts, Standby: < 4 Watts Weight 15 lbs.
(6.8 kg) Dimensions (H x W x D) 8.1" × 25.7" × 6.9" (20.53cm × 65.3cm × 17.5cm)
.gif)
MARTIN LOGAN
MOTION
6i
Listino ufficiale
€. 399,00
Diffusori Main -
Frontali Serie Compact Motion Diffusore compatto a forma curva, posizionamento
in appoggio o a parete. 2 vie, bass reflex, 2 woofer/midrange con cono in
polipropilene da 89mm, tweeter a nastro Folded Motion™ da 24x25mm. Potenza
20-130W. Efficienza 89dB. Impedenza 6 ohm. Crossover con protezione
termica/corrente per tweeter. Posizionamento sia verticale che orizzontale, con
staffa in dotazione che permette l'inclinazione verso l'ascoltatore. Elegante
finitura con griglia in alluminio.
.gif)
MARTIN LOGAN
MOTION
8i
Listino ufficiale
€. 549,00
Diffusori Main -
Frontali Serie Compact Motion Diffusore compatto a forma curva, posizionamento
in appoggio o a parete. 2 vie, bass reflex, 2 woofer/midrange con cono in
polipropilene da 102mm, tweeter a nastro Folded Motion™ da 25x36mm. Potenza
20-180W. Efficienza 89dB. Impedenza 4 ohm. Crossover con protezione
termica/corrente per tweeter. Posizionamento sia verticale che orizzontale, con
staffa in dotazione che permette l'inclinazione verso l'ascoltatore. Elegante
finitura con griglia in alluminio.
MARTIN LOGAN
MOTION
30/i
Listino ufficiale
€. 900,00
Diffusori Centrali
Serie MotionCanale centrale a 2 vie, bass reflex posteriore, 2 woofer/midrange
con cono in alluminio da 140mm, tweeter a nastro Folded Motion™ da 26x36mm.
Potenza 20-200W. Efficienza 91dB. Impedenza 4 ohm. Crossover con protezione
termica/corrente per tweeter. Disponibile in tre finiture, tutte con griglia
nera metallica ad attacco magnetico.
MOTION 30i Canale
centrale a 2 vie, bass reflex posteriore, 2 woofer/midrange con cono in
alluminio a cupola invertita da 140mm, tweeter a nastro Folded MotionTM da
26x36mm. Potenza 20-200W. Efficienza 91dB. Impedenza 4 ohm. Crossover con
componenti selezionati e protezione termica/corrente per tweeter. Disponibile in
tre finiture: Lacca Nera, Bianca Matte o Palissandro naturale a poro aperto,
tutte con griglia nera in tela ad attacco magnetico
Powerful compact
center channel speaker with a Folded Motion™ tweeter, high-gloss piano-black
finish subtleangled top. Voice-matched to MartinLogan ESL speakers. Inspired by
the clarity and detail of our ultra-high-end electrostatic loudspeakers, Motion
30 features an exquisite Folded Motion tweeter and powerful bass technology in a
compact and affordable package. Key to Motion 30’s performance is the lightning
fast response of the tweeter’s light-weight diaphragm combined with a large
surface area (8- times that of a typical one-inch dome tweeter) which together
achieve a smooth, refined sound with stunning dynamic range and jaw-dropping
clarity.S P E C I F I C A T I O
N S Frequency Response 65–25 000 Hz ± 3 dB Dispersion 80° x 80° High Frequency
Driver 1” x 1.4” (2.6cm x 3.6cm) Folded Motion Transducer with 5.25” x 1.75”
(13.3cm x 4.4cm) diaphragm Low Frequency Transducer Two 5.5” (14cm) aluminum
cone with cast polymer basket. Non-resonant asymmetrical chamber format. Rigid
structured dust cap to reduce cone break-up modes. Sensitivity 91 dB/2.83 volts/meter
Impedance 4 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers. Recommended
Amplifier Power 20 – 200 watts Crossover Frequency 400 & 2,600 Hz Cabinet Rear
PortedComponents Custom air core coil and low DCR steel laminate inductors.
Polyester film capacitors in series and low DF electrolytic capacitors in
parallel. Overall system thermal/current protection. Inputs Custom 5-way
tool-less binding posts Weight 18 lbs. (8.2 kg) Dimensions 6.9” x 16.5” x 10.5”
(17.5cm x 42cm x 26.6cm)
MARTIN LOGAN
MOTION
50XTi
Listino ufficiale
€. 1.250,00
MOTION 50XTi mCanale centrale a 2 vie, bass
reflex posteriore, 2 woofer/midrange con cono in alluminio a cupola invertita da
165mm, tweeter a nastro Folded MotionTM da 32x61mm. Potenza 20-300W. Efficienza
94dB. Impedenza 4 ohm. Crossover con componenti selezionati e protezione
termica/corrente per tweeter. Predisposizione bi-wiring. mDisponibile in tre
finiture: Lacca Nera, Bianca Matte o mPalissandro naturale a poro aperto, tutte
con griglia nera in tela mad attacco magnetico.
What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house
engineering team started by utilizing and refining the most advanced, compact
technologies and combining them with innovative engineering. The result is an
emotionally engaging sound that rivals (and most times trounces) traditional
loudspeakers of similar size and price.The signature Folded Motion tweeters
utilize extremely low mass diaphragms that "squeeze" air, and require
significantly less excursion than the typical 1-inch dome tweeter, which
drastically minimizes distortion while providing a lightning fast response time.
The increased surface area also provides a wide, yet controlled sound dispersion
to create a realistic and carefully etched sound stage.The low distortion Folded
Motion XT tweeter boasts a radiating surface 40% larger than those found in the
award-winning Motion® Series products. This substantial leap in size increases
the bandwidth and efficiency of the high-performance tweeter for effortless
performance.S P E C I F I C A T I O N S Frequency Response 50–25 000 Hz ± 3
dB Dispersion 80° x 30° High Frequency Driver 1.25” x 2.4” (3.2cm x 6.1cm)
Folded Motion XT Transducer with 4.5” x 2.75” (11.4cm x 7cm) diaphragm. Low
Frequency TransducerTwo 6.5” (16.5cm) aluminum cone with cast polymer basket.
Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce
cone break-up modes. Sensitivity 94 dB/2.83 volts/meter Impedance 4 Ohms.
Compatible with 4, 6 or 8 Ohm rated amplifiers. Recommended Amplifier Power 20 –
300 watts Crossover Frequency 900 & 2,200 Hz Cabinet Rear Ported Components
Custom air core coil and low DCR steel laminate inductors. Polypropylene film
capacitors in series and low DF electrolytic capacitors in parallel. Tweeter
thermal/current protection. Inputs Custom 5-way bi-wire tool-less binding posts
Weight 30.5 lbs. (13.8 kg) Dimensions 7.6” x 22.8” x 12.8” (19.2cm x 58cm x
32.6cm)
MARTIN LOGAN
ELECTROMOTION
ESL C
Listino ufficiale
€. 2.600,00
Diffusori Centrali Elettrostatici - Ibridi Serie
ElectroMotion Canale centrale elettrostatico/ibrido a 3 vie, sospensione
pneumatica, doppio woofer con cono in alluminio da 133mm, midrange a nastro
elettrostatico curvilineo a dispersione controllata CLS XStat™ da 584x162mm,
tweeter a nastro Folded Motiont da 26x36mm. Potenza 20-300W. Efficienza 89dB.
Impedenza 4 ohm.Versione Finitura Gloss
Black del cabinet sezione bassi e Matt Black del pannello elettrostatico.
2.900,00 Euro
The powerful EM-ESL C is a high-performance electrostatic center channel
loudspeaker. With the exceptional mid-range dynamics of an electrostatic panel,
the remarkable details delivered by a Folded Motion Tweeter, and the addition of
a newly-designed CenterForce dual woofer system, the most surprising thing about
the EM-ESL C isn’t its superior performance. It’s that the EM-ESL C is compact
enough to fit easily into today’s most popular A/V furniture. With the EM-ESL C
electrostatic center channel loudspeaker, you can match the acoustic signature
of your ElectroMotion Series speakers and build a truly astounding home theater
system.By adding a compact electrostatic panel to a center channel speaker,
MartinLogan engineers have succeeded in expanding the performance dynamics of
the most important speaker in your home theater system. Your center channel
speaker needs to be able to reproduce the finest high frequency details. The
midrange must be expansive; to reproduce every whisper of dialogue. Deep bass
adds impact to the front-stage effects that anchor the action to your screen.
The EM-ESL C accomplishes all this, and more. The EM-ESL C has a shallow height
CLS (Curvilinear Line Source) XStat electrostatic panel wrapped around the front
of the speaker enclosure. The gentle horizontal curve of the panel enhances the
output of its deceptively compact 114-square-inch radiating area, extending
mid-range dispersion patterns and blending the performance seamlessly with your
front-stage ElectroMotion loudspeakers. Just behind the electrostatic panel, in
a specially designed housing, sits MartinLogan’s exclusive Folded Motion Tweeter.
The low-mass diaphragm of the Folded Motion Tweeter minimizes distortion, and
its short excursion length reinforces its lightning fast high frequency response.
The 1 x 1.4-inch Folded Motion Tweeter in the EM-ESL C has a total diaphragm
area of 9.2-inches, with the ability to reproduce precise details; one of the
most important jobs of a center channel speaker.Designing a high performance
electrostatic center channel speaker sized to fit into A/V furniture was no easy
task. Adding a dual woofer system seemed impossible! But MartinLogan’s skilled
audio engineers found a novel solution, and they call it CenterForce. Instead of
taking up space by positioning the woofers on each side of the electrostatic
panel, they’ve designed a central slot inside the cabinet for the woofers. Now,
the dual woofers reside in a well-braced enclosure located behind the tweeter
and electrostatic panel. This new CenterForce solution allows the speaker to be
more compact, and encourages the woofers to produce a generous amount of
well-blended deep bass. The CenterForce system in the EM-ESL C features two
custom-designed 5.25-inch aluminum cone woofers. Rigid and yet lightweight, this
material reduces flexure while minimizing response time. Their efficient
construction optimizes suspension and magnetic flux field, further reducing
potential sources of distortion. The EM-ESL C grounds its performance in
accurate, musical bass response. This is a center channel speaker that delivers
a full-range performance, by combining an electrostatic panel with a Folded
Motion Tweeter, bolstered by the CenterForce bass system. The compact EM-ESL C
goes where you want it, and does what you need, for your high performance
ElectroMotion home theater system.ElectroMotion ESL C Specifications
Specifications are subject to change without notice Frequency Response 66–23,000
Hz ±3dB Horizontal Dispersion 30° Vertical Dispersion 6.375" (16cm) line source
High Frequency Transducer One 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer
with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm. Mid Frequency Transducer XStat™
CLS™ electrostaic transducer » Panel Dimensions 6.375" x 23" (16.1 x 58.4cm) »
Radiating Area 146.6 in² (940 cm²) Low Frequency Transducer Two 5.25" (13.3 cm)
high excursion, high-rigidity aluminum cone with extended throw driver assembly,
non-resonance asymmetrical chamber format. Sensitivity 89 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. Recommended
Amplifier Power 20—300 watts per channel Crossover Frequency 600, 3400 Hz
Components Custom-wound audio transformer, air core coils, low dcr steel
laminate coils, polyester capacitors Inputs Custom 5-way tool-less binding posts
Weight 32 lbs. (14.5 kg) Dimensions 7.6" x 22.8" x 16.1 " (19.3cm x 57.9cm x
40.9cm)
MARTIN LOGAN
FOCUS ESL
C18
Listino ufficiale
€. 5.700,00
Canale centrale elettrostatico/ibrido a 3 vie,
sospensione pneumatica, doppio woofer con cono in alluminio da 165mm, midrange a
nastro elettrostatico curvilineo a dispersione controllata CLS XStat™ da
457x191mm, tweeter a nastro Folded Motion™ da 26x36mm. Potenza 50-400W.
Efficienza 90dB. Impedenza 4 ohm. Connettori WBT. Posizionamento sia in appoggio
che a muro con staffa in dotazione. colori : Gloss Black Gloss White
Dark Cherry Walnut
Focus ESL C18 is a versatile performance shelf or wall-mounted electrostatic
center channel speaker, bringing realism into focus with an 18-inch wide XStat
CLS electrostatic transducer with the detailed imaging capability of a Folded
Motion tweeter, along with twin 6.5-inch woofers, capable of deep bass
reproduction down to 50Hz.The painters of the Dutch Golden Age produced
photo-realistic masterpieces 300 years before cameras were invented. They
focused your attention using a bright, otherworldly light. Even in their most
intimate portraits, the riveting light draws your eye. This kind of sensory
focus is the key to realism in your home theater, as well. It’s the job of your
center channel loudspeaker to anchor action and dialogue to your screen. It must
reproduce detailed high frequency information to reinforce imaging, and also
blend seamlessly with the other speakers in your surround-sound system to
envelope you in a realistic soundstage. MartinLogan presents a new Masterpiece
of home theater realism: the Focus ESL C18 Center Channel Loudspeaker, an
electrostatic center channel speaker designed for wall-mounted flexibility.On
the wall or on the shelf, there has never been a more adaptable electrostatic
speaker.
The goal is flexibility and performance, and the Focus ESL C18 achieves both.
The sleek, sculpted enclosure is solidly braced, resonance-free and
well-balanced. It is designed to be mounted above or below your screen.
Heavy-duty wall-mounting bracket hardware is included, and the innovative
brackets accommodate multiple mounting angles, so you can aim the Focus ESL C18
directly at your listening position for a perfectly aligned center channel
presentation. The Focus ESL C18 is also at home on a shelf or floor stand.
Toggle the convenient “On-Wall/Off-Wall” acoustic contour switch to instantly
optimize performance for any mounting position. This feature automatically
modifies response to compensate for wall boundaries that may reinforce or
inhibit bass output. The result is room-filling center channel reproduction with
lifelike full-range verve. Installation flexibility and tailored center channel
performance: Now you have more options than ever in your Masterpiece home
theater system. Focus ESL C18 Specifications
Specifications are subject to change without
notice Frequency Response 50–23,000 Hz ±3dB Horizontal Dispersion 30° High
Frequency Transducer 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with
5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.Mid Frequency Transducer Patented CLS™
XStat™ electrostatic transducer » Panel Dimensions 7.5" x 18" (19 x 45.7cm) »
Radiating Area 135 in² (868 cm²) Low Frequency Transducer Two 6.5" (16.5cm) cast
basket, high excursion, rigid aluminum cone with extended throw drive assembly,
non-resonance asymmetrical chamber format. Sensitivity 90 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. Recommended
Amplifier Power 20—300 watts per channel Crossover Frequency 470, 3000 Hz
Components Custom-wound audio transformer, air core coils, low DCR steel
laminate coils, polyester capacitors Audio Controls Position: On-Wall / Off-Wall
Signal Inputs WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal
conductor made from gold plated, nickel free, non- ferromagnetic, pure copper
for high conductivity and fully insulated. Free from eddy current effects.
Weight 50 lbs. (22.7 kg) Dimensions (Table Mount) 9.6" x 43.2" x 9.2 " (24.4cm x
109.7cm x 23.4cm) Dimensions (Installed On Wall, Flat Mount) 9.4" x 43.2" x 9.6"
(23.9 cm x 109.7cm x 24.5cm)
MARTIN LOGAN
ILLUSION ESL
C34C
Listino ufficiale
€. 11.500,00
Canale centrale elettrostatico/ibrido a 3 vie con
sezione bassi amplificata e ARC™ ready. Quadruplo woofer con cono in alluminio
da 165mm, pilotati da un amplificatore da 250W in classe D con possibilità di
calibrazione Anthem Room Correction (opzionale). Midrange a nastro
elettrostatico curvilineo a dispersione controllata CLS XStat™ da 876x203mm,
doppio tweeter a nastro Folded Motion™ da 32x61mm. Unione del pannello
elettrostatico al modulo dei bassi con tecnologia AirFrame Blade Design ultra
rigida. Potenza 50-600W. Efficienza 90dB. Impedenza 6 ohm. Crossover 24bit
Vojtko™. Regolazione dei bassi e dei medio/alti. Connettori WBT. Posizionamento
sia in appoggio che a muro con staffa in dotazione. Pannello elettrostatico Matt
Black. colori : Gloss Black Gloss White Dark Cherry Walnut
5.000
llusion ESL C34A is the ultimate performance floorstanding center channel
loudspeaker that blurs the lines between performance and reality by combining
the dynamics of a 34-inch wide XStat CLS electrostatic transducer with the
detailed imaging capability of Folded Motion XT tweeters, four 6.5-inch
PoweredForce Forward™ woofers powered by a 250-watt Class-D amplifier, and
controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room Correction).ILLUSION
ESL C34A Masters of the Illusionist school of art perfected trompe-l’oeil,
employing painting techniques that mimicked actual objects so vividly that
“Illusionism” blurred the boundaries between art and reality. This kind of
illusion is the goal of any loudspeaker, especially a center channel speaker—the
most important speaker in a multi-channel audio system. It is tasked with
reproducing the most important audio information for imaging and realism:
cinematic dialogue, anchoring effects, and a large portion of the front sound
stage. It is fitting, then, that we introduce our new Masterpiece Series center
channel loudspeaker, the Illusion ESL C34A.There are no illusions about the
performance of the Illusion ESL C34A. It is the ultimate high performance
floorstanding electrostatic center channel loudspeaker. Its classic MartinLogan
electrostatic panel and Folded Motion XTTweeters are uniquely integrated to
powered woofer section—new technology joined with proven innovation producing a
truly innovate center channel loudspeaker.This ambitious new center channel
blurs the line between performance and reality by combining the unflinching
accuracy of a 34-inch wide XStat™ CLS™ electrostatic transducer with the
detailed imaging capability of dual Folded Motion XT tweeters. Additionally,
four laser-engineered 6.5-inch aluminum cone woofers, driven by 250 watts of
clean amplification with on-board Anthem Room Correction (ARC) technology,
anchor the image to your screen and deliver massive cinematic impact. The
Illusion ESL C34A is timbre-matched to our flagship Masterpiece Series speakers
to create a white-knuckle home theater experience of skidding car chases,
blitzing battle scenes, or even intimately whispered dialogue within a
seamlessly coherent surround-sound environment, making the Illusion ESL C34A the
perfect center of your Masterpiece home theater.How does the Illusion ESL C34A
produce a level of realism on par with the best of the Illusionist masterpieces?
The secret to its success are the dual Folded Motion XT tweeters embedded
directly behind the XStat electrostatic panel. The unobtrusive tweeter housing
design disappears behind the panel, which eliminates high-frequency diffraction,
and increases mid-range/high-frequency phase coherence and time alignment while
offering superior dispersion characteristics. Folded Motion XT tweeters are a
unique design, and work by moving air (creating sound) perpendicular to the
folded ridges of the diaphragm, similar to how an accordion works. This
extremely low mass diaphragm “squeezes” air and requires almost 90% less
excursion than the typical 1-inch dome tweeter. This produces instantaneous
response time with drastically minimized levels of distortion. The increased
surface area also provides a wide, yet tightly controlled, sound dispersion to
create a precise, realistically detailed sound stage.Because of this detailed
performance, Folded Motion XT tweeter technology is the ideal match for our
electrostatic transducer. In the case of the Illusion ESL C34A, the
electrostatic panel is able to expand in its role as mid-range driver, while the
lightning-fast high-frequency transient response of tweeters delivers superior
imaging precision. The Illusion ESL C34A features dual 1.25x2.4-inch Folded
Motion XT tweeters, each with a total diaphragm area of 4.5x2.75-inches.Illusion
ESL C34A Specifications are
subject to change without notice Frequency Response 45–23,000 Hz ±3dB Horizontal
Dispersion 30° High Frequency Transducer Two 1.25" x 2.4" (3.2cm x 6.1cm) Folded
Motion XT Transducers with 4.5" x 2.75" (11.4cm x 7cm) diaphragm. Mid Frequency
Transducer Patented CLS™ XStat™ electrostatic transducer » Panel Dimensions 8" x
34.5" (20.3 x 87.6cm) » Radiating Area 276 in² (1,778 cm²) Low Frequency
Transducer Four 6.5" (16.5cm) cast basket, high excursion, rigid aluminum cone
with extended throw drive assembly, non-resonance asymmetrical chamber format.
Room Correction (Bass Section) Anthem Room Correction (ARC) Ready (Sold
Separately) Amplifier 1x 250 watts/channel (4 ohms), 500 watts peak Sensitivit
90 dB/2.83 volts/meter Impedance 6 Ohms Compatible with 4, 6, or 8 Ohm rated
amplifiers. Recommended Amplifier Power 20—600 watts per channel Crossover
Frequency 500, 2000 Hz Components Custom-wound audio transformer, air core coils,
polypro- pylene capacitors. 24-bit DSP based preamplifier (used with woofer
amplifier). Audio Controls Bass: ±10dB under 75Hz Mid-Bass: –2dB, 0dB, +2dB ARC
Room EQ: On, Off Signal Inputs WBT-0703Cu nextgen™ 5-way binding posts feature a
filigree signal conductor made from gold plated, nickel free, non- ferromagnetic,
pure copper for high conductivity and fully insulated. Free from eddy current
effects. Inputs AC Power, RJ45 (for ARC), mini USB (for ARC) Power Draw Max:
300W per channel Standby: <1W per channel Weight 90 lbs. (40.9 kg) Dimensions
23.75" x 32.35" x 23.1 " (60.3cm x 82.2cm x 58.6c
MARTIN LOGAN
MOTION
FX
Listino ufficiale
€. 500,00
MOTION FX Diffusore
surround a 2 vie ad ampia dispersione, bass reflex posteriore, woofer/midrange
con cono in cellulosa trattata da 133mm, 2 tweeter a nastro Folded MotionTM da
26x36mm. Potenza 20-160W. Efficienza 91dB. Impedenza 4 ohm. Possibilità di
installazione ad angolo, a muro piatta o angolata. Disponibile in due
finiture: Nera Opaca con griglia nera o Bianca Opaca con griglia bianca.
Diffusore surround a 2 vie ad ampia
dispersione, bass reflex posteriore, woofer/midrange con cono in cellulosa
trattata da 133mm, 2 tweeter a nastro Folded Motion™ da 26x36mm. Potenza
20-160W. Efficienza 91dB. Impedenza 4 ohm. Possibilità di installazione ad
angolo, a muro piatta o angolata. Disponibile in due finiture: Matt Black con
griglia nera o Matt White con griglia bianca.
The new Motion FX, the series' first dedicated surround channel, features dual
Folded Motion tweeters in a wide dispersion array ideally suited for surround
channel applications. Available in either black or white, the Motion FX is
designed to corner mount, wall-mounting or angle wall mount for versatile
surround sound placement in any room.
MARTIN LOGAN
MOTION
AFX
Listino ufficiale
€. 700,00
Diffusori Surround
FX Serie MotionDiffusore effetti Dolby Atmos a 2 vie, sospensione pneumatica,
woofer/midrange con cono in polipropilene da 133mm, tweeter a cupola in
alluminio da 19mm. Potenza 20-200W. Efficienza 87dB. Impedenza 4 ohm.
Posizionamento appoggiato sopra i diffusori già esistenti, senza complicazioni
in altezza. Necessita di posizionamento a coppie, 2, 4 o 6 in base alla
configurazione Dolby Atmos adottata. Con griglia nera
Motion AFX Dolby Atmos® Enabled Speakers MartinLogan Motion AFX Dolby Atmos
enabled speakers are designed to create a height layer of sound above the
listener that better connects viewers with the richness, detail and clarity of
the on screen experience. The Motion AFX is designed to sit on top of
floorstanding and bookshelf speakers in MartinLogan’s Motion series. These
models include the Motion 15, 20, 35XT, 40 and 60XT. Designed to reflect sound
off of the ceiling in a Dolby Atmos entertainment system, The AFX will also work
with other brands of speakers with a flat top. For systems where a speaker-top
mounting is not possible, other installation options are available.
Immersive Dolby Atmos Experience Dolby Atmos delivers captivating sound that
places and moves audio anywhere in the room, including overhead, to bring
entertainment alive all around the audience. Whether you are listening to music,
movies, television shows, or playing your favorite video games, Dolby Atmos
delivers the full impact of the entertainment experience. Each Motion AFX
speaker features a 0.75-inch aluminum dome tweeter and 5.25” polypropylene cone
bass/midrange driver with stamped steel basket, all incorporated into a
beautiful High Gloss Black cabinet. The shape of the Motion AFX cabinet is
specifically designed to angle the drivers towards the ceiling in order to
accurately deliver a Dolby Atmos sound experience above the listeners S
P E C I F I CAT I O N S* Frequency Response 90–20,000 Hz ± 3 dB Sensitivity 87
dB @ 2.83 volts/ meter Impedance 4 Ohms. Compatible with 4, 6 or 8 Ohm rated
amplifiers. Crossover Frequency 2,000 Hz High Frequency Driver 0.75” (1.9cm)
aluminum dome Low Frequency Drivers 5.25” (13.4cm) polypropylene cone with
stamped steel basket. Cabinet Sealed Components & Decoding Custom air core and
low dcr steel laminate inductors. Polyester film capacitors in series and low DF
electrolytic caps in parallel. Recommended Amplifier Power 20–200 watts Binding
Post Inputs Custom 5-way tool-less binding posts Weight 8 lbs. (3.6 kg)
Dimensions (H x W x D) 7.7” x 6.8” x 10” (19.5cm x 17.3cm x 25.4cm)
MARTIN LOGAN
DYNADIO 400
Listino ufficiale
€. 525,00
Diffusori Subwoofer
Serie Dynamo Subwoofer attivo in bass reflex. Woofer a lunga escursione da 20cm
con cono in polipropilene e sospensione invertita. Potenza di amplificazione 75W
in classe D. Risposta in freq. 30Hz - 200Hz. Regolazione del volume e del taglio
di frequenza. Fase 0/180°. Ingressi linea RCA e LFE. Ingressi alto livello L e
R.
MARTIN LOGAN
DYNADIO 600X
Listino ufficiale
€. 799,00
Diffusori Subwoofer
Serie Dynamo Subwoofer attivo in bass reflex, controllabile in Bluetooth tramite
App. Woofer a lunga escursione da 25cm con cono in polipropilene e sospensione
invertita. Potenza di amplificazione 120W in classe D. Risposta in freq. 27Hz -
200Hz. Regolazione del volume con manopola oppure tramite App regolazione
volume, frequenza di taglio, fase 0/180° e Anthem Room Correction on/off.
Ingressi linea RCA e LFE. Ingressi alto livello L e R. Possibilità di modulo
opzionale SWT-X Wireless per trasmissione e ricezione del segnale senza fili.
MARTIN LOGAN
DYNADIO 700
Listino ufficiale
€. 850,00
Dinamo
700 Stereo Subwoofer e Step Up di precisione a bassa
frequenza, potenza e bassi più profondi! Sulla scia del successo del Dynamo
originale, i nostri progettisti ha continuato a creare subwoofer compatti, il
nuovoe potente Dynamo 700. Dotato di un amplificatore ad alta corrente 300-watt
RMS e 600 Watt di picco con un woofer da 10-pollici, il Dynamo 700 è in grado di
riprodurre le frequenze più profonde, ed avere un impatto ed una articolazione
eccellenti, ideali per l'home theater o la musica stereo. La configurazione
standard down-firing può rapidamente (e facilmente!) trasformarsi in una
configurazione ad emissione frontale front per coloro che preferiscono una
installazione "nascosta". Il tocco finale - un ricevitore wireless per gli
appassionati delle frequenze basse che preferiscono un look pulito e minimalista
nella stanza, senza cavi in vista. Dynamo 700 Specifiche Risposta in Frequenza:
24-200 Hz ±3dB; Ricevitore senza fili: interna Trasmettitore senza fili:
SWT-1 Trasmettitore senza fili per subwoofer, venduto separatamente Frequenza
filtro passa basso: 35-120 Hz Interruttore filtro passa basso: 0°, 90°, 180°
Bypass (LFE In), Variabile (ingresso sinistro e destro) Fase: 0°, 90°,
180° Woofer: 25.4cm ad alta escursione, cono in poly Amplificatore:
300 watts rms (600 watts picco) Ingressi: Sinistro e Destro/LFE RCA linea
Impedenza d'ingresso: Linea RCA: 20,000 ohms Consumo: Standby: 1W a riposo: 15W
Max: 400W Peso: 12 kg Dimensioni con woofer frontale(AxLxP): 34,2 x 29,7 x 31,3
cm) Dimensioni con woofer in basso (AxLxP): 31,9 x 29,7 x 31.8 cm
Dynamo 700w Step Up to Low Frequency Accuracy, Power, and Deeper Bass! Building
on the success of the original Dynamo, our designers went on to create the
compact, powerful Dynamo 700w. Featuring a high-current 300-watt RMS, 600-watt
peak amplifier and 10-inch cone driver, the Dynamo 700w delivers deep, tight,
effortless bass for home theater or stereo music. Its standard down-firing
configuration quickly (and easily!) converts into a front-firing setup for those
who prefer a "hidden" installation. Finishing touch - an included wireless
transmitter and receiver for bass aficionados who prefer a clean, minimalist
look in the room, with no cables in sight. Built-In Wireless Receiver offers
Extreme Placement Flexibility! Although correct placement plays a key role in
optimizing subwoofer performance, sometimes it imposes the inconvenience (not to
mention unsightliness!) of running long lengths of cable through walls, along
baseboards or under floors and carpets. To solve the problem, the Dynamo 700w
incorporates a wireless receiver (digital RF transmission) for use with the
included SWT-2 MartinLogan Subwoofer Wireless Transmitter in which case, cable
clutter also becomes a moot point! High-Resolution Low-Distortion 10-Inch Woofer
The Dynamo 700's advanced-technology driver pairs a high-power magnet structure
with a 10-inch diaphragm to deliver huge excursion and sound output while
perfectly preserving the tiniest bass detail... and all without a hint of
distortion. The exceptional damping properties of the cone material also ensure
the smooth, non-resonant response necessary for truly seamless blending with
MartinLogan electrostatic panel and Folded Motion™ driver technologies. Advanced
Ultra-Efficient 300-Watt Amplifier The Dynamo 700w's ultra-efficient high-power
amplifier uses variable audio tracking power supplies to drive its class AB
output stage. With lower distortion and less noise than typical Class D
switching amplifiers this advanced design allows the amplifier to operate at
much higher efficiencies than a typical class AB amplifier, delivering a true
300 watts of continuous power. An energy-conscious design, the Dynamo 700w's amp
consumes less than a single watt in Standby mode. Front-Firing or Down-Firing
Configuration To maximize performance when installed inside of a cabinet or
other discrete installation, the Dynamo 700w's standard down-firing
configuration easily converts into a front-firing orientation-no tools required!
A grill cover and 90 degree RCA adaptors are provided for use in front-firing
applications. Inverse Mathematical Equalization (IME) Filter An IME filter is
derived from the inverse of the unfiltered driver response. Precision IME
filtering yields extremely accurate low-frequency response - far superior to
that provided by the simple second-order high-Q filters typically found in
subwoofers in this price range. Sealed Cabinet with Extensive Internal Bracing A
good sealed system will typically exhibit less transient-blurring group delay
while maintaining smooth, consistent response regardless of music or movie
source material. On the outside, the Dynamo 700w's cabinet is constructed from
the finest composite material for acoustic integrity. Inside, critically placed
structural cross-bracing acts an excellent baffle for the woofer while the added
rigidity keeps cabinet-induced resonances and non-linearities to inaudible
levels. Seamless System Integration - Engineered for Stereo and Home Theater
Comprehensive connection options, low-pass filtering and phase control make
integrating the Dynamo 700w subwoofer into a multi-channel home theater or
stereo music setup simple and seamless. The main left/right line-level inputs
feed into a precision low-pass filter with a cut-off frequency variable from 35
to 120 Hz. For systems in which a surround processor supplies the crossover, the
Dynamo 700w offers an LFE input that bypasses its internal filters. Energy
Transfer Coupler (ETC) Spikes The Dynamo 700w comes with custom ETC spikes which
can be used in place of the feet to enhance stability on thick carpets, or
create tighter coupling between subwoofer and floor to enhance overall sound
quality.
MARTIN LOGAN
DYNADIO 800X
Listino ufficiale
€. 1.025,00
Diffusori Subwoofer
Serie Dynamo Subwoofer attivo in sospensione pneumatica, controllabile in
Bluetooth tramite App. Woofer a lunga escursione da 25cm con cono in
polipropilene e sospensione invertita. Possibilità di scelta emissione frontale
o a pavimento. Potenza di amplificazione 300W in classe D. Risposta in freq.
24Hz - 200Hz. Regolazione del volume con manopola oppure tramite App regolazione
volume, frequenza di taglio, fase 0/180° e Anthem Room Correction on/off.
Ingressi linea RCA e LFE separato. Ingressi alto livello L e R. Trigger 12V.
Possibilità di modulo opzionale SWT-X Wireless per trasmissione e ricezione del
segnale senza fili.
MARTIN LOGAN
DYNADIO 1100X
Listino ufficiale
€. 1.575,00
Diffusori Subwoofer
Serie Dynamo Subwoofer attivo in sospensione pneumatica, controllabile in
Bluetooth tramite App. Woofer a lunga escursione da 30cm con cono in
polipropilene e sospensione invertita. Possibilità di scelta emissione frontale
o a pavimento. Potenza di amplificazione 650W in classe D. Risposta in freq.
22Hz - 200Hz. Regolazione del volume con manopola oppure tramite App regolazione
volume, frequenza di taglio, fase 0/180° e Anthem Room Correction on/off.
Ingressi linea RCA e LFE separato sia RCA che XLR. Ingressi alto livello L e R.
Trigger 12V. Possibilità di modulo opzionale SWT-X Wireless per trasmissione e
ricezione del segnale senza fili.
MARTIN LOGAN
DYNADIO 1600X
Listino ufficiale
€. 2.250,00
Diffusori Subwoofer
Serie Dynamo Subwoofer attivo in sospensione pneumatica, controllabile in
Bluetooth tramite App. Woofer a lunga escursione da 38cm con cono in
polipropilene e sospensione invertita. Possibilità di scelta emissione frontale
o a pavimento. Potenza di amplificazione 900W in classe D. Risposta in freq.
20Hz - 200Hz. Regolazione del volume con manopola oppure tramite App regolazione
volume, frequenza di taglio, fase 0/180° e Anthem Room Correction on/off.
Ingressi linea RCA e LFE separato sia RCA che XLR. Ingressi alto livello L e R.
Trigger 12V. Possibilità di modulo opzionale SWT-X Wireless per trasmissione e
ricezione del segnale senza fili.
MARTIN LOGAN
BALANCEDFORCE 210
Listino ufficiale
€. 4.250,00
Diffusori
Subwoofer Serie BalancedForce Subwoofer attivo in sospensione pneumatica. Doppi
woofer a lunga escursione da 25cm con cono in alluminio montati in
configurazione bilanciata, magnete contro magnete, in cassa chiusa asimmetrica.
Potenza di amplificazione 850W in classe D. Risposta in freq. 20Hz - 200Hz.
Posizionamento ottimale tramite microfono e computer del Perfect Bass Kit (PBK)
opzionale. Tutte le regolazioni, volume, frequenza di taglio, etc. sono
posizionate superiormente, sotto uno sportellino in vetro. Ingressi linea e LFE
sia RCA che XLR. Ingressi alto livello L e R. Multi out per mettere in cascata
più subwoofer. Trigger 12V.
Ultimate Performance Subwoofers Chances are you've
read or heard at some time that adding a subwoofer to a system built around
electrostatic speakers is nearly impossible. Although that's not necessarily
true (and we have the subwoofers to prove it), the idea is grounded in
experience. For many years subwoofers and electrostats did not blend very well.
Turn on the sub and maybe you got the deeper, stronger bass you were looking for
but that wonderful electrostatic snap and midrange clarity were, if not gone,
now smeared and disconnected.Our goal, when we began our first subwoofer
project, was to deliver the good stuff — deep, tight, powerful bass — and none
of the bad. We wanted to build subwoofers that, when combined with ultra-fast
electrostatics or conventional cone speakers, would blend seamlessly to the very
bottom of the frequency extreme. BalancedForce subwoofers are the full
realization of years of engineering by the MartinLogan team combined with the
latest innovations in advanced digital signal processing, amplification,
electrical system designs, and room correction BalancedForce®
Alignment Opposing Aluminum Element Woofers for Deep, Clean Bass
Dual low-distortion woofers pair a high-power magnet structure with 10- and
12-inch aluminum cone diaphragms to deliver huge excursion and sound output
while preserving minute bass details, all without a hint of distortion. The cone
material's exceptional damping properties ensure the smooth, non-resonant
response necessary for seamless blending with high-resolution full-range
loudspeakers. These woofers, spaced 180 degrees apart in a 'BalancedForce'
configuration, operate in exact opposition, to nullify distortion causing
cabinet vibrations and deliver pure bass energy. Traditional subwoofer
enclosures suffer from an equal and opposite reaction to the cone's movement,
generating acoustic vibrations within the cabinet. You feel this by touching the
cabinet. Although the "physics" of this phenomenon actually cause a subwoofer
cabinet to resonate or even dance, most subwoofer designers apply weight or mass
to the cabinet to minimize such disturbances, but still leave one byproduct—"smeared
bass". BalancedForce is an elegantly simple solution that removes the variable
of cabinet vibration contributions from the acoustic equation.Amplifier Design
Advanced Ultra-Efficient D-Class Amplifier BalancedForce subs match
powerful proprietary switching amps with incredible woofer drivers resulting in
tightly defined bass while keeping distortion at the lowest possible levels. The
BalancedForce 210 features an 850-watt class-D switching amplifier capable of a
1700-watt peak operating at over 90% efficiency. BalancedForce 212 features dual
850-watt amplifiers (one for each woofer) with a total system power of
1700-watts (3400-watts system peak).Low-noise, high-power transformers and
switching power supplies feature high-quality MOSFET transistors,
noise-suppression networks, and control circuitry to provide tremendous levels
of current with extremely low levels of distortion. Split power supply rails
minimize distortion while maximizing switching efficiency. Military grade glass
epoxy circuit boards, temperature sensors, and protection circuitry guarantee
quality sound and reliable trouble-free operation BalancedForce 212
BalancedForce 210 System Frequency Response 18–120 Hz ±3dB; Anechoic
through LFE effects input 20–120 Hz ±3dB; Anechoic through LFE effects input
Low Pass Filter Frequencies 30 - 80Hz 30 - 80Hz Phase 0°, 90°, 180°, 270°
0°, 90°, 180°, 270° , 25Hz Level Control ±10dB at 25Hz ±10dB
at 25Hz Power Control On, Auto (12V Trigger), Off On, Auto (12V
Trigger), Off Room Correction Perfect Bass Kit (PBK) Ready (Sold
Separately) Perfect Bass Kit (PBK) Ready (Sold Separately) Woofers Two 12"
(30.5cm) cast-basket, highexcursion, aluminum cone with extended throw driver
assembly, sealed non-resonant asymmetrical chamber format Two 10" (25.4cm)
cast-basket, highexcursion, aluminum cone with extended throw driver assembly,
sealed non-resonant asymmetrical chamber format Amplifiers 2 x
850 watts (3,400 watts peak system total) 850 watts (1,700 watts
peak) Inputs RCA: Left, Right and LFE XLR: Left, Right
and LFE. Speaker Level: Left and Right banana jacks. 12V Trigger:
3.5mm Mini USB (for PBK) USB (for crossover & firmware updates) RCA:
Left, Right and LFE. XLR: Left, Right and LFE. Speaker Level: Left
and Right banana jacks. 12V Trigger: 3.5mmm Mini USB (for PBK) USB (for
crossover & firmware updates) Output (RCA) Multi Out (for
multi-sub connection) Multi Out (for multi-sub connection) Input
Impedance RCA: 10,000 Ohms XLR: 15,000 Ohms per phase Speaker Level:
10,000 Ohms per phase (20,000 Ohms red to black) RCA: 10,000 Ohms XLR: 15,000
Ohms per phase Speaker Level: 10,000 Ohms per phase (20,000 Ohms red to black)
Power Draw Typical: 250 Watts Idle: 30 Watts Typical: 125 Watts
Idle: 15 Watts Weight 140lbs. (63.5kg) each 96lbs. (43.5kg) each
Overall Dimensions (HxWxD) 22.6 x 22.6 x 22.9 (57.4cm x 57.4cm
x 58.2cm)
MARTIN LOGAN
BALANCEDFORCE 212
Listino ufficiale
€. 5.700,00
Diffusori Subwoofer
Serie BalancedForce Subwoofer attivo in sospensione pneumatica. Doppi woofer a
lunga escursione da 30cm con cono in alluminio montati in configurazione
bilanciata, magnete contro magnete, in cassa chiusa asimmetrica. Potenza di
amplificazione 1700W (850W x canale) in classe D. Risposta in freq. 18Hz -
200Hz. Posizionamento ottimale tramite microfono e computer del Perfect Bass Kit
(PBK) opzionale. Tutte le regolazioni, volume, frequenza di taglio, etc. sono
posizionate superiormente, sotto uno sportellino in vetro. Ingressi linea e LFE
sia RCA che XLR. Ingressi alto livello L e R. Trigger 12V.
Ultimate Performance Subwoofers Chances are you've read or heard at some time
that adding a subwoofer to a system built around electrostatic speakers is
nearly impossible. Although that's not necessarily true (and we have the
subwoofers to prove it), the idea is grounded in experience. For many years
subwoofers and electrostats did not blend very well. Turn on the sub and maybe
you got the deeper, stronger bass you were looking for but that wonderful
electrostatic snap and midrange clarity were, if not gone, now smeared and
disconnected. Our goal, when we began our first subwoofer project, was to
deliver the good stuff — deep, tight, powerful bass — and none of the bad. We
wanted to build subwoofers that, when combined with ultra-fast electrostatics or
conventional cone speakers, would blend seamlessly to the very bottom of the
frequency extreme. BalancedForce subwoofers are the full realization of years of
engineering by the MartinLogan team combined with the latest innovations in
advanced digital signal processing, amplification, electrical system designs,
and room correction.BalancedForce® Alignment Opposing Aluminum Element Woofers
for Deep, Clean Bass Dual low-distortion woofers pair a high-power magnet
structure with 10- and 12-inch aluminum cone diaphragms to deliver huge
excursion and sound output while preserving minute bass details, all without a
hint of distortion. The cone material's exceptional damping properties ensure
the smooth, non-resonant response necessary for seamless blending with
high-resolution full-range loudspeakers. These woofers, spaced 180 degrees apart
in a 'BalancedForce' configuration, operate in exact opposition, to nullify
distortion causing cabinet vibrations and deliver pure bass energy. Traditional
subwoofer enclosures suffer from an equal and opposite reaction to the cone's
movement, generating acoustic vibrations within the cabinet. You feel this by
touching the cabinet. Although the "physics" of this phenomenon actually cause a
subwoofer cabinet to resonate or even dance, most subwoofer designers apply
weight or mass to the cabinet to minimize such disturbances, but still leave one
byproduct—"smeared bass". BalancedForce is an elegantly simple solution that
removes the variable of cabinet vibration contributions from the acoustic
equation.Amplifier Design Advanced Ultra-Efficient D-Class Amplifier
BalancedForce subs match powerful proprietary switching amps with incredible
woofer drivers resulting in tightly defined bass while keeping distortion at the
lowest possible levels. The BalancedForce 210 features an 850-watt class-D
switching amplifier capable of a 1700-watt peak operating at over 90% efficiency.
BalancedForce 212 features dual 850-watt amplifiers (one for each woofer) with a
total system power of 1700-watts (3400-watts system peak). Low-noise, high-power
transformers and switching power supplies feature high-quality MOSFET
transistors, noise-suppression networks, and control circuitry to provide
tremendous levels of current with extremely low levels of distortion. Split
power supply rails minimize distortion while maximizing switching efficiency.
Military grade glass epoxy circuit boards, temperature sensors, and protection
circuitry guarantee quality sound and reliable trouble-free operation PBK Room
Correction & 25Hz Level Control Although correct placement plays a key role in
optimizing subwoofer performance, positioning a subwoofer often requires
compromises. The optional MartinLogan Perfect Bass Kit (PBK, sold separately)
uses a computer and microphone to listen throughout the listening environment
and tailor the sub's performance to the unique acoustic properties of a room—resulting
in clean, powerful bass down to the lowest frequencies. Additionally, a built-in
25Hz level control allows listeners to adjust subwoofer output by ±10dB and
compensate for excessive room gain by cutting output in the 20- to 30-Hz range,
or to accentuate the feeling of deep-bass energy by augmenting those frequencies.
Custom Low-Pass Filters for Individual Loudspeaker Models Custom tailored low
pass filters are available for nearly every floor standing MartinLogan
loudspeaker released in the last 30 years. These optional custom filters adjust
the subwoofer's low pass settings to seamlessly blend with the roll-off
characteristics of individual loudspeaker models. Filters are easily installed
via a user-friendly process involving a USB thumb drive and are available for
free download from MartinLogan.com/filters. 46 unique filters are currently
available and additional filters will be added as new speakers are released.
Beautiful Finishes High-gloss black cabinets and top trim are standard. Top trim
is available in a variety of optional high-gloss, hardwood, and real-wood veneer
finishes. Sealed Cabinets Although ports are a convenient and
cost-effective way of increasing low-frequency output, their reliance on
resonant energy impairs bass quality. The BalancedForce subwoofer's sealed
system exhibits less transient-blurring group delay while maintaining smooth,
consistent response, regardless of music or movie source material. Multiple
Input Options Simultaneous LFE and 2-Channel Connections for Seamless System
Integration Robust connection and control systems allow simultaneous connection
of both 2-channel stereo music and multi-channel home theater and allows each
source to have individual crossover and level settings, giving listeners a
perfect performance in every application. LFE input via RCA or XLR effectively
uses no low-pass filter, leaving crossover control to the processor. Left and
right RCA, XLR, and speaker level inputs integrate discrete user-adjustable or
speaker specific custom-installed audiophile grade low-pass filters allowing
different level and crossover points when playing back two channel music.Top
Mounted Controls Top mounted controls are discretely hidden beneath a smoked
glass accent panel allowing easy access to fine tune the subwoofer's settings.
Unlimited Adjustments Access the top mounted control panel by pushing firmly on
the smoked glass panel. You'll find all of your standard subwoofer controls like
Level, Low-Pass Filter and Phase, plus some that are unique to MartinLogan.A
unique tone sweep feature assists users in locating areas in listening rooms
where troublesome rattles or resonances may occur. A single press of a button
allows listeners to initiate a tone sweep from 120–20Hz. If a rattle or
resonance occurs in the room a second press of the button holds the current
frequency allowing the listener to investigate and identify the source. An
'On/Auto (Trigger)/Off' switch controls the subwoofer's energy saving feature.
The 'On' setting prevents the sub from entering energy saving mode. When set to
'Auto (Trigger)', the sub will turn on when a music signal is detected and off
after several minutes without a signal. If a 12-volt trigger is connected, the
triggering device will turn the subwoofer on and off. BalancedForce 212
BalancedForce 210 System Frequency Response 18–120 Hz ±3dB; Anechoic
through LFE effects input 20–120 Hz ±3dB; Anechoic through LFE effects input
Low Pass Filter Frequencies 30 - 80Hz 30 - 80Hz Phase 0°, 90°, 180°, 270°
0°, 90°, 180°, 270° , 25Hz Level Control ±10dB at 25Hz ±10dB
at 25Hz Power Control On, Auto (12V Trigger), Off On, Auto (12V
Trigger), Off Room Correction Perfect Bass Kit (PBK) Ready (Sold
Separately) Perfect Bass Kit (PBK) Ready (Sold Separately) Woofers Two 12"
(30.5cm) cast-basket, highexcursion, aluminum cone with extended throw driver
assembly, sealed non-resonant asymmetrical chamber format Two 10" (25.4cm)
cast-basket, highexcursion, aluminum cone with extended throw driver assembly,
sealed non-resonant asymmetrical chamber format Amplifiers 2 x
850 watts (3,400 watts peak system total) 850 watts (1,700 watts
peak) Inputs RCA: Left, Right and LFE XLR: Left, Right
and LFE. Speaker Level: Left and Right banana jacks. 12V Trigger:
3.5mm Mini USB (for PBK) USB (for crossover & firmware updates) RCA:
Left, Right and LFE. XLR: Left, Right and LFE. Speaker Level: Left
and Right banana jacks. 12V Trigger: 3.5mmm Mini USB (for PBK) USB (for
crossover & firmware updates) Output (RCA) Multi Out (for
multi-sub connection) Multi Out (for multi-sub connection) Input
Impedance RCA: 10,000 Ohms XLR: 15,000 Ohms per phase Speaker Level:
10,000 Ohms per phase (20,000 Ohms red to black) RCA: 10,000 Ohms XLR: 15,000
Ohms per phase Speaker Level: 10,000 Ohms per phase (20,000 Ohms red to black)
Power Draw Typical: 250 Watts Idle: 30 Watts Typical: 125 Watts
Idle: 15 Watts Weight 140lbs. (63.5kg) each 96lbs. (43.5kg) each
Overall Dimensions (HxWxD) 22.6 x 22.6 x 22.9 (57.4cm x 57.4cm
x 58.2cm)
MARTIN LOGAN
Motion SLM X3
Listino ufficiale
€. 1.150,00
Diffusori Soundbar Serie Ultra Slim Motion
Soundbar ultra slim, posizionamento in appoggio o a parete. 3 canali separati in
unico diffusore: canale destro, sinistro e centrale con morsetti dedicati. Ogni
canale è a 2 vie in sospensione pneumatica, doppio woofer/midrange con cono in
carta da 102mm, tweeter a nastro Folded Motion™ da 26x36mm. Potenza 20-140W.
Efficienza 93dB. Impedenza 4 ohm. Crossover con protezione termica/corrente per
tweeter. Staffe in dotazione. Griglia in tessuto nero con attacco magnetico.
MARTIN LOGAN
CADENCE
Listino ufficiale
€. 1.499,00
Diffusori Soundbar Serie Soundbars Soundbar ultra
slim, posizionamento in appoggio o a parete. Bluetooth e Airplay. Wireless
2.4/5.0 GHz, 802.11 a/b/g/n. DTS Play-Fi per compatibilità con Amazon Alexa. 9
altoparlanti full-range da 80mm in sospensione pneumatica, pilotati da 9
amplificatori separati da 15W, per un totale di 135W controllati da DSP. Decoder
Dolby Digital e DTS. Sistema ARC (Anthem Room Correction), per la calibrazione
dei bassi, con microfono in dotazione. 3 ingressi HDMI (HDMI 2.0a, HDCP 2.2 per
4K/60), 2 ingressi digitali ottici, 2 ingressi analogici RCA, connettore
Ethernet. 1 uscita HDMI (ARC). SWT-SB sistema di trasmissione del segnale senza
file ad un subwoofer e ricevitore per sub in dotazione. Telecomando. Elegante
finitura Nera con griglia in tessuto nero.
MARTIN LOGAN
VISION X
Listino ufficiale
€. 2.200,00
Diffusori Soundbar
Serie Soundbars Soundbar hi-end, posizionamento in appoggio o a parete. Wireless
2.4/5.0 GHz, 802.11 a/b/g/n. DTS Play-Fi per compatibilità con Amazon Alexa. 4
woofer/midrange da 102mm con cono in carta in configurazione bass reflex, 3
tweeter a nastro Folded Motion™ da 26x36mm. 7 amplificatori separati da 15W, per
un totale di 105W controllati da DSP. Decoder Dolby Digital e DTS. 2 ingressi
digitali, 1 ottico e 1 coassiale, 1 ingressi analogico jack 3,5mm, connettore
Ethernet. Uscita analogica subwoofer e modulo SWT-2 per la trasmissione del
segnale senza file ad un subwoofer predisposto. Telecomando. Elegante finitura
Nera con griglia in tessuto nero.
The Ultimate Wireless Surround Sound System Introducing the Motion® Vision X
with DTS Play-Fi® technology. Play-Fi delivers listeners the freedom and
flexibility to stream high-res music wirelessly over your existing Wi-Fi
network. Also, Play-Fi is an open platform, so you can mix and match any DTS
Play-Fi enabled speaker. Like the first generation Motion Vision soundbar,
Motion Vision X delivers 5-channel surround sound from a sleek and sculptural
all-in-one system that's stylish yet unobtrusive, simple to install, and easy to
operate. Three advanced-resolution Folded Motion™ tweeters, four 4-inch
high-performance woofers, and seven The Motion Vision X raises the bar
again! Utilizing DTS Play-Fi technology, the Vision X provides listeners the
freedom and flexibility to stream their high-resolution music (up to 24-
bit/192kHz) wirelessly over an existing Wi-Fi network to any number of connected
speakers that utilize DTS Play-Fi technology once paired with the Play-Fi App.
Unlike many wireless platforms, DTS Play-Fi is an open platform, meaning
listeners are able to mix and match any DTS Play-Fi-enabled audio products from
a selection of top audio brands. Listeners can take advantage of endless choices,
from their own music libraries to online music streaming services*, and they can
stream their music from virtually any device – Android, iOS, Kindle Fire or
PCWireless Streaming. 5-channel surround sound from an all in-one soundbarthat
also lets you stream music wirelessly. New DTS Play-Fi™ technology lets you
effortlessly stream from your Android, iOS, Kindle Fire or PC devices. Just
download the free app and stream music to one or multiple Vision X soundbars.We
engineered the Motion Vision X with a commanding bass performance paired with
precisely crafted mid- and high-frequencies, creating a vivid,
three-dimensionalsoundstage. Front left/right and center channels use three
advanced-resolution Folded Motion™ tweeters, four high-performance woofers and
seven dedicated amplifiers to deliever 100 watts of total system power that also
simulates the rear left/right effectschannels to create a fully immersive,
five-channel surround sound throughout the listening environment.Dual
rear-firing bass ports reinforce the bass extension for astonishingly deep bass,
and for bass aficionados whodesire the deepest bass experience, the built-in
SWT-2 transmitter allows the addition of a compatible wirelessMartinLogan
subwoofer. Hassle-Free Setup & Simple Contr Motion Vision X includes a robust,
redesigned mounting bracket that’s even less obtrusive than the previous design.
Plus, we’ve designed a new remote control which puts even greater functionality
at your fingertips. The top-mounted control center is composed of brushed
stainless steel and provides convenient access to all features/functions.S P
E C I F I CAT I O N S Frequency Response 43–23,000 Hz ± 3 dB High Frequency
Driver Three 1” x 1.4” (2.6cm x 3.6cm) Folded Motion Transducers with 5.25” x
1.75” (13.3cm x 4.4cm) diaphragm. Low Frequency Drivers Four 4” (10.2cm) fiber
cones with extended throw drive assembly. Non-resonant asymmetrical chamber
format. Amplifier Power 100 Watts (200 Watts peak) combined total . output
across 7 amps. Components & Decoding DSP based preamplifier Dolby® Digital, DTS
Digital Surround™ Crossover Frequency 3,000 Hz Inputs (1x) Optical SPDIF (digital
optical), (1x) Coax SPDIF (digital coaxial), (1x) Analog 3.5 mm, (1x) Ethernet
Outputs (1x) Subwoofer Out via analog RCA Controls Top mounted controls and
included remote control. Remote Battery (2x) AAA Wireless Output Built-in SWT-2
Subwoofer Wireless Transmitter compatible with select MartinLogan subwoofers.
Wireless Connectivity 2.4GHz and 5.0GHz; 802.11 g/n Cabinet Ported Weight 20.5
lbs. (9.3 kg) Dimensions 5” x 39.9” x 5.85” (12.7cm x 101.3cm x 14.8cm)
Forte Amplificatore integrato (200W/CH) con AirPlay, PlayFi, Wireless ed
Ethernet € 850,00
Unison Preamplificatore Stereo con AirPlay, PlayFi, Wireless ed Ethernet, 1
in/out Rca € 550,00
Helos 12 Diffusore dinamico da incasso con tweeter orientabile cadauno € 550,00
Helos 22 Diffusore dinamico da incasso stereo in un unico diffusore e tweeter
orientabile c a d a u n o € 690,00
ElectroMotion R Diffusore dinamico da incasso con tweeter a nastro orientabile
cadauno € 890,00
ElectroMotion IC Diffusore dinamico da incasso con tweeter a nastro orientabile
cadauno € 690,00
ElectroMotion IW Diffusore dinamico da incasso con tweeter a nastro orientabile
cadauno € 750,00
Motion SLM Diffusore dinamico piatto 2 vie tweeter a nastro frontali/surround
cadauno € 690,00
Motion SLM XL Come sopra ma con doppio woofer di profondità cadauno € 990,00
Edge Diffusore dinamico da incasso con tweeter a nastro cadauno € 2.590,00
Vanquish Diffusore dinamico da incasso con tweeter a nastro cadauno € 2.190,00
Axis Diffusore dinamico da incasso con tweeter a nastro cadauno € 1.790,00
DIFFUSORI DA INSTALLAZIONE
ML-80i Tweeter in Titanio Diffusore dinamico 2 vie da incasso rotondo, griglia
in metallo verniciabile cadauno € 480,00
ML-67i Tweeter in Titanio Diffusore dinamico 2 vie da incasso rotondo, griglia
in metallo verniciabile cadauno € 290,00
ML-62i Tweeter in Titanio Diffusore stereo dinamico 2 vie da incasso rotondo,
griglia in metallo verniciabile cadauno € 290,00
ML-60i Tweeter in Titanio Diffusore dinamico 2 vie da incasso rotondi con
griglia in metallo verniciabile cadauno € 360,00
ML-66i Tweeter in Titanio Diffusore dinamico 2 vie da incasso rettangolare,
griglia in metallo verniciabile cadauno € 290,00
ML-65i Tweeter in Titanio Diffusore dinamico 2 vie da incasso rettangolare,
griglia in metallo verniciabile cadauno € 360,00
DIFFUSORI DA INSTALLAZIONE ALL WEATHER
ML-75AW Diffusore dinamico 2 vie impermeabile con tweeter in titanio, bianco /
nero cadauno € 890,00
ML-65AW Diffusore dinamico 2 vie impermeabile con tweeter in titanio, bianco /
nero cadauno € 690,00
ML-55AW Diffusore dinamico 2 vie impermeabile con tweeter in titanio, bianco /
nero cadauno € 540,00
ML-45AW Diffusore dinamico 2 vie impermeabile con tweeter in titanio, bianco /
nero cadauno € 360,00
DIFFUSORI A ROCCIA
ML-75R Diffusore stereo dinamico 2 vie impermeabile finitura roccia € 590,00
ML-65R Diffusore stereo dinamico 2 vie impermeabile finitura roccia € 480,00
DIFFUSORI DA GIARDINO SERIE LIVING
Outdoor SAT-60 Diffusore dinamico 2 vie impermeabile finitura dark/bronze €
590,00
Outdoor SAT-40 Diffusore dinamico 2 vie impermeabile finitura dark/bronze €
340,00
Dynamo Outdoor SUB-100 Subwoofer sotterraneo con woofer da 25,4cm € 1.890,00
Dynamo Outdoor SUB-120 Subwoofer sotterraneo con woofer da 30,5cm € 2.590,00
Crown CDi-1000 Amplificatore stereo (500W/CH) con DSP per serie Living €
1.950,00
Legenda istruzioni
 Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/afx%20motion%20(1).jpg){kind=small}
/afx%20motion%20(2).jpg){kind=small}
/afx%20motion%20(4).jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
