ICE (Immersive
Cinema Experience) Premium quality residential cinema loudspeakers build for the
realistic movie soundtrack reproduction. Robust, heavily braced cabinets, hi-fi
audio grade crossover components and best drivers from the world’s famous
manufacturers guarantee clear sound and powerful impact. ICE – is the installers
friendly loudspeakers with many comfort and safety features: professional grade
gold plated push terminals, rear cable channel for close to wall placement,
light absorbing soft touch coating, steel secure ring and some others.

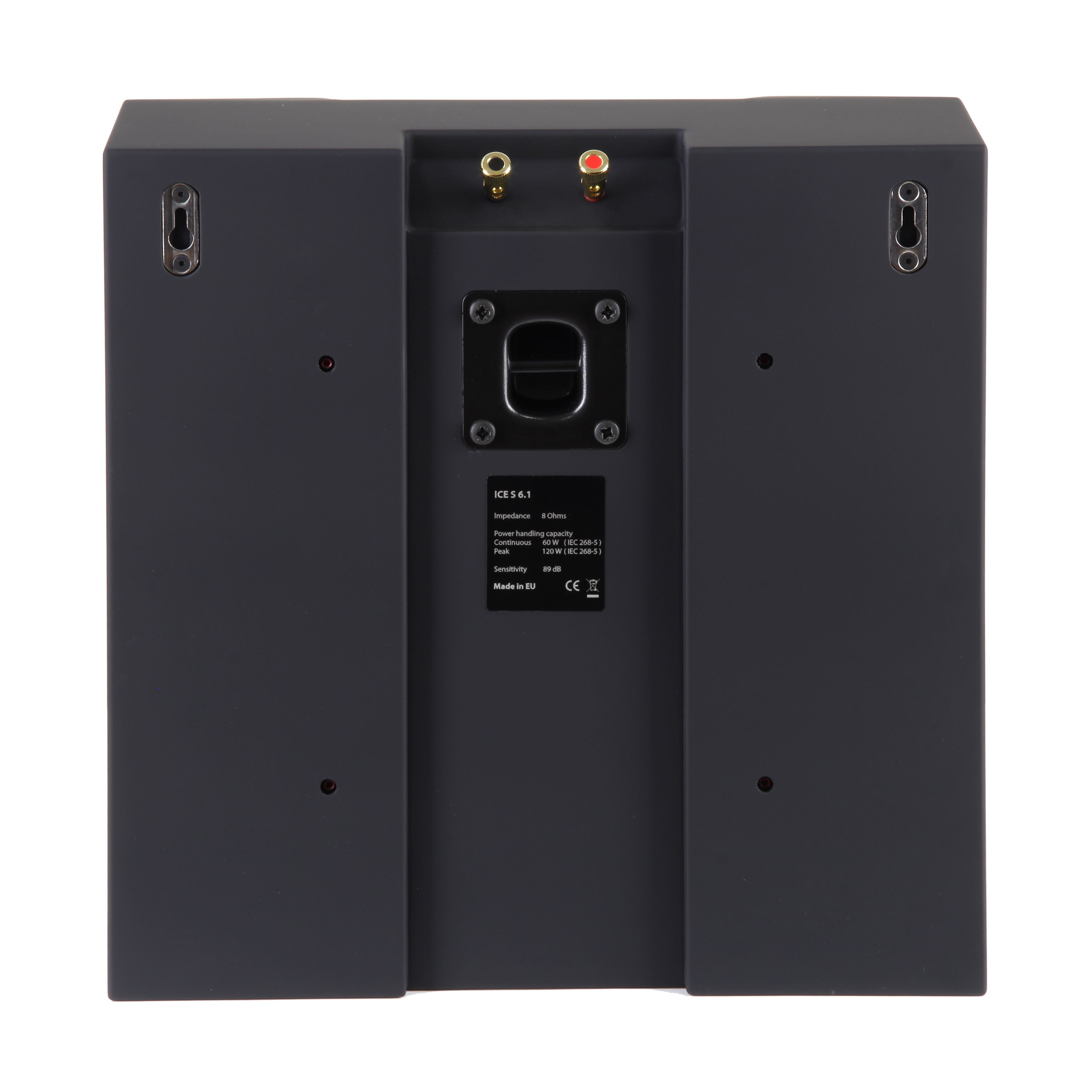

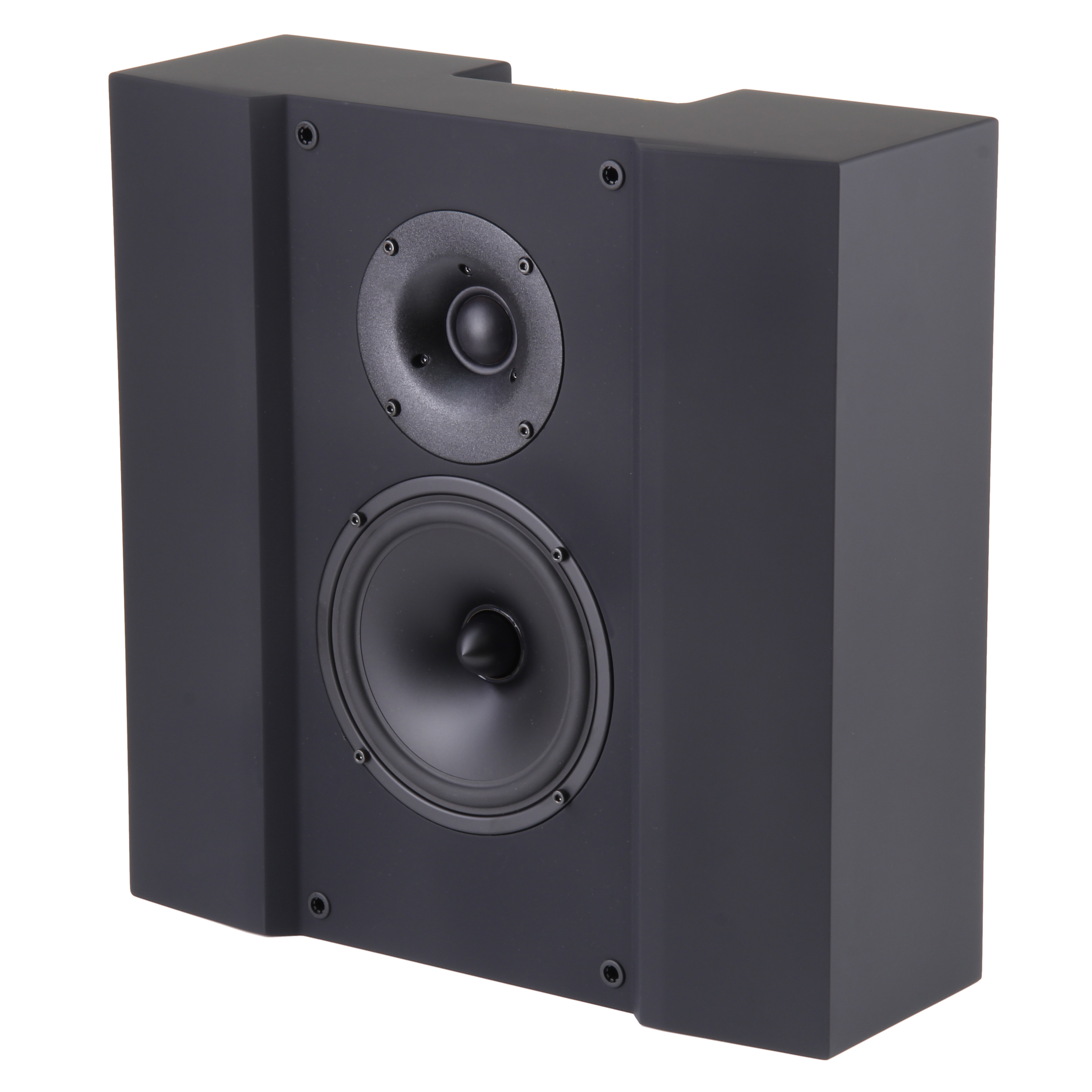

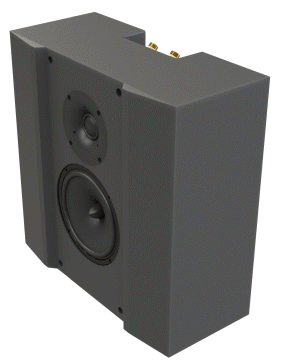

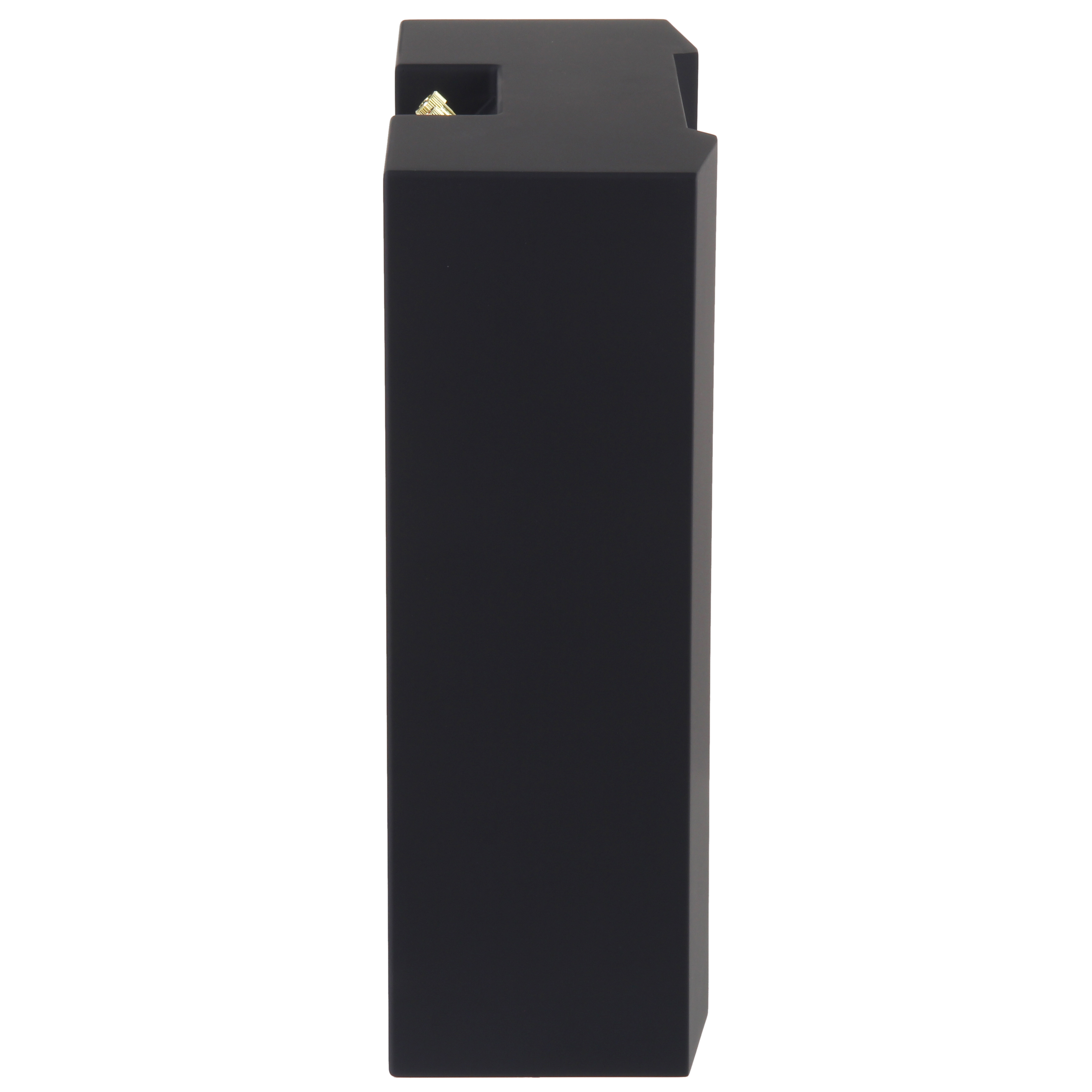

ICE S6.1
Listino ufficiale
€. 935,00
+iva

 Description

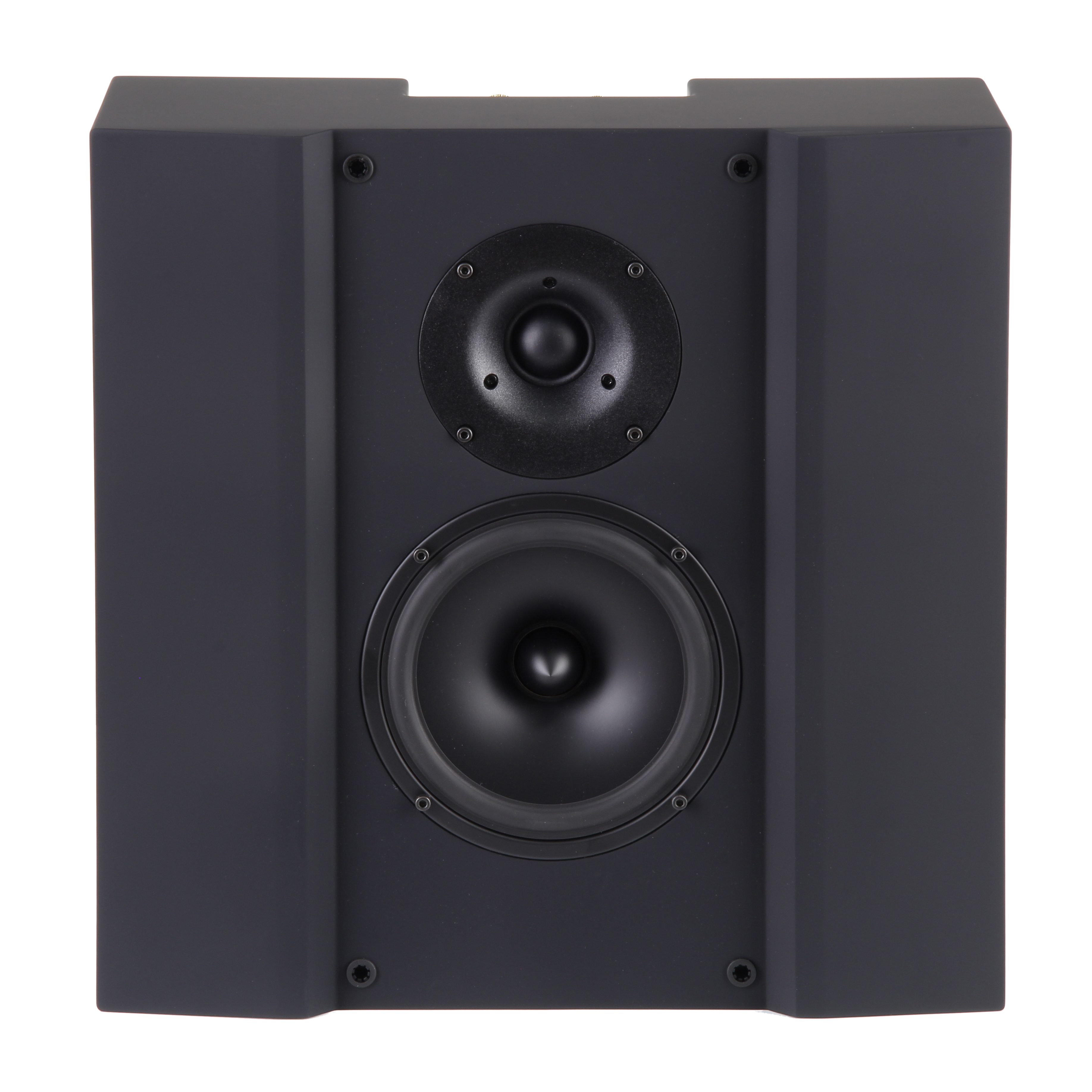

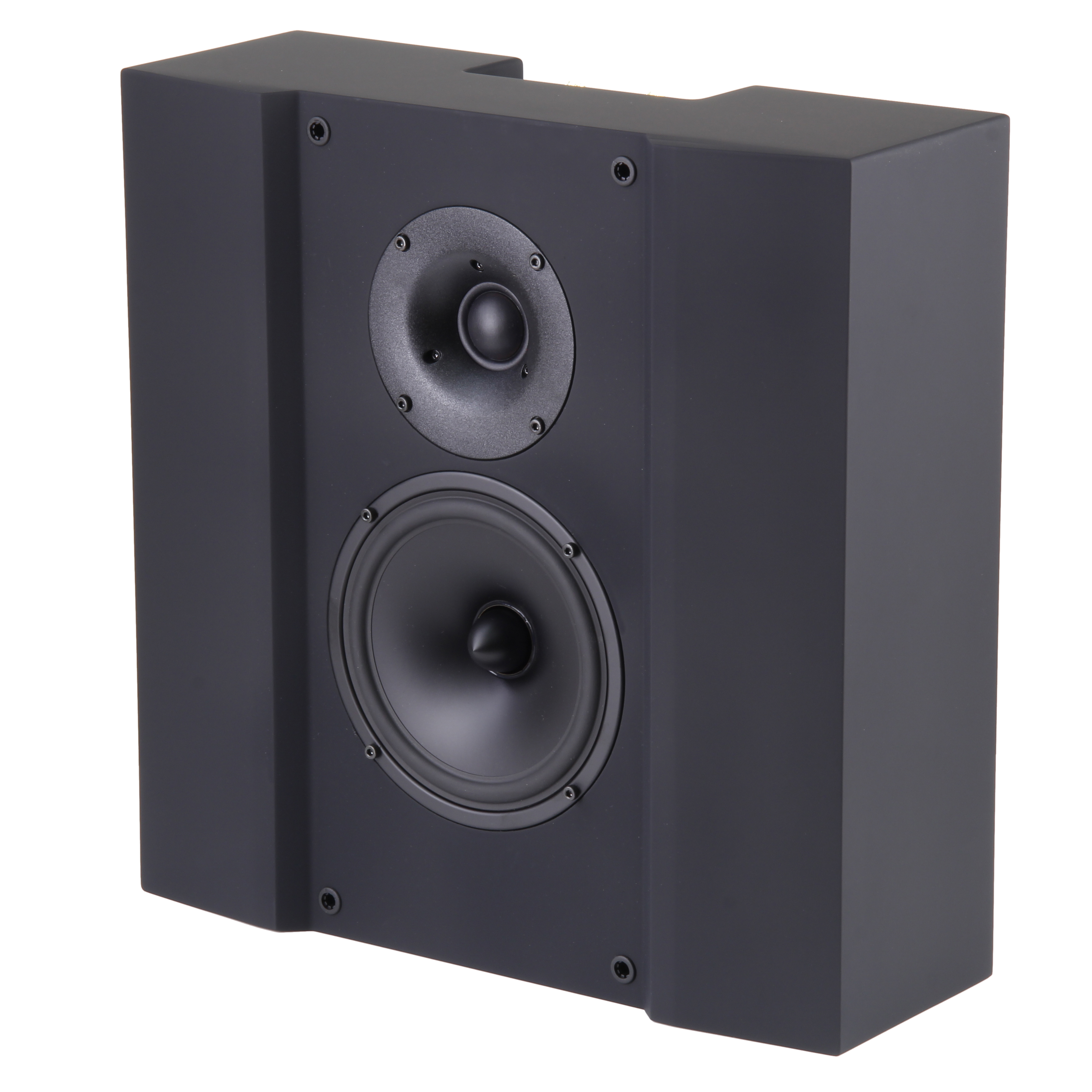

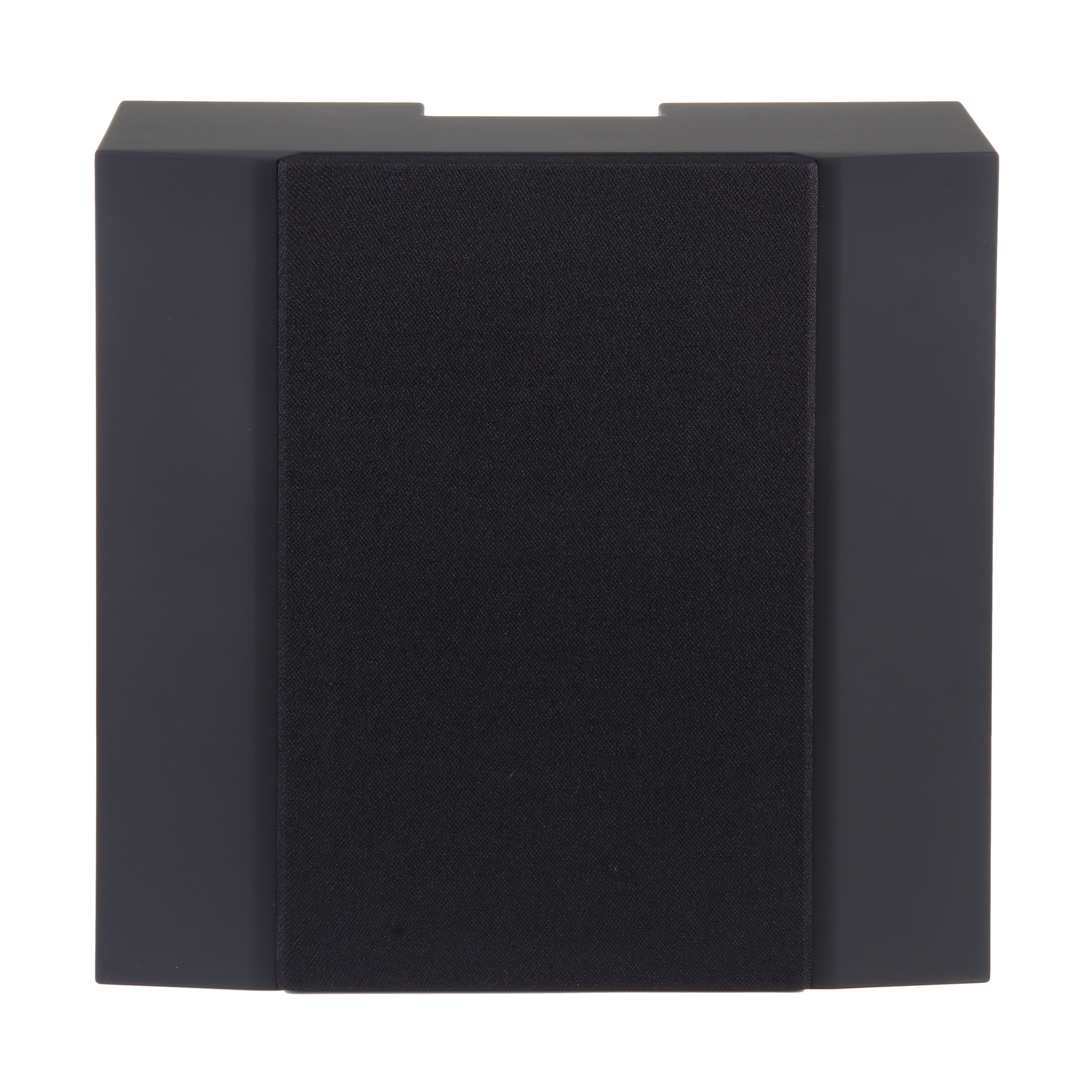

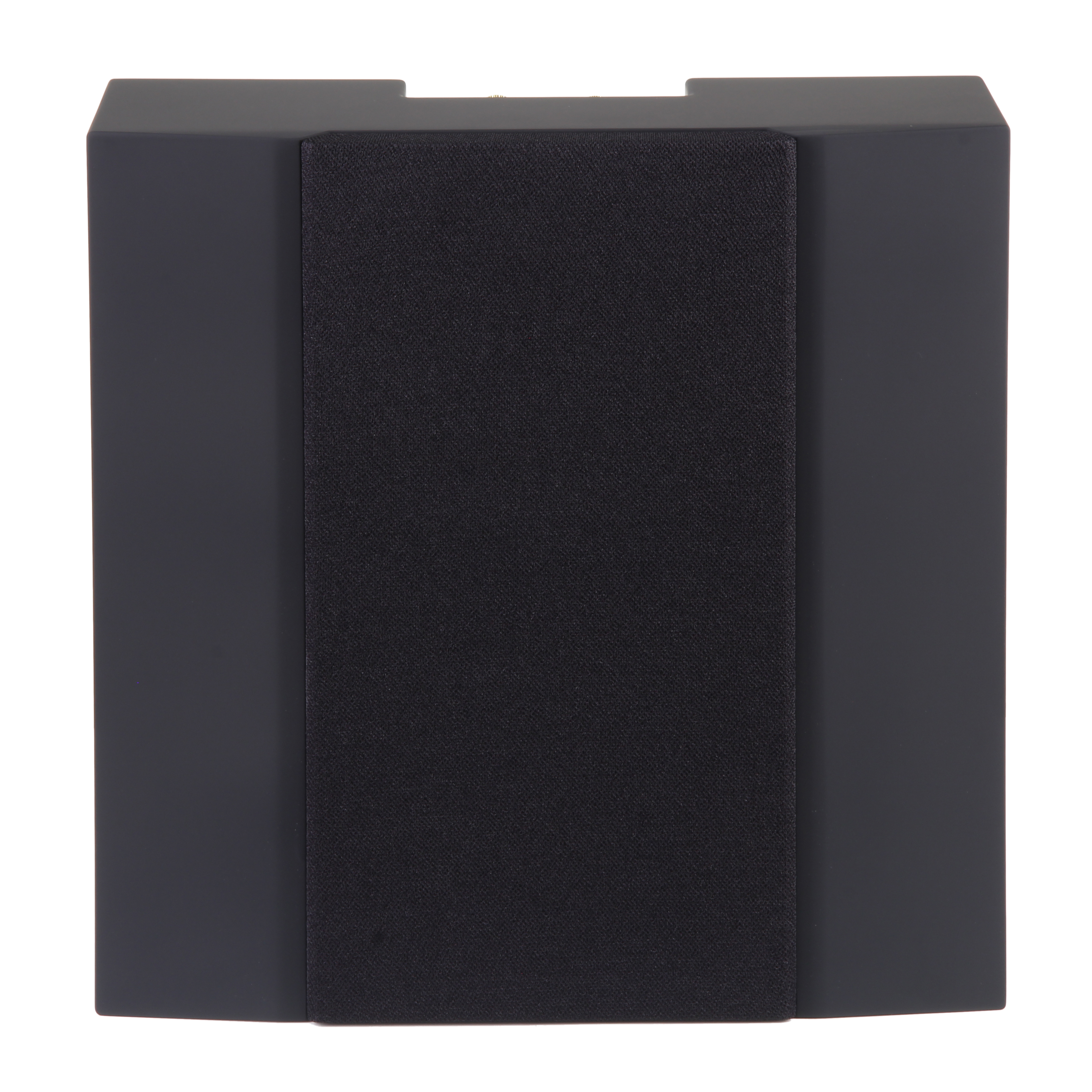

ICE S 6.1 is the high output compact size loudspeaker designed for behind the
screen or behind the acoustic wall installation. Can be used as main and
surround speaker in medium size home theatres. ICE S 6.1 is perfect as an
immersive audio format upper channel Features 1/ Steel secure ring with 7 mm pin
for safe installation process and operation 2/ All cabinet parts are bolt tied
3/ Professional grade gold plated push terminals 4/ Rear cable channel for close
to wall placement 5/ M6 holes for VESA200 wall mount 6/ Light absorbing soft
touch coating Specifications Nominal impedance 8 Ohms
Power handling capacity Continuous 60 W (IEC 268 – 5) Peak 120 W (IEC 268 – 5)
Sensitivity 89dB (1m/1W) Maximum SPL 110dB continuous, 116dB peak (1/8 space, 1m
) Frequency response 70Hz - 20kHz ( 3dB) Crossover 2th Order, 2.1kHz , 80Hz
subwoofer crossover point. Audiophile grade components and point to point wiring
Drivers Midrange High output 165 mm driver with 32 mm voice coil. High Frequency
30 mm fabric tweeter with waveguide Cabinet 18L sealed box made of high quality
MDF internally braced. Light absorbing black soft touch coating Dimensions (HxWxD)
400 x 400 x 145 mm Weight 9 kg

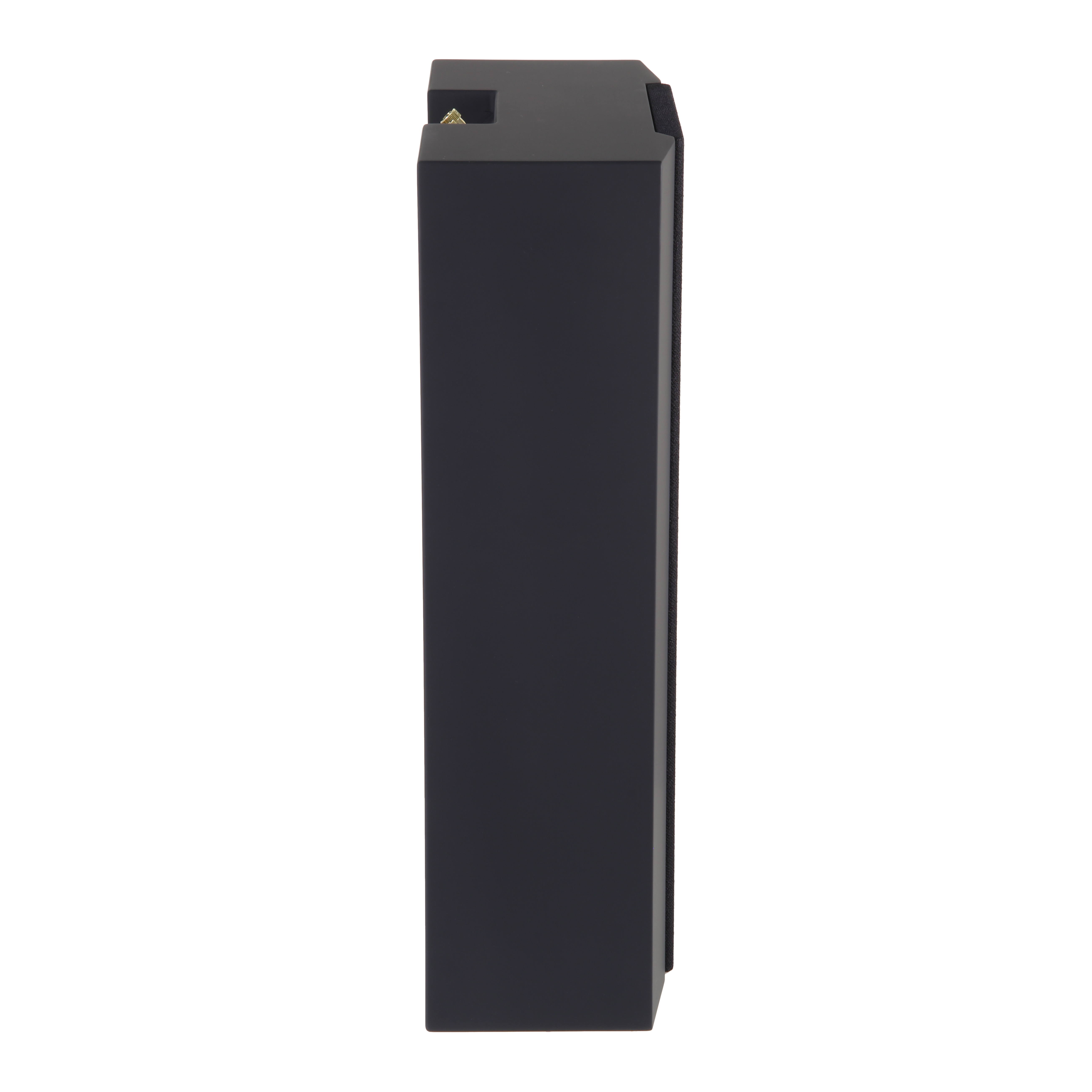

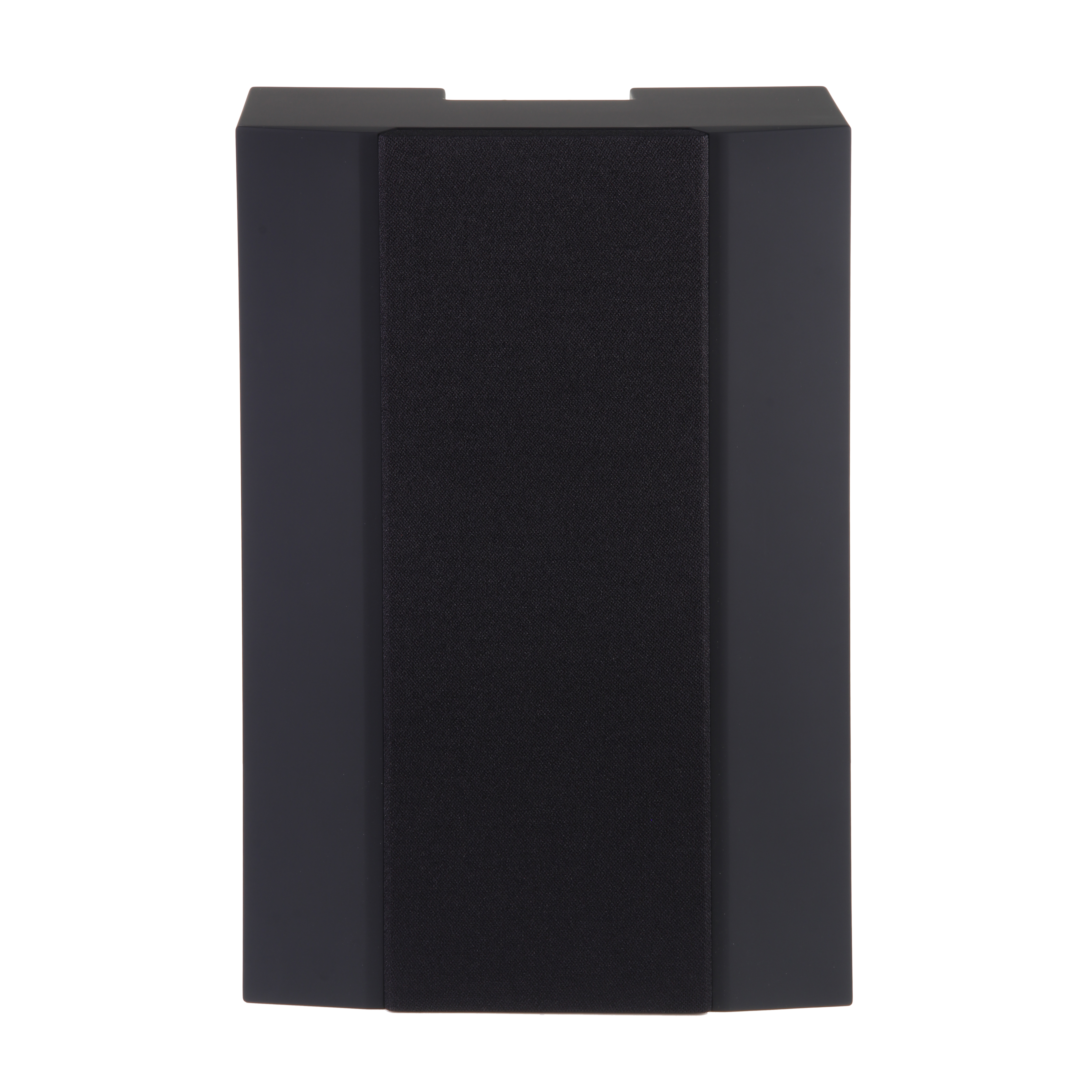

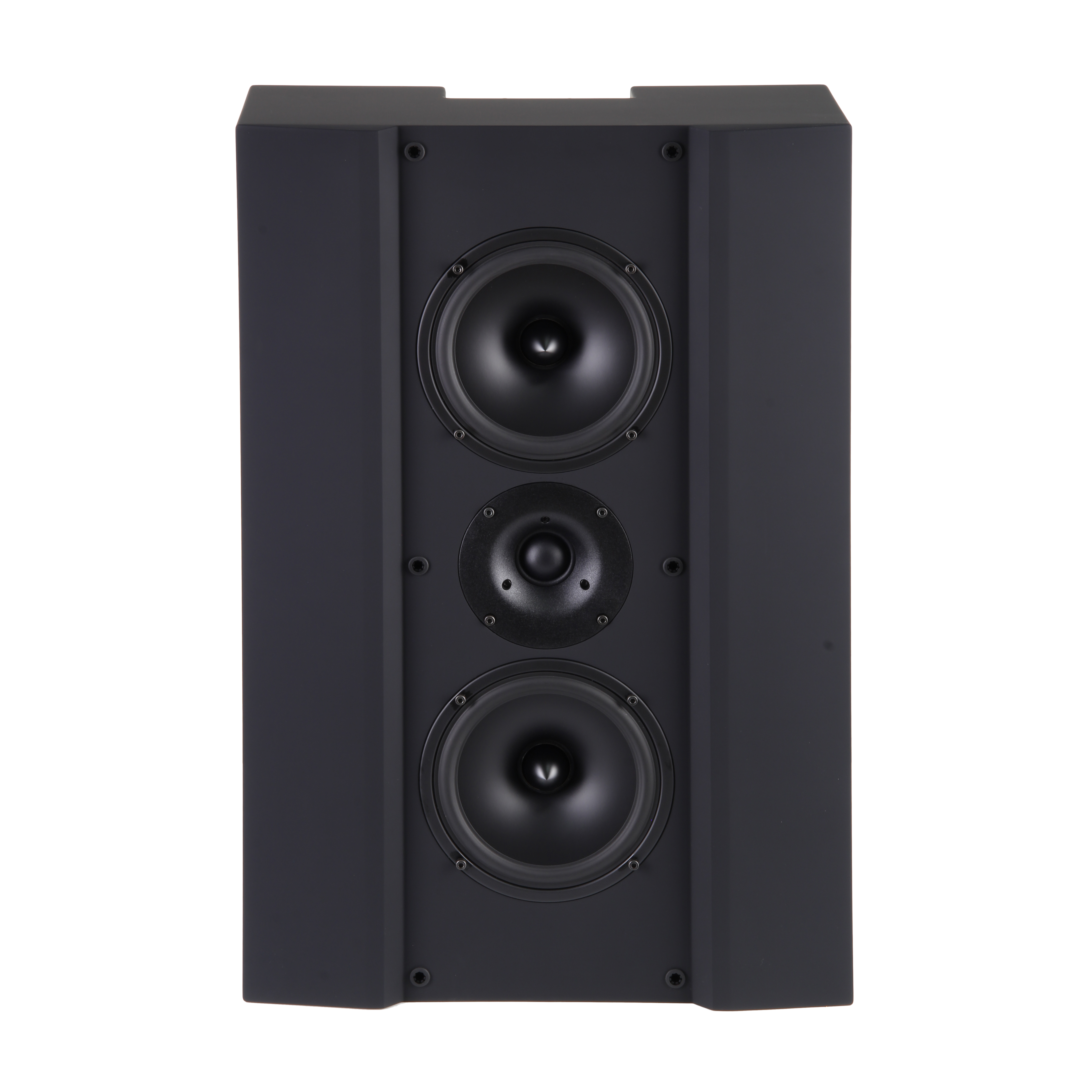

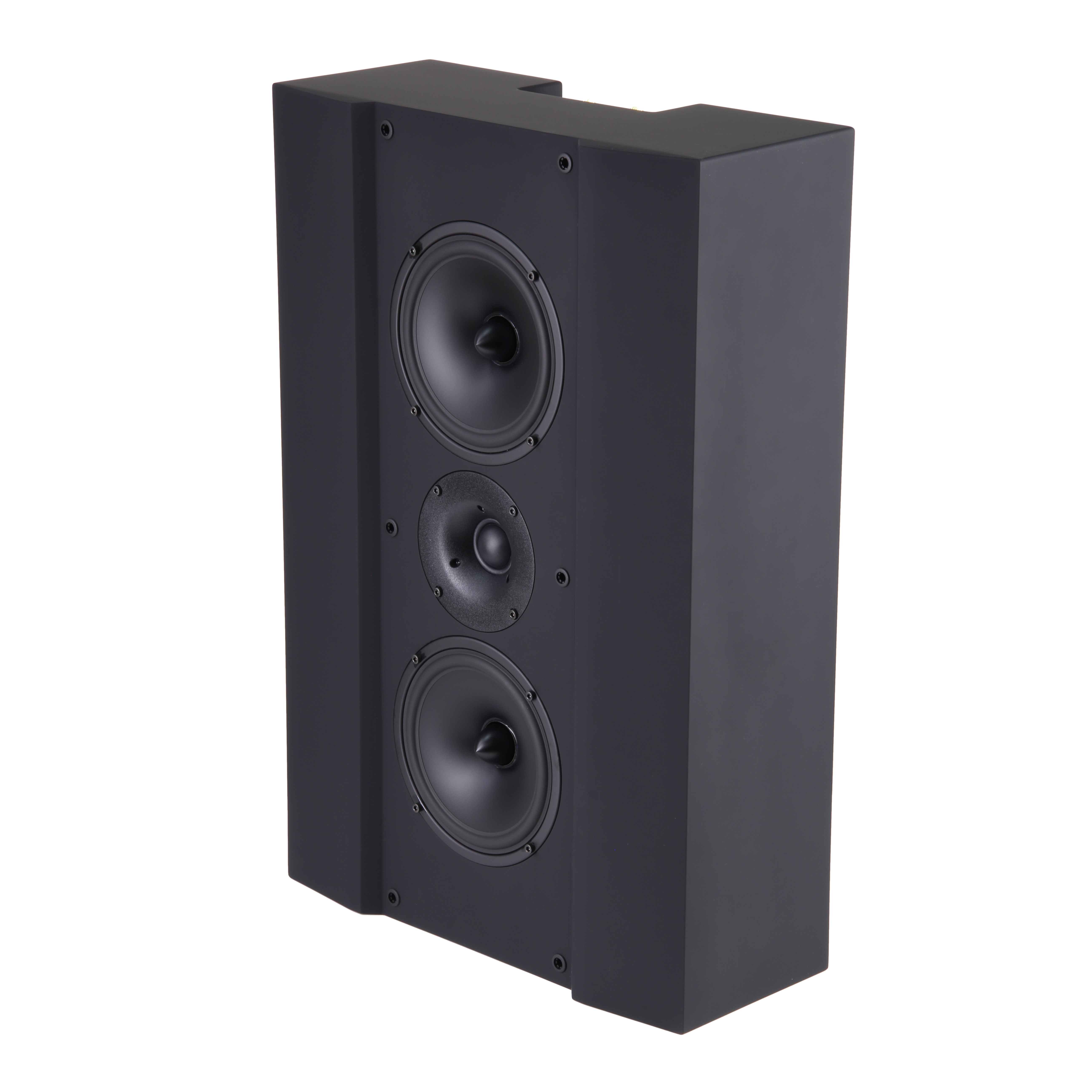

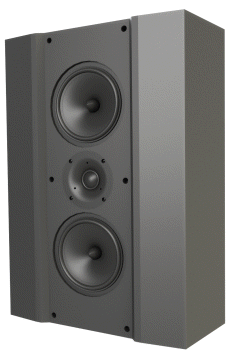

ICE S6.2
Listino ufficiale
€. 1.192,00
+iva
Description

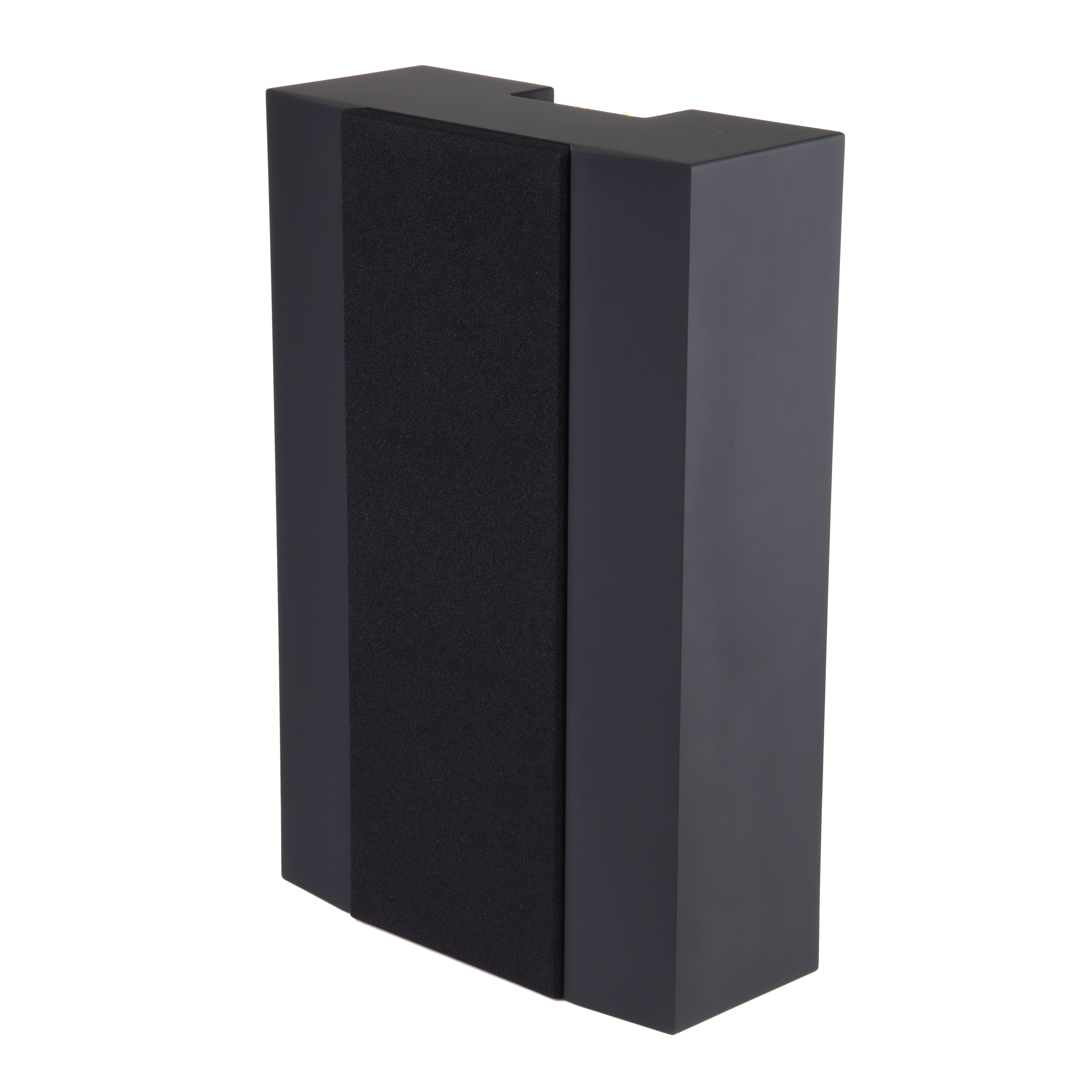

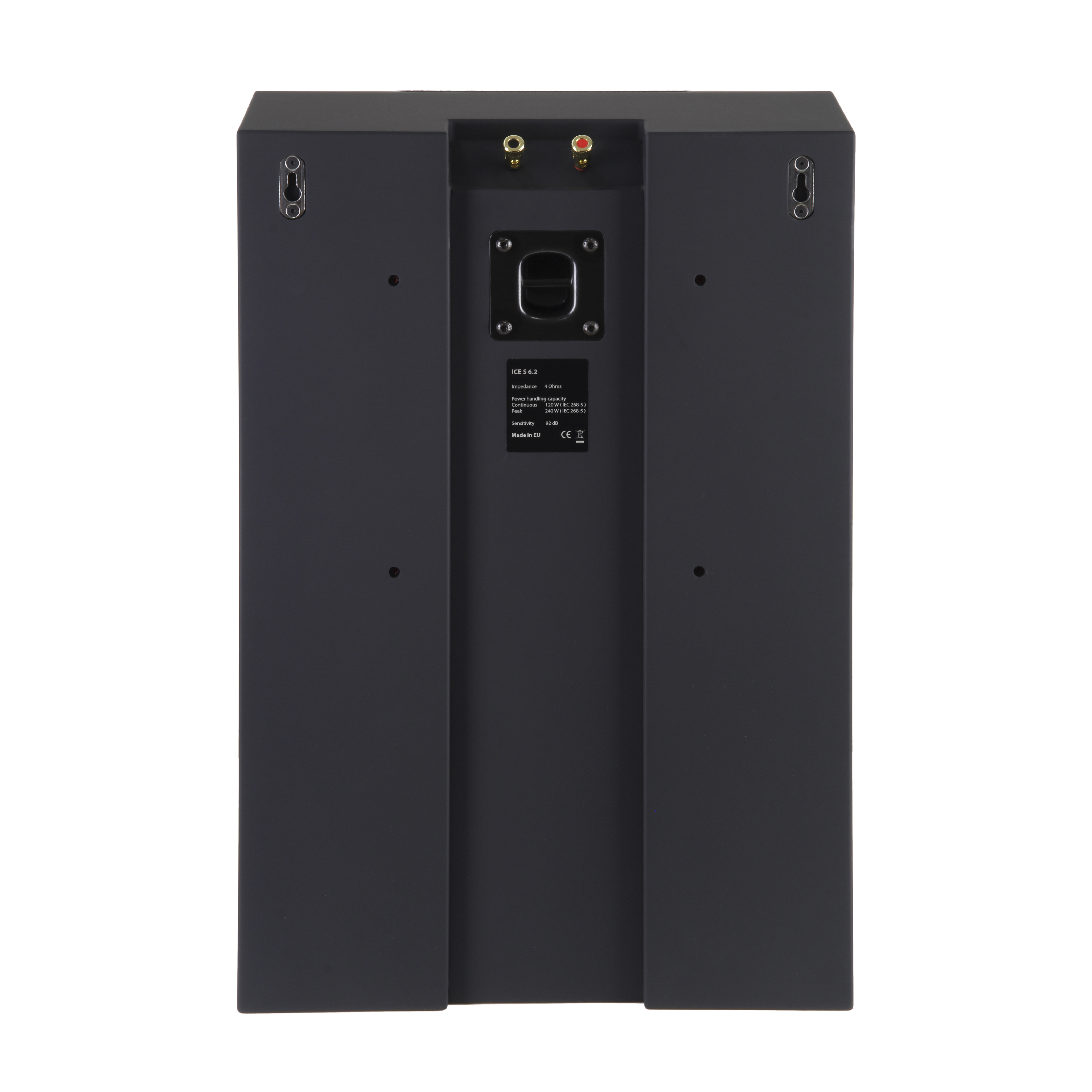

ICE S 6.2 is the high output loudspeaker designed for behind the screen or
behind the acoustic wall installation. Can be used as main and surround speaker
in medium size home theatres. Setting up with the ICE 6.1 speakers, the 6.2 can
be used as screen channel in medium or small size rooms Features 1/ Steel secure
ring with 7 mm pin for safe installation process and operation 2/ All cabinet
parts are bolt tied 3/ Professional grade gold plated push terminals 4/ Rear
cable channel for close to wall placement 5/ M6 holes for VESA200 wall mount 6/
Light absorbing soft touch coating Specifications Nominal impedance 4 Ohms
Power handling capacity Continuous 120 W (IEC 268 – 5) Peak 240 W (IEC 268 – 5)
Sensitivity 92dB (1m/1W) Maximum SPL 114dB continuous, 120dB peak (1/8 space, 1m
) Frequency response 70Hz -20kHz (-3dB) Crossover 2th Order, 2.1kHz, 80Hz
subwoofer crossover frequency. Audiophile parts and point to point soldering are
used Drivers Midrange High output 2x165 mm drivers with 32 mm voice coils High
Frequency 30 mm fabric tweeter with waveguide Cabinet 28L sealed box made of
quality MDF, internally braced. Light absorbing black soft touch coating
Dimensions (HxWxD) 600 x 400 x 165 mm Weight 13,5 kg

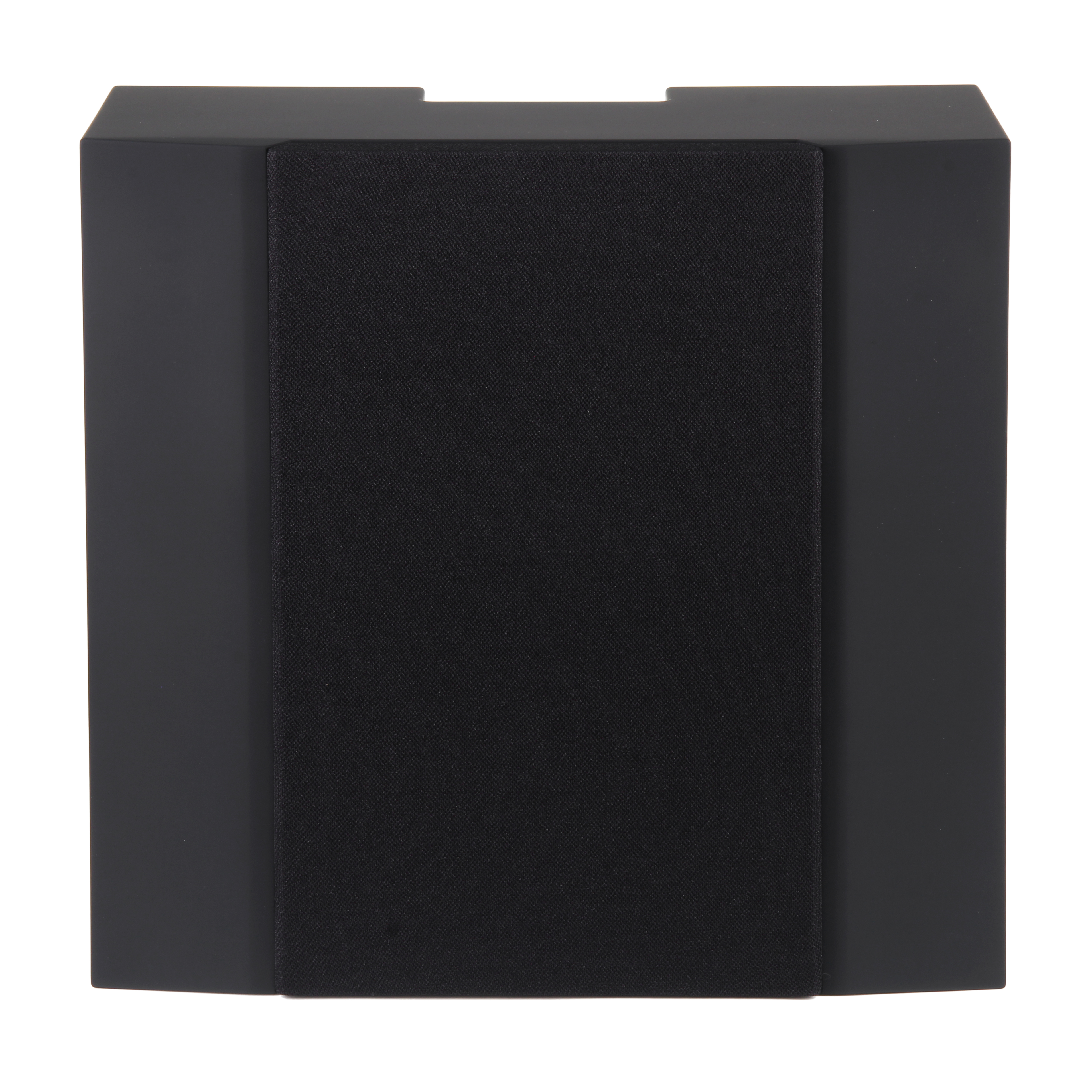

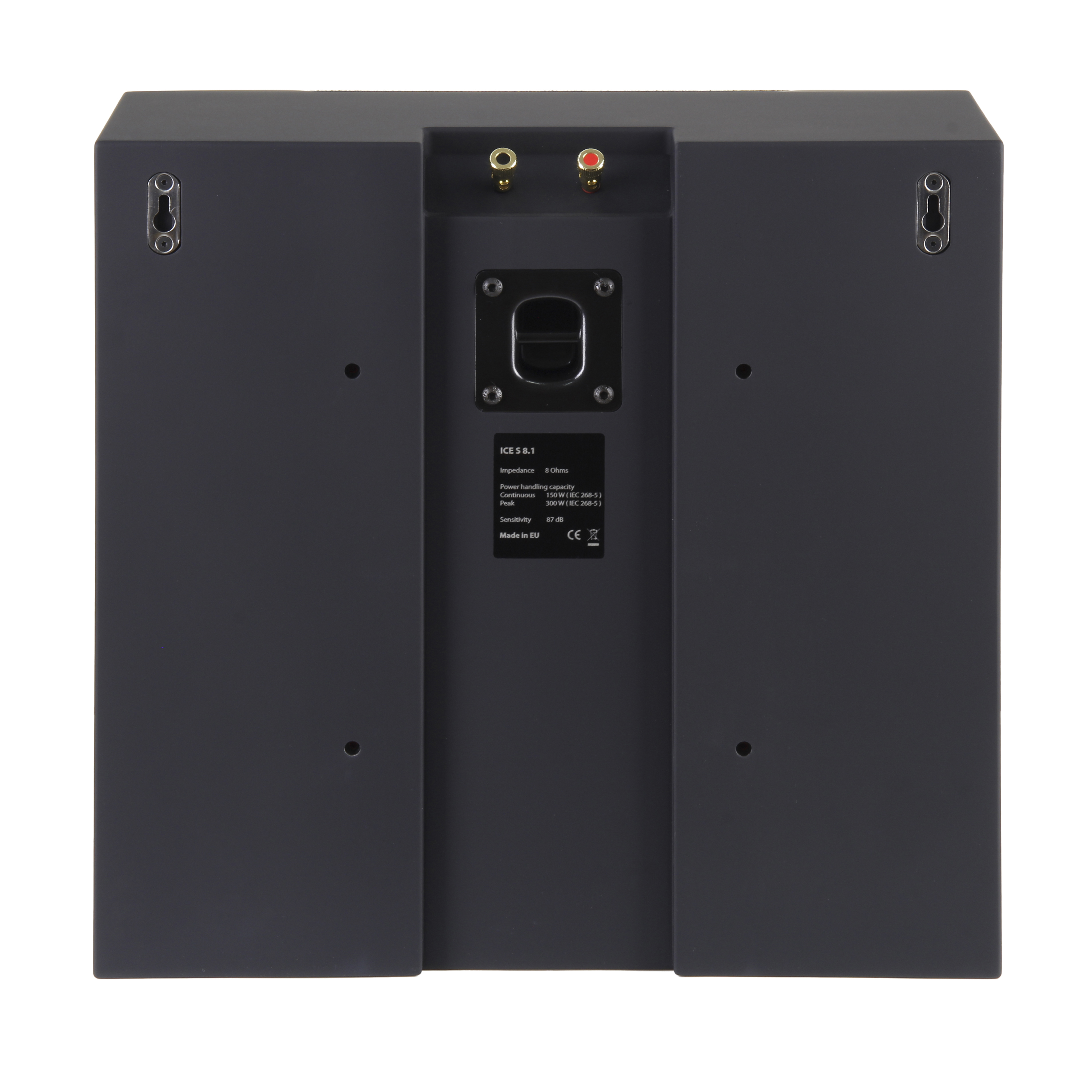

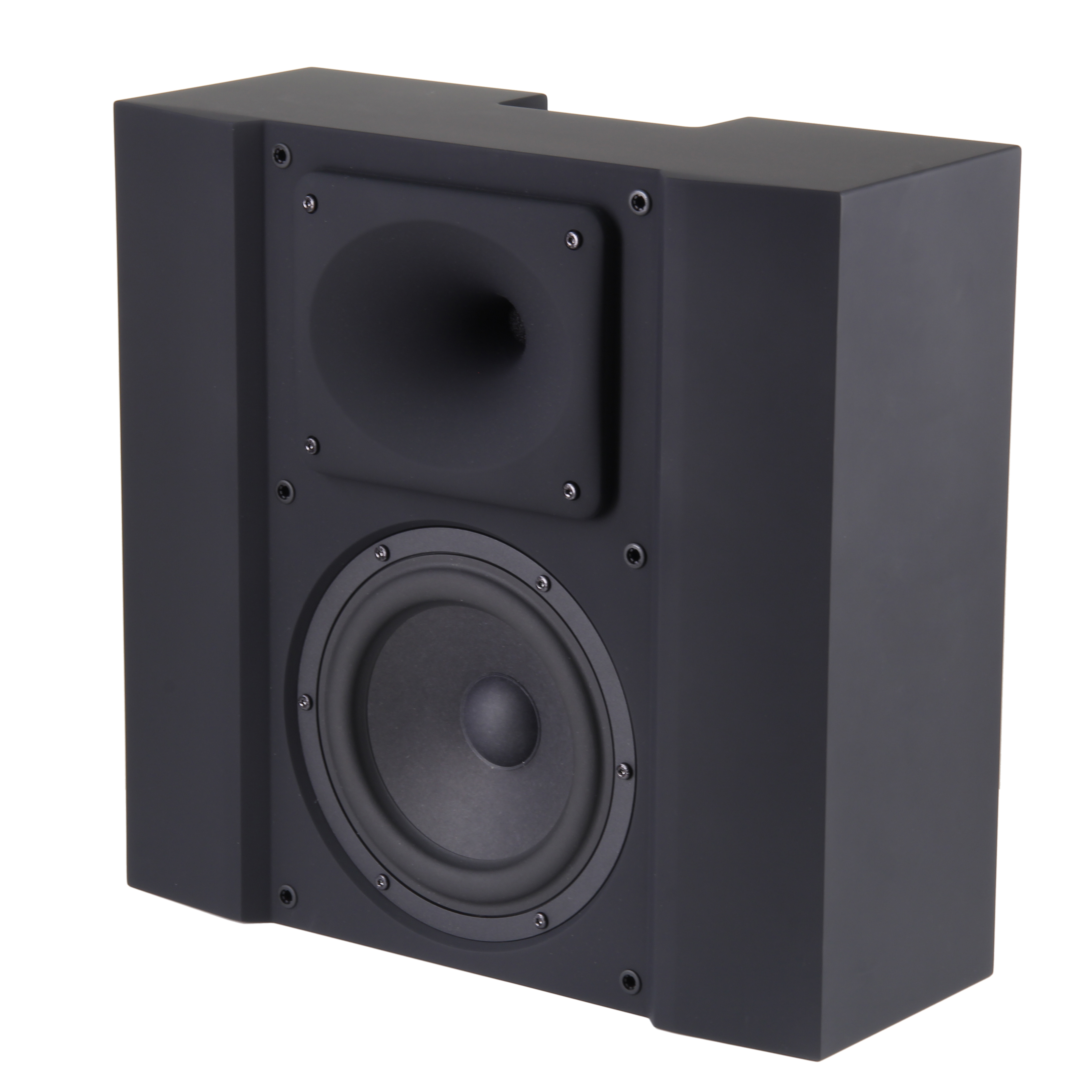

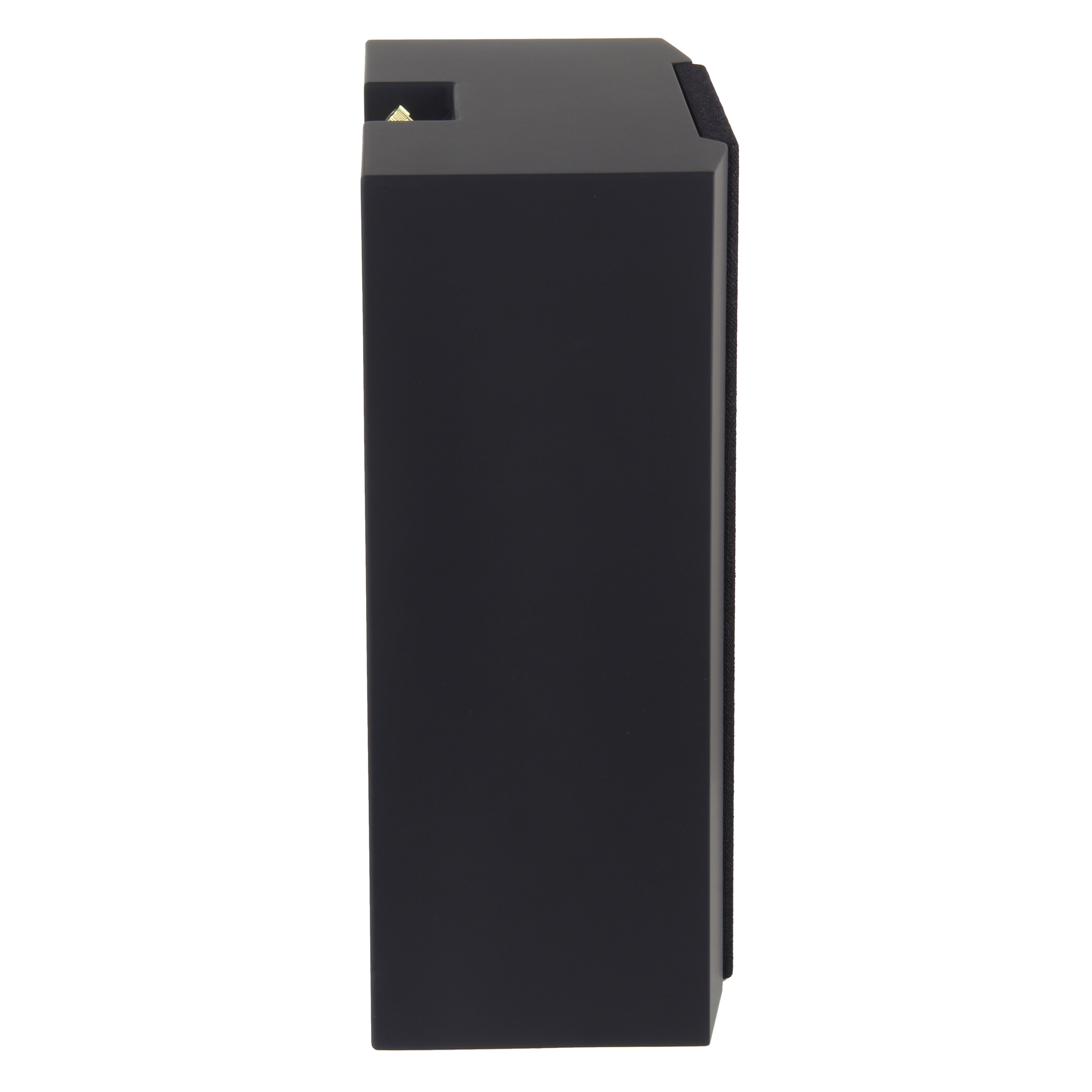

ICE S8.1
Listino ufficiale
€. 1.592,00
+iva
Description

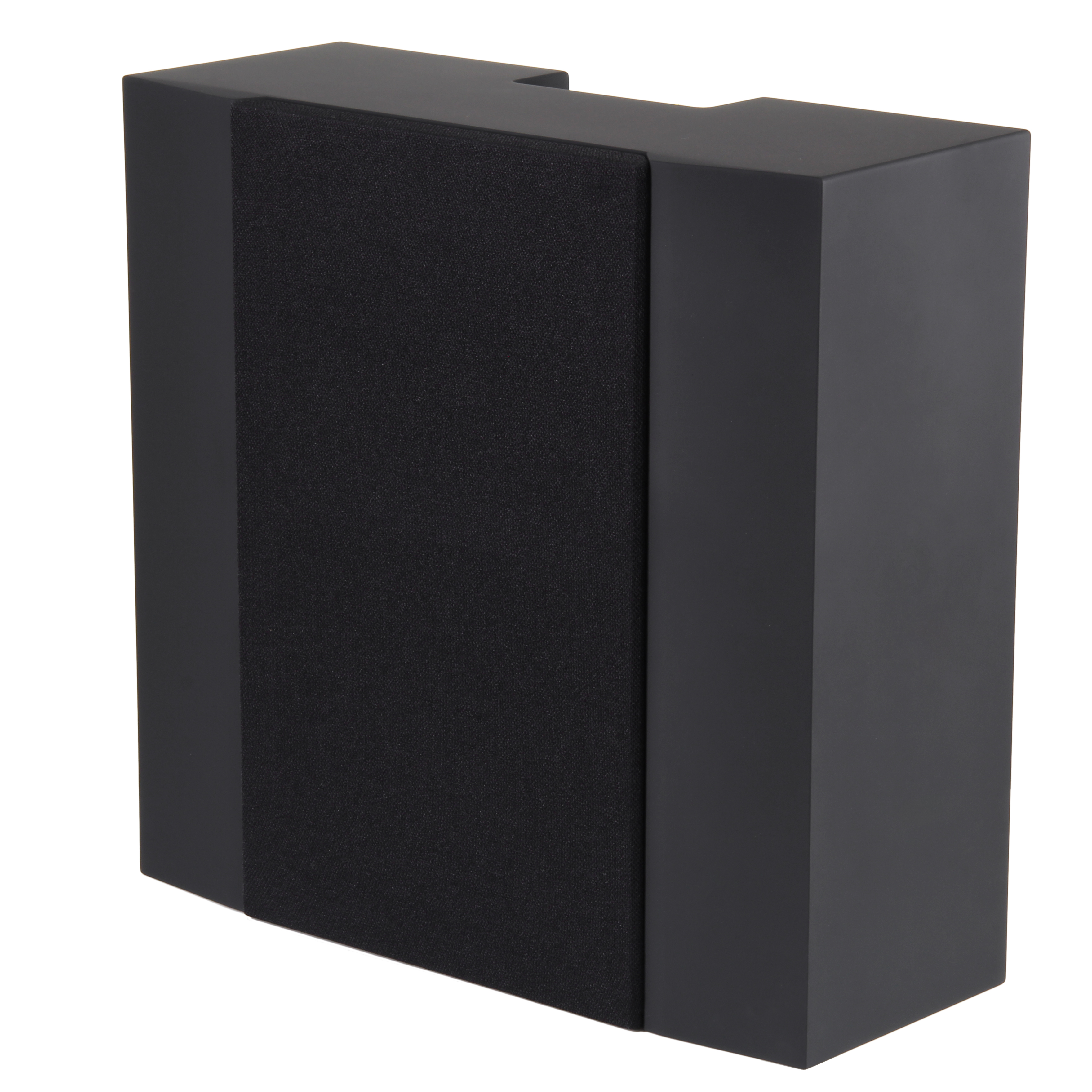

ICE S 8.1 is the premium quality high output loudspeaker designed for behind the
screen or behind the acoustic wall installation. Can be used as main and
surround speaker in spacious home theatres. Setting up with ICE 6.1 speakers,
the 8.1 can be used as screen channels in medium size rooms Features 1/ Steel
secure ring with 7 mm pin for safe installation process and operation 2/ All
cabinet parts are bolt tied 3/ Professional grade gold plated push terminals 4/
Rear cable channel for close to wall placement 5/ M6 holes for VESA200 wall
mount 6/ Light absorbing soft touch coating Specifications Nominal impedance
8 Ohms Power handling capacity Continuous 150 W (IEC 268-5) Peak 300 W (IEC
268-5) Sensitivity 87dB (1m/1W) SPL 109dB continuous, 115dB peak (1/8 space, 1m
) Frequency response 70Hz - 20kHz (-3dB) Crossover 2th Order, 2.2kHz. 80Hz
subwoofer crossover frequency. Audiophile parts and point to point soldering
Drivers Midrange 200 mm driver with 39 mm voice coil High Frequency 25 mm driver
with a CTA diaphragm, elliptical constant directivity wave guide 90°H x 60°V
from 1.5kHz (-6dB) Cabinet 23L sealed box made of high quality MDF, internally
braced. Light absorbing black soft touch coating. Dimensions (HxWxD) 440 x 460 x
190mm Weight 13 kg

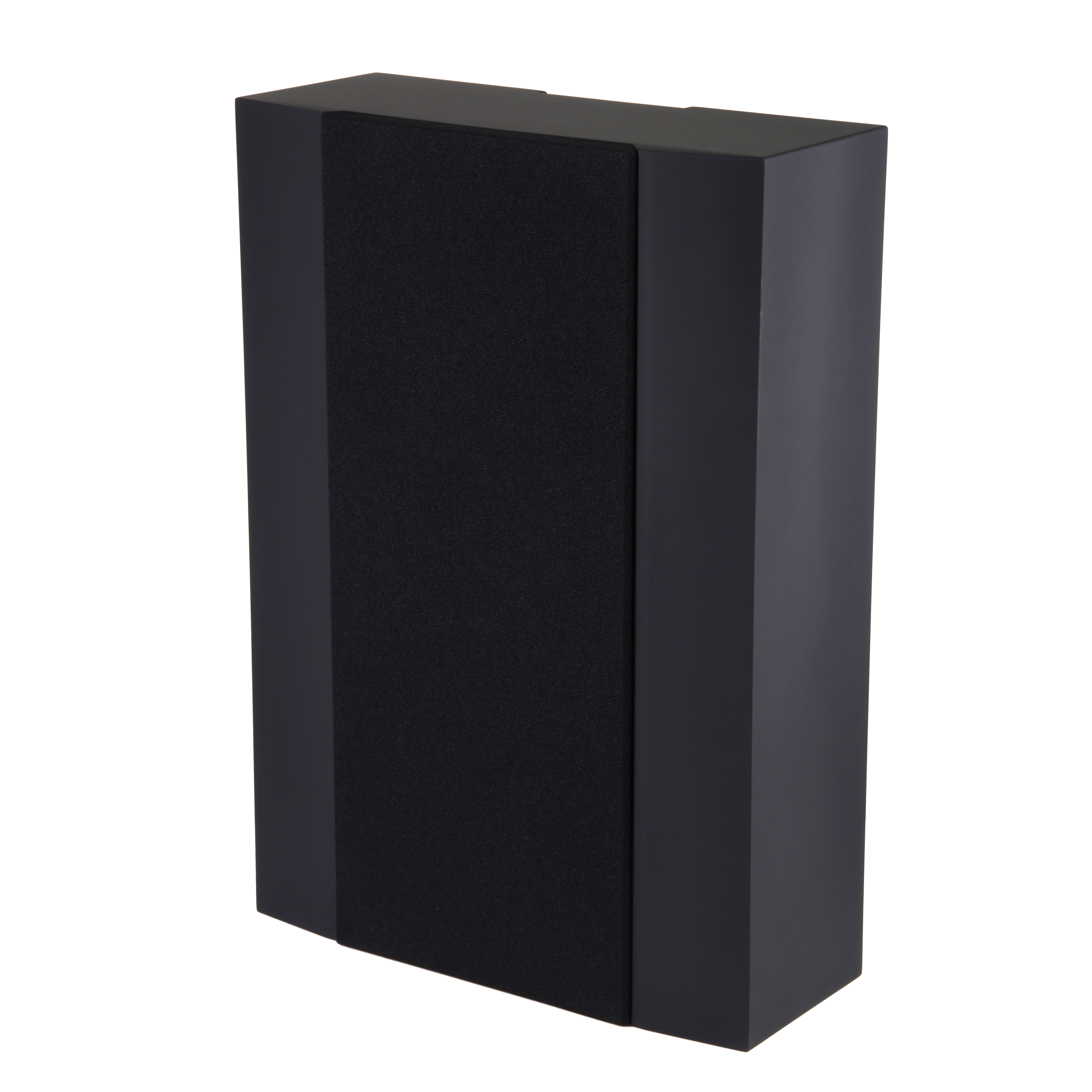

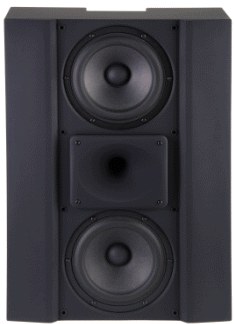

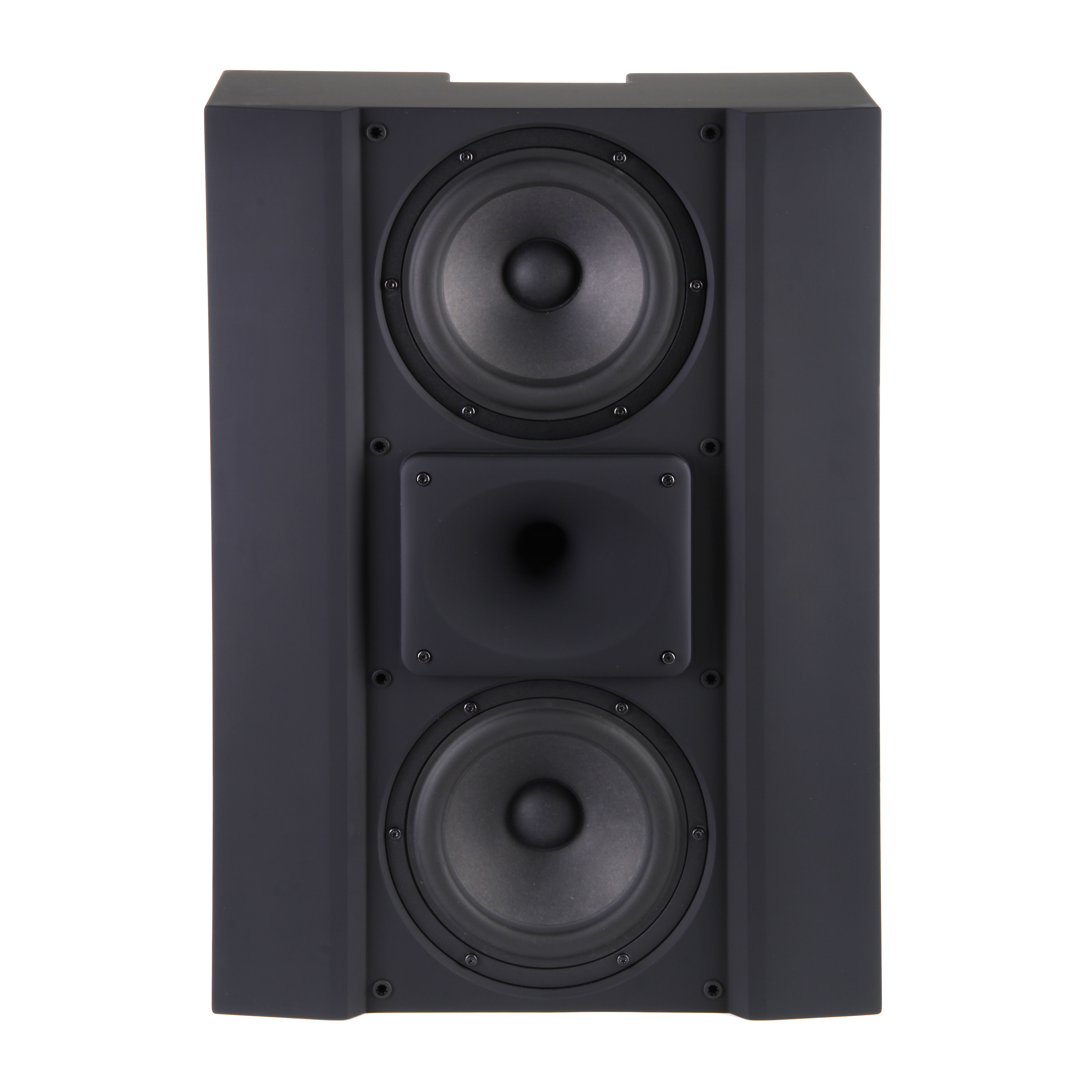

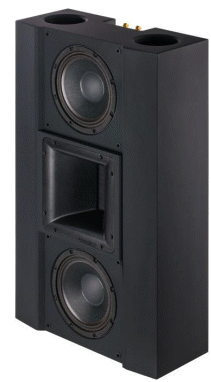

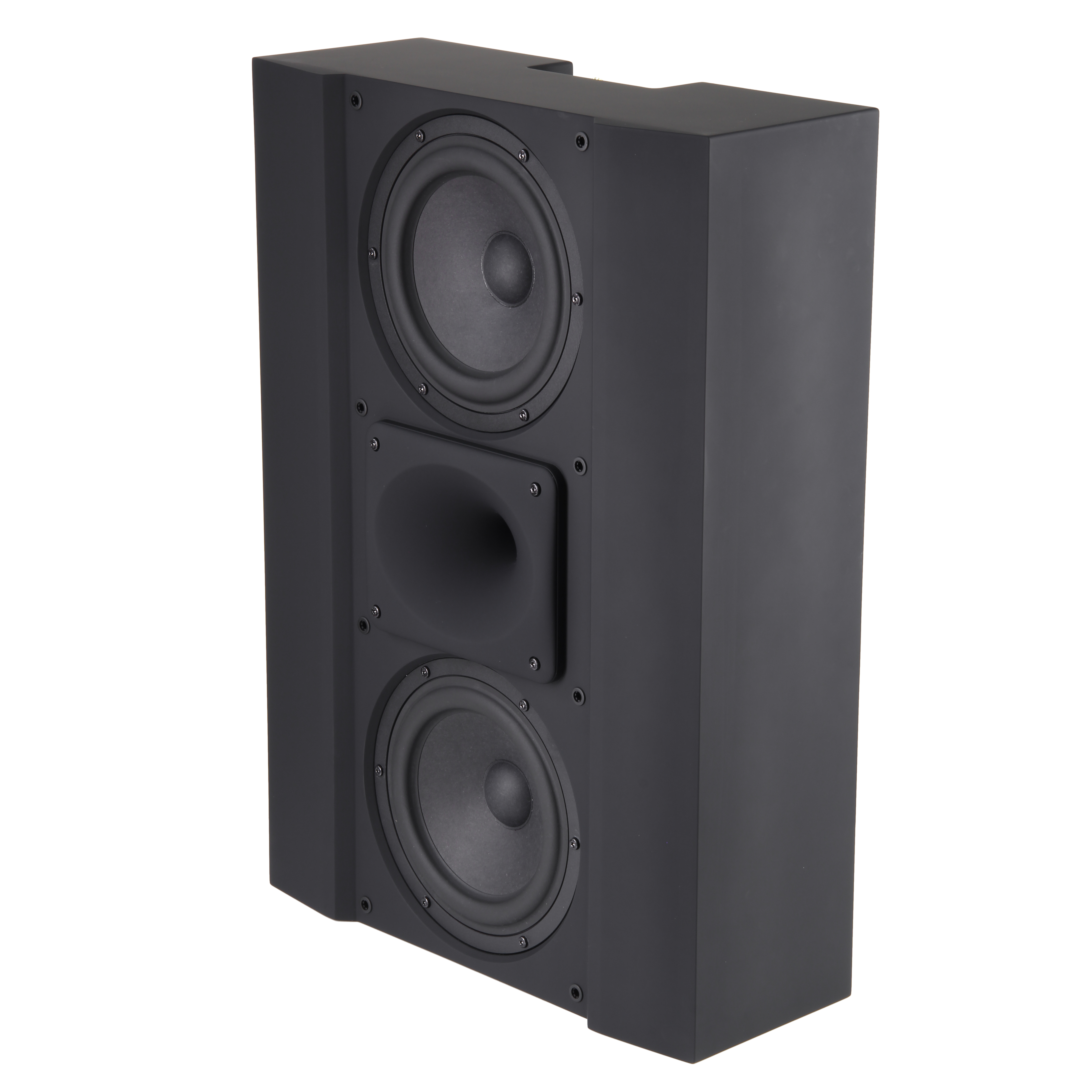

ICE S8.2
Listino ufficiale
€. 2.492,00
+iva
Description

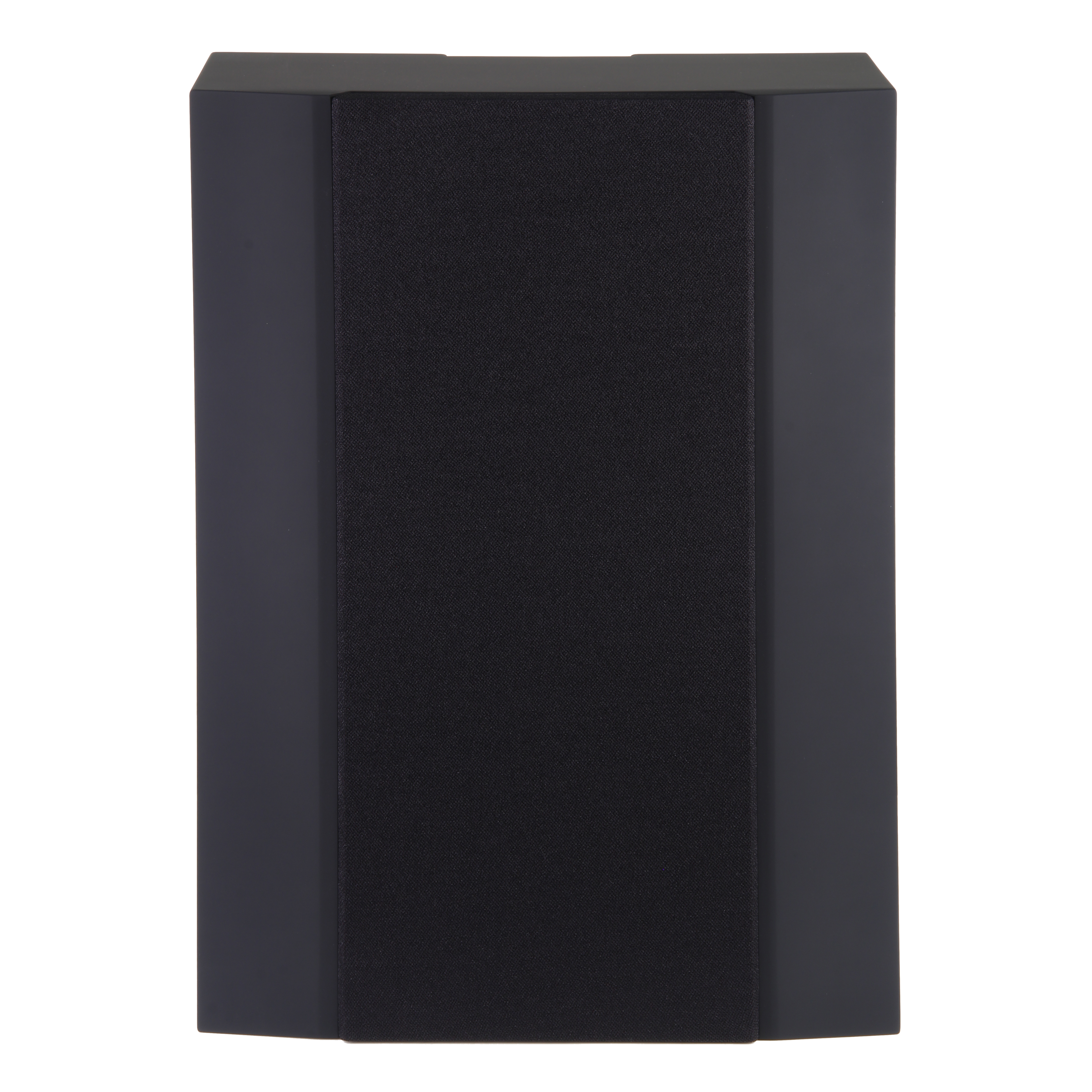

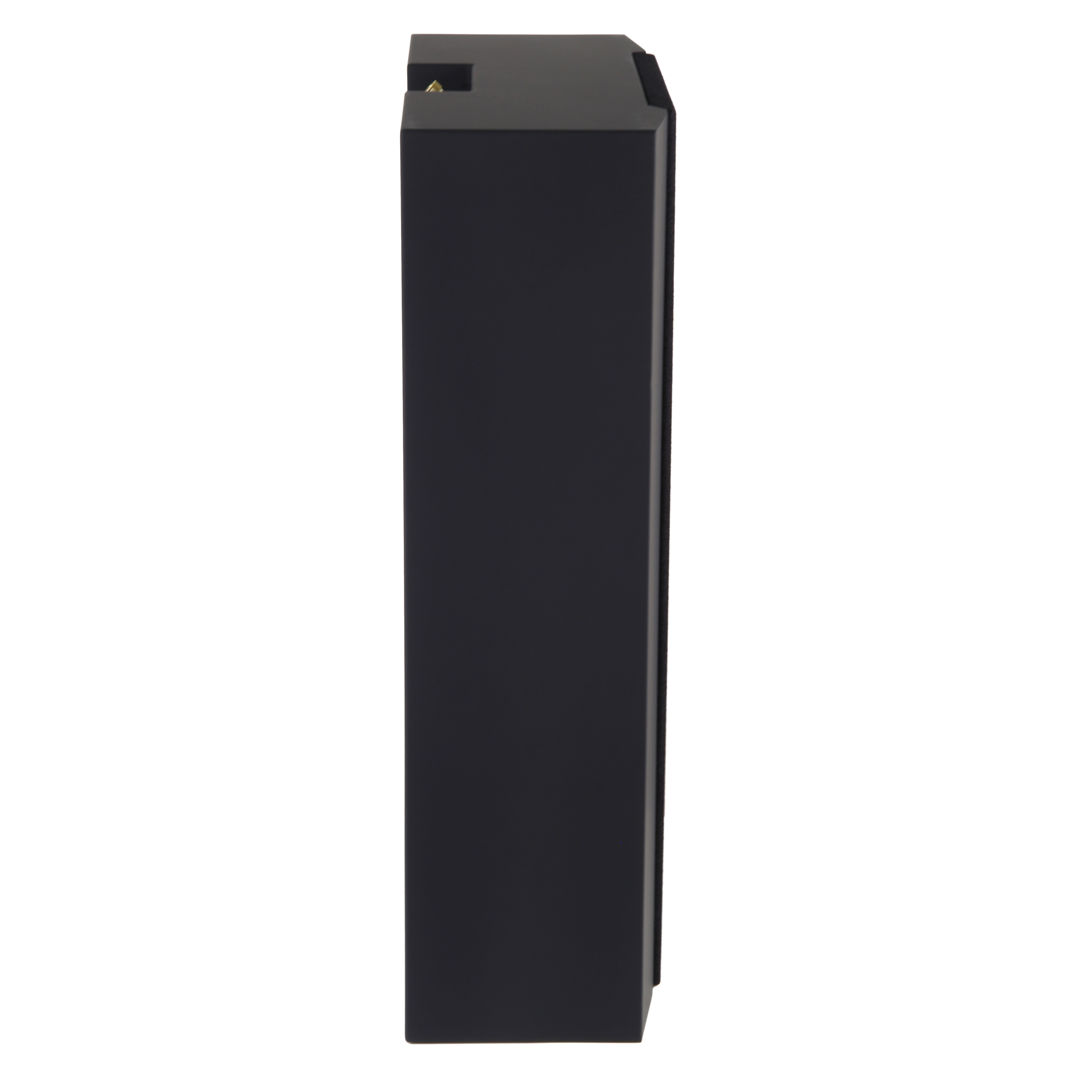

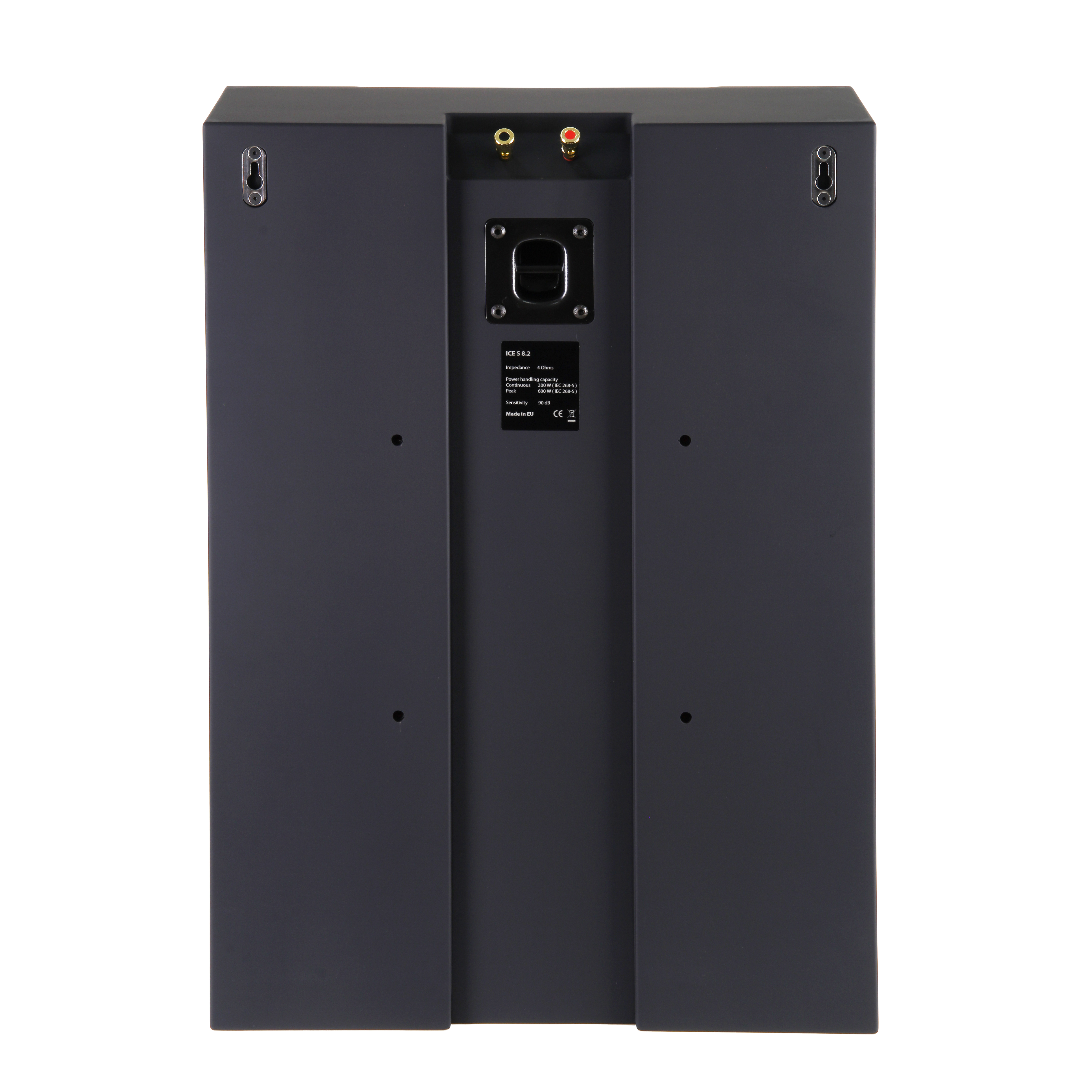

ICE S 8.2 is the premium quality high output loudspeaker designed for behind the
screen or behind the acoustic wall installation. Can be used as main and
surround speaker in spacious home theatres. Alongside with ICE 8.1, 6.1 speakers,
the ICE S 8.2 can be used as screen channels in the medium size set ups Features
1/ Steel secure ring with 7 mm pin for safe installation process and operation
2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push
terminals 4/ Rear cable channel for close to wall placement 5/ M6 holes for
VESA200 wall mount 6/ Light absorbing soft touch coating Specifications
Nominal impedance 4 Ohms Power handling capacity Continuous 300 W (IEC 268-5)
Peak 600 W (IEC 268-5) Sensitivity 90dB (1m/1W) SPL 116dB continuous, 122dB peak
(1/8 space, 1m) Frequency response 70Hz – 20kHz ( 3dB) Crossover 2th Order, 2.2
kHz. 80Hz subwoofer crossover frequency Audiophile parts and point to point
soldering Drivers Midrange 2x200 mm drivers with 39 mm voice coils High
Frequency 25 mm driver with a CTA diaphragm, elliptical constant directivity (
6dB 90°H x 60°V from 1.5 kHz) wave guide Cabinet 38L sealed cabinet made of high
quality MDF, internally braced. Light absorbing black soft touch coating
Dimensions (HxWxD) 650 x 460 x 190 mm Weight 19 kg
ICE S8.2HS
Listino ufficiale
€. 3.700,00
+iva
ICE 15.1HS
Listino ufficiale
€. 5.100,00
+iva

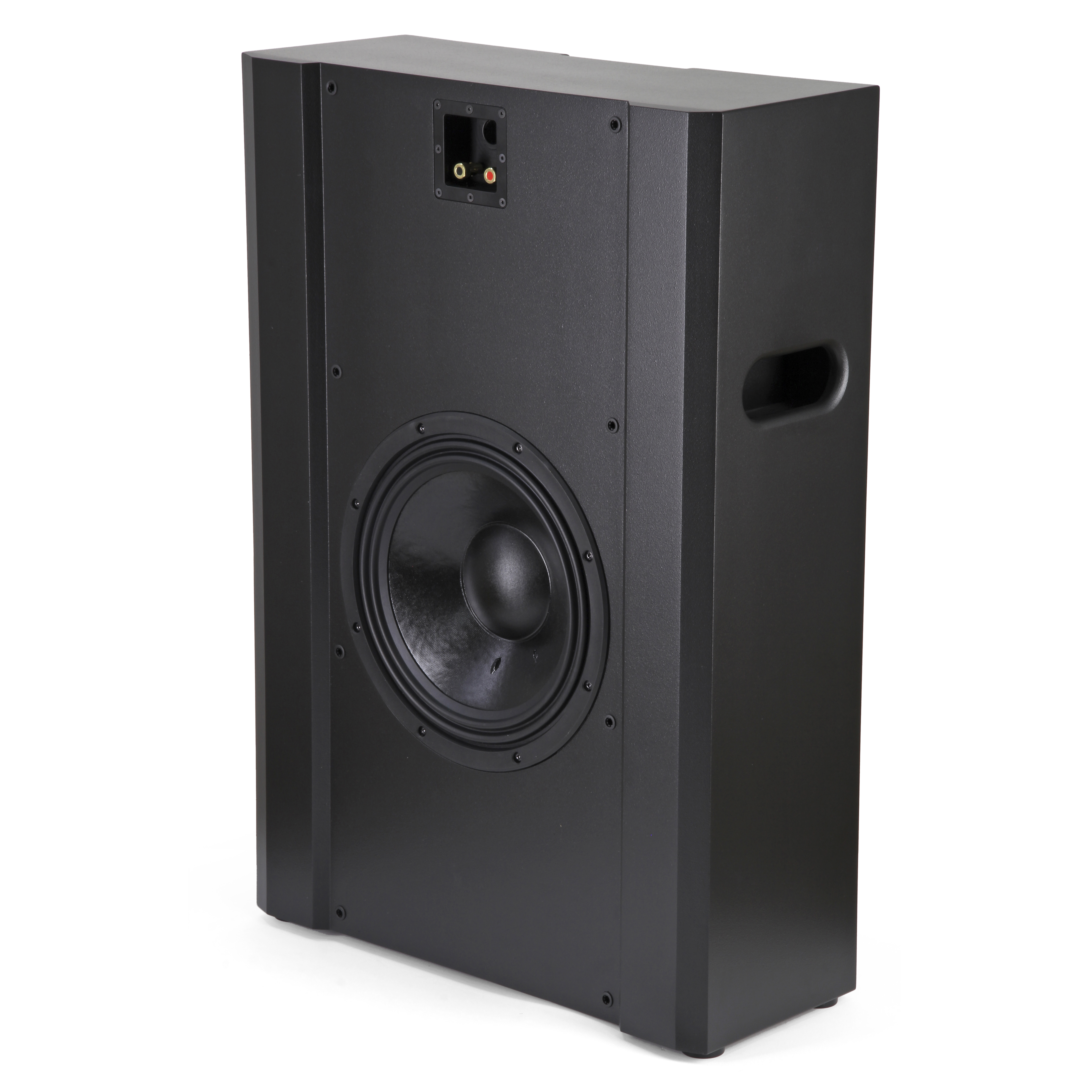

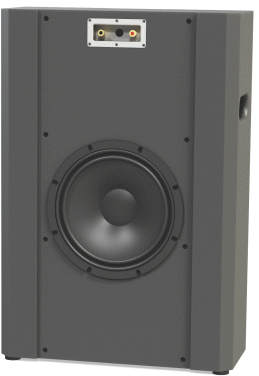

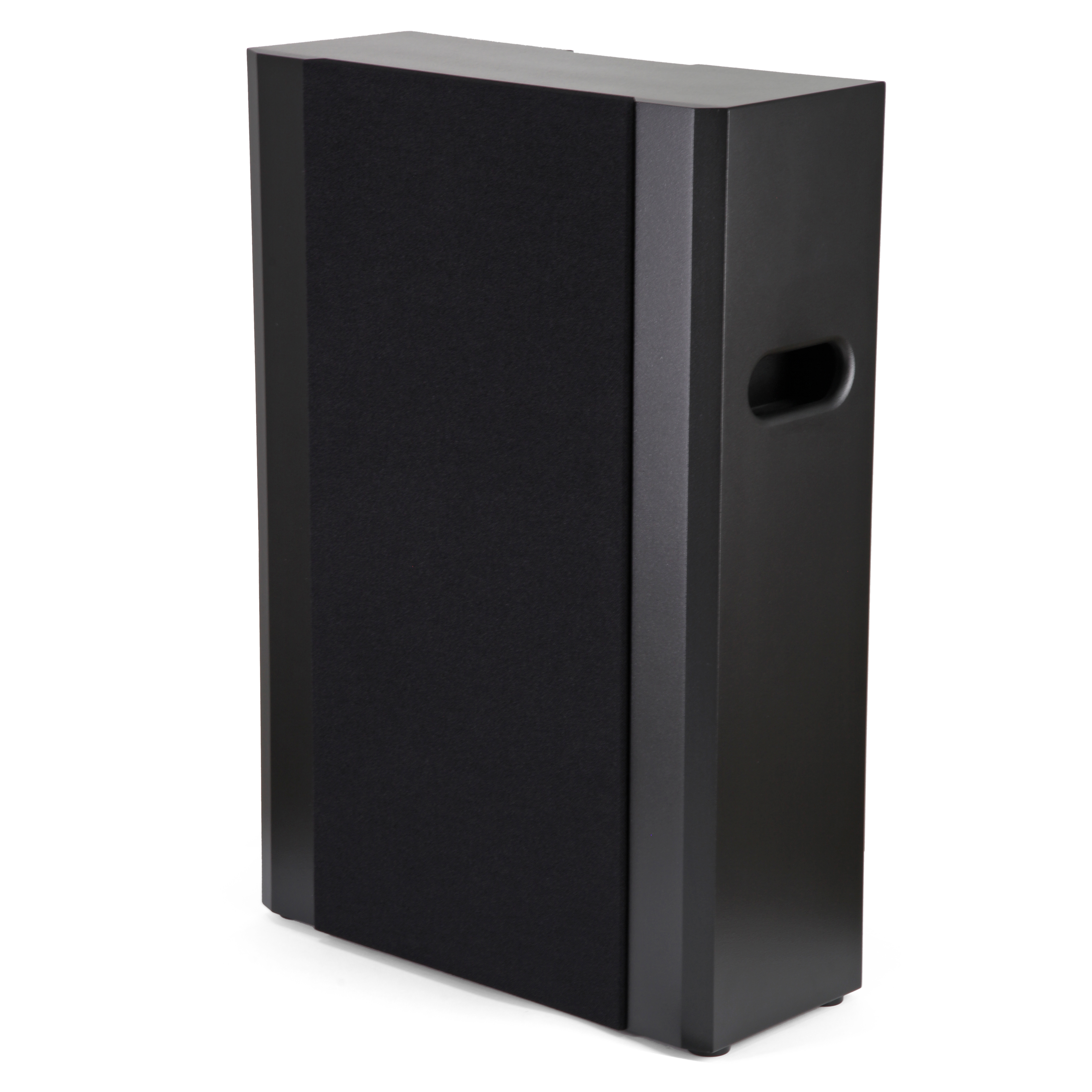

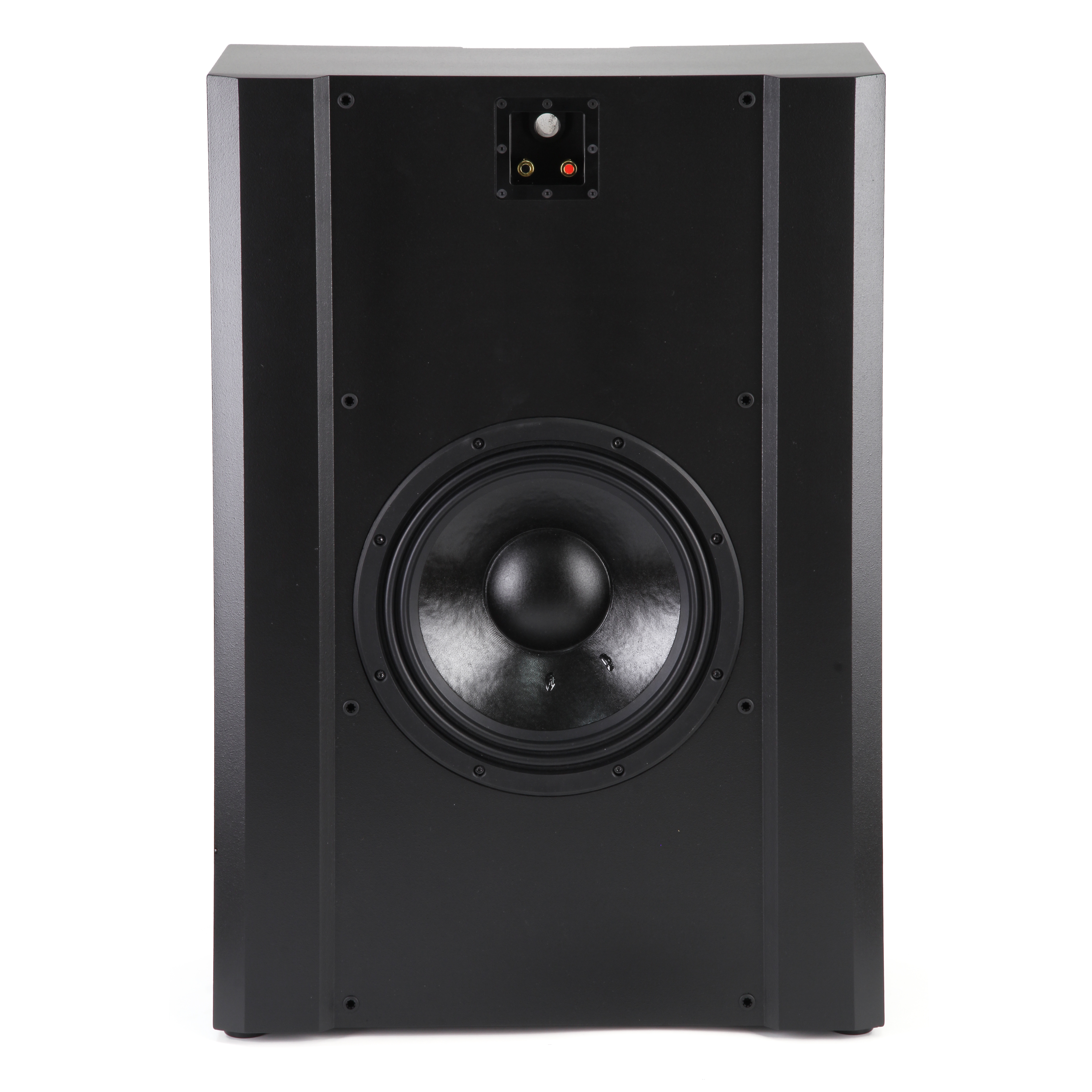

ICE
12.1P Listino ufficiale
€. 1.492,00
+iva
Description

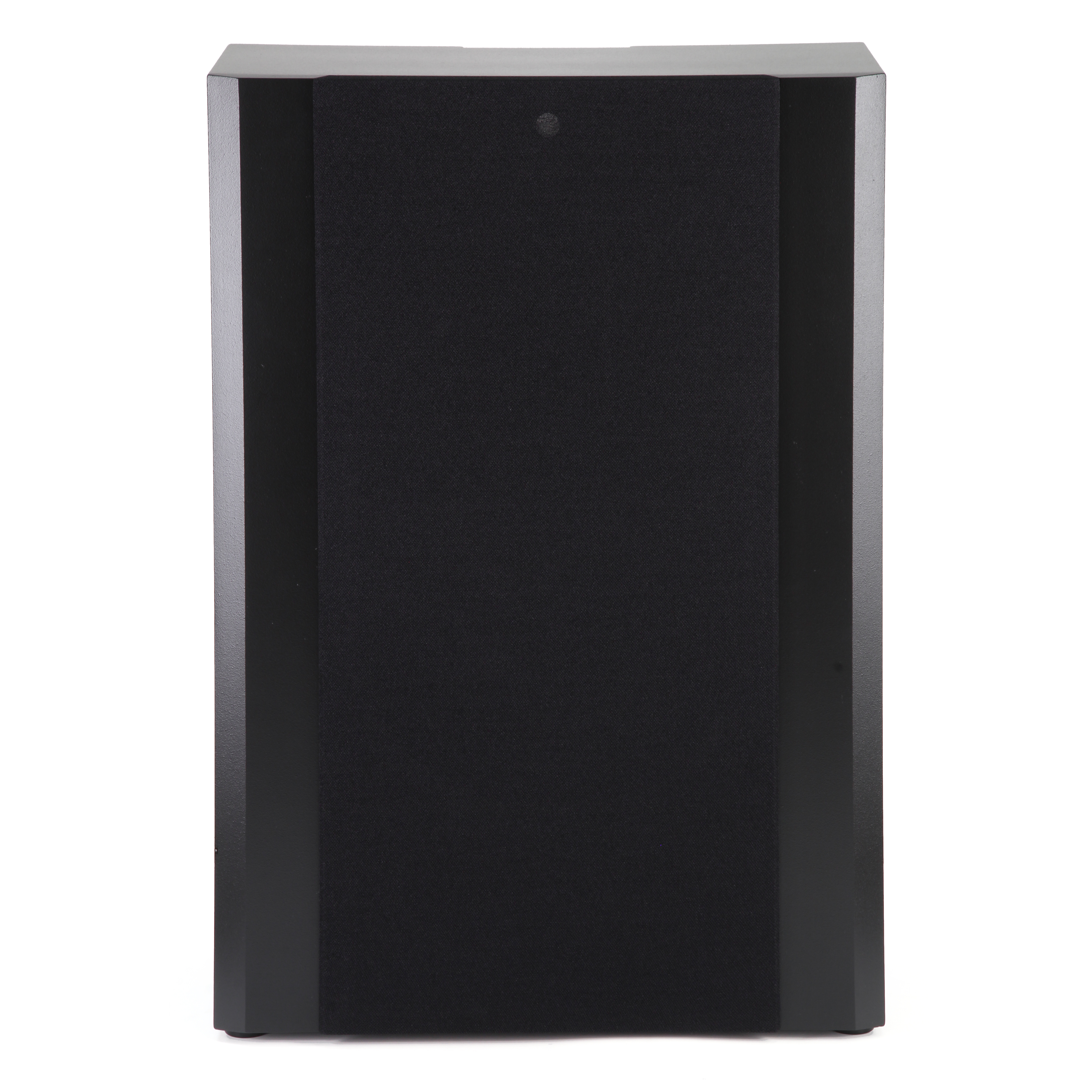

12” passive subwoofer designed for behind the screen or acoustic wall
installation. Recommended for small to mid-size rooms. Can be used as an
additional subwoofer together with the ICE 15.2P in multiple subwoofer
installation Features 1/ 2 steel secure rings with 7 mm pin for safe
installation process and operation 2/ All cabinet parts are bolt tied 3/
Professional grade gold plated push terminals in parallel with Neutrik Speakon
connectors 4/ Back and front terminals. “Cabinet through” cable tunnel for front
terminal access 5/ Rear cable channel for close to wall placement 6/ Just 230 mm
in depth cabinet Specifications Nominal impedance 8 Ohms Power handling
capacity Continuous 350 W (AES) Peak 700 W (AES) Sensitivity 92dB (1m/1W) SPL
115dB continuous, 121dB peak (1/8 space, 1m), maximum output: 121dB @ 50 Hz
Frequency response 36Hz (- 3dB) Drivers 300 mm long-throw driver with 76 mm
voice coil Cabinet 68L sealed box made of premium quality Baltic birch plywood
internally cross braced. Black structured painting Dimensions (HxWxD) 800 x 550
x 230 mm (height with damping feet 810 mm) Weight 24 kg

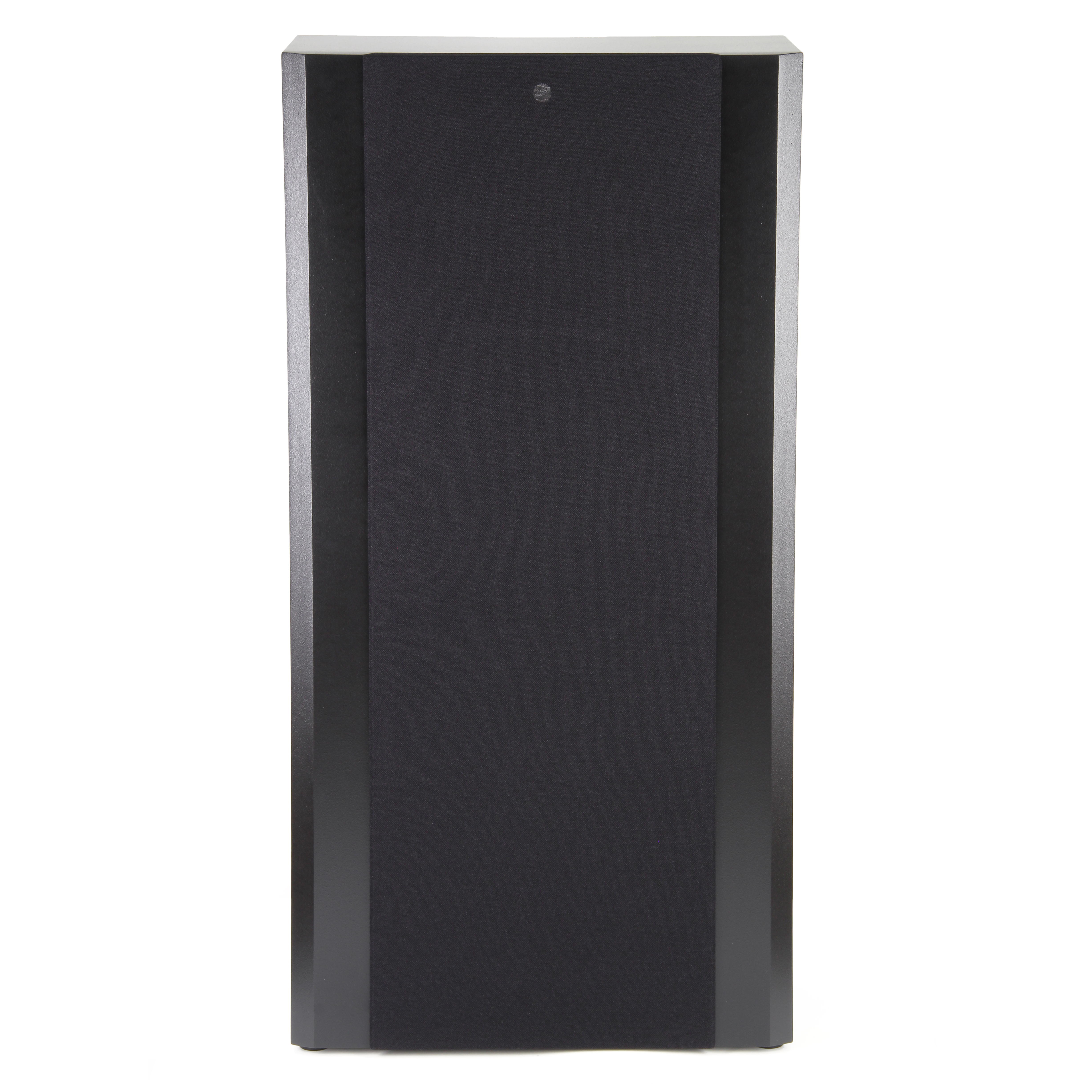

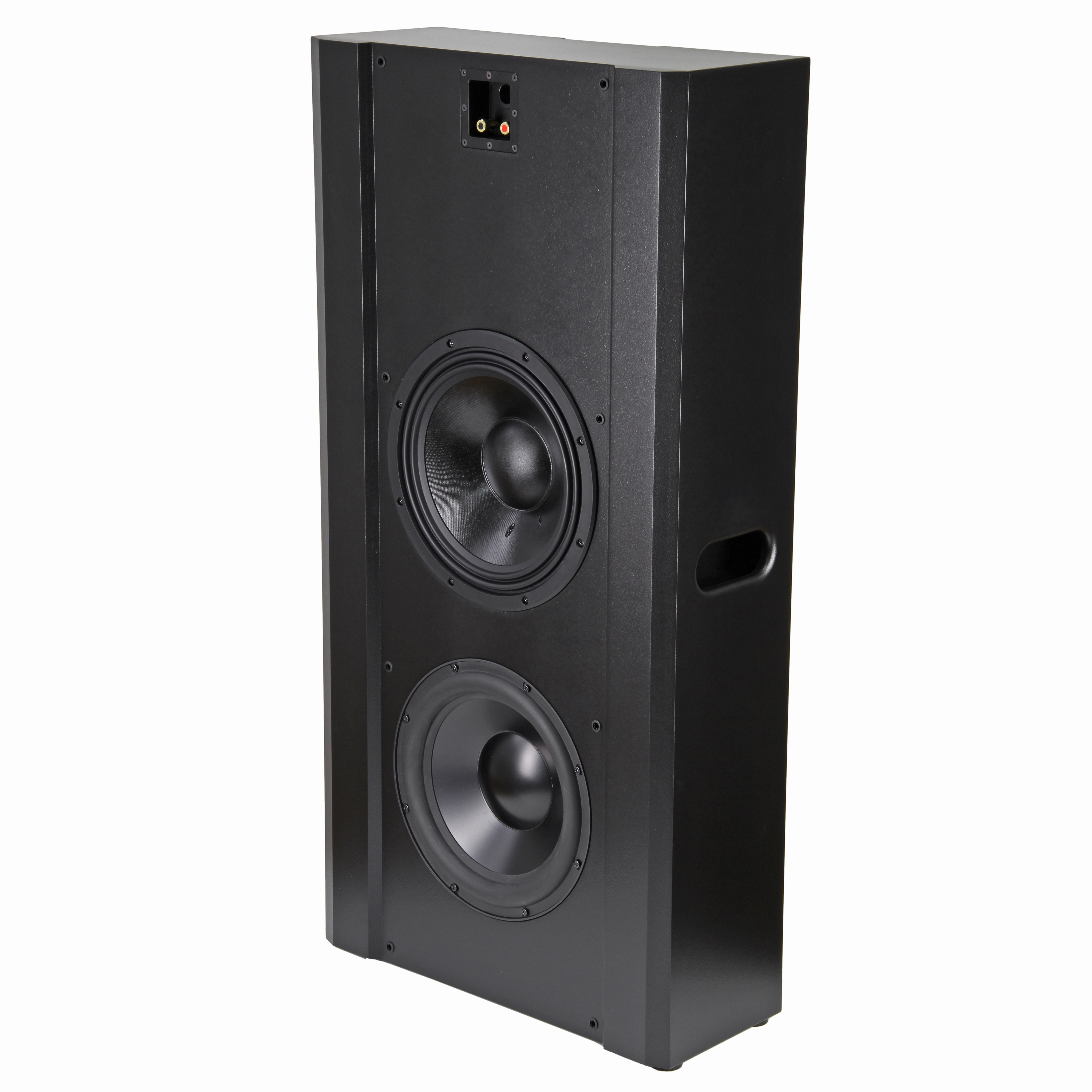

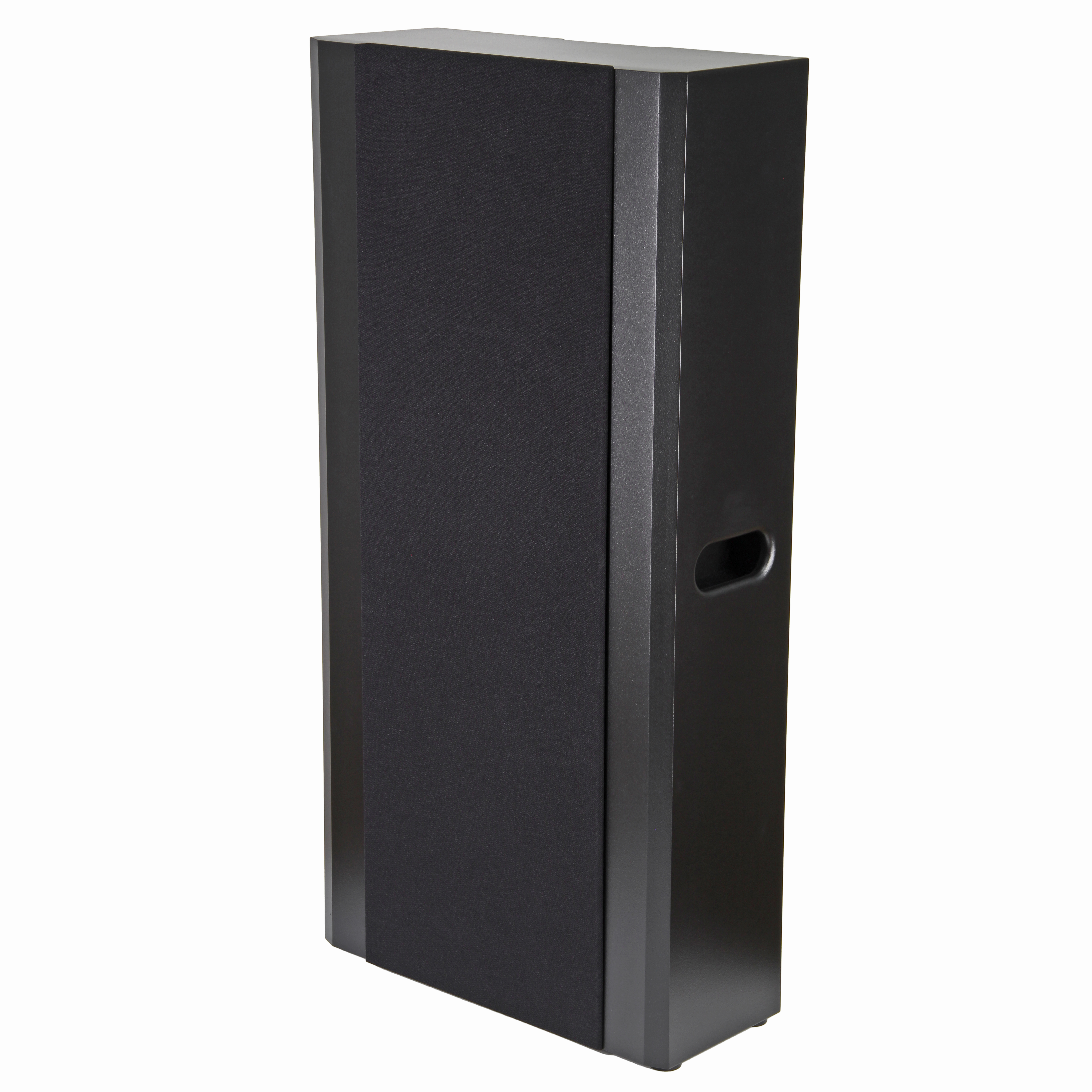

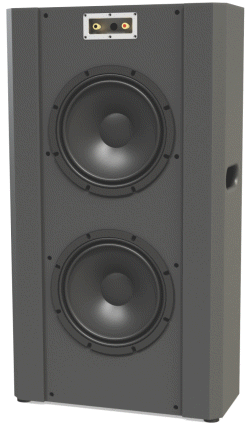

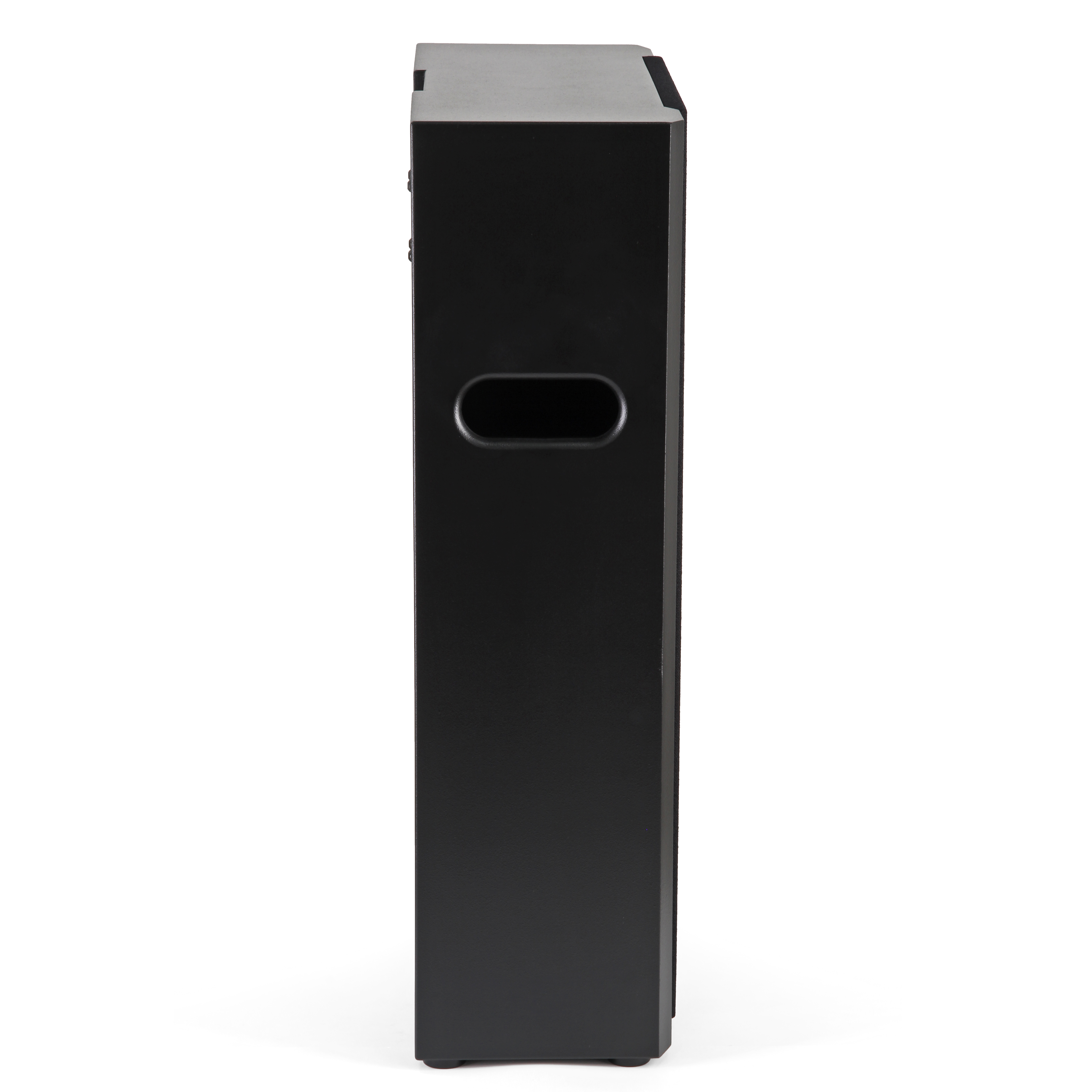

ICE
12.2P Listino ufficiale
€. 1.872,00
+iva
Description

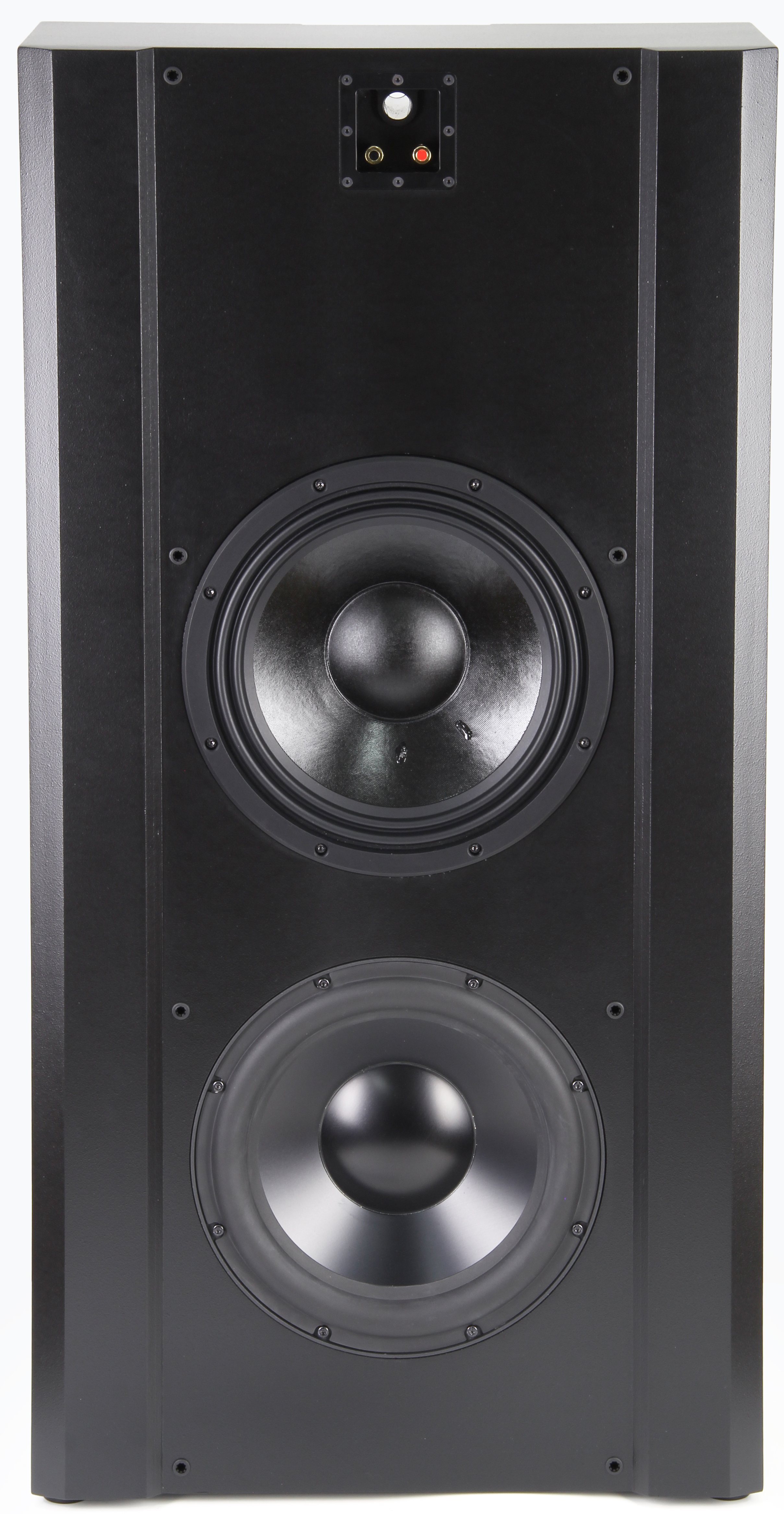

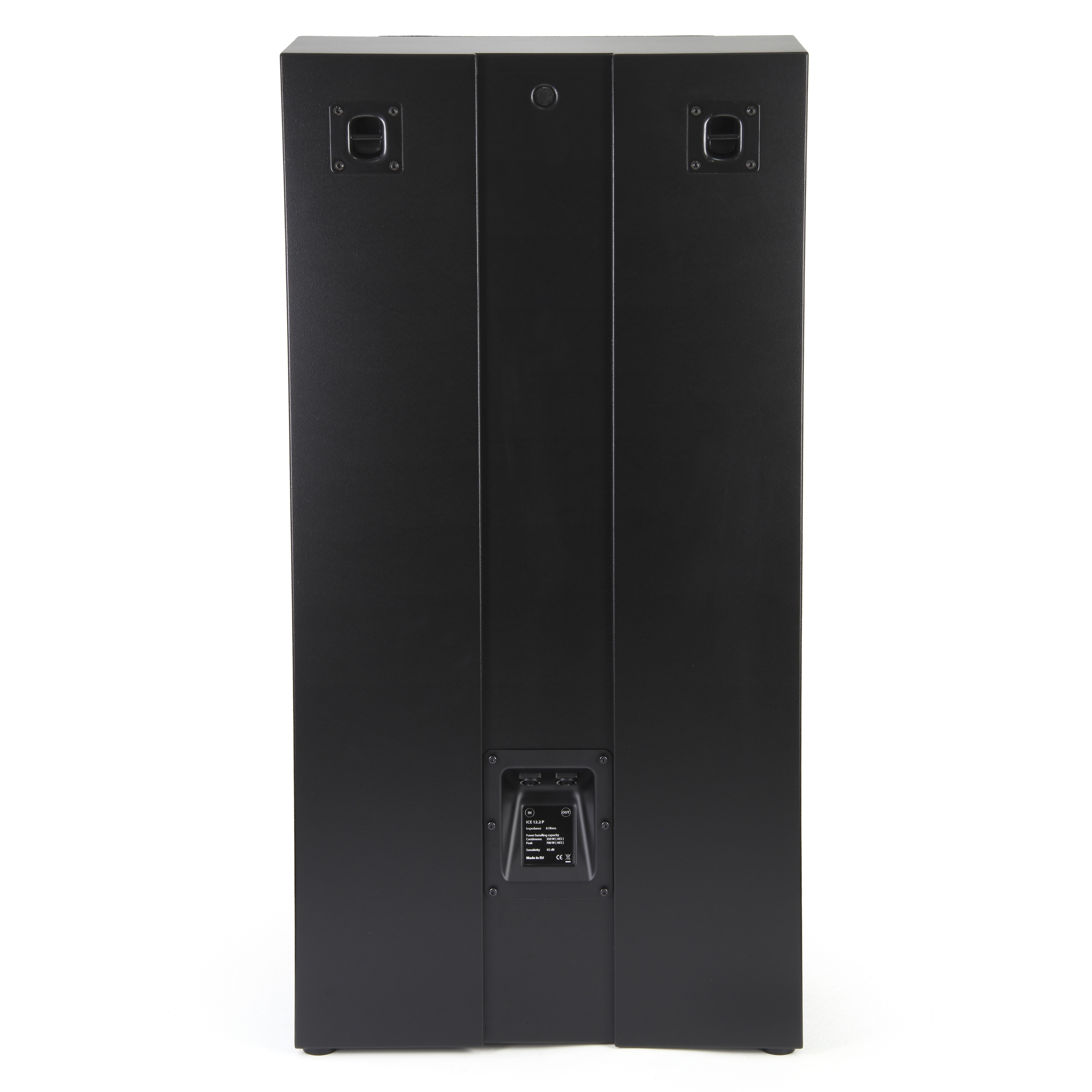

12” subwoofer with 12” front firing passive radiator. Shallow cabinet for behind
the screen oracoustic wall installation. Recommended for small to mid-size room
Features 1/ 2 steel secure rings with 7 mm pin for safe installation process and
operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated
push terminals in parallel with Neutrik Speakon connectors 4/ Back and front
terminals. “Cabinet through” cable tunnel for front terminal access 5/ Rear
cable channel for close to wall placement 6/ Just 230 mm in depth cabinet
Specifications Nominal impedance 8 Ohms Power
handling capacity Continuous 350 W (AES) Peak 700 W (AES) Sensitivity 92dB
(1m/1W) SPL 115dB continuous, 121dB peak (1/8 space, 1m) Maximum output 121 dB @
50 Hz Frequency response 28Hz (-3dB) Drivers 300 mm long-throw driver with 75 mm
voice coil and 300 mm passive radiator Cabinet 86L bass reflex enclosure with
front firing radiator Cabinet is made of premium quality Baltic birch plywood
internally cross braced. Black structured painting Dimensions (HxWxD) 1100 x 550
x 230 mm (height with damping feet 1110 mm) Weight 30,5 kg

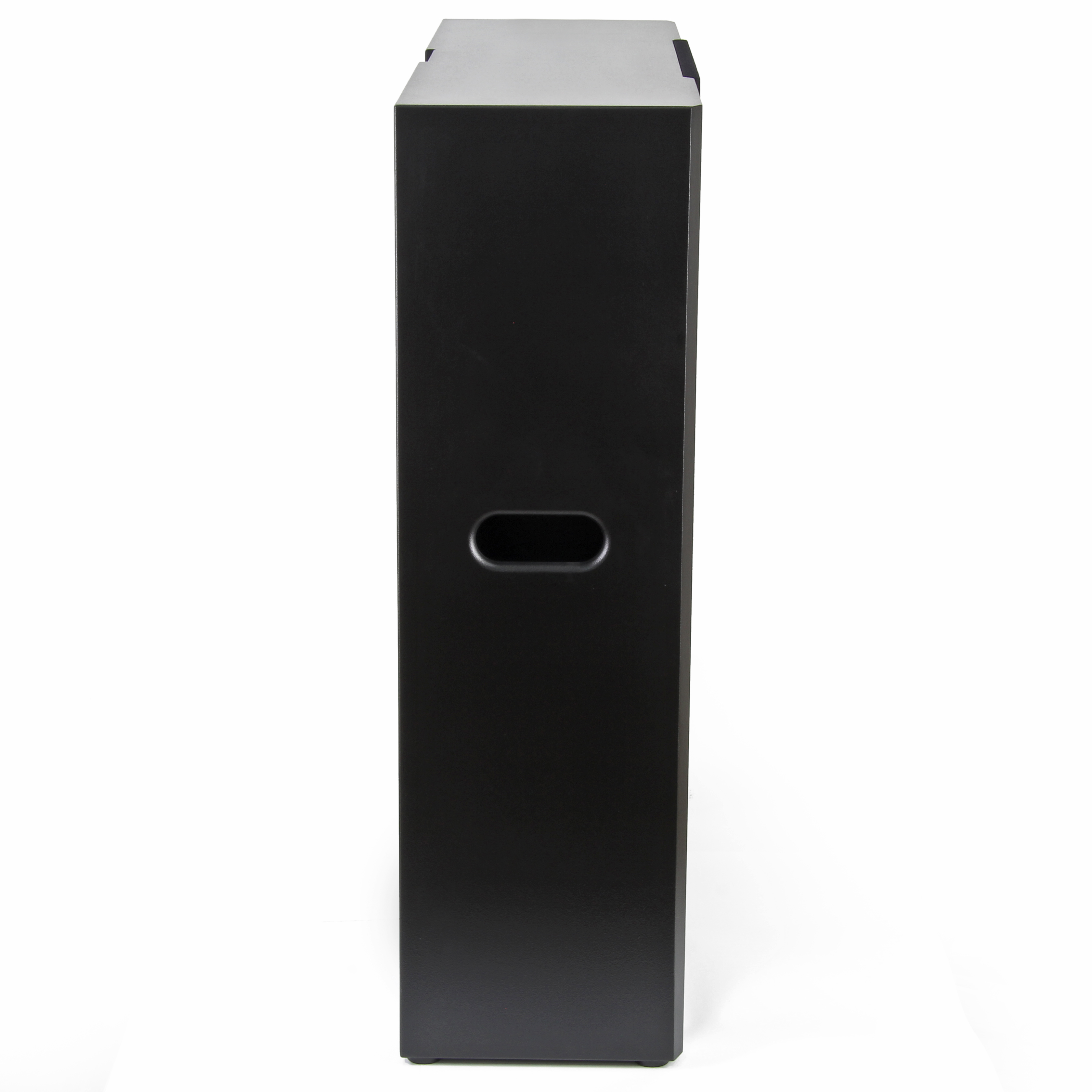

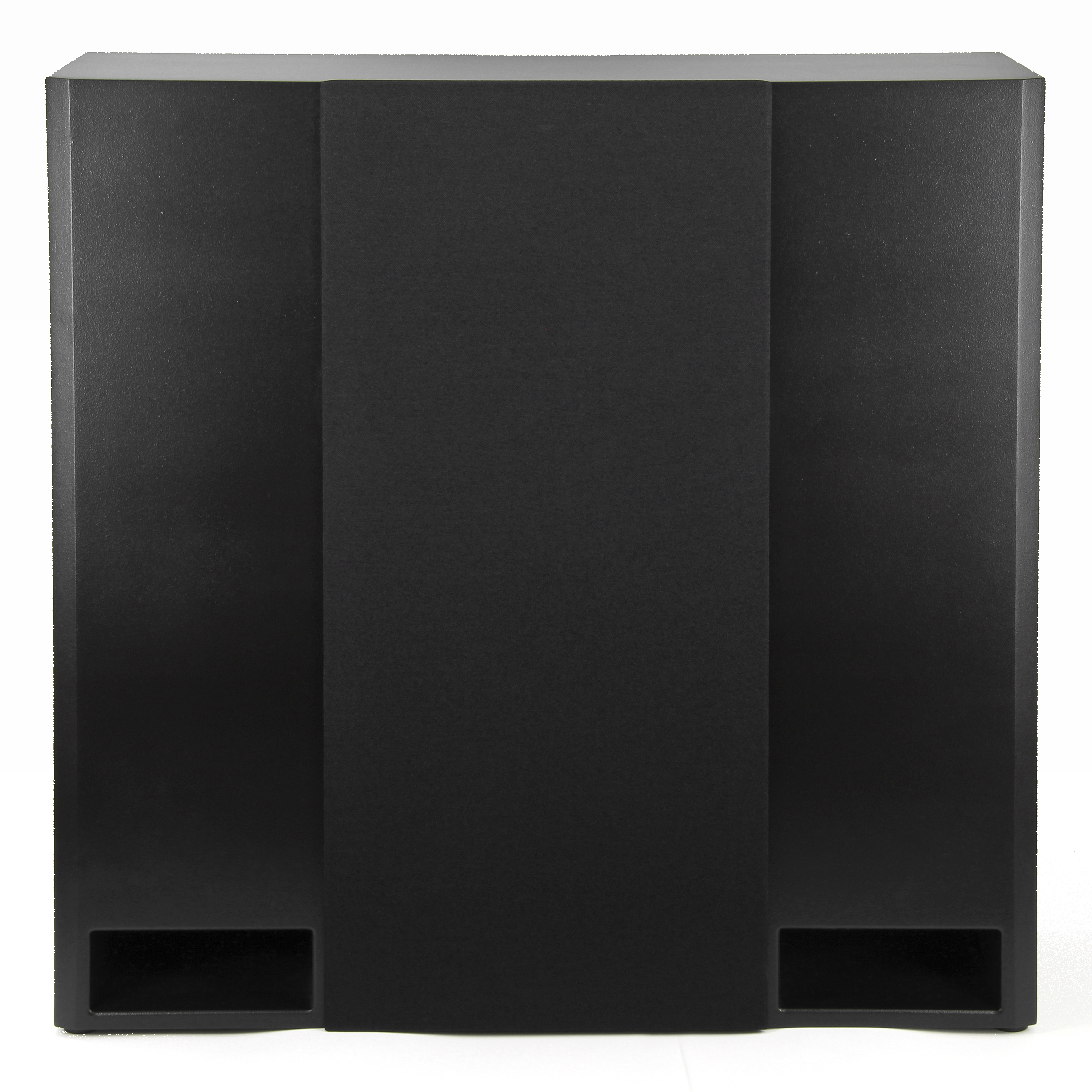

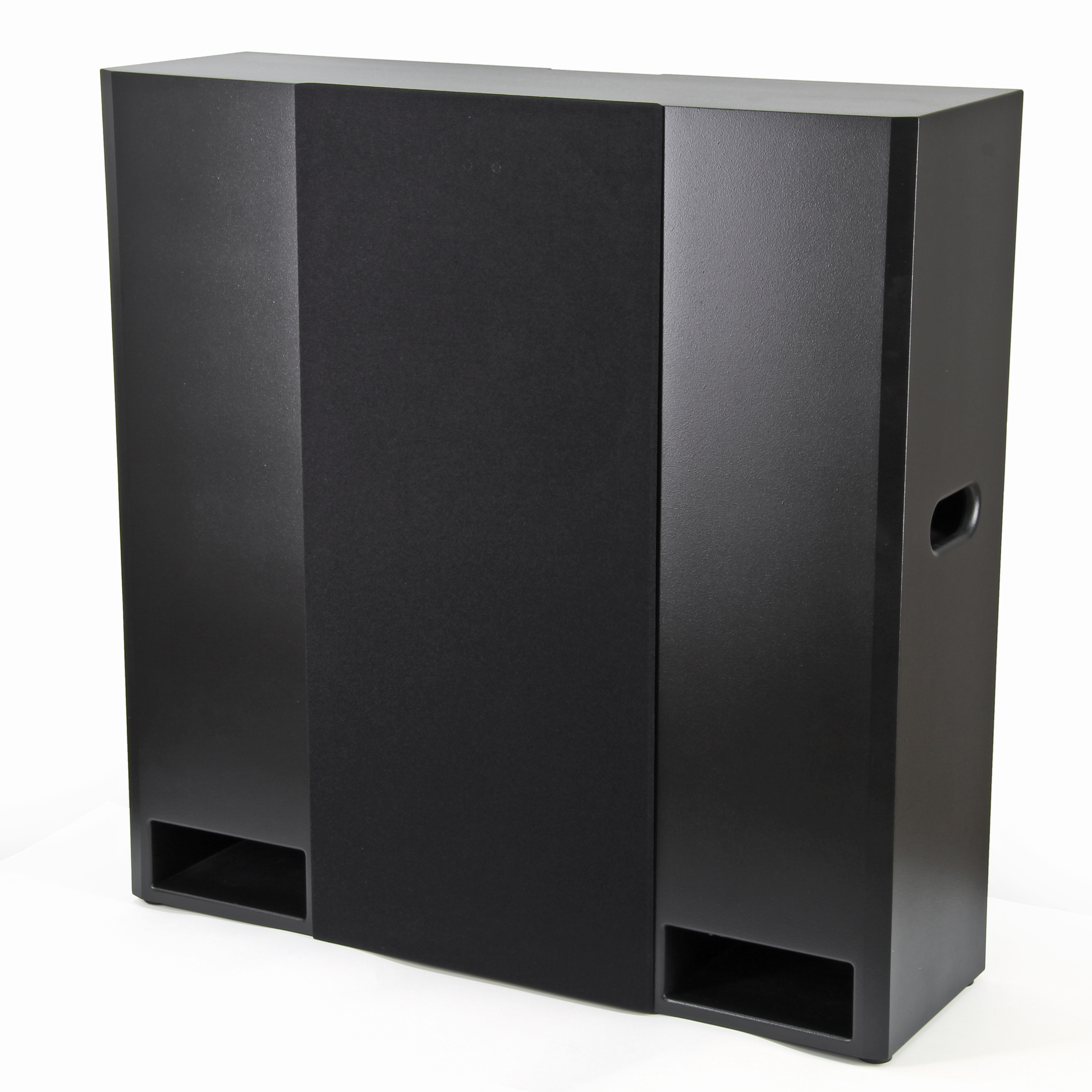

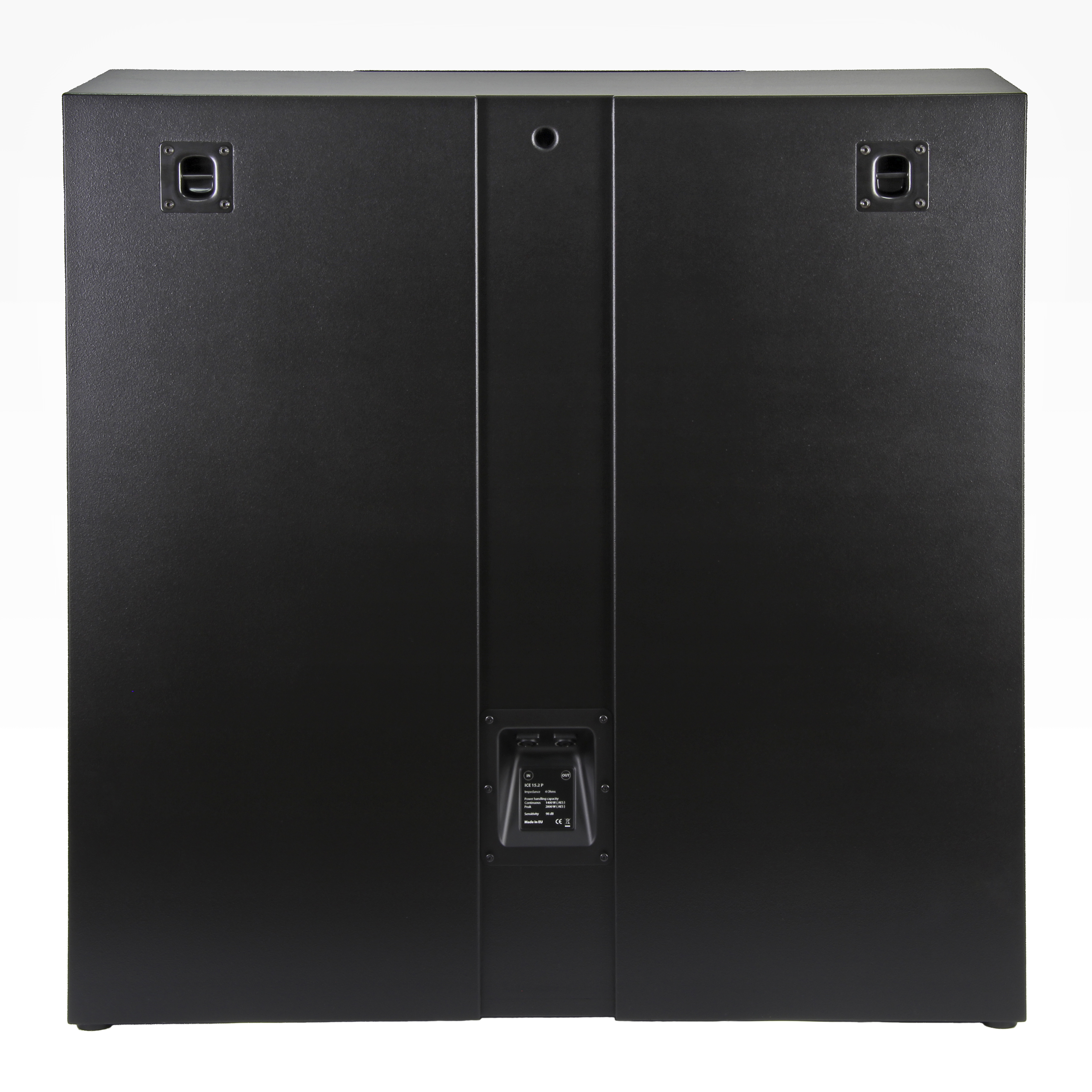

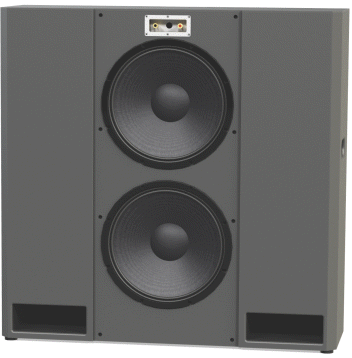

ICE
15.2P Listino ufficiale
€. 3.295,00
+iva
Description

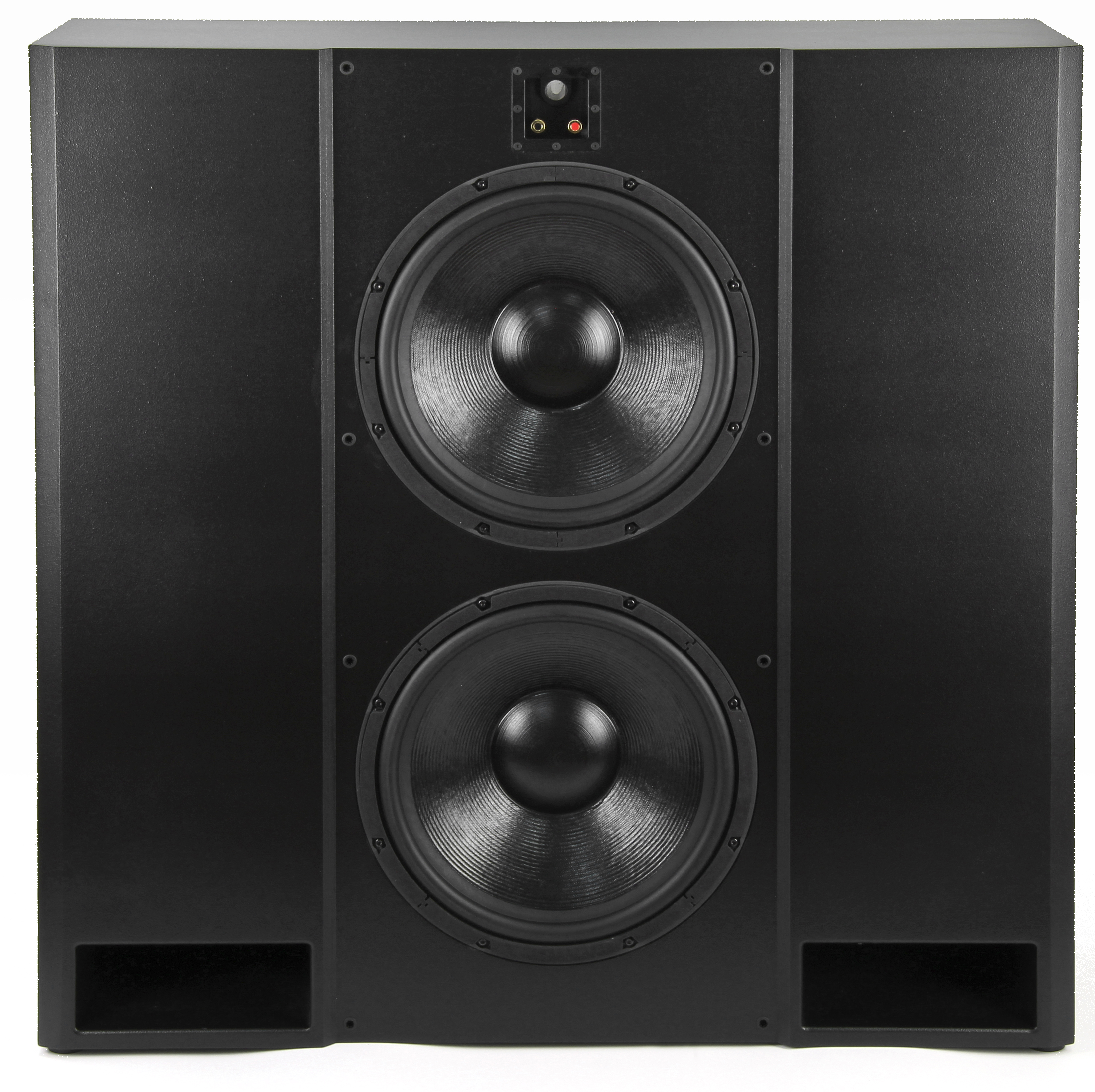

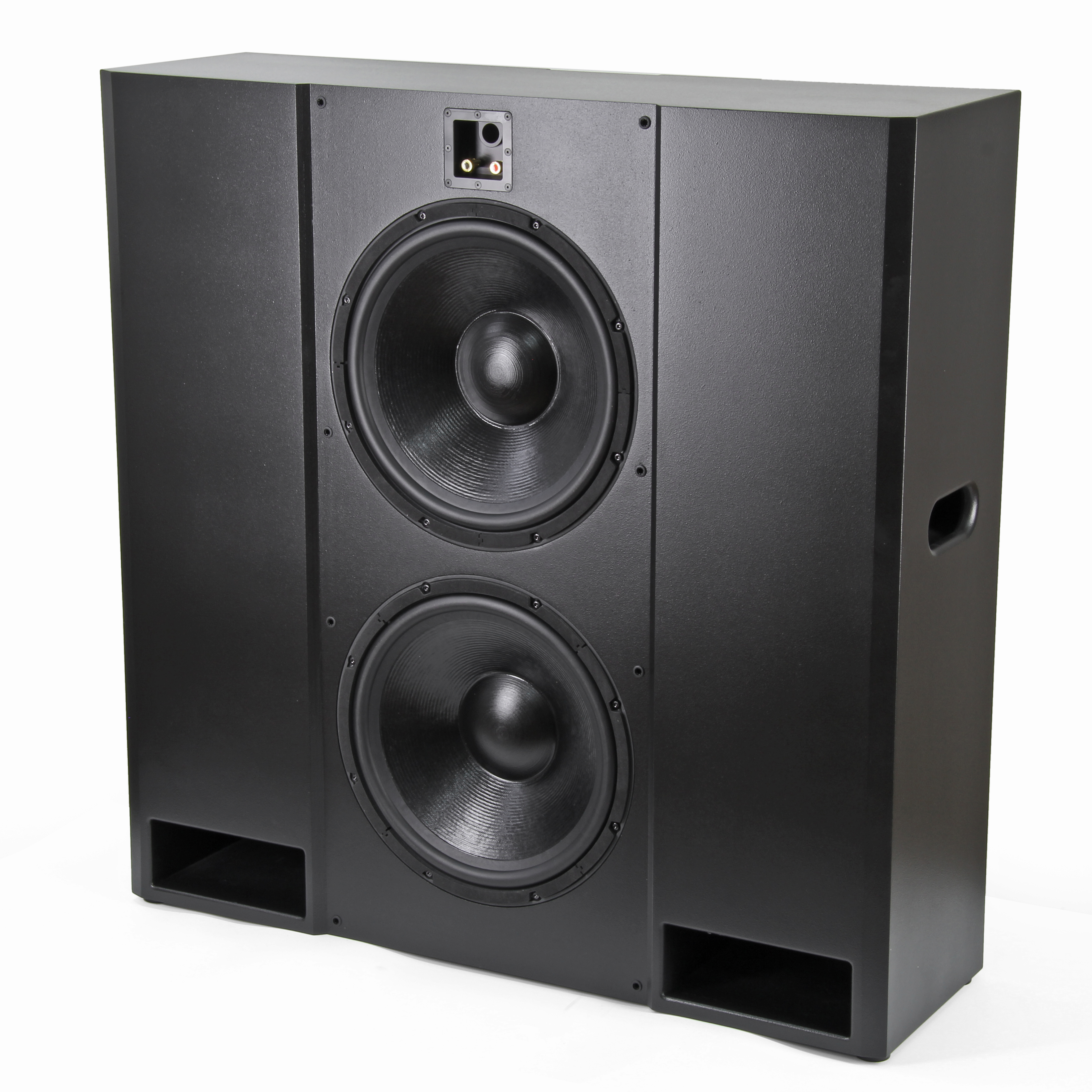

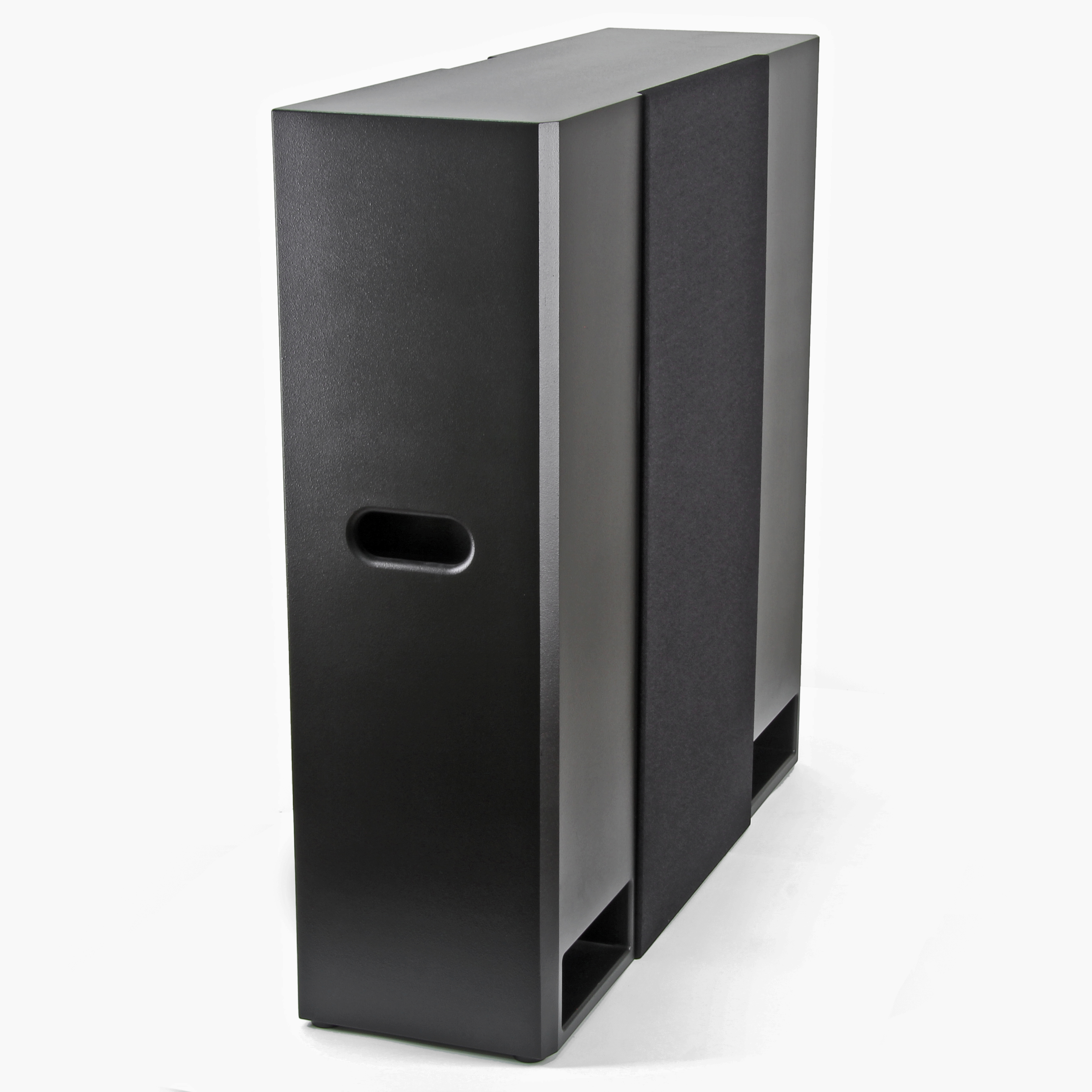

Powerful bass-reflex subwoofer designed for mid to large –size rooms. ICE 15.2
cabinet is just 300 mm in depth for behind the screen installation Features 1/ 2
steel secure rings with 7 mm pin for safe installation process and operation 2/
All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals
in parallel with Neutrik Speakon connectors 4/ Back and front terminals.
“Cabinet through” cable tunnel for front terminal access 5/ Rear cable channel
for close to wall placement 6/ Just 300 mm in depth cabinet Specifications
Nominal impedance 4 Ohms Power handling capacity Continuous 1400 W (AES) Peak
2800 W (AES) Sensitivity 98dB (1m/1W) SPL 128dB continuous, 134dB peak (1/8
space, 1m ) maximum output 128 dB @ 40 Hz Frequency response 28Hz ( 3dB) Drivers
2x 380 mm long-throw drivers with 100 mm voice coils Cabinet 236L bass reflex
enclosure made of premium quality Baltic birch plywood, internally braced. Black
structured painting Dimensions (HxWxD) 1000 x 1000 x 300 mm (height with damping
feet 1010 mm) Weight 76 kg
