Grado, one of the oldest family owned companies in the Audio Industry, has for over half a century been the leaders in design engineering for the high-end audio and recording industries.Grado is famous for their remarkable headphone and phono cartridge designs and hold over 48 patents. Company founder, Joseph Grado is credited as the inventor of the stereo moving coil phono cartridge. He is responsible for more innovations in phono cartridge design than any other person in our lifetime and was inducted into the Audio Hall of Fame in 1982.Time honored manufacturing know how and painstaking attention to design detail allows previously unobtained levels of pitch control, harmonic accuracy and bass quality to be achieved. All Grado headphones and cartridges are hand made to Grado's full performance specifications... nothing leaves the factory unless it sounds pure Grado.The Legacy Continues...Joseph Grado has passed on the mantle of President to his nephew John Grado. John has risen from sweeping the floors of the factory as a twelve year old, to President and Owner of Grado Laboratories. Following on from Joseph Grado's acclaimed designs, John has led the development of the Prestige, Reference and

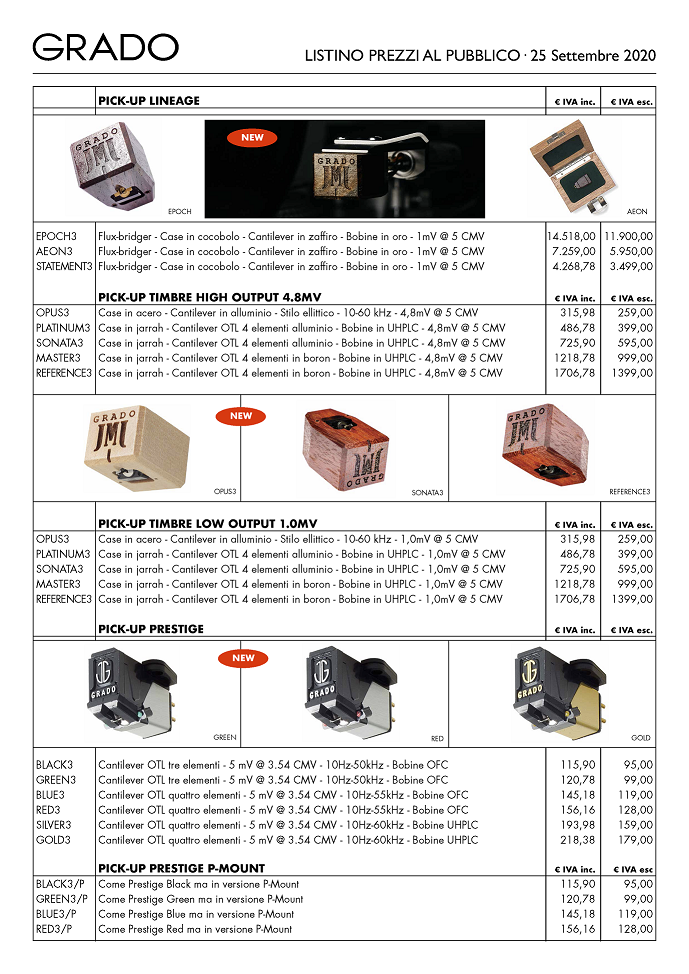

GRADO BLACK 2/3 Listino ufficiale €. 116,00BLACK1 Cantilever OTL tre elementi - 5 mV @ 3.54 CMV - 10Hz-50kHz - Bobine OFC - Anche in versione tp4 - Stilo di ricambio per pick-up Prestige Black 79,30 euro The newly redesigned Black1 have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. The Black1 and Green1 models use a three piece OTL cantilever technology, standard oxygen free wire in the coils and Grado's specially designed elliptical diamond mounted in a brass bushing. The Green1 model is selected from the Black1 production run and meets higher test specifications. Approximately 15% of the production run will meet these standards and become Green1 models.Frequency Response 10-50 Principal MI Channel Separation at 1KHz 30 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement U=user U Mounting S/P Weight 5.5 GRADO GREEN 2/3 Listino ufficiale €. 121,00GREEN1 Cantilever OTL tre elementi - 5 mV @ 3.54 CMV - 10Hz-50kHz - Bobine OFC - Anche in versione tp4-Stilo di ricambio per pick-up Prestige Green 84,18 euro The newly redesigned and Green1 have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. The Black1 and Green1 models use a three piece OTL cantilever technology, standard oxygen free wire in the coils and Grado's specially designed elliptical diamond mounted in a brass bushing. The Green1 model is selected from the Black1 production run and meets higher test specifications. Approximately 15% of the production run will meet these standards and become Green1 models.Frequency Response 10-50 Principal MI Channel Separation at 1KHz 30 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement U=user U Mounting S/P Weight 5.5
GRADO BLUE 2/3 Listino ufficiale €. 145,00BLUE1 Cantilever OTL quattro elementi - 5
mV @ 3.54 CMV - 10Hz-55kHz - Bobine OFC -
Anche in versione tp4-Stilo
di ricambio per pick-up Prestige Blue 91,50 euro
GRADO RED 2/3 Listino ufficiale €. 156,00RED1 Cantilever OTL quattro elementi - 5 mV @ 3.54 CMV - 10Hz-55kHz - Bobine OFC - Anche in versione tp4-Stilo di ricambio per pick-up Prestige Red 148,84 euro
The
newly redesigned Red1 have had their coil design reconfigured, and the effective
moving mass of their generating system has been reduced by 17%. The Blue1 and
Red1 models use a four piece OTL cantilever technology, standard oxygen free
wire in the coils and Grado's specially designed elliptical diamond mounted on a
brass bushing. The Red1 model is selected from the Blue1 production run and
meets higher test specifications. Approximately 10% of the production run will
meet these standards and become Red1 models.Frequency Response 10-55
Principal MI Channel Separation at 1KHz 30 Imput Load 47K Output at 1KHz
5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH
Resistance 475 Compliance CUs 20 Stylus Replacement U=user U Mounting S/P Weight
5.5 GRADO SILVER 2/3 Listino ufficiale €. 194,00SILVER1 Cantilever OTL quattro elementi - 5 mV @ 3.54 CMV - 10Hz-60kHz - Bobine UHPLC - Anche in versione tp4 - Stilo di ricambio per pick-up Prestige Silver 115,90 euro The newly redesigned Silver1 have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. The Silver1 and gold1 models use a four piece OTL cantilever technology, ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils and Grado's specially designed elliptical diamond mounted on a brass bushing. The Gold1 model is selected from the Silver1 production run and meets higher test specifications. Approximately 5% of the production run meet these standards and become Gold1 models.Frequency Response 10-60 Principal MI Channel Separation at 1KHz 35 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement U=user U Mounting S/P Weight 5.5 GRADO GOLD 2 /3 Listino ufficiale €. 218,50GOLD1 Cantilever OTL quattro elementi - 5 mV @ 3.54 CMV - 10Hz-60kHz - Bobine UHPLC Anche in versione tp4 - Stilo di ricambio per pick-up Prestige Gold 128,10 The newly redesigned Gold1 have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. The Silver1 and gold1 models use a four piece OTL cantilever technology, ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils and Grado's specially designed elliptical diamond mounted on a brass bushing. The Gold1 model is selected from the Silver1 production run and meets higher test specifications. Approximately 5% of the production run meet these standards and become Gold1 models.Frequency Response 10-60 Principal MI Channel Separation at 1KHz 35 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement U=user U Mounting S/P Weight 5.5
GRADO dj100 Listino ufficiale €. 174,50Pick-up professionale di alta resa dinamica e timbrica - Fino a 4 gr. di pressione d’appoggio Stilo di ricambio per pick-up Prestige Silver 158,90 euro - PICK-UP REFERENCE /STATEMENT WOOD It would be impossible to describe the Grado Statement series without first discussing the virtues and shortcomings of the moving coil cartridge design. The Statement series is a hybrid, which incorporates the best aspects of the moving coil pickup with the best aspects of the Grado flux-bridger design. The mechanical generator system of the moving coil cartridge has its limitations. The copper wire wound on the heavy iron armature creates a large torsional mass, resulting in the generator motion disturbing the stylus and groove contact accuracy. This is heard as the characteristic moving coil sound, which is hard and edgy. It is quite possible to selectively alter this resonant color to "enhance" the sound, but no matter what, it is still distortion.The outstanding quality of the moving coil cartridge is not the moving coil principle but the very low DC resistance and inductance. When the electrical impedance of a cartridge rises within the frequency response of the hearing range, the preamplifier generates audible distortion. This occurs because the preamplifier is valiantly trying to match the varying impedance and not quite succeeding.Due to its low DC resistance, the moving coil cartridge presents a constant electrical impedance to the preamplifier at all frequencies, this results in a very low electrical distortion. This is the beauty of the moving coil: the constant electrical impedance makes the cartridge sound good despite the limited quality of the mechanical system. The distortion that is caused by a slight rising impedance in the Grado cartridges is more than offset by their superb mechanical system. Unlike other moving iron cartridges that have one random distorted magnetic gap, all Grado cartridges have four separate magnetic gaps, each gap having exactly the same pure configuration as the gap in a moving coil cartridge.In Grado cartridges a cantilever positioned in the longitudinal center between the four gaps carries a piece of very sophisticated iron (with absolutely no residual buildup properties). The swinging cantilever moves the iron into the magnetic gap, shunting the gap and increasing the amount of magnetic flux within the gap. The iron, acting as a fluxbridger, leaves the flux path in the gap undistorted. The result is very low playback distortion.In the moving coil cartridge design, the tilting motion of the iron armature causes it to act as a flux relay device, thereby creating a large amount of flux path distortion. The end result is a "spitty" sound.Due to the extremely high power factor in the Grado fluxbridger design, it is possible to design a new series of cartridges with a constant electrical impedance exactly like that of a moving coil.The torsional mass characteristics of the Grado cartridges have always been superior to that of the moving coils. The frequency of the torsional resonance in a moving coil usually occurs between 6-10 kHz, depending upon the quality of the particular cartridge. The higher the moving coil output, the more irritating the torsional distortion.The torsional resonance of the new "hybrid" (the best part of the moving coil concept and the best of Grado's design) occurs at approximately 30 kHz, well beyond audibility. One must realize that the more torsional resonance that can be heard, the more colored and distorted the sound becomes.Grado is introducing four new models of phono cartridges. These new models will be an expansion of the Statement Series. They will duplicate the Reference Series in model names, i.e., Reference Platinum, Statement Platinum; Reference Sonata (Signature), Statement Sonata (Signature); Reference Master, Statement Master and Reference Reference, Statement Reference. Price points will be the same for both corresponding models. We will not be discontinuing the Reference series, but will offer both series of cartridges.The Reference series will be the high output cartridges (5.0 mV) while the Statement series will be the low output versions (0.5 mV).There are physical differences between the Reference cartridges and the new Statement cartridges. Each Grado cartridge has four coils. The Reference series cartridges have a total of 6,000 turns of wire on the coils. The Statement series has a total of 380 turns. Since we have considerably fewer turns in the Statement series, we can use a much larger size wire. This new wire has over 16 times more area for carrying the signal; it also lowers the resistance from 470 ohms in the Reference series to 2 ohms in the Statement series. Fewer turns of wire on the coils shortens the distance the signal must travel from 125 feet to a little more than 7 feet. In the Statement series we have also shortened the magnetic generating gap in the stylus, increasing the flux density.What will be heard from these differences? The new Statement series will have a sound that is wide open, uncolored, with better definition and transparency and increased dynamics. The Statement series offers enhanced tracking with improved imaging and more musical information. All of this, along with Grado's usual warm, smooth, full bodied, non-fatiguing and rich sound qualities.If your system can be driven with a 0.5 mV output phono cartridge, then you deserve to be listening to the new Grado Statement Series
GRADO OPUS 3 Listino ufficiale €. 315,50Case in acero - Cantilever in alluminio - Stilo ellittico - 10-60 kHz - 1,0mV @ 5 CMV
GRADO PLATINUM 3 Listino ufficiale €. 489,50Case in jarrah - Cantilever OTL 4 elementi alluminio - Bobine in UHPLC - 1,0mV @ 5 CMV The newly redesigned Platinum1 have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. All this is hand-assembled within a machined, new processed, Australian Jarrah wood housing. The Platinum1 and Sonata1 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum model uses Grado's specially designed elliptical diamond mounted on a brass bushing, and the Sonata model uses Grado's specially designed nude elliptical diamond.Frequency Response 10-60 Principal MI Channel Separation at 1KHz 40 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement F=Factory F Mounting S Weight 6.5
GRADO SONATA 3 Listino ufficiale €. 725,90Case in jarrah - Cantilever OTL 4 elementi alluminio - Bobine in UHPLC - 1,0mV @ 5 CMV The newly redesigned Sonata1 have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. All this is hand-assembled within a machined, new processed, Australian Jarrah wood housing. The Platinum1 and Sonata1 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum model uses Grado's specially designed elliptical diamond mounted on a brass bushing, and the Sonata model uses Grado's specially designed nude elliptical diamond.Frequency Response 10-60 Principal MI Channel Separation at 1KHz 40 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement F=Factory F Mounting S Weight 6.5

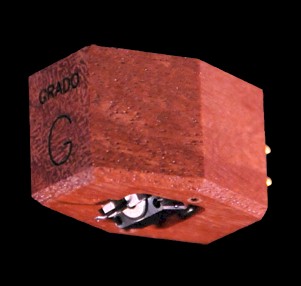

GRADO MASTER 3 Listino ufficiale €. 1.218,78Case in jarrah - Cantilever OTL 4 elementi in boron - Bobine in UHPLC - 1,0mV @ 5 CMV
The
newly redesigned Master1 cartridges have had their coil design reconfigured, and
the effective moving mass of their generating system has been reduced by 17%.
All this is hand-assembled within a machined, new processed, Australian Jarrah
wood housing. The Master1 and Reference1 models use a five piece OTL cantilever
technology achieving an additional 5% tip mass reduction over the Platinum1 and
Sonata1 models. The coils are wound with ultra-high purity long crystal (UHPLC)
oxygen free copper wire. The Master1 model is mounted with Grado's specially
designed nude elliptical diamond, and the Reference1 model uses Grado's true
ellipsoid design diamond.Frequency Response 10-60 Principal MI Channel
Separation at 1KHz 40 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended
Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs
20 Stylus Replacement F=Factory F Mounting S Weight 6.5 GRADO REF 3 Listino ufficiale €. 1.706,68Case in jarrah - Cantilever OTL 4 elementi in boron - Bobine in UHPLC - 1,0mV @ 5 CMV The newly redesigned Reference1 cartridges have had their coil design reconfigured, and the effective moving mass of their generating system has been reduced by 17%. All this is hand-assembled within a machined, new processed, Australian Jarrah wood housing. The Master1 and Reference1 models use a five piece OTL cantilever technology achieving an additional 5% tip mass reduction over the Platinum1 and Sonata1 models. The coils are wound with ultra-high purity long crystal (UHPLC) oxygen free copper wire. The Master1 model is mounted with Grado's specially designed nude elliptical diamond, and the Reference1 model uses Grado's true ellipsoid design diamond.Frequency Response 10-60 Principal MI Channel Separation at 1KHz 40 Imput Load 47K Output at 1KHz 5CM/sec. 5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 45mH Resistance 475 Compliance CUs 20 Stylus Replacement F=Factory F Mounting S Weight 6.5
GRADO STATEMENT 3 Listino ufficiale €. 4.268,00Flux-bridger - Case in cocobolo - Cantilever in zaffiro - Bobine in oro - 1mV @ 5 CMV It would be impossible to describe the Grado Statement series without first discussing the virtues and shortcomings of the moving coil cartridge design. The Statement series is a hybrid, which incorporates the best aspects of the moving coil pickup with the best aspects of the Grado flux-bridger design. The mechanical generator system of the moving coil cartridge has its limitations. The copper wire wound on the heavy iron armature creates a large torsional mass, resulting in the generator motion disturbing the stylus and groove contact accuracy. This is heard as the characteristic moving coil sound, which is hard and edgy. It is quite possible to selectively alter this resonant color to "enhance" the sound, but no matter what, it is still distortion.The outstanding quality of the moving coil cartridge is not the moving coil principle but the very low DC resistance and inductance. When the electrical impedance of a cartridge rises within the frequency response of the hearing range, the preamplifier generates audible distortion. This occurs because the preamplifier is valiantly trying to match the varying impedance and not quite succeeding.Due to its low DC resistance, the moving coil cartridge presents a constant electrical impedance to the preamplifier at all frequencies, this results in a very low electrical distortion. This is the beauty of the moving coil: the constant electrical impedance makes the cartridge sound good despite the limited quality of the mechanical system. The distortion that is caused by a slight rising impedance in the Grado cartridges is more than offset by their superb mechanical system. Unlike other moving iron cartridges that have one random distorted magnetic gap, all Grado cartridges have four separate magnetic gaps, each gap having exactly the same pure configuration as the gap in a moving coil cartridge.In Grado cartridges a cantilever positioned in the longitudinal center between the four gaps carries a piece of very sophisticated iron (with absolutely no residual buildup properties). The swinging cantilever moves the iron into the magnetic gap, shunting the gap and increasing the amount of magnetic flux within the gap. The iron, acting as a fluxbridger, leaves the flux path in the gap undistorted. The result is very low playback distortion.In the moving coil cartridge design, the tilting motion of the iron armature causes it to act as a flux relay device, thereby creating a large amount of flux path distortion. The end result is a "spitty" sound.Due to the extremely high power factor in the Grado fluxbridger design, it is possible to design a new series of cartridges with a constant electrical impedance exactly like that of a moving coil.The torsional mass characteristics of the Grado cartridges have always been superior to that of the moving coils. The frequency of the torsional resonance in a moving coil usually occurs between 6-10 kHz, depending upon the quality of the particular cartridge. The higher the moving coil output, the more irritating the torsional distortion.The torsional resonance of the new "hybrid" (the best part of the moving coil concept and the best of Grado's design) occurs at approximately 30 kHz, well beyond audibility. One must realize that the more torsional resonance that can be heard, the more colored and distorted the sound becomes.Grado is introducing four new models of phono cartridges. These new models will be an expansion of the Statement Series. They will duplicate the Reference Series in model names, i.e., Reference Platinum, Statement Platinum; Reference Sonata (Signature), Statement Sonata (Signature); Reference Master, Statement Master and Reference Reference, Statement Reference. Price points will be the same for both corresponding models. We will not be discontinuing the Reference series, but will offer both series of cartridges.The Reference series will be the high output cartridges (5.0 mV) while the Statement series will be the low output versions (0.5 mV).There are physical differences between the Reference cartridges and the new Statement cartridges. Each Grado cartridge has four coils. The Reference series cartridges have a total of 6,000 turns of wire on the coils. The Statement series has a total of 380 turns. Since we have considerably fewer turns in the Statement series, we can use a much larger size wire. This new wire has over 16 times more area for carrying the signal; it also lowers the resistance from 470 ohms in the Reference series to 2 ohms in the Statement series. Fewer turns of wire on the coils shortens the distance the signal must travel from 125 feet to a little more than 7 feet. In the Statement series we have also shortened the magnetic generating gap in the stylus, increasing the flux density.What will be heard from these differences? The new Statement series will have a sound that is wide open, uncolored, with better definition and transparency and increased dynamics. The Statement series offers enhanced tracking with improved imaging and more musical information. All of this, along with Grado's usual warm, smooth, full bodied, non-fatiguing and rich sound qualities.If your system can be driven with a 0.5 mV output phono cartridge, then you deserve to be listening to the new Grado Statement SeriesGRADO RE-MAKES THEIR STATEMENT1!After years of careful thought and painstaking design Grado is very pleased to offer their upgraded flagship phono cartridge. We are so proud of this cartridge and believe that it has so much to say about Grado technology, that it was named the GRADO STATEMENT1. The STATEMENT1 utilizes reconfigured gold coil wires, a lower mass faster generating system, a boron cantilever and a diamond cut specially for Grado. All this is hand-assembled within a machined, new processed, Australian Jarrah wood housing. The output for the STATEMENT1 measures at 0.5 mV. The lowest output ever offered by Grado. The low frequency information and its portrayal of bass dynamics are solid, powerful and authoritative. The midrange is rich, complex and highly believable. Its top-end seems to extend forever with speed and remarkable delicacy. Imaging is detailed and precise with a sound stage that wraps its arms around you and draws you into the music. Michael Fremer commented in his Analog Corner, "It is among the finest cartridges I've ever heard at any price", Stereophile 3/99, pg. 41. While Jonathan Valin stated, "I'm going to keep the Statement in my reference system" The Absolute Sound, Issue 118. Anyone who was impressed with our previous top-of-the-line effort, the Grado REFERENCE, will have their eyes opened wide after listening to the GRADO STATEMENT1!Frequency Response 5-75 Principal MI Channel Separation at 1KHz 45 Imput Load 47K Output at 1KHz 5CM/sec. 0.5mV Recommended Tracking Force 1.5 Stylus Type E Inductance 2mH Resistance 2 Compliance CUs 20 Stylus Replacement F=Factory F Mounting S Weight 7
GRADO AEON Listino ufficiale €. 7.259,00Flux-bridger - Case in cocobolo - Cantilever in zaffiro - Bobine in oro - 1mV @ 5 CMV
GRADO EPOCH Listino ufficiale €. 14.518,00Flux-bridger - Case in cocobolo - Cantilever in zaffiro - Bobine in oro - 1mV @ 5 CMV

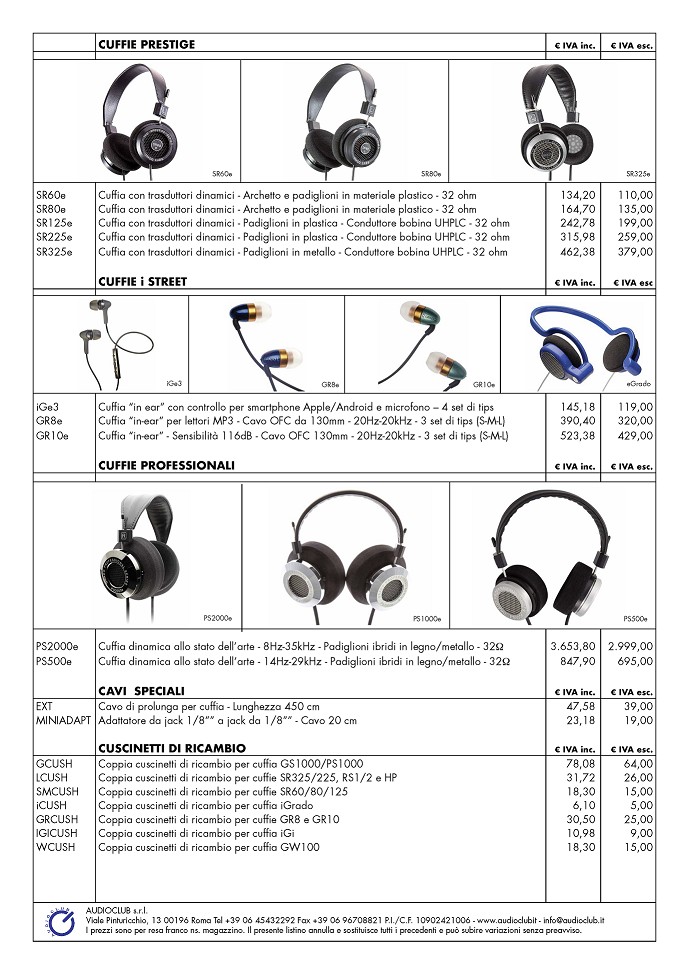

GRADO SR60e Listino ufficiale €. 135,00Cuffia con trasduttori dinamici - Archetto e padiglioni in materiale plastico - 32 ohm
GRADO SR80e Listino ufficiale €. 165,00
Cuffia con trasduttori dinamici - Archetto e padiglioni in materiale plastico - 32 ohm
GRADO SR125e Listino ufficiale €. 243,00Cuffia con trasduttori dinamici - Padiglioni in plastica - Conduttore bobina UHPLC - 32 ohm
GRADO SR225e Listino ufficiale €. 316,00Cuffia con trasduttori dinamici - Padiglioni in plastica - Conduttore bobina UHPLC - 32 ohm
GRADO SR325e Listino ufficiale €. 463,00Cuffia con trasduttori dinamici - Padiglioni in plastica - Conduttore bobina UHPLC - 32 ohm
GRADO GH3 Listino ufficiale €. 775,00Cuffia dinamica in edizione limitata - Padiglioni in pino norvegese - Compatte e di basso profilo
GRADO GH4 Listino ufficiale €. 792,00Cuffia dinamica in edizione limitata - Padiglioni in pino norvegese - Conduttore bobina UHPLC

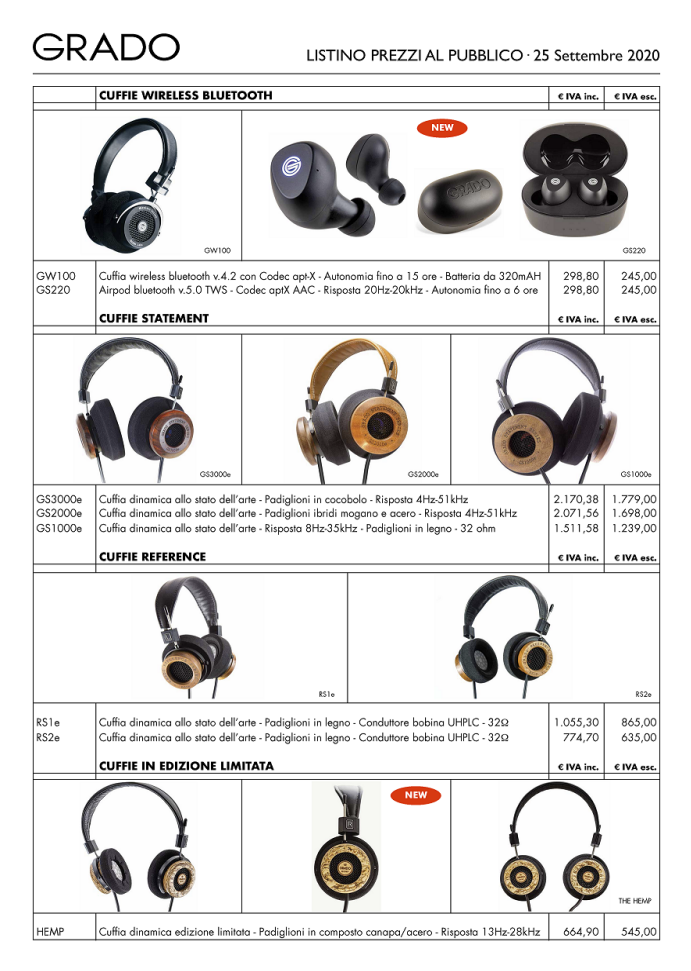

GRADO RS2e Listino ufficiale €. 775,00Cuffia dinamica allo stato dell’arte - Padiglioni in legno - Conduttore bobina UHPLC - 32Ω
GRADO RS1e Listino ufficiale €. 1.056,00Cuffia dinamica allo stato dell’arte - Padiglioni in legno - Conduttore bobina UHPLC - 32Ω
GRADO PS 500e Listino ufficiale €. 848,00Cuffia dinamica allo stato dell’arte - 14Hz-29kHz - Padiglioni ibridi in legno/metallo - 32Ω
GRADO PS1000e Listino ufficiale €. 2.439,00Cuffia dinamica allo stato dell’arte - 8Hz-35kHz - Padiglioni ibridi in legno/metallo - 32Ω
GRADO PS2000e Listino ufficiale €. 3.654,00Cuffia dinamica allo stato dell’arte - 8Hz-35kHz - Padiglioni ibridi in legno/metallo - 32Ω
