Classé is Canada’s leading maker of high-performance
music and theater components. Since building our first amplifier in 1980,
passion and dedication have inspired the research that yields Classé’s
outstanding no-compromise electronics.click image to enlarge Situated just
outside Montréal, the Classé facilities are headquarters for design,
manufacturing and administration. Chairman Mike Viglas, at the helm of Classé
for more than twenty years, began his involvement as an audiophile customer who
fell in love with the original Classé amplifiers, designed by founder David
Reich. Since the early days, Mike has transformed the company into a global
brand, with digital audio and multichannel technologies to supplement Classé’s
core amplifier and preamplifier designs.In 2001, Classé became part of the B&W
Group. The distribution, financial and organizational resources offered by this
leading UK-based loudspeaker manufacturer have propelled Classé to the forefront
of contemporary high-end audio design.Classé components are developed by
specialists covering a diverse array of disciplines, including analog and
digital audio and video electronics, software, mechanical and industrial design.
Our electronics are designed for music and movie lovers who appreciate beauty
and elegance in all its forms. Our performance goals can be summed up in a
single word: fidelity. We strive for simplicity of operation and a refined
appearance for all Classé components. Classé manufacturing employs both
automatic and manual assembly procedures. Quality is maintained by choosing the
best process for the operation, followed by inspection and testing stages.
Premium quality parts, in many cases made specifically for Classé, enhance both
the performance and reliability of our components. We are as proud to make these
wonderful instruments as our customers are to own them.For those who invest in a
Classé-based system, the entertainment experience can be truly breathtaking.
Every Classé component is designed and built to last a lifetime; to engage and
involve, long after its price is forgotten.
AMPLIFICATORI
INTEGRATI

CLASSE'
SIGMA 2200i €.
5.000,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Amplificatore
integrato da 200 + 200W RMS su 8 ohm, 400 + 400W RMS su 4ohm. Stadi driver a
FET. Stadi finali in claase D. Alimentazione switching proprietaria SMPS + PFC.
DSP proprietario per l'analisi in tempo reale delle condizioni di funzionamento
e della potenza erogata. Display touch screen. DAC interno24bit/192KHz. Ingresso
USB-A frontale e USB-B posteriore. Connettore ethernet per streaming Airplay e
DLNA. 2 ingressi ottici e 2 coassiali digitali. 4 ingressi HDMI, 1 uscita HDMI
2.0. Controllo dei toni ed equalizzatore parametrico PEQ a 9 bande. Controllo IP
tramite App iOs e Android. Montaggio a rack senza accessori. Sistema di
raffreddamento a condotto ventilato. RS-232. Trigger IN/OUT. Controllo IR
IN/OUT. RJ45 per bus dati. Uscita cuffia. Telecomando. Elegante finitura in
alluminio spazzolato nero.

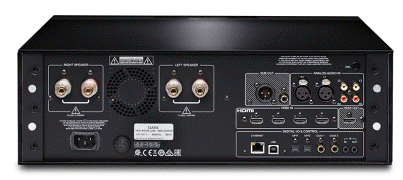

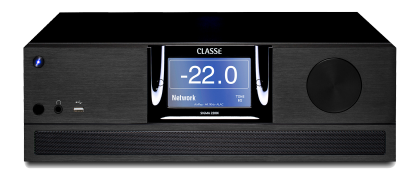

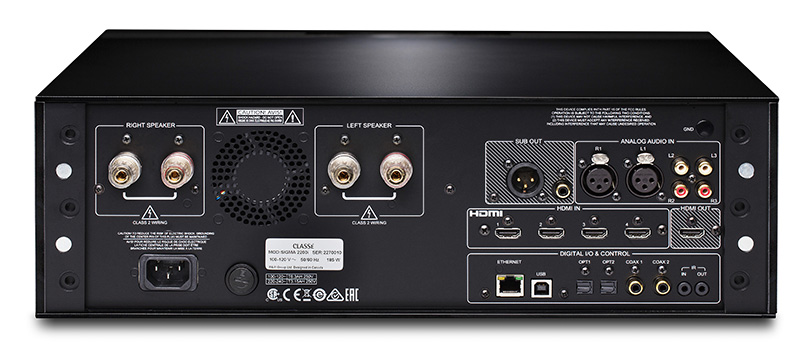

Sigma 2200i INTEGRATED AMPLIFIER The Sigma 2200i
Stereo Integrated Amplifier is designed for music lovers and AV enthusiasts who
want high performance control and amplification from a diverse range audio
sources. Its connectivity and processing power accommodate the ever increasing
array of music and AV sources, allowing them to be accessed and enjoyed without
compromise.Sigma 2200i INTEGRATED AMPLIFIER All tests un-weighted and 20Hz –
20kHz measurement bandwidth used. Frequency response 10Hz – 20kHz, -1dB into 4Ω
Output power 2x200W rms into 8Ω 2x400W rms into 4Ω Harmonic Distortion <0.018% @
1kHz Both channels driven to 1/8th power into 4Ω Peak Output Voltage 113V peak
to peak, 40V rms no load Input Impedance 100kΩ Balanced / 50kΩ SE Input level at
clipping 2 Vrms SE / 4 Vrms Balanced Signal to Noise Ratio 97 dB Standby power
consumption < 0.5W Rated power consumption 185W Mains voltage 90V - 264V,
50/60Hz Overall Dimensions Width: 17.00" (433mm) Depth (excluding connectors):
14.57" (370mm) Height: 5.50" (140mm) Net weight 26.7 lbs (12.11 kg) Shipping
weight 34.3 lbs (15.57 kg)
PREAMPLIFICATORI
CLASSE'
CP-800MKII €.
6.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL

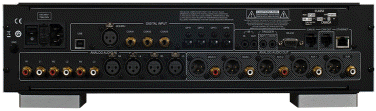

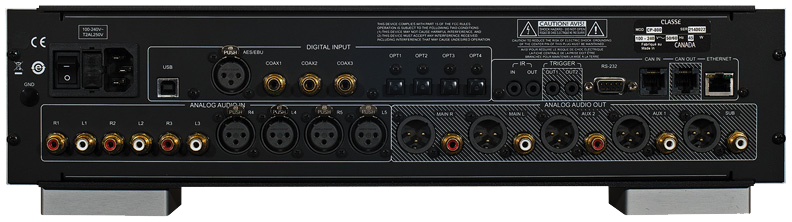

Preamplificatore/Processore
stereo in "classe A" con ingressi ad alto livello. Display TFT touch screen.
Circuitazione bilanciata a simmetria complementare. Doppio volume. Circuiti Bass
Management, equalizzatore parametrico e controllo dei toni. Pure by-pass
analogico. Ingressi USB frontale e posteriore asincrono per collegamento diretto
in digitale di iPod/iPhone4. DAC interno24bit/192KHz. AirPlay e DLNA via cavo
ethernet per streaming da pc o smartphone. Comandabile tramite Classé Control
App. Ingressi digitali coassiali, ottici e toslink, ingressi analogici RCA e XLR,
2 uscite RCA e 2 XLR più una dedicata al subwoofer. RS-232. Trigger IN/OUT. RJ45
per bus dati. Porta Ethernet. Telecomando in alluminio.
OPTINAL Scheda Phono MM/MC
per Preamplificatore CP-800 MKII. 500,00 euro

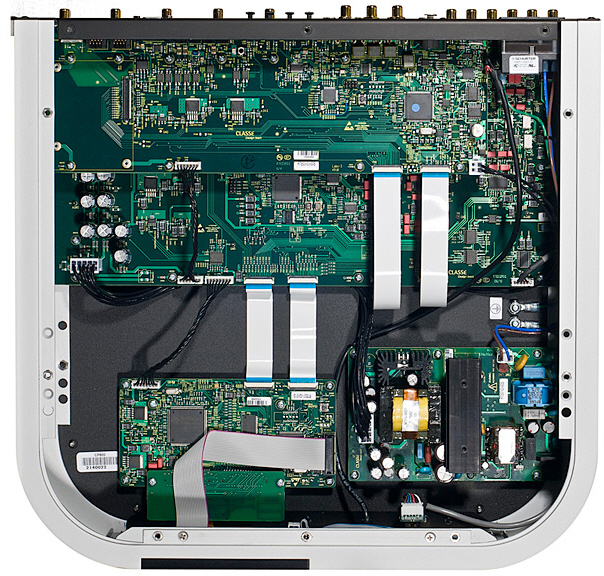

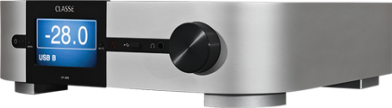

CP-800
STEREO PREAMPLIFIER / PROCESSOR The vast majority of high end preamplifiers
available today are direct descendents of products that have been made for
decades, rooted in an all-analog world. The CP-800 is something new. It combines
key building blocks of a contemporary high-end audio system in a unique way to
improve and shorten the signal path. New technologies are applied to realize the
benefits of modern computer-based audio. Now, a CD ripped to a computer can
sound better than if played in a CD player; convenient and feature-rich access
to your music library is possible with state-of-the-art playback; a
Classé-designed Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC)
delivers higher performance at a lower price; there is no compromise at an
affordable price. And there is much more… Streaming/AirPlay A rear panel
Ethernet connection offers streaming options including Apple’s AirPlay and DLNA,
where sources benefit from special handling to accommodate files up to 192 kHz
with the CP-800’s own oscillators controlling timing for D-to-A conversion.
Convenience never sounded so good. IP Control When connected to your home
Network, the Classé App (available free of charge in the Apple App store)
running on Apple iOS devices offers a sophisticated alternative to the IR
remote. USB Having a dedicated computer in your listening room doesn’t have to
mean noisy fans and bulky monitors. Simple solutions like Apple’s Mac Mini or an
inexpensive laptop can be installed out of site and operated remotely. Connect
by HDMI to your TV, use a wireless keyboard and mouse when necessary and connect
to the CP-800 by USB for audio, then control with an iOS device, Smartphone or
tablet. Classé’s unique implementation of asynchronous USB audio will render
studio-quality sound from properly ripped CDs and high-resolution music
downloads up to 192 kHz. Bass management No matter how well your speakers
reproduce bass, they are almost certainly not located in the optimum place in
your room to do so. The interaction of your speakers and the room will result in
signal cancelations or dips at certain frequencies at the listening position; no
amount of EQ can solve this problem. The solution is mono or stereo subwoofers,
outputs for which are available from the CP-800 with selectable crossover
frequency and slope in the digital domain. The result is deep, smooth bass
response without adding analog circuitry to the L&R channel signal paths. PEQ
Regardless where your speakers, subwoofer(s) and listening chair are in relation
to each other, there will likely be room modes that can only be addressed with
equalization. In most rooms, the three primary dimensions contribute to three
low frequency modes where the room actually increases the level causing peaks at
those frequencies. The CP-800 offers parametric equalization to help address
these real world problems. Performed in the digital domain, these high quality
filters allow optimization of low frequency response without adding analog
circuitry to the L&R channel signal paths. Tone Control Banished from legitimate
high-end preamps since the sixties, the tone control makes a come-back in the
CP-800, but with a modern implementation. Tone controls typically mean
additional analog circuitry in the signal path. The CP-800 introduces a flexible
tone control feature that is entirely digital. If you’ve ever wanted to soften a
recording’s top end a little or add a little warmth, you will appreciate the
convenience and subtlety of the CP-800’s Tilt tone control feature. After more
than forty years, the tone control is back, and now it works properly and
without compromise. Analog quality Make no mistake, the CP-800 is also our best
analog preamplifier; with fully balanced circuitry and completely isolated
symmetrical left and right channels, your analog sources will sound better than
ever. The CP-800 makes digital processing available to all sources, but when you
want pure analog, the Digital Bypass option switches off the digital clocks
while the CP-800 handles the signal in the analog domain. Have it all The CP-800
puts world-class performance into one flexible and attractively priced chassis.
Separate CD players and USB DACs require additional circuitry and interconnect
cables plus a separate analog preamp, giving the CP-800 an obvious comparative
advantage in both performance and value. The additional features like Bass
management, PEQ and Tone Control make better real world performance a reality.
If you are building a no-compromise high-end audio system, the CP-800 is unique.
It is the first and only preamp/processor that lets you have it all.CP-800
STEREO PREAMPLIFIER / PROCESSOR Frequency response 8 Hz - 200 kHz < 1 dB, stereo
analog bypass 8 Hz - 20 kHz < 0.5 dB, all other sources Channel Matching
better than 0.05 dB(left to right)Distortion (THD+noise) .0005%, digital source/bypassed
analog source .002%, processed analog source Maximum input level (single-ended)
2 Vrms (DSP), 4.5 Vrms (bypass) Maximum input level (balanced) 4 Vrms (DSP),
9 Vrms (bypass) Maximum output level (single-ended) 9 VrmsdMaximum output
level (balanced) 18 Vrms Gain Range 100 dB to +14 dB Input impedance 50 kΩ
(balanced) 100 kΩ (single-ended)Output impedance (main output) 300 Ω (balanced),
100 Ω (single-ended) Signal-to-noise ratio 104 dB, bypassed analog source (ref.
Bal. 4 Vrms input, 101 dB, processed analog sourceunweighted) 105 dB,
digital source (ref. full-scale input, unweighted) Channel separation better
than 100 dB Crosstalk better than -130 dB @ 1 kHz(any input to any
output)Standby power consumption <1 W Rated power consumption 53 W
Mains Voltage 90-264 V, 50/60 Hz Overall dimensions Width: 17.5” (445 mm) Depth:
17.5” (445 mm) (excluding connectors) Height: 4.78” (121 mm)Net weight 23 lbs
(10.43 kg) Shipping weight 33 lbs (15 kg)Made for iPod touch (5th generation)
iPod nano (7th generation)iPod touch (4th generation) iPod nano (6th generation)iPod
touch (3rd generation) iPod nano (5th generation)iPod touch (2nd generation)
iPod nano (4th generation)iPod touch (1st generation) iPod nano (3rd generation)iPod
classic iPod nano (2nd generation) Made for iPhone 5 iPhone 3GS iPhone 4S iPhone
3GiPhone 4 iPhone Made foriPad (4th generation) iPad 2iPad (3rd generation) iPad
iPad mini AirplayAirplay works with iPhone, iPod, and iPod touch with iOS 4.3.3
or later, Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2
or later
AMPLIFICATORI
FINALI
CLASSE'
SIGMA AMP2 €.
3.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di
potenza a 2 canali ad alta corrente. 2 x 200W su 8 ohm, 2 x 400W su 4 ohm. Stadi
driver a FET. Stadi finali in claase D. Alimentazione switching proprietaria
SMPS + PFC. DSP proprietario per l'analisi in tempo reale delle condizioni di
funzionamento e della potenza erogata. Ingressi RCA e XLR. RS-232. Trigger
IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati. Elegante finitura in alluminio
spazzolato nero.

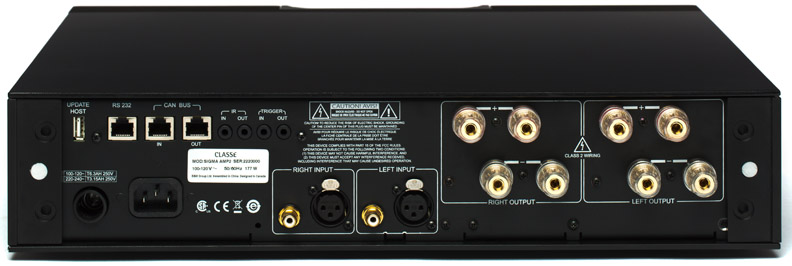

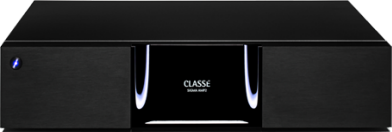

Sigma AMP2 TWO-CHANNEL AMPLIFIER
The Sigma series AMP2 is a 200W/Ch stereo amplifier utilizing switching
technologies for both power supply and amplification stages. A Classé-designed
switch mode power supply with Power Factor Correction makes over 1,000W of clean
and stable power available while being both compact and efficient. A new class D
amplifier topology provides wide dynamic range, smooth and extended frequency
response and rich harmonic detail to yield stunning sonic performance. The
efficiency of class D adds efficiency, low heat dissipation and relatively small
size to the list of the AMP2’s attributes. All tests un-weighted and
20Hz – 20kHz measurement bandwidth used. Frequency response 10Hz – 20kHz, -1dB
into 4Ω Output power 200W rms into 8Ω 400W rms into 4Ω Harmonic Distortion
<0.018% @ 1kHz Balanced Input Peak Output Voltage 113V peak to peak, 40V RMS no
load 113V peak to peak, 40V RMS into 8Ω Input Impedance 100kΩ Balanced / 50kΩ SE
Voltage gain 29 dB Input level at clipping 1.4Vrms Balanced/SE Intermodulation
Distortion >80 dB below fundamental into 8Ω Balanced Signal to Noise Ratio -100
dB at peak output into 8Ω (AES17) Rated power consumption 177W @ 1/8th power
into 4Ω Mains voltage 100V - 240V, 50/60Hz Overall Dimensions Width:
17.00(433mm) Depth (excluding connectors): 14.57 (370mm) Height: 3.75 (95mm) Net
weight 22.0 lb (9.97 kg) Shipping weight 28.0 lb (12.70 kg)
.gif)
.gif)
CLASSE'
CA-D200
€.
4.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di
potenza a 2 canali ad alta corrente. 2 x 200W su 8 ohm, 2 x 400W su 4 ohm. Stadi
finali in claase D. Alimentazione switching. DSP proprietario per l'analisi in
tempo reale delle condizioni di funzionamento e della potenza erogata. Ingresso
RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati.

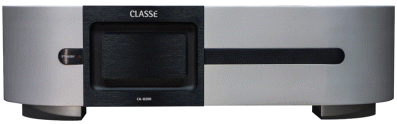

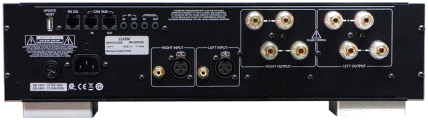

CA-D200 200W STEREO AMPLIFIER The CA-D200 is a
new and innovative amplifier design that uses what are called switching
technologies. Switching amplifiers and power supplies offer many advantages but
present different challenges and a higher degree of complexity than conventional
linear designs. Their potential is too great to ignore, however, which is why
the Classé Design team now includes engineers with over fifty years combined
experience in switching amplifier and power supply design. The result is the
CA-D200, the first of its type from Classé; the first of its type—period.
Switching Power Supply A new Switch Mode Power Supply with Power Factor
Correction, provides over 1,000W of clean, stable power to the CA-D200 amplifier
circuitry. The SMPS and PFC each operate at over 90% efficiency, yielding
impressive benefits for power delivery. The low frequency dynamics, extension
and control of the CA-D200 and its ability to effortlessly drive difficult
speaker loads can be credited in large part to the powerful and sophisticated
power supply it employs. The SMPS with PFC is ideally suited to the demands of
the CA-D200’s revolutionary switching amplifier topology. Switching Amplifier
Some technical limitations have been commonly accepted as inherent in switching
amplifiers—until now. Perhaps the biggest limitation is called dead-band time,
which translates directly to distortion and tempts designers to employ excessive
amounts of negative feedback to compensate. With its proprietary drivers and DSP
tools, the Classé Design team solves the dead-band time problem with precision
and consistency for each and every CA-D200. On power up, controller circuitry
analyzes and adjusts to minimize the dead-band time for each pair of outputs. In
this way, part tolerances and drift for each individual amplifier are taken into
account. Lastly, the feedback loop is closed using the least amount of negative
feedback required. Our linear phase output filters are then employed only to
filter the 384 kHz switching frequency, not to roll off the top end of the audio
band, as is often done to try to make amplifiers with high dead-band time more
listenable. The result is a wide and deep soundstage with extended high
frequencies that reveal a musically detailed and open midrange and top end.
All tests un-weighted and 500kHz measurement bandwidth (except SNR). Frequency
response 10 Hz - 20 kHz, -1 dB into 4Ω Output power 200W/Ch rms into 8Ω
(14.5dBW) 400W/Ch rms into 4Ω (14.5dBHarmonic Distortion <0.018% @ 1kHz Balanced
Input Peak Output Voltage 113V peak to peak, 40V RMS no load 113V peak to
peak, 40V RMS into 8Ω Input Impedance 100kΩ Balanced / 50kΩ SE Voltage gain 29
dB Input level at clipping 1.4V rms Balanced/SE Intermodulation Distortion
>80 dB below fundamental into 8Ω Balanced Signal to Noise Ratio -100 dB at
peak output into 8Ω Measured Bandwidth 20 kHz Mains Voltage 90-264V, 50/60
Hz Standby power consumption 3W @ 120V; 4W @ 230V Dimensions Width 17.5”
(445mm)(excluding connectors) Depth 16.5” (419mm) Height 4.78”
(121mm) Weight 28lb (12.7kg) Net 37lb (16.3kg) Gross
 .gif)
CLASSE'

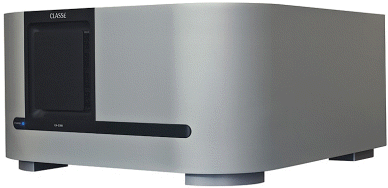

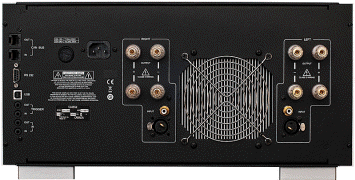

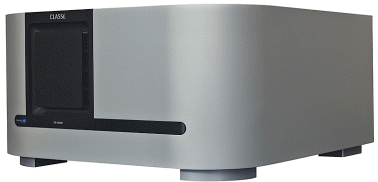

CA-2300
€.
6.950,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di potenza a 2 canali ad alta corrente. 2 x 300W su 8 ohm. Circuitazione
bilanciata a simmetria complementare. Dispositivi j-fets per l'ingresso, mosfet
per i driver e transistor bipolari per gli stadi di uscita. Trasformatore
toroidale. Ingresso RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45
per bus dati. Tecnologia ICTunnel per migliorare il raffreddamento e la qualità
audio.
Our
newest Delta series amplifiers embody all that Classé represents: innovation,
technological achievement, consummate craftsmanship,and iconic design. But they
are not just the latest in the distinguished line of Classé amplifiers to be
launched since 1980. They are new, revolutionary and unique. Performance first
The original Delta series amplifiers won more than critical acclaim. Elite audio
professionals use them to master music and movies that the whole world has
enjoyed. Our newest amplifiers are even better. Objectively, pure technical
measurements prove they deliver our highest performance ever. Subjectively, they
simply blow audiences away. The Classé design team has created the

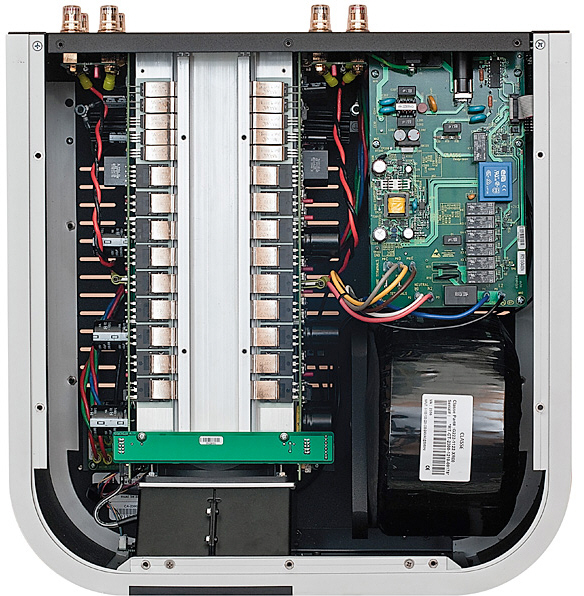

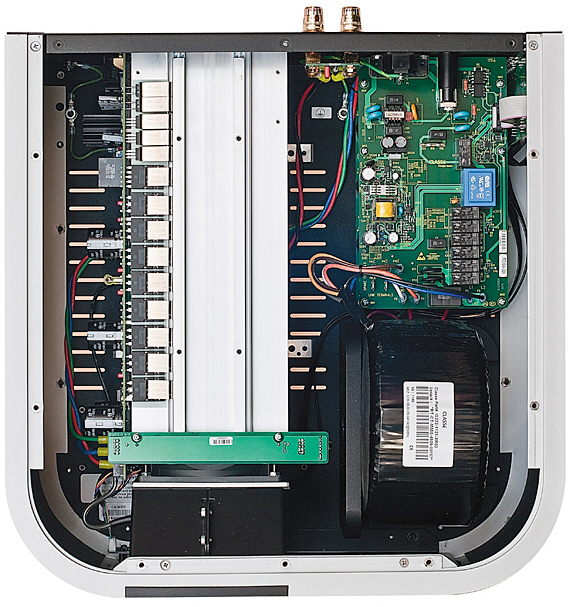

ultimate environment toamplify an audio signal. The entire amplification process
occurs ona single board, creating the most direct and transparent signal
pathconceivable. Our uniquely miniaturized driver stage is virtually noise free,
so every nuance of the original signal reaches the output stage. Here, vast
quantities of clean power are controlled with absolute precision. Suddenly, the
world’s finest speakers sound even better.Performance fast There is a
relationship between temperature and performance but it is widely misunderstood.
Audiophiles say that optimal performance is obtained when an amplifier is
“warmed up,” but what does this actually mean? When is it warm enough and when
is it too warm? The exposed heatsink fins found on conventional amplifiers are
passive. They can’t help circuits reach their ideal temperature or keep them
there throughout a listening session. They run at a temperature wholly defined
by their environment and how loud they are playing. This can be far from
ideal.Heat management in Classé’s new Delta series amplifiers is providedby the
ICTunnel™ (pronounced Icy Tunnel), a sensor- and microprocessor- controlled
technology inspired by the heatsinks found in high-power laser and medical
equipment. Mounted inside the unit, the ICTunnel™ actively regulates the
amplifier temperature to ensure both optimum performance and reliability. From
room temperature, the amplifiers warm up fast. They reach their ideal
temperature in less than fifteen minutes and remain there regardless of how hard
they are driven. No conventional heatsink can do this. In a Class by itself
Ground-breaking performance, prodigious power, sophisticated controland
rock-steady reliability—Classé’s new Delta series is a giant leap in amplifier
design. Thanks to exclusive ICTunnel™ and audio technologies, only Classé
amplifiers can consistently deliver top performance and reliability in every
installation. All tests un-weighted and 500kHz measurement bandwidth (except
SNR) Frequency response 1 Hz - 100 kHz, -3dB Output power 300W rms into 8Ω (24.8
dBW) Harmonic Distortion <0.002% at 1 kHz balanced <0.004% at 1 kHz single ended
Peak Output Voltage 167V peak to peak, 53V rms no load 156V peak to peak, 48V
rms into 8Ω Input Impedance 50kΩ balanced / single ended Voltage gain 29dB
balanced / single ended Input level at clipping 2.1V rms balanced / single ended
Intermodulation Distortion >90dB below fundamental into 8Ω balanced / single
ended >85dB below fundamental into 4Ω balanced / single ended Signal to Noise
Ratio -116dB at peak output into 8Ω Measurement Bandwidth: 22 kHz Output
impedance 0.03Ω @ 1 kHz Standby power consumption < 1W Rated power consumption
1020W @ 1/8th power into 8Ω Width 17.5” (444mm) Depth 22.52” (572mm) Height
8.78” (223mm) Gross weight 115 lb (52.3 kg) Net weight 105 lb (47.7 kg) Mains
voltage Specified on rear panel
.gif)
CLASSE'

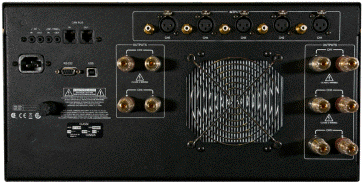

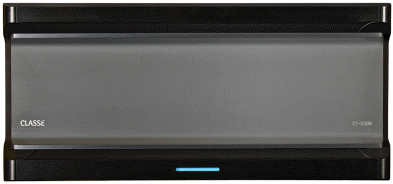

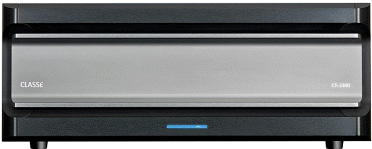

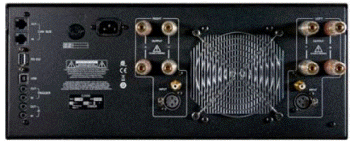

CT-2300
€.
6.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di
potenza a 2 canali ad alta corrente. 2 x 300W su 8 ohm. Circuitazione bilanciata
a simmetria complementare. Ingresso RCA e XLR. RS-232. Trigger IN/OUT. Controllo
IR IN/OUT. RJ45 per bus datI
La Serie CT si affianca alle altre serie
preesistenti (Delta e Omega) rispondendo ad una domanda proveniente dai clienti
dell’Home-Theater e da parte dei custom-installers, che necessitano di sistemi
di grandi prestazioni, ma che non desiderano al contempo turbare l’interior-design.
Su queste coordinate arriva la CT- Series. Tutti i componenti sono stati
progetti e costruiti per il montaggio in rack, costituendo la prima linea di
elettroniche high-end, tecnologicamente predisposte per questa applicazione. L’ICTunnel™,
il tunnel del freddo Uno dei primi e maggiori problemi da risolvere con
amplificazioni di grande potenza e dimensioni, e con controller zeppi di
processori al lavoro, è la dissipazione del calore. Il calore non procura
semplicemente “fastidio”; può mettere a repentaglio il corretto funzionamento
degli apparecchi ed inficiarne fortemente le qualità. Da qui l’adozione del
sistema di raffreddamento brevettato denominato ICTunnel e ribattezzato Icy
Tunnel. Questo consiste in un condotto di raffreddamento in alluminio - ad aria
forzata con ventola a basso rumore - che mantiene la temperatura ad un valore
prestabilito, ritenuto ottimale per il funzionamento dei transistors. Inoltre,
lo sviluppo di questo sistema di controllo termico, attuato tramite appositi
sensori - è molto rapido nell’intervento e di dimensioni molto contenute. Parte

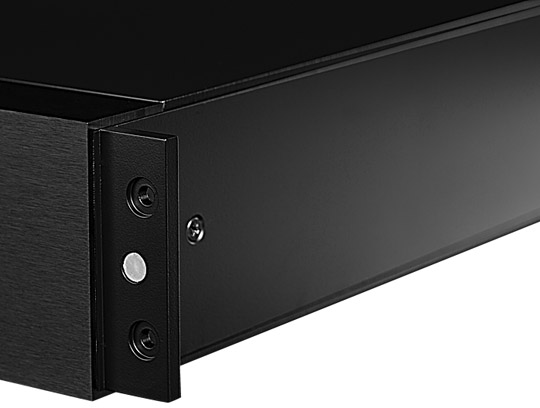

integrante e sinergica del progetto è il pannello frontale, frutto della
soluzione tecnica denominata Detachable Quiet Flow Faceplate. Questo è ricavato
da un blocco di alluminio 6063-T6 ed è montato in modo da lasciare spazio al
passaggio dell’aria destinata alla ventilazione, oltre a fornire esso stesso un
contributo alla dissipazione del calore. Per evitare la diffusione della polvere
negli apparecchi e nell’ambiente da un filtro specifico, controllato da un
sensore che avverte l’utilizzatore quando ha bisogno di essere lavato. In tutti
i componenti della CT-Series sono a corredo dei binari per il montaggio in rack
con la massima precisione ed affidabilità. Questi sono disponibili per rack da
mm. 504L x 657H x 784P.

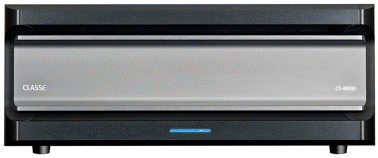

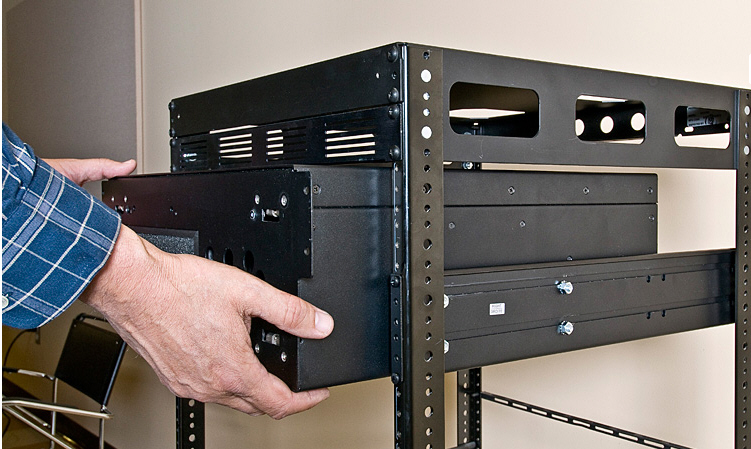

CT
amplifiers come with their own adjustable rack rails and a separate faceplate
designed to conceal all mounting hardware along the sides of the rack. The rails
adapt easily to common rack depths while providing front to back support of the

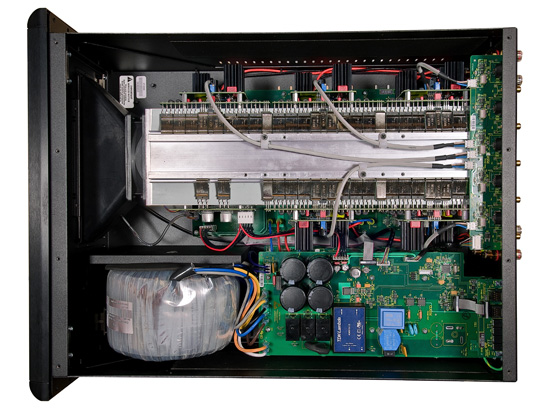

chassis. Hidden inside, our unique Intelligent Cooling Tunnel, orICTunnel™ (pronounced
Icy Tunnel) architecture and related circuitry quietly controls the amplifier
temperature, ensuringoptimum performance and reliability in enclosed, poorly
ventilated environments. Conventional high-end amplifiers use heatsinks with
high thermal mass that rely on convection to cool the active circuits. They are
slow to heat up and slow to cool down. Eventually they heat up their environment
and as the air around them gets hotter, they become part of the problem. For
this reason, high-powered amps and racks or cabinets don’t easily mix.Product
Leaf let Conventional heatsinks are simply shaped pieces of metal, relying on
placement and ambient air to extract heat from the amplifier. The ICTunnel™ is
more sophisticated, acting like the human hypothalamus regulating body
temperature. The ICTunnel™ utilizes an aluminum bonded-fin heatsink, of the kind
used in high powered medical, laser and test equipment. It exploits the
principle of low thermal mass, so it heats quickly but can also be cooled
quickly. Inside its relatively small size are fins providing nearly 31 square
feet of surface area. The key to its operation is how the fins are spaced—as
close as possible to each other to maximize the surface area inside the tunnel,
but not so close as to heat each other. The ICTunnel™ utilizes a noiseless fan
along with pressure and temperature sensors to maintain the amplifier’s target
temperature.The CT series has everything you would expect from the world’s best
amplifiers. They are designed for lifetime reliability. They have the power to
effortlessly control the lowest impedances imaginable. They have the finesse to
resolve the infinitely minute details that are the DNA of great sound. But CT
amplifiers add a new dimension. For the first time the world’s best amplifiers
can go right where you need them – in the home theater rack
AMPLIFICATORI
FINALI MONO
CLASSE'
SIGMA MONO €.
4.250,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di
potenza mono ad alta corrente. 350W su 8 ohm e 700W su 4 ohm. Stadi finali in
claase D. Alimentazione switching. DSP proprietario per l'analisi in tempo reale
delle condizioni di funzionamento e della potenza erogata. Ingresso e uscita RCA
e XLR per daisy chain amp. Doppi morsetti di uscita per i diffusori. RS-232.
Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati.
Sigma MONO MONAURAL AMPLIFIER The Sigma MONO is
the reference design for the proprietary Classé amplifier platform introduced in
the Delta series CA-D200 and Sigma AMP2 and AMP5 models. With completely
separate chassis for each channel, the monaural amplifier architecture
eliminates the possibility of crosstalk between channels and allows speaker
cable lengths to be held to a minimum to minimize losses. It efficiently
delivers a prodigious 350W into 8Ω and 700W into 4Ω, suitable for the most
difficult speaker loads and critical listening applications
All tests un-weighted and 20Hz – 20kHz measurement bandwidth used. Frequency
response 10Hz – 20kHz, -1dB into 4 Output power 350W rms into 8Ω 700W rms into
4Ω Harmonic Distortion <0.012% @ 1kHz driven to 1/8th power into 8Ω Peak Output
Voltage 151V peak to peak, 53.4V rms no load 151V peak to peak, 53.4V rms
into 8Ω Input Impedance 100kΩ Balanced / 50kΩ SE Voltage gain 29 dB Input
level at clipping 1.8Vrms Balanced/SE Intermodulation Distortion >80 dB below
fundamental into 8Ω Balanced Signal to Noise Ratio -109 dB at peak output into
8Ω (AES17) Standby power consumption .5W @ 230 V Rated power consumption 130W @
1/8th power into 4Ω Mains voltage 90V - 264V, 50/60Hz Overall Dimensions Width:
17.00" (433mm)Depth (excluding connectors): 14.57" (370mm)Height: 3.75" (95mm)
Net weight 22.0 lb (10.00 kg) Shipping weight 29.0 lb (13.18 kg)

.gif)
CLASSE'

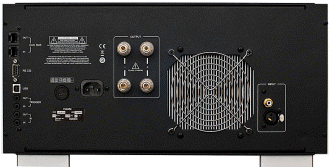

CA-M300
€.
5.450,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di potenza mono ad
alta corrente. 300W su 8 ohm. Circuitazione bilanciata a simmetria
complementare. Dispositivi j-fets per l'ingresso, mosfet per i driver e
transistor bipolari per gli stadi di uscita. Trasformatore toroidale. Ingresso
RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati.
Tecnologia ICTunnel per migliorare il raffreddamento e la qualità audio. Cad.
Our newest Delta series
amplifiers embody all that Classé represents: innovation, technological
achievement, consummate craftsmanship,and iconic design. But they are not just
the latest in the distinguished line of Classé amplifiers to be launched since
1980. They are new, revolutionary and unique.Performance first The original
Delta series amplifiers won more than critical acclaim. Elite audio
professionals use them to master music and movies that the whole world has
enjoyed. Our newest amplifiers are even better. Objectively, pure technical
measurements prove they deliver our highest performance ever. Subjectively, they
simply blow audiences away. The Classé design team has created the ultimate
environment toamplify an audio signal. The entire amplification process occurs
ona single board, creating the most direct and transparent signal
pathconceivable. Our uniquely miniaturized driver stage is virtually noise free,
so every nuance of the original signal reaches the output stage. Here, vast
quantities of clean power are controlled with absolute precision. Suddenly, the
world’s finest speakers sound even better. Performance fast There is a
relationship between temperature and performance but it is widely misunderstood.
Audiophiles say that optimal performance is obtained when an amplifier is
“warmed up,” but what does this actually mean? When is it warm enough and when
is it too warm? The exposed heatsink fins found on conventional amplifiers are
passive. They can’t help circuits reach their ideal temperature or keep them
there throughout a listening session. They run at a temperature wholly defined
by their environment and how loud they are playing. This can be far from
ideal.Heat management in Classé’s new Delta series amplifiers is providedby the
ICTunnel™ (pronounced Icy Tunnel), a sensor- and microprocessor- controlled
technology inspired by the heatsinks found in high-power laser and medical
equipment. Mounted inside the unit, the ICTunnel™ actively regulates the
amplifier temperature to ensure both optimum performance and reliability. From
room temperature, the amplifiers warm up fast. They reach their ideal
temperature in less than fifteen minutes and remain there regardless of how hard
they are driven. No conventional heatsink can do this. In a Class by itself
Ground-breaking performance, prodigious power, sophisticated controland
rock-steady reliability—Classé’s new Delta series is a giant leap in amplifier
design. Thanks to exclusive ICTunnel™ and audio technologies, only Classé
amplifiers can consistently deliver top performance and reliability in every
installation. All tests un-weighted and 500kHz measurement bandwidth (except
SNR) Frequency response 1 Hz - 100 kHz, -3dB Output power 300W rms into 8Ω (24.8
dBW) 600W rms into 4Ω (24.8 dBW) Harmonic Distortion <0.002% at 1 kHz balanced
<0.004% at 1 kHz single ended Peak Output Voltage 150V peak to peak, 53V rms no
load 136V peak to peak, 48V rms into 8Ω Input Impedance 50kΩ balanced / single
ended Voltage gain 29dB balanced / single ended Input level at clipping 1.88V
rms balanced / single ended Intermodulation Distortion >90dB below fundamental
into 8Ω balanced / single ended >90dB below fundamental into 4Ω balanced /
single ended Signal to Noise Ratio -116dB at peak output into 8Ω Measurement
Bandwidth: 22 kHz Output impedance 0.015Ω @ 1 kHz Standby power consumption < 1W
Rated power consumption 420W @ 1/8th power into 8Ω Width
17.5” (444mm) Depth (excluding connectors) 17.52” (445mm) Height 8.78” (223mm)
Gross weight 87 lb (39.5 kg) Net weight 75 lb (34.1 kg) Mains voltage Specified
on rear panel
.gif)
CLASSE'

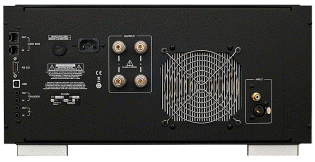

CA-M600
€.
6.950,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di potenza mono ad
alta corrente. 600W su 8 ohm. Circuitazione bilanciata a simmetria
complementare. Dispositivi j-fets per l'ingresso, mosfet per i driver e
transistor bipolari per gli stadi di uscita. Trasformatore toroidale. Ingresso
RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati.
Tecnologia ICTunnel per migliorare il raffreddamento e la qualità audio. Cad.Our
newest Delta series amplifiers embody all that Classé represents: innovation,
technological achievement, consummate craftsmanship,and iconic design. But they
are not just the latest in the distinguished line of Classé amplifiers to be
launched since 1980. They are new, revolutionary and unique.
Performance
first The original Delta series amplifiers won more than critical acclaim. Elite
audio professionals use them to master music and movies that the whole world has
enjoyed. Our newest amplifiers are even better. Objectively, pure technical
measurements prove they deliver our highest performance ever. Subjectively, they
simply blow audiences away. The Classé design team has created the ultimate
environment toamplify an audio signal. The entire amplification process occurs
ona single board, creating the most direct and transparent signal
pathconceivable. Our uniquely miniaturized driver stage is virtually noise free,
so every nuance of the original signal reaches the output stage. Here, vast
quantities of clean power are controlled with absolute precision. Suddenly, the
world’s finest speakers sound even better.Performance fast There is a
relationship between temperature and performance but it is widely misunderstood.
Audiophiles say that optimal performance is obtained when an amplifier is
“warmed up,” but what does this actually mean? When is it warm enough and when
is it too warm? The exposed heatsink fins found on conventional amplifiers are
passive. They can’t help circuits reach their ideal temperature or keep them
there throughout a listening session. They run at a temperature wholly defined
by their environment and how loud they are playing. This can be far from
ideal.Heat management in Classé’s new Delta series amplifiers is providedby the
ICTunnel™ (pronounced Icy Tunnel), a sensor- and microprocessor- controlled
technology inspired by the heatsinks found in high-power laser and medical
equipment. Mounted inside the unit, the ICTunnel™ actively regulates the
amplifier temperature to ensure both optimum performance and reliability.From
room temperature, the amplifiers warm up fast. They reach their ideal
temperature in less than fifteen minutes and remain there regardless of how hard
they are driven. No conventional heatsink can do this. In a Class by itself
Ground-breaking performance, prodigious power, sophisticated controland
rock-steady reliability—Classé’s new Delta series is a giant leap in amplifier
design. Thanks to exclusive ICTunnel™ and audio technologies, only Classé
amplifiers can consistently deliver top performance and reliability in every
installation.All tests un-weighted and 500kHz measurement bandwidth (except SNR)
Frequency response 1 Hz - 100 kHz, -3dB Output power 600W rms into 8Ω (27.8 dBW)
1200W rms into 4Ω (27.8 dBW) Harmonic Distortion<0.002% at 1 kHz balanced<0.004%
at 1 kHz single ended Peak Output Voltage 226V peak to peak, 80V rms no load
206V peak to peak, 73V rms into 8Ω Input Impedance 50kΩ balanced / single ended
Voltage gain29dB balanced / single ended Input level at clipping2.86V rms
balanced / single ended Intermodulation Distortion>100dB below fundamental into
8Ω balanced / single ended >90dB below fundamental into 4Ω balanced / single
ended Signal to Noise Ratio-120dB at peak output into 8Ω Measurement Bandwidth:
22 kHz Output impedance 0.03Ω @ 1 kHz Standby power consumption < 1W Rated power
consumption 440W @ 1/8th power into 8Ω Width 17.5” (444mm) Depth 17.52” (445mm)
Height 8.78” (223mm) Gross weight 100 lb (45.4 kg) Net weight 88 lb (39.9 kg)
Mains voltage Specified on rear panel

CLASSE'

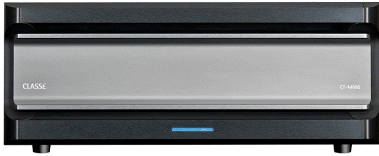

CT-M300
€.
5.000,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Risposta in frequenza: 1Hz –
80kHz, -3dB Potenza di uscita: 300W/8Ω; 600W/4Ω Dimensioni, mm: L
483 x P 473 x H 177 Peso, kg: 34.5 Classè Audio, il rinomato, storico
costruttore canadese di elettroniche per audio hi-fi e audio/video di altissimo
livello, ha lanciato la CT-Series, Custom Series, componenti nati per funzionare
nel montaggio in rack, situazione necessaria ed ottimale per installazioni a

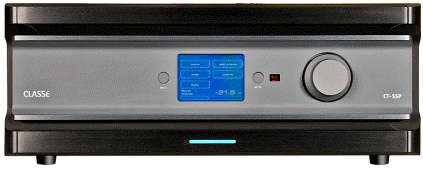

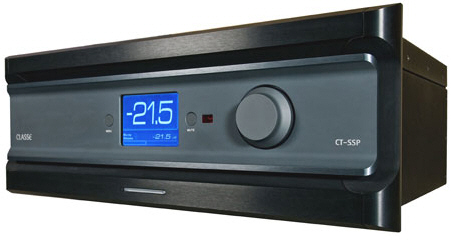

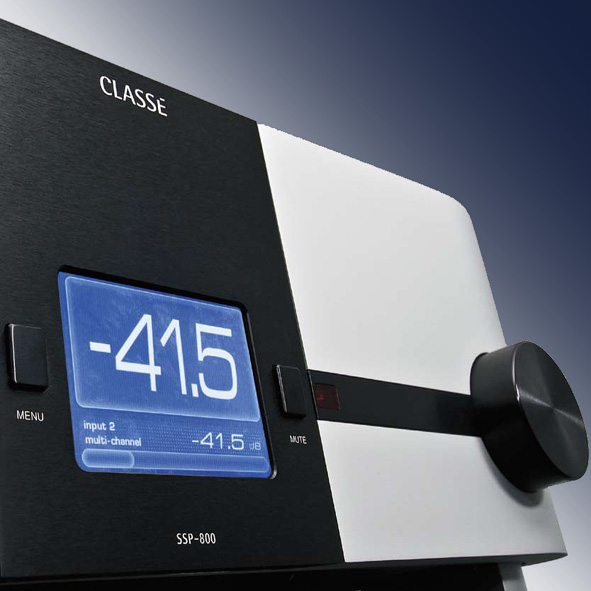

scomparsa. La linea consta di un pre/processore A/V, il CT-SSP (è la versione
“utility” del superlativo SSP-800), quindi i finali CT-2300, CT-5300, CT-M300 e
CT-M-600. La Serie CT si affianca alle altre serie preesistenti (Delta e Omega)
rispondendo ad una domanda proveniente dai clienti dell’Home-Theater e da parte
dei custom-installers, che necessitano di sistemi di grandi prestazioni, ma che
non desiderano al contempo turbare l’interior-design. Su queste coordinate
arriva la CT- Series. Tutti i componenti sono stati progetti e costruiti per il
montaggio in rack, costituendo la prima linea di elettroniche high-end,
tecnologicamente predisposte per questa applicazione. L’ICTunnel™, il tunnel del
freddo Uno dei primi e maggiori problemi da risolvere con amplificazioni di
grande potenza e dimensioni, e con controller zeppi di processori al lavoro, è
la dissipazione del calore. Il calore non procura semplicemente “fastidio”; può
mettere a repentaglio il corretto funzionamento degli apparecchi ed inficiarne
fortemente le qualità. Da qui l’adozione del sistema di raffreddamento
brevettato denominato ICTunnel e ribattezzato Icy Tunnel. Questo consiste in un
condotto di raffreddamento in alluminio - ad aria forzata con ventola a basso
rumore - che mantiene la temperatura ad un valore prestabilito, ritenuto
ottimale per il funzionamento dei transistors. Inoltre, lo sviluppo di questo
sistema di controllo termico, attuato tramite appositi sensori - è molto rapido
nell’intervento e di dimensioni molto contenute. Parte integrante e sinergica
del progetto è il pannello frontale, frutto della soluzione tecnica denominata
Detachable Quiet Flow Faceplate. Questo è ricavato da un blocco di alluminio
6063-T6 ed è montato in modo da lasciare spazio al passaggio dell’aria destinata
alla ventilazione, oltre a fornire esso stesso un contributo alla dissipazione
del calore. Per evitare la diffusione della polvere negli apparecchi e
nell’ambiente da un filtro specifico, controllato da un sensore che avverte
l’utilizzatore quando ha bisogno di essere lavato. In tutti i componenti della
CT-Series sono a corredo dei binari per il montaggio in rack con la massima
precisione ed affidabilità. Questi sono disponibili per rack da mm. 504L x 657H
x 784P.
CT
amplifiers come with their own adjustable rack rails and a separate faceplate
designed to conceal all mounting hardware along the sides of the rack. The rails
adapt easily to common rack depths while providing front to back support of the
chassis. Hidden inside, our unique Intelligent Cooling Tunnel, orICTunnel™ (pronounced
Icy Tunnel) architecture and related circuitry quietly controls the amplifier
temperature, ensuringoptimum performance and reliability in enclosed, poorly
ventilated environments. Conventional high-end amplifiers use heatsinks with
high thermal mass that rely on convection to cool the active circuits. They are
slow to heat up and slow to cool down. Eventually they heat up their environment
and as the air around them gets hotter, they become part of the problem. For
this reason, high-powered amps and racks or cabinets don’t easily mix.Product
Leaf let Conventional heatsinks are simply shaped pieces of metal, relying on
placement and ambient air to extract heat from the amplifier. The ICTunnel™ is
more sophisticated, acting like the human hypothalamus regulating body

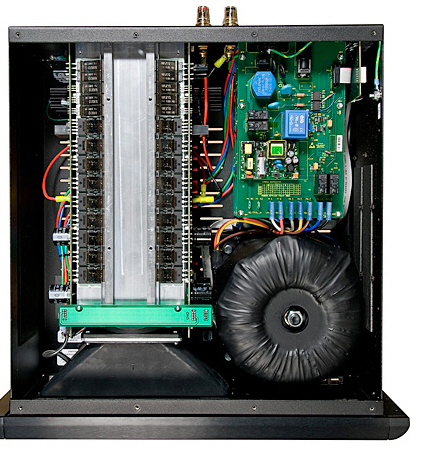

temperature. The ICTunnel™ utilizes an aluminum bonded-fin heatsink, of the kind
used in high powered medical, laser and test equipment. It exploits the
principle of low thermal mass, so it heats quickly but can also be cooled
quickly. Inside its relatively small size are fins providing nearly 31 square
feet of surface area. The key to its operation is how the fins are spaced—as
close as possible to each other to maximize the surface area inside the tunnel,
but not so close as to heat each other. The ICTunnel™ utilizes a noiseless fan
along with pressure and temperature sensors to maintain the amplifier’s target
temperature.The CT series has everything you would expect from the world’s best
amplifiers. They are designed for lifetime reliability. They have the power to
effortlessly control the lowest impedances imaginable. They have the finesse to
resolve the infinitely minute details that are the DNA of great sound. But CT
amplifiers add a new dimension. For the first time the world’s best amplifiers
can go right where you need them – in the home theater rack
CLASSE'

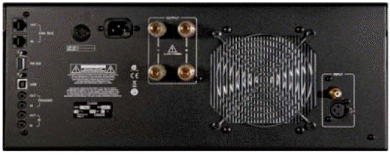

CT-M600
€.
6.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Risposta in frequenza: 1Hz –
80kHz, -3dB Potenza di uscita: 600W/8Ω; 1200W/4Ω Dimensioni, mm: L
483 x P 473 x H 177 Peso, kg: 49.5 Classè Audio, il rinomato, storico
costruttore canadese di elettroniche per audio hi-fi e audio/video di altissimo
livello, ha lanciato la CT-Series, Custom Series, componenti nati per funzionare
nel montaggio in rack, situazione necessaria ed ottimale per installazioni a
scomparsa. La linea consta di un pre/processore A/V, il CT-SSP (è la versione
“utility” del superlativo SSP-800), quindi i finali CT-2300, CT-5300, CT-M300 e
CT-M-600. La Serie CT si affianca alle altre serie preesistenti (Delta e Omega)
rispondendo ad una domanda proveniente dai clienti dell’Home-Theater e da parte
dei custom-installers, che necessitano di sistemi di grandi prestazioni, ma che
non desiderano al contempo turbare l’interior-design. Su queste coordinate
arriva la CT- Series. Tutti i componenti sono stati progetti e costruiti per il
montaggio in rack, costituendo la prima linea di elettroniche high-end,
tecnologicamente predisposte per questa applicazione. L’ICTunnel™, il tunnel del
freddo Uno dei primi e maggiori problemi da risolvere con amplificazioni di
grande potenza e dimensioni, e con controller zeppi di processori al lavoro, è
la dissipazione del calore. Il calore non procura semplicemente “fastidio”; può
mettere a repentaglio il corretto funzionamento degli apparecchi ed inficiarne
fortemente le qualità. Da qui l’adozione del sistema di raffreddamento
brevettato denominato ICTunnel e ribattezzato Icy Tunnel. Questo consiste in un
condotto di raffreddamento in alluminio - ad aria forzata con ventola a basso
rumore - che mantiene la temperatura ad un valore prestabilito, ritenuto
ottimale per il funzionamento dei transistors. Inoltre, lo sviluppo di questo
sistema di controllo termico, attuato tramite appositi sensori - è molto rapido
nell’intervento e di dimensioni molto contenute. Parte integrante e sinergica
del progetto è il pannello frontale, frutto della soluzione tecnica denominata
Detachable Quiet Flow Faceplate. Questo è ricavato da un blocco di alluminio
6063-T6 ed è montato in modo da lasciare spazio al passaggio dell’aria destinata
alla ventilazione, oltre a fornire esso stesso un contributo alla dissipazione
del calore. Per evitare la diffusione della polvere negli apparecchi e
nell’ambiente da un filtro specifico, controllato da un sensore che avverte
l’utilizzatore quando ha bisogno di essere lavato. In tutti i componenti della
CT-Series sono a corredo dei binari per il montaggio in rack con la massima
precisione ed affidabilità. Questi sono disponibili per rack da mm. 504L x 657H
x 784P.
CT
amplifiers come with their own adjustable rack rails and a separate faceplate
designed to conceal all mounting hardware along the sides of the rack. The rails
adapt easily to common rack depths while providing front to back support of the
chassis. Hidden inside, our unique Intelligent Cooling Tunnel, orICTunnel™ (pronounced
Icy Tunnel) architecture and related circuitry quietly controls the amplifier
temperature, ensuringoptimum performance and reliability in enclosed, poorly
ventilated environments. Conventional high-end amplifiers use heatsinks with
high thermal mass that rely on convection to cool the active circuits. They are
slow to heat up and slow to cool down. Eventually they heat up their environment
and as the air around them gets hotter, they become part of the problem. For
this reason, high-powered amps and racks or cabinets don’t easily mix.Product
Leaf let Conventional heatsinks are simply shaped pieces of metal, relying on
placement and ambient air to extract heat from the amplifier. The ICTunnel™ is
more sophisticated, acting like the human hypothalamus regulating body
temperature. The ICTunnel™ utilizes an aluminum bonded-fin heatsink, of the kind
used in high powered medical, laser and test equipment. It exploits the
principle of low thermal mass, so it heats quickly but can also be cooled
quickly. Inside its relatively small size are fins providing nearly 31 square
feet of surface area. The key to its operation is how the fins are spaced—as
close as possible to each other to maximize the surface area inside the tunnel,
but not so close as to heat each other. The ICTunnel™ utilizes a noiseless fan
along with pressure and temperature sensors to maintain the amplifier’s target
temperature.The CT series has everything you would expect from the world’s best
amplifiers. They are designed for lifetime reliability. They have the power to
effortlessly control the lowest impedances imaginable. They have the finesse to
resolve the infinitely minute details that are the DNA of great sound. But CT
amplifiers add a new dimension. For the first time the world’s best amplifiers
can go right where you need them – in the home theater rack
LETTORI CD
CLASSE'
CDP-102
€.
4.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Lettore CD, CD R/RM DVD-R/RW
+R/RW DVD-Audio, DVD Video, Dual Disc. Display LCD TFT Touch Screen con preview
video. Conversione D/A a 24 bit/192 kHz con upsampling di tutti i segnali
digitali. Meccanica slot-in Teac. Uscite analogiche XLR e RCA, uscita digitale
anche multicanale. Telecomando
CDP-102
CD Player It is alive! More than twenty years after the first CD players arrived
on store shelves, the compact disc format is alive and well. Despite challenges
by DAT, mini-disc, SACD and DVD-Audio among others, the CD remains the gold
standard for music lovers worldwide. Music collections often contain a variety
of recordings using everything from compressed files such as MP3, to
uncompressed, high-bandwidth, high bit-rate formats such as DVD-Audio. Most
collections, however, are dominated by the compact disc. For this reason, no
serious music lover/audiophile should be without a top-quality CD player. The

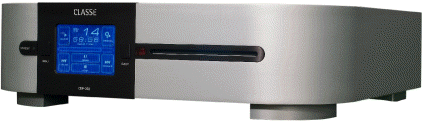

Classé Design Team has developed the CDP-102 and CDP-202 as two-channel CD
players, perfectly suited for the needs of the contemporary music lover/audiophile.
Although capable of playing a great variety of discs (CD, MP3, DVD-Video,
DVD-Audio, etc.), the CDP-102 and CDP-202 are optimized for playback of
two-channel music. Classé Disc Player Platform The CDP-102 and CDP-202 utilize
the advanced platform introduced by the ground breaking CDP-300 DVD Player. As
in the CDP-300, the CDP-102 and CDP-202 utilize a TEAC ® slot-loader mechanism
for reading discs. It was chosen in place of the older drawer-loading designs
because of its superior disc-handling characteristics, reliability and control
flexibility. Elimination of the drawer also facilitates a greater range of
installation options. Loading remains convenient even when the player is mounted
at or above eye-level in equipment racks, where placing discs in trays can be
awkward. Fitting neatly within the Delta series model's black control strip, the
slot is illuminated by a soft blue light to assist when loading discs in a
darkened room. The CDP-102 and CDP-202 share the beautiful industrial design and
elegant control screens found throughout the Delta series range. They are the
first CD players to offer touchscreen control and video preview on the front
panel. The preview feature allows audiophiles the option of enjoying a pure
music listening session without video, because DVD-Audio (or DVD-Video) discs
may be navigated directly from the front panel. The Classé CDP platform is a 'from
the ground up' design. It features special vibration-absorbing feet, a strong
and rigid chassis and DVD-ROM drive. The drive, also used in the CDP-300 DVD
Player, is capable of reading CD, DVD-Audio, DVD-Video, MP3, WMA, Video-CD and
S-VCD discs. A special test/monitor output allows connection of composite and
S-video signals to standard definition displays. CDP-102 The CDP-102 utilizes
the same digital and analog audio circuit topologies as the CDP-300, with the
exception being the number of output channels. As a two-channel machine, the
CDP-102 down-mixes multichannel recordings (from DVD-Audio or DVD-Video discs)
to two channels for its left and right analog outputs. Digital outputs may
provide either two-channel or multichannel signals, as would be available from
Dolby Digital ® or DTS ® recordings. Regardless whether analog or digital
outputs are used, the superior performance of the CDP-102 begins with careful
routing and clocking (timing) of digital audio signals. The presence of jitter
at the point of conversion from digital to analog increases distortion and robs
the playback system of resolution. To reduce jitter in the CDP-102 (as in the
CDP-300), digital audio signals are routed through a CPLD (Complex Programmable
Logic Device) and sample rate converter. They are re-created as 24-bit/192kHz
signals and re-clocked before being output to the D-to-A converters. By
attacking jitter at its source, the Classé Design team makes great sounding
audio possible from a variety of digital formats. Stereo DACs (with 8x digital
filters) perform the delicate process of converting digital audio to analog.
Both channels of the stereo DAC are themselves converted as differential signals.
The CDP-102 offers both single-ended and balanced analog outputs. Unlike other
designs offering both formats, the single-ended (RCA) path is fully optimized
and independent of the balanced (XLR) path. While the balanced path is truly
differential, from the output of the DAC, the single-ended path benefits from
the differential topology as well. Instead of using one half of the balanced
signal to derive a single-ended output, the CDP-102 employs a differential
amplifier to properly combine the two signals and gain the benefit of common
mode rejection from the balanced topology. In addition to its superb sonic
performance and touchscreen control the CDP-102 offers a suite of advanced
features to enhance its value in a diverse range of installations. Among them
are variable analog outputs, two-channel down-mix of multichannel recordings,
bi-directional RS-232 control and preview capability for navigation of DVD-Audio
or video discs. Although conceived as a world-class CD player, the CDP-102
delivers far more than spectacular sound from CDs. For versatility, performance
and style, the CDP-102 is clearly in a class by itself.
PREAMPLIFICATORI
MULTICANALI
CLASSE'
SIGMA SSP €.
5.000,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Preamplificatore/processore multicanale a 7.1 canali. 3D e HDMI 1.4. 3D.
Streaming da rete, da MAC/PC, dispositivi iOS e da HD/Nas esterno. Airplay e
DLNA. Decoder Dolby TrueHD e DTS HD Master Audio, Dolby Digital, Dolby Pro Logic
IIx, DTS, DTSES, DTS Neo:6. DSP applicabile a tutti gli ingressi con
equalizzatore parametrico a nove bande. By-pass per stereo. DAC 24bit/192KHz.
Display TFT centrale. 2 ingressi USB asincroni (1 frontale e 1 posteriore), 1
presa Ethernet, 2 ingressi ottici e 3 coassiali, 1 uscita coassiale. 3 ingressi
audio analogici di cui uno XLR. Pre out 7.1 con i frontali anche in XLR. 8
ingressi (di cui 1 sul frontale) e 1 uscite HDMI 1.4a. RS- 232. Trigger IN/OUT.
Controllo IR IN/OUT. RJ45 per bus dati. Uscita cuffia. Telecomando. Elegante
finitura in alluminio spazzolato nero.
Sigma SSP SURROUND
SOUND PREAMP/PROCESSOR The Sigma SSP is a 7.1 channel preamp/processor optimized
for stereo but including HDMI switching, multichannel processing and bass
management. Its wide variety of input connectors includes asynchronous USB and
Ethernet for streaming, augmented by coax and optical; balanced and single-ended
analog inputs plus an optional phono stage show how versatile this preamp/processor
is despite its compact size. A host of performance-oriented features including
digital domain tone/tilt control, and nine-band per channel parametric EQ ensure
the best performance with each recording in every room. Sigma SSP SURROUND
SOUND PREAMP/PROCESSOR USB audio up to 24-bit/192 kHz USB (Host) charging
capability 2 Amps AirPlay supported formats AAC (8 to 320 kbps)
Protected AAC (from iTunes Store), HE-AAC, MP3 (8 to 320 kbps),
MP3 VBR, Audible (formats 2, 3, 4) Audible Enhanced Audio (AAX, and AAX+),
Apple Lossless, AIFF, and WAV DLNA supported formats Apple Lossless (ALAC),
mp3, FLAC, WAV, Ogg Vorbis, WMA, AAC Frequency response 8 Hz - 200
kHz < 1 dB, stereo digital bypass 8 Hz - 20 kHz < 0.5 dB, all other
sourcesChannel Matching (Left to Right) better than 0.05 dBDistortion
(THD+noise)0.0005%, digital source/bypassed analog source .002%, processed
analog sourceMaximum input level (single-ended) 2 Vrms (DSP), 4.5Vrms
(bypass)Maximum input level (balanced) 4 Vrms (DSP), 9 Vrms (bypass)
Maximum output level (single-ended) 9 VrmsMaximum output level (balanced)
18 Vrms Gain Range -93 dB to +14 dB Input impedance (single-ended)
100 kΩ (single-ended) Input impedance (balanced) 50 kΩ (Balanced)
Output impedance (single-ended) 100 ΩOutput impedance (balanced) 300
ΩSignal-to-noise ratio (ref. 4Vrms input, unweighted) 104 dB, bypassed analog
source101 dB, processed analog source (re. full-scale input, unweighted)
105 dB, digital source Channel separation better than 100 dBChannel matching (left
to right) >0.05 dB Crosstalk (any input to any output) better than -130 dB @ 1
kHz Rated power consumption 35 W Mains voltage 100-240 V, 50/60 Hz Overall
dimensions 17.0�? (433mm) Depth (excluding connectors): 14.57�? (370mm)
Height: 3.75(95mm) Net weight 18 lb (8.21 kg) Shipping weight25 lb (11.34 kg)Made
foriPod touch (5th generation) iPod nano (7th generation) iPod touch (4th
generation) iPod nano (6th generatio iPod touch (3rd generation) iPod nano (5th
generation) iPod touch (2nd generation) iPod nano (4th generation) iPod
touch (1st generation) iPod nano (3rd generation) Made foriPhone 5S iPhone 3GS
iPhone 5 iPhone 3GiPhone 4S iPhone Phone 4 Made foriPad mini (with Retina
display) iPad (3rd generation)iPad Air iPad 2 iPad (4th generation) iPad iPad
mini Airplay AirPlay works with iPhone, iPod, and iPod touch with iOS 4.3.3 or
later, Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or
later
.jpg)
CLASSE'
SSP 800 €.
9.450,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Classé Audio, dopo oltre due anni di progettazione e sperimentazione valutativa,
è orgogliosa di presentare il nuovo SSP-800, preamplificatore/processore per
audio surround attrezzato per diventare standard di riferimento assoluto tra le
sorgenti ad alta definizione oggi in forte espansione. Il pre/processore SSP-800
rappresenta pertanto la nave ammiraglia della flotta audio/video Classé ed è di
conseguenza dotata delle migliori risorse tecnologiche per prestazioni di
livello massimo. Uno degli obiettivi principali al quale mirano i progettisti
Classé è quello di mantenere più puro possibile il segnale d’ingresso (audio e/o
video), con il minor tasso di interferenze e manipolazioni, lasciando il
massimamente intatta tutta la qualità e l’emozione dell’evento originale
riportato sul supporto.Tecnicamente parlando, il modello SSP-800 è un
preamplificatore/processore multicanale (10 canali) con la pregevole quanto rara
opportunità di offrire di connessioni bilanciate – oltre che single-ended - per
tutti gli ingressi, garantendo con questo una migliore qualità nel trasferimento
del segnale. Il trattamento del segnale digitale (DSP) è affidato ad un
processore specifico, basato su una piattaforma Texas Instruments da 64 bit, di
grandissima precisione, con il quale è possibile procedere alle regolazioni dei
singoli parametri in modo accurato ed affidabile. Il processore è stato
progettato a moduli sostituibili, per garantire la massima flessibilità del
sistema. E infatti, a breve, sarà disponibile la prima espansione: il decoder
audio in HD, per il quale il costruttore canadese ha voluto aspettare i giusti
tempi di maturazione, così da poter garantire ai suoi appassionati la
tradizionale qualità Classé Audio. Preamplificatore/processore multicanale a
10 canali configurabili 7.1 A/V. 3D e HDMI 1.4a. 3D. Dolby True e DTS HD Master
dopo DSP upgrade gratuito. Decoder Dolby Digital, Dolby Pro Logic IIx, DTS,
DTS-ES, DTS Neo:6. Display TFT touch screencon funzione di monitor fino a 1080p.
Stadio di alimentazione switching. Layout circuitale hi-end. Autocalibrazione. 4
ingressi ottici e 4 coassiali, 1 uscita ottica e 1 coassiale. 7.1 ingressi. 3
ingressi audio analogici di cui uno XLR. Pre out 10 canali e 7.1 sia RCA che XLR.
4 ingressi e 2 uscite HDMI 1.4a. Ingressi/uscite Component, SVideo e video
composito. Conversione dei segnali video su component e HDMI. RS- 232. Trigger
IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati. Telecomando
SSP-800
The surround sound processor is the core of a high-end home theater system. It
directly connects to almost every other component in the system and can either
limit or reveal their true potential. Starting over two years ago, the Classé
Design Team began an extensive evaluation of the new breed of high definition
audio and video technologies. Their research served as the inspiration for a new
challenge: the creation of the definitive SSP—a surround sound processor to set
the standard as the high definition era dawns. The result is the SSP-800,
Classé’s statement preamp/processor.The SSP-800 was conceived with pure
performance as its raison d’être. It can seamlessly weave audio and video into a
faithful reproduction of the original master, reproducing music and movies
exactly as the artists imagined. It was created by people who are uniquely
qualified, having both the technical skill and aesthetic judgment to bring
performances to life. High Definition Meets High Quality In recent years the
development of high definition audio and video has accelerated, rendering many
relatively new home theater components incompatible or obsolete. The early
adopter’s quest for the latest technology is never cheap or without risk. But
those who have sought out the highest quality components have been able to relax
and enjoy them. They know that the latest technology is rarely a threat to
genuine quality. When a new component is released which wraps important
new technologies in a package of superior quality, it is time to sit up and take
notice. The introduction of the SSP-800 is just such an occasion, when
enthusiasts should consider upgrading their systems. The SSP-800 is a
ten-channel preamp/processor, offering both balanced and single-ended
connections for all channels. Audio Digital Signal Processing (DSP) is handled
by a Texas Instruments-based platform which operates in 64-bit double precision.
It uses floating point arithmetic for all audio signal calculations to ensure
the most accurate results possible. All bass management filters, level
adjustments and parametric filters also benefit from the added precision. To
ensure the SSP-800 retains its value and competitive edge, the Classé Design
Team has designed the DSP onto a replaceable module to accommodate a planned
future upgrade. Superior audio performance is achieved by combining powerful DSP
with balanced topologies, advanced component parts and meticulous circuit
layout. A dedicated linear power supply using a low-noise toroidal transformer
powers the analog audio circuits. Digital and control circuits are powered by
their own dual-output, low-noise, high-current switching supply. High
quality digital-to-analog converters and output stage components are configured
to ensure exceptional dynamic range and resolution. Audio circuits are isolated
from video and control circuits by optocouplers and low voltage differential
signal (LVDS) pathways. Digital and analog circuits and grounds are isolated
from each other among and within circuit boards. Throughout the SSP-800
there are examples of HD technology executed at the highest quality level. It is
the combination of advanced technology and genuine quality that sets the SSP-800
apart. And while technology and quality give the SSP-800 its intrinsic value, we
measure its true worth first on the test bench and then in the sound room. Music
First Music listening remains the most reliable method of judging sound quality.
In fact, no surround processor can accurately reproduce movie sound if it fails
to reproduce music properly. At Classé, our first priority is developing
components that perform exceptionally well with music. We then turn our
attention to processor decoding capabilities and developing features that
enhance flexibility and in-room performance. With musical performance as
its benchmark, the SSP-800 was conceived as a high-performance multichannel
preamplifier. For two-channel listening both balanced and single-ended analog
sources may bypass all analog-to-digital, DSP and digital-to-analog stages.
Alternatively, the full range of processing capabilities including bass
management and parametric equalization is available for both analog and digital
sources. The SSP-800 changes the game by doing what no preamp/processor has done
before: it performs as well with music as a dedicated stereo DAC and
preamplifier. The secret of its breathtaking performance lies not in some new
parts or special features, although it has many. What sets the SSP-800 apart is
the depth of experience never before brought to bear on a multichannel design.
Analog to Digital Modern source components are increasingly optimized for use
with digital interconnections and the SSP-800 capitalizes on this trend. Older
surround processors are typically equipped with a vast array of analog inputs.
These have been minimized in the SSP-800 and largely replaced by digital
connectors. Four HDMI 1.3b (High Definition Multimedia Interface) inputs for
audio/video sources are supplemented by standard SPDIF (coax) and EIAJ (optical)
digital inputs for audio. HDMI is the connection standard adopted for high
definition A/V sources. An HDMI cable may carry 1080p HD video signals and
uncompressed multichannel LPCM digital audio as well as the latest HD audio
codecs (Dolby TrueHD and DTS-HD Master Audio) and certain control signals.
Several versions of HDMI have been introduced, each surpassing the other in
bandwidth and support for additional features. While the hardware used to
transmit and receive on HDMI may be labeled by its version number (the SSP-800
uses version 1.3b for all HDMI inputs and outputs), there will be differences
among products’ actual capabilities. The SSP-800 uses HDMI 1.3b primarily
to support the component’s long life in an evolving market. As new sources
emerge, the SSP-800 offers the potential for transferring more information into
and through its circuitry. For example, the video signal path supports 36-bit
Deep Color video, even though Blu-ray Discs are only 24-bit video sources. In
general, the bandwidth of components and circuitry in the SSP-800 is sufficient
to accommodate all current and proposed next-generation sources.
Touchscreen Control and More Classé Delta series components were the first A/V
products to offer touchscreen control. Since then, touchscreen control has
become an integral benefit for other consumer electronics products. Touchscreen
control is more reliable and infinitely more flexible than the older style
controls using push-buttons with fixed-segment displays. The SSP-800 is
custom installation friendly. It is equipped with bi-directional RS-232 control
and status, rear panel IR, front panel IR transmitter/receiver, CAN BUS and DC
triggers. Video sources of all HDTV resolutions including 1080p are available
for viewing on the touchscreen. On Screen Display (OSD) messages can be overlaid
on all video signals. Older analog video sources are converted to digital and
made available on the HDMI outputs. For displays lacking digital video
connections, a component video output is available for analog video sources.
Real World Applications In addition to quality and technology, the SSP-800 has
flexibility built in. Its ten-channel design creates the possibility of
configuring two channels for additional subwoofers or as mirrors of the front
left and right channels for bi-amplifying the front left and right speakers.
Alternatively, these two channels may be devoted to delivering audio to a
separate room or system, with source selection shared with the main theater and
either fixed or variable output. Five-band parametric equalization is provided
for each of the ten channels to help tune the system to its environment. Classé
has elected to offer the system EQ as a manual feature. While several automated
systems are available on the market, the complexity of room acoustics guarantees
that no automatic system can achieve consistent, optimum results. Our experience
is that the best results are obtained by combining measurements with human
judgment. The filters used in the EQ are rendered accurately by our processor,
which uses floating point arithmetic operating in 64-bit double-precision. The
wealth of knowledge applied to the SSP-800 design and the inspiration for its
execution do not come from a textbook—they come from the passion and dedication
of those who have spent their lives in the pursuit of higher performance. Classé
offers the SSP-800—the definitive preamp/processor—for those who share our
singular passion for performance.

CLASSE'
CT-SSP €.
9.450,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Stesse
caratteristiche del SSP-800, esteticamente diverso e adatto per montaggio a rack.
Preamplificatore/processore multicanale a 10 canali configurabili 7.1 A/V. 3D
e HDMI 1.4a. 3D. Dolby True e DTS HD Master dopo DSP upgrade gratuito. Decoder
Dolby Digital, Dolby Pro Logic IIx, DTS, DTS-ES, DTS Neo:6. Display TFT touch
screencon funzione di monitor fino a 1080p. Stadio di alimentazione switching.
Layout circuitale hi-end. Autocalibrazione. 4 ingressi ottici e 4 coassiali, 1
uscita ottica e 1 coassiale. 7.1 ingressi. 3 ingressi audio analogici di cui uno
XLR. Pre out 10 canali e 7.1 sia RCA che XLR. 4 ingressi e 2 uscite HDMI 1.4a.
Ingressi/uscite Component, SVideo e video composito. Conversione dei segnali
video su component e HDMI. RS- 232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45
per bus dati. Telecomando
Like
the SSP-800, the CT-SSP is a ten-channel preamp/processor, offering both
balanced and single-ended connections for all channels. Using HDMI 1.3b the
CT-SSP offers internal decoding of Dolby TrueHD and DTS-HD Master Audio sources.
Digital Signal Processing (DSP) is handled by two Texas Instruments processors,
each capable of up to a remarkable 2800 MIPS (Million Instructions per Second).
The DSPs operate in 64-bit double precision and use floating point arithmetic
for all audio signal calculations to ensure the most accurate results possible.
All bass management filters, level adjustments and parametric filters also
benefit from the added precision. click here to download Product Leaflet
Throughout the SSP-800/CT-SSP there are examples of HD technology executed at
the highest quality level. It is the combination of advanced technology and
genuine quality that sets them apart. And while technology and quality give the
SSPs their intrinsic value, we measure their true worth first on the test bench
and then in the sound room. The wealth of knowledge applied to the SSP-800/CT-SSP
design and the inspiration for its execution do not come from a textbook—they
come from the passion and dedication of those who have spent their lives in the
pursuit of higher performance. Classé offers the SSP-800 and CT-SSP for those
who share our singular passion for performance
AMPLIFICATORI
MULTICANALI
CLASSE'
SIGMA AMP5 €.
5.000,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di
potenza a 5 canali ad alta corrente. 5 x 200W su 8 ohm, 5 x 400W su 4 ohm. Stadi
driver a FET. Stadi finali in claase D. Alimentazione switching proprietaria
SMPS + PFC. DSP proprietario per l'analisi in tempo reale delle condizioni di
funzionamento e della potenza erogata. Ingressi RCA e XLR per i canali frontali
e RCA per centrale e posteriori. RS-232. Trigger IN/OUT. Controllo IR IN/OUT.
RJ45 per bus dati. Elegante finitura in alluminio spazzolato nero
Sigma AMP5 FIVE-CHANNEL AMPLIFIER The Sigma
series AMP5 is a 200W/Ch five-channel amplifier derived from the AMP2, but with
necessary part and layout changes to accommodate its five-channel architecture.
Like the AMP2, it utilizes switching technologies for both power supply and
amplification stages. A Classé-designed switch mode power supply with Power
Factor Correction makes over 1,000W of clean and stable power available while
being both compact and efficient. A new class D amplifier topology provides wide
dynamic range, smooth and extended frequency response and rich harmonic detail
to yield stunning sonic performance. The efficiency of class D adds efficiency,
low heat dissipation and relatively small size to the list of the AMP5’s
attributes. All tests un-weighted and 20Hz – 20kHz measurement bandwidth used.
Frequency response 10Hz – 20kHz, -1dB into 4Ω Output power 200W rms into
8Ω All channels driven 400W rms into 4Ω Any two channels driven* Harmonic
Distortion 0.018% @ 1kHz All channelsdriven to 1/8th power into 8Ω Peak
Output Voltage 113V peak to peak, 40V RMS no load113V peak to peak, 40V RMS into
8Ω Input Impedance 100kΩ Balanced / 50kΩ SE Voltage gain 29 dB
Input level at clipping 1.4Vrms Balanced/SE Intermodulation Distortion >80 dB
below fundamental into 8Ω SE Signal to Noise Ratio -100 dB at peak output into
8Ω (AES17) Rated power consumption200W @ 1/8th power into 8Ω Mains voltage
100V - 240V, 50/60Hz Overall Dimensions Width: 17.00 (433mm) Depth (excluding
connectors): 14.57 (370mm) Height: 3.75 (95mm) Net weight 23.1 lb (10.48 kg)
Shipping weight 30.0 lb (13.61 kg) *each channel supports 400W output into 4
ohms but the AC Mains/power supply cannot support all channels driven
simultaneously at this level, which would require over 2,500W and only
occur under a special test condition. Every channel easily drives lower
impedance loads.
.gif)
CLASSE'
CA-5300
€.
9.450,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di potenza a 5 canali
ad alta corrente. 5 x 300W su 8 ohm. Circuitazione bilanciata a simmetria
complementare. Dispositivi j-fets per l'ingresso, mosfet per i driver e
transistor bipolari per gli stadi di uscita. Trasformatore toroidale. Ingresso
RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati.
Tecnologia ICTunnel per migliorare il raffreddamento e la qualità audio.r bus dati.Telecomando.r bus dati.
CLASSE'
CT-5300
€.
9.500,00
Per
offerta e promozioni
TELEFONA / E-MAIL
Finale di potenza
a 5 canali ad alta corrente. 5 x 300W su 8 ohm. Circuitazione bilanciata a
simmetria complementare. Dispositivi j-fets per l'ingresso, mosfet per i driver
e transistor bipolari per gli stadi di uscita. Trasformatore toroidale. Ingresso
RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati.
Tecnologia ICTunnel per migliorare il raffreddamento nel montaggio a rack
CT-5300 FIVE-CHANNEL
AMPLIFIER Classé Custom Theater series components offer a beautiful and
purpose-built solution for installing world-class audio components in
professional equipment racks. Our commitment to building the world’s best
amplifiers has not changed, but the way our customers use them has. High-end
amplifiers today are as likely as not to be installed in equipment racks or
custom cabinetry and often serve as the foundation of a home theater. Their
sheer size, weight and heat render them impractical in many installations. The
revolutionary Custom Theater (CT) series is our response to this reality. They
are the first world class high-end amplifiers specifically tailored to modern
custom installations. They deliver ultra high-end performance, exceptional
reliability and are designed to be easily installed. We say that they are rack
advantaged, because of a variety of features tailored to the demanding
requirements of this environment. CT amplifiers come with their own adjustable
rack rails and a separate faceplate designed to conceal all mounting hardware
along the sides of the rack. The rails adapt easily to common rack depths while
providing front to back support of the chassis. Hidden inside, our unique
Intelligent Cooling Tunnel, or ICTunnel™ (pronounced Icy Tunnel) architecture
and related circuitry quietly controls the amplifier temperature, ensuring
optimum performance and reliability in enclosed, poorly ventilated environments.
Conventional high-end amplifiers use heatsinks with high thermal mass that rely
on convection to cool the active circuits. They are slow to heat up and slow to
cool down. Eventually they heat up their environment and as the air around them
gets hotter, they become part of the problem. For this reason, high-powered amps
and racks or cabinets don’t easily mix. Conventional heatsinks are simply shaped
pieces of metal, relying on placement and ambient air to extract heat from the
amplifier. The ICTunnel™ is more sophisticated, acting like the human
hypothalamus regulating body temperature. The ICTunnel™ utilizes an aluminum
bonded-fin heatsink, of the kind used in high powered medical, laser and test
equipment. It exploits the principle of low thermal mass, so it heats quickly
but can also be cooled quickly. Inside its relatively small size are fins
providing nearly 31 square feet of surface area. The key to its operation is how
the fins are spaced—as close as possible to each other to maximize the surface
area inside the tunnel, but not so close as to heat each other. The ICTunnel™
utilizes a noiseless fan along with pressure and temperature sensors to maintain
the amplifier’s target temperature. The CT series has everything you would
expect from the world’s best amplifiers. They are designed for lifetime
reliability. They have the power to effortlessly control the lowest impedances
imaginable. They have the finesse to resolve the infinitely minute details that
are the DNA of great sound. But CT amplifiers add a new dimension. For the first
time the world’s best amplifiers can go right where you need them – in the home
theater rack.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg){kind=small}
/CA-D200%20(1).png)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/CT%205300%20(1).jpg){kind=small}
