Why Cardas? Cardas’ cable design incorporates patented, Golden Ratio, Constant Q, Cross-Field, pure copper Litz, conductor technology. Why should I use it? What will it do for my system? It is said, wire is just wire. In reality, a high-end audio cable must balance resistance, capacitance, inductance, conductance, velocity of propagation, RF radiation and absorption, mechanical resonance, strand interaction, high filtering, reflections, electrical resonance, dissipation factors, envelope delay, phase distortion, harmonic distortion, , structural return loss, corrosion, cross-talk, bridge-tap and the interaction of these and a hundred other things. As a high-end cable manufacturer, Cardas Audio strives to address every detail of cable and conductor construction, no matter how small. An elegant solution deals with quality, not quantity. Cable geometry problems are resolved in the cable’s design, not after the fact with filters. George Cardas received U.S. Patent Number 4,628,151 for creating Golden Section Stranding Audio Cable. It is truly unique. George introduced the concept of Golden Section Constant "Q" Stranding to high-end audio, but Golden Ratio, 1.6180339887... : 1 is as old as nature itself. Golden Ratio is the mathematical proportion of life itself, the heart of musical scales and chords. "Discovered" by the Greeks, but used by the Egyptians in the Great Pyramid centuries before, man has employed Golden Ratio to create his most beautiful and naturally pleasing works of art and architecture The signal used by your system, be it digital or analog, through tube or solid state, is always alternating current. The cyclic effect of alternating current vibrates the wire in your system like the strumming of a guitar string. The beating of the capacitive, inductive and mechanical elements in audio cable is set in motion by the transient energy of the audio signal, just as the guitar string is set into motion by the strike of a pick. This form of vibration or resonance distorts the audio signal and produces many sound anomalies, from colored bass to glare. Every interconnect, every speaker cable, every chassis and speaker wire has its own resonant signature. Like the mass, tension and hardness of the guitar string, the mass, tension and hardness of the conductor, coupled with its inductance and resistance, and the capacitance of the cable, determine what sound is made. Each strand in a cable has its own note or beat. Conductor strands interact with other same sized, near unison, and multiplistic sized strands creating beats the same way a cube listening room would, or one with multiplistic dimensions like 8’ x 16’ x 32. Stereo systems depend on the purity of the audio signal. When the cable linking all components together imparts its own sound, the audio signal is corrupted. Cardas created a conductor that absorbs or cancels the noise released by the current fluxuation, by progressively layering strands that share no common resonant multiple. This conductor uses the same mathematical proportioning seen in the worlds greatest concert halls for essentially the same reasons. The infinite indivisibility of the Fibonacci Sequence or Golden Section is a key to controlling resonance. The ratio of ø (Phi), or 1 to 1.6180339887... to (infinity), is the Golden Mean, called Golden Ratio or Golden Proportion. George Cardas holds the patent, U.S. Patent Number 4,628,151, where the ratio of ø is applied to any electrical conductor. In Golden Section Stranding, individual strands are arranged so each strand is coupled to another, whose note or beat is irrational with its own, thus nulling interstrand resonance. This is the famous "Silent Conductor". It is the silence of Cardas conductors that allows them to be so uniquely musical and pure. At the heart of cable oscillation is delayed or stored energy. This energy results from the lowered internal "Q", or resonant point, of conventional conductors. George Cardas has a second U.S. patent, number 4,980,517, describing a unique stranding method where strands diminish in size towards the interior of the conductor. This design is called Constant Q Stranding and it allows each strand of the cable to share the load equally. It is a very effective method of reducing the Non-linearity seen in conventional conductors, without compromising the symmetry of the conductor or the capacitance of the cable. Ordinary Cables are di-pole antennas, both radiating and absorbing RFI/EMI, which sustains system resonance. George’s cable design incorporates Crossfield Construction in its manufacture, which reverses every other stranding layer to defuse the di-pole effect and match conductor propagation to that of surrounding dielectric materials. Cable resonance is further reduced through the use of ultra pure copper, air dielectrics and state of the art connection techniques. Our ultra pure and homogeneous metals have proven to be the best conductors for audio signals. Cardas uses diamond dies exclusively, drawing the strands in a hydrogen reduction atmosphere. This process reduces the amount of impurities and eliminates the surface contamination that occurs when standard metal dies are used. As each strand is drawn, the resultant ultra pure surface is immediately given a urethane enamel "Litz" coating. This is a continuous process that results in a perfectly insulated strand and ultimate longevity of the conductors. Ordinary uncoated copper stranding corrodes in a relatively short time. Cardas meticulously maintains the purity of the conductor strands until they are sealed at termination. Hydrogen Reduction Drawing Machine Every detail in Cardas cables is at the leading edge. Pure Teflon® is used as a stabilizing wrap to firmly bind the conductors, while thin wall tubes provide an air dielectric to isolate the conductors from each other. Cardas defines the state of the art with a perfect joining of conductor to connector. All connectors are custom machined with rhodium over silver contact surfaces. Finally, to insure the quality of each cable, they are terminated by hand and individually inspected.  It is this meticulous attention to details in design, care and construction that defines Cardas.

clicca  su  immagine  per  scricare  listino  Cardas  completo

Pagina  in  allestimento

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

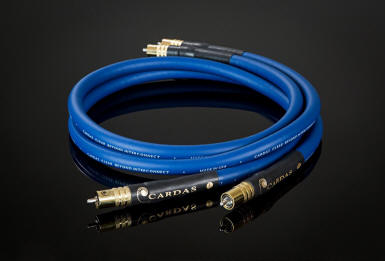

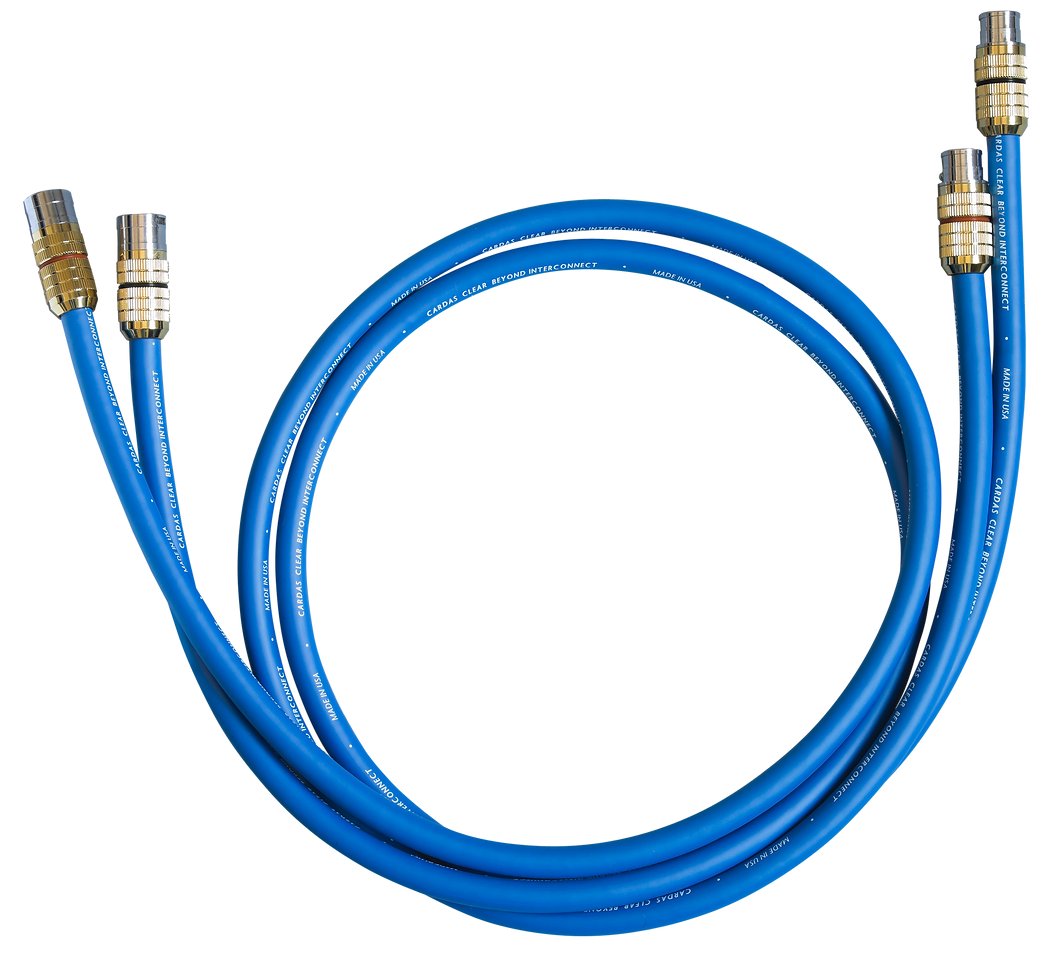

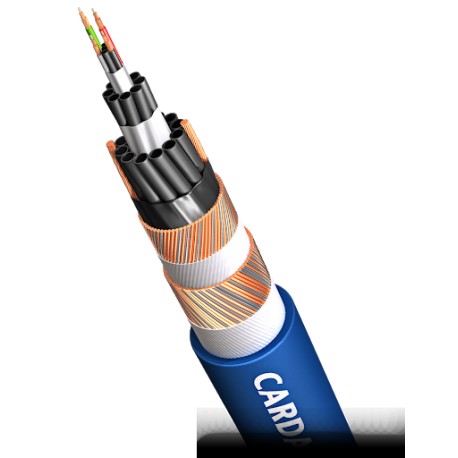

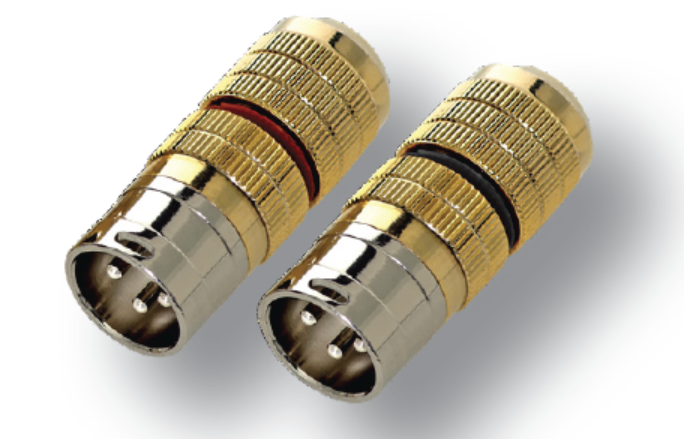

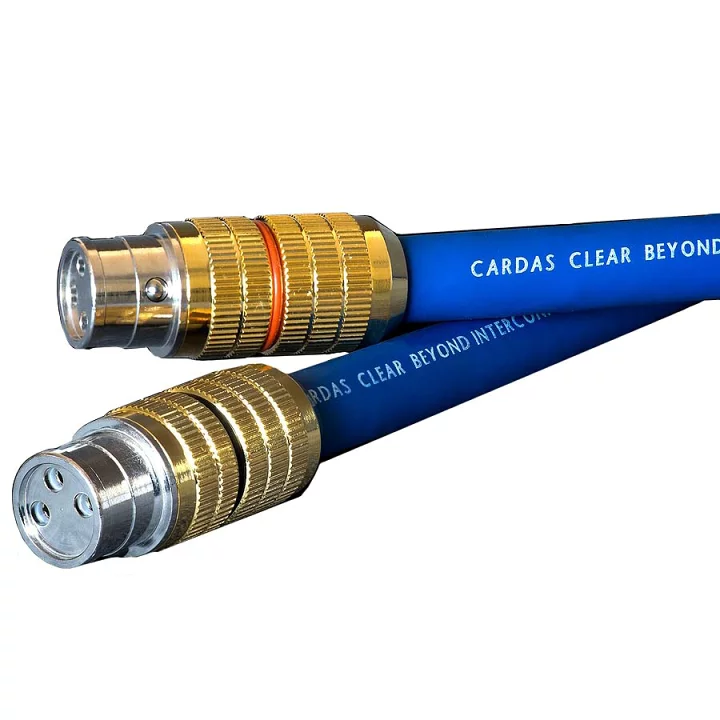

CARDAS CLEAR BEYOND RCA/XLR

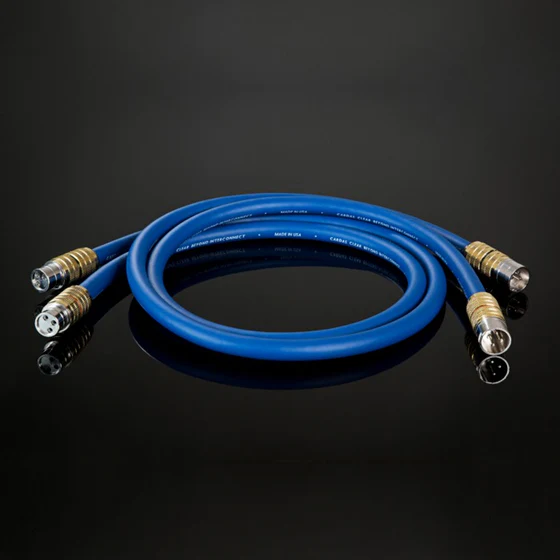

Prestazioni Clear Beyond Interconnect, la nostra interconnessione di punta per eccellenza e una meraviglia del moderno design dei cavi, presenta i nostri conduttori di propagazione abbinati più avanzati. Clear Beyond Interconnect apporta notevoli miglioramenti nell'imaging spaziale, nella dinamica e nell'impatto a bassa frequenza, pur mantenendo la classica musicalità Cardas. Clear Beyond Interconnect si basa su oltre 30 anni di dedizione incessante di Cardas Audio alla perfezione dei cavi ad alte prestazioni. La schermatura superiore e la geometria avanzata della sospensione del tubo dell'aria si traducono in un O.D. di .511", che richiede l'uso del nostro adattatore XRCA 13 per la terminazione single-ended e un CG XLR riprogettato per cavi bilanciati. Più di ogni altra cosa, Clear Beyond Interconnect è musicale. L'equilibrio tonale è completamente neutro con velocità e trasparenza insuperabili. Ogni paio è realizzato su ordinazione e terminato a mano solo dai nostri tecnici senior. Terminazioni standard: Cardas SRCA o CG XLR Progettazione/costruzione Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro scalate alle proporzioni del rapporto aureo e gamma da 47 AWG a 39 AWG. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: Star-Quad 4 conduttori con tubi d'aria in LDPE antistatico legati con nastro in PTFE impregnato di carbonio. Lo strato esterno utilizza tubi d'aria in PTFE scalati 1.618 volte più grandi dei tubi centrali per sospendere lo schermo composito di rame stagnato e filo magnetico lontano dai conduttori che trasportano il segnale. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 4x26,5 AWG Diametro esterno: 0,511”/13 mm

Performance Clear Beyond Interconnect, our ultimate flagship interconnect and a marvel of modern cable design, features our mostadvanced Matched Propagation Conductors. Clear Beyond Interconnect brings noteworthy improvements in spatial imaging, dynamics, and low frequency impact while retaining the classic Cardas musicality. Clear Beyond Interconnect builds on over 30 years of Cardas Audio’s relentless dedication to the perfection of highperformance cables. Superior shielding and advanced air-tube suspension geometry result in an O.D. of .511”, whichnecessitates the use of our XRCA 13 adaptor for single-ended termination, and a re-designed CG XLR for balanced cables. More than anything, Clear Beyond Interconnect is musical. Tonal balance is completely neutral with unsurpassed speed and transparency. Each pair is made to order and hand terminated only by our senior technicians. Standard Terminations: Cardas SRCA or CG XLR Design/Construction Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions and range from 47 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Star-Quad 4 conductors with anti-static LDPE ai r-tubes bound with carbon impregnated PTFE tape wrap. Outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of tinned copper and magnet wire away from the signal carrying conductors. Finished in an ultra soft extruded TPR jacket. Gauge: 4x26.5 AWG Outside Diameter: 0.511”/13mm

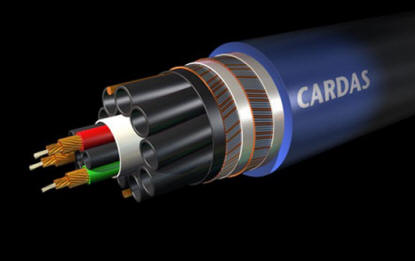

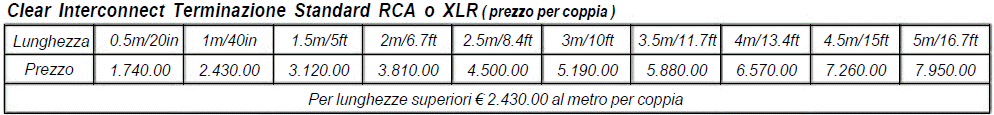

CARDAS CLEAR  RCA/XLR

Performance Completamente neutrale e trasparente. Dinamica superba, estensione ad alta frequenza e velocità. La nostra interconnessione di punta progettata per sistemi di livello di riferimento in sale di ascolto acusticamente neutre. Controllo perfetto su tutta la gamma di frequenze. Estrae ogni dettaglio e rimane musicale. Funziona alla grande in tirature lunghe o brevi. Terminazioni standard: Cardas SRCA o CG XLR Progettazione/costruzione Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro scalate alle proporzioni del rapporto aureo e vanno da 41 AWG a 39 AWG. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: triade equilatera a 3 conduttori con tubi d'aria in LDPE antistatico legati con nastro in PTFE impregnato di carbonio. Lo strato esterno utilizza tubi d'aria in PTFE scalati 1.618 volte più grandi dei tubi centrali per sospendere lo schermo composito di rame stagnato e filo magnetico lontano dai conduttori che trasportano il segnale. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 3x25,5 AWG Diametro esterno: 0,450"/11,43 mm

Performance Completely neutral and transparent. Superb dynamics, high frequency extension and speed. Our flagship interconnect designed for reference level systems in acoustically neutral listening rooms. Perfect control over the entire frequency range. Extracts every detail and remains musical. Works great in long or short runs. Standard Terminations: Cardas SRCA or CG XLR Design/Construction Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions and range from 41 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Equilateral triad 3 conductors with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. Outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of tinned copper and magnet wire away from the signal carrying conductors. Finished in an ultra soft extruded TPR jacket. Gauge: 3x25.5 AWG Outside Diameter: 0.450”/11.43mm

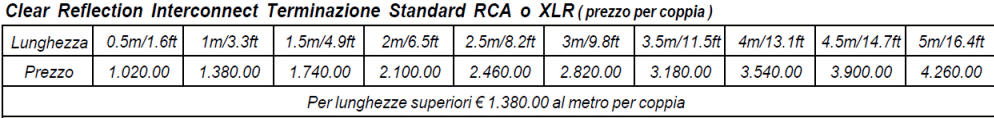

CARDAS REFLECTION   RCA/XLR

Clear Reflection IC Clear Reflection is our latest interconnect, combining the traditional Cardas warmth and musicality (think Golden Reference), with the depth and imaging of Clear.Priced above Clear Light, and significantly below Clear. Click here for Clear Reflection Speaker.  Technical Specifications: Construction: .450" O.D., Cardas copper, PFA-air dielectric, 2 x 25.5 AWG Clear Reflection conductors, Matched Propagation, Golden section, Crossfield, litz, double shielding, Alcryn jacket.  Termination Options: Clear Reflection Interconnect is terminated with copper trimmed Cardas SRCA RCA connectors or CG XLR plugs.

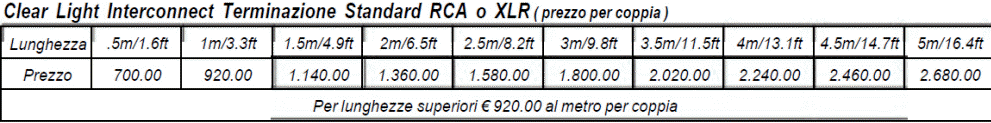

CARDAS LIGHT   RCA/XLR

Clear Light IC Clear Light is an interconnect featuring innovations found in the Clear cables, including Matched Propagation Conductors. Clear Light Interconnect was designed as a simplification of Clear Interconnect, offering many of the benefits of our flagship product, at a more affordable price point. Clear Light Interconnect works well at any length. Technical Specifications: Construction: .370" O.D., Cardas copper, PFA-air dielectric, 3 x 25.5 AWG Clear Light conductors, Matched Propagation, Golden section, Crossfield, litz, double shielding, Alcryn jacket.  Termination Options:Clear Light Interconnect is terminated with Cardas GRMO RCA connectors or Neutrik XLR plugs. Cardas CG-XLR plugs are available as an upgrade.

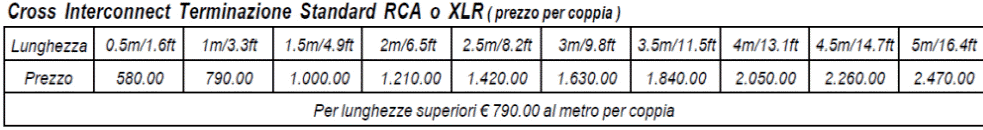

CARDAS CROSS RCA/XLR

Cross Interconnect For a quarter-century, Cardas has been known for its signature sound - warm and musical, with rich mid-range, and vivid imaging. Cross Interconnect reflects the original Cardas designs. Technical Specifications: Construction Cardas copper, PFA-air dielectric, 4 x 20.5 AWG Cardas Conductors, Golden section, Crossfield, litz, double shielding, symmetrical quad-axial cable construction, Alcryn jacket (previously had urethane jacket).  Measurements: RCA Capacitance: 26.4 pf/ft XLR Capacitance: 16 pf/ft  Termination Options: Cross Interconnect is terminated with Cardas GRMO RCA connectors, or Neutrik XLR plugs.

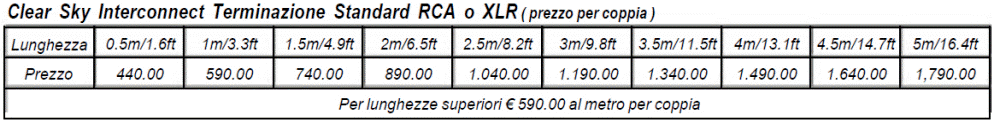

CARDAS SKY RCA/XLR

Clear Sky IC Clear Sky Interconnect is matched to our Clear Sky Speaker, bringing unparalleled detail and neutrality at their price point.  Clear Sky Interconnect works well at any length.  Technical Specifications: Construction: .370" O.D., Cardas copper, Non-conductive air-tube & low-noise tape wrap dielectric, 2 x 25.5 AWG Clear Sky conductors, Matched Propagation, Golden section, litz, braided shield, Alcryn jacket.  Termination Options: Clear Sky Interconnect is terminated with Cardas GRMO RCA connectors or Neutrik XLR plugs

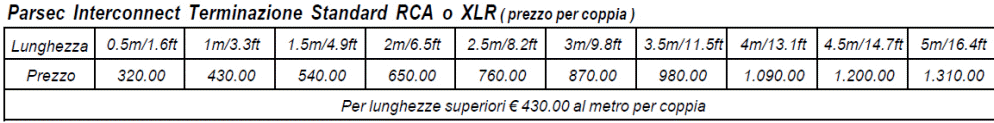

CARDAS PARSEC RCA/XLR

Parsec IC The first Cardas interconnect in our Cross product line to feature Matched Propagation Conductors, the technology originally developed for Clear. Parsec Interconnect is the successor to the legendary Quadlink, delivering the familiar warmth and musicality of Quadlink, with better imaging, transparency and dynamics.  Technical Specifications: Construction: .370" O.D., Cardas copper, Semi-conductive air-tube, 2 x 25.5 AWG Parsec conductors, Matched Propagation, Golden section, litz, braided shield Alcryn jacket.  Termination Options: Parsec Interconnect is terminated with Cardas GRMO RCA connectors or Neutrik XLR plugs.

CARDAS MICROTWIN RCA/XLR

Microtwin Interconnect Microtwin is an affordable interconnect featuring Cardas' Pure Copper Litz conductors. Light weight & flexible. Technical Specifications: Construction: .295" O.D., Cardas copper, PFA & cotton dielectric, 2 x 21.5 & 2 x 28.5 AWG conductors, Golden section, Crossfield, litz, spiral shield, neoprene jacket.  Measurements RCA Capacitance: 42.9 pf/ft XLR Capacitance: 26.5 pf/ft  Termination Options: Microtwin is terminated with GRCM RCA plugs, or Neutrik XLRs.


CARDAS CROSSLINK RCA/XLR

Crosslink Interconnect Crosslink is our entry-level interconnect cable. Crosslink is available as a finished cable, terminated by Cardas Audio, and it is also our only interconnect cable available in bulk. Crosslink is ideal for smaller systems, home theater and car audio. CL2 rated for in-wall installations.  Technical Specifications: Construction: .300" O.D., Cardas copper, PFA dielectric, 2 x 20.5 AWG conductors, Golden section, Crossfield, litz, spiral shield, neoprene jacket.  Measurements: RCA Capacitance: 36.9 pf/ft XLR Capacitance: 22.8 pf/ft  Termination Options: Crosslink is terminated with GRCM RCA plugs, or Neutrik XLRs.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

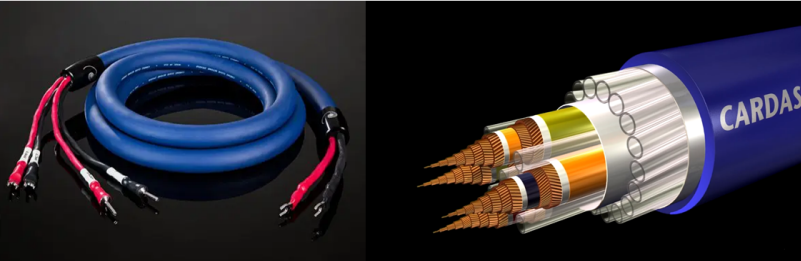

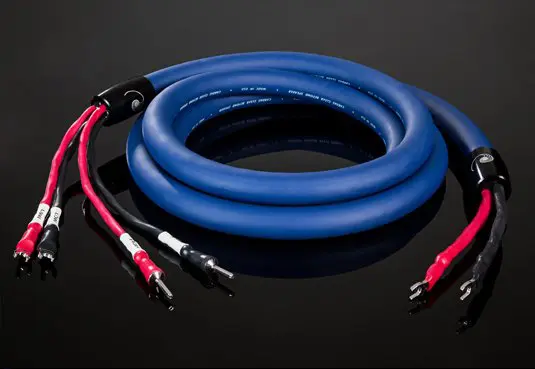

CARDAS CLEAR BEYOND  SPEAKERS

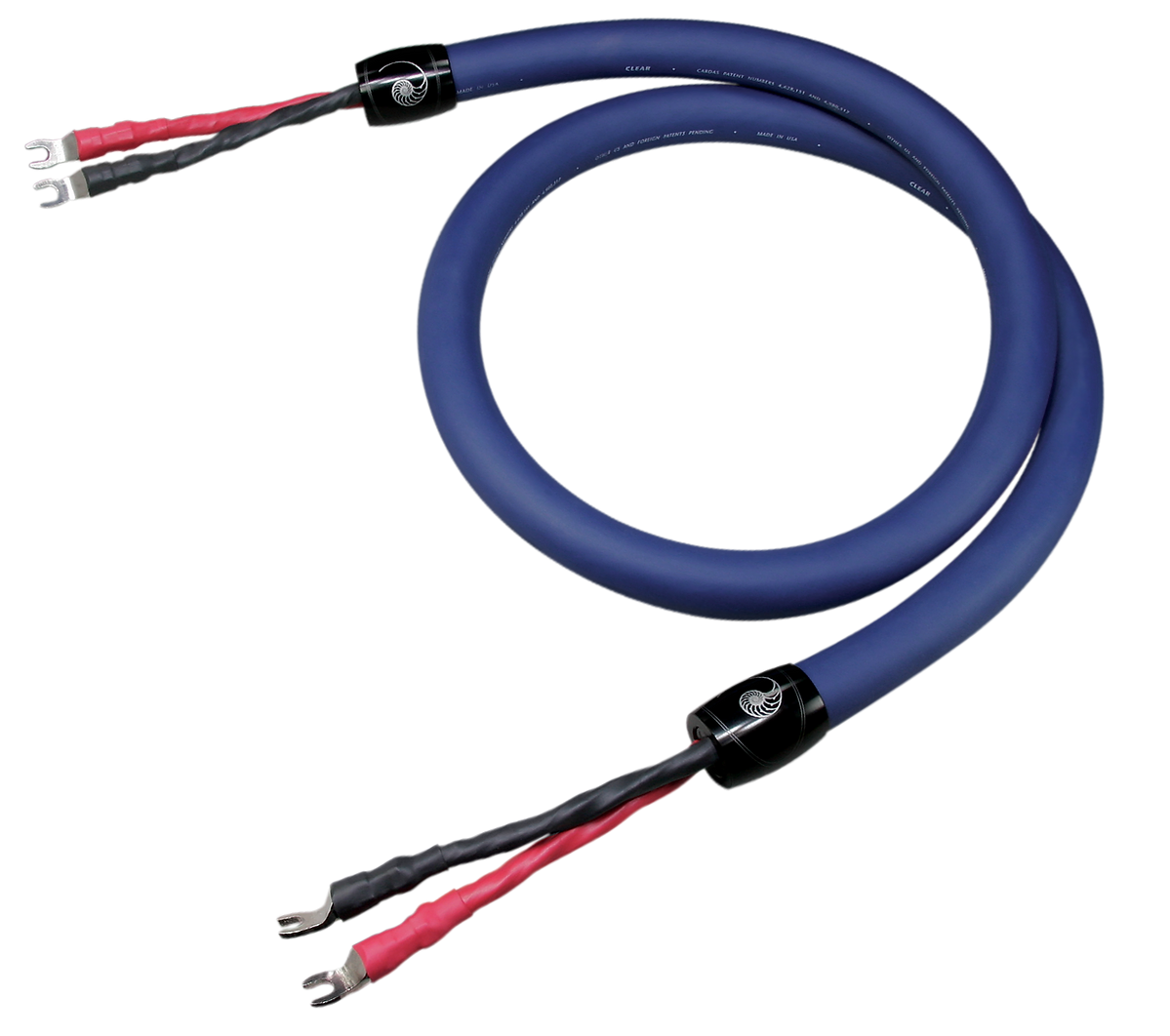

  Performance: Clear Based on the Clear speaker cable and developed to go beyond reference performance in cost no object systems where the speakers require large amounts of current flow. Clear Beyond speaker is absolutely neutral and transparent. Perfectly balanced with articulate lows and delicate highs. Amazing dynamics with zero compression. This cable is like running two pairs of Clear Speaker inside one jacket and can be internally bi-wired or bi-amped.Standard Terminations: Cardas spades or bananas, compression forged using 10,000psi  Design/Construction: Matched Propagation Kevlar core, Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions ranging from ultra fine 41 AWG to 25 AWG. Cross-field layer geometry, insulated in an FEP tape wrapped jacket. Geometry: Concentrically wound eight conductor with anti- static PTFE air tubes and a flexible TPR outer jacket. Gauge: 8x10.5 AWG Outside Diameter: 0.934”/23.72mm

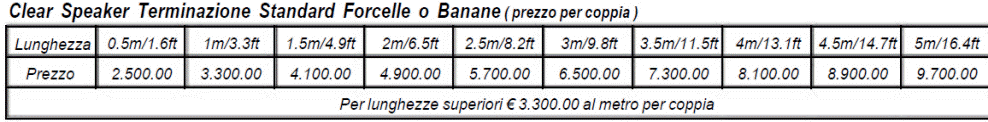

CARDAS CLEAR SPEAKERS

CARDAS CLEAR REFLECTION  SPEAKERS

Clear Reflection Speaker Clear Reflection takes the geometry of our legendary Golden Reference, and adds Matched Propagation technology, and forged termiations. Reflection brings the warmth and musicality of Golden Ref, with added neutrality, and superior imaging. Technical Specifications: Construction .680" O.D., Cardas copper, PFA dielectric, 12 x 11.5 AWG crossfield conductors, Matched Propagation, Golden section, Crossfield, litz, Alcryn jacket.  Termination Options: Forged billet copper connectors: 1/4" (6mm) and 9mm spades, bananas and Maggy pins are available as termination options.

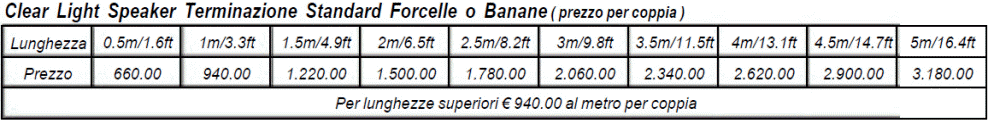

CARDAS CLEAR LIGHT  SPEAKERS

      Clear Light Speaker  Clear Light is a simplified version of our renowned Clear speaker cable, offering much of Clear's performance at a more affordable price. Clear Light features a symmetrical, matched propagation design, very similar to the conductor used in Clear Speaker cable.  Technical Specifications: Construction .670" O.D., Cardas copper, PFA dielectric, 2 x 9.5 AWG concentric Clear Light conductors, Matched Propagation, Golden section, Crossfield, litz, perfect mirror quadaxial construction, Alcryn jacket.  Termination Options: Forged billet copper connectors: 1/4" (6mm) and 9mm spades, bananas and Maggy pins are available as termination options.

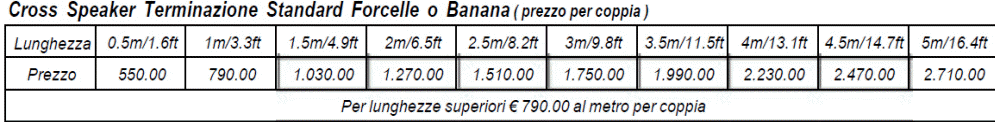

CARDAS CROSS SPEAKERS

    Cross Speaker A more affordable version of Golden Cross, with similar sonic characteristics, Cross Speaker is a medium size cable that is internally bi-wireable. It may beused on virtually any speaker/amplifer combination.  Technical Specifications:Construction.585" O.D., Cardas copper, PFA & air dielectric, 2 x 15.5 AWG & 2 x 11.5 AWG conductors, Golden section, quad axial construction. litz, Alcryn jacket.  Measurements: Capacitance: 34 pf/ft Inductance: .11 uh/ft Termination Options: 1/4" (6mm), pure copper, rhodium/silver plated spades are standard. 9mm spades, bananas, and Maggy pins also available.

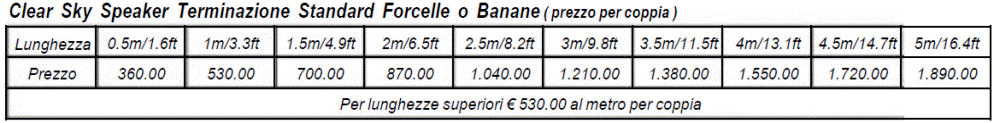

CARDAS CLEAR SKY  SPEAKERS

  Clear Sky Speaker Clear Sky represents the entry level of our line of Clear Speaker cables. Like all Clear speaker cables, Sky uses concentric, Matched Propagation Conductors, similar to the conductor found in Clear Light Speaker Cable. Clear Sky is especially suitable for use with single-ended amplifiers, and efficient loudspeakers (~95db). Clear Sky uses CCMS R1 soldered spades, and is finished with Cardas logo shrink.  Technical Specifications: Construction .500" O.D., Cardas copper, PFA dielectric, 1 x 9.5 AWG concentric Clear Light conductor, Matched Propagation, Golden section, litz, Alcryn jacket.  Termination Options: 1/4" (6mm), pure copper, rhodium/silver plated spades are standard. 9mm spades, bananas, and Maggy pins also available.

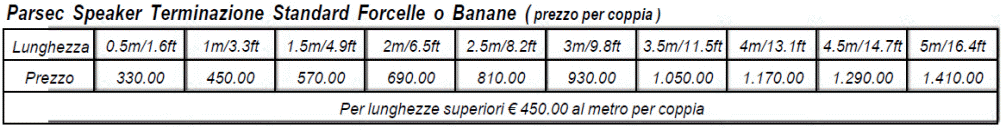

CARDAS PARSEC SPEAKERS

  Parsec Speaker The long anticipated Parsec Speaker features a star-quad geometry, air-tube suspension, and Kevlar-core Golden Section conductors. Parsec replaces the venerable Quadlink Speaker cable, offering improved performance, appearance and flexibility, at a similar price point.  Technical Specifications: Construction .5" O.D., Cardas copper, PFA & air dielectric, 4 x 15.5 AWG conductors, Golden section, quad axial construction, litz, Alcryn (rubber) jacket.  Measurements: Capacitance: 30 pf/ft Inductance: .23 uh/ft Termination Options: 1/4" (6mm), pure copper, rhodium/silver plated spades are standard. 9mm spades, bananas, and Maggy pins also available.

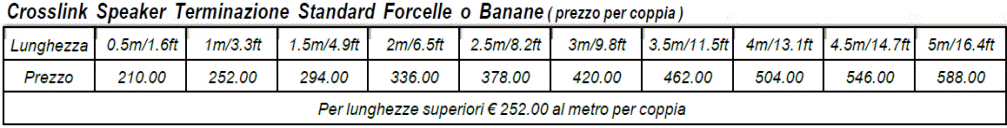

CARDAS CROSSLINK SPEAKERS

C

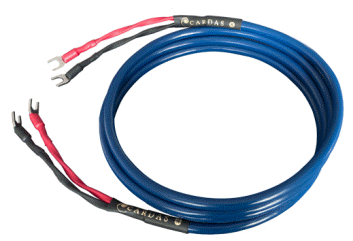

  Crosslink Speaker Crosslink 1S is our least expensive speaker cable. Flexible and light weight, Crosslink is great for home theater, in-wall, automotive, and small home audio systems. CL2 rated for in-wall use. Available terminated by Cardas, or in bulk.  Technical Specifications: Construction .365" O.D., Cardas copper, EEA dielectric, 4 x 14.5 AWG conductors, Golden section, quad axial construction, CL2 rated, PVC jacket.  Measurements: Capacitance: 55 pf/ft Inductance: .11 uh/ft Termination Options: 1/4" (6mm), pure copper, rhodium/silver plated spades are standard. 9mm spades, bananas, and Maggy pins also available.

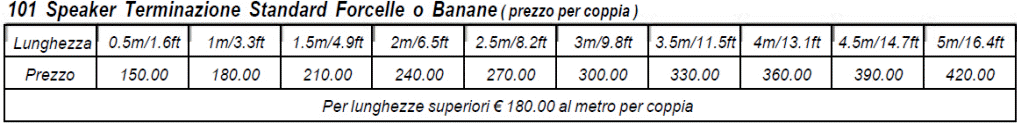

CARDAS 101 SPEAKERS

101 Speaker 101 Speaker features two 14 AWG bare copper Cardas conductors, each built around a small air-tube, providing performance beyond its gauge. Since it uses bare-copper, 101 is easy to work with - no solder pot is needed. 101 can be used with crimped or soldered connectors, or just strip-and-twist to use with 5-way binding posts. 101 is available with factory terminations (shown with bananas on left), or in bulk for DIY users. Several kits are available, each containing 20 feet of 101, along with connectors & shrink.   For a crimping spade to use with 101 Speaker, please see our all new CCS spade.


GOLDEN Cross Speaker At the top of our Cross line of cables, Golden Cross is one of our most musical speaker cables. It is suitable for any loudspeaker, and is internally bi and tri wireable.  Cross Speaker now has a softer, more flexible jacket, with a new color (as pictured).  Technical Specifications: Construction .600" O.D., Cardas copper, PFA dielectric, 4 x 15.5 AWG & 8 x 11.5 AWG conductors, Golden section, litz, Alcryn jacket (previously had burgundy colored urethane jacket).  Measurements: Capacitance: 154 pf/ft Inductance: .0368 uh/ft Termination Options:  1/4" (6mm), pure copper, rhodium/silver plated spades are standard. 9mm spades, bananas, and Maggy pins also available.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

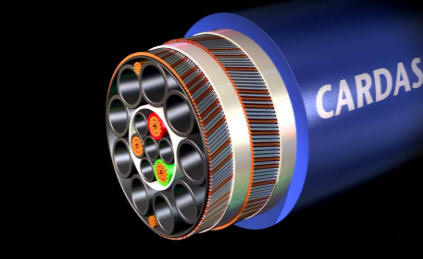

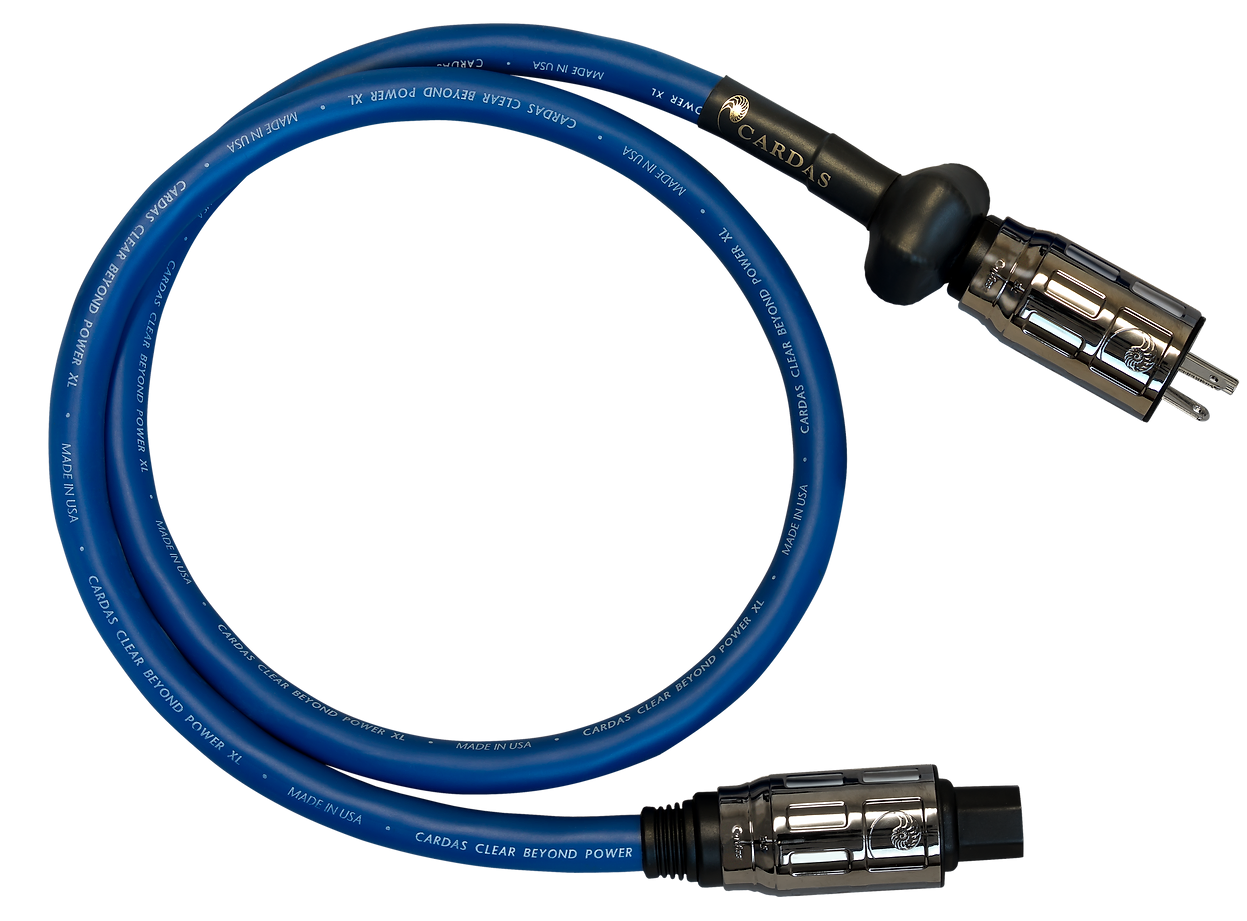

CARDAS BEYOND POWER XL

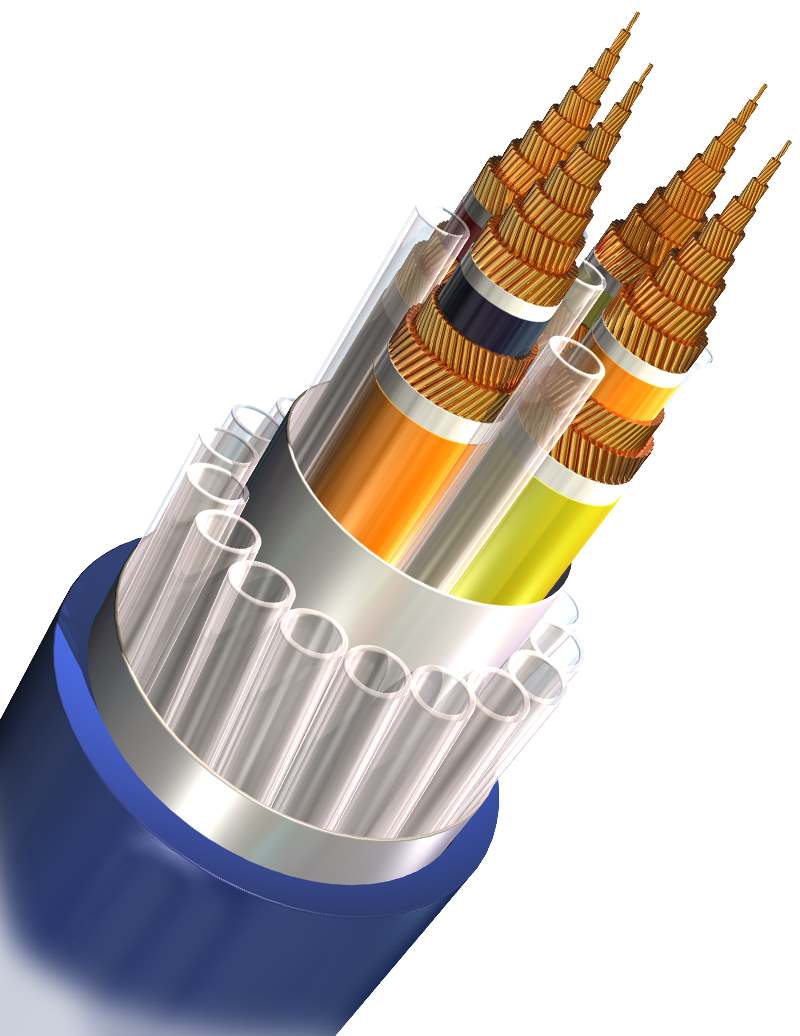

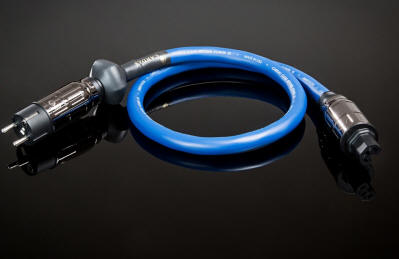

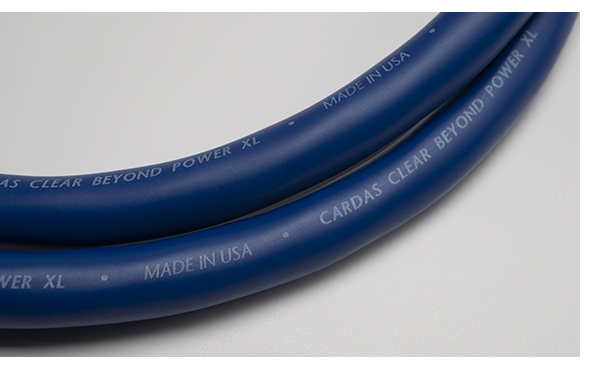

 Per creare Clear Beyond Power XL, abbiamo preso il nostro molto popolare Clear Beyond Power e abbiamo ampliato tutto. Conduttori più grandi, migliore schermatura e migliore filtraggio del rumore. E poi ha aggiunto un altro livello di filtraggio del rumore, estendendo il percorso verso terra fino a tre volte la lunghezza del cavo stesso attraverso una geometria semplice e aggraziata che poteva venire solo dalla mente di George Cardas. Questo è il nostro cavo di alimentazione più sofisticato di sempre ed è progettato per fornire agli amplificatori più grandi e affamati di potenza una corrente elevata e pulita, fornendo allo stesso tempo ai componenti della sorgente sensibile la potenza stabile, chiara e priva di rumore di cui hanno bisogno per la massima fedeltà assoluta. Terminato con i nostri nuovissimi connettori Cardas E-5 premium, con superfici di contatto in rame placcato argento/rodio, Clear Beyond Power XL è progettato per l'elettronica più esigente. Terminazioni standard: spine di alimentazione premium Cardas E-5 saldate e crimpate con contatti in rame massiccio placcati argento/rodio. Terminato a mano a Bandon, nell'Oregon. Conduttori di progettazione/costruzione: rame stagnato puro al 99,9999% senza ossigeno, dimensioni del calibro ridimensionate in proporzioni auree. Geometria a strati incrociati, isolata in una giacca in TPE. Ogni conduttore ha più lunghezze di posa e ha il proprio schermo. Geometria: L'intero cavo è a doppia schermatura con rame stagnato e filo smaltato. Triade ritorta mista a tubi d'aria in PVC legati con nastro adesivo FEP. Rivestimento esterno in TPR super flessibile Filtrazione: un filtro di terra toroidale è integrato nella terminazione e funziona all'unisono con un sistema di estensione della gamba a terra. Calibro: 3x9 AWG Diametro esterno: 0,715”18,17 mm

Performance To create Clear Beyond Power XL, we took our very popular Clear Beyond Power, and scaled everything up. Bigger conductors, better shielding and improved noise filtering. e then added yet another level of noise filtration, extending the path to ground to three times the length of the cable itself through a simple and graceful geometry that could only come from the mind of George Cardas. This is our most sophisticated power cable ever, and is designed to provide the largest, most power hungry amplifiers with clean, high current, while also giving sensitive source components the stable, clear and noise free power they require for the absolute highest fidelit . Terminated with our all new premium Cardas E-5 connectors, featuring silver/rhodium plated copper contact surfaces, Clear Beyond Power XL is designed for the most demanding electronics. Standard Terminations: Soldered and crimped Cardas E-5 premium power plugs with silver/ rhodium plated solid copper contacts. Terminated by hand in Bandon, Oregon. Design/Construction Conductors: Grade 1, 99.9999% pure oxygen free tin plated copper, gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometr , insulated in a TPE jacket. Each conductor has multiple lay lengths and has it’s own shield. Geometry: Entire cable is double shielded with tin plated copper and magnet wire. Twisted triad mixed with PVC air tubes bound with FEP tape wrap. Super flexible TPR outer jacket Filtration: A torodial ground filter is built into the termination and works in unison with a ground leg extension system. Gauge: 3x9 AWG Outside Diameter: 0.715”18.17mm

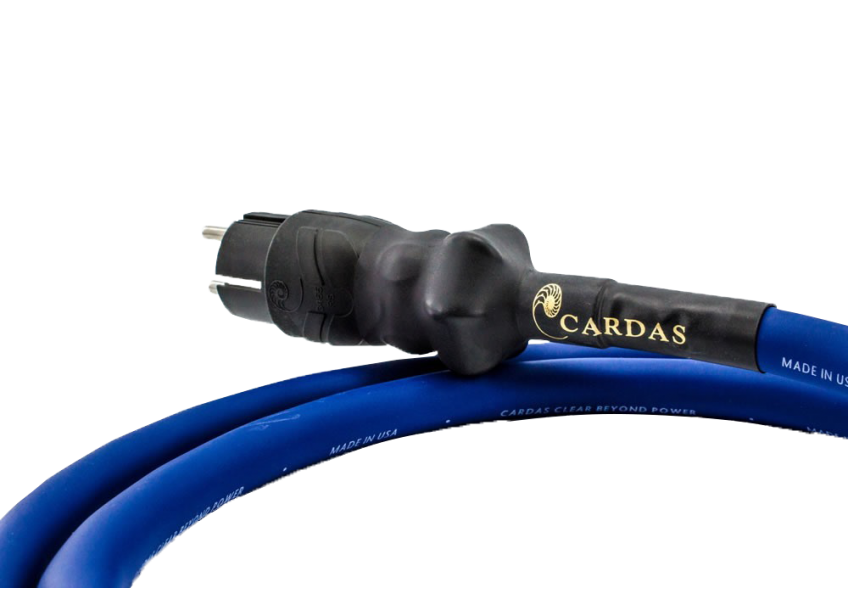

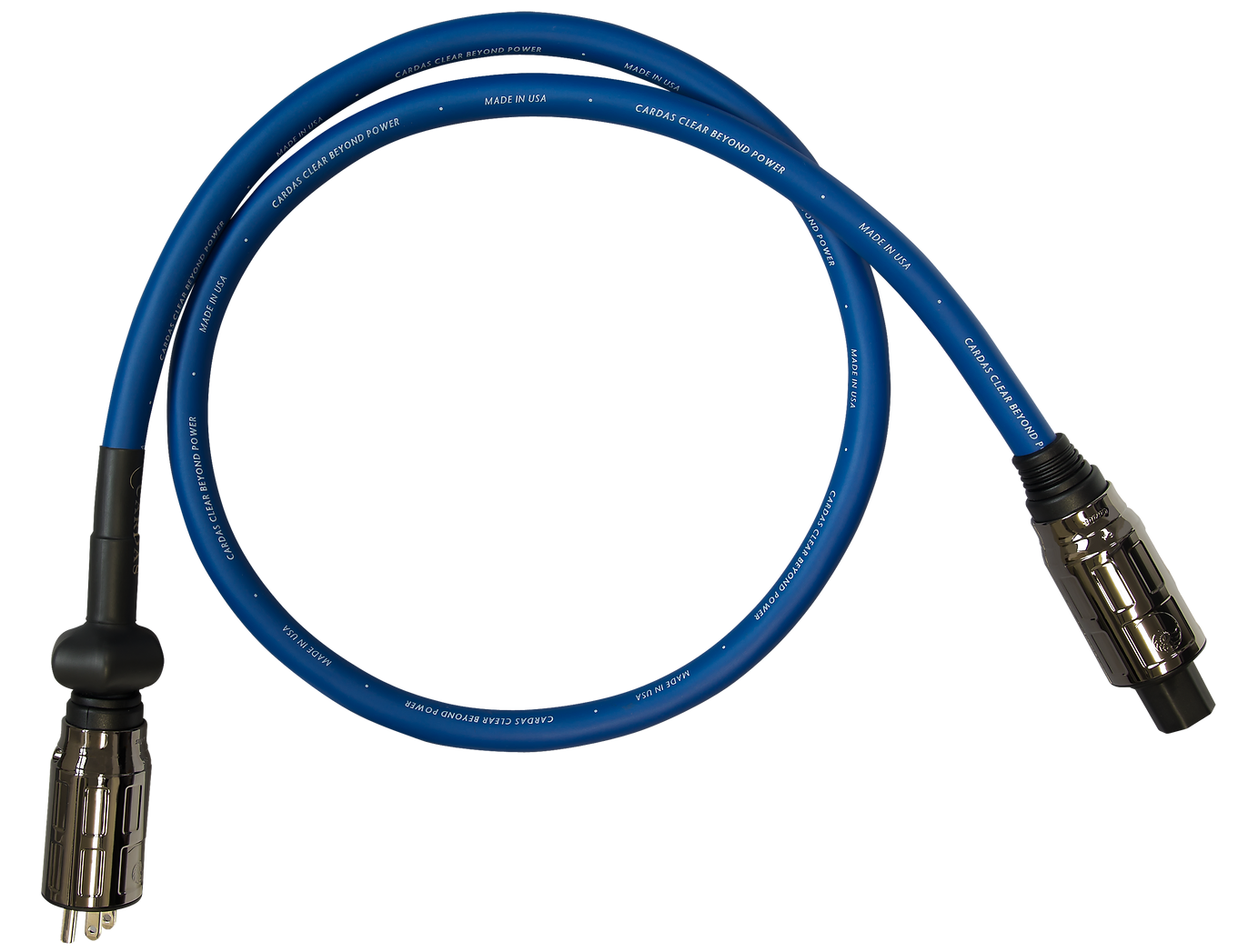

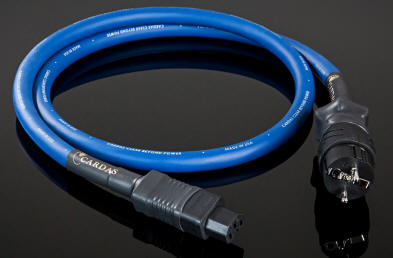

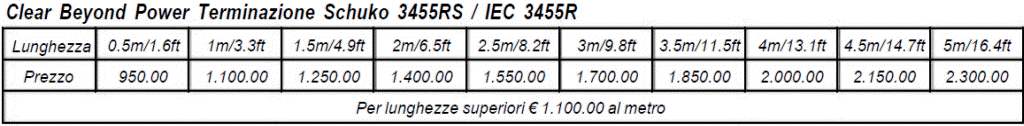

CARDAS BEYOND POWER

Clear Beyond Power Performance Progettato per portare l'erogazione di corrente e la filtrazione della potenza a un livello superiore... Clear Beyond Power adotta l'approccio "più grande è meglio". I conduttori più grandi forniscono più potenza e il nostro filtro più grande pulisce la linea elettrica. Non lasciarti ingannare dalle dimensioni, è perfetto per alimentare componenti front-end e amplificatori monoblocco giganti. Completamente neutro e trasparente. Terminazioni standard: spine di alimentazione premium Cardas E-5 saldate e crimpate con contatti in rame massiccio placcati argento/rodio. Terminato a mano a Bandon, nell'Oregon. Conduttori di progettazione/costruzione: rame stagnato puro al 99,9999% senza ossigeno, dimensioni del calibro ridimensionate in proporzioni auree. Geometria a strati incrociati, isolata con guaina in PTFE. Geometria: Doppia schermatura con rame stagnato e filo smaltato. Triade ritorta mista a tubi d'aria in PVC legati con nastro adesivo FEP. Rivestimento esterno in TPR super flessibile Calibro: 3x10 AWG Diametro esterno: 0,650”16,51 mm

Clear Beyond Power Performance Designed to take current delivery and power filtration to the next level… Clear Beyond Power takes the “bigger is better” approach. Larger conductors deliver more power and our largest filter scrubs the power line clean. Don’t let the size fool you, it’s right at home powering front end components and giant mono block amplifiers. Completely neutral and transparent. Standard Terminations: Soldered and crimped Cardas E-5 premium power plugs with silver/rhodium plated solid copper contacts. Terminated by hand in Bandon, Oregon. Design/Construction Conductors: Grade 1, 99.9999% pure oxygen free tin plated copper, gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometr , insulated in a PTFE jacket. Geometry: Double shielded with tin plated copper and magnet wire. Twisted triad mixed with PVC air tubes bound with FEP tape wrap. Super flexible TPR outer jacket Gauge: 3x10 AWG Outside Diameter: 0.650”16.51mm

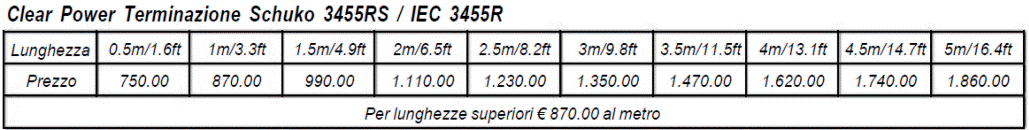

CARDAS CLEAR  POWER

Clear Power Performance Un cavo di alimentazione di livello di riferimento che applica tutte le lezioni apprese in 25 anni di sviluppo di cavi di alimentazione ad alte prestazioni; è nato dalle ceneri del Golden Reference Power di grande successo. Equilibrio tonale completamente neutro con filtraggio aggiuntivo che aumenta la dinamica. I grandi conduttori lo rendono adatto per l'elettronica affamata di energia e abbastanza raffinato da alimentare i componenti della sorgente più delicati. Terminazioni standard: spine di alimentazione Cardas saldate e crimpate con contatti in rame massiccio placcati argento/rodio. Terminate a mano a Bandon, Oregon. Progettazione/costruzione Conduttori: Grado 1, rame puro privo di ossigeno al 99,9999%, dimensioni del calibro ridimensionate in proporzioni auree. Geometria a strati incrociati, isolata in una giacca in PFA. Geometria: Doppia schermatura con rame stagnato e filo smaltato. Triade intrecciata mescolata con tubi dell'aria in PE legati con nastro adesivo in PTFE. Rivestimento in TPR super flessibile Calibro: 3x11,5 AWG Diametro esterno: 0,610"/15,49 mm

Clear Power Performance A reference level power cable that applies all the lessons learned over 25 years of developing high performance power cables; it was born from the ashes of the highly successful Golden Reference Power. Completely neutral tonal balance with additional filtering which increases dynamics. Large conductors make it suitable for those power hungry electronics and refined enough to power your more delicate source components. Standard Terminations: Soldered and crimped Cardas power plugs with silver/rhodium plated solid copper contacts.Terminated by hand in Bandon, Oregon. Design/Construction Conductors: Grade 1, 99.9999% pure oxygen free copper, gauge sizes scaled to Golden Ratio proportions. Crossfield layer geometr , insulated in a PFA jacket. Geometry: Double shielded with tin plated copper and magnet wire. Twisted triad mixed with PE air tubes bound with PTFE tape wrap. Super flexible TPR jacket Gauge: 3x11.5 AWG Outside Diameter: 0.610”/15.49mm

CARDAS REFLECTION  POWER

Clear Reflection Power unisce la moderna tecnologia dei conduttori Cardas a un design classico del cavo di alimentazione. Tre conduttori Cardas litz da 11,5 AWG, doppia schermatura e connettori Cardas E-5 ne fanno un valore fenomenale. Terminazioni standard: spine di alimentazione Cardas E-5 saldate e crimpate con contatti in rame massiccio placcati argento/rodio. Terminato a mano a Bandon, nell'Oregon. Progettazione/costruzione Conduttori: Grado 1, rame puro privo di ossigeno al 99,9999%, dimensioni del calibro ridimensionate in proporzioni auree. Geo - etry a strati incrociati, isolato in una giacca in PFA. Geometria: Doppia schermatura con rame stagnato e filo smaltato. Triade intrecciata mescolata con tubi dell'aria in PE legati con nastro adesivo in PTFE. Rivestimento in TPR super flessibile Calibro: 3x11,5 AWG Diametro esterno: 0,610"/15,49 mm

 Clear Reflection Power brings modern Cardas conductor technology to a classic power cable design. Three 11.5 AWG Cardas litz conductors, double shield, and Cardas E-5 connectors make this a phenomenal value. Standard Terminations: Soldered and crimped Cardas E-5 power plugs with silver/rhodium plated solid copper contacts. Terminated by hand in Bandon, Oregon. Design/Construction Conductors: Grade 1, 99.9999% pure oxygen free copper, gauge sizes scaled to Golden Ratio proportions. Cross-field layer geo - etry, insulated in a PFA jacket. Geometry: Double shielded with tin plated copper and magnet wire. Twisted triad mixed with PE air tubes bound with PTFE tape wrap. Super flexible TPR jacket Gauge: 3x11.5 AWG Outside Diameter: 0.610”/15.49mm

CARDAS CYGNUS  POWER

Clear Cygnus Power
Performance
Like a scaled down version of Clear Beyond Power, Cygnus Power features three
well shielded conductors, and a passive noise filte . Although designed for use with
source equipment and small-to-medium sized amplifiers,
Cygnus Power has the current handling capacity for even
larger, tube powered amps. As you would expect,
Cygnus Power pairs well with the rest of the Cygnus
lineup, and provides many of the benefits of it s
higher-capacity siblings, at a fraction of the price.
Standard Terminations: Soldered and crimped
Cardas power plugs with silver/rhodium plated
solid copper contacts. Terminated by hand in
Bandon, Oregon.
Design/Construction
Conductors: Grade 1, 99.9999% pure oxygen free
tin plated copper, gauge sizes scaled to Golden Ratio
proportions. Cross-field layer geometr , insulated in a
PTFE jacket.
Geometry: Double shielded with tin plated copper and
magnet wire. Twisted triad mixed with PVC air tubes bound with
FEP tape wrap. Flexible TPR outer jacket.
Gauge: 3x13 AWG
Outside Diameter: 0.500”/12.7mm

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

CARDAS CLEAR CUFFIE

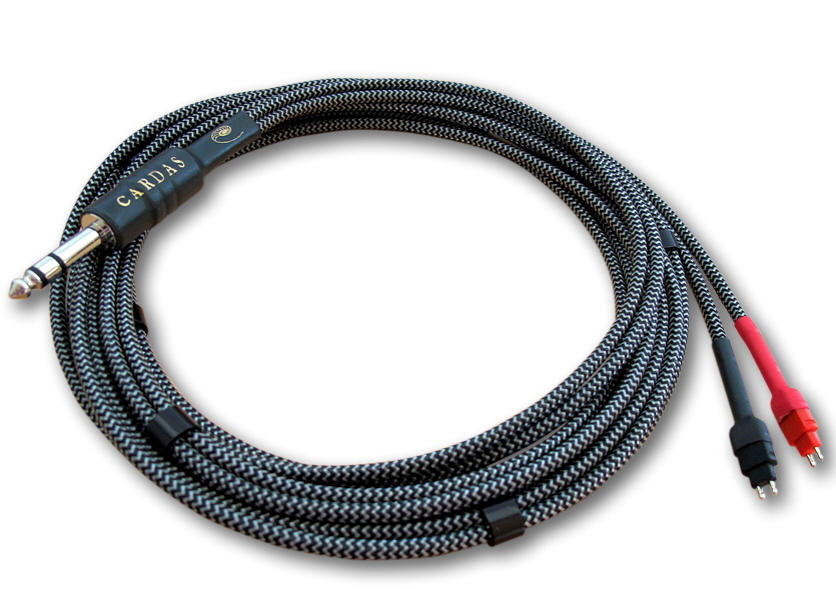

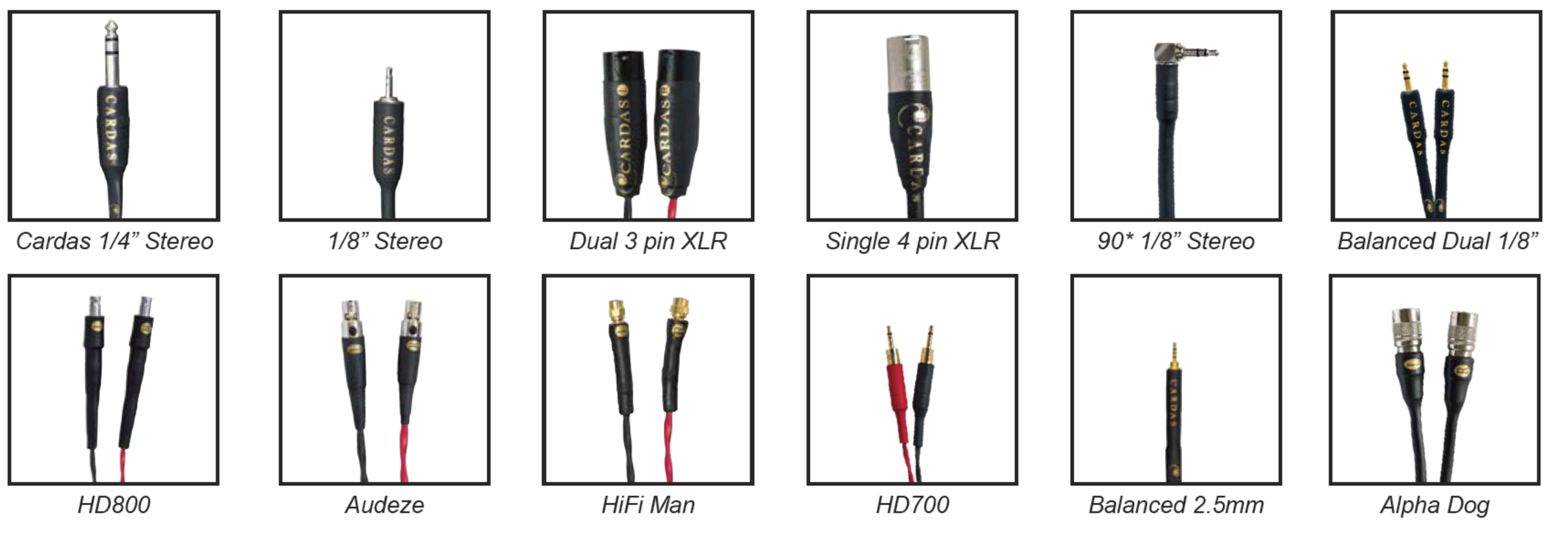

Clear Headphone Cable Our finest headphone cable, Clear is actually two separate cables, one going to each ear. With concentric conductors, Clear Headphone is a miniaturized version of our top-of-the-line Clear Speaker Cable.  Technical Specifications: Construction: .166" x 2 O.D., Cardas copper, PFA & cotton dielectric, 1 x 26.5 AWG concentric conductors per channel, Matched Propagation, Golden section, Crossfield, litz, TPE inner jacket, braided nylon braid outer..  Termination Options: Clear Headphone Cable is available for Sennheiser HD800, HD700, HD600/650, HD580, Audeze and HiFi Man headphones. Source-end options include Cardas 1/4" stereo plugs (standard), 1/8" stereo plug, and male-XLR (balanced).

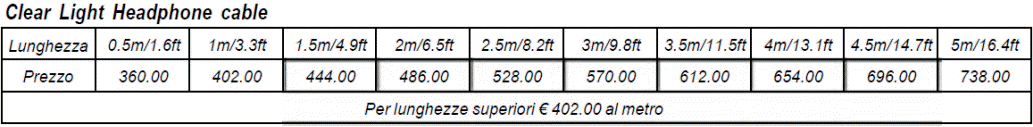

CARDAS LIGHT CUFFIE

Clear Light Headphone Cable Our most affordable Matched Propagation headphone cable, Clear Light Headphone brings much of the performance of its big brother, Clear Headphone, in a single, light and flexible cable.  Technical Specifications: Construction .190" O.D., Cardas copper, PTFE dielectric, 4 x 25.5 AWG conductors, Matched Propagation, Golden section, Crossfield, litz, TPR inner jacket with polyester braid outer.  Termination Options: Clear Light Headphone Cable is available for Sennheiser HD800, HD700, HD600/650, HD580, Audeze and HiFi Man headphones. Source-end options include Cardas 1/4" stereo plugs (standard), 1/8" stereo plug, and male-XLR (balanced).

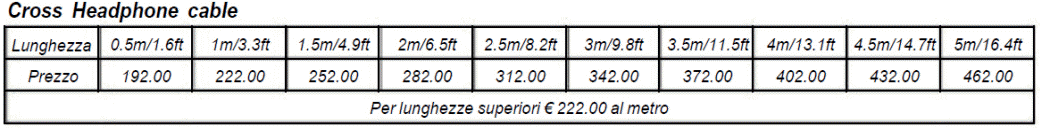

CARDAS CROSS CUFFIE

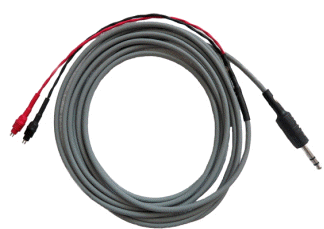

  AKA Cross Headphone Developed by George Cardas when his daughter, a radio DJ at the time, kept needing replacement cables for her Sennheiser HD600 headphones. The result was a more durable cable, with greatly improved performance. Technical Specifications: Construction: .198" O.D., Cardas copper, PFA dielectric, 4 x 23.5 AWG conductors, Golden section, Crossfield, spiral & semi-conductive tape shield, litz, TPR jacket..  Termination Options: Cardas Headphone Cable is available for Sennheiser HD800, HD700, HD600/650, HD580, Audeze and HiFi Man headphones. Source-end options include Cardas 1/4" stereo plugs (standard), 1/8" stereo plug, and male-XLR (balanced).


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

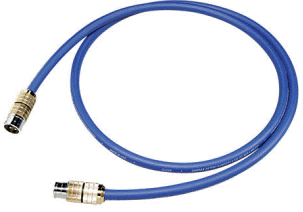

CARDAS CLEAR DIGITAL AES7EBU

L'uso della nostra tecnologia di propagazione abbinata nei cavi digitali è stato a dir poco un punto di svolta per la trasmissione audio digitale. Equilibrio tonale più aperto, più dinamico e completamente neutro. Questo è un cavo AES/EBU di livello di riferimento che non scende a compromessi. Terminazioni standard: Cardas CG XLR. Terminato a mano a Bandon, Oregon. Progettazione/Costruzione: Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro ridimensionate secondo le proporzioni del rapporto aureo e vanno da 41 AWG a 39 AWG. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile.Geometria: triade equilatera a 3 conduttori con tubi d'aria in LDPE antistatico legati con nastro adesivo in PTFE impregnato di carbonio. Geometria specifica per raggiungere lo standard 110 ohm AES/EBU. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 3x25,5 AWG Diametro esterno: 0,355"/9,01 mm

The use of our Matched Propagation technology in digital cables has been nothing short of a game changer for digital audio transmission. More open, more dynamic, and completely neutral tonal balance. This is a reference level AES/EBU cable that compromises nothing. Standard Terminations: Cardas CG XLR’s. Hand terminated in Bandon, Oregon. Design/Construction: Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions and range from 41 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket.Geometry: Equilateral triad 3 conductors with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. Specific geometry to achieve the 110 ohm AES/EBU standard. Finished in an ultra soft extruded TPR jacket. Gauge: 3x25.5AWG Outside Diameter: 0.355”/9.01mm

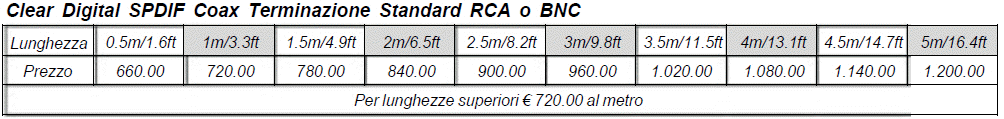

CARDAS CLEAR DIGITAL RCA/RCA

Quando hai bisogno di un cavo digitale coassiale da 75 ohm per la tua riproduzione digitale di fascia alta, non cercare oltre. Clear Digital utilizza i nostri conduttori di punta Matched Propagation per trasferire i tuoi contenuti digitali in modo rapido e preciso. È il cavo coassiale più neutro, dettagliato e rivelatore che abbiamo mai prodotto. Progettato per integrare le migliori apparecchiature digitali sul mercato, questo estrarrà ogni minimo dettaglio. Terminazioni standard: Cardas SRCA o BNC. Terminato a mano a Bandon, Oregon. Progettazione/Costruzione: Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro scalate in base alle proporzioni del rapporto aureo e gamma da 41 AWG a 39 AWG. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: Conduttore singolo coassiale con tubi d'aria in LDPE antistatico legati con nastro adesivo in PTFE. Rifinito in un rivestimento in TPR estruso ultra morbido Calibro: 1x25,5 AWG Diametro esterno: 0,350"/8,89 mm

  When you need a 75 ohm coaxial digital cable for your high-end digital playback, look no further. Clear Digital uses our flagship Matched Propagation conductors to transfer your digital content quickly and accurately. It’s the most neutral, detailed, and revealing coax cable we have ever produced. Designed to compliment the best digital equipment on the market, this will extract every last detail. Standard Terminations: Cardas SRCA or BNC. Hand terminated in Bandon, Oregon. Design/Construction: Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio pro- portions and range from 41 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Coaxial single conductor with anti-static LDPE air-tubes bound with PTFE tape wrap. Finished in an ultra soft extruded TPR jacket Gauge: 1x25.5 AWG Outside Diameter: 0.350”/8.89mm

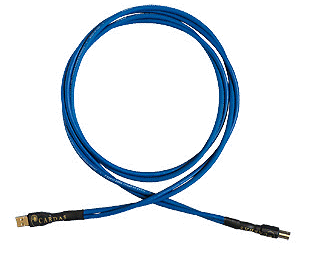

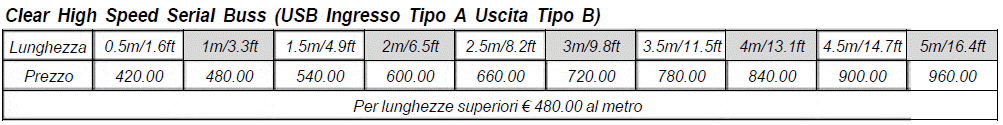

CARDAS CLEAR HIGH USB

Clear High Speed Serial Buss prende il nostro cavo USB Clear Serial Buss e aggiunge uno speciale cavo dati ad alte prestazioni utilizzando conduttori argentati. Ogni coppia di conduttori in entrambi i cavi è discretamente schermata e ogni cavo ha la propria doppia schermatura. Questo cavo USB ultra premium aggiunge profondità e realismo e immagini migliorate al tuo sistema digitale. Un notevole miglioramento rispetto al nostro Clear Serial Buss già ad alte prestazioni. Clear High Speed Serial Buss USB è ideale per l'uso con audio digitale ad alta risoluzione. Terminazioni standard: USB da A a B, Mini B, Micro B. Sono disponibili alcune terminazioni personalizzate. Progettazione/Costruzione: Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro ridimensionate in base alle proporzioni del rapporto aureo. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Conduttori dati in rame placcato argento a nucleo solido. Geometria: doppio conduttore stella-quadruplo asimmetrico a 8 conduttori. I conduttori che trasportano il segnale sono un doppino intrecciato schermato. I conduttori di potenza e di segnale sono legati con nastro PFA. Lo schermo finale è costituito da nastro in alluminio/mylar, rame stagnato e filo smaltato. La giacca esterna è in TPR. Calibro: 2x25,5 AWG + 2x21,5 AWG + 23,5 AWG + 30 AWGDiametro esterno: circa 0,453"/11,50 mm

Clear High Speed Serial Buss takes our Clear Serial Buss USB cable and adds a special high performance data cable using silver-plated conductors. Each conductor pair in both cables is discreetly shielded, and each cable has its own double-shield. This ultra-premium USB cable adds depth & realism, and improved imaging to your digital system. A noticeable improvement over our already high performing Clear Serial Buss. Clear High Speed Serial Buss USB is ideal for use with high resolution digital audio.Standard Terminations: USB A to B, Mini B, Micro B. Some custom terminations available. Design/Construction: Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Solid core copper silver plated data conductors.Geometry: Dual asymmetrical star-quad 8 conductor. Signal carrying conductors are a shielded twisted pair. Power and signal conductors are bound with PFA tape. Final shield is aluminum/mylar tape, tin plated copper and magnet wire. Outer jacket is TPR. Gauge: 2x25.5 AWG + 2x21.5 AWG + 23.5 AWG + 30 AWGOutside Diameter: Approximately 0.453”/11.50mm

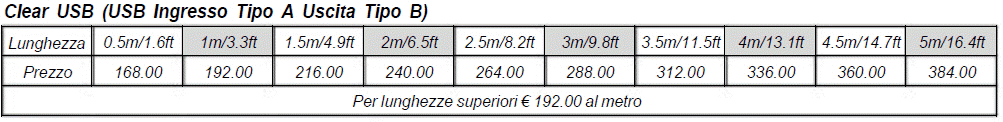

CARDAS CLEAR  USB

Cardas Clear USB è un cavo musicalmente neutro e suona allo stesso modo a qualsiasi lunghezza utilizzabile. Clear USB è ottimizzato per un'impedenza di trasferimento costante piuttosto che per un'impedenza caratteristica a onda intera. Terminazioni standard: USB da A a B, Mini B, Micro B. Sono disponibili altre terminazioni personalizzate. Progettazione/Costruzione: Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro ridimensionate in base alle proporzioni del rapporto aureo. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: Star-quad asimmetrico 4. I conduttori che trasportano il segnale sono un doppino intrecciato schermato. I conduttori di potenza e di segnale sono legati con nastro PFA. Lo schermo finale è in alluminio/mylar, rame stagnato e filo smaltato. La giacca esterna è in TPR. Calibro: 2x25,5 AWG + 2x21,5 AWG Diametro esterno: 0,220"/5,58 mm
Cardas Clear USB is a musically neutral cable and sounds the same at any usable length. Clear USB is optimized for constant transfer impedance rather than a full wave characteristic impedance. Standard Terminations: USB A to B, Mini B, Micro B. Other custom terminations available.  Design/Construction: Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Asymmetrical star-quad 4. Signal carrying conduc- tors are a shielded twisted pair. Power and signal conductors are bound with PFA tape. Final shield is aluminum/mylar, tin plated copper and magnet wire. Outer jacket is TPR. Gauge: 2x25.5 AWG + 2x21.5 AWG Outside Diameter: 0.220”/5.58mm

CARDAS CLEAR CAT7

Con l'avvento dei dischi rigidi di rete e dei servizi di streaming ad alta risoluzione, la domanda di cavi Ethernet di qualità superiore è esplosa. Chi non vorrebbe una maggiore velocità, una maggiore larghezza di banda e meno rumore? Terminazioni standard: Telegartner RJ45. Terminato a mano a Bandon, Oregon.Progettazione/Costruzione: Conduttori: Grado 1, rame privo di ossigeno puro al 99,9999%.Geometria: Disposti in coppie schermate, ciascuna coppia con il proprio filo di drenaggio. Il fascio di coppie è avvolto in uno scudo di lamina e poi in uno scudo intrecciato. Rivestito in TPR flessibile. Calibro: 8x24 AWG Diametro esterno: 0,315"/8 mm

With the advent of network hard drives & high(er)-resolution streaming services, the demand for higher quality ethernet cables has exploded. Who wouldn’t want increased speed, increased bandwidth, and less noise? Standard Terminations: Telegartner RJ45. Hand terminated in Bandon, Oregon.Design/Construction: Conductors: Grade 1, 99.9999% pure oxygen free copper.Geometry: Arranged in shielded pairs, each pair with its own drain wire. The bundle of pairs is wrapped in a foil shield, and then a braided shield. Jacketed in flexible TPR.Gauge: 8x24 AWG Outside Diameter: 0.315”/8mm

 Cardas Clear USB is a musically neutral cable and sounds the same at any usable length. Clear USB is optimized for constant transfer impedance rather than a full wave characteristic impedance.  Termination Options:  Clear USB is available with Type-A, Type-B, and mini-B connectors

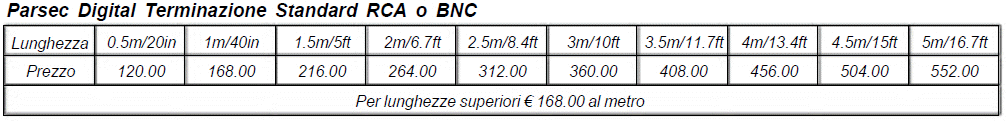

CARDAS PARSEC  DIGITAL  RCA/RCA

 Parsec Digital  Our entry level coax digital, Parsec Digital is an upgrade from our popular High Speed Data, with improved performance, better terminations, increased flexibility, and a softer jacket that matches the dark green of the other Parsec cables.  Designed for 75 ohm digital applications, with RCA or BNC termations.  Termination Options: RCA (GRMO) or BNC. Standard configuration is RCA-to-RCA.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

CARDAS HDMI DIGITAL

Cardas HDMI  The Cardas HDMI meets the 1.4 standard. It is a symmetrical design using ultra pure silver-plated 24 AWG copper conductors. It has nitrogen gas injected dielectric and is shielded by two layers of aluminum foil plus a layer of braided copper shielding. The connectors are gold plated. It has a bandwidth of 340 MHz.


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

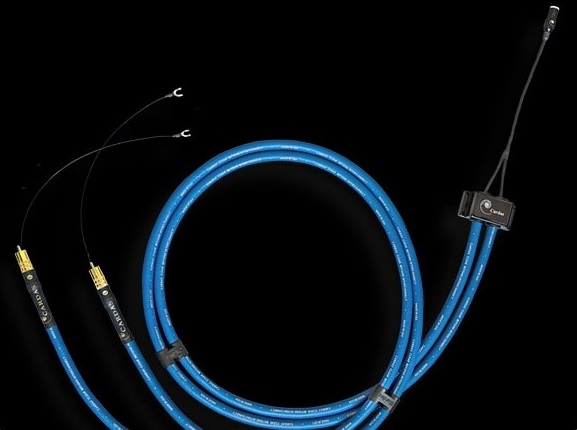

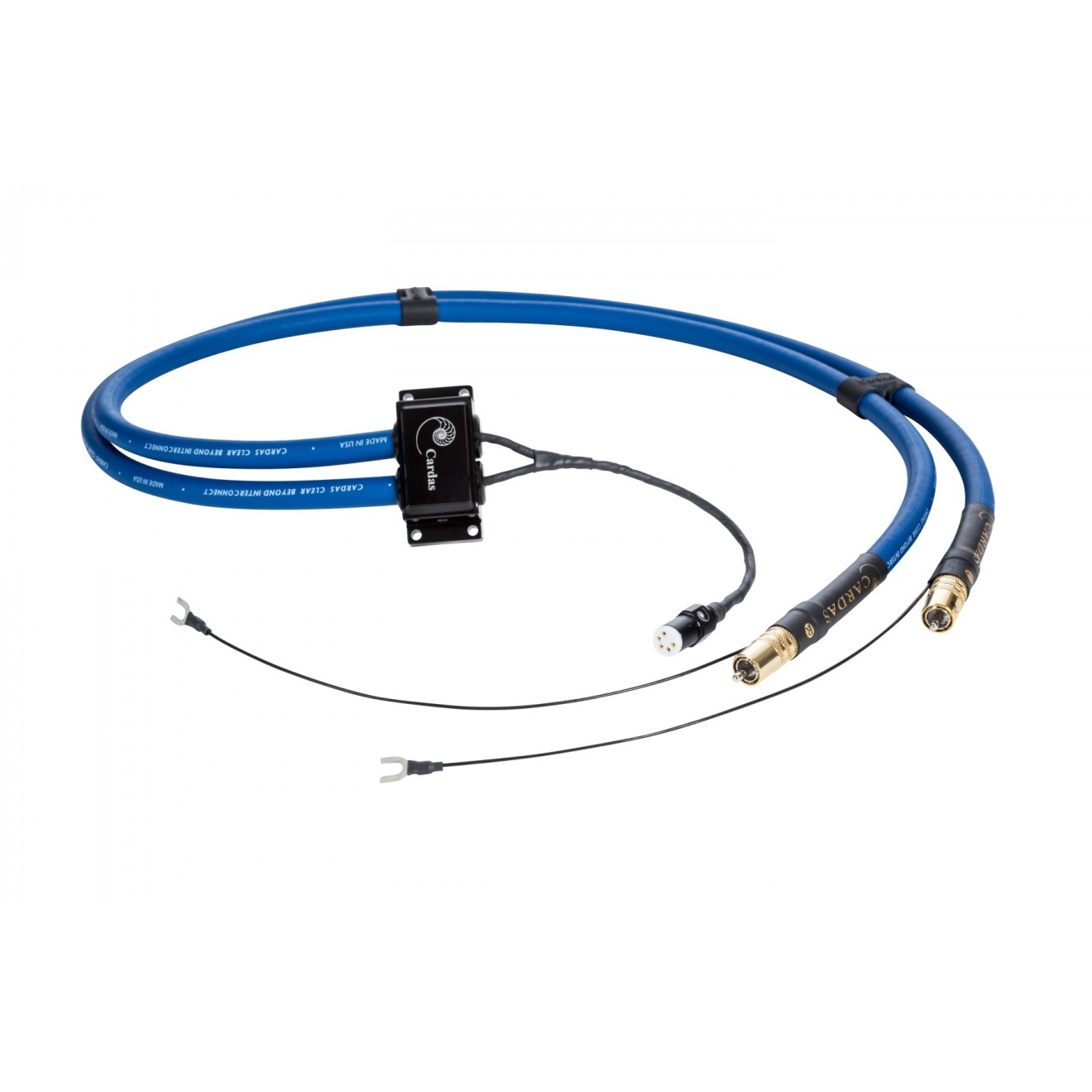

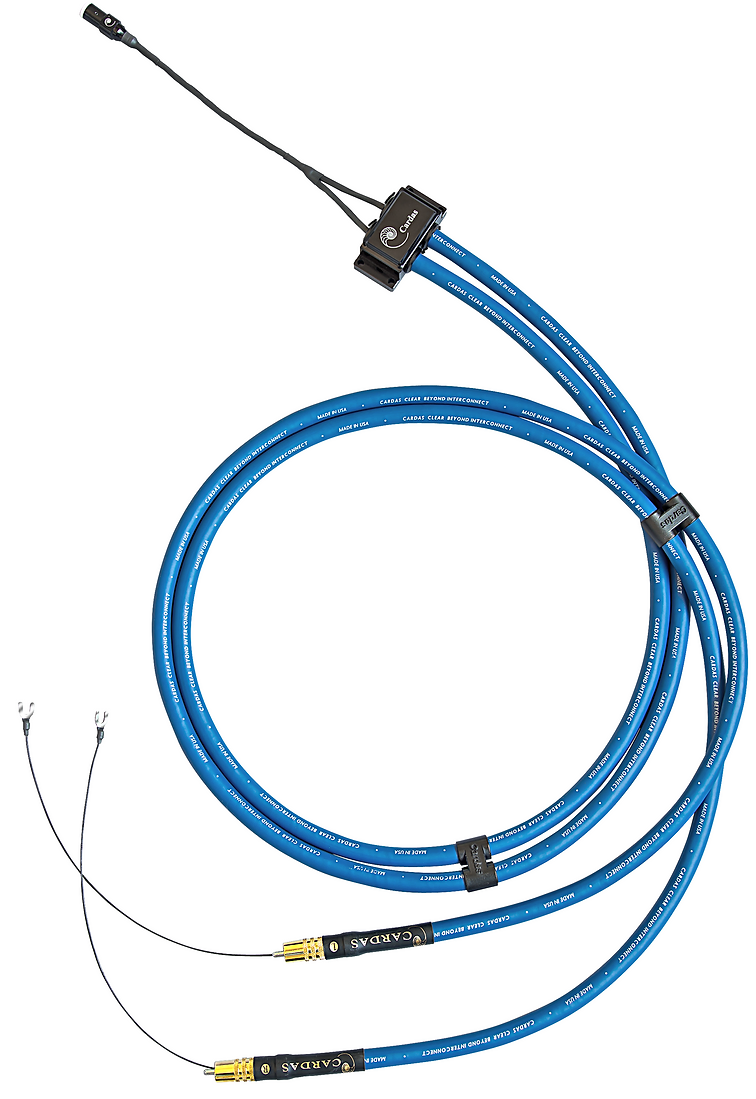

CARDAS CLEAR BEYOND x2 PHONO

Clear Beyond Dual Phono è stata una "voce di menu segreta" per un po' di tempo. Ci è stato chiesto di preparare una coppia di cavi di interconnessione Clear Beyond da utilizzare con un braccio DIN a 5 pin in un sistema analogico estremo mostrato all'High End Show di Monaco. Poi si è sparsa la voce e quelli che lo sapevano se ne sono innamorati. Ora Clear Beyond Dual Phono è sfuggito al mercato. Un singolo tratto di Clear Beyond Interconnect, con schermature multiple e otto conduttori di propagazione abbinati da 26,5 AWG, è un cavo phono dalle prestazioni elevate. Sono disponibili terminazioni personalizzate, comprese le connessioni Cardas R-DIN e SME 90° DIN. Terminazioni standard: da Cardas S-DIN a SRCA. Terminato a mano a Bandon, Oregon. Conduttori: nucleo in Kevlar a propagazione abbinata, grado 1 ultra fine, rame OFHC puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro ridimensionate in base alle proporzioni del rapporto aureo e vanno da 47 AWG a 39 AWG. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: Star-Quad 4 conduttori con tubi dell'aria in LDPE antistatico legati con nastro adesivo in PTFE impregnato di carbonio. Lo strato esterno utilizza tubi d'aria in PTFE scalati 1.618 volte più grandi dei tubi centrali per sospendere lo schermo composito di rame stagnato e filo magnetico lontano dai conduttori che trasportano il segnale. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 8x26,5 AWG Diametro esterno: 0,511”/13 mm

Clear Beyond Dual Phono has been a “secret menu item” for a while. We were asked to prepare a pair of Clear Beyond Interconnects for use with a 5-pin DIN tonearm in an extreme analog system being shown at the Munich High End Show. Then word spread, and those in the know fell in love with it.Now Clear Beyond Dual Phono has escaped into the marketplace. A single run of Clear Beyond Interconnect, with multiple shields, and eight 26.5 AWG Matched Propagation Conductors, is a top performing phono cable. Custom terminations including Cardas R-DIN and SME 90° DIN connections are available. Standard Terminations: Cardas S-DIN to SRCA. Hand terminated in Bandon, Oregon. Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure OFHC copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions and range from 47 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Star-Quad 4 conductors with anti-static LDPE air- tubes bound with carbon impregnated PTFE tape wrap. Outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of tinned copper and magnet wire away from the signal carrying conductors. Finished in an ultra soft extruded TPR jacket.  Gauge: 8x26.5 AWG  Outside Diameter: 0.511”/13mm

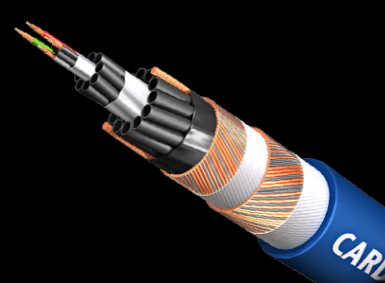

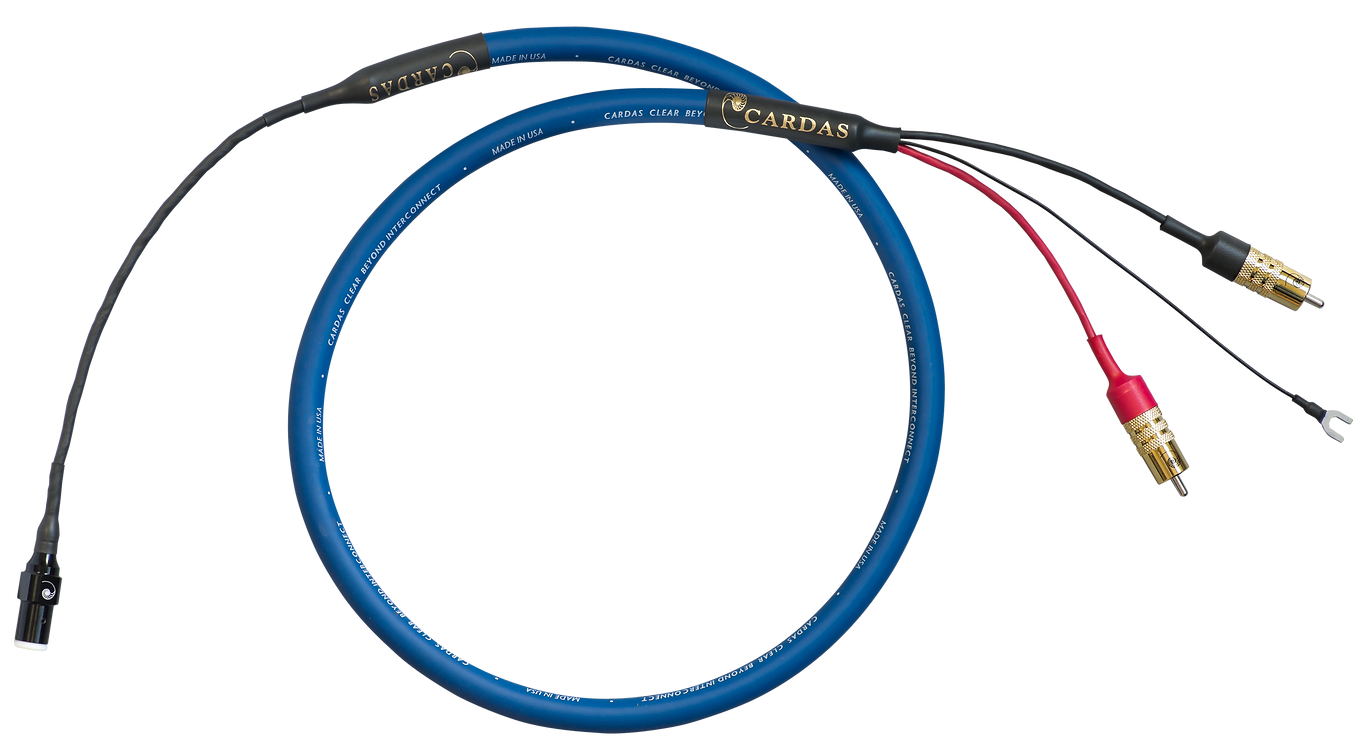

CARDAS CLEAR BEYOND  PHONO

Clear Beyond Phono, una meraviglia del moderno design dei cavi, presenta i nostri conduttori di propagazione abbinati più avanzati. Clear Beyond Phono apporta notevoli miglioramenti nell'immagine spaziale, nella dinamica e nell'impatto a bassa frequenza, pur mantenendo la classica musicalità Cardas. Clear Beyond Phono si basa su oltre 30 anni di dedizione incessante di Cardas Audio alla perfezione dei cavi ad alte prestazioni. Più di ogni altra cosa, Clear Beyond Phono è musicale. L'equilibrio tonale è completamente neutro con velocità e trasparenza insuperabili. Ognuno è realizzato su ordinazione e terminato a mano solo dai nostri tecnici senior. Sono disponibili terminazioni personalizzate, comprese le connessioni Cardas R-DIN e SME 90° DIN. Terminazioni standard: Cardas S-DIN a SRCA o RCA a RCA. Saldato a mano a Bandon, Oregon. Conduttori: Nucleo in kevlar a propagazione abbinata, rame OFHC puro di grado 1,99,9999% ultra fine con rivestimento trasparente SPN (Litz), dimensioni del calibro ridimensionate secondo le proporzioni del rapporto aureo e vanno da 47 AWG a 39 AWG. Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: Star-Quad 4 conduttori con tubi d'aria in LDPE antistatico legati con nastro in PTFE impregnato di carbonio. Lo strato esterno utilizza tubi d'aria in PTFE scalati 1.618 volte più grandi dei tubi centrali per sospendere lo schermo composito di rame stagnato e filo magnetico lontano dai conduttori che trasportano il segnale. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 4x26,5 AWG Diametro esterno: 0,511"/13 mm

Clear Beyond Phono, a marvel of modern cable design, features our most advanced Matched Propagation Conductors. Clear Beyond Phono brings noteworthy improvements in spatial imaging, dynamics, and low frequency impact while retaining the classic Cardas musicality.Clear Beyond Phono builds on over 30 years of Cardas Audio’s relentless dedication to the perfection of high performance cables. More than anything, Clear Beyond Phono is musical. Tonal balance is completely neutral with unsurpassed speed and transparency. Each is made to order and hand terminated only by our senior technicians.Custom terminations including Cardas R-DIN and SME 90° DIN connections are available.Standard Terminations: Cardas S-DIN to SRCA or RCA to RCA. Hand soldered in Bandon, Oregon.Conductors: Matched Propagation Kevlar core, ultra fine Grade 1,99.9999% pure OFHC copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions and range from 47 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Star-Quad 4 conductors with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. Outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of tinned copper and magnet wire away from the signal carrying conductors. Finished in an ultra soft extruded TPR jacket.Gauge: 4x26.5 AWG Outside Diameter: 0.511”/13mm

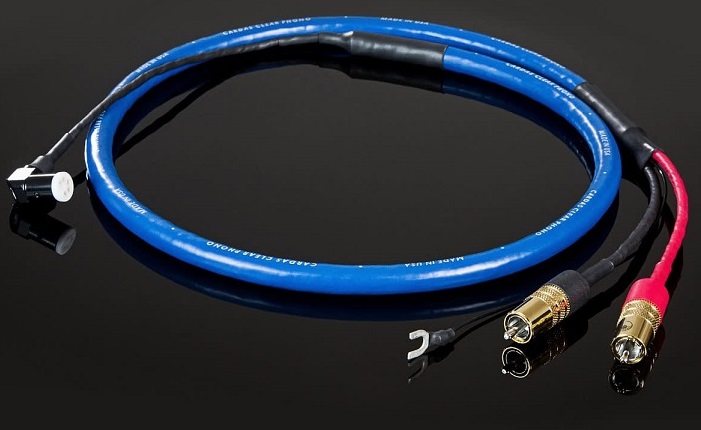

CARDAS CLEAR  PHONO

Completamente neutrale e dinamico. Eccezionale estensione e velocità delle alte frequenze. Il nostro cavo phono di punta è destinato a sistemi di livello di riferimento in sale di ascolto acusticamente neutre. Controllo perfetto su tutta la gamma di frequenze. Estrae ogni dettaglio e rimane musicale, mai affaticante. Terminazioni standard: da Cardas S-DIN a Cardas SRCA o da RCA a RCA. Molte altre opzioni disponibili. Design/Costruzione: Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1 ultra fine, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro ridimensionate in base alle proporzioni del rapporto aureo e gamma da 41 AWG a 39 AWG . Geometria dello strato incrociato, isolato in una guaina in PTFE estruso ultra sottile. Geometria: doppi conduttori mono doppino con tubi d'aria LDPE antistatici legati con nastro PTFE impregnato di carbonio. Lo strato esterno utilizza tubi d'aria in PTFE scalati 1.618 volte più grandi dei tubi centrali per sospendere lo schermo composito di rame stagnato 42 AWG e filo magnetico lontano dai conduttori che trasportano il segnale. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 4x25,5 AWG Diametro esterno: 0,418"/10,6 mm

Completely neutral and dynamic. Superb high frequency extension and speed. Our flagship phono cable is intended for reference level systems in acoustically neutral listening rooms. Perfect control over the entire frequency range. Extracts every detail and remains musical, never fatiguing. Standard Terminations: Cardas S-DIN to Cardas SRCA, or RCA to RCA. Many other options available.Design/Construction: Conductors: Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions and range from 41 AWG to 39 AWG. Cross-field layer geometry, insulated in ultra thin extruded PTFE jacket. Geometry: Dual mono twisted pair conductors with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. Outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of 42 AWG tinned copper and magnet wire away from the signal carrying conductors. Finished in an ultra soft extruded TPR jacket. Gauge: 4x25.5 AWG Outside Diameter: 0.418”/10.6mm

Clear phono cable is a four conductor version of the Clear interconnect. It uses the same matched propagation conductors to achieve the most revealing phono cable we have ever developed. Termination Options: Available with Cardas Straight or Right-Angle DIN plugs; terminated with our top-of-the-line SRCA plugs. Cardas CG XLR plugs also available

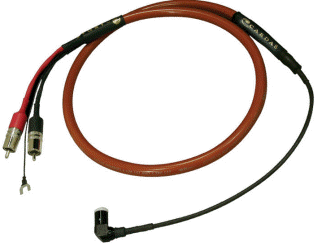

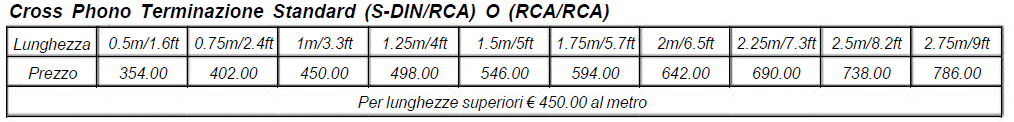

CARDAS CROSS  PHONO

Cross Phono At the top of our Cross line of Phono Cables, Cross is a four conductor, double-shielded phono interconnect for use with DIN-output turntables. Termination Options: Available with Cardas Straight or Right-Angle DIN plugs; terminated with our top-of-the-line SRCA plugs. XLR plugs also available.

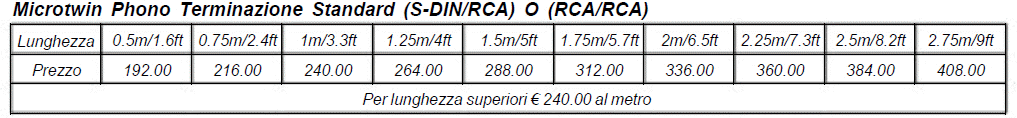

CARDAS MICROTWIN  PHONO

Microtwin Phono Our most affordable phono cable, Microtwin features Cardas' Pure Copper Litz Conductors. Lightweight, flexible, and shielded. Termination Options: Micotwin Phono comes standard with our S-DIN-E, and GRMO RCA plugs. Our R-DIN is available as an upgrade, for people who need a 90 degree DIN.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

CARDAS  iLINK RCA -MINI JACK

iLink The Cardas iLink cable provides a quality connection between portable devices and your home stereo system. Uses Cardas Headphone Cable, a 1/8" stereo mini plug, and a pair of Cardas RCA plugs


CARDAS  iLINK MINI JACK-MINI JACK

MINI JACK-MINI JACK

iLink The Cardas iLink cable provides a quality connection between portable devices and your home stereo system. Uses Cardas Headphone Cable, a 1/8" stereo mini plug, and a pair of Cardas RCA plugs

Cardas Ear Speakers: Both Cardas Ear Speaker models are original George Cardas designs, with Cardas cables. Bodies are machined from brass, and feature Golden Spiral curves. The EM5813 is copper plated & clear coated; the A8 has a rubberized ABS coating. The EM5813 has an 11mm driver with Neodymium magnet, and an innovative technique to prevent eddie-currents. Cabled with Cardas Clear Light Headphone cable. The A8 has a 10.85mm Ultra Linear, Contour Field, Dual Magnet Driver. The A8 is cabled with an all new spiral cable that is extremely light, flexible, and strong.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

CARDAS  CLEAR BEYOND Headphone Cable

Uno dei nostri progetti di ricerca e sviluppo più impegnativi ed estesi è finalmente giunto a buon fine. Il progetto Clear Beyond Headphone Cable è iniziato grazie alla sollecitazione di una manciata di clienti affezionati che volevano vederci spingere oltre i limiti e superare il nostro cavo Clear Headphone Cable. Questo non era un compito da poco e richiese diversi anni. Clear Headphone Cable ha richiesto lo sviluppo del primo conduttore di propagazione concentrico miniaturizzato, che presentava sfide sia nella produzione che nella terminazione. Una volta conquistati quelli, avevamo un cavo che ampliava le prestazioni di ogni cuffia su cui lo provavamo. Ma l'idea di passare alla fase successiva era scoraggiante. Abbiamo iniziato, naturalmente, cercando modi per migliorare il direttore d'orchestra. Prendendo spunto da Clear Beyond Interconnect, abbiamo perfezionato la cordatura e l'intrecciatura, creando una disposizione più fine del filo di rame cardas ultra puro di grado 1. Ciò ha prodotto notevoli miglioramenti, ma sapevamo che avremmo potuto andare oltre facendo qualcosa che non avevamo mai fatto prima: l'aggiunta di argento. Il nostro nuovissimo conduttore di propagazione abbinato alla metallurgia ibrida presenta un filo da 30 awg di filo d'argento di grado 1 Cardas, oltre al molti miglioramenti che abbiamo apportato dal punto di partenza di Clear Headphone Cable. I risultati sono spettacolari. Come con Clear Headphone, Clear Beyond Headphone ha due cavi separati, uno per ciascun canale. Filo blu e nero intrecciato e unito con un bellissimo hardware per dargli "l'aspetto" che merita. Terminazione standard: ci sono troppe opzioni disponibili per elencarle tutte. Vi preghiamo di contattarci per conoscere le ultime aggiunte alla nostra vasta selezione di terminazioni per cuffie. Design/Costruzione: Conduttori: nucleo in kevlar a propagazione abbinata, grado 1, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro scalate a Golden Proporzioni di rapporto. Nucleo in argento di grado 1 da 30 AWG. Geometria dello strato incrociato, isolata in una guaina avvolta in nastro di PTFE.Geometria: due conduttori avvolti concentricamente affiancati da fibre antistatiche. Guaina esterna in nylon intrecciato con hardware placcato in rame. Calibro: 8x25,5 AWG + 4x30 AWG (17,5 AWG per polarità) Diametro esterno: 0,182"/4,63 mm

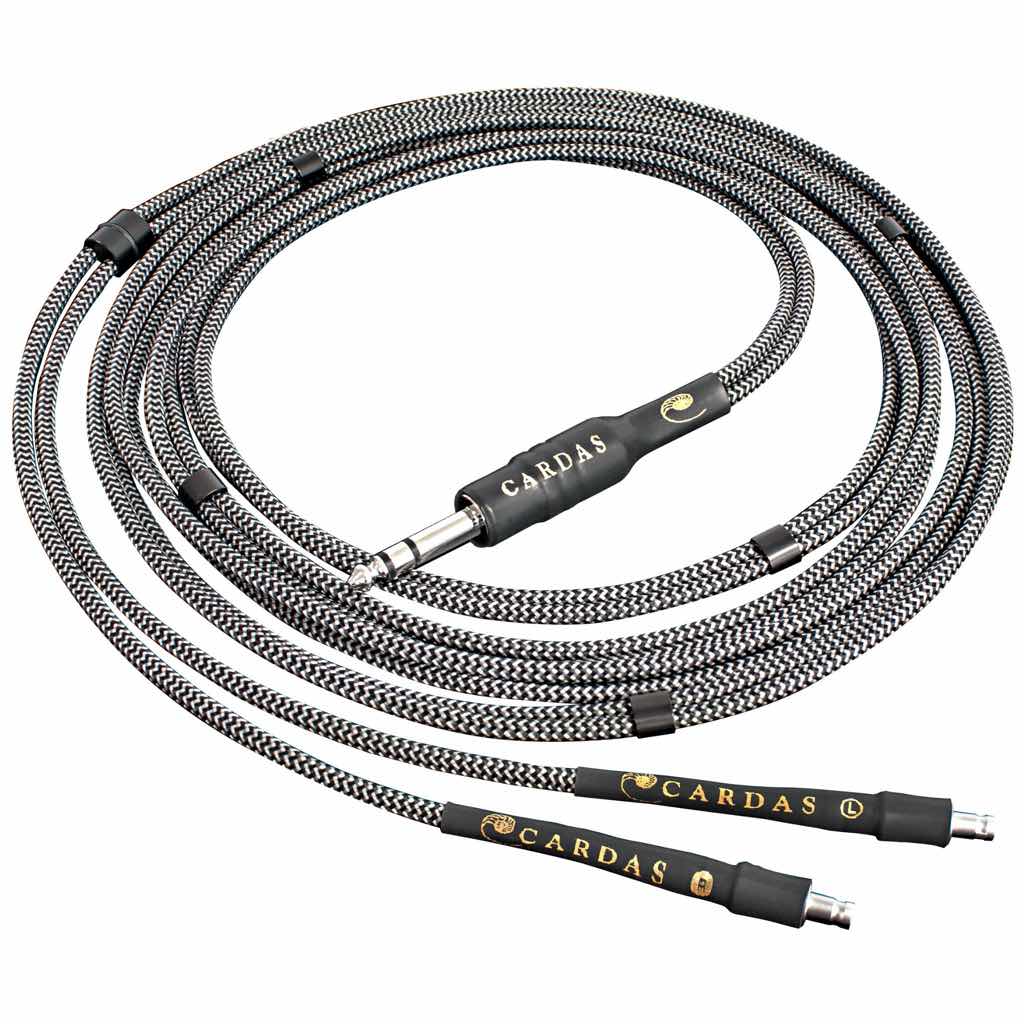

One of our most challenging and extensive R&D projects has finally come to fruition. The Clear Beyond Headphone Cable project began due to the prodding from a handful of loyal customers who wanted to see us push the envelope, and outdo our vener- cable Clear Headphone Cable. This was no small task, and took several years. Clear Headphone Cable required the development of the first miniaturized concentricMatched Propagation Conductor, which presented challenges in both production and termination. Once those were conquered, we had a cable that expanded the performance of every headphone on which we tried it. But the idea of taking it to the next step was daunting.We began, naturally, by looking at ways to improve the conductor. Taking cues from Clear Beyond Interconnect, we refined the stranding and braiding, creating a finer arrangement of Grade 1 Ultra Pure Cardas Copper wire. This yielded notable improvements, but we knew we could take it further by doing something we’ve never done before - adding silver.Our all new Hybrid Metallurgy Matched Propagation Conductor features a 30 awg strand of Cardas Grade 1 Silver Wire, in addition to the many improve- ments we’ve made from the starting point of Clear Headphone Cable. Theresults are spectacular. As with Clear Headphone, Clear Beyond Headphone has two separate cables, one for each channel. Braided blue & black thread, and joined together with beautiful hardware to give it “the look” it deserves.Standard Termination: There are too many options available to list them all. Please contact us to learn about the newest additions to our large selection of headphone terminations.Design/Construction: Conductors: Matched Propagation Kevlar core, Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions. 30 AWG Grade 1 Silver core. Cross-field layer geometry, insulated in an PTFE tape wrapped jacket.Geometry: Concentrically wound two conductor flanked by anti-static fibers. Braided nylon outer jacket with copper plated hardware.  Gauge: 8x25.5 AWG + 4x30 AWG (17.5 AWG per polarity) Outside Diameter: 0.182”/4.63mm

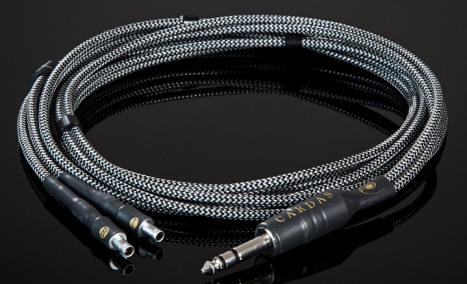

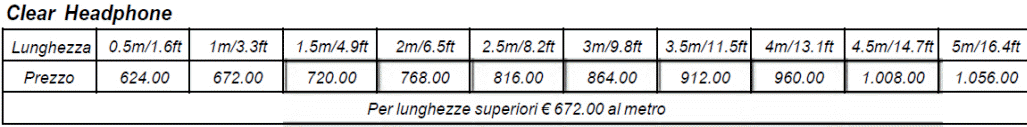

CARDAS  CLEAR Headphone Cable

Abbiamo preso il cavo dell'altoparlante Clear e l'abbiamo ridimensionato per funzionare solo con le migliori cuffie del pianeta. Questa è una corsa dual mono (due cavi completamente isolati per sinistra e destra) proprio come una coppia di cavi per altoparlanti. Perfetto per operazioni bilanciate o single ended. Completamente neutrale, dettagliato, con dinamiche realistiche. Questo cavo ti aiuta a dimenticare le cuffie e a perderti nella musica. Design/Costruzione: Conduttori: Nucleo in kevlar a propagazione abbinata, grado 1, rame privo di ossigeno puro al 99,9999% con rivestimento trasparente SPN (Litz), dimensioni del calibro scalate al rapporto aureo proporzioni. Geometria dello strato incrociato, isolata in una guaina avvolta in nastro FEP.Geometria: doppi conduttori mono doppino con tubi d'aria in LDPE antistatici legati con nastro in PTFE impregnato di carbonio. Lo strato esterno utilizza tubi d'aria in PTFE scalati 1.618 volte più grandi dei tubi centrali per sospendere lo schermo composito di rame stagnato 42 AWG e filo magnetico lontano dai conduttori che trasportano il segnale. Rifinito in una giacca in TPR estruso ultra morbido. Calibro: 8x26,5 AWG Diametro esterno: 0,170"/4,31 mm

We took the Clear speaker cable and scaled it down to work for only the best headphones on the planet. This is a dual mono run (two completely isolated cables for left and right) just like a pair of speaker cables. Perfect for balanced or single ended operation. Completely neutral, detailed, with life like dynamics. This cable helps you to forget about the headphones and get lost in the music.Design/Construction: Conductors: Matched Propagation Kevlar core, Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometry, insulated in an FEP tape wrapped jacket.Geometry: Dual mono twisted pair conductors with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. Outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of 42 AWG tinned copper and magnet wire away from the signal carrying conductors. Finished in an ultra soft extruded TPR jacket. Gauge: 8x26.5 AWG Outside Diameter: 0.170”/4.31mm

CARDAS  EM5813  CUFFIA

 EM5813 Ear Speakers Cardas Ear Speakers are efficient, natural, musical, and are the result of years of meticulous design by George Cardas. Components of the EM5813 were manufactured in Oregon, California, and The People's Republic of China. Custom alloys were sourced from Italy, Germany and the US, magnets from China, and thin film from Japan.  he EM5813 can be ordered with - or reterminated with - balanced connections for use with Astell & Kern or Pono

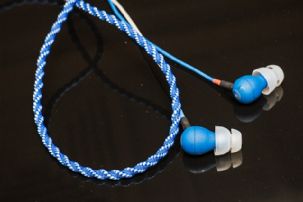

CARDAS  A8 CUFFIA

l

new design, the A8 Ear Speakers feature a 10.85mm Ultra Linear, Contour Field, Dual Magnet Driver - producing brilliant highs and deep bass. The Rubberized ABS coated body incorporates a Golden Spiral curve, as with the EM5813. The lightweight, flexible cable has separate conductors for each channel The cable disconnects at the joiner, so you can switch from a single-ended cable, to balanced.  Use the Cardas Clarifier App for iOS and Android with your Ear Speakers

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it
